JVCKENWOOD KW-M745DBT User manual

B5A-2246-03 (X)© 2019 JVCKENWOOD Corporation
KW-M745DBT
MONITOR WITH RECEIVER
INSTRUCTION MANUAL
• Updated information (the latest Instruction Manual, etc.) is available
from
<http://www.jvc.net/cs/car/>.
!B5A-2246-03_JVC_X_En.indb 1 2019/09/18 11:35

2
Contents
Before Use 4
Precautions................................................................... 4
How to read this manual ......................................... 4
Basic Operations 5
Functions of the Buttons on the Front Panel ... 5
Turning on the Unit ................................................... 5

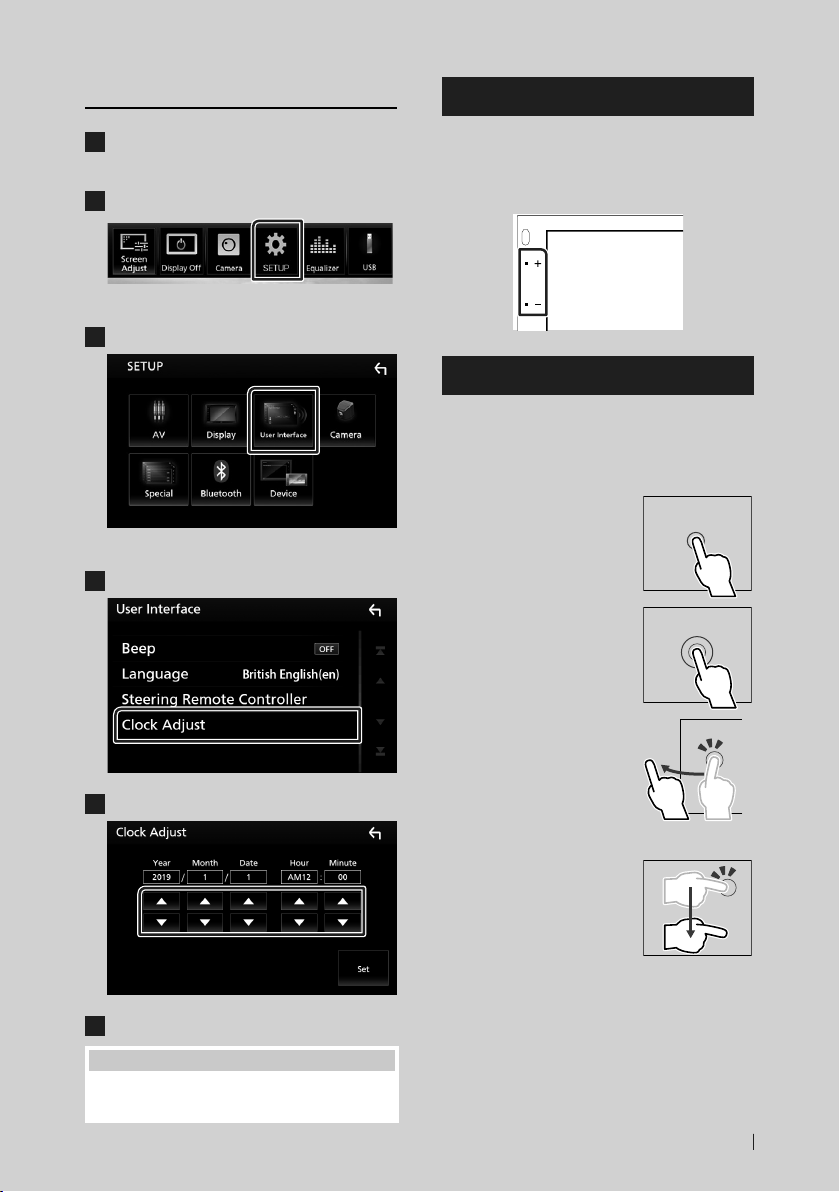

Initial Settings.............................................................. 6
Adjusting the volume............................................... 7
Touch screen operations ......................................... 7

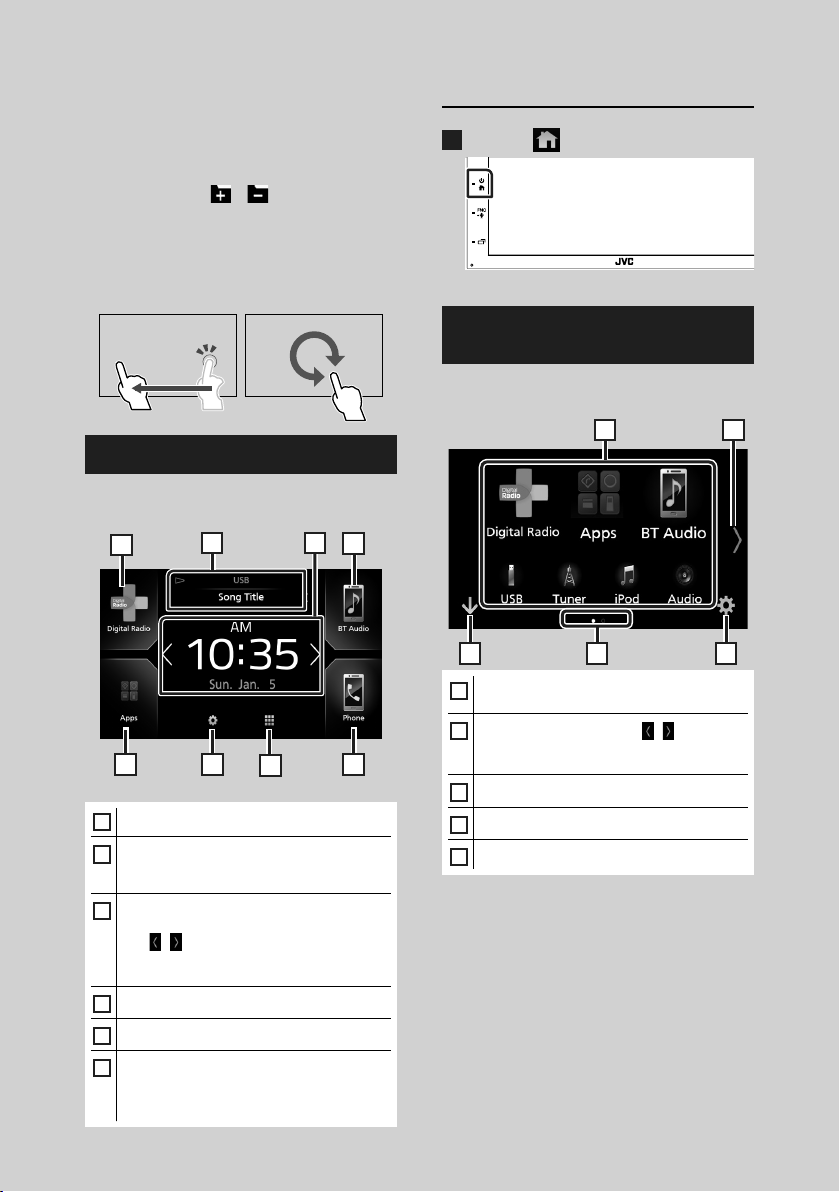

HOME screen descriptions...................................... 8

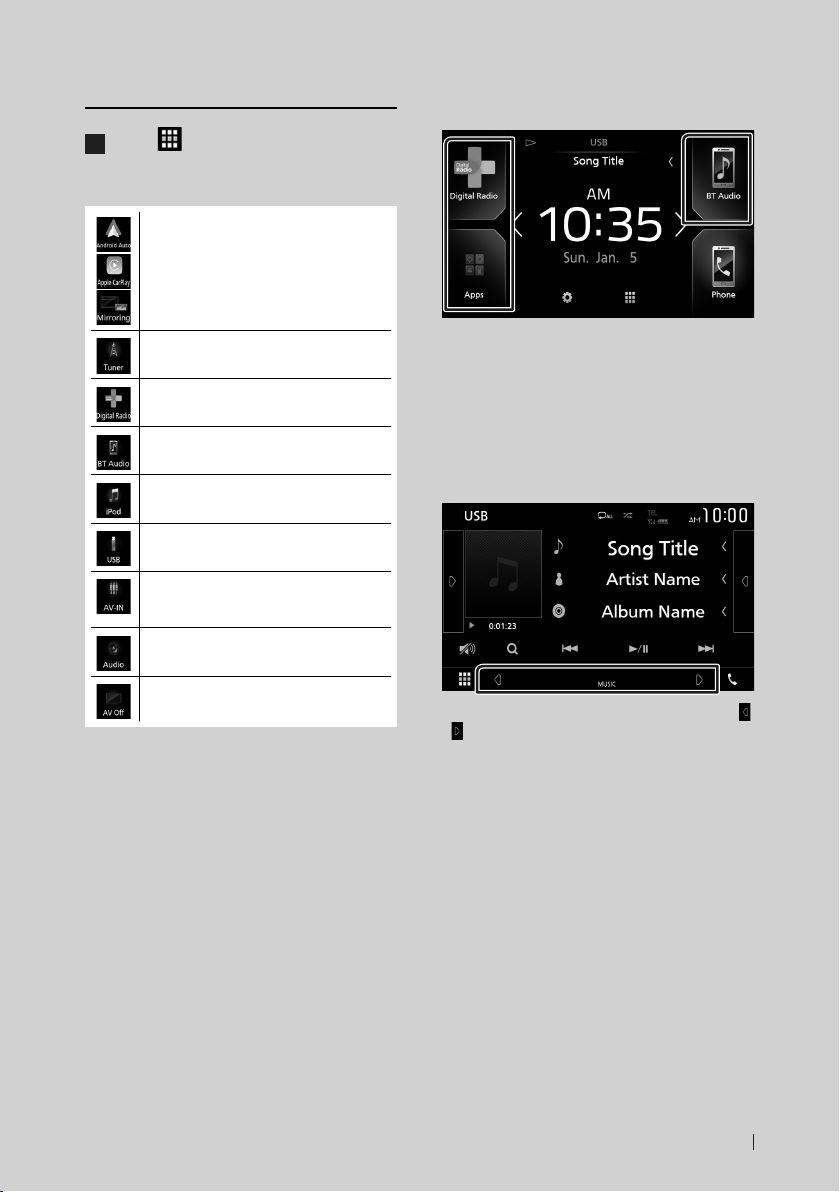

Source selection screen descriptions.................. 8
Source control screen descriptions ...................10
Popup menu ..............................................................11
List screen ...................................................................11
APPS-Android Auto™/
Apple CarPlay 12
Apple CarPlay Operation.......................................12

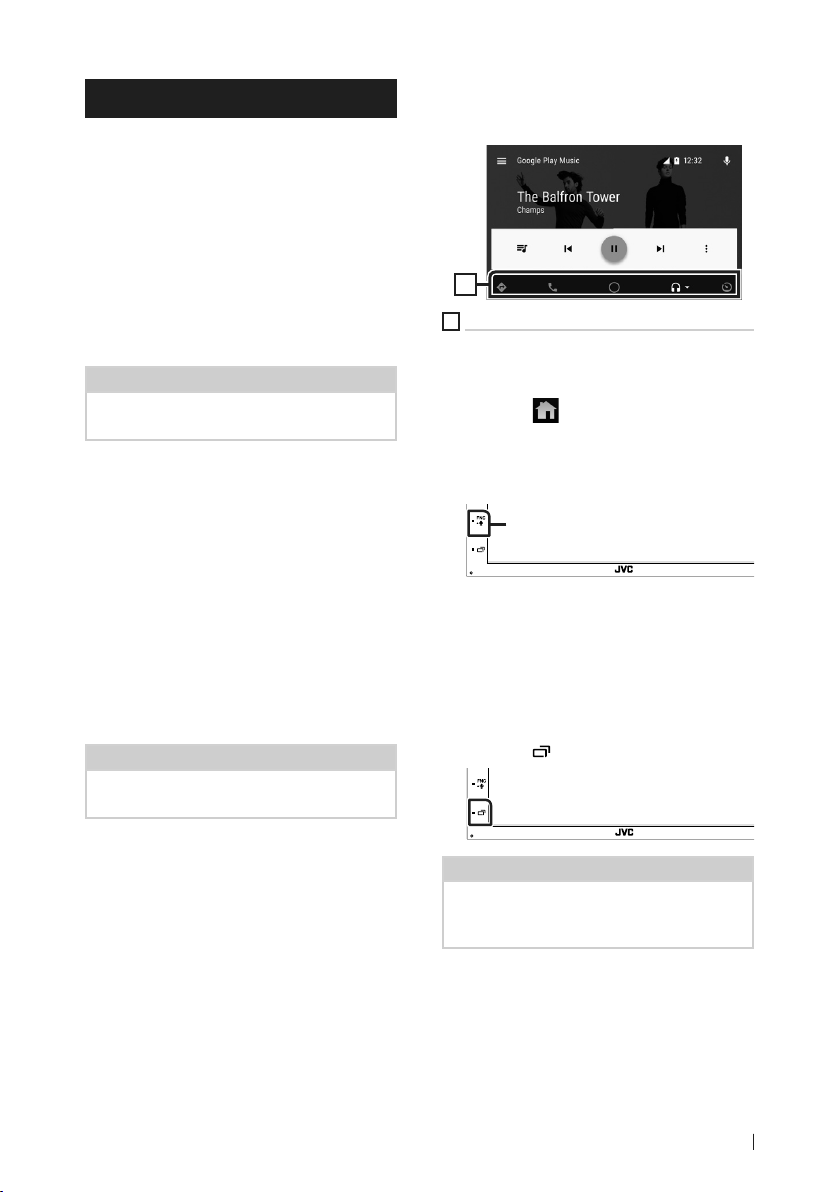

Android Auto™ Operation.....................................13

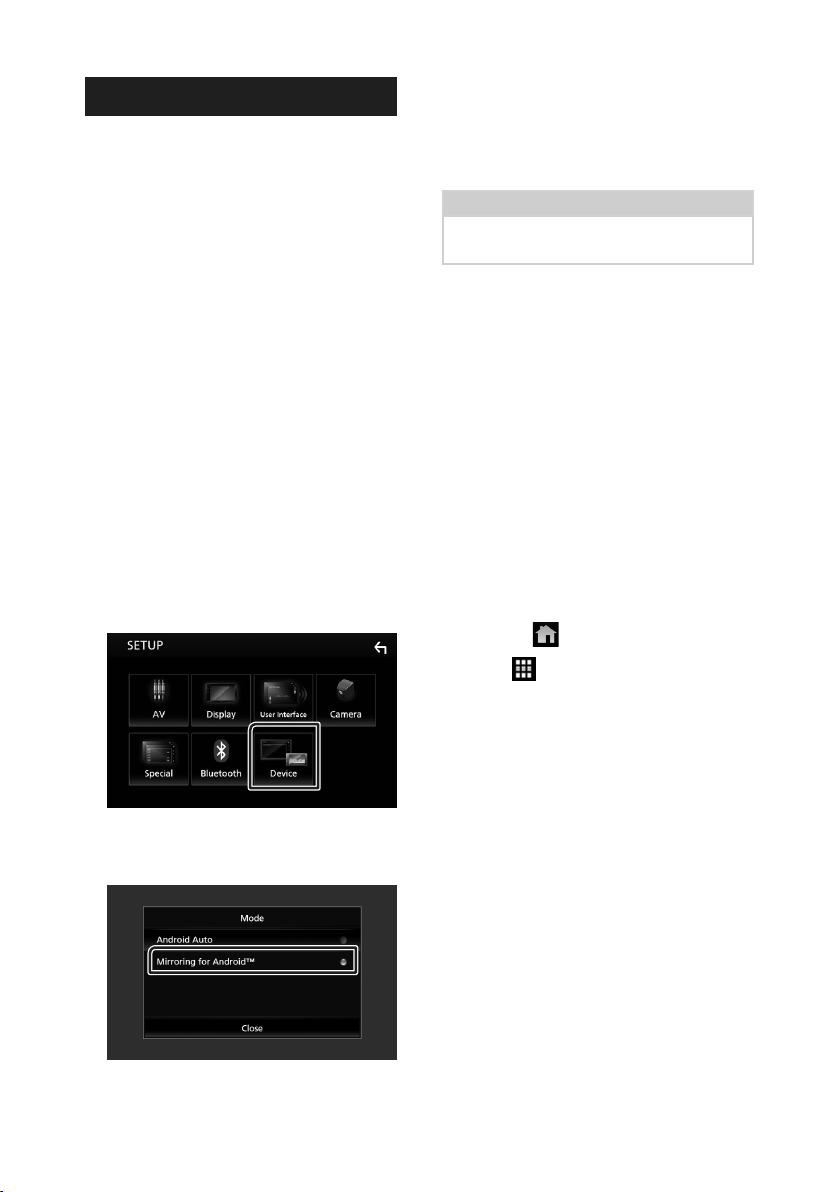

Mirroring......................................................................14
iPod/iPhone 15
Preparation.................................................................15
iPod/iPhone Basic Operation ...............................15

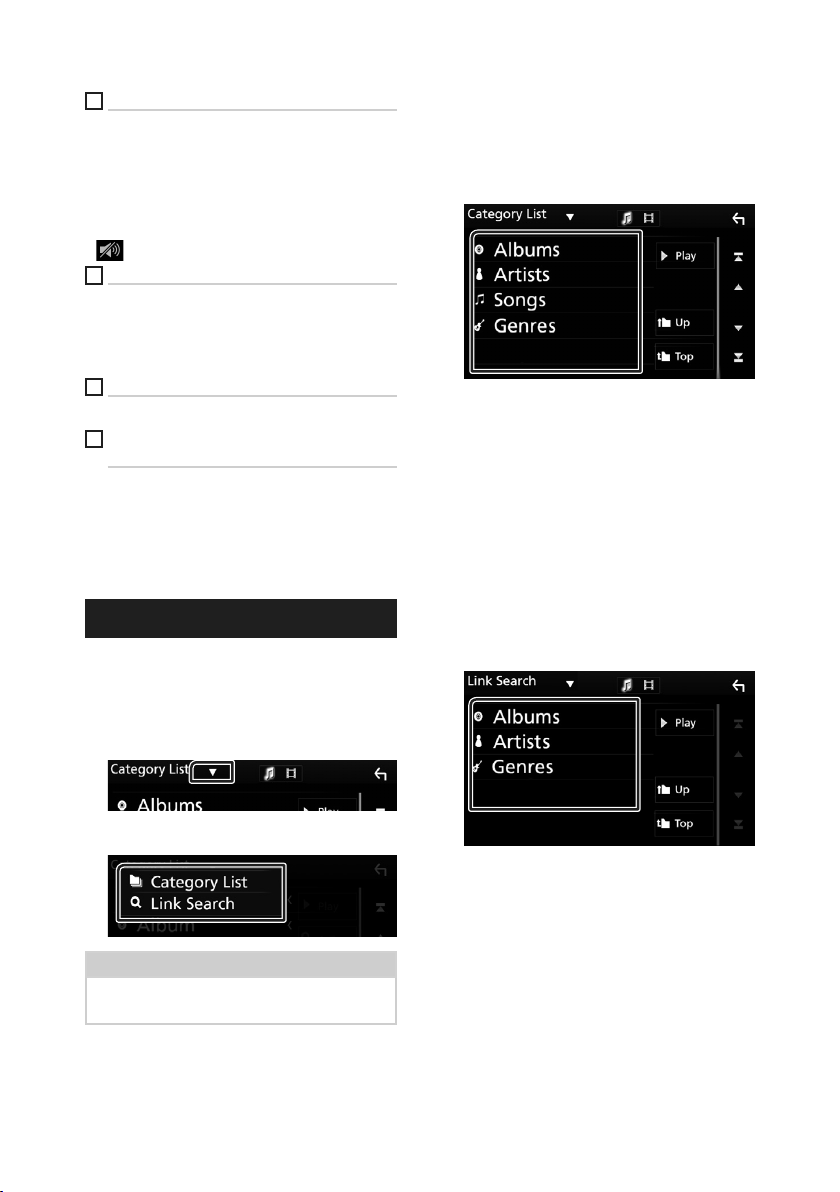

Search Operation......................................................16
USB 17
Connecting a USB device ......................................17
USB Basic Operation................................................17
Search Operation......................................................19
Tuner 20
Tuner Basic Operation ............................................20
Memory Operation ..................................................21
Selecting Operation ................................................21
Traffic Information ...................................................22
Tuner Setup ................................................................22
Digital Radio 23
Digital Radio Basic Operation ..............................23
Storing Service in Preset Memory ......................24
Selecting Operation ................................................24
Traffic Information ...................................................25
Digital Radio Setup..................................................25
Bluetooth Control 26
Information for using Bluetooth® devices.......26
Register from the Bluetooth device...................27
Bluetooth Setup........................................................27
Playing Bluetooth Audio Device.........................28
Using Hands-Free Unit............................................29
Other External Components 33
View Camera ..............................................................33
External audio/video players—AV-IN ...............34
!B5A-2246-03_JVC_X_En.indb 2 2019/09/18 11:35

3English
Setting Up 35
Monitor Screen Setup.............................................35
System Setup .............................................................35
User Interface Setup................................................36
Special Setup .............................................................36
Display Setup.............................................................36
AV Setup ......................................................................37
Controlling Audio 38
Speaker/ X’over setup.............................................38
Controlling General Audio....................................39
Equalizer Control ......................................................40
Volume Offset............................................................41
Sound Effect...............................................................41
Listening Position/ DTA ..........................................42
Remote control 43
Functions of the Remote control Buttons.......43
Connection/Installation 44
Before Installation ....................................................44
Installing the unit .....................................................45
Troubleshooting 49
Problems and Solutions.........................................49
Error Messages ..........................................................49
Appendix 50
Playable Media and Files........................................50
Specifications.............................................................51
About this Unit..........................................................53
!B5A-2246-03_JVC_X_En.indb 3 2019/09/18 11:35

Before Use
4
Before Use
Precautions
#WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select language to display menus,
audio file tags, etc. See User Interface Setup
(P.36).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where the
service is not supported by any broadcasting
station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the
stain off with a cloth moistened with neutral
cleaner, then wipe it again with a clean soft
dry cloth.
NOTE
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erase screened print.
Ñ How To Reset Your Unit
• If the unit or the connected unit fails to
operate properly, reset the unit.1 Press the
<Reset> button.The unit returns to factory
settings.
NOTE
• Disconnect the USB device before pressing the
<Reset> button. Pressing the <Reset> button
with the USB device connected can damage
the data stored in the USB device. For how to
disconnect the USB device, see Disconnect the
USB device (P.17).
• When the unit is turned on after resetting, the
Initial SETUP screen appears. See Initial setup
(P.6).
How to read this manual
• The screens and panels shown in this manual are
examples used to provide clear explanations of the
operations.
For this reason, they may be different from the actual
screens or panels used, or some display patterns may
be different.
• Indication language: English indications are used
for the purpose of explanation. You can select the
indication language from the [SETUP]menu. See
User Interface Setup (P.36).
Reset button
!B5A-2246-03_JVC_X_En.indb 4 2019/09/18 11:35

Basic Operations
5English
Basic Operations
Functions of the Buttons on
the Front Panel
1
2
3
4
5
NOTE
• The panels shown in this guide are examples
used to provide clear explanations of the
operations. For this reason, they may be different
from the actual panels.
Name
• Motion
1
Remote Sensor
• Receives the remote control signal.
2
＋, −(Volume)
• Adjusts volume.
The volume will go up until 15 when you
keep pressing ＋.
3
,
• Displays the HOME screen (P.8).
• Pressing for 1 second turns the power off.
• When the power off, turns the power on.
4
FNC ,
• Displays the popup menu screen.
• Pressing for 1 second displays the Voice
Recognition screen (P.31).
5
• Displays the APP (CarPlay/ Android Auto)
screen.
• Pressing for 1sec turns the display off.
6
Reset
• If the unit or the connected unit fails to
operate properly, the unit returns to initial
settings when this button is pressed.
Turning on the Unit
The method of turning on is different
depending on the model.
1
Press the [ ] button.
 The unit is turned on.
●To turn off the unit:
1
Press the ]button for 1 second.
NOTE
• If it is your first time turning the unit on after
installation, it will be necessary to perform Initial
setup (P.6).
6
