König Electronic CMP MEDIAPLAY1 User manual

82
MULTIMEDIÁLNÍ PŘEHRÁVAČ
S HDMI PORTEM
65
MULTIMEDIASOITIN + HDMI
47
REPRODUCTOR MULTIMEDIA
+ HDMI
29
MULTIMEDIASPELER + HDMI
11
MULTIMEDIA-PLAYER + HDMI
93
MULTI MEDIA PLAYER + HDMI
74
MULTIMEDIASPELARE + HDMI
56
MULTIMÉDIÁS LEJÁTSZÓ + HDMI
38
LETTORE MULTIMEDIALE + HDMI
20
LECTEUR MULTIMÉDIA + HDMI
MULTI MEDIA PLAYER + HDMI
CMP-MEDIAPLAY1

2
ENGLISH
Specifications:
Functions 3.5” USB2.0 HDD
Multimedia Player
Supported HDD SATA I/II hard disk (up to 750GB)
Supported HDD format FAT32 and NTFS
Supported memory cards SD/MMC/MS
Supported media formats
Video: MPEG4, AVI, DivX, XviD, MPEG 1, MPEG 2, MPG,
DAT, VOB
Audio: MP3, WMA
Picture: JPEG
Supported subtitles SRT, SSA, ASS, SUB, ASS,PSB, TXT
Video Output CVBS (Auto/NTSC/PAL), 1.0Vp-p(75Ω)
Audio Output Analogue stereo, Coaxial, SPDIF/PCM,S-Video
Image Resolution 480p,576p,720p,1080i
Controller Remote control and panel button control
OSD Language English, French, German, Italian, Spanish.
Data interface USB 2.0 high speed interface
Power indicator LED indicator
Power supply: AC 110~240 V 50/60 Hz, DC 5.6 V, 2 A.
The player has two main functions: HDD Storage for your PC & Multimedia Player
to TV/Monitor
How to use the player as a HDD Storage Device:
- Install the hard disk into the player enclosure and connect it to your PC via USB.
- Turn on the player. The driver for this new portable HDD will be initialized automatically
in your computer if you are running Windows® 2000/XP/Vista.
- A green arrow will appear in the right bottom corner of the computer screen.
(If you used a new hard disk in the media player you have to format and partition the
hard disk before use)

3

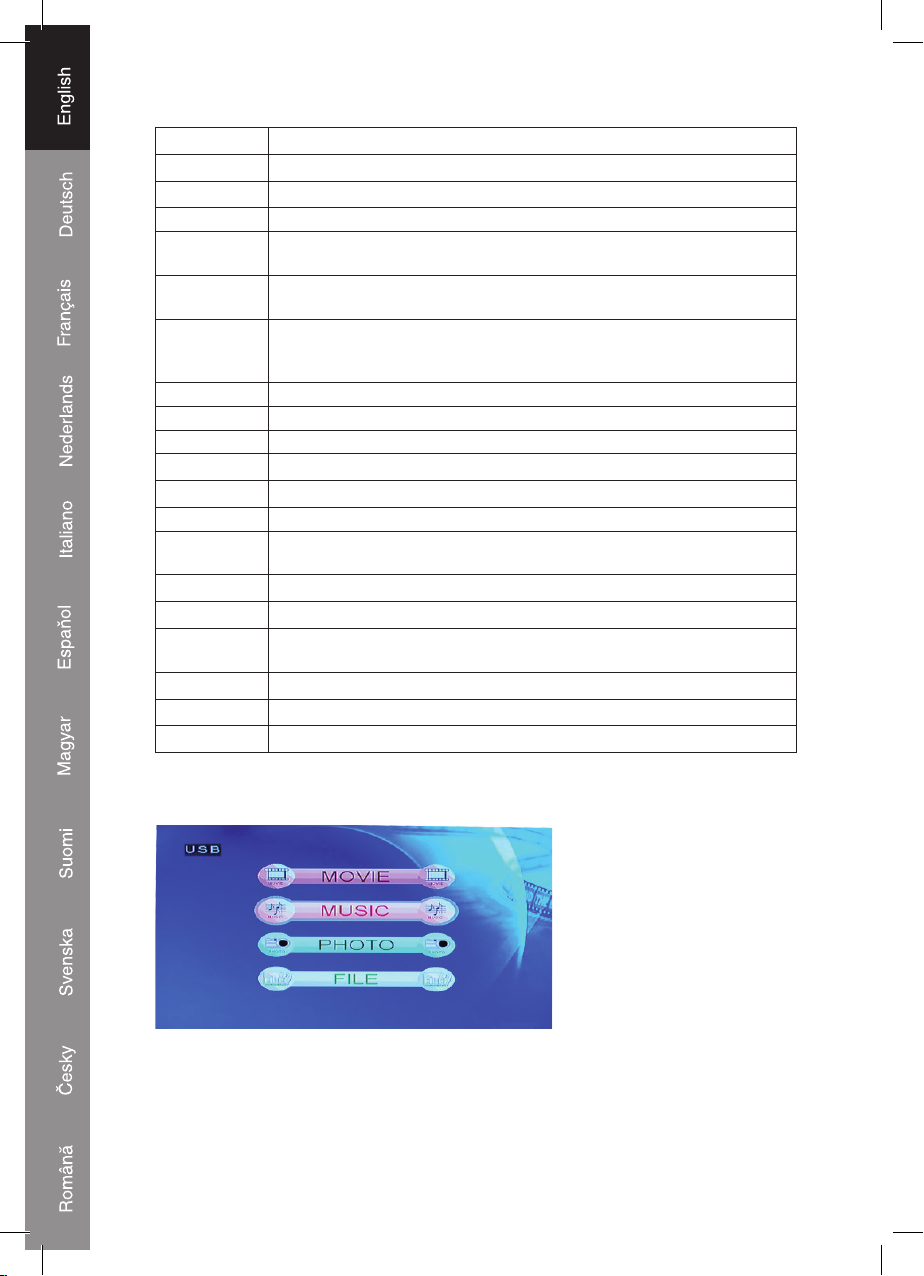

Playing Movies:
Select MOVIE in the main menu and press the ENTER key to enter the movie browser
mode.
Use the Up/Down/Left/Right keys to select a movie and the ENTER key to start
playback.
Key function during movie playback
Key Function Description
POWER Power switch
OSD Shows current play time. Press again and press ENTER and it will show
the time left, press it a third time to exit the mode.
L/R Switch between 3 audio channels: Mono Left/ Mono Right/Stereo
A-B
Repeat playback of a specific segment (A-B). At the starting point
A (point A) press A-B key, a few minutes later press the A-B key again
at the stopping point B (point B), the device will repeat playback of the
selected segment (A-B) automatically. Press A-B key again to cancel
A-B repeat playback
MENU Return to navigation window
DEVICE Return to device window
Navigate up
Navigate down

4
Navigate left
Navigate right
ENTER ()Press to select the highlighted option
ZOOM Use the ZOOM key to zoom in
STEP Press the STEP key, the device will enter STEP playback status. Press
ENTER to return to normal playback
TIME Press the TIME key, and use the numeric keys to navigate to a exact
point in a movie.
SLOW
Press SLOW, the device will enter slow playback mode, there are
3 selectable speeds 2x/4x/8x. Press the ENTER key to return to normal
playback mode
SUBTITLE Subtitle: SRT, SSA, ASS, SUB, ASS, PSB, TXT
MUTE Mute switch
SETUP While in stop modus, enter the SETUP menu
Stop key
Pause/Play
REPEAT Change repeat play mode
INFO While in stop status, select file and press OSD/INFO. The screen will
then show file information
Skip backward
Skip forward
Skip to previous movie when playing, and to previous page when
browsing
Skip to next movie when playing, and to next page when browsing
VOL+ ()Increase volume during playback
VOL– ()Decrease volume during playback
Playing Music:
Select MUSIC in the main menu and press ENTER to enter the music library:

5
Press the UP/ DOWN keys to select the desired music file and press ENTER to play.
Key functions of music:
Key Function Description
POWER Power switch
OSD Shows current play time. Press again and press ENTER and it will show
the time left, press it a third time to exit the mode.
L/R Switch between 3 kinds of audio channels: Mono Left/ Mono Right/
Stereo
MENU Return to navigation window
DEVICE
When there is only one storage device in use, use this key to return to
the navigation window. When multiple storage devices are in use, use
this key to return to the device window
Navigate up
Navigate down
Navigate left
Navigate right
ENTER ()Press ENTER to confirm a selection
MUTE Mute switch
SETUP When not in playback mode, enter setup menu
Stop
Play/Pause
REPEAT Change repeat play mode
INFO In stop status, select file and press OSD/INFO, screen shows the file
information
Play previous track when in playback mode, and to previous page when
browsing.
Play next track when in playback mode, and to next page when
browsing.
Skip backward

6
Skip forward
VOL+ () Increase the volume during playback
VOL– ()Decrease the volume during playback
Key Function of Picture Playing
Key Function Description
POWER Power switch
MENU Return to navigation window
DEVICE Return to device window
ZOOM Turn on ZOOM mode. Use the and keys to zoom in and out.
Press the ZOOM key again to exit the zoom mode.
Up/Down/
Left/Right While a picture is showing, use these keys to rotate the picture
ENTER ()Press to start auto playback of your photos
Setup When not in playback mode, enter setup menu
PHOTO/
DIGEST
Press the PHOTO/DIGEST key, the device will search for JPG files and
create a nine-picture preview
Stop
Pause/Play
REPEAT Change repeat play mode
(zoom–) ZOOM- function during ZOOM ON
(zoom+) ZOOM+ function during ZOOM ON
Return to previous function
Next function

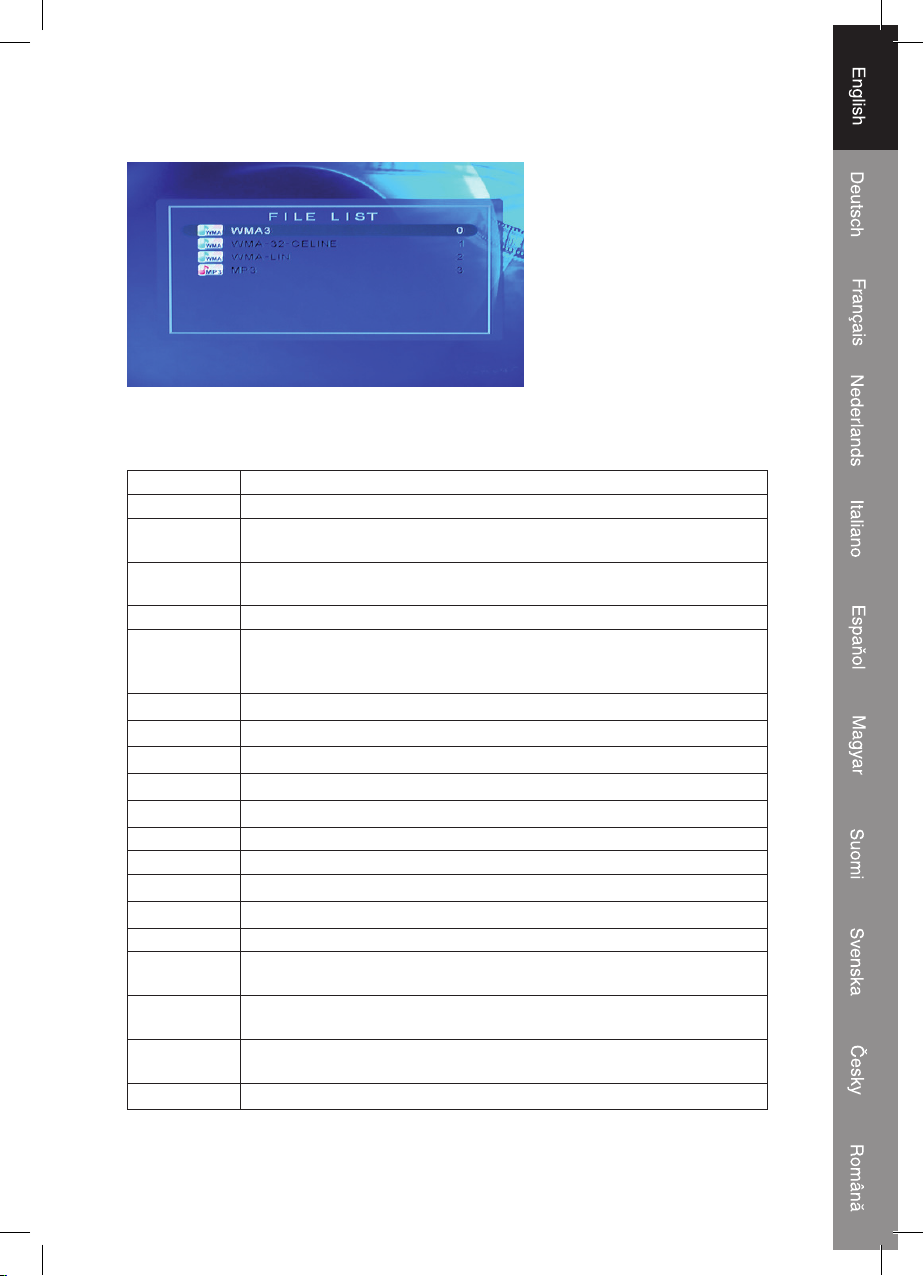

File management:
Select FILE in the main menu, press the ENTER key to enter file browse mode
Press Up/Down keys to select a file and press ENTER to confirm.

7
File copy function
- Please choose a destination where you want to save the file or folder, and press the
COPY TARGET key to confirm.
- Choose the file or folder which you want to copy, and press COPY again. Now the folder
you’ve selected will be copied into the destination folder.

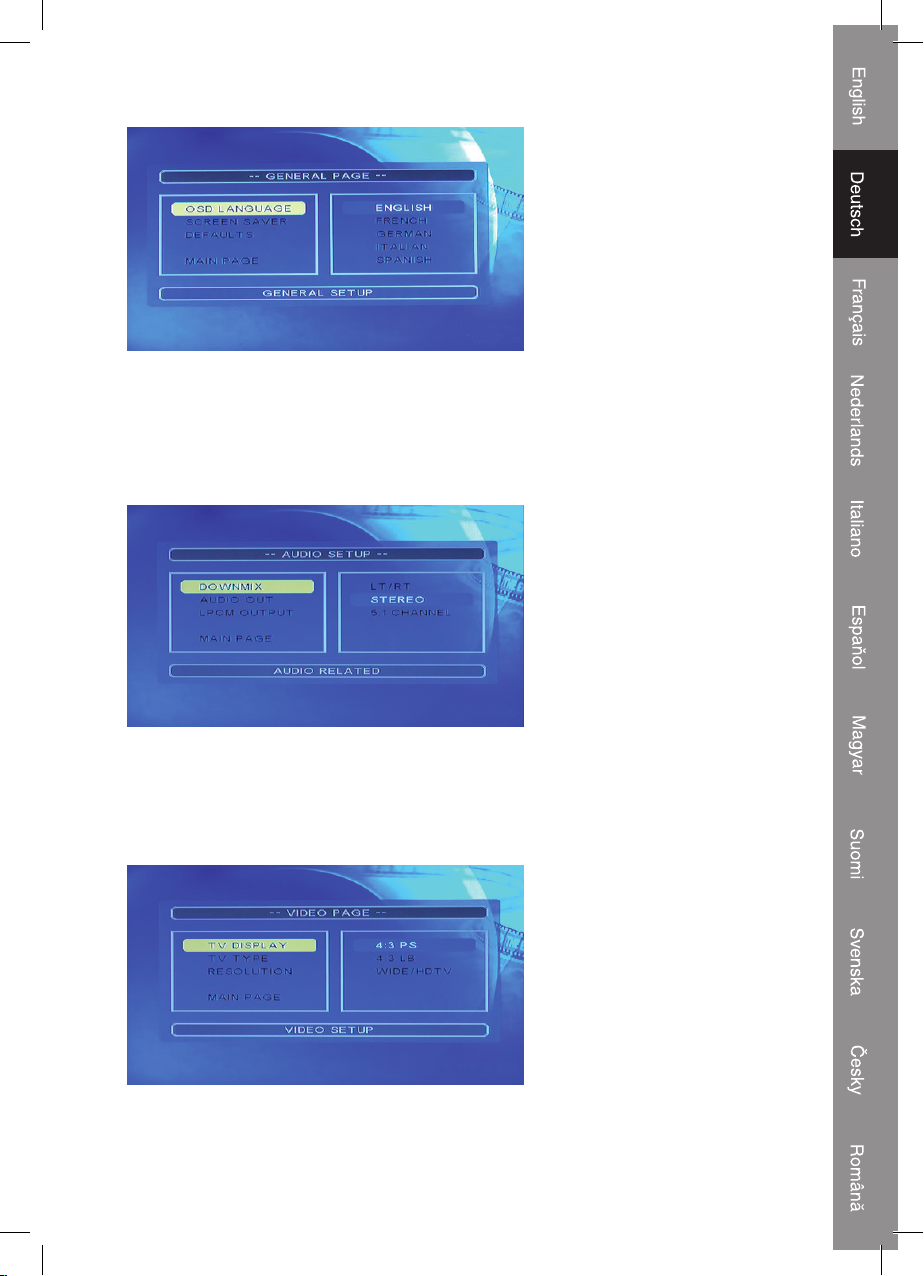

System setup
If you want to change the system settings, please press the STOP button to stop any
playback. Then press SETUP to access the system setup menu
* OSD LANGUANGE options: English (default), French, German, Italian, Spanish.
* Screen Saver options: ON (default), OFF.
* Default: Reset (This will reset all the settings to the factory settings).

8

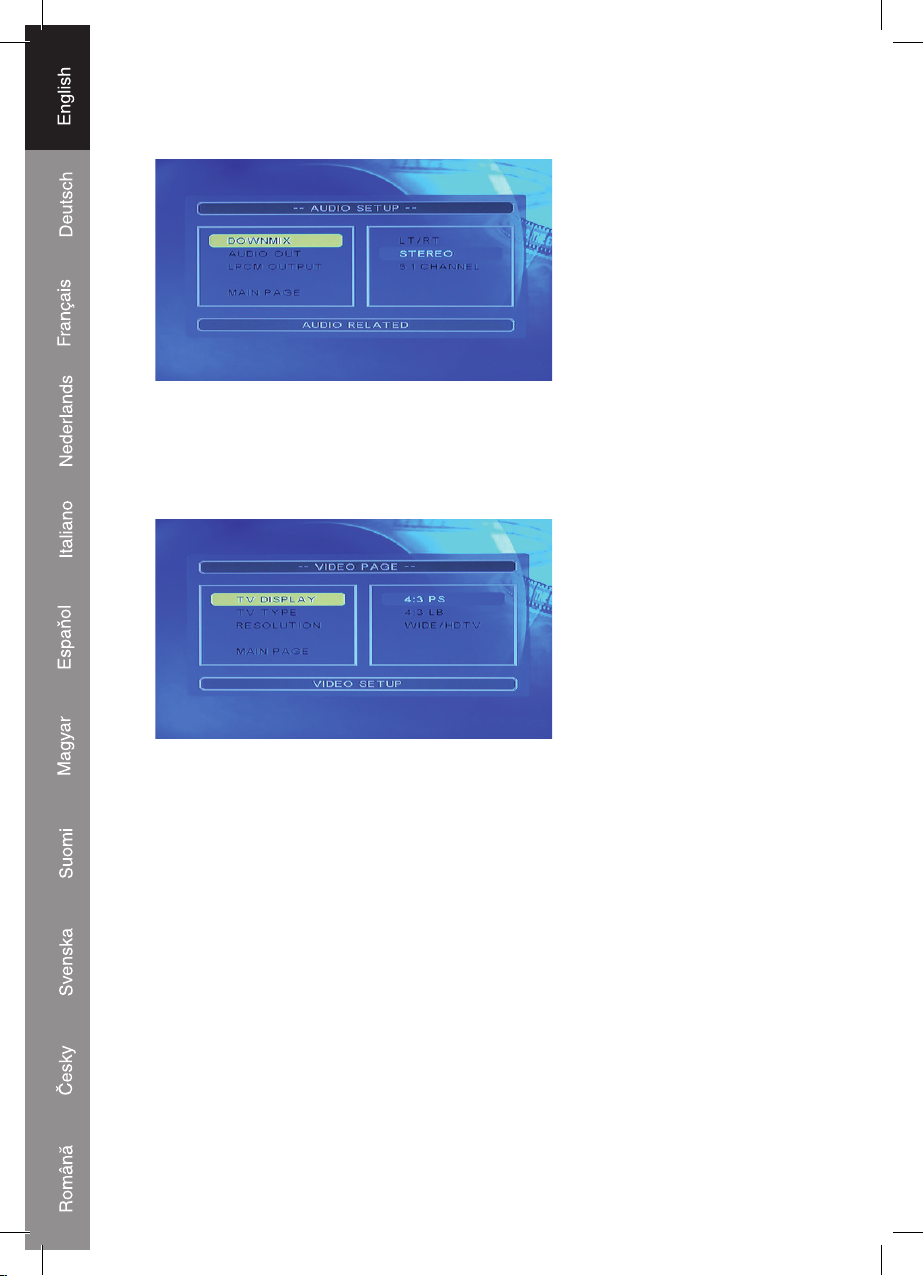

Audio Setup
* DOWNMIX options: LT/RT, Stereo (default)
* Audio Out options: ANALOG (default) ,SPDIF/PCM
* LPCM Output setup options: LPCM 48K (default), LPCM 96K.
Video Setup
* TV Display options: 4:3 PS (Pan Scan)(default), 4:3 LB (Letter Box), WIDE/HDTV.
* TV Type options: Auto, NTSC, PAL (default).
* Resolution options: INTERLACE, PROGRESSIVE (default), 720P, 1080i.

9
Declaration of conformity
We,
Nedis B.V.
De Tweeling 28
5215MC ’s-Hertogenbosch
The Netherlands
Tel.: [phone]
Email: [e-mail]
Declare that product:
Brand: König Electronic
Model: CMP-MEDIAPLAY1
Description: Multi media Player + HDMI
Is in conformity with the following standards
EN55022:1998+A: 2000+A2: 2003
EN61000-3-2: 2000
EN61000-3-3: 1995+A1:2001
EN22024: 1998+A1: 2001+A2:2003
EN60950-1:2001+A11:2004
And complies with the requirements of the European Union Directives 2004/108/EC.
‘s-Hertogenbosch, 26 November 2008
Mrs. J. Gilad
Purchase Director

10
Safety precautions:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION To reduce risk of electric shock, this product should
ONLY be opened by an authorized technician when
service is required. Disconnect the product from mains
and other equipment if a problem should occur. Do not expose the product to water or
moisture.
Maintenance:
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modifications of the
product or damage caused due to incorrect use of this product.
General:
Designs and specifications are subject to change without notice.
All logos brands and product names are trademarks or registered trademarks of their
respective holders and are hereby recognized as such.
Attention:
This product is marked with this symbol. It means that used electrical and
electronic products should not be mixed with general household waste. There
is a separate collections system for these products.
Copyright ©
