Kärcher HD 4.5/32-4S Eb User manual

Register and win!
www.kaercher.com
HD 4.5/32-4S Eb
HD 4.5/32-4S Ec
59658610 04/13

2

– 1
몇WARNING
When using this product basic precau-
tions should always be followed, in-
cluding the following:
1 Read all the instructions before us-
ing the product.
2 High pressure jets can be danger-
ous if misused. The jet must not be
directed at persons, animals, elec-
trical devices, or the unit itself.
3 To reduce the risk of injury, close
supervision is necessary when a
product is used near children.
4 Know how to stop the product and
bleed pressures quickly. Be thor-
oughly familiar with the controls.
5 Stay alert – watch what you are do-
ing.
6 Wear safety goggles.
7 Donotuseacids,alkaline,solvents,
or any flammable material in this
product. These products can cause
physicalinjuries tothe operatorand
irreversible damage to the ma-
chine.
8 Donotoperate the productwhenfa-
tigued or under the influence of al-
cohol or drugs.
9 Donotoverreach or standonunsta-
ble support. Keep good footing and
balance at all times.
10 To reduce the risk of electrocution,
keep all connections dry and off the
ground. Do not touch plug with wet
hands.
11 The Trigger Gun Safety Lock pre-
vents the trigger from accidentally
being engaged. This safety feature
DOES NOT lock trigger in the ON
position.
12 Keep operating area clear of all per-
sons.
13 Follow the maintenance instruc-
tions specified in the manual.
14 Risk of Injection or Injury – Do Not Di-
rect Discharge Stream At Persons.
15 Do not use extension cord with this
product.
16 This Product Shall Only Be Con-
nected To A Power Supply Recep-
tacle Protected By A Ground Fault
Circuit Interrupter."
몇Warning
Risk of Injection or Injury – Do Not Di-
rect Discharge Stream At Persons.
This product must be grounded. If it
should malfunction or breakdown,
grounding provides a path of least re-
sistance for electric current to reduce
the risk of electric shock. This product
is equipped with a cord having an
equipment-grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and or-
dinances.
DANGER
Improper connection of the equipment-
grounding conductor can result in a
risk of electrocution. Check with a qual-
ified electrician or service personnel if
you are in doubt as to whether the out-
let is properly grounded. Do not modify
the plug provided with the product - if it
will not fit the outlet, have a proper out-
let installed by a qualified electrician.
Donotuseanytypeofadapterwiththis
product.
IMPORTANT SAFETY IN-
STRUCTIONS
GROUNDING INSTRUCTIONS
3EN

– 2
To comply with the National Electrical
Code (NFPA 70) and to provide addi-
tionalprotectionfromtheriskofelectric
shock, this pressure washer should
only be connected to a receptacle that
is protected by a ground fault circuit in-
terrupter (GFCI).
Use only 3-wire extension cords that
have 3-prong grounding-type plugs
and3-polecordconnectorsthataccept
the plug from the product. Use only ex-
tension cords that are intended for out-
door use. These extension cords are
identified by a marking "Acceptable for
use with out-door appliances: store in-
doors while not in use." Use only ex-
tension cords having an electrical
rating not less than the rating of the
product. Do not use damaged exten-
sion cords. Examine extension cord
before using and replace if damaged.
Do not abuse extension cord and do
not yank on any cord to disconnect.
Keep cord away from heat and sharp
edges. Always disconnect the exten-
sion cord from the receptacle before
disconnecting the product from the ex-
tension cord.
몇Warning
To reduce the risk of electrocution,
keep all connections dry and off the
ground. Do not touch plug with wet
hands.
몇Warning
To reduce the risk of fire, electric
shock, or injury:
Injection hazard: equipment can cause
serious injury if the spray penetrates the
skin. Do not point the gun at anyone or
any part of the body. In case of penetra-
tion seek medical aid immediately.
This system is capable of producing
25000 kPa. To avoid rupture and inju-
ry, do not operate this pump with com-
ponents rated less than 25000 kPa
working pressure (including but not
limited to spray guns, hose and hose
connections).
Before servicing, cleaning, or removal
of any part, shut off power and relieve
pressure.
High Pressure. Keep clear of nozzle.
Close cover before operating the ma-
chine.
This appliance is intended for commer-
cial use.
Do not spray electrical apparatus and
wiring.
This machine has been designed for
use with cleaning chemicals supplied
or recommended by the manufacturer.
The use of other cleaning chemicals
may affect the operation of the ma-
chine and void the warranty.
(Cold Water Only)
몇CAUTION
When connecting the water inlet to the
water supply mains, local regulations
of your water company must be ob-
served. In some areas the unit must
not be connected directly to the public
drinkingwater supply.This isto ensure
that there is no feedback of chemicals
into the water supply. Direct connec-
tion via a receiver tank or backflow pre-
venter, for example, is permitted.
GROUND FAULT CIRCUIT IN-
TERRUPTER PROTECTION
EXTENSION CORDS
SAVE THESE INSTRUCTIONS
WATER SUPPLY
4 EN

– 3
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
–Never use the pressure washer to
draw in water contaminated with
solvents, e.g. paint thinners, gaso-
line, oil, etc.
–Always prevent debris from being
drawn into the unit by using a clean
water source. Use additional water
filter.
Please read and comply with
these original instructions
prior to the initial operation of your ap-
pliance and store them for later use or
subsequent owners.

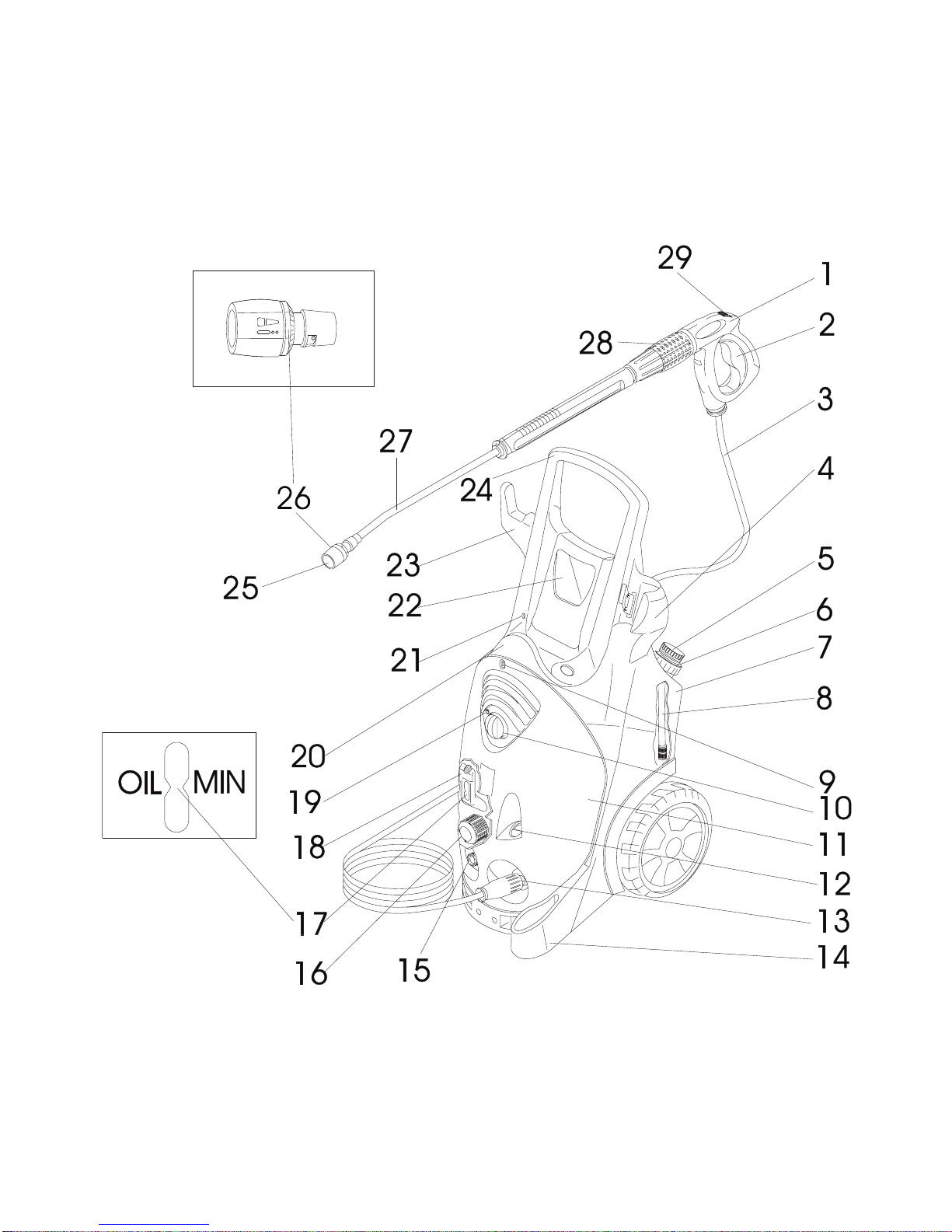

Please unfold the front picture side
1 Hand blowing gun
2 Lever for hand spray gun
3 High pressure hose
4 Storage for hand spray gun
5 Dosage valve for detergent
6 Detergent tank lid
7 Detergent Tank
8 Detergent suction hose with deter-
gent filter and lid
9 Fastening screw for device hood
10 Power switch
11 Cover
12 Manometer
13 High pressure connection
14 Nozzle holder
15 Water connection
16 Fine filter
17 Oil level indicator
Contents
Device elements . . . . . . . . . EN . . 3
Safety instructions. . . . . . . . EN . . 4
Proper use. . . . . . . . . . . . . . EN . . 4
Safety Devices . . . . . . . . . . EN . . 4
Environmental protection. . . EN . . 5
Before Startup . . . . . . . . . . . EN . . 5
Start up . . . . . . . . . . . . . . . . EN . . 5
Operation. . . . . . . . . . . . . . . EN . . 6
Transport. . . . . . . . . . . . . . . EN . . 8
Storage . . . . . . . . . . . . . . . . EN . . 8
Maintenance and care. . . . . EN . . 9
Troubleshooting. . . . . . . . . . EN . 10
Accessories and Spare Parts EN . 11
Warranty . . . . . . . . . . . . . . . EN . 11
Technical specifications. . . . EN . 12
Device elements
5EN

– 4
18 Oil tank
19 Indicator lamp
20 Storage compartment for hoses
21 Deaerating the detergent tank
22 Accessory compartment
23 Cable clamp
24 Handle
25 Nozzle
26 Marking of the nozzle
27 Spray lance
28 Pressure and volume regulation
29 Safety lever
–The operating elements for the
cleaning process are yellow.
–The controls for the maintenance
and service are light gray.
–Before first start-up it is definitely
necessary to read the operating in-
structionsandsafetyindicationsNr.
5.951-949.0!
–Pleasefollowthe national rulesand
regulations for fuel spray jets of the
respective country.
–Pleasefollowthe national rulesand
regulations for accident prevention
of the respective country. Fuel
spray jets must be tested regularly
and the results of these tests must
be documented in writing.
Danger
Immediate danger that can cause se-
vere injury or even death.
몇Warning
Possible hazardous situation that
could lead to severe injury or even
death.
Caution
Possible hazardous situation that
could lead to mild injury to persons or
damage to property.
High-pressure jets can be
dangerous if improperly
used. The jet may not be di-
rected at persons, animals, live electri-
cal equipment or at the appliance itself.
According to the applicable
regulations, the appliance
must never be used on the
drinking water net without a system
separator. Use a suitable system sep-
aratormanufacturedby Kärcher;or,as
an alternative, a system separator as
per EN 12729 Type BA.
Water flowing through a system sepa-
rator is considered non-drinkable.
Use this high pressure cleaner exclu-
sively for
–Cleaningusinglowpressurejetand
detergent (for e.g. for cleaning ma-
chines, cars, buildings, tools),
–Forcleaningusinghighpressurejet
without detergent (for e.g. for clean-
ing facades, terraces, garden appli-
ances).
For stubborn dirt, we recommend the
use of the dirt blaster as a special ac-
cessory.
Safety devices serve for the protection
of the user and must not be put out of
operation or bypassed with respect to
their function.
Colour coding
Safety instructions
Symbols in the operating in-
structions
Symbols on the machine
Proper use
Safety Devices
6 EN

– 5
While reducing the water supply/quantity
regulation at the pump head, the over-
flow valve opens and part of the water
flows back to the pump suck side.
If the lever on the trigger gun is re-
leasedthepressureswitchturnsoffthe
pump,thehigh pressurejetis stopped.
If the lever is pulled the pump is turned
on again.
The overflow valve and pressure
switch are set and sealed at the facto-
ry. Setting only by customer service.
Notes about the ingredients
(REACH)
You will find current information about
the ingredients at:
www.kaercher.com/REACH
–Check the contents of the pack be-
fore unpacking.
–In case of transport damage inform
vendor immediately
Read the oil level display when the
device is not running. The oil level
must be above the two pointers.
 Unscrew the fastening screws of the
device hood; remove the device hood.
Cut off tip of oil container cover
Fasten the device hood.
Mount the nozzle on the spray pipe
(markings on the adjustment ring at
the top).
Installspraypipeonthehand-spray
gun with pressure and volume reg-
ulation.
Lock in the cable hook in the side-
hole on the handle.
Fasten the high pressure hose to
the high pressure connection.
몇Danger
Danger of injury by electric shock.
The appliance may only be connected to
an electrical supply which has been in-
stalled in accordance with IEC 60364.
The voltage indicated on the type plate
must correspond to the voltage of the
electrical source.
The minimum fuse rating required at
the socket outlet is (see technical
specifications).
Overflow valve with pressure
switch
Environmental protection
Thepackaging materialcan
be recycled. Please do not
throw the packaging materi-
al into household waste;
please send it for recycling.
Old appliances contain
valuable materials that can
be recycled; these should
besentforrecycling. Batter-
ies, oil, and similar sub-
stances must not enter the
environment. Please dis-
pose of your old appliances
usingappropriatecollection
systems.
Pleasedonotrelease engine oil, fuel
oil, diesel and petrol into the environ-
mentProtectthegroundanddispose
of used oil in an environmentally-
clean manner.
Before Startup
Unpacking
Check oil level
Activate deaeration of oil container
Attaching the Accessories
Start up
Electrical connection
7EN

– 6
The appliance should always be con-
nected to the electrical mains using a
plug. It is forbidden to permanently con-
nect the appliance to the power supply.
The plug is only for mains separation.
Check the power cord with mains plug
for damage before every use. If the
power cord is damaged, please ar-
rangeimmediatelyfortheexchange by
an authorized customer service or a
skilled electrician.
The plug and coupling of the extension
cable used must be watertight.
Use the extension cord that has an ad-
equate cross-section (see "Technical
Data") and unwind it fully from the ca-
ble drum.
Unsuitable extension cables can be
hazardous. Only use extension cables
outdoors which have been approved
for this purpose and labelled with a suf-
ficient cable cross section:
For connection values, see type plate/
technical data.
몇Warning
Observe regulations of water supplier.
According to the applicable
regulations, the appliance
must never be used on the
drinking water supply without a system
separator. Use a suitable system sep-
aratormanufacturedbyKÄRCHER;or,
as an alternative, a system separator
as per EN 12729 Type BA. Water flow-
ing through a system separator is con-
sidered non-drinkable.
Caution
Always connect the system separator
to the water supply, never directly to
the appliance!
For connection values refer to techni-
cal specifications
Connectthesupply hose(minimum
length 7.5 m, minimum diameter 3/
4“) to the water connection point of
the machine and at the water sup-
ply point (for e.g. a tap).
Note
The supply hose is not included.
Open the water supply.
Screw the suction hose with filter
(orderno. 4.440-238.0)to thewater
connection.
Deaerate the appliance:
Unscrew the nozzle.
Switch on the appliance and let it run
until the water exiting is bubble-free.
At the end let the appliance run for
approx. 10 seconds - then switch
off. Repeat the procedure for a cou-
ple of times.
Switch off the appliance and fit the
nozzle again.
Danger
Risk of explosion!
Do not spray flammable liquids.
If the appliance is used in hazardous
areas (e.g. filling stations) all of the
safety provisions and operating in-
structions detailed in this manual must
be observed.
Caution
Clean engines only at places with cor-
responding oil separators (environ-
mental safety).
Note
The appliance is equipped with a pres-
sure switch. The motor starts up only
when the lever of the pistol is pulled.
Set the appliance switch to "I".
Water connection
Connection to the water supply
Drawing in water from open reservoirs
Operation
High pressure operation
8 EN

– 7
The indicator lamp glows green.
Unlockthehand-spray gun andpull
the lever of the gun.
 Set working pressure and water
quantity by turning (rungless) at the
pressureandquantity regulation(+/-).
For transporting small quantities, the
engine heat ensures that water is heat-
ed up to approx. 15 °C.
Close the hand spray gun.
Turn the casing of the nozzle till the
desired symbol matches the mark-
ing.
Select round or flat spray using
touch-less switching:
Turn the spray-pipe that is inclined
about 45° downward to the left or
the right.
몇Warning
Unsuitable detergents can cause dam-
age to the appliance and to the object
to be cleaned. Use only those deter-
gents that have been approved by
Kärcher. Observe the dosage and oth-
er instructions provided with these de-
tergents. For considerate treatment of
the environment use detergent eco-
nomically.
Follow the safety instructions for using
detergents.
Kärcher detergents ensure smooth
functioning. Please consult us or ask
for our catalogue or our detergent in-
formation sheets.
Fill detergent tank.
Set nozzle to "CHEM".
Set dosing value for detergent to
the desired concentration.
Spray the detergent sparingly on
the dry surface and allow it to react,
but not to dry.
Spray off loosened dirt with the
high-pressure ray.
Setdosingvaluefordetergentto"0"
after operation with cleaners. Start
the appliance and rinse for one min-
ute with clear water with an open
hand spray gun.
Releasetheleverofthehand-spray
gun; the device will switch off.
Release again the lever of the
hand-spray gun; the device will
switch on again.
On opening the hand-spray gun, the
device starts within the readiness peri-
od. The indicator lamp glows green.
The readiness period is over if the
hand-spray gun remains closed for 30
minutes. The indicator lamp blinks
green.
Select spray type
Meaning of the symbols
High pressure flat spray
(25°) for large dirt areas
High pressure circular spray
(0°) for specially stubborn dirt
Flat low pressure spray
(CHEM) for operating us-
ing detergents or clean-
ing at low pressure.
Operation with detergent
Position of the dosing
valve
1357
Detergent concentra-
tion [%]
(for max. flow quantity)
0,5 2,5 5,0 7,0
Recommended cleaning method
Interrupting operation
Operational readiness period
9EN

– 8
Set the appliance switch to "0".
Wait for a while.
Set the appliance switch to "I".
Customer Service can switch the de-
vice to continuous operations.
Set the appliance switch to "0".
Disconnect the mains plug from the
socket.
Shut off water supply.
Activate hand spray gun until de-
vice is pressure-less.
Press the safety lever of the hand-
spray gun to secure the lever of the
pistol against being released acci-
dentally.
Danger
Danger of scalding by means of hot wa-
ter. The water remaining in the switched
off device can get heated up. When you
removethehosefrom the waterinlet,the
heated water can spray out and cause
scalding. Remove the hose only when
the device has cooled down.
Insert the hand-spray gun in the
holder.
Wind up the high-pressure hose
and hang it over the hose storage.
Wind the connection cable around
the cable holder.
Fasten the plug with the mounted
clip.
몇Warning
Frost will destroy the not completely
water drained device.
Store the appliance in a frost free area.
Emptying the detergent tank (see
"Care and Maintenance/ as re-
quired").
Drain water.
Pump in conventional frost protec-
tion agents through the appliance.
Note
Use normal glycol-based anti-freezing
agents for automobiles.
Observe handling instructions of the
anti-freeze agent manufacturer.
Operate device for max. 1 minute
until the pump and conduits are
empty.
Caution
Risk of injury and damage! Observe
the weight of the appliance when you
transport it.
Pull the device behind you at the
handle for transporting it over lon-
ger distances.
Hold the device at the handles for
carrying, not at the push handle.
Empty the detergent tank before
transporting in horizontal position.
When transporting in vehicles, se-
cure the appliance according to the
guidelines from slipping and tipping
over.
Caution
Risk of injury and damage! Note the
weight of the appliance in case of stor-
age.
This appliance must only be stored in
interior rooms.
Reset readiness period
Turn off the appliance
Storing the Appliance
Frost protection
If you cannot store it in a frost-free
place:
Transport
Storage
10 EN

– 9
Danger
Risk of injury by inadvertent startup of
appliance and electrical shock.
First pull out the plug from the mains
before carrying out any tasks on the
machine.
Note
Please dispose off used oil only in the
collection points provided for them.
Please hand over old oil, if any, only at
suchplaces.Pollutingtheenvironment
with used oil is a punishable offence.
You can sign with your dealer a con-
tract for regular safety inspection or
even sign a maintenance contract.
Please take advice on this matter.
Check connection cable for damag-
es (risk of electrical shock); get the
damaged connection cable re-
placed immediately by an autho-
rised customer service person/
electrician.
Check the high pressure hose for
damages (risk of bursting).
Please arrange for the immediate
exchange of a damaged high-pres-
sure hose.
Check appliance (pump) for leaks.
3 drops per minute are permitted
and can come out from the lower
side of the appliance. Call Custom-
erServiceifthereis heavyleakage.
Check oil level Please contact Cus-
tomer Service immediately if the oil
is milky (water in oil).
Clean the fine filter.
Unpressurize the appliance.
Unscrew the fastening screws of
thedevice hood;remove thedevice
hood.
Unscrew lid with filter.
Clean the filter with clean water or
compressed air.
Reinstall in reverse sequence.
Clean filter at the detergent suck
hose.
Oil change.
Note
See"TechnicalDetails"fordetailsofoil
quantity and type.
Unscrew the fastening screws of
thedevice hood;remove thedevice
hood.
Loosen the oil drain screw at the
rear on the motor casing.
Drain the oil in a collection basin.
Screw in the oil drain screw.
Fill in new oil slowly; air bubbles
should go out.
Attach the lid of the oil container.
Fasten the device hood.
 Empty and clean the detergent tank.
Pull out the locking cap for the de-
tergent tank along with the suction
hose.
Lay the device on the reverse.
Empty and clean the detergent tank.
Maintenance and care
Safety inspection/ maintenance
contract
Before each use
Weekly
monthly or after 500 operating
hours
Oil change
If required
11EN

– 10
Danger
Risk of injury by inadvertent startup of
appliance and electrical shock.
First pull out the plug from the mains
before carrying out any tasks on the
machine.
Gettheelectricalcomponentschecked
and repaired only by authorised cus-
tomer service persons.
Contact an authorised customer ser-
vice person in case of problems not
mentioned in this chapter or if you are
in doubt or when you have been explic-
itly asked to do so.
The indicator lamps display the operat-
ing states (green) and interruptions
(red).
Reset:
Set the appliance switch to "0".
Wait for a while.
Set the appliance switch to "I".
–Continuous green:
The appliance is now ready for op-
eration.
–blinks green once:
Operational readiness has expired
after 30 minutes.
The appliance has switched off af-
ter 30 minutes of continuous opera-
tion (safety if the high pressure
hose bursts).
–blinks red once:
High-pressure side is leaky.
Check high pressure hose, hose
connectionsandhandspraygunfor
leaks.
–blinks red twice:
Engine is too hot.
Set the appliance switch to "0".
Allow device to cool down.
Set the appliance switch to "I".
–blinks red thrice:
Fault in the voltage supply.
Checkmainconnectionsandmains
fuse.
–blinks red four times:
Excessive power consumption.
Call Customer Service.
Operational readiness period has
expired. Indicator lamp is blinking
green. Switch on/off the device
switch again.
Check connection cable for damag-
es.
Call Customer Service in case of
electrical defects.
Set nozzle to "High pressure".
Clean/ replace nozzle.
Clean the fine filter; replace it, if
necessary.
Deaerate the appliance (see "Start-
up")
Check water supply level (refer to
technical data).
Check all inlet pipes to the pump.
Contact Customer Service if need-
ed.
3 drops per minute are permitted and
cancomeoutfromthelowersideofthe
appliance. Call Customer Service if
there is heavy leakage.
With stronger leak, have device
checked by customer service.
Troubleshooting
Indicator lamp
Operating status display
Fault indication
Appliance is not running
Pressuredoesnotbuildupinthe
appliance
Pump leaky
12 EN

– 11
Check suction pipes for water and
detergent and ensure that they are
leak-proof.
Deaerate the appliance (see "Start-
up")
Clean the fine filter.
Contact Customer Service if need-
ed.
Set nozzle to "CHEM".
Check/ clean detergent suction
hose with filter.
Clean/ replace backflow valve in
the connection of the detergent
suction hose.
Open or check/clean detergent
dosing valve.
Clean the deaerating hole of the de-
tergent tank in the casing.
Contact Customer Service if need-
ed.
–Only use accessories and spare
partswhich havebeen approvedby
the manufacturer. The exclusive
use of original accessories and
original spare parts ensures that
the appliance can be operated
safely and trouble free.
–At the end of the operating instruc-
tions you will find a selected list of
spare parts that are often required.
–For additional information about
spare parts, please go to the Ser-
vice section at www.kaercher.com.
The warranty terms published by the
relevant sales company are applicable
ineachcountry.Wewillrepairpotential
failures of your appliance within the
warranty period free of charge, provid-
ed that such failure is caused by faulty
materialordefectsinmanufacturing.In
the event of a warranty claim please
contact your dealer or the nearest au-
thorized Customer Service centre.
Please submit the proof of purchase.
Pump is vibrating
Detergent is not getting sucked
in
Accessories and Spare Parts
Warranty
13EN

– 12
Technical specifications
HD 4.5/
32-4S Eb HD 4.5/ 32-4S Eb
Main Supply
Voltage V 220...240 440...460
Current type Hz 3~ 60
Power Input hp 10
Power consumption A 25 14
Protection (slow, char. C) A 30 16
Type of protection IPX5
Water connection
Max. feed temperature °F 140
Min. feed volume gpm 5.3
Suck height from open container (20 °C) ft/m 1.6/0.5
Max. feed pressure PSI 145
Performance data
Working pressure PSI 435...3200
Max. operating over-pressure PSI 3600
Nozzle size 055
Flow rate gpm 2.2...4.5
Detergent suck in gpm 0...0.3
Max. recoil force of hand spray gun N62
Values determined as per EN 60355-2-79
Hand-arm vibration value
Hand spray gun m/s2<2.5
Spray lance m/s2<2.5
Uncertainty K m/s20.3
Sound pressure level LpA dB(A) 72
Uncertainty KpA dB(A) 2
Sound power level LWA + Uncertainty KWA dB(A) 87
Fuel
Amount of oil l 1.2
Oil grade -- SAE 90
Dimensions and weights
Length mm 560
Width mm 500
Height mm 1090
Volume detergent tank l 6
Typical operating weight kg 62
14 EN

http://www.kaercher.com/dealersearch
