Kärcher K 4 Classic User manual

Register
your product
www.kaercher.com/welcome
K 4 Classic
Operating Instructions
Please read the operating instructions
carefully before using the unit.
59672910 (01/19)

2 English
Contents
Safety instructions . . . . . . . . . . . . . . . . 3
Description of the Appliance . . . . . . . . 6
Proper use . . . . . . . . . . . . . . . . . . . . . . 7
Environmental protection. . . . . . . . . . . 8
Assembly . . . . . . . . . . . . . . . . . . . . . . . 8
Start up . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation. . . . . . . . . . . . . . . . . . . . . . . 10
Transport . . . . . . . . . . . . . . . . . . . . . . . 11
Storage . . . . . . . . . . . . . . . . . . . . . . . . 11
Care and maintenance . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . 12
Accessories and Spare Parts . . . . . . . 13
1 Year Warranty . . . . . . . . . . . . . . . . . . 13
Technical specifications . . . . . . . . . . . . 14
EU Declaration of Conformity . . . . . . . 14
Illustration . . . . . . . . . . . . . . . . . . . . . . 15

English 3
Please read and comply with
these original instructions prior
to the initial operation of your appliance and
store them for later use or subsequent own-
ers.
Apart from the notes contained herein the
general safety provisions and rules for the
prevention of accidents of the legislator
must be observed.
Warnings and notes that are attached on
the appliance provide important notes for
the safe operation.
DANGER
Pointer to immediate danger, which leads
to severe injuries or death.
몇WARNING
Pointer to a possibly dangerous situation,
which can lead to severe injuries or death.
몇CAUTION
Pointer to a possibly dangerous situation,
which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation,
which can lead to property damage.
DANGER
Risk of electric shock.
Never touch the mains plug and the
socket with wet hands.
Check the power cord with mains plug
for damage prior to every use. Immedi-
ately have damaged power cord re-
placed by an authorised customer ser-
vice / electrician. Do not operate an ap-
pliance if the power cord is damaged.
All current-conducting parts in the work-
ing area must be protected against jet
water.
The mains plug and the coupling of an
extension cable must be watertight and
must never lie in water. Moreover, the
coupling may never lie on the ground.
The use of cable reels that ensure that
the sockets are at least 60 mm above
the ground is recommended.
Make sure that the power cord or exten-
sion cable is not damaged by running
over, pinching, dragging or the like. Pro-
tect the power cords from heat, oil, and
sharp edges.
Turn off the appliance and remove the
mains plug prior to any care and main-
tenance works.
Repair work and work on the electrical
components may only be performed by
an authorised customer service.
몇WARNING
The appliance may only be connected
to an electric supply that has been in-
stalled by an electrician in accordance
with IEC 60364.
The appliance may only be connected
to alternating current. The voltage must
correspond with the type plate of the
appliance.
Safety class I - Appliances may only be
connected to sockets with proper earth-
ing.
For safety reasons, we recommend that
you operate the appliance only via a re-
sidual current device (max. 30 mA).
An unsuitable electrical extension cable
can be hazardous. Only use an electri-
cal extension cable which has been ap-
proved and labelled for this purpose
and has an adequate cable cross-sec-
tion outdoors: 1 - 10 m: 1.5 mm2;
10 - 30 m: 2.5 mm2
Always fully unreel the extension cable
from the cable drum.
Safety instructions
Hazard levels
Electric components

4 English
DANGER
The user must use the appliance as in-
tended. The person must consider the
local conditions and must pay attention
to other persons in the vicinity when
working with the appliance.
Check important components, such as
high-pressure hose, hand spray gun
and safety installations, for damage pri-
or to every operation. Immediately re-
place damaged components. Do not
operate appliance with damaged com-
ponents.
High-pressure jets can be dangerous if
improperly used. The jet may not be di-
rected at persons, animals, live electri-
cal equipment or at the appliance itself.
The high-pressure jet must not be di-
rected at other persons or the user him-
/herself to clean clothing or footwear.
Vehicle tyres/tyre valves are suscepti-
ble to damage from the high-pressure
jet and may burst. The first indication for
this is a discolouration of the tyre. Dam-
aged vehicle tyres/tyre valves are peril-
ous. Keep a minimum jet distance of
30 cm during cleaning!
몇WARNING
Do not use the appliance when there
are other persons around unless they
are also wearing protective clothing.
The appliance must not be operated by
children or persons who have not been
instructed accordingly.
This appliance is not intended for use
by persons with limited physical, senso-
ry or mental capacities or lacking expe-
rience and/or skills, unless such per-
sons are accompanied and supervised
by a person in charge of their safety or
they have received precise instructions
on the use of this appliance and have
understood the resulting risks.
Children must not play with this appli-
ance.
Supervise children to prevent them
from playing with the appliance.
몇CAUTION
Create stability for the appliance prior to
any work on or with the appliance to
prevent accidents or damage.
The water jet that is emitted from the
high-pressure nozzle results in a repul-
sion power acting on the hand spray
gun. Make sure that you have a firm
footing and are also holding the hand
spray gun and spray lance firmly.
Never leave the appliance unattended
as long as it is in operation.
ATTENTION
In case of extended breaks, switch off
the appliance at the appliance switch.
Do not operate the appliance at temper-
atures below 0 °C.
DANGER
The appliance may not be operated in
explosive atmospheres.
Never use the appliance to clean ob-
jects containing hazardous substances
(e.g. asbestos).
Do not spray flammable liquids.
Never draw in fluids containing solvents
or undiluted acids and solvents! This in-
cludes petrol, paint thinner and heating
oil. The spray mist is highly inflamma-
ble, explosive and poisonous. Do not
use acetone, undiluted acids and sol-
vents, as they corrode the materials
used on the appliance.
Keep packaging films away from chil-
dren, there is a risk of suffocation!
몇WARNING
According to applicable regulations, the
appliance must never be used on the
drinking water net without a system
separator. Ensure that the connection
of your building water installation on
which the high-pressure cleaner is op-
erated is equipped with a system sepa-
rator pursuant to EN 12729 Type BA.
Water that has flown through a system
separator is no longer classified as
drinking water.
Safe handling
Other risks

English 5
High-pressure hoses, fixtures and cou-
plings are important for the safety of the
appliance. Only use high-pressure hos-
es, fixtures and couplings recommend-
ed by the manufacturer.
When disconnecting the supply or high
pressure hose, hot water may leak from
the connections after operation.
몇CAUTION
Mind the weight of the appliance when
selecting the storage location and dur-
ing transport (see technical data) to pre-
vent accidents or injuries.
몇WARNING
This appliance was designed to be
used with detergents which are sup-
plied or recommended by the manufac-
turer. The use of other detergents or
chemicals may compromise the safety
of the appliance.
The improper use of detergents can
cause severe injuries or toxication.
Store detergents away from the reach
of children.
몇CAUTION
Safety installations serve the protection of the
user and may not be modified or bypassed.
The appliance switch prevents unintention-
al operation of the appliance.
This lock locks the lever of the trigger gun
and prevents the inadvertent start of the ap-
pliance.
The overflow valve prevents the permissi-
ble working pressure from being exceeded.
If the lever on the trigger gun is released
the pressure switch turns off the pump, the
high pressure jet is stopped. If the lever is
pulled the pump is turned on again.
The motor protection switch switches off
the device if the power consumption is high.
몇CAUTION
Wear protective clothing and safety
goggles to protect against splash back
containing water or dirt.
During the use of high-pressure clean-
ers aerosols can develop. Inhaling aer-
osols can cause health damage.
–Depending on the application, com-
pletely shielded nozzles (e.g. surface
cleaner) that significantly reduce the
emission of aqueous aerosols can be
used for high-pressure cleaning.
–The use of such shielding is not possi-
ble with all applications.
–If the use of a completely shielded noz-
zle is not possible, a respirator of the
category FFP 2 or the like should be
used, depending on the environment to
be cleaned.
Working with detergent
Safety Devices
Appliance switch
Lock trigger gun
Overflow valve with pressure switch
Motor protection switch
Symbols on the machine
The high pressure jet must not be
directed at persons, animals, live
electrical equipment or at the ap-
pliance itself.
Gerät vor Frost schützen.
The appliance must not be directly
connected to the public drinking
water network.
Personal protective equipment

6 English
Description of the Appliance

English 7
The scope of delivery of your appliance is il-
lustrated on the packaging. Check the con-
tents of the appliance for completeness
when unpacking.
In the event of missing accessories or any
transport damage, please contact your
dealer.

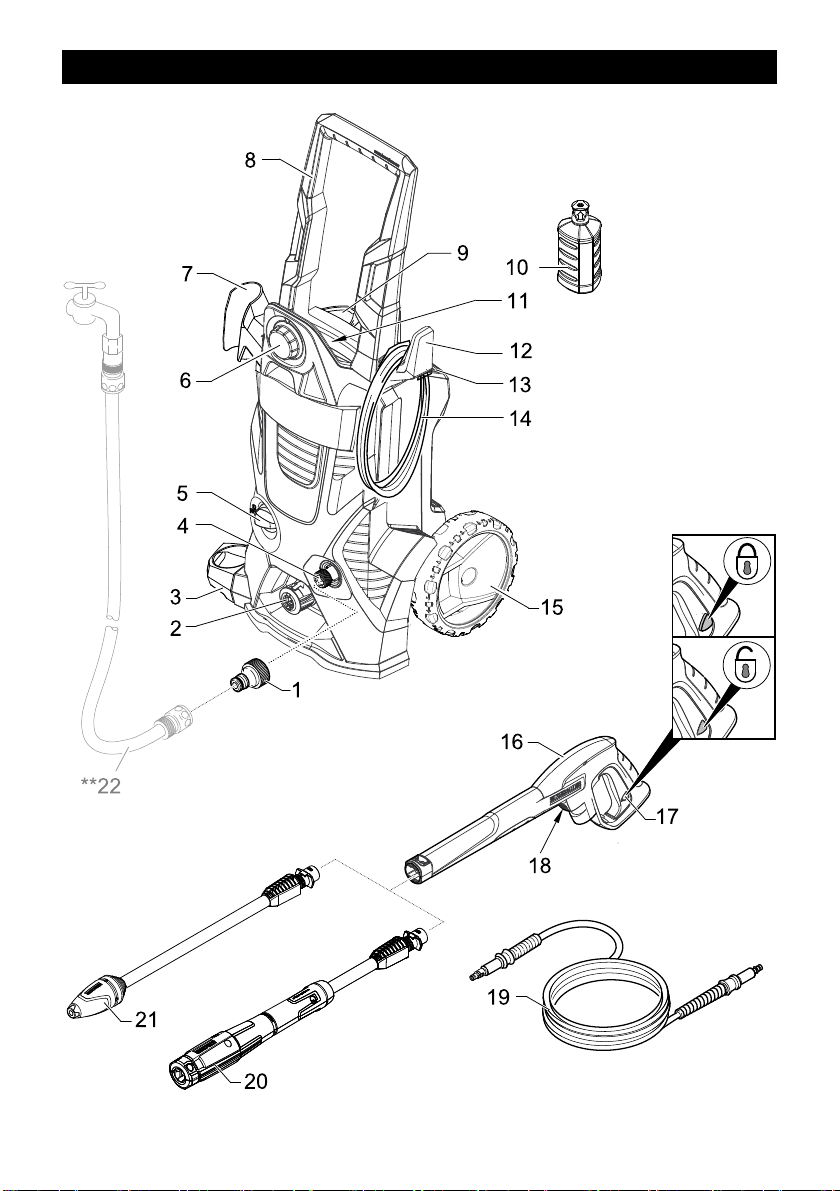

1 Coupling element for water connection
2 Quick coupling for high pressure hose
3 Storage for trigger gun
4 Water connection with integrated sieve
5 Appliance switch „0/OFF“ / „I/ON“
6 Dosage regulator for detergent
7 Storage for trigger gun
8 Transport handle
9 Storage of Plug 'n' Clean detergent bot-
tle with detergent connection
10 Plug 'n' Clean detergent bottle with
locking lid
11 Storage for high pressure hose
12 Storage hook for mains connection cable
13 Storage for spray lance
14 Mains cable with mains plug
15 Bearing wheel
16 Trigger gun
17 Lock trigger gun
18 Key to detach the high pressure hose
from the trigger gun
19 High pressure hose
20 Spray lance with pressure regulation
(Vario Power)
Carrying out the most common cleaning
tasks.
The working pressure can be continu-
ously increased from "SOFT" to
"HARD". To adjust the working pressure,
release the trigger gun lever and turn the
spray lance to the desired position.
Suitable for use with detergents.
21 Spray lance with Dirtblaster
For strong contaminations.
This high pressure cleaner is designed for
domestic use only.
– for cleaning machines, vehicles, build-
ings, tools, facades, terraces, garden-
ing tools, etc. by means of a high-pres-
sure water jet (if necessary, with addi-
tional cleaning agents).
– with accessories, replacement parts
and cleaning agents approved by
KÄRCHER. Please observe the infor-
mation accompanying the cleaning
agents.
Description of the Appliance
** Additionally required
22 Fabric-reinforced water hose with com-
mercially available coupling.
– Minimum diameter, 1/2 inches (13 mm).
– Minimum length 7.5 m.
Proper use

8 English
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH
Mount loose parts delivered with appliance
prior to start-up.
Illustrations on Page 15
Illustration
Place the bottom holder into the recess-
es and push forward until it audibly
locks in.
Insert the top holder and push down all
the way.
You will need the 2 included screws as well
as a Phillips screwdriver PH 2.
Illustration
Slide the transport handle into the guide
and secure it with 2 screws.
You will need the 2 included screws as well
as a Phillips screwdriver PH 2.
Illustration
Insert both detergent hoses onto the
hose fittings.
Illustration
Install the dosage regulator and con-
nect using 2 screws.
Note: During installation you must
make sure that the tongues of the dos-
age regulator match up with the intend-
ed recesses in the casing.
Environmental protection
The packaging material can be recy-
cled. Please arrange for the environ-
mentally appropriate disposal of the
packaging.
Old appliances contain valuable recy-
clable materials that should be recy-
cled properly. Please arrange for the
environmentally appropriate disposal
of the old devices.
Electrical and electronic devices often
contain components which could po-
tentially pose a danger to human
health and the environment if handled
or disposed of incorrectly. However,
these components are necessary for
the proper operation of the device. De-
vices marked with this symbol must not
be disposed of with regular household
rubbish.
Cleaning operations which produce
oily waste water, e.g. engine washes,
underbody washes, may only be car-
ried out using washing stations
equipped with an oil separator.
Work with detergents must only be per-
formed on liquid-tight work surfaces
with a connection to the sewer system.
Do not let release detergent into wa-
ters or earth.
The extraction of water from public wa-
ters is prohibited in some countries.
Assembly
Install the storage for trigger gun
Install the transport handle
Install the dosage regulator for
detergent

English 9
Park the appliance on an even surface.
Illustration
Push the high pressure hose into the
trigger gun until it locks audibly.
Note: Make sure the connection nipple
is aligned correctly.
Check the secure connection by pulling
on the high pressure hose.
Illustration
Push the high pressure hose into the
quick coupling until it locks audibly.
Note: Make sure the connection nipple
is aligned correctly.
Check the secure connection by pulling
on the high pressure hose.
Insert the mains plug into the socket.
For connection values, see type plate/tech-
nical data.
ATTENTION
Impurities in the water can damage the
high-pressure pump and the accessories.
For protection, the use of the KÄRCHER
water filter (optional accessory, order no.
4.730-059) is recommended.
Observe regulations of water supplier.
Illustration
Screw the coupling element to the wa-
ter connection on the appliance.
Illustration
Attach the water supply hose to the
coupling on the water connection.
Connect the water supply hose to the
water supply.
Completely open the water tap.
This high-pressure cleaner is suited to work
with the KÄRCHER suction hose with back-
flow valve (Optional accessory, order no.
2.643-100) to draw in surface water, e.g.
from water butts or ponds (see specifica-
tions for max. suction height).
Remove coupling from the water con-
nection.
Fill the suction hose with water.
Screw the suction hose into the water
connection of the appliance and insert it
into the water source (e.g. rainwater
drum).
Remove air from appliance before oper-
ation.
Turn on the appliance “I/ON”.
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the
device will switch on.
Let the appliance work until the water
exits at the hand spray gun without bub-
bles (max. 2 minutes).
Release the lever on the trigger gun.
Note: Release the lever of the trigger
gun; the device will switch off again.
High pressure remains in the system.
Lock the lever on the trigger gun.
Start up
Water supply
Water supply from mains
Drawing in water from open reservoirs

10 English
ATTENTION
Dry running of more than 2 minutes leads to
damage of the high-pressure pump. If the
appliance does not build up pressure within
2 minutes, switch the appliance off and pro-
ceed in accordance with the instructions in
Chapter "Troubleshooting".
몇CAUTION
Keep a distance of at least 30 cm when us-
ing the jet for cleaning painted surfaces to
avoid damage.
ATTENTION
Car tyres, paint or sensitive surfaces such
as wood should not be cleaned with the dirt
blaster, as there is a risk of damage.
Illustration
Push the spray lance into the trigger gun
and fasten it by turning it through 90°.
Turn on the appliance “I/ON”.
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the
device will switch on.
Note: Release the lever of the trigger
gun; the device will switch off again.
High pressure remains in the system.
Note: Detergent can only be added when
the device is operated in low pressure
mode.
DANGER
When using detergents, the material data
safety sheet issued by the detergent manu-
facturer must be adhered to, especially the
instructions regarding personal protective
equipment.
Notes regarding the detergent: The most
commonly used KÄRCHER detergents can
be purchased ready to use in their Plug 'n'
Clean detergent bottles with locking lids.
This will make the pesky refilling and filling
processes redundant.
Illustration
Remove the lid from the Plug 'n' Clean
detergent bottle and press the deter-
gent bottle into the detergent connec-
tion with the opening facing down.
Illustration
Adjust the suction volume of the deter-
gent solution by means of the dosage
regulator for detergents.
Use spray lance with pressure regula-
tion (Vario Power).
Turn the spray lance as far as it will go
in the direction of "SOFT".
Note: This will mix the detergent with
the water stream.
Spray the detergent sparingly on the
dry surface and allow it to react, but not
to dry.
Spray off loosened dirt with the high
pressure jet.
Release the lever on the trigger gun.
Lock the lever on the trigger gun.
Insert the trigger gun in its holder.
During longer breaks (more than 5 min-
utes), also turn the appliance off using
the "0/OFF" switch.
몇CAUTION
Only separate the high-pressure hose from
the trigger gun or the appliance when there
is no pressure in the system.
Remove the Plug 'n' Clean detergent
bottle from the intake and close it with
the lid. To store, place into the intake ro-
tated by 180°.
Release the lever on the trigger gun.
Turn off the appliance "0/OFF".
Disconnect the mains plug from the
socket.
Turn off tap.
Press the lever on the trigger gun to re-
lease any remaining pressure in the
system.
Lock the lever on the trigger gun.
Detach the appliance from the water
supply.
Operation
High pressure operation
Operation with detergent
Recommended cleaning method
Interrupting operation
Finish operation

English 11
몇CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during
transport.
Pull the appliance by its transport han-
dle.
Prior to horizontal transport: Remove
the Plug 'n' Clean detergent bottle from
the intake and close it with the lid.
Secure the appliance against shifting
and tipping over.
몇CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when
storing it.
Park the machine on an even surface.
Push the casing of the quick coupling
for the high pressure hose toward the
rear and disconnect the high pressure
hose from the appliance.
Press the disconnect on the trigger gun
and remove the high pressure hose
from the trigger gun.
Insert the trigger gun in its holder.
Engage the spray lance in its holder.
Stow away the mains cable, the high-
pressure hose and accessory on the
appliance.
Prior to extended storage periods, as dur-
ing the winter, also observe the instructions
in the Care section.
ATTENTION
Appliances and accessories that are not
completely drained can be destroyed by
frost. Completely drain appliance and ac-
cessories and protect them against frost.
To avoid damage:
Completely drain all water from the ap-
pliance: Switch the appliance on with
detached high pressure hose and de-
tached water supply (max. 1 minute)
and wait, until no more water exits at the
high pressure connection. Turn off the
appliance.
Store the appliance and the entire ac-
cessories in a frost free room.
Transport
When transporting by hand
When transporting in vehicles
Storage
Storing the Appliance
Frost protection

12 English
DANGER
Risk of electric shock.
Prior to all work on the appliance,
switch off the appliance and pull the
power plug.
Remove coupling from the water con-
nection.
ATTENTION
The sieve must not be damaged.
Illustration
Pull the sieve out using flat pliers.
Clean the sieve under running water.
Reinsert the sieve into the water con-
nection.
Remove filter from suction hose for de-
tergent and clean under running water.
The appliance is maintenance free.
You can rectify minor faults yourself with
the help of the following overview.
If in doubt, please consult the authorized
customer service.
DANGER
Risk of electric shock.
Prior to all work on the appliance,
switch off the appliance and pull the
power plug.
Pull on the lever of the trigger gun; the
device will switch on.
Check whether the voltage indicated on
the type plate corresponds to the volt-
age of the mains supply.
Check the mains connection cable for
damages.
Motor overloaded, the motor circuit
breaker has tripped.
– Turn off the appliance "0/OFF".
– Allow the device to cool down for one
hour.
– Switch on the device and put it into op-
eration again.
If the malfunction occurs repeatedly,
have the device checked by the cus-
tomer service.
Voltage reduction due to weak mains sup-
ply or when using an extension cable.
When switching on, first pull the lever of
the trigger gun and then switch the ap-
pliance switch to "I/ON".
Care and maintenance
Clean the sieve in the water
connection
Cleaning the detergent filter
Maintenance
Troubleshooting
Appliance is not running
Appliance does not start, motor
hums

English 13
Check setting at the spray lance.
Check water supply for adequate deliv-
ery rate.
Pull out the sieve in the water connec-
tion using flat-nose pliers and clean un-
der running water.
Appliance ventilation: Switch the appli-
ance on with the high-pressure hose
detached and operate (max. 2 minutes)
until the water exits the high-pressure
connection without bubbles. Switch off
appliance and reconnect high-pressure
hose.
Clean high-pressure nozzle: Remove
dirt and debris from the nozzle bore, us-
ing a needle and rinse through with wa-
ter from the front.
Check water flow quantity.
Slight leakage from the appliance pump
is normal. If the leakage increases con-
tact the authorized customer service.
Use spray lance with pressure regula-
tion (Vario Power).
Turn the spray lance as far as it will go
in the direction of "SOFT".
Check the settings at the dosage regu-
lator for detergent.
Check whether the Plug 'n' Clean deter-
gent bottle is placed into the detergent
connection facing down.
Only use original accessories and spare
parts, they ensure the safe and trouble-free
operation of the device.
For information about accessories and
spare parts, please visit www.kaerch-
er.com.
The warranty terms published by the rele-
vant sales company are applicable in each
country. We will repair potential failures of
your appliance within a one year warranty
period free of charge, provided that such
failure is caused by faulty material or de-
fects in manufacturing. In the event of a
warranty claim please contact your dealer
or the nearest authorized Customer Ser-
vice centre. Please submit the proof of pur-
chase.
Addresses can be found under:
www.kaercher.com/dealersearch
Pressure does not build up in the
appliance
Strong pressure fluctuations
Appliance is leaking
No detergent infeed
Accessories and Spare Parts
1 Year Warranty

14 English
We hereby declare that the machine de-
scribed below complies with the relevant
basic safety and health requirements of the
EU Directives, both in its basic design and
construction as well as in the version put
into circulation by us. This declaration shall
cease to be valid if the machine is modified
without our prior approval.
The signatories act on behalf of and with
the authority of the company management.
Documentation supervisor:
S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Straße 28-40
71364 Winnenden (Germany)
Tel.: [phone]
Fax: [phone]
Technical specifications
Electrical connection
Voltage 230
1~50
V
Hz
Connected load 1,8 kW
Protection class IPX5
Protective class I
Mains fuse (slow-blow) 10 A
Water connection
Max. feed pressure 0,8 MPa
Max. feed temperature 40 °C
Min. feed volume 9 I/min
Max. Suction height 0,5 m
Performance data
Working pressure 11 MPa
Max. permissible pressure 13 MPa
Water flow rate 6,3 I/min
Max. flow rate 7,0 I/min
Detergent flow rate 0,3 I/min
Recoil force of trigger gun 16 N
Dimensions and weights
Length 344 mm
Width 396 mm
Height 875 mm
Weight, ready to operate with
accessories
13,0 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value
Uncertainty K
<2,5
0,3
m/s2
m/s2
Sound pressure level LpA
Uncertainty KpA
73
2
dB(A)
dB(A)
Sound power level LWA +
Uncertainty KWA
89 dB(A)
Subject to technical changes.
EU Declaration of Conformity
Product: High pressure cleaner
Type: 1.180-xxx
Relevant EU Directives
2000/14/EC
2014/30/EU
2006/42/EC (+2009/127/EC)
2011/65/EU
Applied harmonized standards
EN 50581
EN 55014–1:2017
EN 55014–2: 2015
EN 60335–1
EN 60335–2–79
EN 61000–3–2: 2014
EN 61000–3–3: 2013
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 87
Guaranteed: 89
Winnenden, 2018/10/01
Chairman of the Board of Management
Director Regulatory Affairs & Certification

English 15
Illustration

Register your product and benet from many advantages.
Registrieren Sie Ihr Produkt und protieren Sie von vielen Vorteilen.
Enregistrez votre produit et bénécier de nombreux avantages.
Registre su producto y aproveche de muchas ventajas.
Bewerten Sie Ihr Produkt und sagen Sie uns Ihre Meinung.
Rate your product and tell us your opinion.
Évaluer votre produit et dites-nous votre opinion.
Reseñe su producto y díganos su opinión.
www.kaercher.com/welcome
www.kaercher.com/serYLFH
Alfred Kärcher 6( & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: [phone]
Fax: [phone]
DANKE!
THANK YOU!
MERCI! GRACIAS!
!
