Kärcher K 4 Premium User manual

K 4 Premium
OPERATOR MANUAL
High-Pressure Washer . . . . . . . . . 2
MANUEL D’UTILISATION
Nettoyeur haute pression . . . . . 19
MANUAL DE USUARIO
Limpiador de alta presión . . . . . 38
59670270 (2015.12)

2 English
DANGER
indicates “an imminently hazardous situ-
ation which, if not avoided, will result in
death or serious injury.”
WARNING
indicates “a potentially hazardous situa-
tion which, if not avoided, could result in
death or injury.”
몇CAUTION
indicates “a potentially hazardous situa-
tion which, if not avoided, may result in
minor or moderate injury or in property
damage incidents.”
The owner and/or user must have an un-
derstanding of the manufacturer’s oper-
ating instructions and warnings before
using this pressure washer.
Warning information should be empha-
sized and understood.
If the operator is not fluent in English,
the manufacturer’s instructions and
warnings shall be read to and discussed
with the operator in the operator’s native
language by the purchaser/owner, mak-
ing sure that the operator comprehends
its contents.
Owner and/or user must study and
maintain for future reference the manu-
facturers’ instructions.
For household use only!
In the U.S. or Canada, please call
1-800-537-4129 for warranty issues and
visit www.karcher-help.com for techni-
cal support and product assistance.
Please take a moment to register your
pressure washer online at
www.karcher-register.com. Be sure to
save your purchase receipt, it will be re-
quired for repairs covered by warranty.
Call: 01-800-024-13-13 for help or visit
our website: www.karcher.com.mx
HIGH-PRESSURE WASHER OPERATOR MANUAL
Model Overview 3
Important Safety Instructions 4
Assembly Instructions 6
Operating Instructions 8
Using the Accessories 10
Working with Detergents 10
Taking a Break 11
Shutting Down and Clean-Up 12
Winterizing and Long-Term Storage 12
Maintenance Instructions 13
Cleaning Tips 13
Optional Cleaning Accessories 15
Troubleshooting 17
Safety Alert Symbols
Specifications
Max. Pressure 1900 PSI
Max. Water Flow 1.5 GPM
Amp draw 13 AMPS
Voltage 120 V
Part No. 1.603-352.0
Serial no.
Owner/User Responsibility
Customer Support
USA and Canada
Customer Support Mexico

English 3

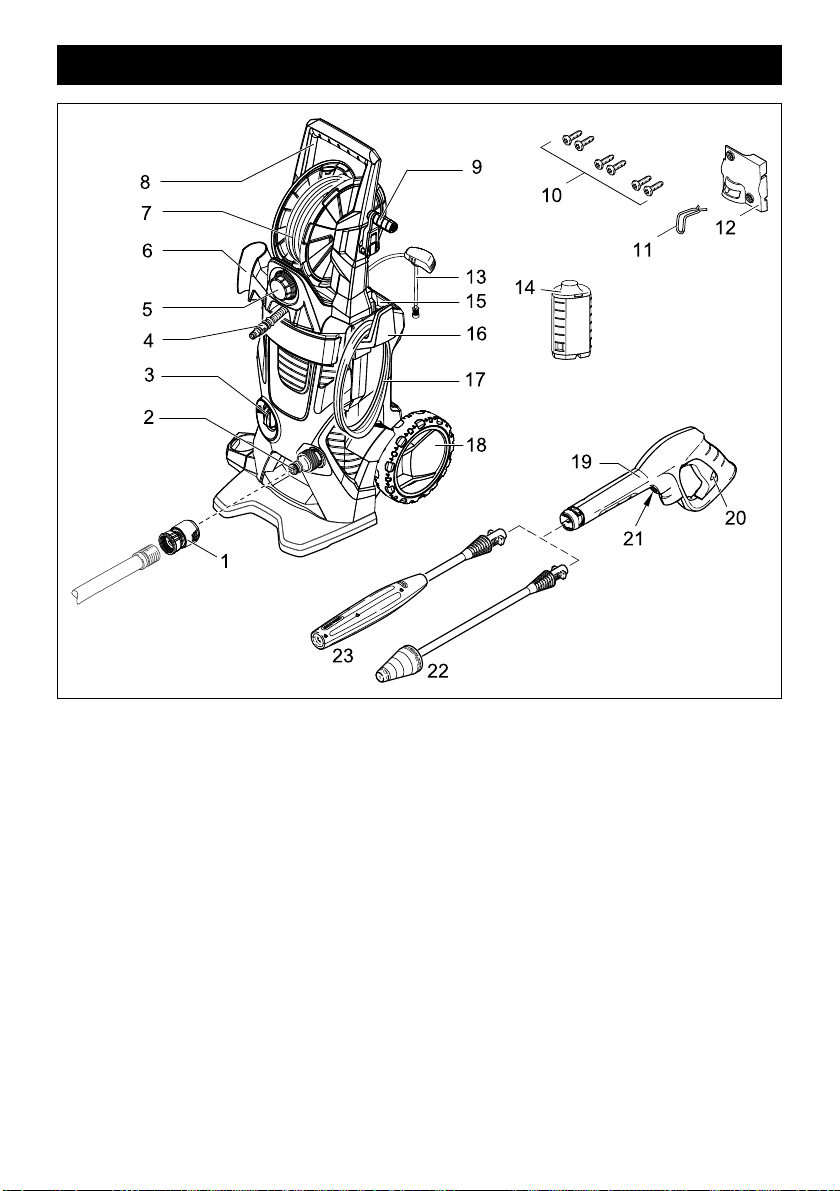

1 Garden hose connector (female)
2 Water inlet with connector
3 ON/OFF switch
4 High-pressure hose
5 Dosage regulator for detergent
6 Storage for trigger gun
7 High-pressure hose drum
8 Transport handle
9 Hand crank for hose drum
10 Screws (Philips style)
11 Hose retention clip
12 Holder bracket
13 Detergent suction tube with filter and
cap
14 Detergent tank
15 Accessory storage
16 Storage hook for power cord
17 Power cord with Ground Fault Circuit
Interrupter (GFCI)
18 Wheels
19 Trigger gun
20 Spray gun safety lock
21 Key to detach high-pressure hose
from trigger gun
22 Dirtblaster ® (Rotary spray wand)
23 Vario Power Spray wand
MODEL OVERVIEW

4 English
WARNING
When using this product basic precau-
tions should always be followed, includ-
ing the following:
Read all the instructions before using
the product.
To reduce the risk of injury, close su-
pervision is necessary when a prod-
uct is used near children.
Know how to stop the product and
bleed pressures quickly. Be thor-
oughly familiar with the controls.
Stay alert – watch what you are do-
ing.
Do not operate the product when fa-
tigued or under the influence of alco-
hol or drugs.
Keep operating area clear of all per-
sons.
Do not overreach or stand on unsta-
ble support. Keep good footing and
balance at all times.
Follow the maintenance instructions
specified in the manual.
This product is provided with a
Ground Fault Circuit Interrupter built
into the power cord plug. If replace-
ment of the plug or cord is needed,
use only identical replacement parts.
WARNING
Risk of Injection or Injury – Do Not
Direct Discharge Stream At Persons.
High-pressure jets can be dangerous
if misused. The jet must not be di-
rected at persons, animals, electrical
devices, or the unit itself.
Wear safety goggles.
WARNING
Risk Of Explosion – Do not spray
flammable liquids.
Do not use acids, alkaline, solvents,
or any flammable material in this
product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
WARNING – Risk of Electrocu-
tion
Inspect cord before using – Do not
use if cord is damaged.
Keep all connections dry and off the
ground.
Do not touch plug with wet hands.
Do not use extension cord with this
product.
Connect to individual branch circuit
only.
몇CAUTION
This unit has been designed for use with
cleaning detergents recommended by the
manufacturer. The use of other cleaning
detergents may affect the operation of the
machine and void the warranty.
몇CAUTION
Gun kicks back – Hold with both
hands.
The Spray Gun Safety Lock prevents
the spray from accidentally being en-
gaged. This safety feature DOES
NOT lock spray in the ON position.
WARNING
DO NOT SPRAY ELECTRICAL APPA-
RATUS AND WIRING.
DO NOT USE WITH FLAMMABLE LIQ-
UIDS AND TOXIC CHEMICALS.
HIGH-PRESSURE. KEEP CLEAR OF
NOZZLE.
INJECTION HAZARD: EQUIPMENT
CAN CAUSE SERIOUS INJURY IF
THE SPRAY PENETRATES THE
SKIN. DO NOT POINT THE GUN AT
ANYONE OR ANY PART OF THE
BODY. IN CASE OF PENETRATION
SEEK MEDICAL AID IMMEDIATELY.
THIS SYSTEM IS CAPABLE OF PRO-
DUCING 1900 PSI TO AVOID RUP-
TURE AND INJURY, DO NOT
IMPORTANT SAFETY INSTRUCTIONS

English 5
OPERATE THIS PUMP WITH COM-
PONENTS RATED LESS THAN 1900
PSI WORKING PRESSURE (INCLUD-
ING BUT NOT LIMITED TO SPRAY
GUNS, HOSE AND HOSE CONNEC-
TIONS).
BEFORE SERVICING, CLEANING OR
REMOVING ANY PARTS, SHUT OFF
POWER AND RELIEVE PRESSURE.
IF CONNECTION IS MADE TO A PO-
TABLE WATER SYSTEM, THE SYS-
TEM SHALL BE PROTECTED
AGAINST BACK FLOW.
This product must be grounded. If it
should malfunction or breakdown,
grounding provides a path of least resis-
tance for electric current to reduce the
risk of electric shock. This product is
equipped with a cord having an equip-
ment-grounding conductor and a ground-
ing plug. The plug must be plugged into
an appropriate outlet that is properly in-
stalled and grounded in accordance with
all local codes and ordinances.
DANGER
Improper connection of the equipment-
grounding conductor can result in a risk
of electrocution. Check with a qualified
electrician or service personnel if you are
in doubt as to whether the outlet is prop-
erly grounded. Do not modify the plug
provided with the product - if it will not fit
the outlet, have a proper outlet installed
by a qualified electrician. Do not use any
type of adapter with this product.
This pressure washer is provided with a
ground-fault circuit-interrupter (GFCI)
built into the plug of the power-supply
cord. This device provides additional
protection from the risk of electric shock.
Should replacement of the plug or cord
become necessary, use only identical
replacement parts that include GFCI
protection.
몇CAUTION
When connecting the water inlet to the
water supply mains, local regulations of
your water company must be observed.
In some areas the unit must not be con-
nected directly to the public drinking wa-
ter supply. This is to ensure that there is
no feedback of chemicals into the water
supply. Direct connection via a receiver
tank or backflow preventer, for example,
is permitted.
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
Garden hose must be at least 13 mm
or 16 mm (1/2 inch or 5/8) inch in di-
ameter.
Flow rate of water supply must not
fall below 7.6 L/min. (2 GPM/gallons
per minute).
Flow rate can be determined by run-
ning the water for one minute into an
empty 20 litre (5-gallon) container.
The water supply temperature must
not exceed 40°C/104°F.
Never use the pressure washer to
draw in water contaminated with sol-
vents, e.g. paint thinners, gasoline,
oil, etc.
Always prevent debris from being
drawn into the unit by using a clean
water source.
SAVE THESE INSTRUCTIONS!
GROUNDING INSTRUCTIONS
GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
WATER SUPPLY
(Cold Water Only)

6 English
For more detailed information on
how to assemble this high-pressure
washer, please visit
www.karcherresidential.com/assembly
APhilips Screw-
driver, medium
size (not supplied)
for final assembly
Mount loose parts delivered with appli-
ance prior to start-up.

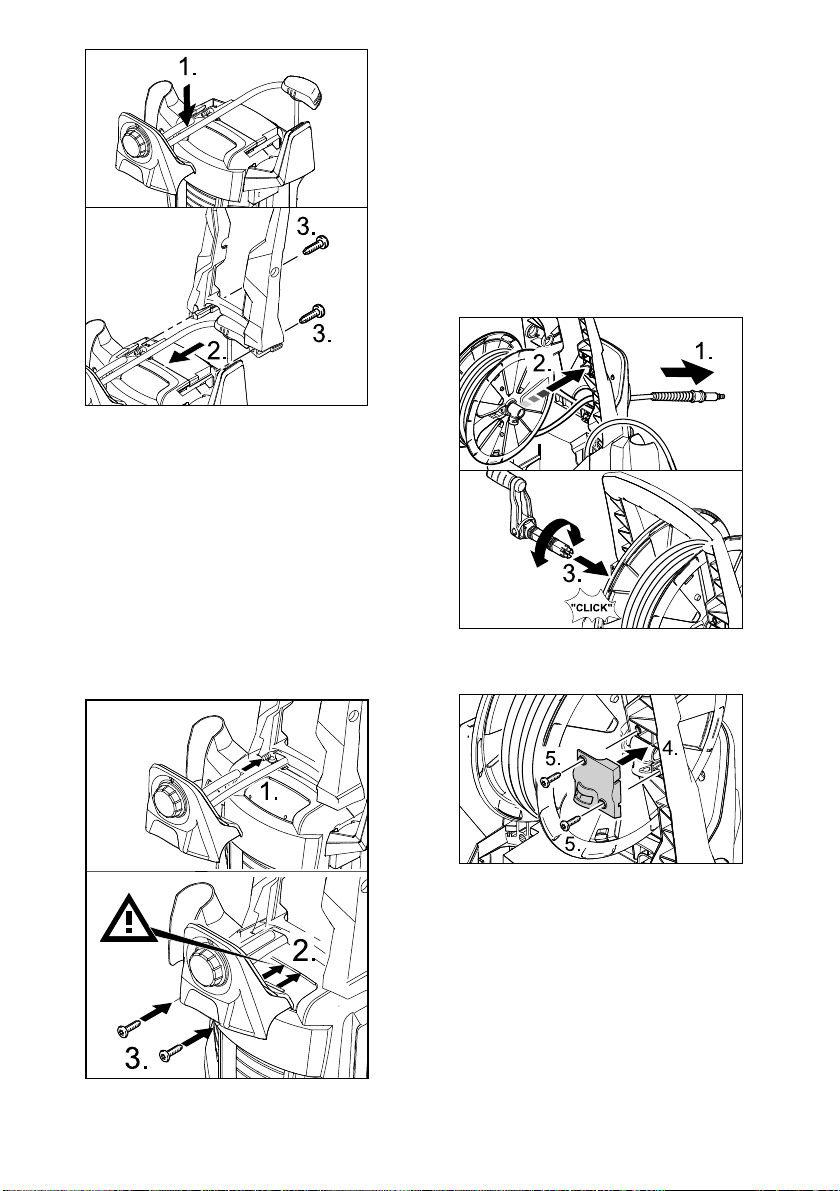

STEP 1:
Insert the wheel into the body, rotat-
ing the wheel as you push it into
place. You should hear a click when
the wheel is completely inserted.
Then push the hub cap into place on
the wheel, press around edges and
the centre of the hub cap to make
sure it is properly seated. You should
hear another click. Do not proceed
with the assembly until the wheels
are securely installed.
STEP 2:
Place the bottom holder into the re-
cesses and push forward until it audi-
bly locks in.
Insert the top holder and push down
all the way.
STEP 3:
Press in the storage hook and lock it
into the top position.
Before assembling the handle you need
to place the tubes of the detergent regu-
lator between handle and machine
body.
STEP 4:
Attach detergent hose to the fitting,
as indicated below.
Slide the transport handle into the
guide and secure it with 2 screws.
ASSEMBLY INSTRUCTIONS
Required tools
Assembly
Install wheels and hub caps
Install the storage for trigger gun
Install the storage hook for the power
cord
Install the transport handle

English 7
STEP 5:
Insert detergent suction tube onto
the tube fitting.
Install the dosage regulator and con-
nect using 2 screws.
Note: During installation you must
make sure that the tongues of the
dosage regulator match up with the
intended recesses in the casing.
STEP 6:
Slide the free end of the coiled high-
pressure hose through the recesses
on the dosage regulator.
Insert the hose drum into the intakes
on the transport handle.
Insert the axle of the hand crank into
the guides.
Rotate and press until the crank
locks in.
Install the holder bracket and secure it
using 2 screws.
Install the dosage regulator for
detergent
Install the high- pressure hose drum

8 English

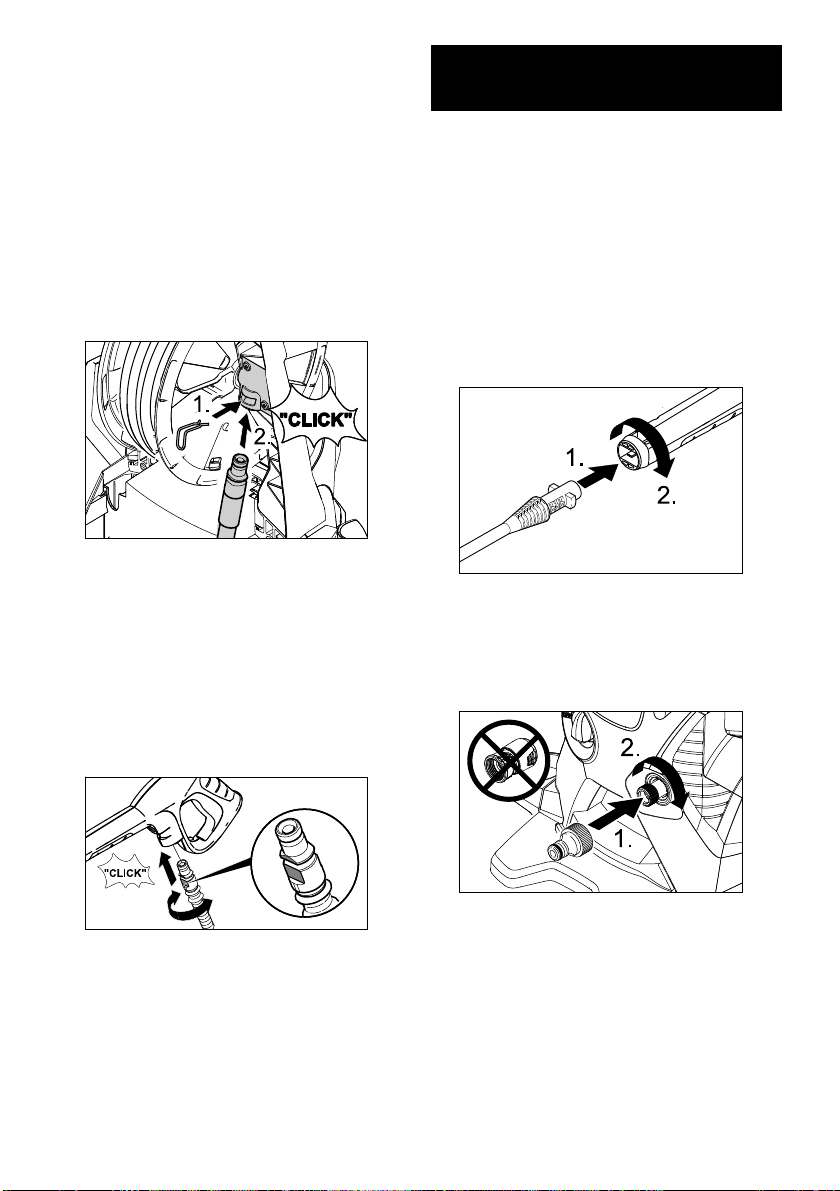

STEP 7:
Slide the retention clip on the reel (as
indicated by “1” below) then com-
pletely push the high- pressure hose
in (as indicated by “2” below) until
you hear a click.
Tug on the hose before proceeding
to make sure it is securely installed.
It should not come loose when you
tug on it.
STEP 8:
Push the high-pressure hose into the
trigger gun until it locks audibly.
Note: Make sure the connection nip-
ple is aligned correctly.
Check the secure connection by pull-
ing on the high-pressure hose.
Disconnect:
Press the disconnect key on the trig-
ger gun and remove the high-pres-
sure hose from the trigger gun.
This pressure washer has been tested
by Kärcher's quality assurance team. A
small amount of water may be present in
the water inlet or outlet. This is normal
and will not affect the performance of the
pressure washer.
STEP 1:
Insert the spray wand of your choice
into the trigger gun. Press in against
the spring tension and twist into
locked position.
STEP 2:

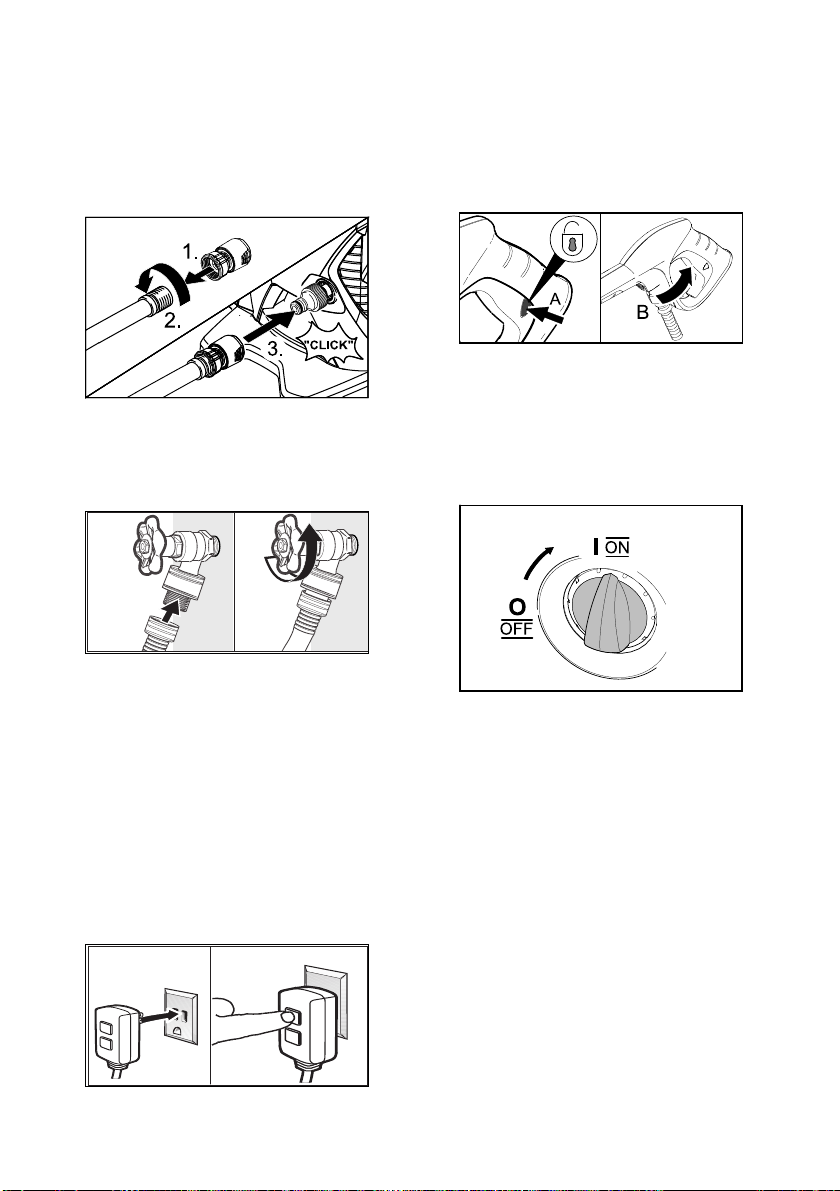

Install the water inlet connector to the
unit’s water inlet.
Note: Never attach the garden hose
connector to the unit’s water inlet!
Install high- pressure hose to hose
drum
Connect the high-pressure hose to
the trigger gun
OPERATING
INSTRUCTIONS

English 9
STEP 3:
Screw the supplied garden hose con-
nector on to the end of your garden
hose. Push the garden hose connec-
tor on to the water inlet connector
and make sure you hear it click into
place before proceeding.
STEP 4:
Connect garden hose to the cold wa-
ter source and turn water on com-
pletely.
STEP 5:
Plug the Ground Fault Circuit Inter-
rupter (GFCI) into a working outlet.
We recommend that you test the GFCI as
part of your startup procedure each time
you use your pressure washer. To learn
how to peform this test on your unit, visit
http://www.karcherresidential.com/
gfci_test.php for detailed instructions for
your type of GFCI.
WARNING
Do not use if above test fails.
Note: The actual appearance of the GFCI
may be different from this illustration.
STEP 6:
Unlock the trigger gun safety lock.
Trigger the gun to eliminate trapped
air, wait for a steady flow of water to
emerge from the spray nozzle.
STEP 7:
Turn on the high-pressure washer (I/
ON).
The motor starts only if the trigger
of the gun is pulled and shuts off
when the trigger is released.

10 English
WARNING
To avoid serious injury never point
spray nozzle at yourself, other per-
sons or animals.
Always test an inconspicuous area be-
fore cleaning with high-pressure.
The Vario Power Spray Wand allows
you to adjust the cleaning pressure.
To clean at maximum pressure, the
wand must be positioned to the high-
pressure setting (Max).
For reduced pressure turn the wand
collar in the "Min" direction.
To apply detergent, the wand must
be positioned to the low-pressure
setting (Mix).
This nozzle features a 0º pencil jet which
rotates 360º for maximum dirt cutting ac-
tion, effectively increasing cleaning per-
formance up to 50%. This nozzle
combines the cleaning performance of a
0º pencil jet with the surface coverage of
a wide angle nozzle.
Not recommended for soft materials,
siding, painted surfaces, decks or au-
tos.
Before cleaning any surface an in-
conspicuous area should be cleaned
to test spray pattern and distance for
maximum cleaning results.
For best results see Cleaning Tips for
specific information on how to clean
different surfaces.
Always Use Kärcher® Detergent for
Best Results
Kärcher ® biodegradable detergents are
specially formulated to protect the envi-
ronment and your pressure washer. The
special formula won’t clog the suction
tube filter and will protect the internal
parts of the pressure washer for a longer
life. For Kärcher ® detergents, check
your retailer or visit our website:
www.buykarcher.com
몇CAUTION
Never use:
–Bleach, chlorine products and other
corrosive chemicals
–Liquids containing solvents (i.e.,
paint thinners, gasoline, oils)
–Tri-sodium phosphate products
–Ammonia products
–Acid-based products
These chemicals will harm the unit and
will damage the surface being cleaned.
Use of these items will void the war-
ranty.
Detergents can only be applied at
low-pressure setting (Mix).
USING THE ACCESSORIES
Vario Power Spray Wand
Dirtblaster ®
WORKING WITH
DETERGENTS

English 11

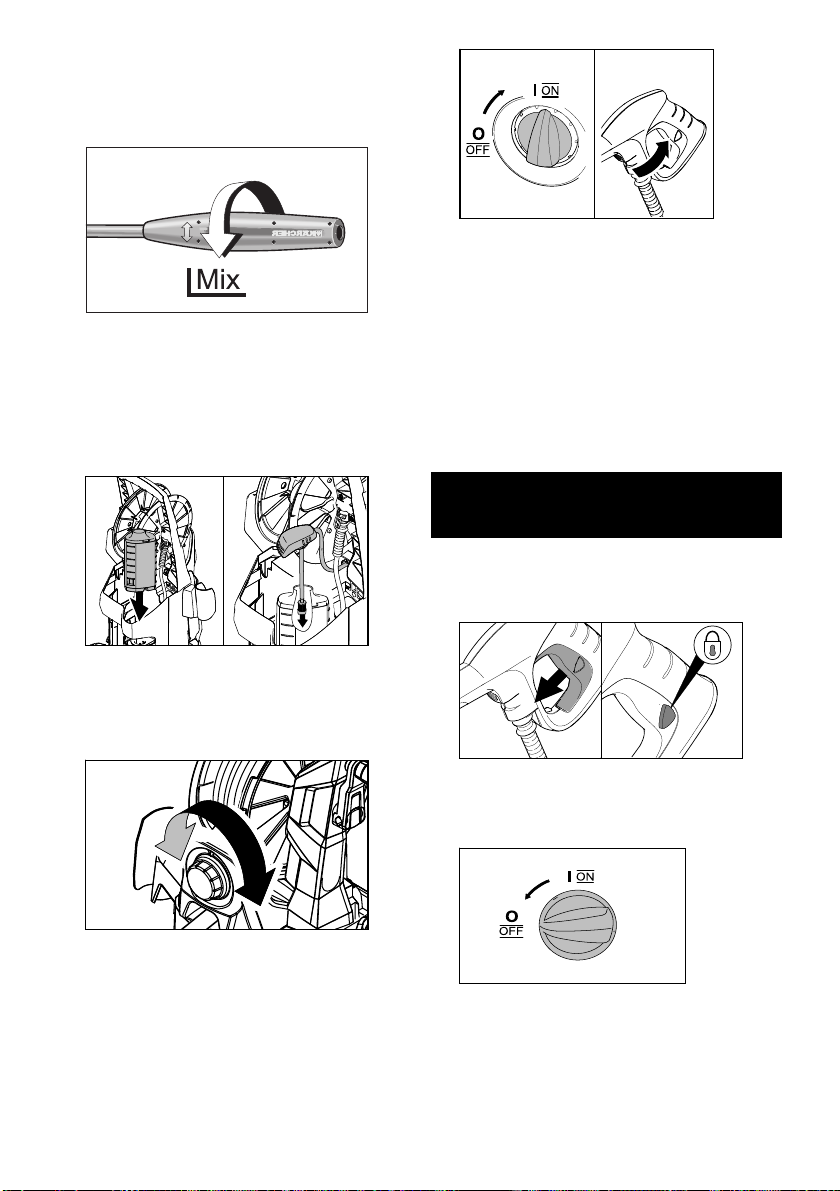

STEP 1:
Install the Vario Power Spray Wand.
Set the spray wand to the low-pres-
sure setting (Mix).
STEP 2:
Fill the detergent tank with Karcher
detergent and position the tank into
its storage area. Insert the suction
tube with filter into the tank and close
it with the cap.
STEP 3:
Adjust the suction volume of the de-
tergent solution by means of the dos-
age regulator for detergents.
STEP 4:
Turn on the pressure washer (I). Pull
trigger to operate unit. Liquid deter-
gent is drawn into the unit and mixed
with water. Apply detergent to work
area. Do not allow detergent to dry
on surface.
STEP 5:
To rinse, move the VPS out of "Mix"
position and pull trigger to operate
unit.
STEP 6:
Cleaning up: Always draw fresh wa-
ter through the detergent tank or si-
phon tube when done to flush any
remaining detergents from the injec-
tion system.
STEP 1:
Release trigger and engage gun
safety lock.
STEP 2:

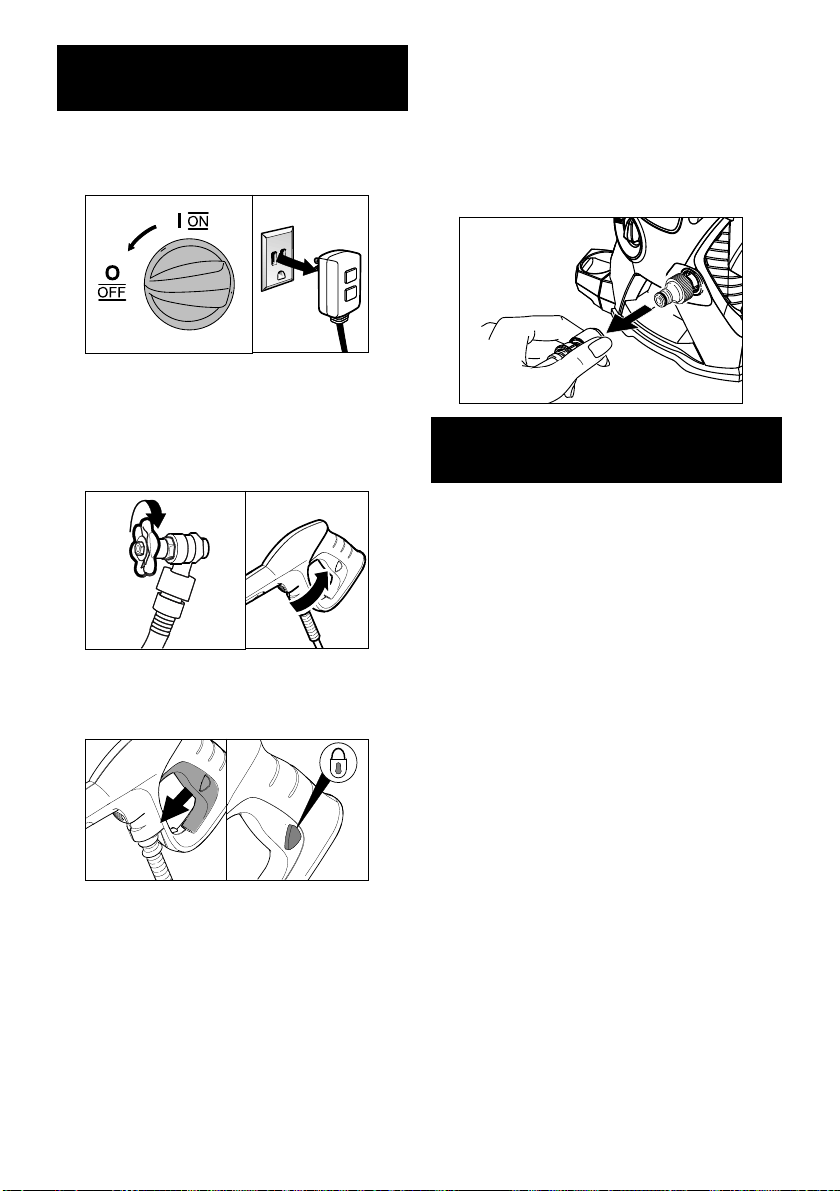

Turn pressure washer to OFF (0) po-
sition.
TAKING A BREAK ... five
minutes or more

12 English
STEP 1:
Turn the switch to OFF (0) position
and unplug cord from outlet.
STEP 2:
Turn off the water source.
STEP 3:
Press trigger to release water pres-
sure.
STEP 4:
Release trigger and engage gun
safety lock.
STEP 5:
Disconnect the garden hose from the
water inlet on the unit.
몇CAUTION
When disconnecting the supply or high-
pressure hose, warm water may leak
from the connector after operation.
1 Disconnect all water connections.
2 Turn on the machine for a few sec-
onds, until the water which had re-
mained in the pump exits, turn off
immediately.
3 Do not allow high-pressure hose to
become kinked.
4 Store the machine and accessories
in a room which does not reach
freezing temperatures. DO NOT
store near furnace or other sources
of heat as it may dry out the pump
seals.
몇CAUTION
Failure to follow the above directions will
result in damage to the pump assembly
and accessories and will void the war-
ranty.
Kärcher®also recommends the regular
practice of using a pump protector like
“Kärcher®Pump Guard” to prevent cold
weather damage during storage in the
winter months.
SHUTTING DOWN &
CLEAN-UP
WINTERIZING AND LONG-
TERM STORAGE

English 13
STEP 1:

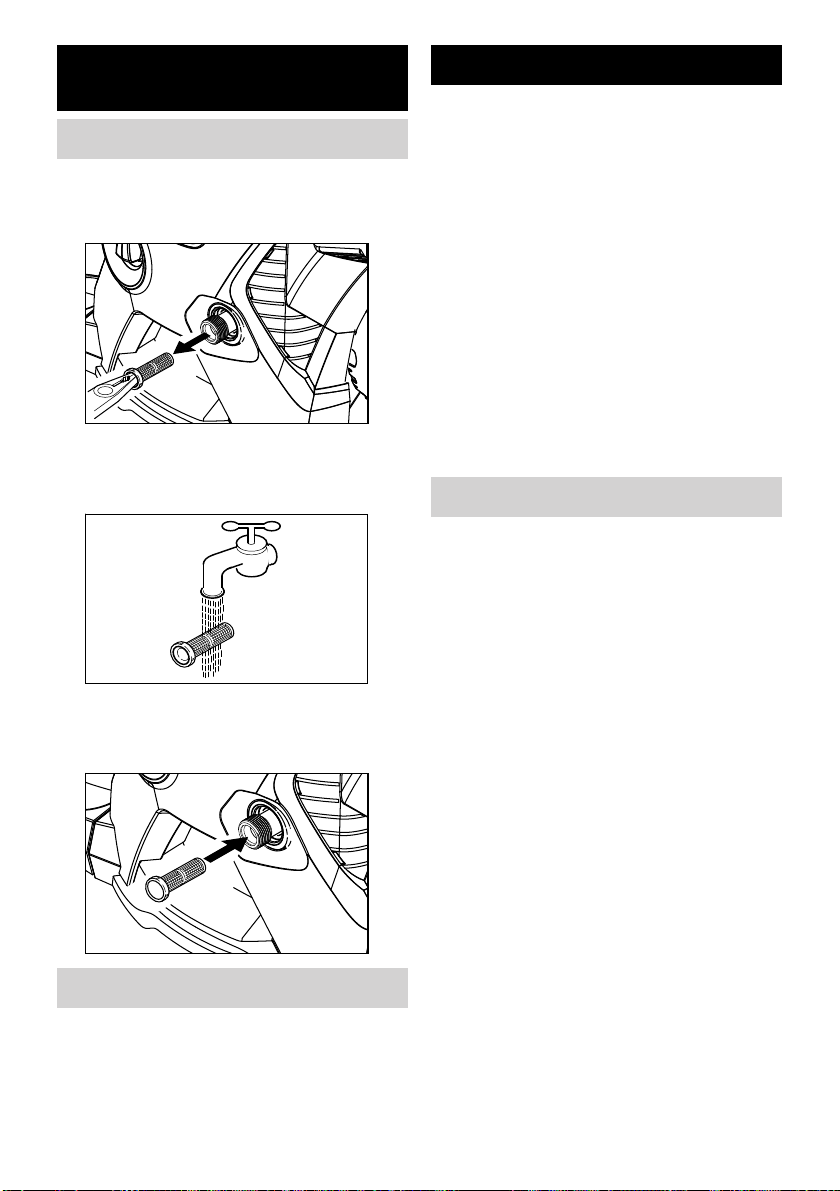

Pull out water inlet filter with flat-nose
pliers.
STEP 2:
Rinse out water inlet filter in warm
water.
STEP 3:
Reinsert water inlet filter into the wa-
ter inlet.
The unit is maintenance-free.
몇CAUTION
Before cleaning any surface an in-
conspicuous area should be cleaned
to test spray pattern and distance for
maximum cleaning results.
If painted surfaces are peeling or
chipping, use extreme caution as
pressure washer may remove the
loose paint from the surface.
When using on surfaces which might
come in contact with food, flush sur-
faces with plenty of drinking water.
For additional cleaning tips and a
complete video library, visit our web-
site:
www.karcherresidential.com
(with or without detergent). Pre-rinse
deck and surrounding area with fresh
water. If using detergent, apply to sur-
face at low pressure. For best results,
limit your work area to smaller sections
of approximately 2.3 m² (25 sq. ft.). Al-
low detergent to remain on surface 1-3
minutes. Do not allow detergent to dry
on surface. Rinse at high-pressure in a
long sweeping motion keeping the spray
nozzle approximately 7.5-15 cm (3-6 in.)
from the cleaning surface. Always clean
from top to bottom and from left to right.
When moving on to a new section of the
cleaning surface, be sure to overlap the
previous section to eliminate stop marks
and ensure a more even cleaning result.
CARE AND MAINTENANCE
INSTRUCTIONS
Cleaning the water inlet filter
Maintenance
CLEANING TIPS
Deck Cleaning

14 English
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent, apply to surface at low
pressure (for best results, limit your
work area to sections of approximately
1.8 m (6 ft.) and always apply detergent
from bottom to top). Allow detergent to
remain on surface 1-3 minutes. Do not
allow detergent to dry on surface, if sur-
face appears to be drying, simply wet
down surface with fresh water. If need-
ed, use special wash brush attachment
(not included) to remove stubborn dirt.
Rinse at high-pressure from top to bot-
tom in an even sweeping motion keep-
ing the spray nozzle approximately
1.8 m (6 ft.) from the cleaning surface.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply to
surface at low pressure. For best re-
sults, limit your work area to smaller sec-
tions of approximately 2.3 m² (25 sq. ft.).
Allow detergent or Degreaser to remain
on surface 1-3 minutes. Do not allow de-
tergent to dry on surface. Rinse at high-
pressure in a sweeping motion keeping
the spray nozzle approximately 7.5-
15 cm (3-6 in.) from the cleaning sur-
face. Always clean from top to bottom
and from left to right. For removing ex-
tremely stubborn stains, use the
Dirtblaster ® Nozzle.
(with or without detergent). Pre-rinse
vehicle with fresh water. If using deter-
gent, apply to surface at low pressure.
For best results, clean one side of vehi-
cle at a time and always apply detergent
from bottom to top, do not allow deter-
gent to dry on surface. If needed, use
special wash brush attachment (not in-
cluded) to remove stubborn dirt. Rinse
at high-pressure in a sweeping motion
keeping the spray nozzle approximately
15-20 cm (6-8 in.) from the cleaning sur-
face (distance should increase when
rinsing pin-striping or other sensitive
surfaces). Always clean from top to bot-
tom and from left to right. For best re-
sults, wipe surface dry with a chamois or
soft dry cloth.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply deter-
gent at low pressure. Allow detergent to
remain on surface 1-3 minutes. Do not
allow detergent to dry on surface. Rinse
at high-pressure keeping the spray noz-
zle approximately 7.5-15 cm (3-6 in.)
from the cleaning surface. For removing
extremely stubborn dirt, it may be nec-
essary to move the spray nozzle even
closer to the surface for greater dirt cut-
ting action.
(with or without detergent). Pre-rinse
furniture and surrounding area with
fresh water. If using detergent, apply to
surface at low pressure. Allow detergent
to remain on surface 1-3 minutes. Do
not allow detergent to dry on surface. If
needed use special Wash Brush Attach-
ment (not included) to remove stubborn
dirt. Rinse at high-pressure in a sweep-
ing motion keeping the spray nozzle ap-
proximately 7.5-15 cm (3-6 in.) from the
cleaning surface. For best results, clean
from top to bottom and from left to right.
House Siding
Cement Patios, Brick and Stone
Cars, Boats and Motorcycles
Barbecue Grills, Outdoor Power
Equipment and Gardening Tools
Patio and Lawn Furniture

English 15
Optional accessories are available to
further enhance your cleaning capabili-
ties. These accessories are accurate as
of the printing date of this manual.
Please check our website for pricing and
up-to-date information.
Specially formulated to protect your
pressure washer from freezing, corro-
sion and premature wear. The Pump
Guard also adds lubrication to valves
and seals to prevent sticking. Highly rec-
ommended for all Kärcher ® pressure
washers!
Part No. 9.558-998.0
Extension Hose for all Kärcher ® high-
pressure washers between the original
equipment hose and gun up to
2000 PSI.
Part No. 2.642-588.0
Need to clean second story windows or
other high areas? Increase the reach of
your pressure washer by up to 1.67 m
(66 in.) with this extension kit. Includes 4
aluminum sections for variable length.
1.67 m (66 in.) fully assembled. Fits
most Kärcher ® pressure washers up to
2300 PSI. (bayonet)
Part No. 2.640-746.0
For more effortless cleaning of all
smooth surfaces (painted, glass and
plastic) try the Kärcher ® Rotating Wash
Brush. Use it on your automobile, house
siding or windows. The water pressure
from your pressure washer causes the
inner brushes to gently spin, making
your cleaning job much easier. The an-
gle of brush head is adjustable to help
you reach difficult areas. Excellent for
the application of detergent. A must-
have accessory designed for Kärcher ®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.640-743.0
Made with soft bristles that will not harm
painted surfaces. Easily attaches direct-
ly to the trigger gun. Ideal for stubborn
dirt on cars, boats, patio furniture and
other surfaces. Great for applying deter-
gent. Fits most Kärcher ® pressure
washers up to 2300 PSI. (bayonet)
Part No. 2.640-740.0
Need to clean blocked pipes, drains or
downspouts? The Kärcher ® pipe clean-
ing kit is the answer! The pipe cleaner
propels itself forward while simultane-
ously flushing out debris. For example,
insert the cleaning nozzle in the base of
a downspout, pull the trigger on the
pressure washer gun and watch as the
nozzle shoots out leaves and other de-
bris while climbing upward. Connects di-
rectly to the trigger gun of most
Kärcher ® pressure washers up to
2300 PSI. (bayonet)
Part No. 2.640-747.0
OPTIONAL CLEANING
ACCESSORIES
Pump Guard
7.5 m (25 ft.) Extension High-
Pressure Hose
1.67 m (66 in.) Extension Wand
(four-piece)
Rotating Wash Brush (bayonet)
Soft Clean Washing Brush
7.5 m (25 ft.) Pipe Cleaning Kit
(bayonet)

16 English
Why spend hours stripping old paint and
rust by hand using harsh chemicals? Let
the Kärcher ® Wet Sandblasting Kit do
the work! Attach the kit to your pressure
washer, add abrasive material and at-
tack the rust and paint with our eco-
friendly alternative. Fits most Kärcher ®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.638-792.0
Ideal for applications which require a
thick foam. Simply fill the resevoir cup
with liquid pressure washer detergent to
generate a foam spray. Connects direct-
ly to the trigger gun. Fits most Kärcher ®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 6.964-507.0
For cleaning surfaces such as patios,
terraces and driveways without splash-
back, there is no better solution than the
Kärcher ® T 200. It saves time by clean-
ing a 30 cm (1 ft.) wide area gently as it
hovers, providing consistent, streak-free
cleaning. When you finish cleaning the
patio and driveway, remove the wand
and use the handle to clean garage
doors and other vertical surfaces. In-
cludes two nozzles which spin at high
speed for optimum results. Our top sell-
ing accessory for Kärcher ® pressure
washers up to 2300 PSI. (bayonet)
Part No. 2.642-188.0
Wet Sandblasting Kit (bayonet)
Detergent Foamer Attachment
T 200 Wide Area Surface Cleaner

English 17
WARNING
TROUBLESHOOTING
Disconnect the unit from the power source before making any repair.
Issue Cause Solution
Motor will not start On/Off switch is in the “OFF”
(0) position.
Turn switch to the “ON” (I) po-
sition
Power cord is not plugged in. Plug in power cord.
Electrical outlet does not sup-
ply adequate power.
Try a different outlet.
Tripped GFCI plug. Press “RESET” button on
GFCI plug.
Tripped circuit breaker. Switch off pressure washer.
The reset comes automatically
once the temperature of the
unit drops.
Unit does not
reach high-pres-
sure.
Diameter of garden hose is too
small.
Replace with a 16 mm (5/8
inch) or larger garden hose.
Water supply is restricted. Check garden hose for kinks,
leaks and blockage.
Not enough inlet water supply. Open water source full force.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Spray wand is on low-pressure
position.
Turn spray wand to high-pres-
sure position.
Output pressure
varies high and
low.
Not enough inlet water supply. Turn water on full force. Check
garden hose for kinks, leaks or
blockage.
Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow
of water emerges through the
nozzle.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Discharge nozzle is obstruct-
ed.
Blow out or remove debris with
a fine needle.
Calcified gun, hose or spray
wand.
Run distilled vinegar through
detergent suction tube.

18 English
No detergent. Detergent siphon tube not
properly connected to the ma-
chine.
Check connection.
Detergent is too thick. Dilute detergent, for best re-
sults use Kärcher detergent.
Filter on detergent siphon tube
is clogged.
Run warm water through filter
to remove debris.
Damaged or clogged detergent
siphon tube.
Remove obstruction or replace
detergent siphon tube.
Spray wand is in high-pressure
position.
Turn spray wand tip to low-
pressure position.
Discharge nozzle is obstruct-
ed.
Blow out or remove debris with
fine needle.
Garden hose con-
nection leaks.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
Spray wand leaks. Spray wand not properly at-
tached.
Insert the spray wand into the
trigger gun. Carefully press in
against the spring tension and
twist into the locked position.
Broken o-ring or plastic insert. Call Customer Support
Pump is noisy. Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow
of water emerges through the
nozzle.
Water leaks from
pump (up to 10
drops per minute
is permissible).
Loose fittings. Check that all fittings are tight.
Water seals are damaged or
worn.
Call Customer Support
Oil drip. Oil seals are damaged or worn. Call Customer Support
Issue Cause Solution
If you encounter any additional difficulties not listed, please visit our website.
USA / Canada:
www.karcher-help.com
Mexico:
www.karcher.com.mx

Français 19
DANGER
Identifie « une situation de danger im-
minent qui, si elle n'est pas évitée, en-
traîne la mort ou des blessures graves ».
AVERTISSEMENT
Identifie « une situation de danger po-
tentiel qui, si elle n'est pas évitée, pour-
rait entraîner la mort ou des blessures ».
ATTENTION
Identifie « une situation de danger po-
tentiel qui, si elle n'est pas évitée, peut
éventuellement entraîner des blessures
légères ou modérées » ou des dom-
mages matériels.
Avant d'utiliser ce nettoyeur pression, le
propriétaire et/ou l'utilisateur doit impé-
rativement avoir pris connaissance des
consignes d'utilisation et mises en garde
du fabricant.
Il est nécessaire d'insister sur les aver-
tissements et de les comprendre.
Si l'utilisateur ne parle pas couramment
l'anglais, l'acheteur/le propriétaire doit
lire les consignes et mises en garde du
fabricant avec l'utilisateur dans la
langue maternelle de ce dernier et s'as-
surer qu'il en comprend bien le contenu.
Le propriétaire et/ou l'utilisateur doit se
familiariser avec les consignes du fabri-
cant et les conserver afin de pouvoir s'y
référer ultérieurement.
À usage domestique seulement!
Pour faire valoir une demande en garan-
tie, appelez le : 1-800-537-4129. Toutes
les autres informations sont disponibles
sous : www.karcher-help.com
Prenez le temps d'enregistrer votre net-
toyeur haute pression en ligne en vous
adressant à www.karcher-regis-
ter.com. Veuillez à conserver précieu-
sement votre preuve d'achat, qui sera
exigée en cas de réparation assujettie à
la garantie.
Appeler : 01-800-024-13-13 pour obte-
nir de l'aide ou visitez notre site Web :
www.karcher.com.mx
NETTOYEUR HAUTE PRESSION - MANUEL D'UTILISATION
Généralités 20
Consignes de sécurité importantes 21
Instructions de montage 23
Mode d'emploi 25
Utilisation des accessoires 27
Emploi de détergents 27
Prendre une pause 29
Arrêt de l'appareil et nettoyage 29
Entreposage à long terme 30
Consignes d'entretien 30
Conseils de nettoyage 31
Accessoires de nettoyage en option 32
Dépannage 34
Symboles d'alerte de sécurité
Caractéristiques
Pression max. 1900 PSI
Débit d'eau max. 1.5 GPM
Ampérage 13 AMPS
Tension 120 V
N° de pièce 1.603-352.0
N° de série
Responsabilité du propriétaire
de l'utilisateur
Service client É.-U.A et Canada
Assistance Mexique

20 Français
1 Raccord pour tuyau d'arrosage
(femelle)
2 Arrivée d'eau avec raccord
3 Interrupteur marche/arrêt
4 Tuyau à haute pression
5 Régulateur de dosage pour le
détergent
6 Support pour la poignée-pistolet
7 Dévidoir de flexible haute pression
8 Poignée de transport
9 Manivelle pour dévidoir
10 Vis (modèle Philips)
11 Collier de flexible
12 Support
13 Flexible d'aspiration du détergent
avec filtre et capuchon
14 Réservoir de détergent
15 Compartiment de rangement des
accessoires
16 Crochet-support pour le câble
d'alimentation.
17 Cordon d'alimentation avec
disjoncteur différentiel
18 Roues
19 Poignée-pistolet
20 Verrouillage poignée-pistolet
21 Touche pour séparer le tuyau à
haute pression de la poignée-pistolet
22 Dirtblaster ® (lance rotative)
23 Lance Vario
GÉNÉRALITÉS
