K2 Pumps WPS05004K User manual

Model: WPS05004K/ WPS07504K
OWNER’S MANUAL
SHALLOW WELL JET PUMP
Questions, problems, missing parts? Before returning to the store call
K2 Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday
1-844-242-2475
www.K2pumps.com
Copyright © 2021, GP Enterprises Co., Ltd. K2Man-33 (Rev. 6/05/21)

2 For Professional Technical Support call 1-844-242-2475
PERFORMANCE
Model No. HP
GPM of Water @Total Discharge
Pressure of 40 psi Max.
Pressure
shutoff
Voltage
Pressure
switch
0 ft. 5 ft. 10 ft. 15 ft. 20 ft. 25 ft. ON OFF
WPS05004K 1/2 14.5 13.5 12.5 11.3 9.2 7 70PSI 230/115 30 50
WPS07504K 3/4 19.5 18.5 17.5 15.5 13.5 10 72PSI 230/115 30 50
SAFETY INSTRUCTIONS
1. Pump clear water ONLY with this pump. Do not pump flammable or explosive liquids such as oil, gasoline, kerosene,
ethanol, etc. Do not use in the presence of flammable or explosive vapours. Using this pump with or near flammable
liquids can cause an explosion or fire, resulting in property damage, serious personal injury, and/or death.
2. ALWAYS disconnect the power to the pump before servicing.
3. Do not touch the motor housing during operation. The motor is designed to operate at high temperatures. Do not
disassemble the motor housing.
4. Do not handle the pump or pump motor with wet hands or when standing on a wet or damp surface, or in water.
5. Wear safety goggles at all times when working with pumps
6. This is a dual voltage 115/230V pump. To change voltage to 115V, please open the terminal cover and set the
switch to the proper voltage. All wiring should be performed by a qualified electrician.
7. Protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord. Do not use
damaged or worn cords.
8. Ensure the electrical power supply is adequate for the requirements of the pump.
9. Failure to comply with the instruction and designed operation of this unit may void the warranty. ATTEMPTING TO
USE A DAMAGED PUMP can result in property damage, serious personal injury, and/or death.
10. The pump should be connected to a grounded circuit equipped with a grounded fault interrupter device (GFCI).
11. Know the pump and its applications, limitations, and potential hazards.
12. Secure the pump to a solid base.
13. Periodically inspect the pump and system components. Disconnect the pump from the power supply before
inspecting.
14. Follow all local electrical and safety codes, along with the National Electrical Code (NEC). In addition, all
Occupational Safety and Health Administration (OSHA) guidelines must be followed.
15. The motor of this pump has a thermal protector that will trip if the motor becomes too hot. The protector will reset
itself once the motor cools down and an acceptable temperature has been reached. The pump may start
unexpectedly if it is plugged in.
16. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long
time when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or
debris may cause the pump to fail. Please carefully read the manual and follow the instructions regarding
common pump problems and remedies.
17. Keep fingers and foreign objects away from ventilation and other openings. Do NOT insert any objects
into the motor.
CAUTION: Do not touch an operating motor. Modern motors are designed to operate at high temperatures. To
avoid burns when servicing the pump, allow it to cool for 20 minutes after shut-down before handling.
Do not allow pump or any system component to freeze. To do so will void warranty.
Periodically inspect the pump and system components.
Keep the work area clean, uncluttered and properly lighted; store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
WARNING: This pump is designed for indoor installation only. Failure to install indoors will sidnificantly
increase the risk of injury or death from electrical shock

For Professional Technical Support call 1-844-242-2475 3
PRE-INSTALLATION
APPLICATION
This unit is a single stage jet pump designed for shallow water well applications, where the water level is less
than 25 ft. deep. If the water level to the pump is deeper than 25 ft., a convertible jet pump or a deep well
submersible pump should be used. A pressure switch pre-set at 30 psi “on”, 50 psi “off” has been installed on the
pump. The pressure switch will automatically turn the pump on and off based on the system pressure.
Do not use for sewage pumps, if do this, will void the warranty.
TOOLS REQUIRED
SPECIFICATIONS
POWER SUPPLY 115V/230V, 60 HZ., 20/15 Amp Circuit
LIQUID TEMP. RANGE 32°F to 95°F (0°- 35°C)
DISCHARGE SIZE 1 in. FNPT
SUCTION SIZE 1-1/4 in. FNPT
SHALLOW WELL WATER LEVEL 25 ft.
DETERMINE THE DEPTH OF YOUR WELL
Tie a small but heavy weight to the end of a piece of string. Lower the weight into the well until it reaches the bottom.
Make a mark on the string at ground level. Pull the weight out of the well and measure from the bottom of the weight
to the ground level mark. This is the depth of your well. Subtract 5 ft. from the depth of your well. This number should
not exceed the maximum rated depth for your pump. If it does, it will greatly hinder or prevent the proper operation of
the pump.
LOCATION OF THE PUMP
Decide on the area for the pump installation. Select a pump location with adequate space for future pump
maintenance. It can be located in the basement or utility room of the house, at the well, or between the house and the
well. If installed outside of the house, it should be protected by a pump house with auxiliary heat to prevent possible
freezing. Protect the pump against flooding and excess moisture. The well also should be protected for sanitary
reasons. Mount the pump as close to the well as possible.
TANKS - PRE-CHARGED STORAGE
For best performance of the pump, it is recommended that you use a diaphragm pressure tank (sold separately). It is
best to have this in place before installing the pump. A pre-charged storage tank has a flexible bladder or diaphragm
that acts as a barrier between the compressed air and water. This barrier prevents the air from being absorbed into the
water and allows the water to be acted on by compressed air at initially higher than atmospheric pressures (pre-charged).
More usable water is provided than with a conventional type tank.
Air pressure in the tank must be 2 psi lower than the "cut-in" of the pressure switch.
Phillips
Screwdriver
Flathead
Screwdriver
Thread
Tape
Tape
Measure
Safety
goggles
Pipe wrench Hacksaw Wrench
Tire
pressure
guage

4 For Professional Technical Support call 1-844-242-2475
CAUTION: In order for the pump and tank to operate properly, the pressure tank needs to be drained of all water
BEFORE INSTALLING THE NEW PUMP. After draining, if you are using the supplied 30/50 psi pressure switch at the
pre-set settings, add or adjust the air pressure in the tank to 28 psi of pressure BEFORE start up.
PREPARATION

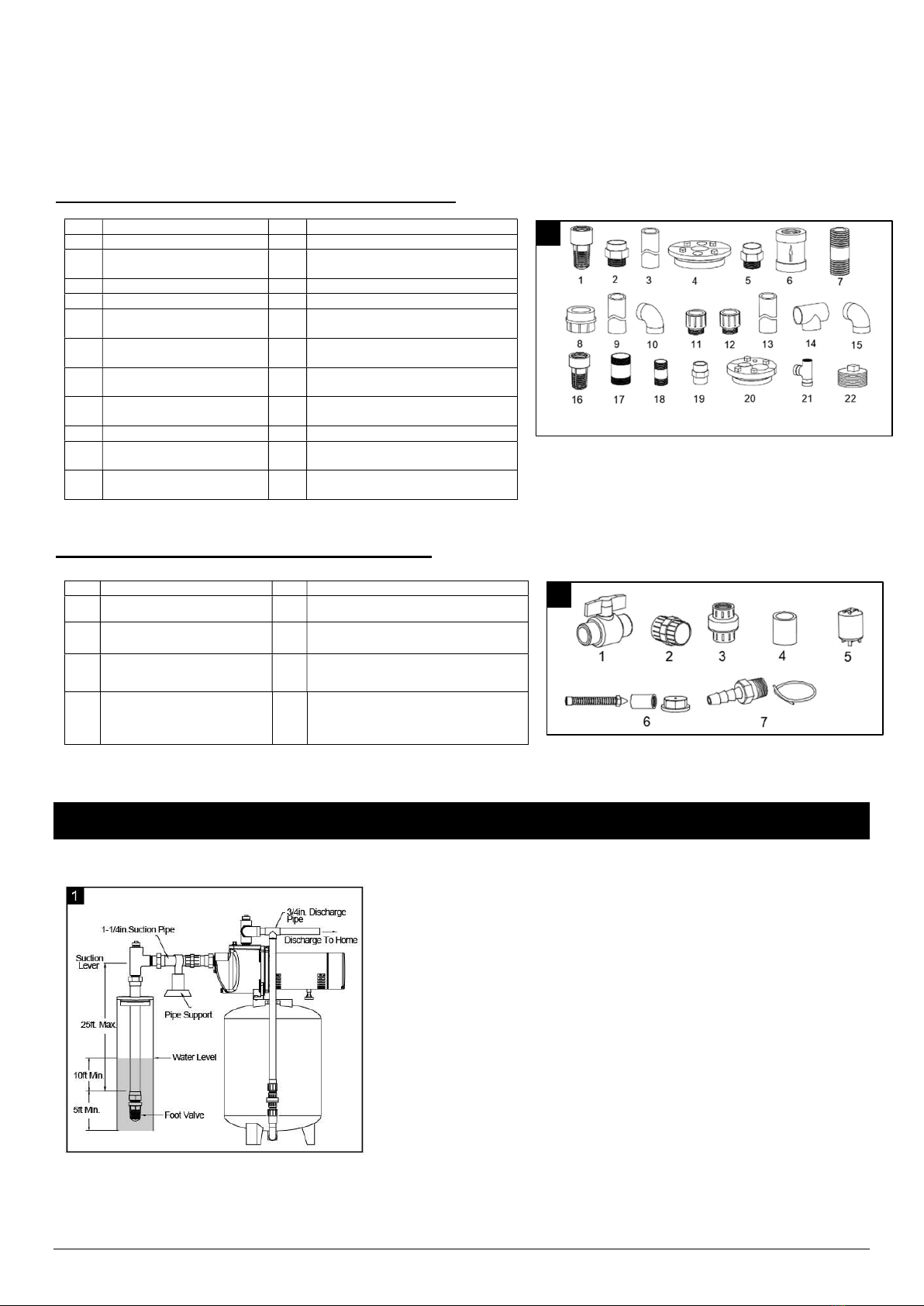

Parts you may need for assembly not include（Fig.1）
Item
Description
Item
Description
1
1
-
1/4in.Brass Foot Valve
12
3/4in. PVC MPT×S Male Adapter
2 1-1/4in.PVC MPT×S Male
Adapter
13 3/4in.PVC rigid Pipe
3
1
-
1/4in.PVC rigid Pipe
14
3/4in.CPVC CTC Socket Tee Fitting
4
Well Seal Single Pipe
15
3/4in.PVC 90
-
Degress S×S Elbow
5 1in. PVC MPT×S Male
Adapter
16 1-1/2in.Brass Foot Valve
6 1-1/4in.Lead Free Brass
Check Valve
17 1-1/2in.×3in. Galv. Steel Nipple
7 1-1/4in.×3in. Galv. Steel
Nipple
18 1in.×3in.Galv. Steel Nipple
8 1-1/4in.PVC FPT×S Female
Adapter
19 1in.PVC FPT×S Female Adapter
9
1in.PVC rigid Pipe
20
4in.Well Seal
Double Pipe
10
1in.PVC 90-Degress S×S
Elbow
21 1-1/4in.PVC Tee FPT× FPT× FPT
11
1in.×3/4in.PVC Reducing
Male Adapter
22 1-1/4in.Galvanized Plug
Optional Parts For Assembly not included (Fig.2)
Item
Description
Item
Description
1 3/4in.Slip×Slip Ball Valve 5 20 Gal. or larger Tank
2 1-1/4in. PVC Slip×Slip Union 6 Well point, Drive Couping, Drive Cap
3 3/4in. PVC FPT×FPT Union 7 1/8in.AVC control kit
4
1-1/4in.PVC Couping
1in.PVC Couping
3/4in.PVC Couping

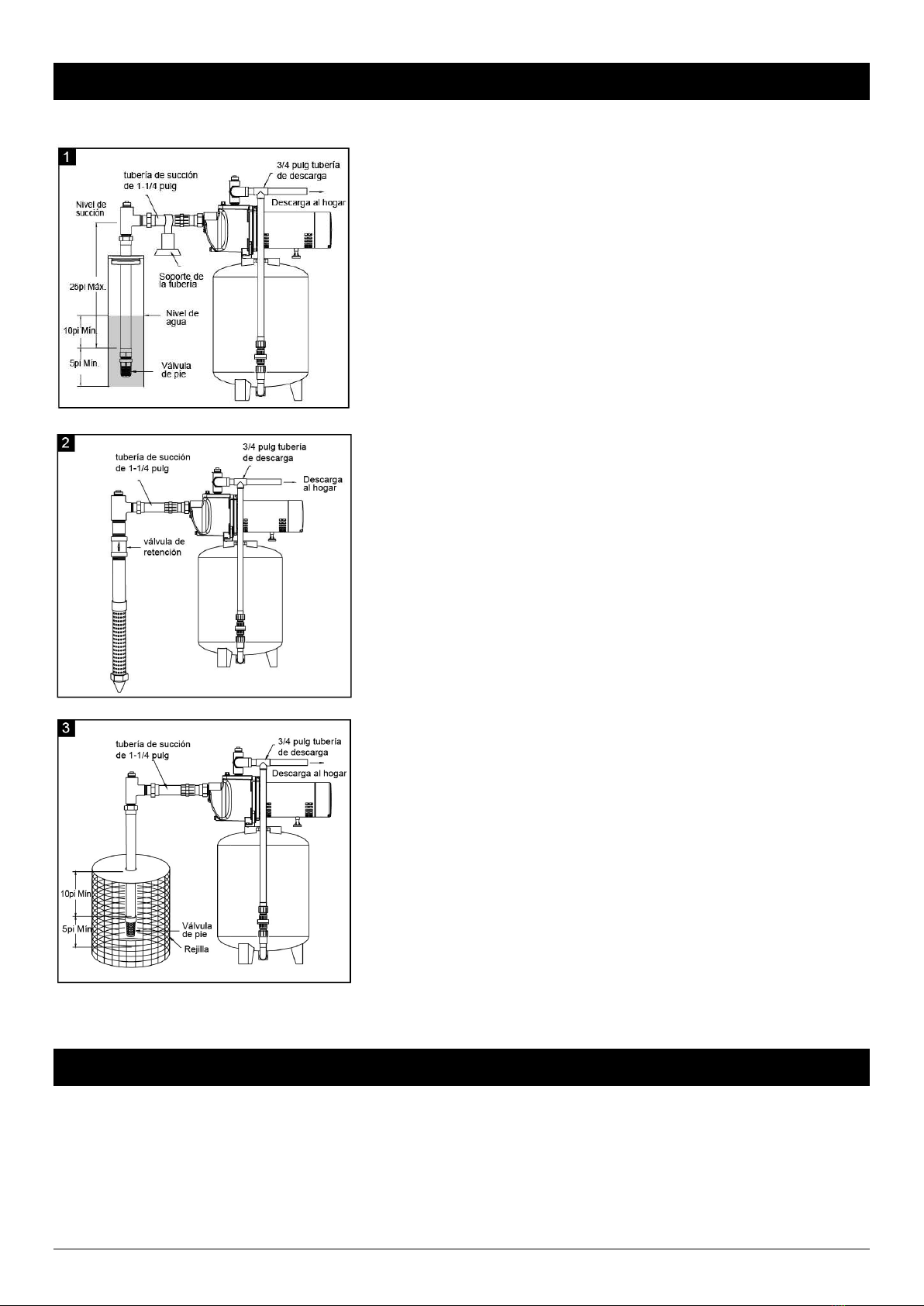

SHALLOW WELL APPLICATION
Shallow well systems are identified by one pipe going to the well, lake or river.
1. CASED WELL APPLICATION, 4” OR LARGER CASING (Fig.1)
A hole bored into the earth with machinery. Depths range from a few
feet to 25 feet. Common well diameters are 4", 5", 6" and 8" for
domestic water wells.
1
2

For Professional Technical Support call 1-844-242-2475 5
2. WELL POINT (DRIVEN POINT) APPLICATION (Fig.2)
Pipe with a pointed screen is driven into the ground below the water
table. The depth is usually less than 25 feet. Available diameters are 1"
through 2.
3. APPLICATION FOR SURFACE WATER (Fig.3)
One pipe goes into lake, river, cistern or ponds，suction lift is less than
25'.
Install a screen around the inlet pipe to prevent the entrapment of
swimmers, wildlife and debris.
CAUTION: Possible contamination. Do not use surface water for
drinking. The installation shown could be used for sprinkler applications.
INSTALLATION
Flexible pipe is prohibited on suction pipe (inlet pipe). Unions or hose couplings can be installed near pump to
facilitate removal for servicing or storage. A rubber hose installed between the water system and the house piping will
reduce the noise transmitted to the house.
1. INSTALLING PIPING IN WELL
CAUTION: Dry-fit entire assembly to ensure proper fit before gluing or taping parts. Follow all proper gluing procedures
as specified by the glue manufacturer. Always glue in a vertical direction whenever possible to prevent glue from dripping
inside pipe or fittings Use pipe tape and pipe paste compound on all male threads. Tighten with wrench to a snug fit and
add another 1/4 turn to ensure proper seal.

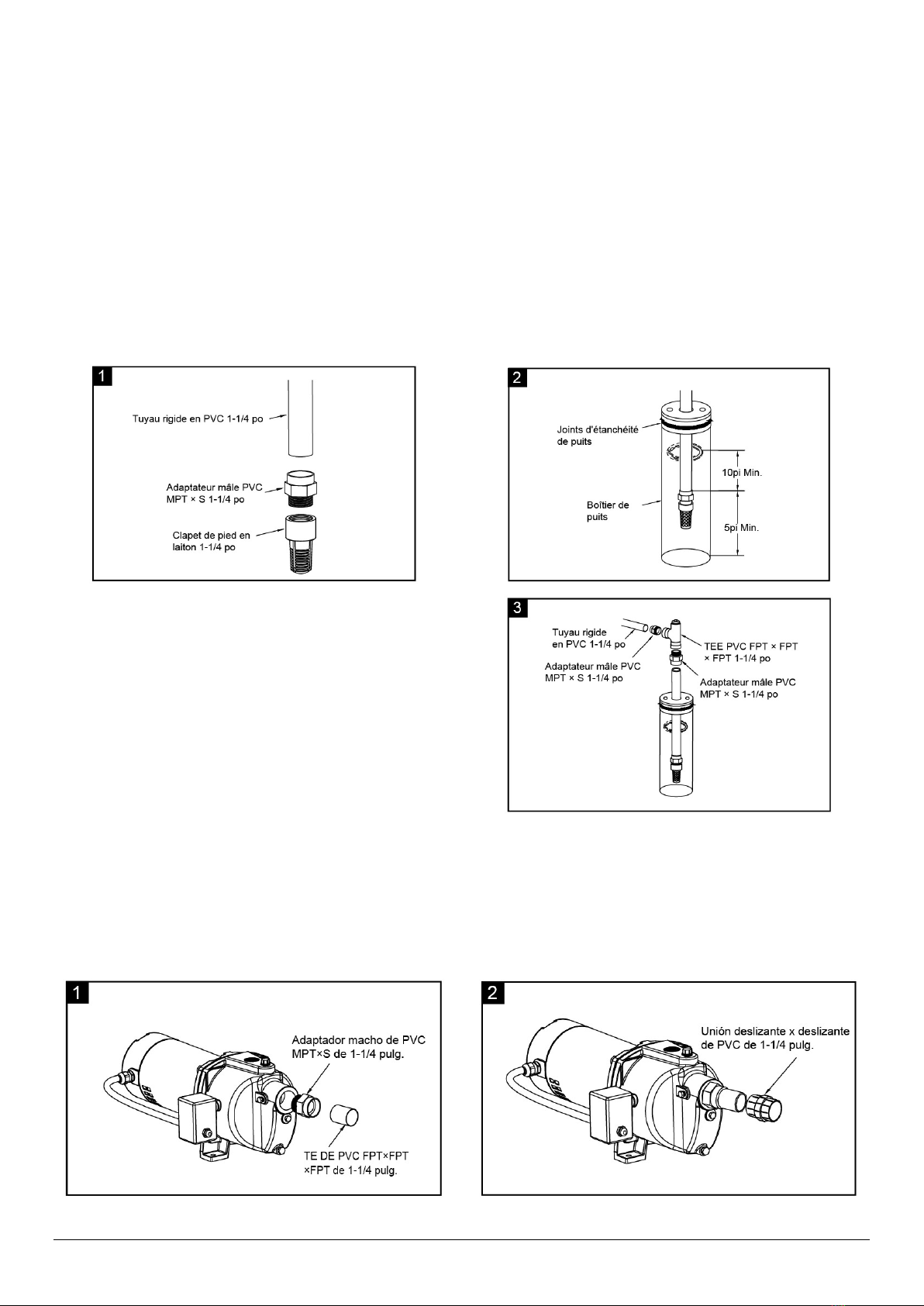

For Cased well Installation
1. Connect 1-1/4in. Brass Foot Valve to 1-1/4in.PVC
MPT×S Male Adapter.Cement adapter to 1-1/4 in.
PVC rigid Pipe.All connections must be air- and
water-tight for pump to operate correctly. (Fig 1)
2. Install well seal over 1-1/4 in. PVC rigid Pipe and
into well casing. Position the foot valve 5 feet above
bottom of well and at least 10 feet below the well’s
water level. (Fig 2)

6 For Professional Technical Support call 1-844-242-2475
3. Cement 1-1/4in. PVC MPT×S Male Adapter into 1-
1/4 in. PVC rigid pipe. Install 1-1/4in.PVC TEE
FPT×FPT×FPT to adapter. One end of horizontal
port installs another 1-1/4in. PVC MPT×S Male
Adapter and 1-1/4 in. PVC rigid pipe. Add sections
of pipes to reach the 1-1/4in. PVC Slip ×Slip Union
(optional). (Fig. 3)
2. WELL TO PUMP CONNECTION
1. Thread 1-1/4in. PVC MPT×S Male Adapter into
pump. Cement a short horizontal 1-1/4 in. PVC rigid
Pipe into adapter. (Fig .1)
2. Cement a 1-1/4in. PVC Slip× Slip Union into a short
horizontal 1-1/4 in. PVC rigid Pipe. Slopes all inlet
piping slightly upward from well to the pump to
prevent trapping air. (Fig.2)
3. Completed installation is shown Fig. 3a.3b.3c.
For Cased well For Well Point For Surface water

For Professional Technical Support call 1-844-242-2475 7
3. PUMP TO PRESSURE TANK AND TO HOUSE CONNECTION
NOTE: The pump must be within 4’ of the tank to prevent switch chatter. Check the tank recharge on a
yearly basis.

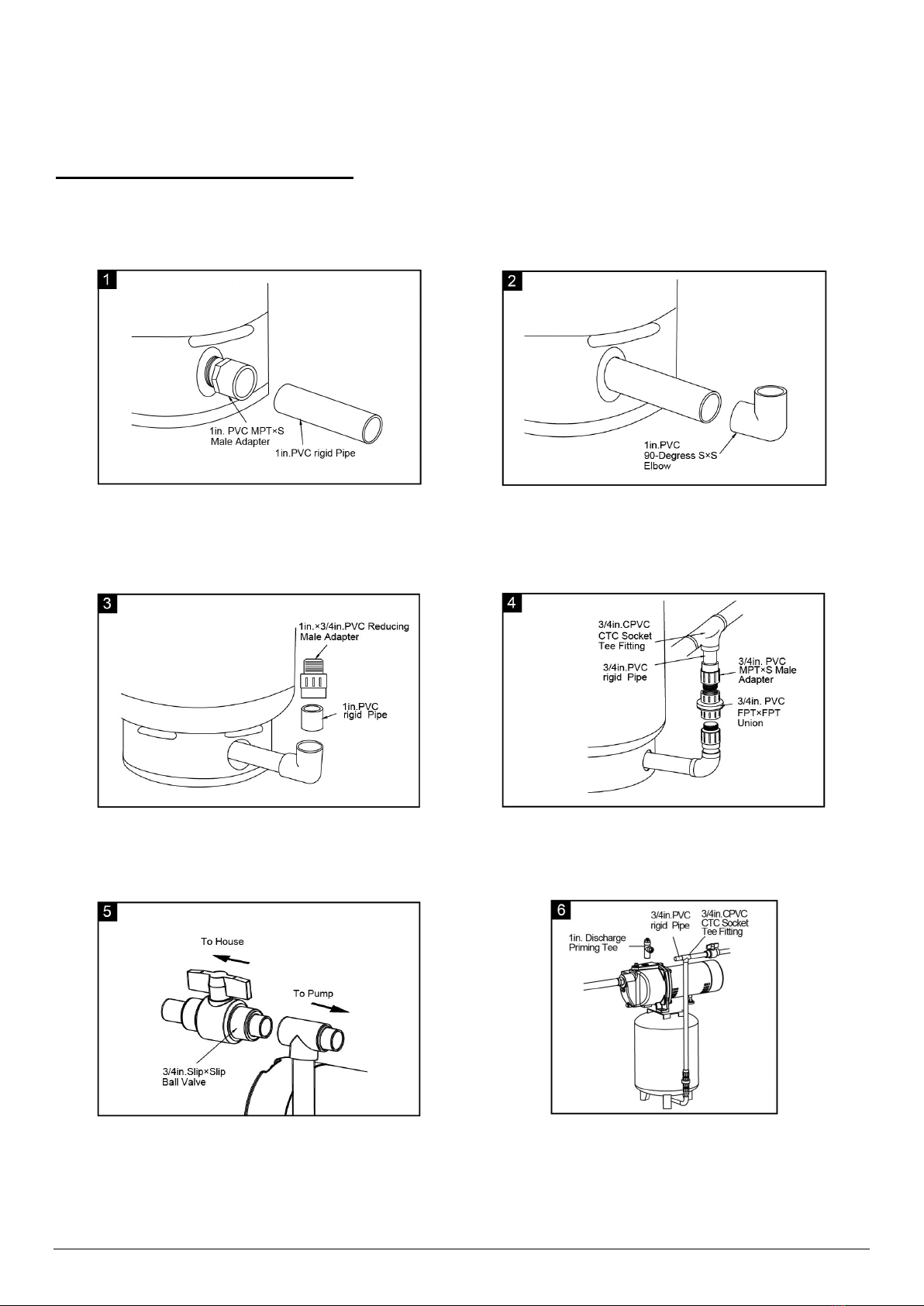

Pre-Charge Tank Connection
1. Most pressure tanks will have a 1in. inlet elbow on
the bottom. Connect to this elbow with a 1in. PVC
MPT×S Male Adapter and a short piece of 1in.PVC
rigid Pipe. (Fig. 1)
2. Cement a 1in.PVC 90-Degress S×S Elbow. (Fig. 2)
3. Cement a 1in.PVC rigid Pipe into elbow then
cements a 1in.×3/4in.PVC Reducing Male Adapter.
(Fig. 3)
4. Cement a 3/4in.PVC rigid Pipe into a 3/4in. CPVC
CTC Socket Tee Fitting. Cement 3/4in. PVC MPT×S
Male Adapter into 3/4in.PVC rigid Pipe that connect
with a 3/4in. PVC FPT×FPT Union. (Fig. 4)
5. Make the connection to the house plumbing. From
the tee, install pipe and 3/4in.Slip×Slip Ball Valve
(optional). (Fig. 5)
6. Install a 1 in. male NPT x 1 in. female NPT x 1 in.
female NPT galvanized tee to the outlet of the
pump. (Fig. 6)

8 For Professional Technical Support call 1-844-242-2475

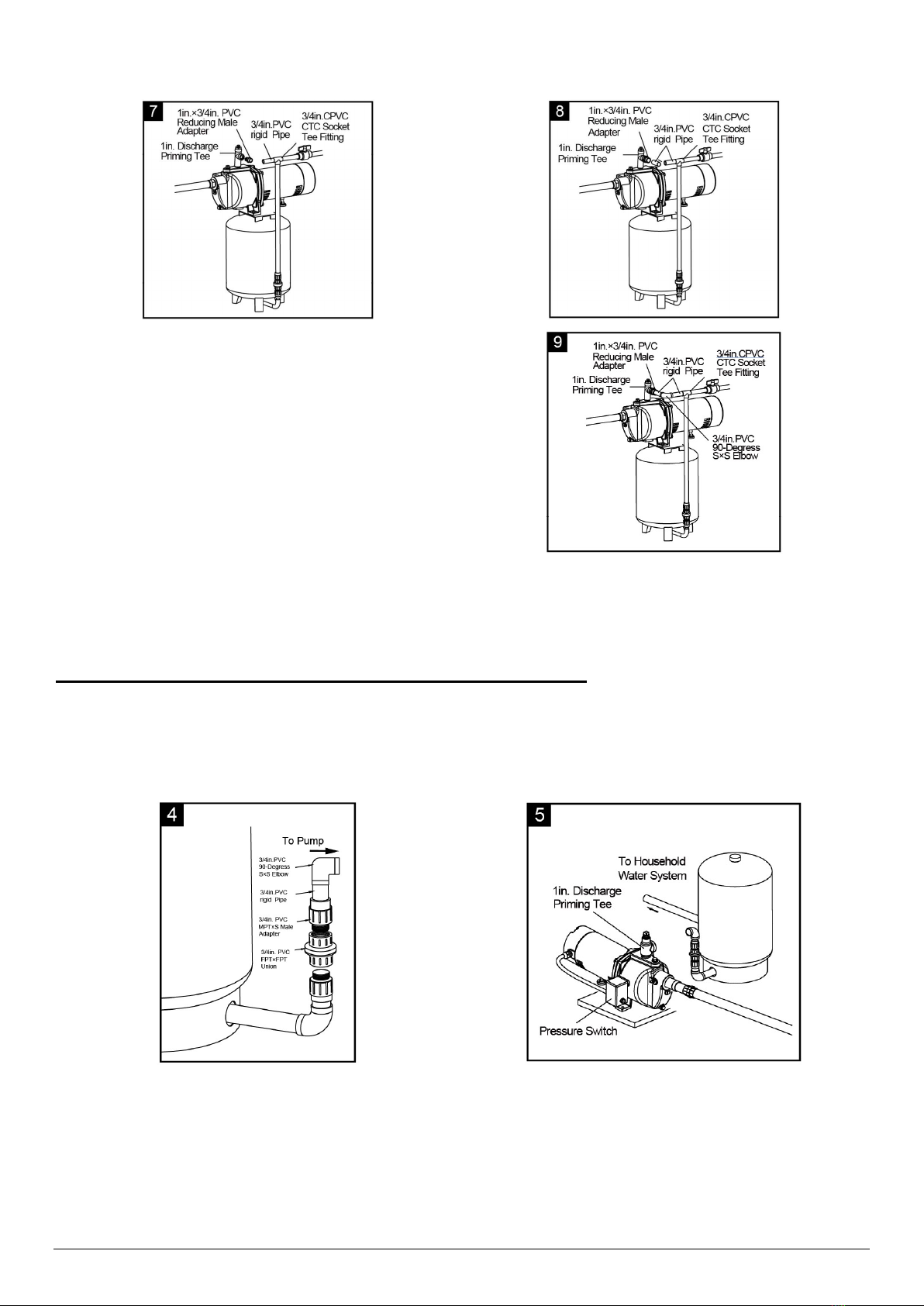

7. Install a 1in.×3/4in.PVC Male Adapter to the
galvanized tee. (Fig. 7) 8. Install a short 3/4in.PVC rigid Pipe. (Fig. 8)
9. Completed well installation with piping and tank is
shown (Fig. 9)
NOTE: If a pre-charged tank becomes waterlogged, the bladder is normally leaking or broken.
1. Test the tank by depressing the air valve. The air valve will expel water if the bladder is broken.
2. Replace the tank. Once a bladder is leaking or broken, the bladder cannot be repaired. The tank must be
replaced.
Standard Tank (CONVENTIONAL TYPE) Connection
From step 1 to 3 is the same as Pre-Charge Tank Connection.
4. Cement 3/4in.PVC rigid Pipe into 3/4in.PVC 90-
Degress S×S Elbow. Cement 3/4in. PVC MPT×S
Male Adapter into 3/4in.PVC rigid Pipe that connect
with a 3/4in. PVC FPT×FPT Union. (Fig. 4)
5. Install a 1 in. male NPT x 1 in. female NPT x 1 in.
female NPT galvanized tee to the outlet of the pump.
(Fig. 5)

For Professional Technical Support call 1-844-242-2475 9
6. Install a 1in.×3/4in.PVC Male Adapter to the
galvanized tee. (Fig. 6)
7. Install a short 3/4in.PVC rigid Pipe，Then
completed installation with piping and tank is shown
(Fig. 7)
8. Remove the 1/8” NPT pipe plug from the pump Air
Volume Control (AVC) port. Near the top tapping of
the pump face, thread a 1/8 in barbed barb x MIP
adapter fitting into the pump's AVC port. Run tubing
from the pump’s AVC port to the port on the AVC
mounted on the tank. You have just completed the
tank connection for your shallow well jet pump. (Fig.
8)
NOTE: As the pump refills the tank with water, the
air volume control supplies the tank with the correct
air to water ratio for the system to operate. If the air
volume control is good, the pump will shut off at the
desired cut-off setting and will be adjusted correctly.
PUMP ELECTRICAL CONNECTIONS
WARNING: Risk of electric shock. Can shock, burn or kill. Disconnect
power before working on pump, motor, pressure switch, or wiring.
To change from 230V to 115V
The motor is 115/230 Volt single phase and pre-wired at 230 volts.
If the power supply is 115 volts, remove the rear cover of motor.
Slide the switch to show 115 Volt.
Replace the rear cover of motor.
WARNING: Risk of electric shock. Can shock, burn or kill. Be sure power is
off. Never connect a motor set to 115 V to a 230 V power supply.

10 For Professional Technical Support call 1-844-242-2475

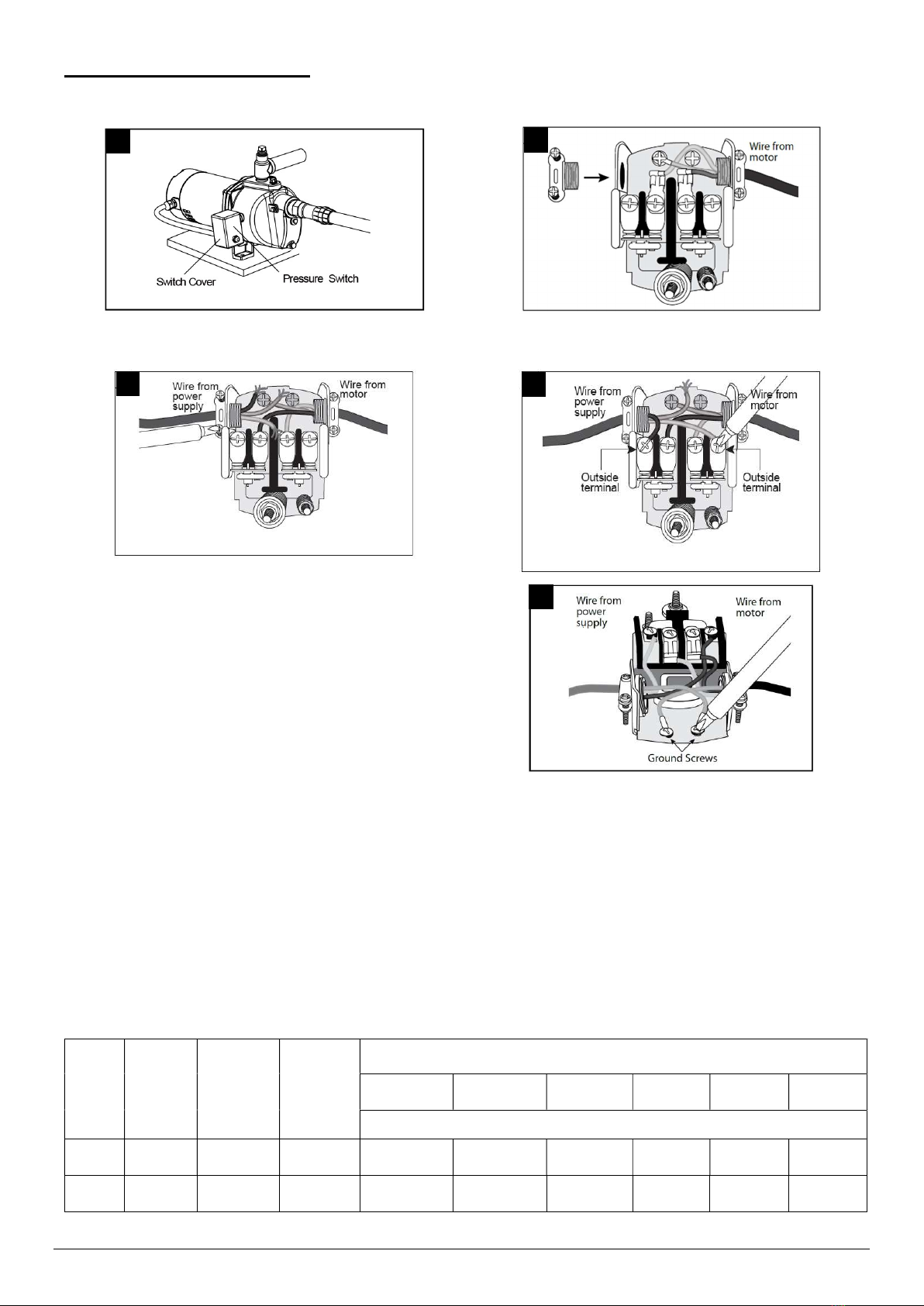

Wiring The Pressure Switch
1. Remove the switch Cover that installed the Pressure
Switch. (Fig. 1)
2. Insert an electrical wire strain relief into the opening
in the opposite side of the pressure switch (Fig. 2)
3. Pass the cable from the power supply through the
strain relief and tighten both screws on the strain relief. Do
not crush wire. (Fig .3)
4. Connect the two wires from the power supply to the
two outside terminals on the pressure switch (Fig. 4)
5. Connect the green ground wire from the power supply
to the green ground screw in the pressure switch (Fig. 5).
Risk of electric shock. Can shock, burn or kill. Connect ground wire before connecting power supply wires. Use the
wire size (including the ground wire) specified in the wiring chart. If possible, connect the pump to a dedicated branch
circuit (one with no other appliances on it).
Risk of explosion. Do not ground to a gas supply line.
WARNING: Risk of fire. Incorrect voltage can cause a fire or seriously damage the motor and voids the warranty.
The supply voltage must be within ±10% of the motor nameplate voltage.
NOTE: Motors voltage were set for 230 V. If necessary, reset the motor to the desired voltage, as shown. Install,
ground, wire, and maintain your pump in compliance with the National Electrical Code (NEC) or the Canadian
Electrical Code (CEC), as applicable, and with all local codes and ordinances that apply. Consult your local building
inspector for code information.
Wiring Chart – Recommended Wire and Fuse Sizes
Motor
HP Volts
Max.
Load
Amp
Branch
Fuse
Rating
Amp
DISTANCE IN FEET FROM MOTOR TO SUPPLY
0 - 50 51 - 100 101 - 200
201 -
300
301 -
400
401 -
500
AWG WIRE SIZE (mm2)
1/2 115/230 12.4/6.2 15/15 14/14 (2/2) 14/14 (2/2)
12/14
(3/2)
10/12
(5/3)
8/12
(7/3)
8/10
(7/5)
3/4 115/230 15.8/7.9 20/15 14/14 (2/2) 14/14 (2/2)
10/14
(5/2)
8/14
(7/2)
8/14
(7/2)
6/12
(9/3)
2
5
3
4
1

For Professional Technical Support call 1-844-242-2475 11
PUMP PRIMING&STARTUP
CAUTION: Risk of burns. Never run pump dry. Running pump without water may cause pump to overheat, damaging
seal and possibly causing burns to persons handling pump. Fill pump with water before starting.
WARNING: Risk of explosion and scalding. Never run pump against closed discharge. To do so can boil water
inside pump, causing hazardous pressure in unit, risk of explosion and possibly scalding persons handling pump.
1. Remove the priming plug or tee from the pump and
fill the pump, fill all piping between the pump and
the well, and make sure that all piping in the well is
full. If you have also installed a priming tee in the
suction piping, remove the plug from the tee and fill
the suction piping. (Fig. 1)
2. Replace all fill plugs, Open the faucet closest to the pump/tank a small amount to allow air to escape the system.
3. Power on! Start the pump.
4. If you don’t have water after 2 or 3 minutes, stop the pump and remove the fill plugs. Refill the pump and piping.
You may have to repeat this several times in order to get all the trapped air out of the piping.
5. After the pump begins building pressure in the system, shut the faucet off. Let the pump build pressure until it
shuts off. Check the pressure switch operation by opening a faucet or two and running enough water out to bleed
off pressure until the pump starts. The pump should start when pressure drops to 30 PSI and stop when pressure
reaches50 PSI. Run the pump through one or two complete cycles to verify correct operation. This will also help
clean the system of dirt and scale dislodged during installation.
If you were unsuccessful, please refer to Troubleshooting or call our customer service technical staff.
CARE AND MAINTENANCE
WARNING: Disconnect power and release all pressure from the system before attempting to install, service, relocate
or perform any maintenance.
Winterizing
CAUTION: Drain the entire system if there is danger of
freezing. A drain plug is provided at the bottom of the
pump case for this purpose
Drain openings are provided on all models to drain the
pump:
 Unplug the pump from power supply outlet.
 Remove drain plug close to the inlet hole.
 Drain all piping to a point below the freeze line. This
will drain the pump.
NOTE: While this will drain the pump, it will not necessarily drain all the unprotected parts of the piping system. To
drain tank, disconnect the piping at the tank outlet.
SEAL ASSEMBLY REPLACEMENT
CAUTION: Make certain that the power supply is disconnected before attempting to service the unit! The
rotary seal assembly must be handled carefully to avoid damaging the precision lapped faces of the sealing
components.

12 For Professional Technical Support call 1-844-242-2475
1. Disengage pump body (Ref. No. 1) (Include diffuser 4. venturi 3) from motor mounting ring (Ref. No. 8).
2. Remove the rear cover (Ref. No. 11). Remove the impeller(Ref. No. 5) use a 9/16" open end wrench to hold the
motor shaft.
3. The rotary seal (Ref. No. 6) will come loose at this time. Use a screwdriver (or similar instrument) to pry the silicon
carbide seal from the recess of the Seal plate (Ref. No. 7). Be careful not to damage the motor shaft or recess
surface.
4. Clean the recess and motor shaft thoroughly.
5. Install the new seal assembly.
a. Insert the silicon carbide seal and the rubber gasket into the recess of the Seal plate.
NOTE: To help facilitate installation, apply a drop of liquid soap to the outside diameter of the rubber gasket. Make
certain that the polished surface of mechanical seal and motor shaft are kept clean and free of dirt and/or oil.
b. Slip the remaining parts of the rotary seal assembly onto the motor shaft.
NOTE: Apply a drop of liquid soap to the inside diameter of the rubber drive ring.
6. Replace the impeller and diffuser removed in Steps 2.
7. Reassemble the pump body to the motor and mounting bracket.
ITEM DESCRIPTION QTY.
1 Motor 1
2 Seal Plate Pressure
Gauge 1
3 O -ring 1
4 Mechanical Seal
Assembled, E-5/8" 1
5 Impeller 1
6 Diffuser 1
7 Diffuser Ring 1
8 Venturi 1
9 Nozzle 1
10 Pump Body 1
11 Pressure Switch 1
12 Lead Wire 1
13 Mounting Ring 1
14 Screws 4
15
Rear cover
1

For Professional Technical Support call 1-844-242-2475 13
TROUBLE SHOOTING
NOTE: While this will drain the pump, it will not necessarily drain all the unprotected parts of the piping system. To
drain tank, disconnect the piping at the tank outlet.
Problem Possible Cause Corrective Action
Pump does not start or
run.
1. The switch is off.
2. There is a blown fuse or tripped
breaker.
3. The pressure switch contacts are
dirty.
4. The wires at the motor are loose
or wired incorrectly.
1. Turn the power switch on.
2. Replace the fuse or reset the circuit
breaker.
3. DISCONNET THE POWER. File or
clean the switch contacts.
4. DISCONNECT THE POWER.
Follow the wiring instructions to check
and tighten the wires.
Pump will not prime. 1. The pump was primed improperly
or air is trapped in the pipe.
2. There is an air leak.
3. The water level is below the
suction pipe inlet.
4. The foot valve is plugged or leaks.
1. DISCONNECT THE POWER. Adjust
pump height and make the pipe slope
down to the well. Remove the discharge
tee and re-prime.
2. Check all connections and fix the
leakage.
3. Lower the suction pipe. If the water level
is more than 25 ft., use deep well
installation.
4. Clean or replace the foot valve.
Pump operates but
pumps little or no water.
1. The foot valve is buried in sand or
mud.
2. The ejector or impeller is plugged.
3. The foot valve or inlet strainer is
clogged.
4. The water level is below the
maximum lift specification.
5. The voltage is not correct.
6. The pressure regulator is not set
up correctly.
1. Lift the suction pipe.
2. Clean the ejector or impeller.
3. Clean or replace as necessary.
4. Select a convertible jet pump.
5. Check the voltage switch.
6. Readjust the pressure regulator.
Pump starts and stops
too often.
1. The tank was pre-charged
incorrectly.
2. There is a ruptured
diaphragm/bladder (pre-charged
tank)/or has no air cushion.
3. The pipes are leaking.
4. The foot valve leaks.
5. The pressure switch is not
adjusted correctly.
6. The air charge is too low in the
pre-charged tank
1. Add or release air as needed.
2. Replace the tank/refill the air.
3. Repair the pipe connections or replace
the pipes.
4. Repair or replace the foot valve.
5. Closely look at the pressure gauge to
see the pump On/Off points are around
30 psi/50 psi. If not, adjust or replace
the pressure switch.
6. DISCONNECT POWER and open
faucets until all pressure is relieved.
Using tire pressure gauge, check air
pressure in the tank at the valve stem
located on the tank. If less than
pressure switch cut-in setting (30 psi),
pump air into the tank from an outside
source until air pressure is 2 psi less
than the cut-in setting of the switch.
Check the air valve for leaks (use soapy
solution) and replace core if necessary.
Pump does not shut off. 1. Water level is lower than
estimated.
2. The pipes leak.
3. The pressure switch is not set
correctly.
1. Use a deep well installation.
2. Locate and repair the leak or reconnect.
3. Reset or replace the pressure switch.

14 For Professional Technical Support call 1-844-242-2475
WARRANTY
K2 Pumps Limited Warranty
WHAT THIS WARRANTY COVERS
This Limited Warranty is effective September 1, 2020 and replaces all undated warranties dated prior to September
1, 2020.
K2 Pumps (K2) warrants to the original consumer purchaser (You) that its products are free from original defects
in material and workmanship for at least one year (warranty varies depending on model; see box or K2 website
for specific warranty information) from the date of purchase (the Warranty Period). Repair Parts and Accessories
are warranted for 90 days from the date of purchase. During the Warranty Period, K2 will repair or replace, at no
cost to you, products that have been examined by K2 and found to be defective in materials or workmanship.
Do not return product to the retail store.
For technical support and parts, call K2 Customer Service at 844-242-2475.
WHAT THIS WARRANTY DOES NOT COVER
This Warranty does not cover use of the product in a non-residential application, improper installation and/or
maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond control
of K2, owner’s acts or omissions, use outside the country in which the product was initially purchased and resale
of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls.
However, if you mail your product to a K2 Sales and Service Center for warranty service, cost of shipping will be
paid one way. This warranty does not apply to products purchased outside of the United States, including its
territories and possessions, outside of U.S. Military Exchange and outside of Canada. This warranty does not
cover products purchased from a party that is not an authorized retailer, dealer or distributor of K2 products.
OTHER IMPORTANT TERMS
This warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under
laws of the state of Michigan. The Warranty Period will not be extended by any replacement or repair performed
under this Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY K2. ALL
OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OR MERCHANTABILITY OR
FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL K2 BE LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER
OR ANY PARTY CLAIMING THROUGH OWNER WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT, OR
STRICT PRODUCTS LIABLITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow for
the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you
specific rights. You may also have other rights that vary from state to state.
GP Enterprises Co., Ltd. 1436 Brook Drive, Downers Grove, IL 60515
Phone: [phone] / Web: www.K2Pumps.com

Modèle: WPS05004K/ WPS07504K
NOTICE D’UTILISATION
POMPE À JET POUR PUITS PEU PROFOND
Questions, problèmes, pièces manquantes? Avant de retourner au magasin,
appelezle Service à la clientèle K2 du lundi au vendredi, de 8 h à 18 h, heure normale
de l’Est
1-844-242-2475
www.K2pumps.com
Copyright © 2021, GP Enterprises Co., Ltd. K2Man-33 (Rev. 6/05/21)

2 Pour une assistance technique professionnelle appelez 1-844-242-2475
PERFORMANCE
Modèle CV
Débit d’eau en LPM selon une pression totale
de refoulement de 40 lb/po2 Max.
Pressure
shutoff
Tension
Du pressostat
0 pi. 5 pi. 10 pi. 15 pi. 20 pi. 25 pi. MARCHÉ ARRÈT
WPS05004K 1/2 54,9
51,1 47,3 42,8 34,8 16,5
70PSI 230/115 30 50
WPS07504K 3/4 73,9
70,1 66,3 58,7 51,1 37,9
72PSI 230/115 30 50
Consignes de sécurité
1. Pompez de l'eau claire UNIQUEMENT avec cette pompe. Ne pas pomper de liquides inflammables ou explosifs
comme de l’huile, de l’essence, du kérosène, de l’éthanol, etc. Ne pas utiliser dans des lieux qui contiennent des
vapeurs inflammables ou explosives. Le fonctionnement de cette pompe avec ou près de liquides inflammables
peut provoquer une explosion ou un incendie, entraînant des dommages matériels, des blessures graves ou même
la mort.
2. OUJOURS débrancher la pompe avant de procéder à l’entretien.
3. Ne pas toucher le boîtier du moteur lorsqu’il fonctionne. Le moteur est conçu pour fonctionner à des températures
élevées. Ne pas démonter le boîtier du moteur.
4. Ne pas manipuler la pompe ni le moteur de la pompe lorsque vous avez les mains mouillés ou les pieds dans l’eau
ou dans un endroit humide ou détrempé.
5. Toujours porter des lunettes de sécurité lorsque vous travaillez avec une pompe.
6. Il s'agit d'une pompe à double tension 115 / 230V. Pour changer la tension à 115 V, veuillez ouvrir le couvercle des
bornes et régler le commutateur sur la tension appropriée. Tout le câblage doit être effectué par un électricien
qualifié.
7. Protéger le cordon d’alimentation de tout contact avec des objets tranchants, des surfaces chaudes, de l’huile ou
des produits chimiques. Éviter le tortillement du cordon. Ne pas utiliser un cordon d’alimentation endommagé ou
usé.
8. Vérifier que la source d’alimentation électrique satisfait les exigences pour cette pompe.
9. Le non-respect des consignes relatives au fonctionnement de cet appareil peut être cause d’annulation de la
garantie. L’UTILISATION D’UNE POMPE ENDOMMAGÉE peut entraîner des dommages matériels, des blessures
graves ou même la mort.
10. La pompe doit être connectée à un circuit mis à la terre équipé d'un disjoncteur de fuite à la terre (DDFT).
11. Bien connaître les différentes utilisations de la pompe, ses limites et les risques d’utilisation potentiels.
12. Fixez la pompe sur une base solide.
13. Inspectez régulièrement les composants de la pompe et du système. Débranchez la pompe de l'alimentation avant
d'inspecter.
14. Observez toutes les normes de sécurité et d’électricité, notamment le Code canadien de l’électricité et les
exigences sur la santé et sécurité au travail en vigueur dans votre milieu de travail.
15. Le moteur de cette pompe est muni d’un protecteur thermique qui s’arrête si le moteur surchauffe. Le protecteur se
réinitialise automatiquement une fois que le moteur refroidit et qu’une température acceptable est atteinte. La
pompe peut démarrer de manière inattendue si l’appareil est branché.
16. Cette pompe est fabriqué de matériaux à haute résistance mécanique et résistant à la corrosion. La durée de vie de
la pompe est prolongée lorsqu’elle est correctement installée, utilisée et entretenue. Cependant, une alimentation
électrique insuffisante, des saletés ou des débris peuvent provoquer une panne de la pompe. Veuillez lire
attentivement ce manuel et suivre les instructions relatives aux mesures correctives à prendre pour résoudre des
problèmes communs.
17. Gardez les doigts et les objets étrangers à l'écart de la ventilation et des autres ouvertures. N'insérez
AUCUN objet dans le moteur.
ATTENTION: Ne pas toucher un moteur qui fonctionne. Les moteurs modernes sont conçus pour fonctionner
par des températures élevées. Pour ne pas se brûler lorsque l'on interviendra sur la pompe, la laisser refroidir
pendant 20 minutes après l'avoir arrêtée avant de la toucher.
Ne pas laisser geler la pompe ni aucun autre élément du système, sinon la garantie sera annulée.

Pour une assistance technique professionnelle appelez 1-844-242-2475 3
Périodiquement, inspecter la pompe et tous les éléments du système.
Garder la zone de travail propre, non encombrée et bien éclairée; tous les outils et tout l'équipement non utilizes
doivent être entreposés correctement.
Ne pas laisser les visiteurs s'approcher de la zone de travail.
AVERTISSEMENT: Cette pompe est conçue pour une installation intérieure uniquement. Ne pas installer à
l'intérieur augmentera considérablement le risque de blessure ou de mort par choc électrique.
AVANT L’INSTALLATION
UTILISATION
Cet appareil est une pompe à jet monocellulaire pour puits de surface, où le niveau d’eau est inférieur à 25 pi de
profondeur. Si le niveau d’eau à la pompe est plus profond que 25 pi, il faut se servir d’une pompe à jet convertible
ou d’une pompe submersible pour puits profond. Cette pompe est équipée d’un pressostat préréglé à 30 lb/po²
«marche», 50 lb/po² «arrêt». Le pressostat met en marche et arrête automatiquement la pompe en fonction de la
pression du système.
Ne pas utiliser pour les pompes à eaux usées, sinon cela annulera la garantie.
OUTILLAGE REQUIS
CARACTÉRISTIQUES
Alimentation électrique 115V/230V, 60 HZ., 20/15 Amp Circuit
Plage de températures du liquide 32°F to 95°F (0°- 35°C)
Diamètre du tuyau de refoulement°
1 po. FNPT
Diamètre du tuyau d’aspiration° 1-1/4 po. FNPT
Pompage de puits peu profonds 25 pi.
Déterminez la profondeur du puits.
Attachez un poids de petite taille mais lourd (p. ex., un plomb de pêche) à l’extrémité d’une ficelle de coton
(assurez-vous que la ficelle est suffisamment longue; certains puits sont très profonds). Descendez le poids dans le
puits jusqu’à ce qu’il touche le fond. Tendez la ficelle et faites une marque au niveau du sol. Tirez le poids hors du puits
et mesurez la distance entre le bas du poids et la marque de niveau du sol. Cette mesure correspond à la profondeur du
puits. De cette mesure, enlevez cinq pieds. Ce nombre ne doit pas dépasser la profondeur nominale maximale de votre
pompe. Si c'est le cas, cela gênera ou empêchera considérablement le bon fonctionnement de la pompe.
EMPLACEMENT DE LA POMPE
Déterminez l’endroit où vous placerez la pompe. Celui-ci doit offrir suffisamment d’espace pour permettre l’entretien de
la pompe. Elle peut être placée au sous-sol ou dans une pièce de rangement de votre maison, près du puits ou entre la
maison et le puits. Si elle est installée à l’extérieur de la maison, elle doit être protégée par une remise avec chauffage
auxiliaire pour éviter qu’elle ne gèle. Protégez la pompe contre les dommages causés par les inondations et l’humidité
excessive. Afin de protéger le puits de toute source de contamination, montez la pompe le plus près possible du puits.
Tournevis
cruciforme
Tournevis à
tête plate
Ruban
pour
Ruban à
mesurer
Lunettes
de sécurité
Clé à tube Scie à
métaux Clé
Jauge de
pression
des pneus

4 Pour une assistance technique professionnelle appelez 1-844-242-2475
RÉSERVOIR PRÉCHARGÉ
Pour obtenir un rendement optimal de la pompe et en prolonger la vie, il est recommandé d’utiliser un réservoir sous
pression à membrane (vendu séparément). Il est préférable que ce réservoir soit mis en place avant d’installer la
pompe. Le réservoir de 6 gallons préchargé est muni d'une paroi souple (une membrane) qui agit en quelque sorte
comme une barrière entre l'air comprimé et l'eau. Cette barrière empêche l’absorption d’air dans l’eau et permet l’action
par l’air comprimé aux pressions de début plus élevées que la pression atmosphérique. Ce réservoir permet de fournir
plus d’eau qu’un réservoir standard.
La précharge doit être de 2 lb/po2 inférieure au réglage de la pression d'enclenchement du manocontacteur de la
pompe.
MISE EN GARDE: Pour que la pompe et le réservoir fonctionnent correctement, le réservoir doit être vidangé au
complet AVANT D’INSTALLER UNE NOUVELLE POMPE. Après avoir vidangé l’eau du réservoir, si vous utilisez le
régulateur de pression préréglé à 30/50 lb/po2, réglez le niveau de l’air à 28 lb/po2 à l’intérieur AVANT de mettre la
pompe en marche.
PRÉPARATION
Pièces dont vous aurez besoin pour l’assemblage (non incluses) (Fig. 1)
Article
Description
Article
Description
1
Clapet de pied en laiton 1
-
1/4 po
12
Adaptateur mâle PVC MPT × S 3/4 po
2
Adaptateur mâle PVC MPT ×
S 1
-
1/4 po
13 Tuyau rigide en PVC 3/4 po
3 Tuyau rigide en PVC 1-1/4 po 14
Raccord en T de prise en CPVC CTC
3/4 po
4 Tuyau simple de joint
d'étanchéité
15 Coude SxS 90° en PVC 3/4 po
5
Adaptateur mâle PVC MPT ×
S 1 po
16 Clapet de pied en laiton 1-1/2 po
6 anti-retour en laiton sans
plomb de 1
-
1/4 po
17
Manchon fileté en acier galvanisé
1
-
1/2 po × 3 po
7 Manchon fileté en acier
galvanisé 1
-
1/4 po × 3 po
18
Manchon fileté en acier galvanisé 1 po
× 3 po
8 adaptateur femelle FPT × S
de 1
-
1/4 po en PVC
19
adaptateur femelle FPT × S de 1 po
en PVC
9
Tuyau rigide en PVC 1 po
20
Tuyau double étanche de 4 po
10
Coude SxS 90° en PVC 1 po
21
TEE PVC FPT × FPT ×
FPT 1
-
1/4 po
11
Adaptateur mâle réducteur en
PVC 1 po × 3/4 po
22 Bouchon galvanisé 1-1/4 po
Pièces facultatives pour l’assemblage (non incluses) (Fig. 2)
Article
Description Article Description
1 robinet à boisseau sphérique
dérapant x
dérapant de 3/4 po
5 Couplage d'entraînement
2 PVC Slip × Slip Union 1-1/4 po 6 Capuchon d'entraînement
3 raccord en PVC FPT× FPT de
3/4 po. 7 kit de contrôle AVC 1/8 po
4
Raccord PVC de 1-1/4 po.
Réservoir de 20 Galon ou plus
grand point de puits
2
1

Pour une assistance technique professionnelle appelez 1-844-242-2475 5
Application pour puits peu profond
Les systèmes de puits peu profonds sont identifiés par un tuyau allant au puits, au lac ou à la rivière.
1. APPLICATION DE PUITS EN BOÎTIER, BOÎTIER DE 4 PO OU
PLUS (Fig.1)
Un trou creusé dans la terre avec des machines. Les profondeurs
varient de quelques pieds à 25 pieds. Les diamètres de puits courants
sont de 4po, 5po, 6poet 8po pour les puits d'eau domestique.
2. POINT DE PUITS D'APPLICATION (POINT CONDUIT) (Fig.2)
Un tuyau avec un écran pointu est enfoncé dans le sol sous la nappe
phréatique. La profondeur est généralement inférieure à 25 pieds. Les
diamètres disponibles sont de 1po à 2.
3. APPLICATION POUR L'EAU DE SURFACE (Fig.3)
Un tuyau entre dans un lac, une rivière, une citerne ou des étangs, la
hauteur d'aspiration est inférieure à 25 pi.
Installez un écran autour du tuyau d'entrée pour empêcher le piégeage
des nageurs, de la faune et des débris.
ATTENTION: Contamination possible. N'utilisez pas d'eau de surface
pour boire. L'installation illustrée peut être utilisée pour des applications
d'arrosage automatique.
ASSEMBLAGE
Le tuyau flexible est interdit sur le tuyau d'aspiration (tuyau d'entrée). Des raccords ou des raccords de tuyau peuvent
être installés près de la pompe pour faciliter le retrait pour l'entretien ou le stockage. Un tuyau en caoutchouc installé
entre le système d'eau et la tuyauterie de la maison réduira le bruit transmis à la maison.

6 Pour une assistance technique professionnelle appelez 1-844-242-2475
1. INSTALLATION DE LA TUYAUTERIE DANS LE PUITS
ATTENTION: Montez l'ensemble à sec pour assurer un bon ajustement avant de coller ou de scotcher des pièces.
Suivez toutes les procédures de collage appropriées telles que spécifiées par le fabricant de la colle. Collez toujours
dans la direction verticale dans la mesure du possible pour éviter que la colle ne coule à l'intérieur du tuyau ou des
raccords. Utilisez du ruban adhésif et de la pâte pour tuyau sur tous les filetages mâles. Serrez avec une clé pour un
ajustement optimal et ajoutez encore 1/4 de tour pour assurer une bonne étanchéité.
Pour une installation dans un puits tubé
1. Connectez le clapet de pied en laiton de 1-1/4 po à un
Adaptateur mâle de 1-1/4 po. en PVC MPT × S.
Adaptateur en ciment pour tuyau rigide en PVC de
1-1/4 po. Toutes les connexions doivent être étanches
à l'air et à l'eau pour que la pompe fonctionne
correctement. (Fig. 1)
2. Installez le joint de puits sur un tuyau rigide en PVC de
1-1/4 po et dans le tubage du puits. Positionnez le
clapet de pied à 5 pieds au-dessus du fond du puits et
à au moins 10 pieds au-dessous du niveau d'eau du
puits. (Fig 2)
3. Cimentez un Adaptateur mâle de 1-1/4po. en PVC
MPT × S dans un tuyau rigide en PVC de 1 1/4 po.
Installez le TEE FPT × FPT × FPT de 1-1/4 po en PVC
sur l'adaptateur. Une extrémité du port horizontal
installe un autre Adaptateur mâle de 1-1/4po. en PVC
MPT × S et tuyau rigide en PVC de 1-1/4 po. Ajoutez
des sections de tuyaux pour atteindre le PVC Slip de
1-1/4 po. × Slip Union (en option). (Fig.3)
2. RACCORDEMENT DU PUITS A LA POMPE
1. Fileter un Adaptateur mâle de 1-1/4po. en PVC MPT ×
S dans la pompe. Collez un court tuyau rigide en PVC
horizontal de 1-1/4 po dans l'adaptateur. (Fig. 1)
2. Pour le raccordement du réservoir préchargé.
Cimentez un manchon de un 1-1/4 po. en PVC ×
manchon de connexion dans un court tuyau rigide
horizontal de 1-1/4 po en PVC. Incline tous les tuyaux
d'admission légèrement vers le haut depuis le puits
jusqu'à la pompe pour éviter de piéger l'air. (Fig.2)
