Kaito KA752 User manual

Kaito®KA752 A Multi-Function Radio, Fan, Flashlight Combo
User Manual Kaito®KA752 A Multi-Function Radio, Fan, Flashlight Combo User Manual
Product Introduction How To Use This Multi-Function KA752

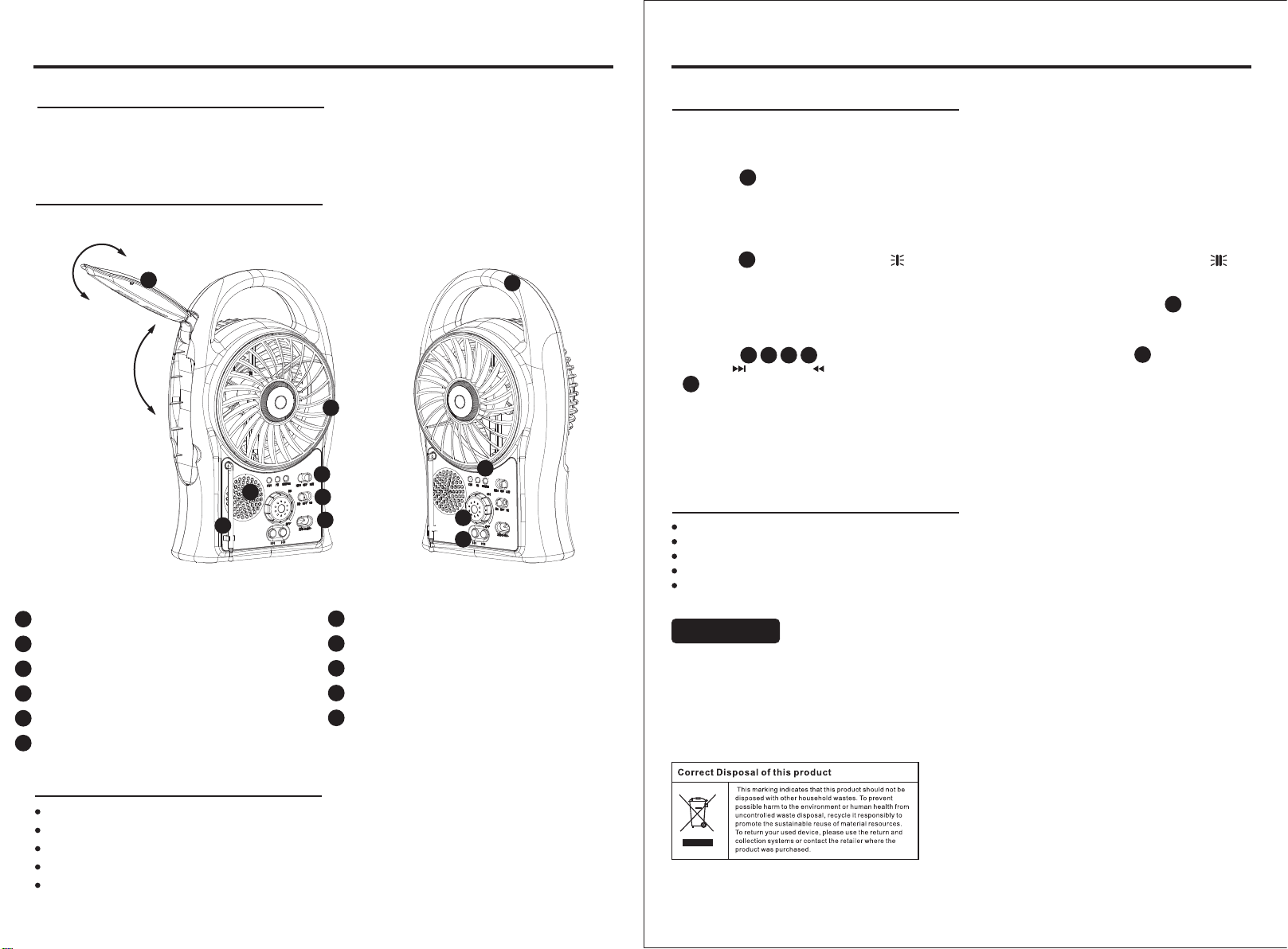

Schematic Diagram
1
2
8
9
10
11
4
5
6
7
3
270° Axial Rotation Angle
150° Radial Rotation Angle
1
2
4
5
6
3
Fan Power Switch, High or Low
Tilt-able Lamp Control, High/Low
DC12V Charge Jack
Fan Grill
Tilt and Rotatable Lamp
Telescopic Antenna for the FM Scan Radio
8
9
10
11
7Built-in Speaker for FM Radio
FM Radio Station Selector
Radio Power and Volume Control
Fan, Radio and Charge Indicators
Handle
Important Notice
The KA752 is a built-in rechargeable battery powered combo: Fan, Radio and light. It is in small size, easy to carry, the
LED lights can be set to different directions, a FM radio and two speed of the fan. It is a perfect camping and family use
item on your outdoor trip, or a garage companion.
Functions Overview
Portable Two Speed DC Electric Fan
Multi-Direction and Multi-Angle LED Lantern with Two-Level Brightness
Built-in FM Scan Radio
Built-in Rechargeable Battery
Built-in 12V DC Charge Receptacle
The KA752 A Multi-Function Radio, Fan, Flashlight Combo can be operated by built-in battery or AC adapter. See the following
detail to use these functions. (All the sign marks refer to Schematic Diagram section)
1. How to use the Fan
2. How to use the LED Lantern
4. How to charge the Unit
1
Refer to the , Slide the switch to the position of “LOW”, the fan will be turned on at a low speed; when slid to the “HI”, the
fan will run at a higher speed.
Set it to “OFF”, the fan will stop.
5
2
Refer to the , Slide the switch to position “ ”, the tilt-able lantern will be on with lower brightness; slide to the “ ”, the
lantern will be in full brightness.
This Lantern can work in multi-direction and angle. To pull it from the fuselage, along the radial angle, it can be adjusted to 150°
Max, each step angle is 30°. The lantern LED can be rotated along the axial angle for 270° Max. Refer to the description.
9
9
3. How to Use the FM Radio
8 96 7
Refer to the , Pull and extend the telescopic antenna fully, clockwise turn the knob to turn on the radio,
press the “ ” forward or “ ” backward to select the station you like. The frequency range is 87.5MHz to 108.8MHz. The knob
is a volume control too.
The AC adapter works on 110V only, make sure you have the correct voltage on the wall output. Connect the DC 12V to the unit,
the “CHARGE” indicator will be on.
The unit might be slightly warm while charging.
Fully charge the unit before use.
Turn off the unit if not in use it for a while. Make sure to charge the unit every month to avoid battery dry up.
Keep the unit away from water or humidity.
Working Temperature: 32°F to 100°F.
Do not open the unit without consulting seller or manufacturer.
WARNING!
Please read the instructions before first use of the electric fan.
In order to prevent the risk of fire or electric shock, do not expose the electric fan to rain or moisture.
To prevent electric shock, Do not open the cabinet. Only qualified personnel may carry out repairs.
Do not placed in water, or close to fire.
Please do not allow children access to the electric fan.
12

Kaito®
Specification
Package Information
Power Supply: DC 12V | 110V@60Hz
Built-in Battery: 6V | 1600mAh Sealed Lead-acid Rechargeable Battery
Electric Fan: Ф5 inchs | Two Speed Selectable
Lantern: LED | 24 x 0.1W | Two Brightness Selectable
Charge Time: 12 - 15 hours
Working Time: Electric Fan: 2 hours @ High-Speed Mode
4 hours @ Low-Speed Mode
Lantern: 7 hours @ Strong Brightness Mode
14 hours @ Weak Brightness Mode
FM Radio: 6 hours
Dimension: 7¼(L) x 4¼(W x 11½(H) inches
Net Weight: 2 lbs (Battery Included)
