INSTALLATION GUIDE FOR
BACK-TO-WALL SURROUND PANEL
(D SHAPE)
THIS INSTALLATION REQUIRES:
•Flexible Waste Connection Kit
•Flexible Water Hose Inlet (for overflow with bath filling function)
Warranty will be void if bath and panel
are not sealed upon installation.
SILICON
LEVEL
CLOTH
BATH PROTECTTION
(DROP SHEET/CARDBOARD/BLANKET)
ASSISTANCE

www.bathe.net.au | 25 John Street, Leichhardt, NSW, 2040 | t. [phone] | [e-mail]
1. IMPO RT ANT! M a ke su r e the f loor is
le ve l.
2. Install legs on bath as per the manufacturer’s
instructions.
Note: Leg system may differ to image.
3. Fit waste and overflow fittings, as per the
manufacturer’s instructions.
4. With panel in place (not fixed), adjust leg
height to base of panel plus 2 mm, to allow for
sealant.
5. Position bath with tile trim fitted as per
instructions provided.
Tile trim profile
6. Prepare floor outlet and connect the flexible
waste.

www.bathe.net.au | 25 John Street, Leichhardt, NSW, 2040 | t. [phone] | [e-mail]

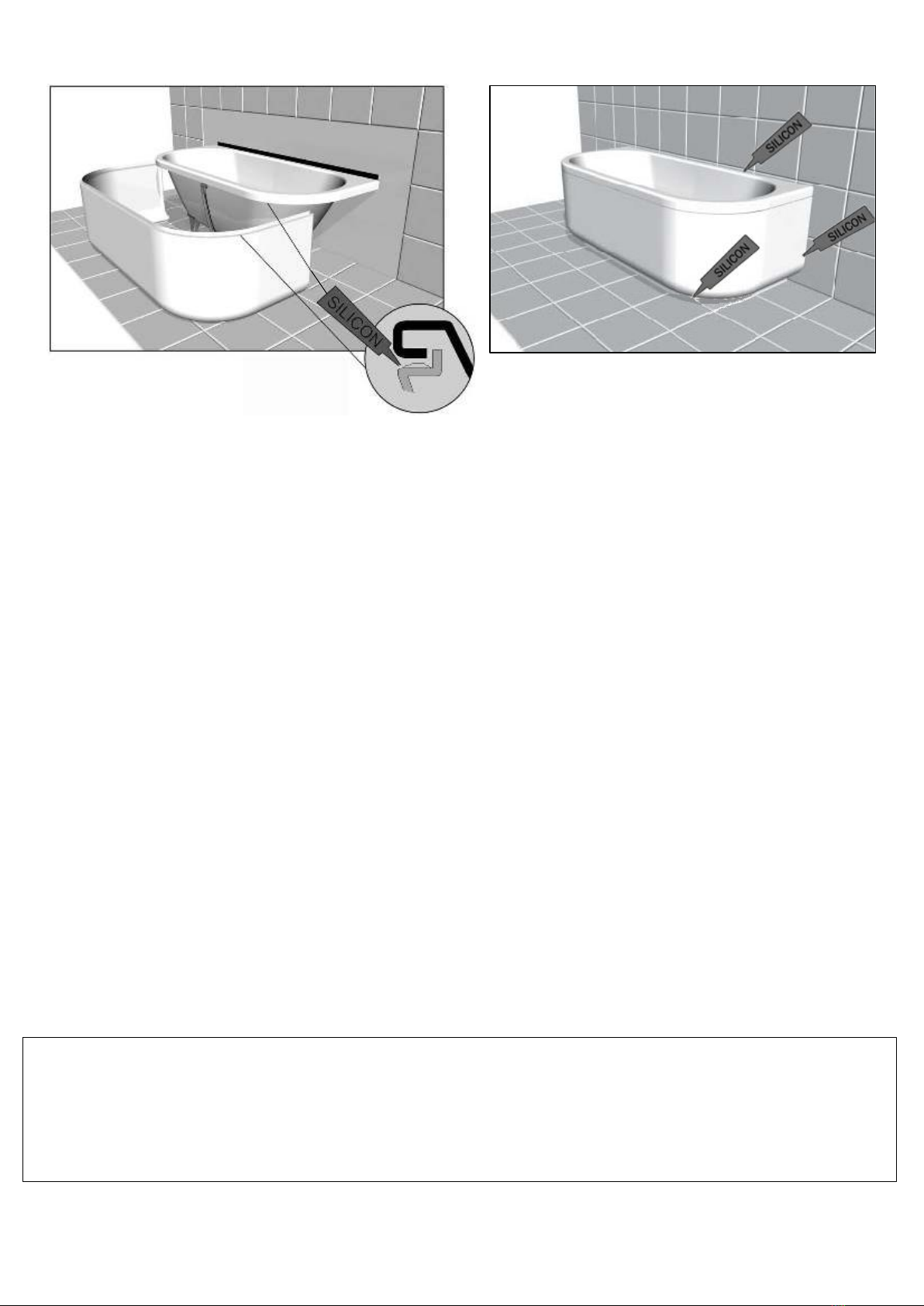

7. Install surround panel and seal join
with silicon.
IMPORTANT: Warranty will be void if
surround panel is not properly sealed to bath.
8. Complete wall tiling, seal all joints with
silicon type sealant and leave for 24 hours
before use.
