Kaltech TURNED KL-F01 User manual

Introduction
The Flow of Use .......................................................... 3
Safety Precautions ...................................................... 4
Before Use …………………………………………..…………. 6
How to use
Name of Each Parts ................................................... 7
How to use ................................................................... 8
Care & Troubleshooting
How to Care and Maintain ......................................11
Trouble Shooting....................................................... 14
Specifications
Specifications............................................................ 15
K L-F 0 1
Air Purifier,
large space type
User's Manual
Thank you for purchasing Air Purifier
Large space type “KL-F01”
Please read this owner’s manual before you start using this appliance.
Read “Quick Start Guide” for the initial set up.
Read and SAVE THESE INSTRUCTIONS

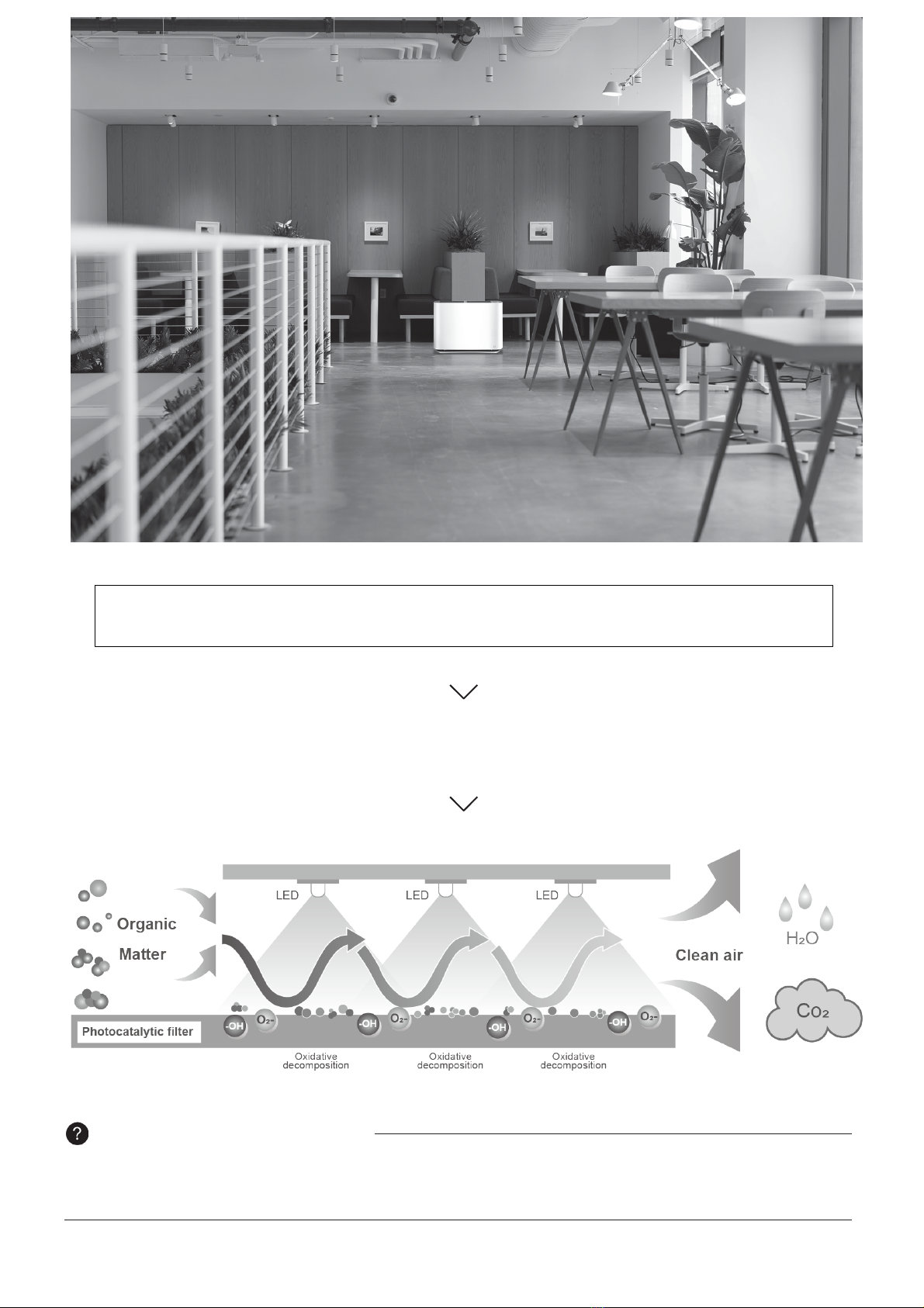

Photocatalytic technology reduces a variety of odors
When a photocatalytically active material is irradiated with light, it has a strong oxidizing power. This strong
oxidizing capability of the photocatalyst can be used to reduce pollutants in the air.
2
The photocatalyst technology is applied to this large space type Air Purifier
This product will bring you comfortable “noiseless space "
What is "photocatalytic technology"?

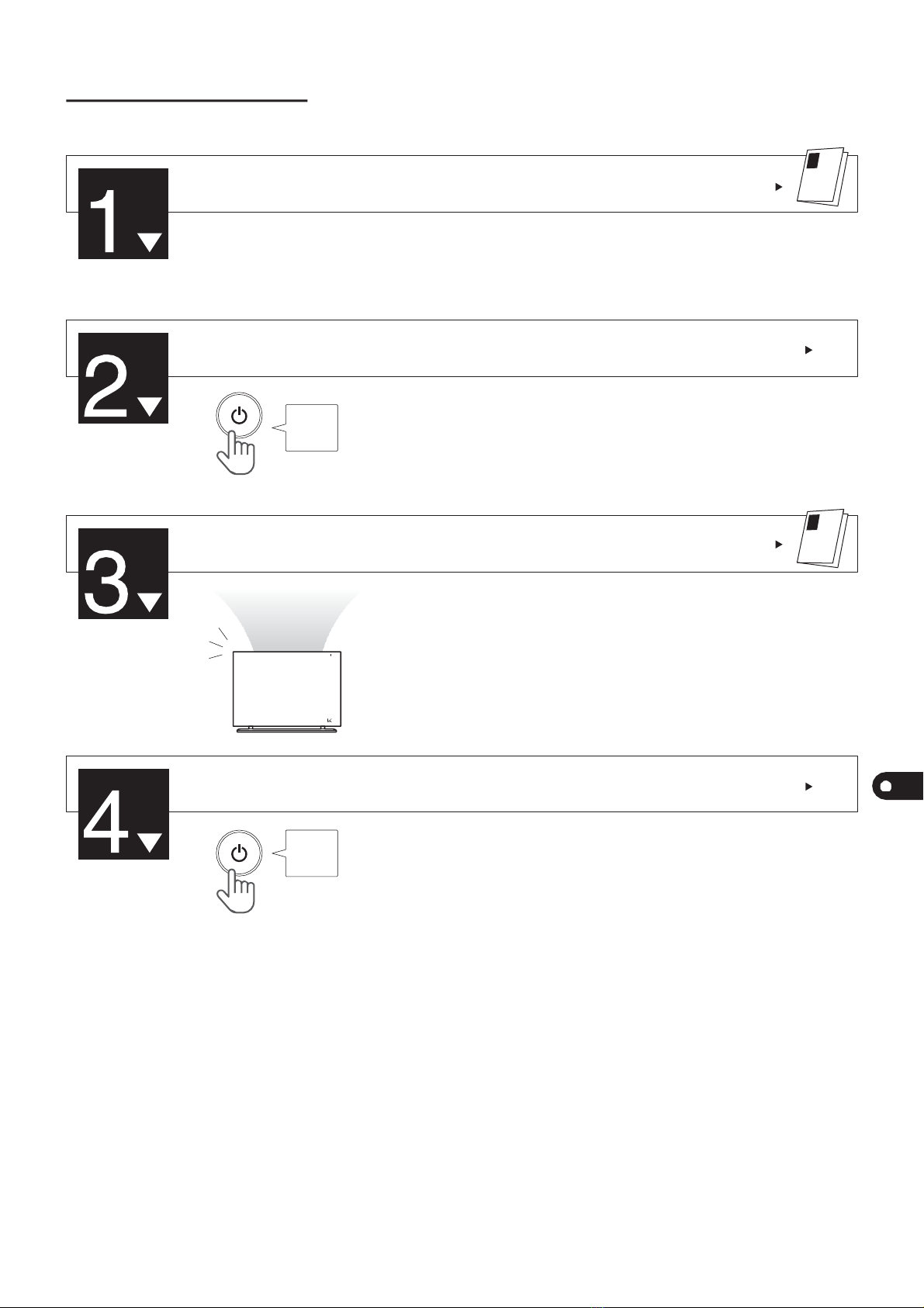

The Flow of Use
How to Install
Getting started p.7
Use it
How to turn off P.9
Press the Power Button.
See Quick Start Guide
P.8 – P.10 or
See Quick Start Guide
3
Introduction
Beep
Just press the Power Button.
Pick the right place and scene for use,
You can make your own comfortable space.
Beep

Only use your air purifier as described in this manual.
Do not damage the power cord.
Do not modify, forcibly bend, pull, or twist.
Do not put heavy objects on it or let them get caught in it.
Never place the cord near any heat source.
Do not cover the cord with a rug, carpet, or other covering. Do not place the cord under furniture or appliances.
Do not plug or unplug the power supply with wet hands.
No overloading sockets.
Do not use the product if the plug is loose.
Do not disassemble, modify, or repair the main unit or the photocatalytic filter. Also, do not disassemble the
photocatalyst filter when it’s cleaning.
Do not allow fine metal objects (pins, wires, etc.) to enter the inlet or outlet.※When an object enters the air
suction vent , the fan automatically stops and the power lamp and flash and beeps.
In this case, please contact your distributor. (→Page 13)
Never place in water or liquid. Never pour water or liquid on it.
If liquid or foreign matter gets inside, turn off the power, unplug the power cord from the outlet,
and contact your distributor.
Do not wipe with oil, alcohol, benzine, thinner, or spray with hair spray or insecticide.
If it stays, wipe it off.
Do not use in the range of the reach of infants.
Do not use in a particular environment such as a factory and where salt damage occurs and where corrosive gas is
generated etc.
Do not use your air purifier outdoors.
Use a 120V household AC outlet. / Use a household AC outlet.
Insert the power plug firmly into the back of the outlet.
Keep air purifier near the outlet it is plugged into.
Keep the cord out of areas where people walk often. Place the cord where it will not be tripped over.
Regularly remove dust from the power plug and AC adapter connection.
Always unplug the power supply before cleaning.
When lightning strikes, turn of the power and unplug it from the outlet.
If you notice a burning smell or unusual noise during use, turn off the power, unplug the power cord from the
outlet, and contact your distributor .
Prohibited actions Actions that must be taken
Please make sure to follow these instructions.

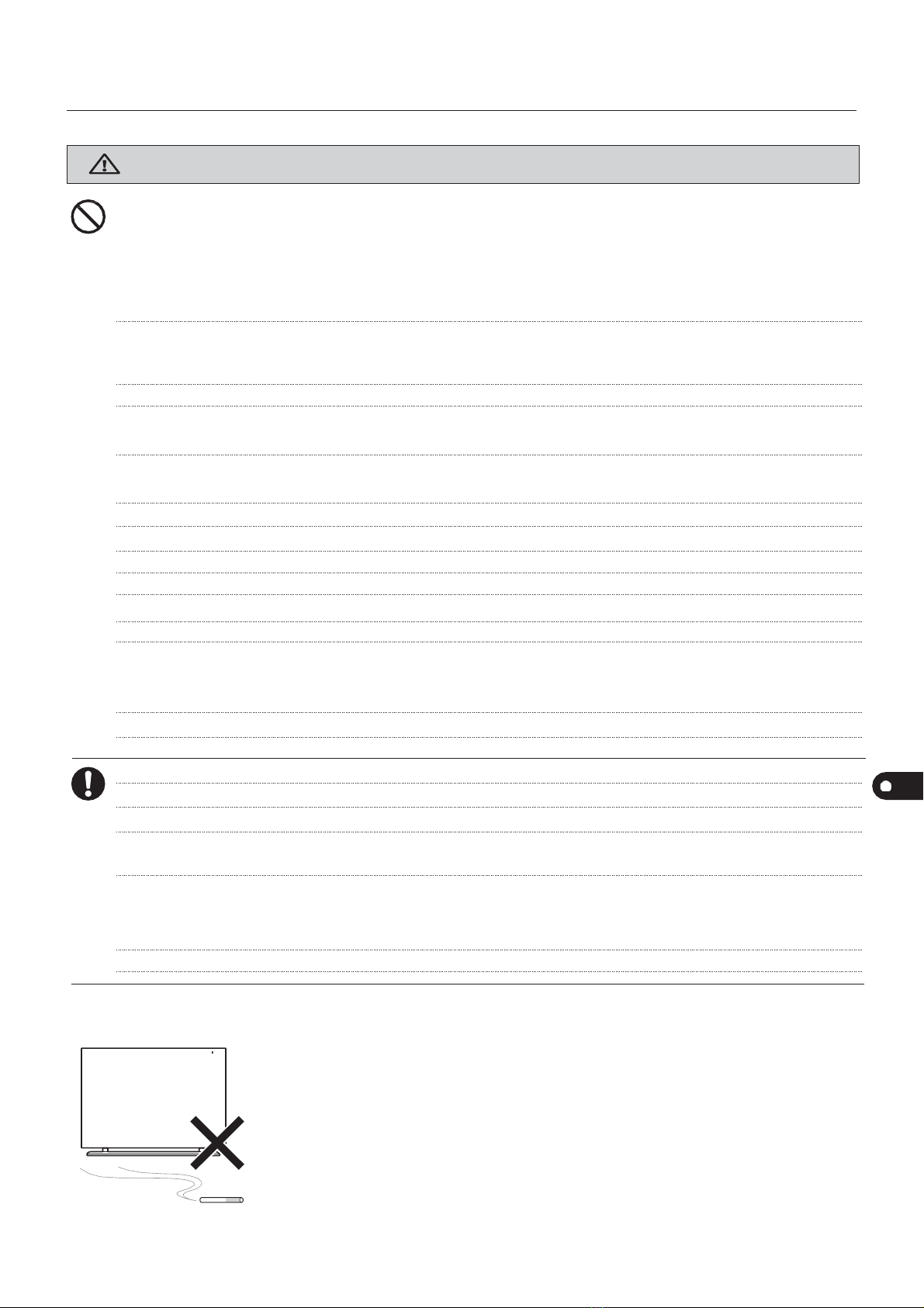

Safety Precautions
Before using this product, be sure to read this "Safety Precautions" section.
The following information is provided to ensure the correct and safe use of this product.
Warning
4
●Notation of this item
Contents that may cause burns or other minor injuries, or damage to the product, fire, or
electric shock.
CAUTION
Content that may cause fire, electric shock, or injury, resulting in death or serious injury.
WARNING

Do not place any objects on top of the product. Do not place heating or cooling appliance near the product, and
do not let expose the product to fire.
Do not operate the unit with the filter removed.
Do not use this product in a place where it will be exposed to steam from humidifiers. Also, do not let the
product suck in steam directly. This may reduce the life of the filter.
Do not place the product in a place where it will be exposed to the strong air flow of an air conditioner or
heater, or near a window.
Do not subject the product to strong impact by stepping on it or dropping it.
If the unit becomes hot during use, do not touch the unit.
Do not block the inlet or outlet when the power is on and also during operation.
Do not use this product in areas where smoke emitting insecticides or deodorants spray are used.
Do not blow cigarette smoke into the inlet.
The top board is made of natural bamboo, so be careful of the thorns.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved
Children being supervised not to play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If you smell sour odor, set the air volume to "LOW" or "SILENT".
Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
When planning not to use for a long period of time, unplug the power cord from the power outlet.
This product is not a substitute for ventilation. Ventilate frequently when this product is being used with
combustible appliances.
When disinfecting a room with chemicals such as smoke-based insecticides, turn off the power and move the unit
or cover it with a sheet to prevent the chemicals from sticking to the product.
After disinfecting the room with chemicals, be sure to ventilate the room well before resuming operation.
At the disposal of this product, please follow the instructions of the local community rule and dispose of it properly.
●Do not use in the following places.
・Close to combustible materials such as curtains and clothing.
・Bathrooms and other places subject to water or high humidity
・Places where oil components, such as cooking oil, are floating.
・Places subject to severe vibration
Caution.
Safety Precautions(Continued)
・Places where sprays and chemicals are used
・Locations with flammable/explosive gases
・Places exposed to direct sunlight or extreme
high or low temperatures
Introduction
5
This appliance is a device that collects odor components in the entire room. In an
environment where strong odors are generated*1or in an environment where sprays
containing fluorine resin or silicone are used*2, odors and insulation adhere to the
photocatalyst filter, and the effect is reduced. In such cases, please clean the photocatalyst
filter.（→Page12）
*1 Air freshener, aroma oil, tobacco, using cooking grill, etc.
*2 Cosmetics, hair care agents (hair mousse, hair treatment, split coat, etc.),
antiperspirants, antistatic agents, waterproof sprays, glass cleaners, waxes,
chemical wiping cloths, etc.

Precautions for Installation
●Do not use the product in a place where it will be exposed to steam from a humidifier. Also, do not allow the product
to take in steam directly. This will reduce the life of the filter and cause it to malfunction.
●Keep away from direct sunlight. This may cause deformation, alteration, or discoloration.
●Do not place near air conditioners, heaters, or windows.
This may cause deformation, alteration, discoloration, or malfunction of the sensor.
●If TV noise occurs, or the radio clock does not set correctly, move it as far away as possible from the TV and radio clock.
●In environments where strong odors occur, it is recommended to use this product with proper ventilation of the space.
air
intake
Do not place any objects
on the exhaust vent.
20cm
1m
●Installation location
Before Use
Place the unit 20 cm away from the wall. Do not place any
objects on top of the unit.
When it is placed on the other side of the air conditioner,
it increases the circulation effect, reduces unevenness
in room temperature during heating and cooling,
and increases the deodorizing effect.
※The usage scene is a reference image based on the results of our
experiments.
●Attaching a Fall Prevention Band
To reduce the risk of injury or other harm caused by tipping
over or falling due to an earthquake or any type of vibration,
take measures to prevent tipping over or falling.
(If necessary, secure the unit with the
supplied fall prevention band.)
※The fall prevention band is not guaranteed to be
effective against all earthquakes or any type of
vibrations.
※Depending on the strength of the board and wall which
the fall prevention band is attached to may greatly
reduce the effectiveness of the fall prevention and fall
prevention. In this case, please reinforce it
appropriately.
※This product may fall backward. Do not push or lift the
product after it has been placed and secured close to a
wall.
※When moving the unit, unplug the power plug from
the power outlet, remove the fall prevention band,
and then move the unit by holding the handle
on the back.
①Fix the retainer with the supplied
wood screws. Depending on the
material of the wall, use the supplied
anchors.
③Fall prevention band
(the chain) to be hooked
onto the wire.
②Fall prevention bands
(the wire) to the
bracket fixed on the
back of the main unit.
④Pass it through the clasp
attached to the wall.
Adjust the length and
fasten to the chain.
6

Name of Each Parts
How to use
Outlet
Top Panel Cover Light Display Button
Power Button
Sensor Sensitivity Button
Power Lamp
Odor Sensor Lamp
Sensor Sensitivity Lamp
Air Volume Lamp
Power Cord
To the outlet.
7
Turbo Mode Button
Photocatalytic Filter (4 pcs)
Louver
Air Volume switching Button
Handles & Fall Prevention Band Bracket
Pollen Filter (2 sets)
Pre-filter

1 Turn on the power
How to use
Press the Power Button.
The odor sensitivity is adjusted with the Sensor Sensitivity Button. When the sensor sensitivity is set, the air volume will
be "Auto“. When odor is strong or want to use a certain constant air volume, set the air volume with the Air Volume
Button (→ Page 9）
●The sensor sensitivity and air volume level setting will be saved, when turned off.
●When you go to sleep, you can turn off all lights except the power light by pressing the light display button.
(Press once more to turn on. )
The sensor sensitivity button, air flow volume button, light display button, and turbo mode button are located on the top of
the main unit. To operate them, remove the Top panel cover.
●Removing and placing the Top panel cover

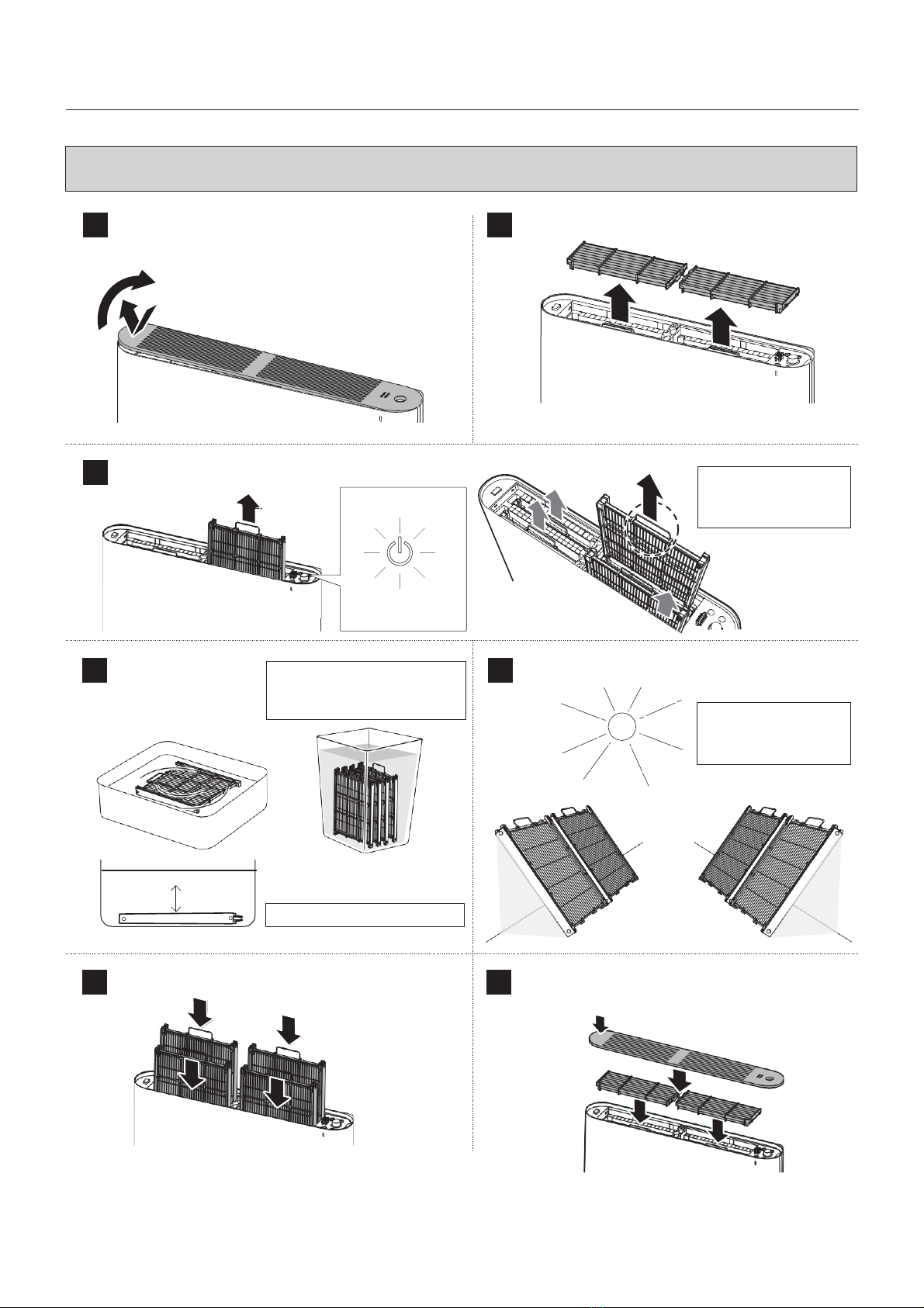

Press the left end of the Top panel cover (the opposite of the
power button) to lift the Top panel cover and remove it.
※This is natural bamboo, so be careful of the thorns.
Beep
Green: Clean
Yellow: Slightly
Red: Smelly
Power Lamp lights up.
The levels of the odor in the room is displayed in
three colors by the odor sensor.
(In 3 stages: Green, Yellow and Red)
When the air volume is set to "Auto", the air volume is
automatically switched according to the odor intensity detected.
HIGH SILENT
TURBO
HIGH
LOW
SILENT
AUTO
Red light
When the odor is
strong
Green light
When the odor is
weak
①
①
Install with attention to the direction of the power switch
hole, and press down on the left end (the opposite side of
the power switch).
②
②
8
Memo

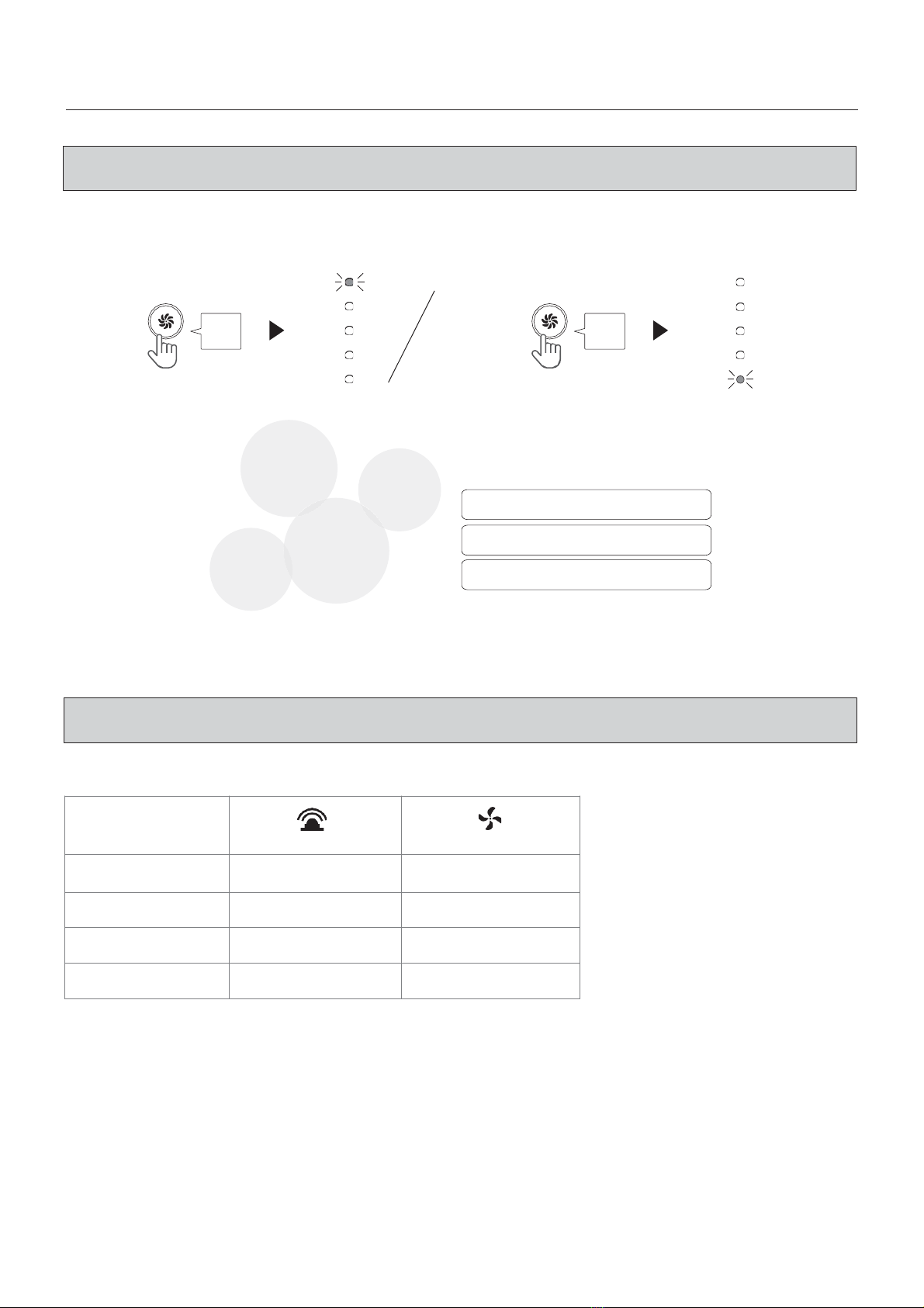

3 Adjust the air volume
Sensor sensitivity is applied when air flow volume is set to "Auto“. The air flow volume is set to other mode, it operates
at a constant air flow regardless of sensor sensitivity level. (→page 9)
Press the Sensor Sensitivity Button.
Beep

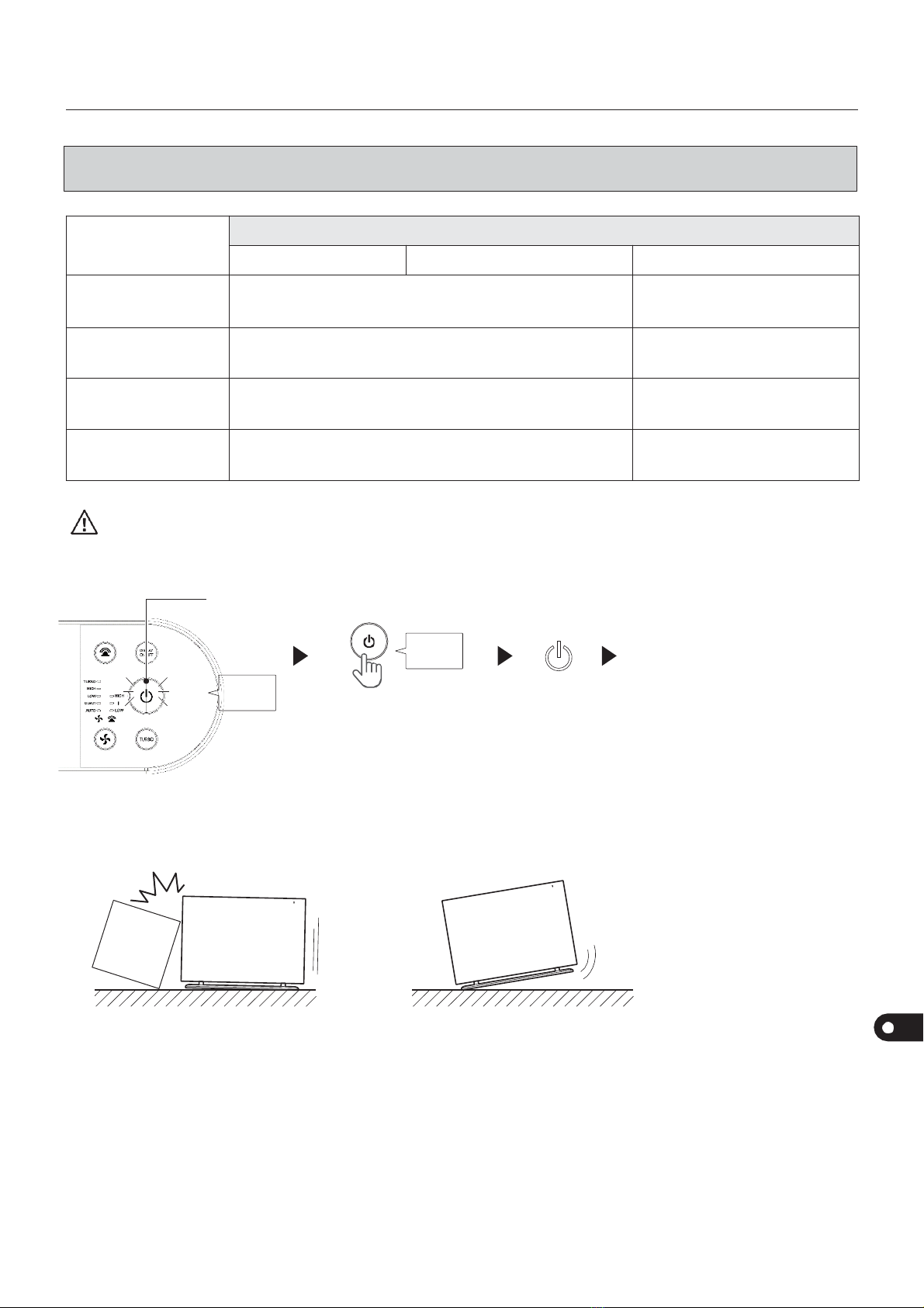

4 Power Off
When you do not use this appliance for a long time, unplug the power plug from the outlet.
After the power plug is unplugged from the outlet, the "sensor sensitivity" and "air volume" return to the default
setting.
Odor sensor color Air Volume
Green SILENT
Yellow LOW
Red HIGH
Press the Power Button. Power off.
How to use
2 Set the sensor sensitivity (when using with the airflow set to "Auto")
How to Use (continued)
When the air volume is set to "Auto," the sensor detects room odors and automatically switches the air volume
mode.
Beep
At first, it is set to "High".
The sensitivity setting of the odor sensor varies depending on where it’s placed and environment around the product. Refer
to "Recommended mode settings for various locations" for the proper settings. (→ page 10)
Each time the Sensor
Sensitivity Button is pressed,
it changes.
Press the Air Volume Button.
Beep
Remove the Top panel cover.
Press the Air Volume Switching
Button to change the mode.
To change to turbo mode, press
the Turbo Mode Button.
(→page 10)
Auto
9
HIGH
LOW
TURBO
HIGH
LOW
SILENT
AUTO
TURBO
HIGH
LOW
SILENT
AUTO
※This is natural bamboo,
so be careful of
the thorns.
Remove the Top panel cover.
※This is natural bamboo,
so be careful of
the thorns.
Initially, it is set to “Auto”. When the air volume is set to "HIGH", "LOW", “SILENT", or "TURBO", continuous operation is
performed at the set air volume regardless of the sensitivity of the odor sensor.
Beep
Memo
Memo
Memo

●Recommended mode settings for various locations
How to Use (continued)
* The setting levels for each room are based on
our experiment results.
Use this product efficiently by changing the sensor sensitivity and air volume settings.
●When you want to sterilize/deodorize quickly (using turbo mode)
This function can be
useful for
Using the turbo mode, the room can be deodorized faster than in normal operation.
If you want to change the turbo mode to the normal mode within 30 minutes, press the Air Volume Button to change back to
the automatic mode.
Press the Turbo Mode Button
Beep
Usage Scene
Sensor Sensitivity Air volume
Waiting room / Entrance HIGH HIGH
Conference Room HIGH AUTO
Classroom HIGH AUTO
Gymnasium / Warehouse HIGH SILENT
Approximate operation time in turbo mode
10
Sudden
Visitors Opening Store
Preparation
Event Openings/
beginning of work
Standard air
changes
Turbo mode, for 30 minutes
It will then switch to automatic mode.
Press the Turbo Mode Button again
Beep
TURBO
HIGH
LOW
SILENT
AUTO
TURBO
HIGH
LOW
SILENT
AUTO
approx. 62 m2--- 20 min.
approx. 31 m2--- 10 min.
approx. 93 m2--- 30 min.

How to Care and Maintain
●Main unit and air vent
●Cleaning the Pre-filter and Pollen filter (air vent)
Wipe off stains with a dry soft cloth.
Please keep the appliance front panel and vent area clean. In particular around the air outlet where dust and dirt stains may
build up, ensure the air outlet surrounding areas are cleaned on a regular basis.
If you want to know the recommended frequency of maintenance, see "Guide for caring ". (→page 13)
Care & Troubleshooting
Wipe the surface without
pressing hard on top of
the Air outlet.
1
※Do not scratch the surface of the filter. If the filter is
too dirty, wash it with neutral detergent and dry it
well.
※Do not scratch the surface of the filter. If the filter is
too dirty, wash it with neutral detergent and dry it well.
Tab
Tab
Tab
Tab
11
Turn off the power and remove the Pre-filter. Remove dust from the Pre-filter with a vacuum cleaner.
2
Pull down the filter Tab.
Remove the Pollen filters (2 pcs).
Remove dust from the pollen filter with a vacuum cleaner.
3 4
Place the Pollen filter (2 pcs) with the Tabs
facing towards you.
Attach the pre-filter.
5 7

Attention.
The container in which the Photocatalytic filter is soaked should be free from detergent, soap, chemicals, and oil.
If the louvers are not installed correctly, the power lamp will blink and you will need to reinstall them.
More than 10cm * Use a 45L dust box as a
container, it will be a best fit.
Do not scrub the filter
●Cleaning the Photocatalyst filter
3 Remove the Photocatalytic filters (4 pcs)
When power is on
5 Air dry in the sun
Only to use water or lukewarm water
Do not use detergent or
soap! Do not disassemble
the Photocatalytic filter!
Hold the handle.
Remove them one
at a time.
Approx. 4～5 hours
Allow them to dry
thoroughly.
4 Soak the filter for
approx. 10 hours.
6 Put the photocatalytic filters (4 pcs)
1 Turn off the power.
Press the end to remove the Top panel cover.
※This is natural bamboo, be careful of thorns.
7 Put the louvers (2pcs) and the Top panel cover
and turn on the power.
Rinse the dust on the surface of the Photocatalyst filter.
Rinse all 4 filters at once.
Power lamp
flash... (5 times)
How to Care and Maintain(continued)
①
②
The photocatalyst may come off.
12
2 Remove the louvers.

Locations Cleaning Instructions
Pre-filter Pollen filter (2 filters at once)Photocatalytic filter (4 filters of once)
Waiting room
/ Entrance
Once every 2 months Once every 3 months
Conference Room Once every 3 months Once every 4 months
Classroom Once every 2 months Once every 3 months
Gymnasium / Warehouse Once every 3 months Once every 4 months
●Guide for caring
Care & Troubleshooting
※Our recommended standard below.
The frequency of the care depends on the usage environment.
■It automatically turns off when there is an impact from outside or tilts.
Beep
Beep
When foreign matters enter in the fan, the fan will automatically stop.
■When the fan stops automatically.
Flashing Turn off the power Power lamp turns off
Please contact the dealer you purchased
the product or contact your distributor.
※Do not try to part the product and fix
on your own.
13
How to Care and Maintain (continued)

Trouble shooting
■Power does not turn on / does not work
Please check Possible solutions
The “air volume” changed
without adjustment
The odor sensor does
not indicate green.
The odor sensor
switches frequently.
The odor sensor does
not change color
■Regarding operation lights and operation
It may respond to opening and closing doors and windows, and
human movement.
When it switches frequently, adjust the sensor sensitivity . (→Page8 )
When the odor sensor does not change from green, the air is
clean.When the color of the sensor does not change even if you
feel the odor, adjust the sensor sensitivity.(→Page8 )
Please wait for electricity supply to resume.
Turn back on the electrical circuit breaker.
Is your area during power outage?
Is the electrical circuit breaker at the location
turned ON?
In such cases Please check Measures
No lamps are ON except
Power light
Is the light display turned off? Press the Light Display Button and check the lights.
Beeping and the Power
lamp flashing
Are Louvers correctly
Installed?
Be sure that the louvers are set correctly.
The Pre-filter / Pollen filter This may affect the performance of the purifier.
Are they dirty?
Please confirm "How to use".(→Page9 )
Press the “Air Volume” Button and check that the operation
mode can be changed.
Is the air volume set to a mode
other than “Auto”?
During automatic mode, when the odor is detected, the air
volume changes automatically. Please refer to "How to use".
(→Page9 )
In rooms with low airtightness, it may be difficult to return to
green due to external odors and changes in temperature.
Check the current air volume
mode.
Are the windows and doors in your
room open?
14
Is power plug inserted into the outlet correctly? Make sure the following is connected correctly.
No air flow. Air flow does
not change despite
adjusting volume. Air
volume is weaker than
purchase
Clean the Pre-filter / Pollen filter.
(→page 11)

Specifications
■Room odor cannot be reduced significantly / Odor comes from air outlet
Please check Measures
Specifications
If strong odor occurs, it takes time to reduce. Turn on the appliance for a short period will
gradually reduce odor. In rooms with a large amount of smoking, the odor of
cigarettes cannot be reduced significantly.
●When the air volume is switched to “HIGH”, the odor-reducing function becomes
“HIGH” regardless of the sensor sensitivity.
●Switching the sensor sensitivity to “HIGH” increases the sensitivity for the odor and
improves the deodorizing effect .
< CAUTION >
The sensor sensitivity is valid only when the air volume is set to "AUTO". When the air
volume is set to "HIGH", "LOW", or "SILENT", the unit operates at the preset air
volume regardless of the sensor sensitivity.
It is not possible to reduce odors that are constantly being generated. Please use it in
conjunction with space ventilation.
Is the sensor sensitivity “LOW” or the air
volume “SILENT” or “LOW”?
Odor components such as pet odor,
building material odors are being
constantly generated. They cannot be
reduced significantly.
●Please clean the Photocatalytic filter when you feel that the odor-reducing effect has
weakened. (→page 12)
●Set the air volume to "Low" or "Quiet". (→page 9)
120mm
544mm
●Dimension Drawing (mm)
142mm
203mm
Product name and model
number
KL-F01
Air Purifier, Floor type
Method Photocatalytic filter
Power supply (rated input) AC100V～240V 50-60Hz
Applicable space (approximate)*1 Approx. 97㎡(1044ft²)/30min
Air volume mode TURBO HIGH LOW SILENT
Power consumption 135W 90W 65W 60W
Operating noise 62dBA 56 dBA 47dBA 36dBA
Operating temperature range Above 0°C to below 40°C
Drip-proof and waterproof
specifications Not supported.
External dimensions (W) 736mm x (H) 544mm x (D) 203mm
Weight Approx. 16 kg
Power cord length Approx. 1.8m
15
※1According to generally accepted standard, when the appliance is used for the applicable floor area
it can reduce odor to comfortable level in about 30 minutes. (Depending on the environment)
Kaltech Corporation
FO1-tr ver.1.0
Trouble Shooting (continued)
Did you cause strong odors in your room,
such as using grill or smoking?
Long-term usage may reduce the odor-
reducing effect.
If you smell a sour odor
736mm

Kaltech Corporation FO1-tr ver.1.0
EN_KL-F01_User manual_E_v1.0_2309
3-3-7 Bakuromachi, Chuo-Ku, Osaka 541-0059, Japan
