INRODUCTION

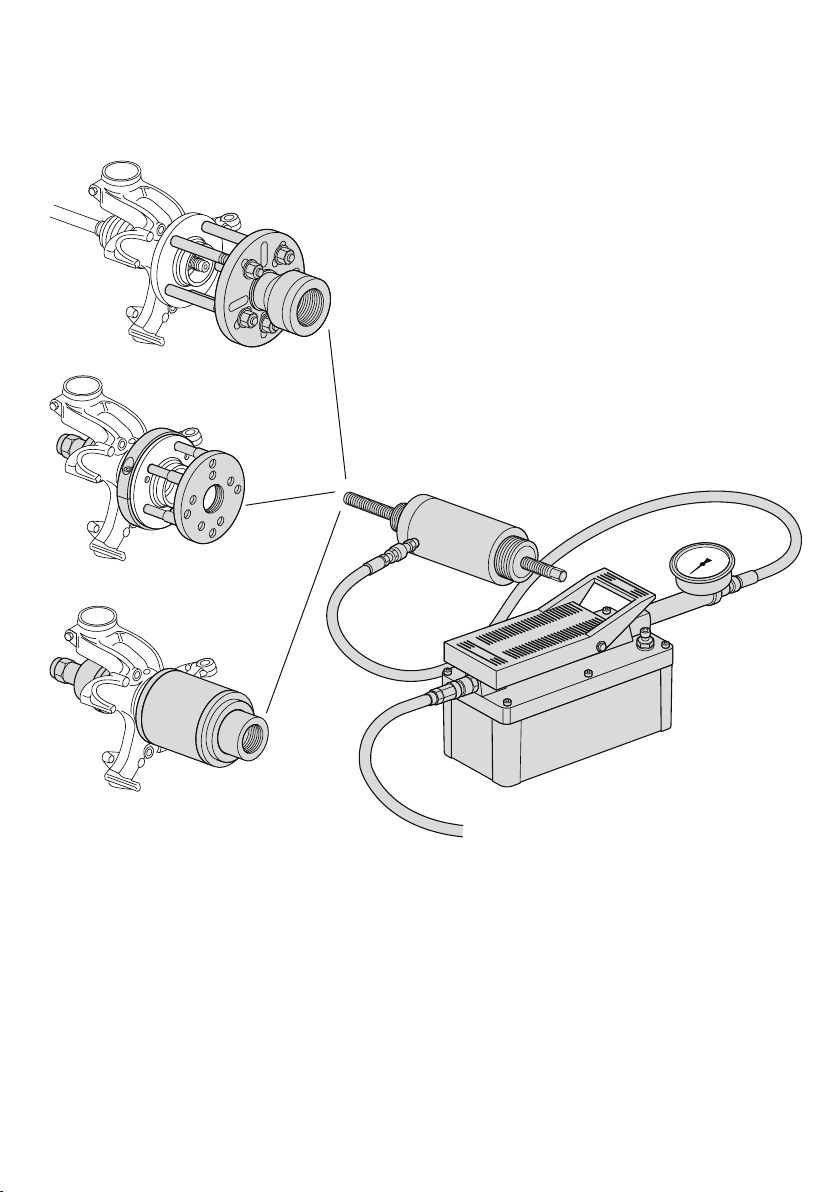

This is a modular system built around a hydraulic cylinder delivering a
working pressure of 17 ton, to remove and install drive shaft, wheel hubs,
wheel bearings, silent blocks and suspension ball joints in a safe and
ecient way. Some accessory tools are specially made for this hydraulic
system while other are sold as tool sets to be manually operated as well as
hydraulically. This manual gives a general introduction to the tool system
and how to handle it, while more detailed information such as spare part
lists for a specific tool can be found on our web and in the packaging of a
new tool.
SAFETY AND PRECAUTION
• Read this manual completely before starting to assembly
and use the tools.
• Always keep in mind that this hydraulic cylinder produces up to 17 ton
of pressure. This puts very high demands on securing that all tools at-
tached to the cylinder and the workpiece are aligned and can not slip or
in any other way cause danger.
• Always follow instructions provided by the vehicle manufacturer
regarding handling and safety measures.
• Use eye protection and safety gloves.
• The tool is not designed for use together with impact wrenches.
• Do not knock on any part of the tool during load.
• Keep this equipment out of reach for children.
Only authorized persons that have read and understood these instructions
should operate the hydraulic tools. Kamasa Tools does not take responsi-
bility for damage or injuries caused by unsafe use, lack of maintenance or
use together with components not designed to be used with this tool.
