0.1μm Particle Counter
MODEL 3950
User Manual

i
List of Components
■ Standard
Item Model Functions
Main Unit 3950 Main unit
AC Adapter 3910-08 Exclusive adapter
USB Cable Communicates with the PC.
Zero Filter 3950-60 Cleans the air flow path inside the device with
clean air.
Tygon Tube (1 m) Connects to the inlet to perform a measurement.
Inlet Protective Cap Prevents the entry of foreign objects into the
Main unit when not using the device.
Software CD 3950-40 Software for remote measurement, User Manual
■ Optional Accessories
Item Model Qty
Compact Printer NP-DPU-S245-00C-E 1
■ Consumables
Item Model Qty
Zero Filter 3950-60 1

ii
Important Safety Information
The symbols for the warnings used in this manual are defined below:
Classifications
Warning
Warnings in this classification indicate risks that may result in serious injury
or death if not observed.
Caution
Warnings in this classification indicate risks that may result in injury or
damage to the surrounding objects if not observed.
Notice
Warnings in this classification indicate risks of damage to the product that
may void the product warranty if not observed.
Description of Symbols
This symbol indicates a condition that requires caution (including warning).
The subject of each caution is illustrated inside the triangle (e.g. the high
temperature caution symbol is shown on the left).
This symbol indicates a prohibition. Do not take the prohibited action shown
inside or near this symbol (e.g. the disassembly prohibition symbol is shown
on the left).
This symbol indicates a mandatory action. A specific action is given near the
symbol.
This symbol indicates a warning of possible laser radiation.
Warning
（Forbidden）Do not use the AC adapter other than the provided one with the
instrument.
Using an inappropriate adapter may damage the instrument.
It may generate heat and cause fire.
（Do not remodel/disassemble）Never disassemble, modify, or repair.
This instrument uses a Class 4 laser diode as the light source.
Exposure to the laser may cause loss of eyesight and other injury.
Never open the instrument other than the battery compartment.
（Handle properly）Handle the instrument properly in accordance with the

iii
instructions provided in this manual.
Failure to do so may cause electric shock, fire, or sensor damage.
（Caution）If abnormal noise, smell, or smoke is observed, or if liquid has
entered the instrument, turn off the power immediately, remove the batteries
or pull out the plug.
Failure to observe the above may cause electric shock, fire hazard, or
damage.
Please contact your local distributor or Kanomax service center for repair.
Caution
（Handle properly）Pull out the plug when the instrument is not in use.
Failure to do so may cause electric shock, fire hazard, and circuit damage.
Notice
（Forbidden）Do not use or keep the instrument in hot, humid, or dusty
environment. Do not expose the instrument to direct sunlight for a prolonged
period of time.
The instrument may not function properly out of the specified operational
temperature range.
（Forbidden）Do not subject the instrument to strong impact.
Dropping or hitting the instrument may cause damage and malfunction.
（Forbidden）Do not wipe the instrument with volatile solvent.
The body may deform or deteriorate. Use soft dry cloth to remove stains. If
stains persist, soak the cloth in neutral detergent and wipe the instrument
with the cloth.
（Forbidden）Do not touch the LCD screen with a sharp-pointed object or
with excessive pressure.
It may cause distortion of the screen or a malfunction.
A rapid temperature change may cause a malfunction of the screen.
（Handle properly）When storing the instrument, put the instrument in the
carrying bag and keep it in a place with an ambient temperature of -10 to
50℃ and no condensation.
（Forbidden）Do not dispose of the instrument as household waste.
Please note that the disposal of the instrument and batteries should be in line
with your local or national legislations. For details, please consult with your
local distributor.

iv
Table of Contents
Part Names and Functions................................................................................................5
Preparation Before Measurement ....................................................................................6
AC adapter ............................................................................................................ 6
Warm-up ............................................................................................................... 6
Measurement Procedures .................................................................................................6
Internal Cleaning .................................................................................................... 6
Measurement ......................................................................................................... 6
Errors .................................................................................................................... 7
User Interface .....................................................................................................................7
Title Screen ........................................................................................................... 7
Main Screen ........................................................................................................... 7
General Setting .................................................................................................... 10
Measurement Setting ............................................................................................ 12
Preset ................................................................................................................. 14
History ................................................................................................................ 15
Print Example ....................................................................................................... 16
Screen Flow Diagram ............................................................................................ 17
Specifications...................................................................................................................1
Troubleshooting ...............................................................................................................20
Warranty and After Service .............................................................................................21
Contact Information .........................................................................................................22

5
Part Names and Functions

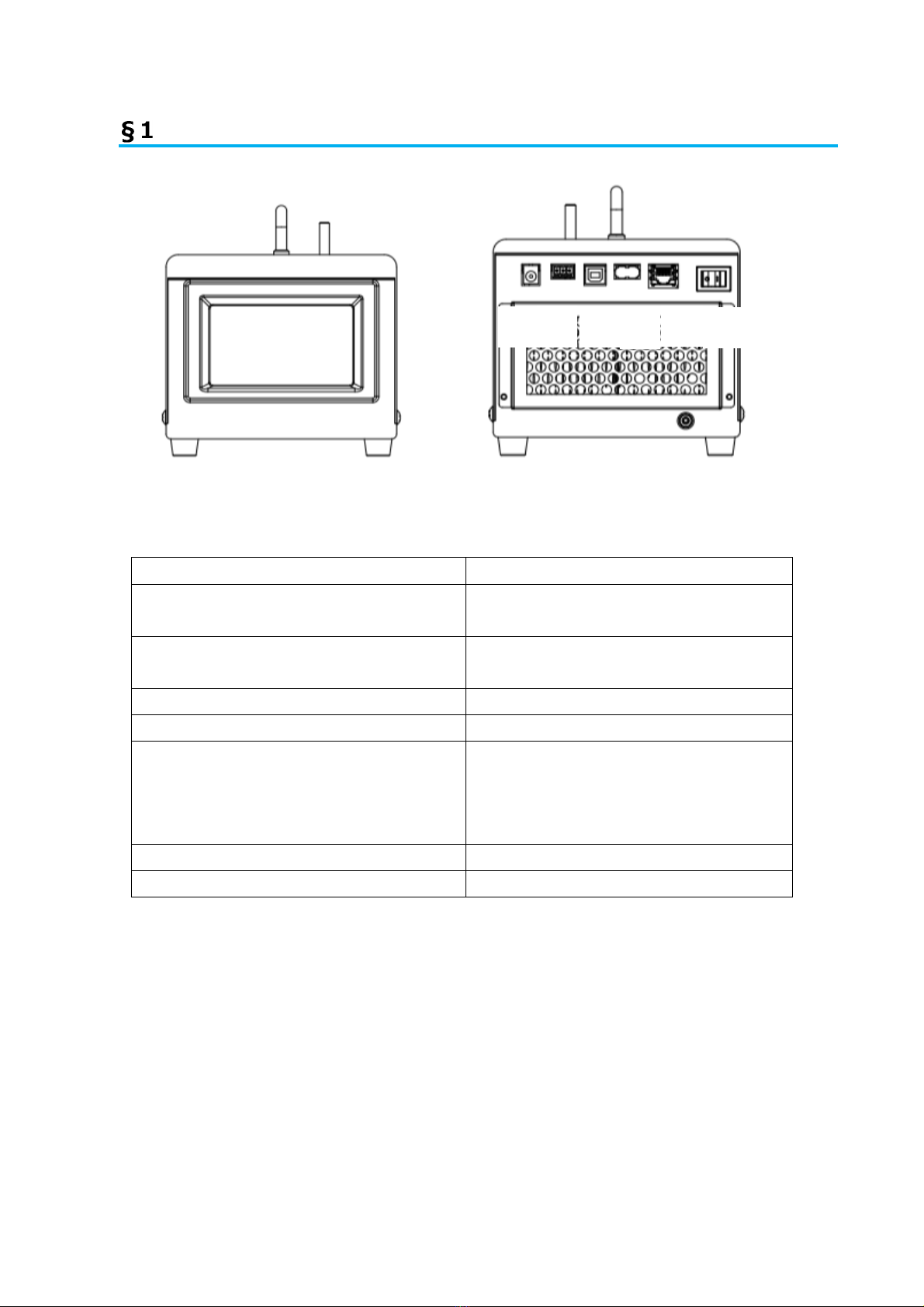

Name Functions
① Inlet Suction volume : 2.83 L/min.
Outer diameter : 6.4 mm
② DC Power Terminal Connects to the main unit with the AC
Adapter.
③ Communication Terminal Communicates in the RS-485 method.
④ USB Terminal (for PC) Connects to the PC with the USB Cable.
⑤ USB Terminal
(for the Printer, for the USB memory)
Connects to the Printer with the USB
Cable.
The measurement results are copied to
the USB memory.
⑥ Communication Terminal Communicates with the Ethernet.
⑦ Power Switch Turns ON/OFF power to the Main unit
②
⓺
⓻
①
⓹
⓸
③

6
Preparation Before Measurement
AC adapter
Be sure to use the provided AC adapter when using the Main unit.
Warm-up
If the device is brought in from a different temperature place, prior to a measurement, let
the device allow adapt the current temperature environment. Be sure to warm up the
device at least for 10 minutes before starting a measuring. A sudden temperature change
may cause a measurement error.
Measurement Procedures
Internal Cleaning
Prior to use, purge the device (Interior cleaning) with the Zero Filter.
Remove the Inlet Protective Cap, and attach the Zero Filter to the inlet.
Turn the power on and press the Start button to perform a continuous measurement for
10 to 15 minutes. When the measuring count value is stable and confirm the value is
retained at least for 10 seconds, finish a measurement.
(If the value doesnʼt reach to zero, block the inlet of the Zero Filter for a few seconds to
accelerate the cleaning while measuring.)
Remove the Zero Filter from the inlet.
Measurement
Connect the Tygon Tube to the inlet. (Using the Tube leads to less influence by the
ambient environment.)
Set the required setup on the General setup and Measurement setup sub-menus.
Set the measurement conditions in the Measurement mode, and select the measurement
conditions in the Preset.
Return to the Main screen. Press the Start button to perform a measurement.
The measurement will complete automatically or by pressing the Stop button.
The previous measurement results can be viewed from the History sub-menu.
Do not run the device for eight (8) hours or more per day.
Try to avoid a suction sampling in the general atmosphere. A suction sampling in the
general atmosphere may cause contamination in the optical system, resulting in providing
unstable measurement.

7
Errors
The following errors can occur by the self-diagnostic function. Even if an error occurs, the
measurement and other processes will be continued.
Laser power failure The laser diode may be defective or reached the end of its life.
Flow rate
The pump current is increasing or decreasing. If the inlet
Protective Cap is attached, remove the Cap. If the error
persists, the pump may be defective or reached the end of its
life.
Maximum
measurable
concentration
is exceeded
The concentration exceeds the maximum measurable range.
Perform the measurement at a cleaner location or attach the
Zero Filter to the device to measure.
User Interface
Title Screen
Turn on the power to the device. After four (4) seconds, the Main screen will appear
automatically. Or tap the Title screen to go to the Main screen.
Main Screen
There are three main screens as required. You can go to the sub-menu screens from the
main screens.
Table Form
Cumulative Σ

8
Icon Name Functions
General setting
Opens the menus to set the unit, calendar, data,
sound and language and to display device
information.
Measurement
setting

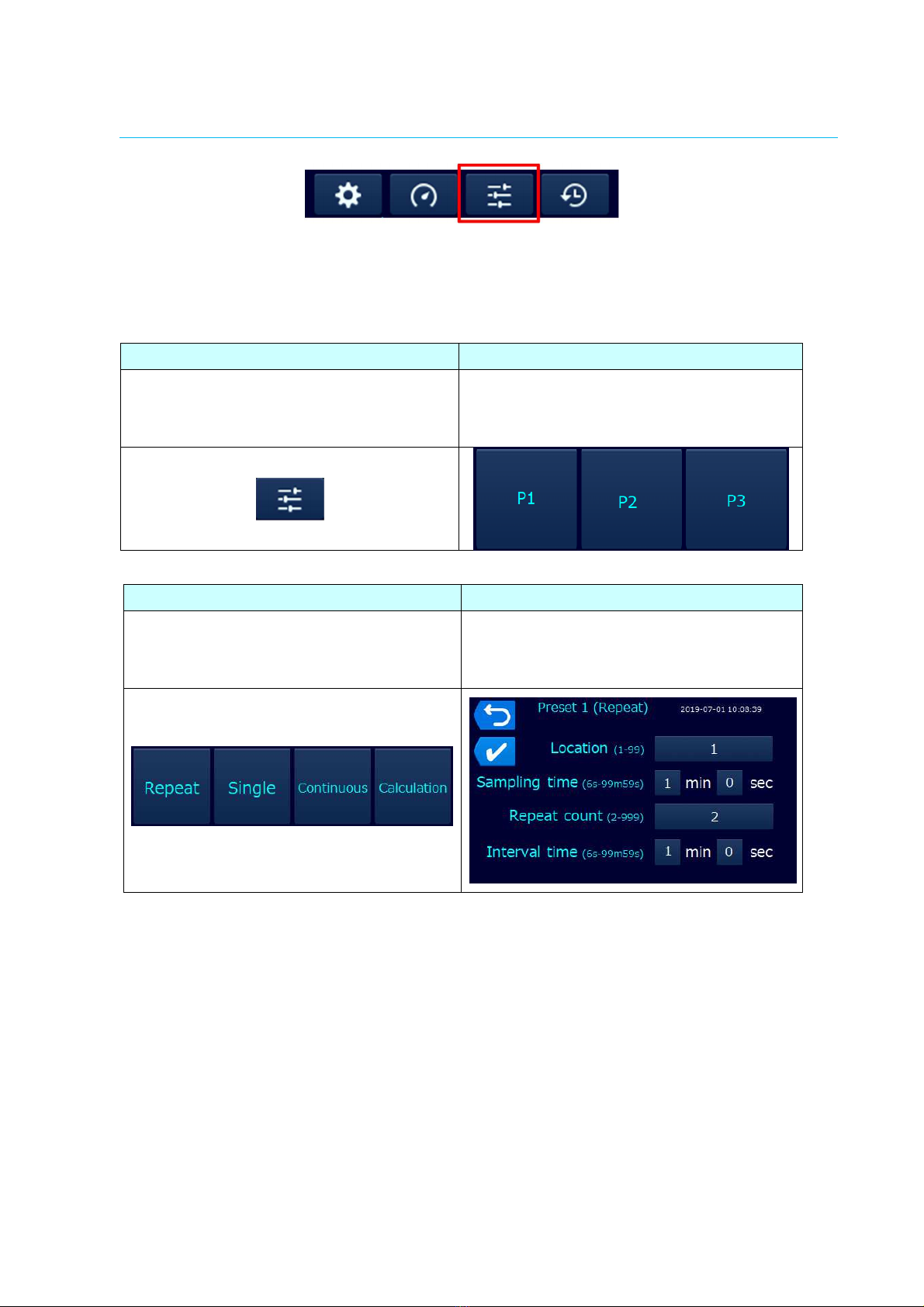

Opens the menu to set the mode, alarm, save, and
remote.
Preset Opens the menu to set or select up to 12 Presets.

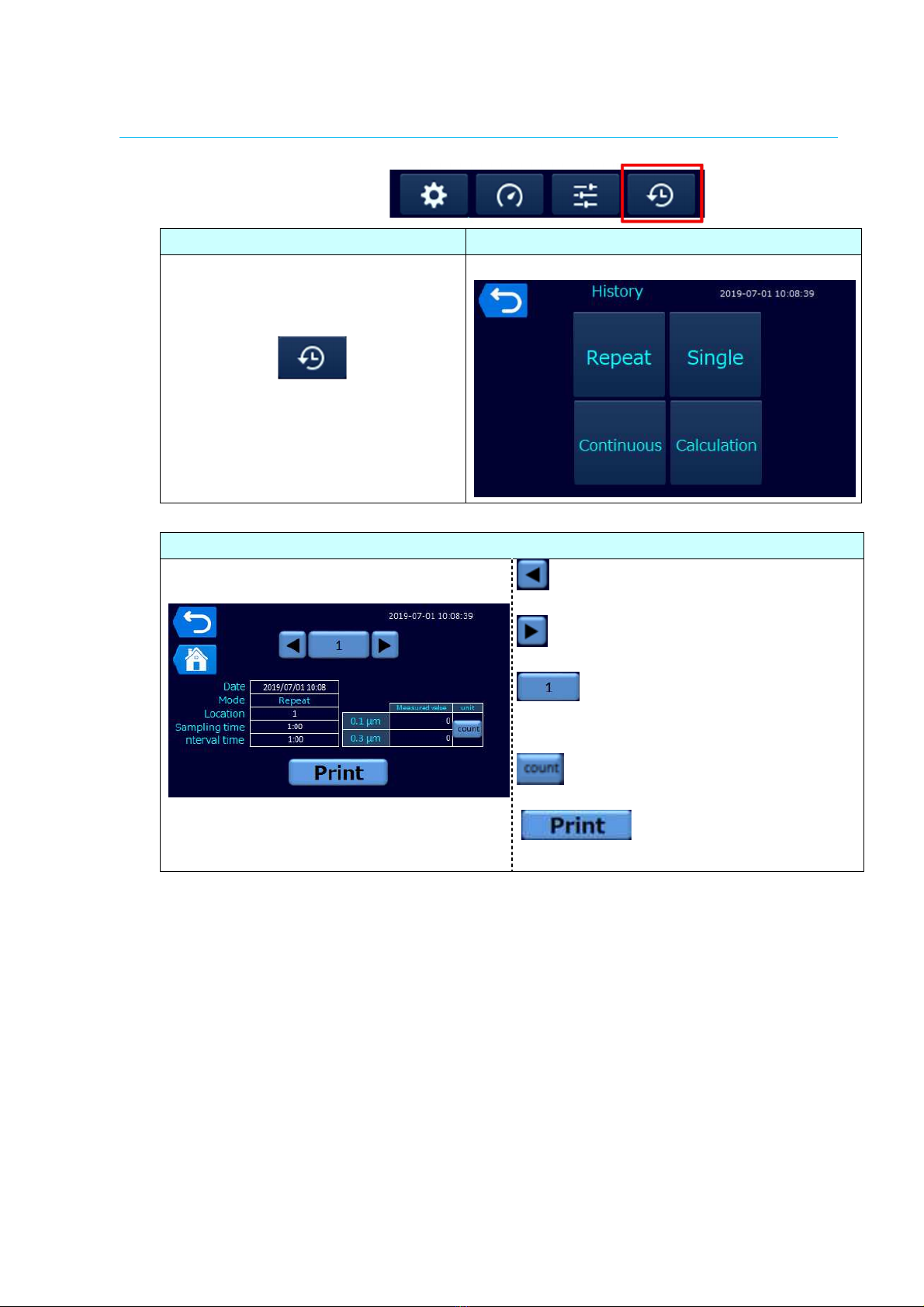

History
Views the previous measurement results and prints
the data.
Chart type
changing
Switches the chart types between a Bar
graph and a
Table form ∑ graph.
Table Form
Differential Δ
Bar Graph
Differential Σ
A Line graph
is shown
while
measuring.

9
∑Δ Display
Switching
Switches the Main screen to Differential Δ. ※
∑Δ Display
Switching
Switches the Main screen to Cumulative ∑. ※

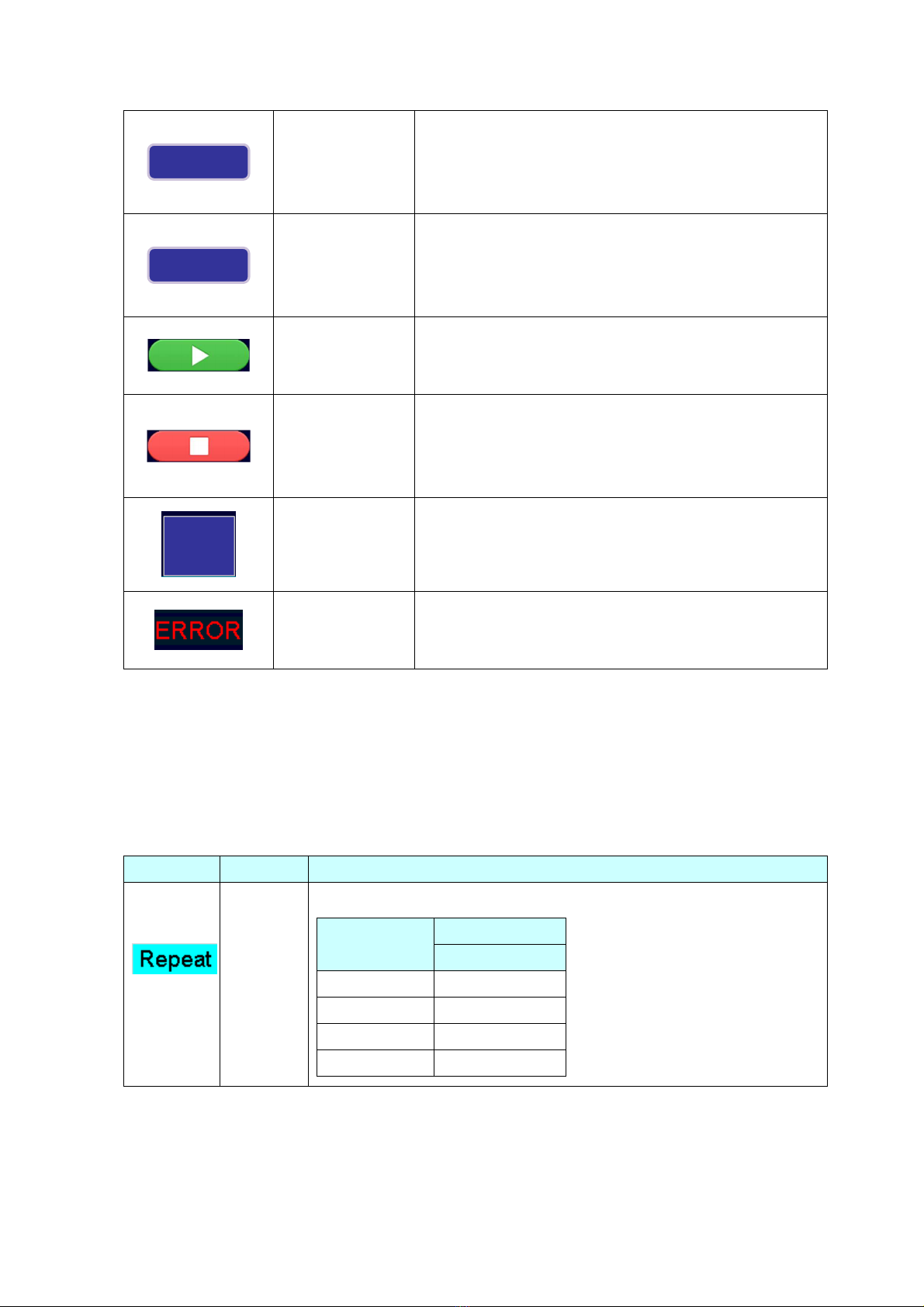

Start Starts a measurement.
Stop/Suspend
measurements
Stops or suspends a measurement.
Particle Size
Setup
Switches the required particle size (0.1 μm or 0.3 μ
m) when tapping the line graph.
Error
Displays the details of an error when tapping the
Error.
※ The number of the 0.1 μm-range in Cumulative ∑ is the cumulative number of all channels over
the size of 0.1 μm. This includes the number of 0.3 μm.
※ The number of the 0.1 μm-range in Differential Δ is the number of channels over 0.1 μm and
under 0.3 μm.
Icon Name Functions
Mode
Display
Displays the selected measurement mode.
Mode Display
Main Screen
Repeat Repeat
Single Single
Continuous Continuous
Calculation Calculation
∑
Δ

10
Displays the selected preset mode.
Mode
Display
Preset 1 Preset 2 Preset 3
Repeat P1 (Repeat) P2 (Repeat) P3 (Repeat)
Single P1 (Single) P2 (Single) P3 (Single)
Continuous P1 (Continuous) P2 (Continuous) P3 (Continuous)
Calculation P1 (Calculation) P2 (Calculation) P3 (Calculation)
General Setting
Select the General setting icon on the Main screen to set the unit, calendar, data,
language, and sound. This menu indicates the device information.

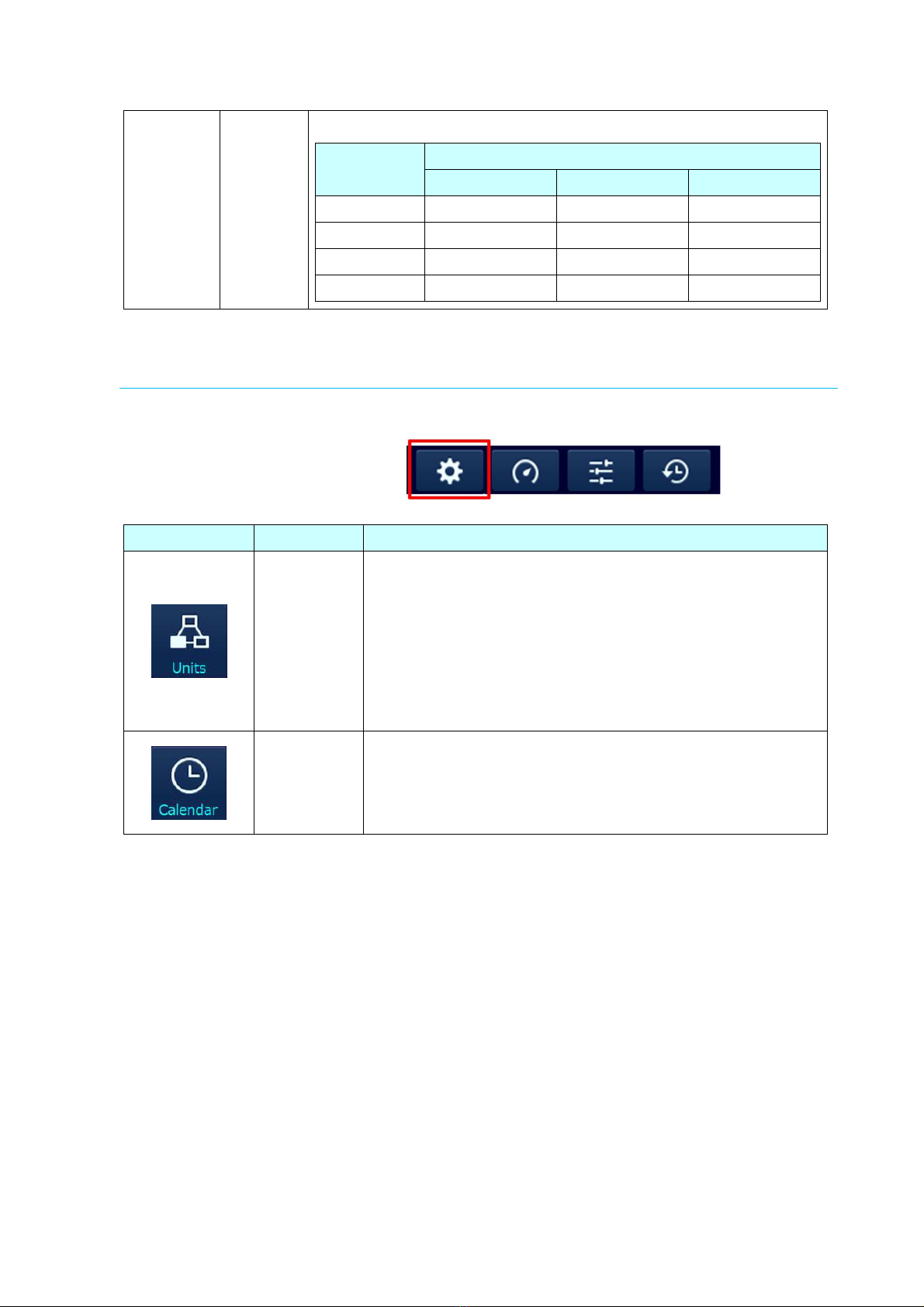

Icon Name Functions
Unit
Selects one (1) of the following three (3) options.
Measured values in the Measurement results on the Main
screen will be shown by the designated unit.
count︓The integrated number of measured particle
counter.
/m3 : Particle counts per cubic meter (Conversion)
/ft3 : Particle counts per cubic foot (Conversion)
Calendar
Sets the date and time
Touch the setup button to display a ten-digit keypad.
Enter year, month, day, hour, and minute in two (2)
digits in blanks.

11
Icons Names Functions
Data
Confirms and operates information related to the entire measured
data.
Memory remaining: Displays the ratio of the remaining
storage capacity of memory to all the storage capacities of
memory.
Number of Records: Displays the number of the stored
records.
Copy: Copies all files to the USB memory.
Delete: Deletes all files. Copying the files prior to the use of
this function is recommended.
Note that copying the measured data to the USB memory and
deleting the data from the internal memory on the Main unit are
not performed in partial copying/deleting but batch processing.
Follow the steps below.
Step 1 Step 2 Step 3
Select the
Data in the
General
setting
【To copy the measured data
to the USB Memory】
Insert the USB memory into
the Main unit and tap the
Copy all button.
Tap YES to
execute.
Tap NO to return
without running
the command.
【To delete the measured
Data】
Tap the Delete all button.
Language Selects a language from English or Japanese.
Sound Sets the operation sound to ON/OFF.
Information
Displays the device information.
Latest calibration date: The frequency of a calibration cycle
depends on the usage patterns of the device, but the
recommended calibration cycle is 12 months at the longest.
Version: Shows the software version of the device.

12
Measurement Setting
Select Measurement Setup on the Main screen in order to set the mode, alarm, save and
remote.
Icon Name Functions
Mode
Selects one (1) measurement mode from four (4) options.
Measurements will be performed in the latest setting mode.
Repeat mode: Repeats measurements in the set sampling time and
cycles.
Single mode: Performs a measurement only once in the set
sampling time.
Continuous mode: Continues measurements until pressing the
Stop button.
Calculation mode: Repeats measurements in the set sampling time
and cycle, and calculate the average, standard deviation,
maximum, and minimum of measurements.
Set the required conditions in each option in the measurement modes.
Location Sampling
time
Repeat count Interval time
Repeat ✔ ✔ ✔ ✔
Single ✔ ✔ ― ―
Continuous ✔ ― ― ―
Calculation ✔ ✔ ✔ ✔
Tap the display ( ) to show the ten-digit keypad to enter required
numbers.

13
Item Description Range
Location Sets measurement locations in number. From 1 to 99
Sampling
time
Sets the sampling time for one (1) cycle. From 6 sec.
to 99 min. 59
sec.
Repeat
count
Sets the number of repetition. From 2 to
9999
Interval
time
Sets a time interval between a starting
time of a measurement and a
starting time
of the following measurement.
A time interval must be longer than a
sampling time. The difference between a
sampling time and a time interval is a
suspension time.
From 6 sec.
to 99 min. 59
sec.
Icon Name Functions
Alarm
Sets a threshold to issue the alarm when a measurement
cumulative value ∑ is increasing.
Tap the display ( ) to set a threshold.
Alarm: To select the alarm function ON/OFF (Default
setting: OFF）
Threshold: To set a threshold of a cumulative value ∑ in
each channel. (Default value: 2,000,000)
The threshold value set here will be the upper limit of the
chart display.
Save Sets whether the measurement data saving is required or not.
Remote
Performs a measurement by following the command from the
PC.
Setting: S ets the connecting methods of the RS485 or the
Ethernet, and set the communication parameters in each
connecting method. ID is the identification number of the
device.
Connection: Connects to the PC.

14
Preset
Select Preset on the Main screen in order to set and select the measurement conditions.
There are three (3) preset numbers. Each one has four (4) measurement modes. Hence, 12
measurement modes in all can be preset.
To select and set the Preset, follow Step 1〜4 as shown in the figures below.
Tap ✔ to select the measurement mode.
Step 3 Step 4
Select the Mode.
No measurement conditions have been
selected yet.
Set the measurement conditions.
Tap ✔ to select the measurement
conditions.
Step 1 Step 2
Select Preset on the Main screen. Select one (1) Preset number.
No measurement conditions have been
selected yet.

15
History
Select History on the Main screen in order to confirm and print the measurement results.
Step 1 Step 2
Select History on the Main screen. Select one (1) of the measurement modes.
Step 3
The measurement results are displayed.
Displays the previous number of the history.
Displays the following number of the history.
Selects a required number to show the
history.
Selects the unit (CNT、CF、㎥）
.
(Optional) Prints the result with the Printer.

16
Print Example
Print examples are :
(1) Repeat
mode
(
2) Single, Continuous mode
(3) Calculation mode
2019/04/19 11: 02 E= - - -
Repeat Number 1
Location 1
S-Time 00:21
I -Time 00:21
0.1um 16 CNT
0.3um 14 CNT
2019/04/19 11: 02 E= - - -
Single Number 1
Location 1
S-Time 00:21
0.1um 16 CNT
0.3um 14 CNT
2019/4/19 11: 02 E= - - -
Calculation Number 7
Location 1
S-Time 00:21
I -Time 00:21
Times 2
87CNT
128CNT
235CNT
0CNT
39CNT
66CNT
116CNT
0CNT
0.1um AVE
SD
MAX
MIN
0.3um AVE
SD
MAX
MIN

17
Screen Flow Diagram
The screen comprises six (6) layers. Layer 2 and higher are mainly used for the operations.
When not performing a measurement, the measurement-standby screen will appear on the
Main screen. While, when performing a measurement, the measurement-underway screen
will appear on the Main screen.
From the measurement-standby on the Main screen, you can go to the four (4) menu
screens: General setting, Measurement setting, Preset, and History.


18
Specifications
Product 0.1 μm Particle Counter
Model 3950
Particle
Measurement
Measuring
method Light scattering
Size distribution 2 channels (0.1 µm and 0.3 µm）
Flow rate
0.1 CFM (2.83 L/min)
Accuracy: ±5%
(Compliant with JIS B9921 and ISO21501-4）
Sampling time From 6 seconds to 99 minutes and 59 seconds in one (1)
sampling time
Interval time
From 6 seconds to 99 minutes 59 seconds
(Time interval between a starting time and a following
starting time in continuous samplings.)
Sampling cycle From 1 to 9999 cycles or continuous samplings
Location
classification 99 locations
Measuring mode Repeat, Single, Continuous, Calculation
Display of
measured value
Cumulative ∑, Differential Δ or Bar graph
Maximum
measurable
concentration
10,000,000 particles/㎥
(Coincidence loss: less than 10%)
(Compliant with JIS B9921 and ISO21501-4）
Counting
efficiency
50±20%（for PSL particles near the minimum measurable
size）
100±10%（for PSL particles of 1.5 to 2 times as large as the
minimum measurable size）
（Compliant with JIS B9921 and ISO21501-4）
False count ≦1 particle/35 minutes
（Compliant with JIS B9921 and ISO21501-4）
Size resolution ≦15% (for PSL particles around 0.3 µm)
（Compliant with JIS B9921 and ISO21501-4）
Pump Built-in
Display and Operation 4.3 inch color LCD with touch panel
Communication
Data USB (Host: for printer, and for USB memory,
Device: for PC）
Remote
Measurement Modbus (Ethernet, RS485: 9600, 19200, 38400 baud)
Recording Media Built-in memory
