Kanto KT1937 User manual

19” - 37” 40 lbs
(18 kg)
+15°
50x50
-
200x200
VESA
User Manual
KT1937 TV Mount
English
Supporting your digital lifestyle™
TILTING FLAT PANEL TV MOUNT

Introduction
Table of Contents
Table of Contents / Introduction . . . . . . . . . . . . . 2
Supplied Parts & Hardware ..................3
Setup - Step 1............................4
Setup - Step 2............................5
Setup - Steps 3 to 4 .......................6
Setup - Steps 5 to 6 .......................7
Other Kanto Products ......................8
Warranty ................................8
Thank you for choosing a Kanto tilting wall mount. The KT1937is designed to mount flat panel televisions weighing up to
40 lbs (18 kg) within less than 1.5” (35mm) of your wall. This mount will tilt your TV +15º.
Read these instructions fully before installation of this mount. If you do not understand these directions, or have any
doubts about the safety of the installation, please consult a qualified installation contractor to install this mount.
Make sure there are no defective or missing parts. Do not use defective parts. If there is hardware missing, or if you
are uncertain whether the part is defective call Kanto directly at 1-888-848-2643 or email [email protected].
Kanto cannot be liable for property damage or injury caused by incorrect mounting, incorrect assembly, lifting or
incorrect use of this product.
This product should not be mounted on steel stud walls or cinder block walls. Consult a qualified installation con-
tractor if you are unsure about the type of wall you may have.
CAUTION
The wall you plan to affix the Kanto mount to must be able to support more than 5 times the weight of the
television and the wall mount combined. Do not use this product for any purpose other than to mount a flat panel
TV on a vertical surface as outlined in this manual. Improper installation may cause damage to your TV or serious
injury. This product should not be mounted to steel stud walls, cinder block or old concrete walls. Consult a qualified
installation contractor if you are unsure about the type of wall you may have.
CAUTION
The maximum loading weight is 40 lbs (18 kg). This wall mount is intended for use up to the maximum weight
restrictions indicated. Use with products heavier than the maximum weights indicated may result in instability causing
possible injury. Recommended TV Size: 19 inch to 37 inch.
See installation video online at:
www.kantoliving.com/product/mounts/KT1937#video
2

Supporting your digital lifestyle™
Supplied Parts and Hardware
3
Wall Plate
N: Locking TV Bracket
x2
A: M4 x 15mm
Bolt
C: M5 x 15mm
Bolt
B: M4 x 25mm
Bolt
M: Washer
x4 x4 x4
J: Concrete Anchor
x4
K: 5mm
Plastic Spacer
x4
x4
I: Lag Bolt
x4
L: 14mm
Plastic Spacer
x4
D: M5 x 25mm
Bolt
x4
E: M6 x 15mm
Bolt
G: M8 x 15mm
Bolt
F: M6 x 25mm
Bolt
x4 x4 x4
H: M8 x 25mm
Bolt
x4
Required Tools
Socket
set
Phillips
Screwdriver
Hammer (for
concrete
installs)
Stud
Finder
Level Drill
3/8”
Masonry
Bit
5/32”
Wood
Bit
Pencil

4
WARNING
Never overtighten a screw into the back of your flat panel TV.
Do not lay the TV face down on its glass front. Use a wall or a TV stand.
Step 1: Attach TV Brackets
Step 1.1 Select the correct size of bolt.
Kanto provides 4 bolt diameters (Metric sizes M4, M5, M6
and M8) in various lengths.
Part items: A, B, C, D, E, F, Gor H.
Select the correct diameter bolt and hand screw into the
back of the TV to determine the correct length.
Use one hole of the washer (M) for bolts Athru F(sizes M4,
M5 and M6). The washer will work for all bolt sizes. The
washer is not required for M8 size bolts (Gand H).
If your TV has a curved back or the mounting holes are
recessed, you can use a combination of spacers (K and
L) and the washer (M) with its indent facing in or out to
ensure a proper fit. You can use spacers inside and outside
the bracket arm.
Step 1.2 Attach TV bracket arms to the back of the TV
Now that you have selected the correct bolt length and
combination of spacers and washers, it’s time to attach the
arms to the TV, as shown in Diagram A.
Diagram A
Locking TV bracket (N)
Washer (M) with indent
facing in or out, if needed
Bolts (A thru H)
There are a wide variety of TVs available that use an assortment of bolt sizes. We provide a selection of mounting bolts
to fit most TVs. If you have any concerns about this mounting hardware or installation call us direct at 1-888-848-2643
or email at [e-mail].
Locking TV bracket (N)
Combination of spacers (K and/or
L), depending on length of bolt
and depth of recesss

Supporting your digital lifestyle™Supporting your digital lifestyle™
5
Step 2: Mount Wall Plate
Wood Stud Wall
The Wall Plate must be mounted to a wood stud. Use a
stud sensor to locate the stud, clearly marking the outer
edges of the stud (see Diagram B).
Pre-drill the upper hole in the center of your stud and
attach the Wall Plate to the wall using a Lag Bolt (I) (see
Diagram B). Do not overtighten lag bolt (I). Make sure
the Wall Plate is flat against the wall surface. Using the
Wall Plate as template and a level to ensure the wallplate
is level, pre-drill the bottom hole, and secure using a Lag
Bolt (I), taking care not to overtighten.
Brick or Concrete Wall
Using the Wall Plate as a template, mark four holes
toward the outer edge of the Wall Plate at your desired
height (see Diagram C). Adjust the Wall Plate position to
be clear of mortar joints, keeping in mind that the mount
provides minor horizontal shift along the length of the
Wall Plate. Use a long level to ensure the four holes are
level and at the desired height.
Pre-drill four holes, and insert a Concrete Anchor (J) into
each of the holes flush with the concrete wall surface and
not flush with the surface covering, such as drywall.
Attach the Wall Plate using 4 Lag Bolts (I) (see Diagram
C). Make sure the Wall Plate is flat against the wall
surface. Do not overtighten Lag Bolts (I).
CAUTION
Make sure the supporting surface will support
the load limits outlined in the Caution at bottom
of page two. Tighten Lag Bolts until the Wall Plate is
snug flat against the wall. Do not overtighten Lag Bolts
(I). Each Lag Bolt must be located in the center of a
wood stud.
CAUTION
Make sure the concrete or brick wall is at least
2.5” thick. Make sure the anchor is seated completely
flush with the concrete surface even if there is another
layer of material, such as drywall. If drywall is over 5/8”
thick custom lag bolts must be used. Concrete must be
a minimum of 2000psi in density.
Diagram B Diagram C
Wood Concrete
5/32”
(4 mm)
2” (50 mm) 2” (50 mm)
3/8”
(10mm)
I
J
I

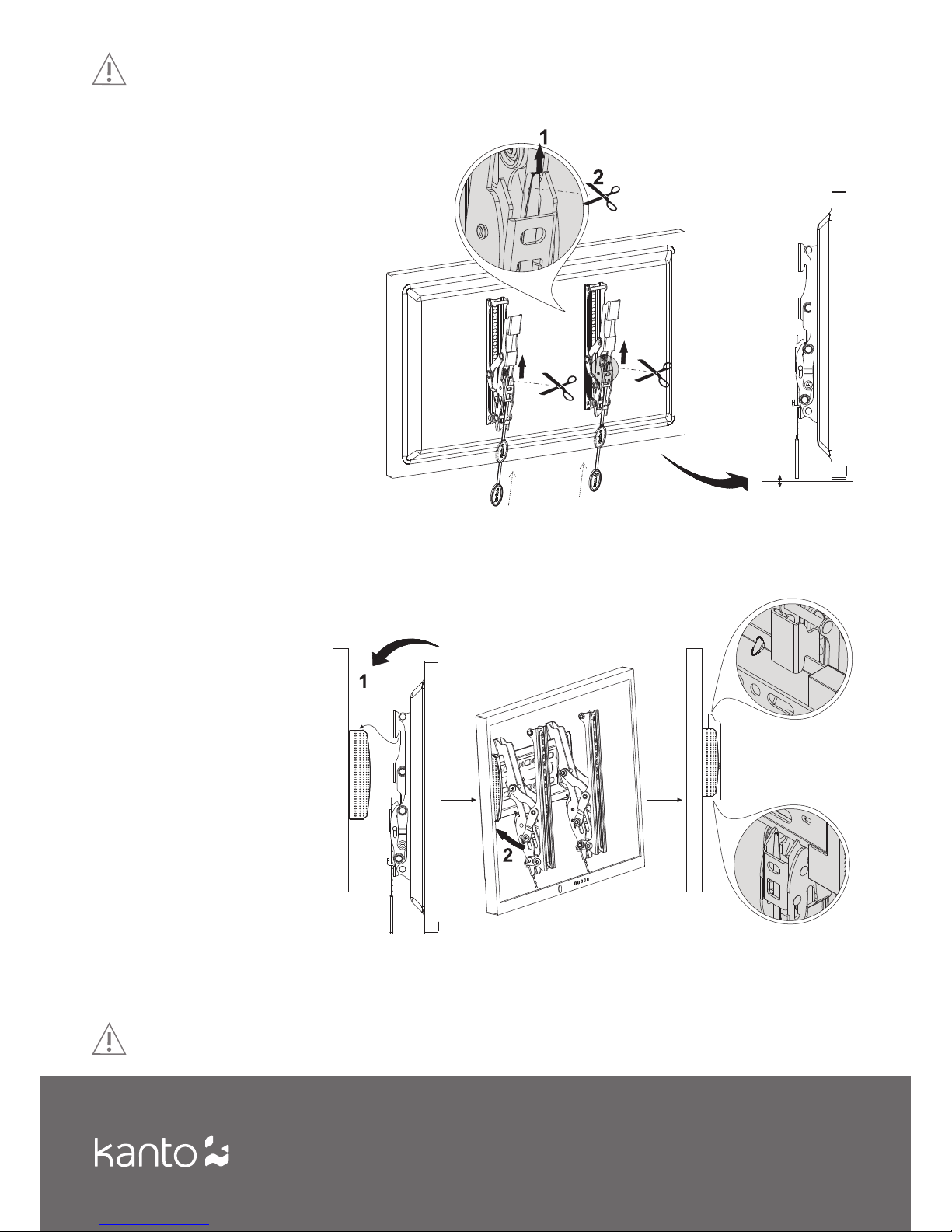

Step 3: Trim Quick Releases
The KT1937 arms feature plastic quick
releases that are used if you want to remove
your television from the mount in future.
So that they do not hang below the bottom
of your television, you should push the
plastic release up through the quick release
arm, then trim the top of it so that it does
not interfere with the latching mechanism, as
shown in Diagram D.
When you pull down on the quick releases,
they will latch into an open position. You
must push them back into the released
position before attaching the TV to the
wallplate.
CAUTION
Read this section carefully prior to install.
WARNING
Use two people to lift and position the TV onto the Wall Plate.
Diagram D
6
Diagram E
Ensure that the quick release
latches are in the released
position. With the TV
brackets firmly secured to
the TV, use two people to
lift the TV into position and
hook the TV brackets onto
the wall plate, as shown in
Diagram E.
Allow the bottom of the TV
to swing towards the wall,
and the latching mechanism
will click into place at the
bottom of the wall plate.
Step 4: Attach TV to Wall Plate

0° − 15°
Diagrama F
Diagrama G
Supporting your digital lifestyle™
7
Step 5: Tilt the TV
The KT1937 can tilt up to +15° downwards. Simply pull the
top of the TV towards you until you reach the desired viewing
angle. If you wish to lock the TV at that position, tighten the
screws on the sides of the Quick Release Arms, as shown in
Diagram F. In normal operation, the KT1937 will remain in the
selected position without tightening. Sit back and enjoy your
mounted flat panel TV.
Step 6: Remove the TV
You can quickly and easily remove your TV
from the wall. Simply pull down on the two
Quick Releases to lock the latches in the open
position, as shown in Diagram G. Then lift the
bottom of the TV away from the wall slightly,
and lift the TV off the top hooks.
WARNING
Use two people to remove the TV from the Wall Plate.
