Kapro MIXED PROLASER 875RG User manual

MIXED PROLASER®
Model No. 875RG
User Manual
Manual del usuario
Manuel d'utilisation
Руководство по эксплуатации
Up to 50m /165’
red lines
Li-Polymer
battery pack
4 AA
batteries
(not included)
Up to 60m /200’
green line

2
Thank you for purchasing Kapro’s 875RG MIXED Prolaser®
You now own one of the most advanced laser tools available.
This manual will show you how to get the most out of your
laser tool.
Applications
The 875RG MIXED Prolaser®is a laser level with 1 horizontal
green line generator, 4 red vertical lines and one plumb dot.
The laser level is innovatively designed for a very broad
range of professional and DIY jobs, including:
• Hanging cabinets and shelves.
• Setting oor and wall tiles
• Drywall installation and hanging acoustic ceilings
• Framing and aligning windows and doors
• Leveling electrical outlets, plumbing and studs
• Accurately laying out right angles for ooring, fences, gates,
decks and pergolas.
• Leveling slopes for stairs, rails, roofs and more.
(manual mode)
NOTE
Keep this user manual for future reference.
EN
Up to 50m /165’
red lines
Li-Polymer
battery pack
4 AA
batteries
(not included)
Up to 60m /200’
green line

3
CONTENTS
• Features 4
• Safety instructions 5-6
• Battery installation & Safety 7-8
• Overview 9-10
• Operating instructions 11-13
• Maintenance 14
• Field calibration test 15-25
• Specifications 26
• Warranty 27

4
• This laser tool automatically determines horizontal and vertical
plans.
• The laser projects separately or simultaneously 1 green
horizontal and 4 red orthogonal vertical beams, intersected
forward and on the ceiling as well as one plumb dot.
• Self-levels in automatic mode when the laser is positioned within
its self-leveling range of ±3°.
• Visual and audible warning will appear, when the laser is
positioned beyond its self-leveling range.
• Pulse mode emits pulses that can be detected by a detector,
increasing the product’s range up to 60m (200’) for 1 green
horizontal line and 50m (165’) for 4 red vertical lines.
• Manual mode allows angular layout/marking.
• The locking mechanism protects the pendulum during
transportation or when the laser is not in use.
• Rubberized shock resistant casing.
• 5/8" tripod adaptor.
• Height-adjustable support legs.
• 360° micro-adjustable rotation.
• Powered by Li – Polymer battery pack, or 4 AA alkaline batteries
• Includes: Li – Polymer battery pack, beam nder glasses, laser
targets, micro USB cable and carrying bag.
FEATURES
NOTE
This device contains precision components
that are sensitive to external shock. An impact
or fall may compromise its functionality.
Handle with care to maintain its accuracy.

5
SAFETY INSTRUCTIONS
WARNING
This product emits radiation that is classified
as class II according to EN 60825 -1
Laser radiation can cause serious eye injury
• Do not stare into the laser beam
• Do not position the laser beam so that it unintentionally
blinds you or others.
• Do not operate the laser level near children or let children
operate the laser level.
• Do not look into a laser beam using magnifying optical
devices such as binoculars or a telescope, as this will
increase the level of eye injury.
WARNING: This product contains lead in solder and
certain electrical components contain chemicals which
are known to the State of California to cause cancer,
birth defects or other reproductive harm.
(California Health & Safety Code Section 25249.6- Proposition 65)
NOTE
Beamfinder™ goggles are intended to
enhance the visibility of the laser beam.
They will not protect your eyes against laser
radiation.

6
• Do not remove or deface warning labels on the laser level.
• Do not disassemble the laser level, laser radiation can
cause serious eye injury.
• Do not drop the unit.
• Do not use solvents to clean the laser unit.
• Do not use in temperatures below -10°C or above 45°C
(14°F to 113°F)
• Do not operate the laser in explosive surroundings such
as ammable liquids, gases or dust. Sparks from tools
can cause ignition.
• When not in use remove the batteries, engage the
pendulum lock and place the laser in the carrying pouch.
• Make sure the pendulum lock mechanism is engaged
before transporting the laser.
NOTE
If the Pendulum lock mechanism is not
engaged before transportation, internal
mechanical damage may occur.

7
BATTERY INSTALLATION & SAFETY
This tool can be powered by either the designated Li-Polymer
battery pack or 4AA alkaline batteries.
Installation of the Li – Polymer Battery pack
1. Press down the latch and pull the battery cover.
2. Insert the Li – Polymer battery pack with the contact terminal
towards the 2 small pins in the battery compartment.
3. Reclose the battery cover.
4. Use a standard 5 V ± 5% charger (1A-2A), with micro USB
connector to charge the Li-Polymer battery pack.
5. Charge the battery pack for at least 2 hours before using it
for the rst time. The micro USB charging port is positioned
on the upper end of the battery. LED indicator on the battery
turns red while charging and green when fully charged.
6. In case of prolonged periods without use, recharge the
Li - Polymer battery every 3 months to maintain its capacity.
Installation of the 4 AA Batteries
1. Press down the latch of the cover and pull the battery cover.
2. Insert 4 new AA batteries of the same brand, according to
the polarity diagram on the inside of the battery compartment.
3. Reclose the battery cover.
NOTE
If the laser level is not in use for a long period
of time, remove the batteries from the battery
compartment. This will prevent batteries from
leaking and corrosion damage.

8
WARNING: Batteries can deteriorate, leak or explode,
and may cause injury or re.
1. Do not shorten the battery terminals.
2. Do not charge Alkaline batteries.
3. Do not mix old and new batteries.
4. Do not dispose of batteries into household waste.
5. Do not dispose batteries in re.
6. Defective or dead batteries must be disposed of, according
to local regulations.
7. Keep the batteries out of reach of children.
LED indicator on the
battery turns red while
charging and green
when fully charged.

9

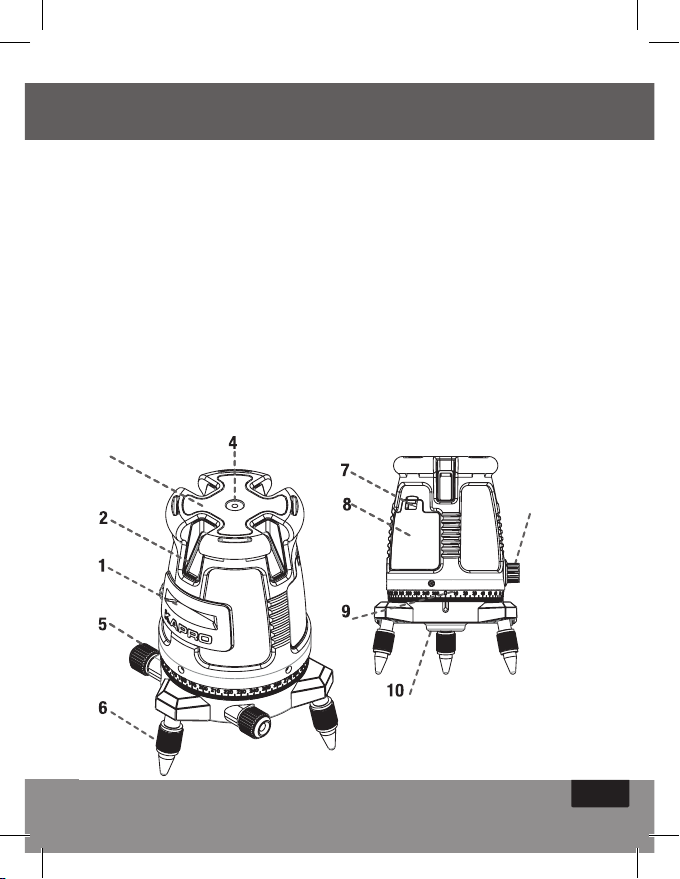

OVERVIEW
Laser level
1. Horizontal laser output window
2. Vertical laser output window
3. Keypad
4. Surface level
5. Fine adjustment knob
6. Adjustable support legs
7. Battery cover
8. Battery compartment
9. Graduated scale
10. 5/8” Tripod threaded adaptor
11. Pendulum safety lock
11
3
LED indicator on the
battery turns red while
charging and green
when fully charged.

10

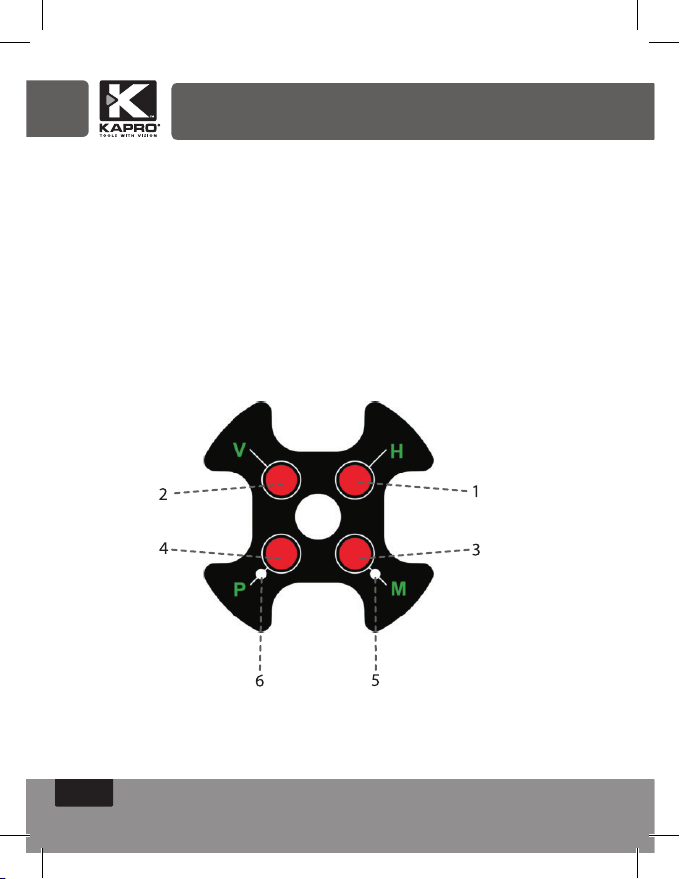

Keypad
1. Horizontal line button
2. Vertical lines button
3. Manual mode button
4. Pulse mode button
5. Manual mode red LED indicator
6. Pulse mode green LED indicator

11
OPERATING INSTRUCTIONS
Working in Automatic mode (self-leveling):
In automatic mode the laser level, will level itself at a ±3° range
and can project 1 horizontal, 4 vertical lines, and 1 plumb dot.
These lines will create 1 cross line on the wall, and a second
cross line on the ceiling.
1. Remove the laser from the case and place it on a at, vibration
free surface or on a tripod.
2. Adjust the unit’s support legs (#6), or the tripod legs, until the
surface level (#4) is centered.
3. Turn the pendulum safety lock (#11) clockwise to the ON
position. The surface level at the center of the keypad (#4)
will light up and the forward cross beam and plumb dot will be projected.
4. To direct the beams to the desirable position turn the laser and
use the ne – adjustment knob (#5) for precise positioning.
5. Press the V button (#2) and the rear vertical beam will also be
projected.
6. An additional click on the V button (#2) will project the additional
2 side vertical beams creating an additional cross beam above
the laser.
7. One more click on the Vbutton (#2) will turn off all the vertical
beams at once.
8. Press the Hbutton (#1) to turn the horizontal beam on or off.
9. If the initial level of the laser is beyond ± 3°, the laser beams
will ash and a beeping alarm will be heard. In this case
reposition the laser on a more leveled surface.
10. Before moving the laser level, turn the pendulum safety
lock (#11) counterclockwise to the OFF position. This will lock
the pendulum and protect your laser.

12
Working in Manual mode:
In Manual mode the 875’s self-leveling mechanism is disabled and
the laser beams can be set at any slope required.
1. Long press on the Mbutton (#3) will activate the Manual
mode. The laser will project blinking forward cross beams, and
the red LED (#5) will light up.
2. Choose the beams that you want to work with by pressing the
Vor Hbuttons.
3. To mark the slope, tilt the laser to the desired slope.
4. To turn the manual mode OFF, press the Mbutton (#3) again.
5. If while in Manual mode you turn the pendulum safety lock (#11)
from OFF to ON. it will incapacitate the Manual mode and the
red LED (#5) near the M(#3) button. If the laser level is within
its self-leveling range, the automatic self-leveling feature will be
activated.

13
Working in Pulse mode with a detector:
For outdoor work under direct sunlight, or bright conditions and for
extended outdoor ranges up to 60m (200’) for 1 green horizontal
line and 50m (165’) for 4 red vertical lines, use the Pulse mode
with a Detector.
When the Pulse mode is activated the laser beams will ash at a
very high frequency (Invisible to the human eye) this will allow
the detector to detect them.
1. The Pulse mode can be activated in Automatic and Manual
modes.
2. To switch on the Pulse Mode press the Pbutton (#4), the
green LED (#6) near the P(#4) button will light up.
3. When the Pulse mode is switched on, the visibility of the laser
beams are reduced a little bit.
4. To switch off the Pulse Mode press the Pbutton (#4) again,
the green LED (#6)near the P(#4) button will turn itself off.
5. The green and the red laser beams require different detectors
to work with.

14
MAINTENANCE
• To assure the accuracy of your project, check the accuracy of
your laser level according to the eld calibration test procedures.
• Charge the Li-Polymer battery pack when the laser beams begin
to dim or replace with new 4 AA alkaline batteries.
• Clean with a soft cloth, slightly dampened with a soap and water
solution.
• Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the laser tool.
• Although the laser level is dust and dirt resistant to a certain
degree, do not store in dusty places, as long term exposure may
damage internal moving parts.
• If the laser level is exposed to water, dry the laser level before
returning it to the carrying case to prevent corrosion damage.
• Do not attempt to dry the laser level with heat or with an electric dryer.
• Remove the batteries if you do not intended to use the laser level
for a long period of time, to prevent corrosion damage.
• Lock the unit before transporting it.
Repairs
• See the warranty section at the end of this manual.
• Do not take apart the 875RG Mixed Prolaser®or permit
unqualied persons to disassemble the laser level.
• Repair the measuring tool through a qualied technician using
original spare parts.
• Unauthorized service may cause eye injury, irreparable damage
to the laser level and the warranty will be void.

15
FIELD CALIBRATION TEST
This laser level left the factory fully calibrated. Kapro recommends
the user check the accuracy of the laser periodically, especially if
the unit falls or is mishandled.
1. Check the height accuracy of the horizontal beam.
2. Check the leveling accuracy of the horizontal beam.
3. Check the leveling accuracy of the vertical beam.
4. Check the perpendicularity between the 2 vertical beams.
1. Checking the Height Accuracy of the Horizontal beam.
(Up and down deviation)
1) Set up the laser on a tripod or on a at surface between two
walls Aand B, approximately 5 meters apart.
2) Position the laser level at approximately 0.5 meters from wall A
3) Unlock the pendulum safety lock (#11), to project the forward
horizontal and the vertical cross beams towards wall A.
4) Mark the center of the cross beams on the wall as a1
(see gure # 1).
B
0.5m
A
X
a1
Approximately 5m
Figure # 1
# הנומת 1
-כ
5
רטמ
Figure # 1

16
B
0.5m
A
X
a1
Figure # 2
# הנומת 2
X
b1
B
X
b2
a1
X
0.5m
A
Figure # 3
# הנומת 3
X
b1
5) Turn the laser 180° towards wall Band mark the center of the
cross beams as b1 on the wall (see gure 2)
6) Move the laser level towards wall Bpositioning it at approximately
0.5 meters from wall B and adjust the laser so that the vertical
beam passes through point b1.
7) On wall B, mark the center of the cross beams as b2
(see gure 3).
Figure # 2
Figure # 3

17
8) Turn the laser 180° towards wall A,and adjust the laser so that
the vertical beam passes through point a1 and on the wall, mark
the center of the cross beams as a2 (see gure 4).
9) Measure the distances:
Δa= |a2-a1|
Δb= |b1-b2|
10) The difference | Δa – Δb| should be no more than 2 mm,
if otherwise, send the laser level to a qualied technician for
repair.
2. Checking the Level Accuracy of the Horizontal beam.
(Side to side inclination)
1) Set up the laser on a tripod or on a at surface at a distance
of approximately 1.5 meters from a 5 meter/16 feet long wall.
2) Unlock the pendulum safety lock (#11), to project the forward
horizontal and vertical cross beams towards the wall.
B
X
b2
a1
X
X
a2
0.5m
A
Figure # 4
# הנומת 4
X
b1
Figure # 4

18
3) Mark point a1 on the wall, in the middle of the horizontal line at
the left edge of the horizontal beam (see gure 5).
4) Turn the laser level counterclockwise until the right edge of the
horizontal beam reaches near a1, mark a point a2 on the wall in
the middle of the horizontal beam (see gure 6).
a1
X
1.5m
Figure # 5
# הנומת 5
Approximately 5m
-כ
5
רטמ
a1
X
X
a2
Figure # 6
# הנומת 6
Figure # 5
Figure # 6

19
5) The distance between a1 and a2, should be no more than
1 mm, otherwise send the laser level to a qualied technician
for repair.
3. Checking the Accuracy of the Vertical beams.

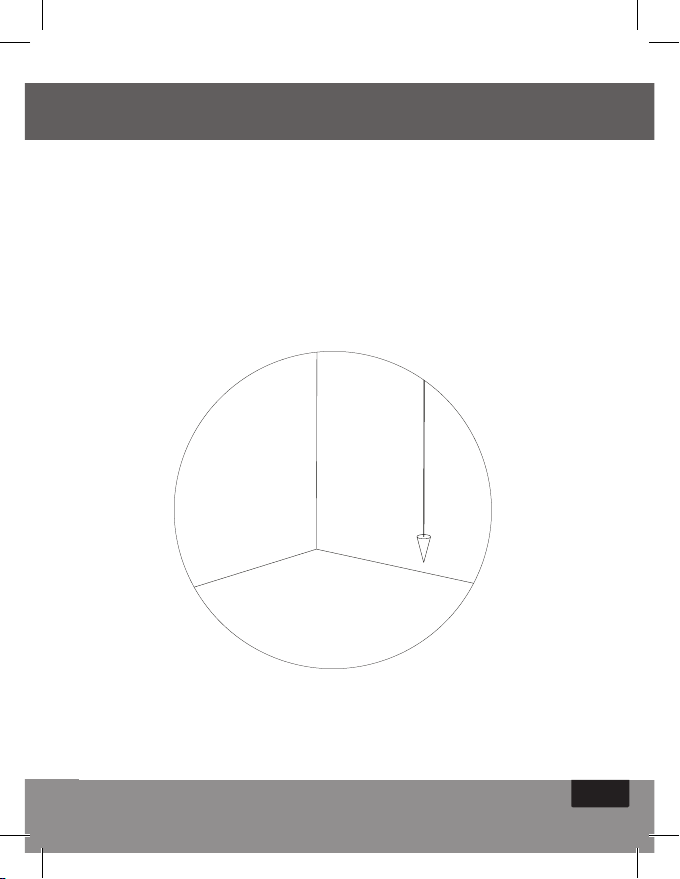

1) Hang an approximately 4 meter /13 feet plumb line on a wall.
2) After the plumb line has settled, mark point a1 on the wall
behind the plumb line, near the plumb cone. (see gure 7).
3) Set the laser up on a tripor or on a at surface in front of the
wall at a distance of approximately 2 meters/ 6.5 feet.
4) Unlock the pendulum safety lock (#11), to project the forward
horizontal and vertical cross beams towards the plumb line.
a1 x
Approximately 4m
Figure # 7
Figure # 7

20
5) Press the H(#1) button, to turn off the horizontal beam.
6) Use the micro – adjustment knob (#5), to turn the laser, so that
the vertical beam will merge with the plumb line below the
hanging point.
7) Mark point a2 on the wall, in the middle of the vertical beam at
the same height as a1. (see gure 8).
8) The distance between a1 and a2, should be no more than
1mm, if otherwise, send the laser level to a qualied technician
for repair.
9) Repeat the same procedure to check all other 3 vertical beams.
a1
XX
a2
2m
Figure # 8
# הנומת 8
Figure # 8
