Kapro Prolaser 862G User manual

Prolaser®Cross Line GREEN
Model No. 862G
User Manual
Manual del usuario
Manuel d'utilisation
Руководство по эксплуатации
2AA
20m/65' INCLUDED

2
Thank you for purchasing Kapro’s 862 GREEN Prolaser®
Cross Line. You now own one of the most advanced laser
tools available. This manual will show you how to get the
most out of your laser tool.

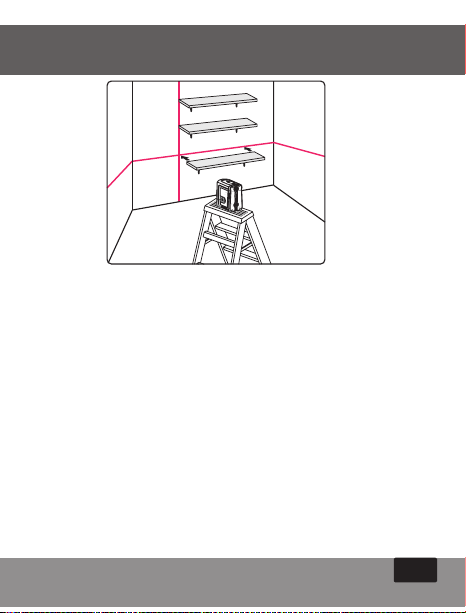

APPLICATIONS
The 862 GREEN Prolaser®Cross Line is a laser level with
one green diode. The laser is innovatively designed for a
very broad range of professional and DIY jobs, including:
• Aligning tiles, marble, cabinets, borders, moldings and
trimmings
• Framing and aligning windows and doors.
• Accurately laying out right angles for fences, gates,
decks and pergolas.
• All types of DIY jobs, including hanging shelves, hanging
hooks, pictures, curtains and more
2AA
20m/65' INCLUDED
NOTE
Keep this user manual for future reference.

3
CONTENTS
• Features 4
• Safety instructions 5-6
• Battery installation & Safety 7-8
• Overview 9
• Operating instructions 10-11
• Maintenance 12
• Field calibration test 13-18
• Specifications 19
• Warranty 20-21

4
FEATURES
• This laser tool automatically determines the horizontal
and vertical plans.
• The laser projects intersected horizontal and vertical lines.
• Max. indoor working range - 20 m (65’).
• Self-levels in automatic mode when the laser is
positioned within its self-leveling range of ±3°.
• Visual warning (blinking) when the laser is out of
leveling range.
• Manual mode allows angular layout/marking.
• The locking mechanism protects the pendulum during
transportation or when not in use.
• Hanging hole for screw or nail in the back side of the laser.
• Slot at the back side of the laser for strap tightening.
• Strong R.E magnets at the back side of the laser.
• 1/4" tripod adaptor.
• Compact size – ts in your toolbox.
NOTE
This device contains precision components
that are sensitive to external shock. An impact
or fall may compromise its functionality –
handle with care to maintain its accuracy.

5
SAFETY INSTRUCTIONS
WARNING
This product emits radiation that is classified
as class II according to EN 60825 -1
The laser radiation can cause serious eye injury
• Do not stare into the laser beam
• Do not position the laser beam so that it unintentionally
blinds you or others.
• Do not operate the laser level near children or let
children operate the laser level.
• Do not look into a laser beam using magnifying optical
devices such as binoculars or a telescope, as this will
increase the level of eye injury.
WARNING: This product contains lead in solder and
certain Electrical parts contain chemicals which are
known to the State of California to cause cancer,
birth defects or other Reproductive harm.
(California Health & Safety Code Section 25249.6- Proposition 65)
NOTE
The green goggles are intended to enhance
the visibility of the laser beam. They will not
protect your eyes against laser radiation.

6
• Do not remove or deface warning labels on the laser level.
• Do not disassemble the laser level, laser radiation can
cause serious eye injury.
• Do not drop the laser.
• Do not use solvents to clean the laser.
• Do not use in temperatures below -10°C or above 45°C
(14°F / 113°F)
• Do not operate the laser in explosive surroundings such as
ammable liquids, gases or dust. Sparks from tools can
cause ignition.
• When not in use, turn off the power, engage the pendulum
lock and place the laser in the carrying pouch.
• Make sure the pendulum lock mechanism is engaged
before transporting the laser.
NOTE
If the Pendulum lock mechanism is not
engaged before transportation, internal
mechanical damage can occur.

7
• Do not remove or deface warning labels on the laser level.
• Do not disassemble the laser level, laser radiation can
cause serious eye injury.
• Do not drop the laser.
• Do not use solvents to clean the laser.
• Do not use in temperatures below -10°C or above 45°C
(14°F / 113°F)
• Do not operate the laser in explosive surroundings such as
ammable liquids, gases or dust. Sparks from tools can
cause ignition.
• When not in use, turn off the power, engage the pendulum
lock and place the laser in the carrying pouch.
• Make sure the pendulum lock mechanism is engaged
before transporting the laser.

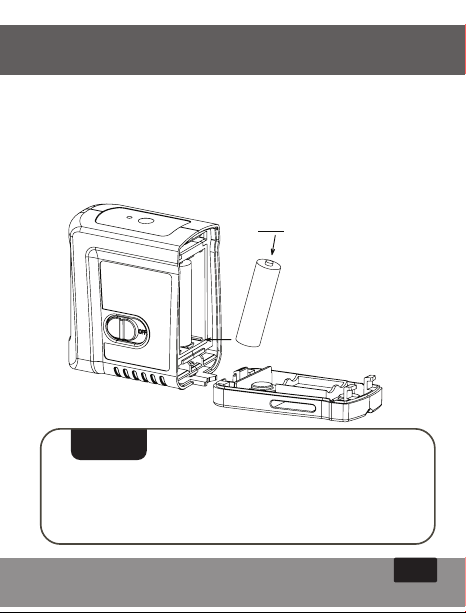

1.To open the batteries cover (#5), press the release button
(#10) at the base of the laser and open the battery cover.
2.Insert 2 new AA batteries of the same brand according to
the polarity diagram on the inside of the battery compartment.
3.Hook and push the battery cover in place.
AA x 2
BATTERY INSTALLATION & SAFETY
NOTE
If the Pendulum lock mechanism is not
engaged before transportation, internal
mechanical damage can occur.
NOTE
If the laser levelis not in use for a long period
of time, remove the batteries from the battery
compartment. This will prevent batteries from
leaking and corrosion damage.

8
WARNING: Batteries can deteriorate, leak or explode, and
can cause injury or re.
1. Do not shorten the battery terminals.
2. Do not charge Alkaline batteries.
3. Do not mix old and new batteries.
4. Do not dispose of batteries into household waste.
5. Do not dispose batteries in re.
6. Defective or dead batteries must be disposed of
according to local regulations.
7. Keep the batteries out of reach of children.

9
OVERVIEW
1. On/Off Locking Switch
2. Laser output window
3. Manual Mode button
4. Operation LED indicator
5. Battery cover
6. Tying Slot
7. Hanging hole
8. Magnet
9. ¼” Tripod mount
10.Battery cover release button.

10
OPERATING INSTRUCTIONS
Working in Automatic mode (self-leveling):
In automatic mode the laser level, will level itself in a ±3°
range and project a horizontal and vertical cross beam.
1. Remove the laser from the case and place it on a solid
at vibration free surface or on a tripod.
2.Turn the locking switch #1 to the ON position. The laser
level will generate the horizontal and vertical cross lines
and the green LED will light up.
3.If the initial slope of the laser is beyond ±3° the laser
lines will ash. In this case, reposition the laser on a
more leveled surface.
4.Before moving the laser level, turn the locking switch
#1 to the OFF position, this will lock the pendulum and
protect your laser.

11
OPERATING INSTRUCTIONS
Working in Manual mode:
In manual mode the self-leveling mechanism of the 862G is
disabled and the laser lines can be set at any slope required.
1.Long press on the Manual mode button (#3) will activate
the Manual mode. The laser will project blinking cross
lines and the red LED will light up.
2.Tilt the laser to the desirable slope.
3.To turn the manual mode OFF, press again the Manual
mode button.
4.While in Manual mode turning the locking switch #1
from the OFF to ON position, will turn off the Manual mode
and the red LED near the button. The automatic
self – leveling will be activated if the laser level is within
its self – leveling range.

12
• To maintain the accuracy of your project, check
the accuracy of your laser level according to the eld
calibration tests procedures.
• Change the batteries when the laser beams begin to dim.
• Wipe the aperture lens and the body of the laser level
with a clean soft cloth. Do not use solvents.
• Although the laser level is dust and dirt resistant to a
certain degree, do not store in dusty places as long
term exposure may damage internal moving parts.
• If the laser level is exposed to water, dry the laser
level before returning it to the carrying case to prevent
corrosion damage.
• Remove the batteries if the laser level is unused for a
long period of time, to prevent corrosion damage.
MAINTENANCE

13
MAINTENANCE
This laser level left the factory fully calibrated. Kapro
recommend that the user will check the accuracy of the laser
periodically, or if the unit falls or is mishandled.
To do so rst check the height accuracy of the horizontal
line, then check the leveling accuracy of the horizontal line,
and nally check the leveling accuracy of the vertical line.
Checking the Height Accuracy of the Horizontal Line.
(Up and down deviation)
1) Set up the laser on a tripod or on a solid surface between
two walls A and B, approximately 5 meters apart.
2) Position the laser level approximately 0.5 meter from wall A
3) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards wall A.
4) Mark on the wall the center of the cross lines as a1
(see gure 1).
FIELD CALIBRATION TEST
BA
a1
0.5 m
x
approximately 5m
Figure # 1

14

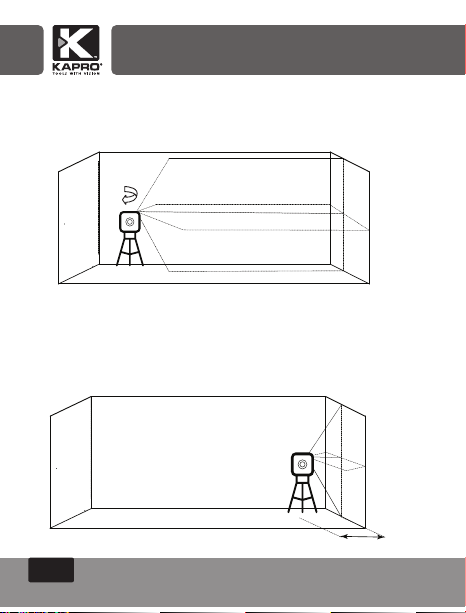

BA
a1
b1
x
x
180°
BA
a1
b2
x
b1
x
x
0.5 m
Figure # 2

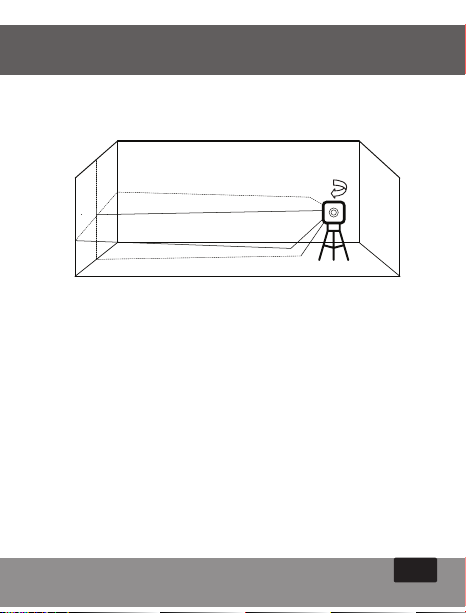

5) Turn the laser 180° towards wall B, and mark on the wall
the center of the cross lines as b1 (see gure 2).
6) Move the laser level towards wall Band position it
approximately 0.5 meter from wall B.
7) Mark on wall Bthe center of the cross lines as b2
(see gure 3).
Figure # 3

15
8) Turn the laser 180° towards wall A, and mark on the wall
the center of the cross lines as a2 (see gure 4).
9) Measure the distances:
Δa= |a2-a1|
Δb= |b1-b2|
10) The difference | Δa – Δb| should not be more than
2 mm, otherwise to send the laser level to a qualied
technician for repairs.
Checking the Level Accuracy of Horizontal Line.
(Side to side inclination)

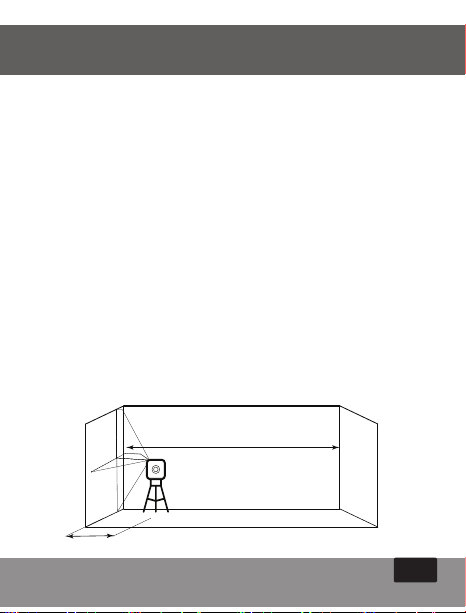

1) Set up the laser on a tripod or on a solid surface at a
distance of approximately 1.5 meters from a wall 5 meters long.
2) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards the wall.
BA
a1
b1
x
b2
x
x
a2
x
180°
Figure # 4

16
3) Mark point a1 on the wall, in the middle of the
horizontal line at the left edge of the horizontal line
(see gure 5).
4) Turn the laser level counterclockwise until the right
edge of the horizontal line reach’s near a1, mark a
point a2 on the wall in the middle of the horizontal line
(see gure 6).
1.5 m
a1
x
x a1
x a2
Figure # 5
approximately 5m
Figure # 6

17

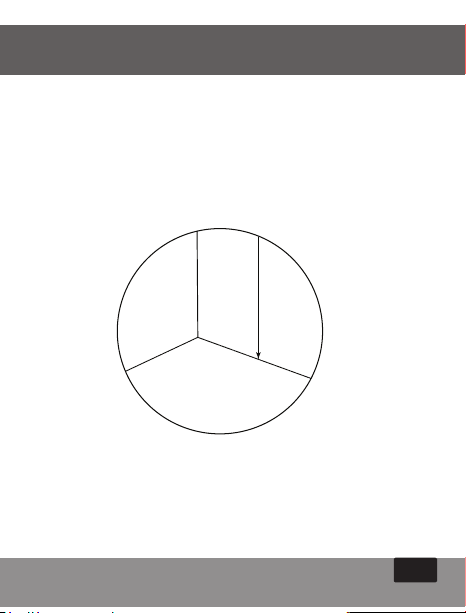

a1 x
Figure # 7
approximately 4m
5) The distance between a1 and a2, should not be more
than 1 mm otherwise to send the laser level to a qualied
technician for repairs.
Checking the Accuracy of the Vertical line.
1) Hang approximately 4 meter plumb line on a wall.
2) After the plumb line has settled, Mark point a1 on the wall
behind the plumb line near the plumb cone. (see gure 7).
3) Set up the laser on a tripod or on a solid surface in front
of the wall at a distance of approximately 2 meters.
4) Unlock the pendulum, and press the button to project the
vertical line toward the plumb line.
5) Turn the laser so that the vertical line will merge with the
plumb line below the hanging point.

18
SPECIFICATIONS
6) Mark point a2 on the wall, in the middle of the vertical
line at the same height of a1. (see gure 8).
7) The distance between a1 and a2, should not be more
than 1mm, otherwise to send the laser level to a
qualied technician for repairs.
2 m
a1
a2
x
x
x
Figure # 8

19
Laser beams
output pattern Vertical and horizontal cross beams
Laser range • Indoor - 20m (65ft)
Accuracy ±0.4mm/m (±0.0004in/in)
Fan angle 100° ±5°
Self-leveling range ±3°
Laser line width 2.5 mm±0.5mm/5m
(0.13” ±0.02” at 20’ )
Wavelength 520 ±10nm - Laser Class II
Power supply 2 AA batteries (included)
Battery life 15 hours of continuous operation
Operating temp. -10° C + 45° C (14°F +113°F)
Storage temp. -20° C +60° C ( -4°F +140°F)
Water & dust proof IP54
Dimensions 9cm x 5.5cm x9.2cm
(3.5” x 2.2” x 3.6” )
Weight including
batteries 330gr±10gr (0.728lbs 0.35±oz )
SPECIFICATIONS

20
WARRANTY
This product is covered by a two year limited warranty
against defects in materials and workmanship. The
warranty does not cover products that are used
improperly, altered, or repaired without Kapro's approval,
nor a process of recalibration if needed.
REPAIR AND CALIBRATION PROCEDURE
1. If your product requires repair or calibration, please
return it to the point of sale, alongside your proof of
purchase.
2. After a return authorization procedure is initiated, the
laser level will be sent to an authorized repair lab.
3. Once completed, the product will be returned to a
point of sale of your choice for collection.
COSTS AND WARRANTY
• Products under warranty will be shipped and repaired
free of charge.
• In case of products that are not under warranty, you
will be notied by the dealer of the estimated cost for
the repair, before the beginning of the process.
The serial number sticker is positioned inside the battery
compartment.
