Kärcher HD 10/25-4 S User manual

www.kaercher.com/register-and-win
HD 10/25-4 S
HD 10/25-4 S Plus
HD 10/25-4 SX Plus
HD 13/18-4 S Plus
HD 13/18-4 SX Plus
59648820 11/14
Deutsch 6
English 16
Français 26
Italiano 37
Nederlands 48
Español 58
Português 69
Dansk 80
Norsk 89
Svenska 99
Suomi 109
Ελληνικά 119
Türkçe 130
Русский 140
Magyar 152
Čeština 162
Slovenščina 172
Polski 182
Româneşte 193
Slovenčina 203
Hrvatski 213
Srpski 223
Български 233
Eesti 244
Latviešu 254
Lietuviškai 265
Українська 275
Indonesia 286

HD 10/25-4 S
HD 10/25-4 S Plus
HD 13/18-4 S Plus
4

HD 10/25-4 SX Plus
HD 13/18-4 SX Plus
5

– 1
Please read and comply with
these original instructions prior
totheinitialoperationofyourapplianceand
store them for later use or subsequent own-
ers.
see cover page
1 Hand blowing gun
2 Lever for hand spray gun
3 High pressure hose
4 Trigger gun storage clip
5 Dosage valve for detergent
6 Locking cap for detergent tank
7 Detergent Tank
8 Detergent suction hose with filter
9 Fastening screw for device hood
10 Power switch
11 Cover
12 Manometer
13 High pressure connection
14 Storage compartment for nozzles
15 Water connection
16 Fine filter
17 Oil level indicator
18 Oil tank
19 Indicator lamp operation status / mal-
function
20 Storage compartment for hoses
21 Deaerating the detergent tank
22 Accessory compartment
23 Cable clamp
24 Hose drum
25 Crank
26 Handle
27 Nozzle
28 Marking of the nozzle
29 Spray lance
30 Pressure/ quantity regulation
31 Safety lever
–Theoperatingelementsforthecleaning
process are yellow.
–The controls for the maintenance and
service are light gray.
–Before first start-up it is definitely nec-
essary to read the operating instruc-
tions and safety indications Nr. 5.951-
949.0!
–Please follow the national rules and
regulations for fuel spray jets of the re-
spective country.
–Please follow the national rules and
regulations for accident prevention of
the respective country. Fuel spray jets
mustbetestedregularlyandtheresults
of these tests must be documented in
writing.
Danger
Immediate danger that can cause severe
injury or even death.
몇Warning
Possible hazardous situation that could
lead to severe injury or even death.
Caution
Possible hazardous situation that could
lead to mild injury to persons or damage to
property.
Contents
Device elements. . . . . . . . . EN . . .1
Safety instructions . . . . . . . EN . . .1
Proper use . . . . . . . . . . . . . EN . . .2
Safety Devices. . . . . . . . . . EN . . .2
Environmental protection . . EN . . .2
Before Startup . . . . . . . . . . EN . . .2
Start up. . . . . . . . . . . . . . . . EN . . .3
Operation . . . . . . . . . . . . . . EN . . .4
Transport . . . . . . . . . . . . . . EN . . .6
Storage. . . . . . . . . . . . . . . . EN . . .6
Maintenance and care . . . . EN . . .6
Troubleshooting . . . . . . . . . EN . . .7
Spare parts. . . . . . . . . . . . . EN . . .8
Warranty. . . . . . . . . . . . . . . EN . . .8
EC Declaration of Conformity EN . . .9
Technical specifications . . . EN . .10
Device elements
Colour coding
Safety instructions
Symbols in the operating
instructions
16 EN

– 2
High-pressure jets can be dan-
gerous if improperly used. The
jet may not be directed at per-
sons, animals, live electrical equipment or
at the appliance itself.
According to the applicable regu-
lations, the appliance must never
be used on the drinking water net
withoutasystem separator.Use a
suitablesystemseparatormanufacturedby
Kärcher; or, as an alternative, a system
separator as per EN 12729 Type BA.
Water flowing through a system separator
is considered non-drinkable.
Use this high pressure cleaner exclusively
for
–Cleaning using low pressure jet and de-
tergent (for e.g. for cleaning machines,
cars, buildings, tools),
–For cleaning using high pressure jet
without detergent (for e.g. for cleaning
facades, terraces, garden appliances).
Forstubborndirt,werecommendtheuseof
the dirt blaster as a special accessory.
Safety devices serve to protect the user
and must not be rendered in operational or
their functions bypassed.
While reducing the water supply/quantity
regulation at the pump head, the overflow
valve opens and part of the water flows
back to the pump suck side.
If the lever on the trigger gun is released
the pressure switch turns off the pump, the
high pressure jet is stopped. If the lever is
pulled the pump is turned on again.
Theoverflowvalveandpressureswitchare
set and sealed at the factory. Setting only
by customer service.
Setting only by customer service.
The packaging material can be recy-
cled. Please do not place the packag-
ingintothe ordinary refuse for disposal, but
arrange for the proper recycling.
Old appliances contain valuable ma-
terials that can be recycled; these
should be sent for recycling. Batter-
ies,oil, and similar substancesmustnot en-
tertheenvironment.Pleasedisposeofyour
old appliances using appropriate collection
systems.
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH
–Check the contents of the pack before
unpacking.
–Incaseoftransport damage inform ven-
dor immediately
Read the oil level display when the de-
viceisnot running.Theoil levelmustbe
above the two pointers.
Unscrew the fastening screws of the
device hood; remove the device hood.
Cut off tip of oil container cover
Fasten the device hood.
Symbols on the machine
Proper use
Safety Devices
Overflow valve with pressure switch
Environmental protection
Before Startup
Unpacking
Check oil level
Activate deaeration of oil container
17EN

– 3

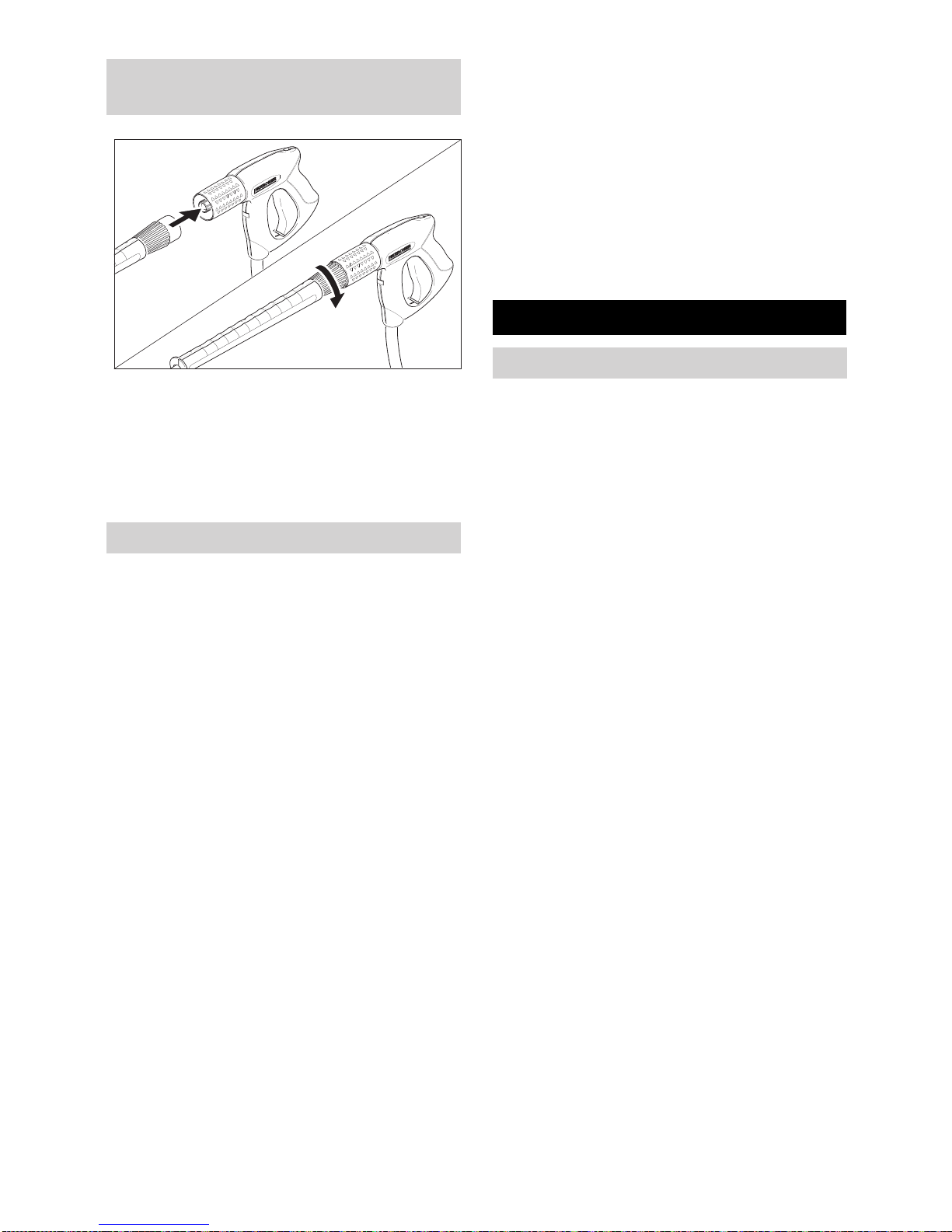

Connect spray lance to hand spray gun.
Tighten the screw connection of the
spray lance finger tight.
Mount the nozzle on the spray lance
(markings on the adjustment ring at the
top).
Insert the crank in the hose drum shaft
and lock it in.
Connect the high pressure hose to the
hand-spray gun.
Lock in the cable hook in the side-hole
on the handle.
Tighten the high-pressure connection
as required.
Leveroutthesafetyclipofthehandspray
gun using a screw-driver (Picture A).
Place the hand-spray gun upside down
and insert the end of the high pressure
hose till the end. Ensure that the lose
disc falls right below on the hose end
(Picture B).
Press the safety clip back into the hand-
spray gun. The hose can be pulled out
max. 1 mm if it has been installed cor-
rectly. Otherwise, it means the disc has
been installed wrongly (picture C).
Before rolling up, stretch out the high
pressure hose.
Wind the high pressure hose in uniform
layers on the hose drum by rotating the
crank. Select the rotation direction in
such a way that the high pressure hose
does not get bent.
몇Danger
Danger of injury by electric shock.
The appliance may only be connected to al-
ternating current.
Theappliancemayonlybeconnectedtoan
electricalsupplywhichhasbeeninstalledin
accordance with IEC 60364.
The voltage indicated on the type plate
must correspond to the voltage of the elec-
trical source.
The minimum fuse rating required at the
socketoutletis(seetechnicalspecifications).
The highest allowed net impedance at the
electrical connection point (refer to techni-
cal data) is not to be exceeded. In case of
confusion regarding the power impedance
presenton yourconnection,please contact
your utilities provider.
Theapplianceshouldalways beconnected
to the electrical mains using a plug. It is for-
bidden to permanently connect the appli-
ance to the power supply. The plug is only
for mains separation.
Check the power cord with mains plug for
damagebeforeeveryuse.Ifthepowercord
is damaged, please arrange immediately
for the exchange by an authorized custom-
er service or a skilled electrician.
The plug and coupling of the extension ca-
ble used must be watertight.
Use the extension cord that has an ade-
quate cross-section (see "Technical Data")
and unwind it fully from the cable drum.
Install hand spray gun, spray lance
and nozzle
Attaching the Accessories
In devices with hose drum:
In devices without hose drum:
For hand-spray guns with threaded con-
nection:
For hand-spray guns without threaded
connection:
1.
2.
In devices with hose drum:
Start up
Electrical connection
18 EN

– 4
Unsuitable electrical extension cables can
be hazardous. Only use electrical exten-
sion cables outdoors which have been ap-
proved and labelled for this purpose and
have an adequate cable cross-section:
For connection values, see type plate/tech-
nical data.
몇Warning
Observe regulations of water supplier.
Accordingtothe applicable regula-
tions, the appliance must never be
used on the drinking water supply
without a system separator. Use a
suitablesystemseparatormanufacturedby
KÄRCHER; or, as an alternative, a system
separatorasperEN12729TypeBA.Water
flowing through a system separator is con-
sidered non-drinkable.
Caution
Always connect the system separator to
the water supply, never directly to the appli-
ance!
For connection values refer to technical
specifications
Connect the supply hose (minimum
length 7.5 m, minimum diameter 1“) to
the water connection point of the appli-
ance (such as the tap).
Note
The supply hose is not included.
Open the water supply.
Screw the suction hose with filter (order
no. 4.440-238.0) to the water connection.
Deaerate the appliance:
Unscrew the nozzle.
Switch on the appliance and let it run
until the water exiting is bubble-free.
Switch off the appliance and fit the noz-
zle again.
Danger
Risk of injury! Never use the appliance
without the spray lance attached. Check
and ensure proper fitting of the spray lance
prior to each use. The screw connection of
the spray lance must be fingertight.
Risk of explosion!
Do not spray flammable liquids.
If the appliance is used in hazardous areas
(e.g. filling stations) all of the safety provi-
sions and operating instructions detailed in
this manual must be observed.
몇Warning
Clean engines only at places with corre-
sponding oil separators (environmental
safety).
Note
The appliance is equipped with a pressure
switch. The motor starts up only when the
lever of the pistol is pulled.
Roll off the high pressure hose totally
from the hose drum.
Set the appliance switch to "I".
Control lamp glows green.
Unlock the hand-spray gun and pull the
lever of the gun.
Danger
When adjusting the pressure/quantity regu-
lation,makesurethatthescrewconnection
of the spray lance does not become loose.
Set working pressure and flow rate
through turning (runless) at the pres-
sure- and amount regulation (B) (+/-).
For transporting small quantities, the
engine heat ensures that water is heat-
ed up to approx. 15 °C.
Water connection
Connection to the water supply
Drawing in water from open reservoirs
Operation
High pressure operation
19EN

– 5
Close the hand spray gun.
Turn the casing of the nozzle till the de-
sired symbol matches the marking.
Select round or flat spray using touch-
less switching:
Turn the spray-pipe that is inclined about
45° downward to the left or the right.
몇Warning
Unsuitable detergents can cause damage
to the appliance and to the object to be
cleaned. Use only those detergents that
have been approved by Kärcher. Observe
the dosage and other instructions provided
with these detergents. For considerate
treatmentoftheenvironmentusedetergent
economically.
Follow the safety instructions for using de-
tergents.
Kärcher detergents ensure smooth func-
tioning.Pleaseconsult us or ask for our cat-
alogueorourdetergent informationsheets.
Fill detergent tank.
Set nozzle to "CHEM".
Set dosing value for detergent to the
desired concentration.
Detergent concentration [%] (for max. flow
quantity)
Spray the detergent sparingly on the
dry surface and allow it to react, but not
to dry.
Spray off loosened dirt with the high-
pressure ray.
After operations, dip the filter in clear
water. Turn the dosing valve to the
highest detergent concentration. Start
the appliance and rinse for one minute.
Release the lever of the hand-spray
gun; the device will switch off.
Release again the lever of the hand-
spray gun; the device will switch on
again.
Onopeningthehand-spraygun, thedevice
starts within the readiness period. The indi-
cator lamp glows green.
The readiness period is over if the hand-
spray gun remains closed for 30 minutes.
The indicator lamp blinks green.
Set the appliance switch to "0".
Wait for a while.
Set the appliance switch to "I".
Customer Service can switch the device to
continuous operations.

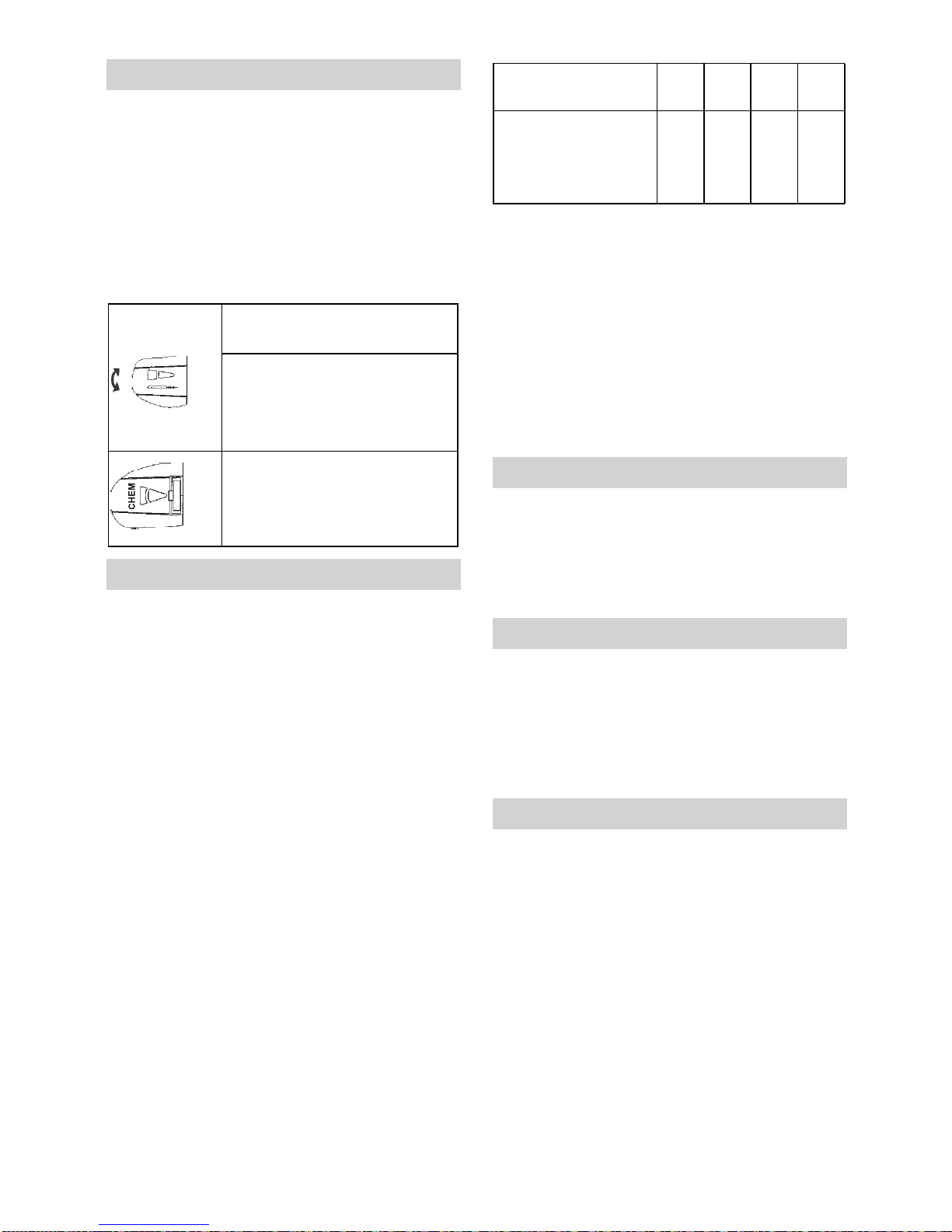

Select spray type
Meaning of the symbols
High pressure flat spray
(25°) for large dirt areas
High pressure circular spray
(0°) for specially stubborn dirt
Flat low pressure spray
(CHEM) for operating using
detergents or cleaning at
low pressure.
Operation with detergent
Positionofthe dos-
ing valve 1357
Detergent concen-
tration [%]
(for max. flow
quantity)
0,5 2,5 5,0 7,0
Recommended cleaning method
Interrupting operation
Operational readiness period
Reset readiness period
20 EN

– 6
Set the appliance switch to "0".
Disconnect the mains plug from the
socket.
Shut off water supply.
Activate hand spray gun until device is
pressure-less.
Pressthesafetyleverofthehand-spray
gun to secure the lever of the pistol
against being released accidentally.
Danger
Danger of scalding by means of hot water.
The water remaining in the switched off de-
vice can get heated up. When you remove
the hose from the water inlet, the heated
water can spray out and cause scalding.
Removethehoseonlywhenthedevicehas
cooled down.
Insert the hand-spray gun in the holder.
Wind up the high-pressure hose and
hang it over the hose storage.
or
Wind up the high-pressure hose on the
hose drum. Push in the handle of the
crank to block the hose drum.
Wind the connection cable around the
cable holder.
몇Warning
Frost will destroy the not completely water
drained device.
Store the appliance in a frost free area.
Emptyingthedetergent tank(see "Care
and Maintenance/ as required").
Drain water.
Pump in conventional frost protection
agents through the appliance.
Note
Use normal glycol-based anti-freezing
agents for automobiles.
Observe handling instructions of the anti-
freeze agent manufacturer.
Operate device for max. 1 minute until
the pump and conduits are empty.
Caution
Risk of injury and damage! Observe the
weight of the appliance when you transport it.
Pullthedevicebehindyouatthehandle
for transporting it over longer distances.
Empty the detergent tank before trans-
porting in horizontal position.
When transporting in vehicles, secure
the appliance according to the guide-
lines from slipping and tipping over.
Caution
Risk of injury and damage! Note the weight
of the appliance in case of storage.
This appliance must only be stored in inte-
rior rooms.
Danger
Risk of injury by inadvertent startup of ap-
pliance and electrical shock.
Firstpull out theplug from themains before
carrying out any tasks on the machine.
Note
Please dispose off used oil only in the col-
lection points provided for them. Please
hand over old oil, if any, only at such plac-
es. Polluting the environment with used oil
is a punishable offence.
Youcansignwith your dealer a contract for
regular safety inspection or even sign a
maintenance contract. Please take advice
on this matter.
Turn off the appliance
Storing the Appliance
Frost protection
If you cannot store it in a frost-free
place:
Transport
Storage
Maintenance and care
Safety inspection/ maintenance
contract
21EN

– 7
Check connection cable for damages
(risk of electrical shock); get the dam-
aged connection cable replaced imme-
diately by an authorised customer
service person/ electrician.
Check the high pressure hose for dam-
ages (risk of bursting).
Please arrange for the immediate ex-
change of a damaged high-pressure
hose.
Check appliance (pump) for leaks.
3 drops per minute are permitted and
can come out from the lower side of the
appliance. Call Customer Service if
there is heavy leakage.
Check oil level Please contact Custom-
er Service immediately if the oil is milky
(water in oil).
Clean the fine filter.
Unpressurize the appliance.
Unscrew the fastening screws of the
device hood; remove the device hood.
Unscrew lid with filter.
Clean the filter with clean water or com-
pressed air.
Reinstall in reverse sequence.
Clean filter at the detergent suck hose.
Oil change.
Note
See "Technical Details" for details of oil
quantity and type.
Unscrew the fastening screws of the
device hood; remove the device hood.
Turn out the oil drain screw at the front
on the motor casing.
Drain the oil in a collection basin.
Screw in the oil drain screw.
Fill in new oil slowly; air bubbles should
go out.
Attach the lid of the oil container.
Fasten the device hood.
Empty and clean the detergent tank.
Pull out the locking cap for the deter-
gent tank along with the suction hose.
Lay the device on the reverse.
Empty and clean the detergent tank.
Danger
Risk of injury by inadvertent startup of ap-
pliance and electrical shock.
Firstpull out theplug from themains before
carrying out any tasks on the machine.
Gettheelectricalcomponentscheckedand
repaired only by authorised customer ser-
vice persons.
Contact an authorised customer service
person in case of problems not mentioned
inthis chapteror if youare indoubtor when
you have been explicitly asked to do so.
The indicator lamps display the operating
states (green) and interruptions (red).
Reset:
Set the appliance switch to "0".
Wait for a while.
Set the appliance switch to "I".
–Continuous green:
The appliance is now ready for opera-
tion.
–blinks green once:
Operationalreadinesshasexpiredafter
30 minutes.
The appliance has switched off after 30
minutesofcontinuous operation(safety
if the high pressure hose bursts).
Before each use
Weekly
monthly or after 500 operating
hours
Oil change
If required
Troubleshooting
Indicator lamp
Operating status display
22 EN

– 8
–blinks red once:
High-pressure side is leaky.
Check high pressure hose, hose con-
nections and hand spray gun for leaks.
–blinks red twice:
Engine is too hot.
Set the appliance switch to "0".
Allow device to cool down.
Set the appliance switch to "I".
–blinks red thrice:
Fault in the voltage supply.
Check main connections and mains
fuse.
–blinks red four times:
Excessive power consumption.
Call Customer Service.
Operational readiness period has ex-
pired. Indicator lamp is blinking green.
Switch on/off the device switch again.
Check connection cable for damages.
Call Customer Service in case of elec-
trical defects.
Set nozzle to "High pressure".
Clean/ replace nozzle.
Clean the fine filter; replace it, if neces-
sary.
Deaerate the appliance (see "Start-up")
Check water supply level (refer to tech-
nical data).
Check all inlet pipes to the pump.
Contact Customer Service if needed.
3 drops per minute are permitted and can
come out from the lower side of the appli-
ance. Call Customer Service if there is
heavy leakage.
With stronger leak, have device
checked by customer service.
Check suction pipes for water and de-
tergent and ensure that they are leak-
proof.
Deaerate the appliance (see "Start-up")
Clean the fine filter.
Contact Customer Service if needed.
Set nozzle to "CHEM".
Check/ clean detergent suction hose
with filter.
Clean/ replace backflow valve in the
connection of the detergent suction
hose.
Open or check/clean detergent dosing
valve.
Clean the deaerating hole of the deter-
gent tank in the casing.
Contact Customer Service if needed.
–Only use accessories and spare parts
which have been approved by the man-
ufacturer. The exclusive use of original
accessories and original spare parts
ensures that the appliance can be oper-
ated safely and trouble free.
–At the end of the operating instructions
youwillfindaselectedlistofspareparts
that are often required.
–For additional information about spare
parts, please go to the Service section
at www.kaercher.com.
The warranty terms published by the rele-
vant sales company are applicable in each
country. We will repair potential failures of
your appliance within the warranty period
free of charge, provided that such failure is
caused by faulty material or defects in man-
ufacturing. In the event of a warranty claim
please contact your dealer or the nearest
authorized Customer Service centre.
Please submit the proof of purchase.
Fault indication
Appliance is not running
Pressure does not build up in the
appliance
Pump leaky
Pump is vibrating
Detergent is not getting sucked in
Spare parts
Warranty
23EN

– 9
We hereby declare that the machine de-
scribed below complies with the relevant
basicsafety and health requirementsofthe
EU Directives, both in its basic design and
construction as well as in the version put
into circulation by us. This declaration shall
cease to be valid if the machine is modified
without our prior approval.
The undersigned act on behalf and under
the power of attorney of the company man-
agement.
Authorised Documentation Representative
S. Reiser
Alfred Kärcher GmbH Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Phone: [phone]
Fax: [phone]
Winnenden, 2014/01/01
EC Declaration of Conformity
Product: High pressure cleaner
Type: 1.286-xxx
Type: 1.292-xxx
Type: 1.441-xxx
Relevant EU Directives
2006/42/EC (+2009/127/EC)
2004/108/EC
2000/14/EC
Applied harmonized standards
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014–2: 1997+A1: 2001+A2: 2008
EN 60335–1
EN 60335–2–79
EN 61000–3–2: 2006+A1: 2009+A2: 2009
EN 61000–3–3: 2008
EN 61000–3–11: 2000
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 85
Guaranteed: 87
CEO Head of Approbation
24 EN

– 10
Technical specifications
HD 10/25 S
HD 10/25 S Plus
HD 10/25 SX Plus
HD 13/18 S Plus
HD 13/18 SX Plus
Main Supply
Voltage V 400/420 230 400 230
Current type Hz 3~ 50
Connected load kW 9,2 8,8 9,2
Protection (slow, char. C) A 16 25 16 25
Type of protection IPX5
Maximum allowed net impedance Ohm (0,145+j0,090)
Extension cable 10 m mm22,5
Extension cord 30 m mm24–4–
Water connection
Max. feed temperature °C 60
Min. feed volume l/h (l/min) 1200 (20) 1400 (23,3)
Suck height from open container (20 °C) m 0,5
Max. feed pressure MPa (bar) 1 (10)
Performance data
Working pressure MPa (bar) 3...25
(30...250) 3...23 (30...230) 3...18 (30...180)
Nozzle size 047 050 080
Max. operating over-pressure MPa (bar) 27,5 (275) 25,3 (253) 19,8 (198)
Flow rate l/h (l/min) 500...1000
(8,3...16,67) 650...1300 (8,3...21,67)
Detergent suck in l/h (l/min) 0...80 (0...1,3)
Max. recoil force of hand spray gun N 62 68
Values determined as per EN 60355-2-79
Hand-arm vibration value
Hand spray gun m/s2<2,5
Spray lance m/s2<2,5
Uncertainty K m/s20,3
Sound pressure level LpA dB(A) 72
Uncertainty KpA dB(A) 2
Sound power level LWA + Uncertainty KWA dB(A) 87
Fuel
Amount of oil l 1,2
Oil grade SAE 90
Dimensions and weights
Length mm 560
Width mm 500
Height mm 1090
Weight without accessories (SX) kg * ** 84 (84,5)
Content detergent tank l 6
* 1.286-120.0: 75,5 kg; 1.286-121.0: 75,7 kg; 1.286-200.0: 69,1 kg; 1.286-500: 82,5 kg
** 1.286-203.0: 77,5 kg; 1.286-507.0: 86 kg
25EN

http://www.kaercher.com/dealersearch
