Please read and comply with
these original instructions prior
to the initial operation of your appliance and
store them for later use or subsequent own-
ers.
Please unfold the front picture side

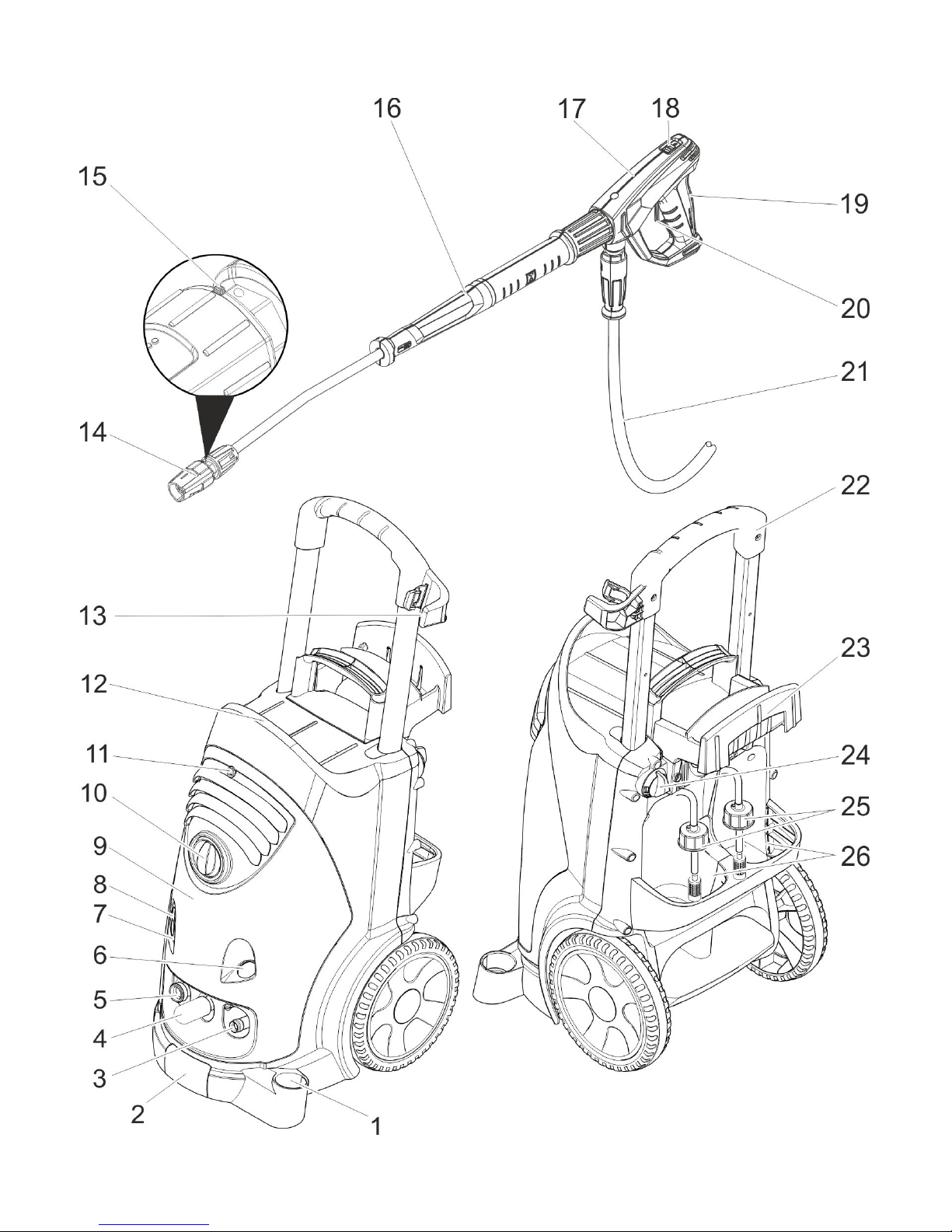

1 Storage compartment for nozzles
2 Handle
3 High-pressure connection EASY!Lock
4 Pressure/ quantity regulation
5 Water connection
6 Manometer
7 Oil level indicator
8Oil tank
9 Cover
10 Power switch
11 Fastening screw for device hood
12 Storage compartment for hoses
13 Trigger gun storage clip
14 Nozzle
15 Marking of the nozzle
16 Spray lance EASY!Lock
17 Trigger gun EASY!Force
18 Safety catch
19 Trigger
20 Safety lever
21 High pressure hose EASY!Lock
22 Push handle
23 Cable clamp
24 Dosage valve for detergent
25 Detergent suction hose with filter and
screw-on lid
26 Bottle holder for detergent
– The operating elements for the cleaning
process are yellow.
– The controls for the maintenance and
service are light gray.
– Before first start-up it is definitely nec-
essary to read the operating instruc-
tions and safety indications Nr. 5.951-
949.0!
– Please follow the national rules and
regulations for fluid spray jets of the re-
spective country.
– Please follow the national rules and
regulations for accident prevention of
the respective country. Fluid spray jets
must be tested regularly and the results
of these tests must be documented in
writing.
– The appliance/accessories must not be
modified.
DANGER
Pointer to immediate danger, which leads
to severe injuries or death.
몇WARNING
Pointer to a possibly dangerous situation,
which can lead to severe injuries or death.
몇CAUTION
Pointer to a possibly dangerous situation,
which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation,
which can lead to property damage.
Contents
Device elements . . . . . . . . . . . EN 1
Safety instructions. . . . . . . . . . EN 1
Proper use . . . . . . . . . . . . . . . EN 2
Safety Devices . . . . . . . . . . . . EN 2
Environmental protection . . . . EN 3
Before Startup . . . . . . . . . . . . . EN 3
Start up . . . . . . . . . . . . . . . . . . EN 3
Operation . . . . . . . . . . . . . . . . EN 4
Transport. . . . . . . . . . . . . . . . . EN 6
Storage . . . . . . . . . . . . . . . . . . EN 6
Care and maintenance . . . . . . EN 6
Troubleshooting . . . . . . . . . . . EN 7
Accessories and Spare Parts . EN 7
Warranty . . . . . . . . . . . . . . . . . EN 8
EU Declaration of Conformity . EN 8
Technical specifications . . . . . EN 9
Device elements
Colour coding
Safety instructions
Hazard levels
3EN

– 2
High-pressure jets can be dan-
gerous if improperly used. The
jet may not be directed at persons, animals,
live electrical equipment or at the appliance
itself.
According to applicable regula-
tions, the appliance must never be
used on the drinking water net
without a system separator. A suit-
able system separator by KÄRCHER or al-
ternatively a system separator according to
EN 12729 type BA must be used.
Water that was flowing through a system
separator is considered non-drinkable.
몇CAUTION
Always connect the system separator to
the water supply, never directly to the appli-
ance!
Use this high pressure cleaner exclusively
for
– Cleaning using low pressure jet and de-
tergent (for e.g. for cleaning machines,
cars, buildings, tools),
– For cleaning using high pressure jet
without detergent (for e.g. for cleaning
facades, terraces, garden appliances).
For stubborn dirt, we recommend the use of
the dirt blaster as a special accessory.
HD...Plus includes a dirt remover as part of
standard delivery.
Quality requirements for water:
ATTENTION
Only clean water may be used as high
pressure medium. Impurities will lead to in-
creased wear and tear or formation of de-
posits in the appliance.
If recycled water is used, the following limit
values must not be exceeded.
Safety devices serve for the protection of
the user and must not be put out of opera-
tion or bypassed with respect to their func-
tion.
While reducing the water supply/quantity
regulation at the pump head, the overflow
valve opens and part of the water flows
back to the pump suck side.
If the pulling lever on the trigger gun is re-
leased the pressure switch turns off the
pump, the high-pressure jet is stopped. If
the pulling lever is pulled the pump is
turned on again.
When the maximum operating over pres-
sure is exceeded, the overlow valve opens
and the water flows back to the pump inlet.
The overflow valve and pressure switch are
set and sealed at the factory. Setting only
by customer service.
Symbols on the machine
Proper use
pH value 6,5...9,5
electrical conductivity * Conductivity
fresh water
+1200 µS/cm
settleable solids ** < 0,5 mg/l
total suspended solids *** < 50 mg/l
Hydrocarbons < 20 mg/l
Chloride < 300 mg/l
Sulphate < 240 mg/l
Calcium < 200 mg/l
Total hardness < 28 °dH
< 50 °TH
< 500 ppm
(mg CaCO3/l)
Iron < 0,5 mg/l
Manganese < 0,05 mg/l
Copper < 2 mg/l
Active chloride < 0,3 mg/l
free of bad odours
* Maximum total 2000 µS/cm
** Test volume 1 l, settling time 30 min
*** no abrasive substances
Safety Devices
Overflow valve with pressure switch
4 EN

– 3
Electrical and electronic devices often con-
tain components which could potentially
pose a danger to human health and the en-
vironment if handled or disposed of incor-
rectly. However, these components are
necessary for the proper operation of the
device. Devices marked with this symbol
must not be disposed of with regular house-
hold rubbish.
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH
– Check the contents of the pack before
unpacking.
– In case of transport damage inform ven-
dor immediately.
Read the oil level display when the de-
vice is not running. The oil level must be
above the two pointers.
Unscrew the fastening screws of the
device hood; remove the device hood.
Cut off tip of oil container cover
Fasten the device hood.
Note: The EASY!Lock system joins com-
ponents with a quick-fasten thread solidly
and securely with just one turn.
Mount the nozzle on the spray lance
(marking on the adjustment ring at the
top) and hand-tighten it (EASY!Lock).
Join the spray lance with the trigger gun
and tighten until hand-tight
(EASY!Lock).
Join the high-pressure hose with trigger
gun and high-pressure connection of
the appliance and tighten until hand-
tight (EASY!Lock).
몇WARNING
Risk of injury! Appliance, accessories, sup-
ply lines and connections must be in fault-
free condition. If they are not in a perfect
state then the appliance must not be used.
몇DANGER
Danger of injury by electric shock.
–It is imperative to connect the appliance
to the electric mains by means of a plug.
It is forbidden to permanently connect
the appliance to the power supply. The
plug serves for the disconnection from
the mains.
–The appliance may only be connected
to alternating current.
–The highest allowed net impedance at
the electrical connection point (refer to
technical data) is not to be exceeded. In
case of confusion regarding the power
Environmental protection
The packaging material can be
recycled. Please do not throw
the packaging material into
household waste; please send it
for recycling.
Old appliances contain valuable
materials that can be recycled;
these should be sent for recy-
cling. Batteries, oil, and similar
substances must not enter the
environment. Please dispose of
your old appliances using appro-
priate collection systems.
Before Startup
Unpacking
Check oil level
Activate deaeration of oil container
Attaching the Accessories
Start up
Electrical connection
2.
1.
5EN

– 4
impedance present on your connection,
please contact your utilities provider.
–The plug and coupling of the extension
cable used must be watertight.
–Use the extension cord that has an ade-
quate cross-section (see "Technical Data")
and unwind it fully from the cable drum.
For connection values, see type plate/tech-
nical data.
Unwind the mains cable and place it on
the floor.
Insert the mains plug into a socket.
몇WARNING
Observe regulations of water supplier.
According to applicable regula-
tions, the appliance must never be
used on the drinking water net
without a system separator. A suit-
able system separator by KÄRCHER or al-
ternatively a system separator according to
EN 12729 type BA must be used.
Water that was flowing through a system
separator is considered non-drinkable.
몇CAUTION
Always connect the system separator to
the water supply, never directly to the appli-
ance!
For connection values refer to technical
specifications.
Connect the supply hose (minimum
length 7.5 m, minimum diameter 1“) to
the water connection point of the appli-
ance (such as the tap).
Note:
The supply hose is not included.
Open the water supply.
Screw the suction hose (order no. 4.440-
270.0) onto the water connection.
Connect filter (order-no. 4.730-012.0) to
suction hose.
Deaerate the appliance:
Unscrew the nozzle.
Switch on the appliance and let it run
until the water exiting is bubble-free.
At the end let the appliance run for ap-
prox. 10 seconds - then switch off. Re-
peat the procedure for a couple of
times.
Switch off the appliance and fit the noz-
zle again.
DANGER
Risk of explosion!
Do not spray flammable liquids.
If the appliance is used in hazardous areas
(e.g. filling stations) the corresponding
safety regulations must be observed.
Risk of injury! Hold the hand spray gun and
the spray pipe firmly with both hands.
Risk of injury! The trigger and safety lever
may not be locked during the operation.
Risk of injury! Contact Customer Service if
the safety lever is damaged.
Risk of injury from high-pressure water jet.
Slide the safety catch on the trigger gun for-
ward before performing any work with the
appliance.
몇CAUTION
Clean engines only at places with corre-
sponding oil separators (environmental
safety).
ATTENTION
Risk of blocking. Place the nozzles in the
accessory compartment with their joint
pointing upward.
To open the trigger gun: Actuate the
safety lever and trigger.
To close the hand spray gun: Release
the safety lever and trigger.
Note:
The appliance is equipped with a pressure
switch. The motor starts up only when the
trigger gun is open.
Set the appliance switch to "I".
Release the trigger gun. To do so, push
the safety catch towards the back.
Open the hand spray gun.
Water connection
Connection to the water supply
Drawing in water from open reservoirs
Operation
Opening/closing the trigger gun
High pressure operation
6 EN

– 5
Set working pressure and flow rate
through turning (runless) at the pres-
sure- and amount regulation (+/-).
Close the hand spray gun.
Turn the casing of the nozzle till the de-
sired symbol matches the marking.
몇WARNING
Unsuitable detergents can cause damage
to the appliance and to the object to be
cleaned. Use only those detergents that
have been approved by Kärcher. Observe
the dosage and other instructions provided
with these detergents. For considerate
treatment of the environment use detergent
economically.
Follow the safety instructions for using de-
tergents.
Kärcher detergents ensure smooth func-
tioning. Please consult us or ask for our cat-
alogue or our detergent information sheets.
Place the detergent bottle into the bottle
holder on the appliance or place a de-
tergent container next to the appliance..
Two different detergents can be simul-
taneously placed into the appliance.
Pull the detergent suction hose out and
immerse it into the detergent bottle or
container.
Screw the lid onto the bottle or the con-
tainer.
Set nozzle to "CHEM".
Set the detergent
dosing valve to
the desired deter-
gent and concen-
tration.
Spray the detergent sparingly on the
dry surface and allow it to react, but not
to dry.
Spray off loosened dirt with the high-
pressure ray.
After operations, dip the filter in clear
water. Turn the dosing valve to the
highest detergent concentration. Start
the appliance and rinse for one minute.
Close the hand spray gun.
The appliance switches off.
Open the hand spray gun.
The appliance will switch on again.
Shut off water supply.
Open the hand spray gun.
Switch on the pump with the power
switch and allow to run for about 5-10
seconds.
Close the hand spray gun.
Set the appliance switch to "0/OFF“.
Pull main plug out of socket with dry
hands only.
Remove water connection.
Activate hand spray gun until device is
pressure less.
Secure the trigger gun. To do so, push
the safety catch towards the front.
Insert the hand-spray gun in the holder.
Wind up the high-pressure hose and
hang it over the hose storage.
Wind the connection cable around the
cable holder.
Fasten the plug with the mounted clip.

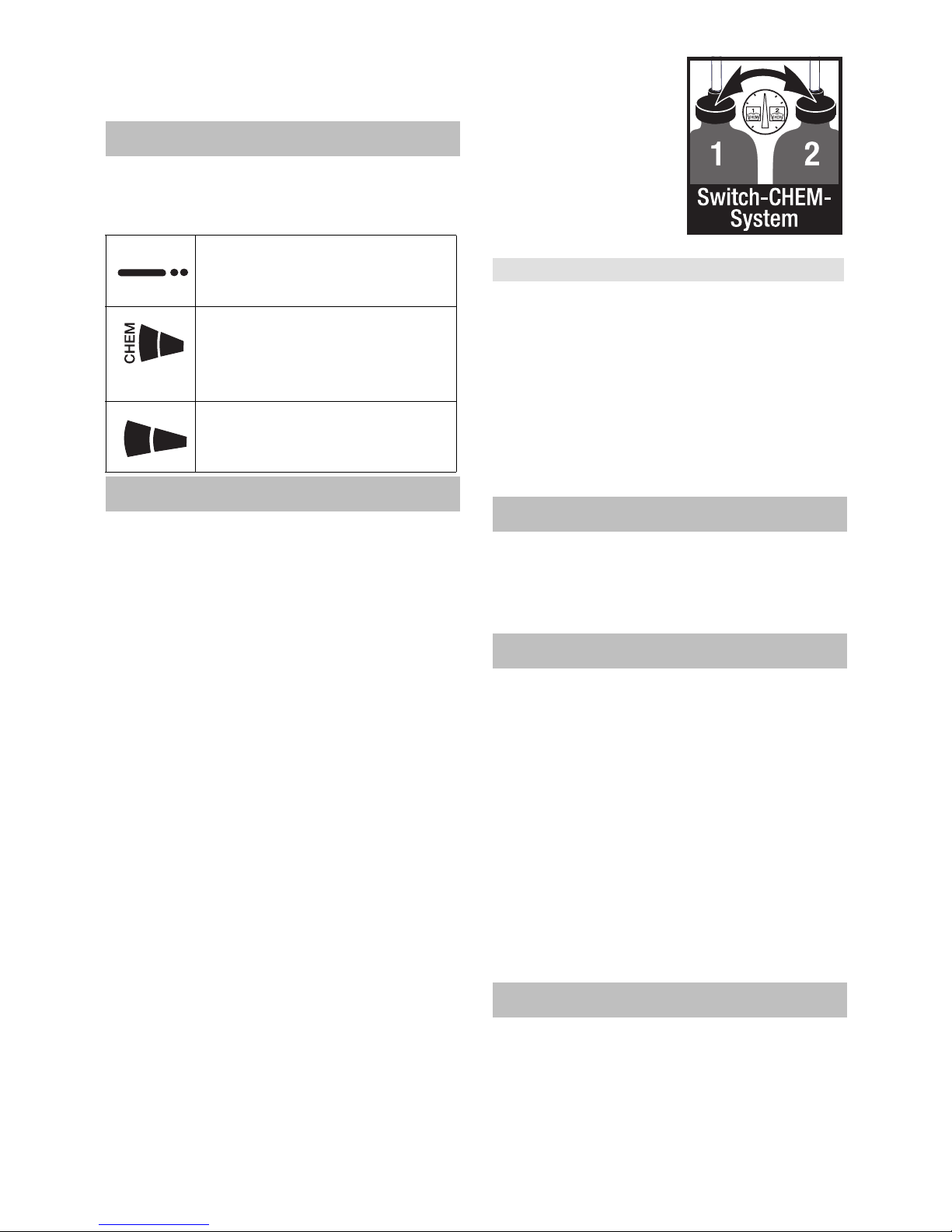

Select spray type
High pressure circular spray
(0°) for specially stubborn dirt
Flat low pressure spray
(CHEM) for operating using de-
tergents or cleaning at low
pressure.
High pressure flat spray (25°)
for large dirt areas
Operation with detergent
Recommended cleaning method
Interrupting operation
Turn off the appliance
Storing the Appliance
7EN

– 6
ATTENTION
Frost will destroy the not completely water
drained device.
Store the appliance in a frost free area.
Drain water.
Pump in conventional frost protection
agents through the appliance.
Note:
Use normal glycol-based anti-freezing
agents for automobiles.
Observe handling instructions of the anti-
freeze agent manufacturer.
Operate device for max. 1 minute until
the pump and conduits are empty.
몇CAUTION
Risk of personal injury or damage! Mind the
weight of the appliance during transport.
ATTENTION
Protect the trigger from damage during
transport.
Pull the device behind you at the handle
for transporting it over longer distances.
Push the handle downward to carry the
appliance. To carry, hold the appliance
at the handles and not at the pushing
handle.
Prior to transporting the appliance in
horizontal position, remove the deter-
gent bottles from the bottle holder and
close them.
When transporting in vehicles, secure
the appliance according to the guide-
lines from slipping and tipping over.
몇CAUTION
Risk of personal injury or damage! Consider
the weight of the appliance when storing it.
This appliance must only be stored in inte-
rior rooms.
DANGER
Risk of injury by inadvertent startup of ap-
pliance and electrical shock.
Prior to all work on the appliance, switch off
the appliance and pull the power plug.
Note:
Used oil must only be disposed of by the
designated collection points. Please turn in
used oil there. Polluting the environment
with used oil is prosecutable.
You can sign with your dealer a contract for
regular safety inspection or even sign a
maintenance contract. Please take advice
on this matter.
Check connection cable for damages
(risk of electrical shock); get the dam-
aged connection cable replaced imme-
diately by an authorised customer ser-
vice person/ electrician.
Check the high pressure hose for dam-
ages (risk of bursting).
Please arrange for the immediate ex-
change of a damaged high-pressure
hose.
Check appliance (pump) for leaks.
3 drops per minute are permitted and
can come out from the lower side of the
appliance. Call Customer Service if
there is heavy leakage.
Check oil level Please contact Custom-
er Service immediately if the oil is milky
(water in oil).
Clean the sieve in the water connection.
Clean filter at the detergent suck hose.
Clean the fine filter.
Unpressurize the appliance.
Unscrew the fastening screws of the
device hood; remove the device hood.
Frost protection
If you cannot store it in a frost-free
place:
Transport
Storage
Care and maintenance
Safety inspection/ maintenance
contract
Before each use
Weekly
HD 9/20-4 only:
8 EN

– 7
Unscrew lid with filter.
Clean the filter with clean water or com-
pressed air.
Reinstall in reverse sequence.
Have the maintenance of the device
performed by the customer service.
Oil change.
Note:
See "Specifications" for oil volume and
type.
Unscrew the fastening screws of the
device hood; remove the device hood.
Remove the lid of the oil container.
Tilt the appliance forward.
Drain the oil in a collection basin.
Fill in new oil slowly; air bubbles should
go out.
Attach the lid of the oil container.
Fasten the device hood.
DANGER
Risk of injury by inadvertent startup of ap-
pliance and electrical shock.
–Prior to all work on the appliance,
switch off the appliance and pull the
power plug.
–Get the electrical components checked
and repaired only by authorised cus-
tomer service persons.
–Contact an authorised customer service
person in case of problems not men-
tioned in this chapter or if you are in
doubt or when you have been explicitly
asked to do so.
Check connection cable for damages.
Check the supply voltage.
Turn device switch on "0" and let engine
cool off for min. 5 minutes.
If malfunction still occurs, have device
checked by customer service.
Call Customer Service in case of elec-
trical defects.
Set nozzle to "High pressure".
Clean the nozzle.
Replace the nozzle.
Deaerate the appliance (see "Start-up")
Check water supply level (refer to tech-
nical data).
Clean the sieve in the water connection.
Check all inlet pipes to the pump.
Contact Customer Service if needed.
3 drops per minute are permitted and can
come out from the lower side of the appli-
ance. Call Customer Service if there is
heavy leakage.
With stronger leak, have device
checked by customer service.
Check suction pipes for water and de-
tergent and ensure that they are leak-
proof.
Close dosing valve for detergent to op-
erate the machine without detergent.
Deaerate the appliance (see "Start-up")
Contact Customer Service if needed.
Set nozzle to "CHEM".
Check/ clean detergent suction hose
with filter.
Open or check/clean detergent dosing
valve.
Contact Customer Service if needed.
Only use original accessories and spare
parts, they ensure the safe and trouble-free
operation of the device.
For information about accessories and
spare parts, please visit www.kaerch-
er.com.
Every 500 operating hours, at least
annually
Oil change
Troubleshooting
Appliance is not running
Pressure does not build up in the
appliance
Pump leaky
Pump is vibrating
Detergent is not getting sucked in
Accessories and Spare Parts
9EN

– 8
The warranty terms published by the rele-
vant sales company are applicable in each
country. We will repair potential failures of
your appliance within the warranty period
free of charge, provided that such failure is
caused by faulty material or defects in man-
ufacturing. In the event of a warranty claim
please contact your dealer or the nearest
authorized Customer Service centre.
Please submit the proof of purchase.
We hereby declare that the machine de-
scribed below complies with the relevant
basic safety and health requirements of the
EU Directives, both in its basic design and
construction as well as in the version put
into circulation by us. This declaration shall
cease to be valid if the machine is modified
without our prior approval.
The undersigned act on behalf and under
the power of attorney of the company man-
agement.
Authorised Documentation Representative
S. Reiser
Alfred Kärcher GmbH Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Phone: [phone]
Fax: [phone]
Winnenden, 2016/11/01
Warranty EU Declaration of Conformity
Product: High pressure cleaner
Type: 1.524-xxx
Relevant EU Directives
2006/42/EC (+2009/127/EC)
2014/30/EU
2000/14/EC
Applied harmonized standards
EN 60335–1
EN 60335–2–79
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014–2: 1997 + A2: 2008
EN 61000–3–2: 2006+A1: 2009+A2: 2009
EN 61000–3–3: 2006
EN 62233: 2008
HD 6/16:
EN 61000–3–11: 2000
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 83
Guaranteed: 86
CEO Head of Approbation
10 EN

– 9
Technical specifications
Main Supply
Voltage V 230...240
Current type Hz 1~ 50
Motor rpm 1/min 1400
Connected load kW 3,0
Protection (slow, char. C) A 13
Type of protection IPX5
Maximum allowed net impedance Ohm 0.294+j0.184
Extension cord 30 m mm22,5
Water connection
Max. feed temperature °C 60
Min. feed volume l/h (l/min) 700 (11,7)
Suck height from open container (20 °C) m 0,5
Max. feed pressure MPa 1
Performance data
Operating pressure of water (using standard nozzle) MPa 3...11
Size of standard nozzle 053
Max. operating over-pressure MPa 20
Flow rate l/h (l/min) 300...700 (5...11,7)
Detergent suck in l/h (l/min) 0...40 (0...0,7)
Max. recoil force of trigger gun N 30
Values determined as per EN 60335-2-79
Hand-arm vibration value
Hand spray gun m/s21,5
Spray lance m/s22,6
Uncertainty K m/s20,3
Sound pressure level LpA dB(A) 69
Uncertainty KpA dB(A) 3
Sound power level LWA + Uncertainty KWA dB(A) 86
Fuel
Amount of oil l 0,5
Oil grade SAE 0W40
Dimensions and weights
Length mm 554
Width mm 509
Height mm 1000
Weight (without accessories) kg 47,5
11EN

http://www.kaercher.com/dealersearch
