Kärcher HD 2.3/15 C Ed User manual

www.kaercher.com
HD 2.3/15 C Ed
HD 3.0/20 C Ea
5.961-971 2014000 05/06

3

English
4
IMPORTANT SAFETY
INSTRUCTIONS
WARNING!
When using this product basic precautions
should always be followed, including the
following:
Read all the instructions before using the
product.
To reduce the risk of injury, close
supervision is necessary when a product is
used near children.
Know how to stop the product and bleed
pressures quickly. Be thoroughly familiar
with the controls.
Stay alert – watch what you are doing.
Do not operate the product when fatigued
or under the influence of alcohol or drugs.
Keep operating area clear of all persons.
Do not overreach or stand on unstable
support. Keep good footing and balance at
all times.
Follow the maintenance instructions
specified in the manual.
This Product Is Provided With A Ground
Fault Circuit Interrupter Built Into The
Power Cord Plug. If Replacement Of The
Plug Or Cord Is Needed, Use Only
Identical Replacement Parts.
Risk of Injection or Injury – Do Not Direct
Discharge Stream At Persons.
High pressure jets can be dangerous if
misused. The jet must not be directed at
persons, animals, electrical devices, or the
machine itself.
Wear safety goggles.
Do not use acids and solvents in this
product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not
touch plug with wet hands.
The Trigger Gun Safety Lock PREVENTS
the trigger from accidentally being
engaged. This safety feature DOES NOT
lock trigger in the ON position.
Do not use extension cord with this unit.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should
malfunction or breakdown, grounding
provides a path of least resistance for electric
current to reduce the risk of electric shock.
This product is equipped with a cord having
an equipment-grounding conductor and a
grounding plug. The plug must be plugged
into an appropriate outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
DANGER
Improper connection of the equipment-
grounding conductor can result in a risk of
electrocution. Check with a qualified
electrician or service personnel if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the product - if it will not fit the outlet, have
a proper outlet installed by a qualified
electrician. Do not use any type of adapter
with this product.
GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
This product is supplied with a Ground Fault
Circuit Interrupter (GFCI) built into the power
cord plug. This device provides additional
protection from the risk of electric shock. If
power is interrupted in the line, the GFCI will
automatically re-close the circuit to the load
after power is restored. Depending on the
GFCI model, it may be necessary to manually
operate the reset button to restore power to
the GFCI load circuit. If replacement of the
plug or cord is needed use identical
replacement parts.

English
5
WATER SUPPLY
(Cold Water Only)
CAUTION
When connecting the water inlet to the water
supply mains, local regulations of your water
company must be observed. In some areas
the unit must not be connected directly to the
public drinking water supply. This is to ensure
that there is no feedback of chemicals into the
water supply. Direct connection via a receiver
tank or backflow preventer, for example, is
permitted.
Dirt in the feed water will damage the unit. To
avoid this risk, we recommend fitting a water
filter.
Garden hose must be at least 3/4 inch in
diameter.
Flow rate of water supply must not fall
below 3,0 GPM (HD 2.3/15 C Ed), 4,0 GPM
(HD 3.0/20 C Ea) (gallons per minute).
Flow rate can be determined by running the
water for one minute into an empty 5-gallon
container.
The water supply temperature must not
exceed 140°F/60°C.
Never use the pressure washer to draw in
water contaminated with solvents, e.g.
paint thinners, gasoline, oil, etc.
Always prevent debris from being drawn
into the unit by using a clean water source.
CANADA:
WARNING
Do not spray electrical apparatus and wiring.
Do not use with flammable liquids and toxic
chemicals.
Injection hazard: equipment can cause
serious injury if the spray penetrates the skin.
do not point the gun at anyone or any part of
the body. In case of penetration seek medical
aid immediately.
This system is capable of producing
10400 kPa /1500 PSI (HD 2.3/15 C Ed),
13000 kPa /2000 PSI (HD 3.0/20 C Ea) to
avoid rupture and injury, do not operate this
pump with components rated less than
10400 kPa /1500 PSI (HD 2.3/15 C Ed),
13000 kPa /2000 PSI (HD 3.0/20 C Ea)
working pressure (including but not limited to
spray guns, hose and hose connections).
Before servicing, cleaning or removing any
parts, shut off power and relieve pressure.
Extension Cords
Use only 3-wire extention cords that have
3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from
the product.
Up to 100 ft = 12/3 AWG;
Use only extension cords that are intended
for outdoor use. These extension cords are
identified by the marking “Acceptable for
use with outdoor appliances; store indoors
while not in use.”
Use only extension cords having an
electrical rating not less than the rating of
the product.
Do not use damaged extension cords.
Examine extension cord before using and
replace if damaged.
Do not abuse extension cord and do not
yank on any cord to disconnect.
Keep cord away from heat and sharp
edges.
Always disconnect the extension cord from
the receptacle before disconnecting the
product from the extension cord.
If you are using an extension cord, it should
always be completely unwound from the
cable drum.
WARNING
To reduce the risc of electrocution, keep all
connections dry and off the ground. Do not
touch plug with wet hands.
SAVE THESE
INSTRUCTIONS!!

English
6

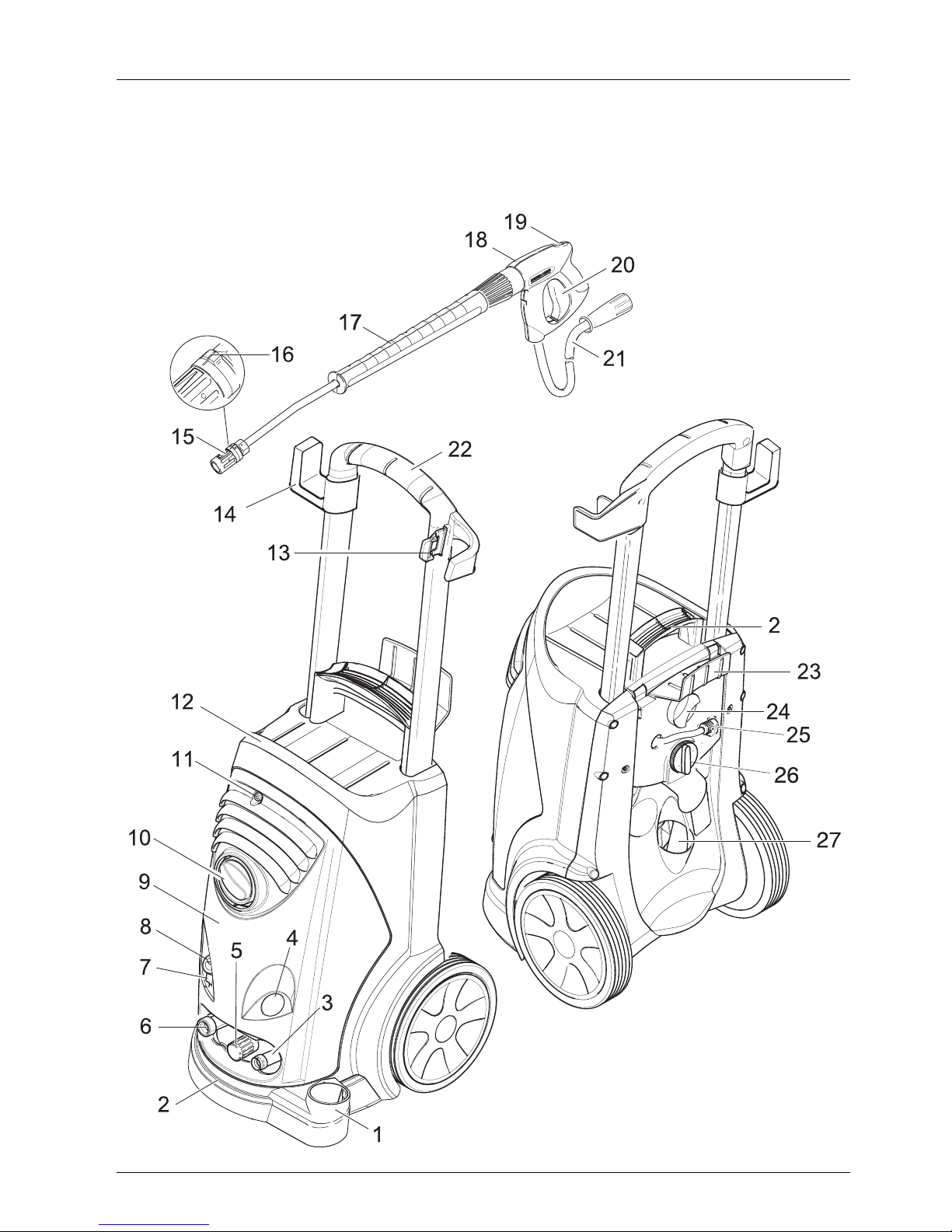

Unit components
Please fold out illustration page at the front
1Nozzle rest
2Handle
3High-pressure outlet
4Manometer
5Pressure/flow control
6Water connection
7Oil level display
8Oil reservoir
9Hood
10 Unit switch
11 Fastening screw for hood
12 Hose rest
13 Handgun support
14 Hose hook
15 Nozzle
16 Marking of the nozzle
17 Spray lance
18 Hand-held spray gun
19 Safety catch of hand-held spray gun
20 Lever of hand-held spray gun
21 High-pressure hose
22 Push-handle
23 Cable holder
24 Push-handle clamping screw
25 Detergent suction-hose with filter
26 Detergent metering valve
27 Accessories box
For your safety
Before you use the cleaner for the first time,
read these operating instructions and take
special note of the accompanying booklet
"Safety Instructions for High-Pressure Clean-
ers" No. 5.951-949.
Use of the cleaner
Use this appliance exclusively
– for cleaning operations with low-pressure
jet and detergent (e.g. cleaning of ma-
chines, vehicles, buildings, tools),
– cleaning with high-pressure jet without
detergent (e.g. cleaning facades, terraces,
gardening equipment).
For stubborn dirt we recommend the dirt
blaster as an optional accessory (for HD ...
Plus included in the delivery).
Safety features
Overflow valve with pressure
switch
On reducing the flow rate with the pressure
and flow control, the relief valve opens and
part of the water runs back to the suction side
of the pump.
If the lever of the hand-held spray gun is re-
leased, the pressure switch switches the
pump off. If the lever is retracted, the pressure
switch switches the pump on again.

English
7
Protection of the
environment, disposal
The packaging material can be
recycled. Please do not place the
packaging into the ordinary refu-
se for disposal, but arrange for
the proper recycling.
Old appliances contain valuable
materials that can be recycled.
Please arrange for the proper re-
cycling of old appliances. Batte-
ries, oil, and similar substances
must not enter the environment.
Please dispose of your old ap-
pliances using appropriate col-
lection systems.
Preparing the unit for use
Unpack the unit
– When unpacking the unit, check the con-
tents of the packaging. If there has been
any damage in transit inform the dealer.
– Do not dispose of the packaging with the
household rubbish, hand it in at the appro-
priate collection point for recycling.
Check the oil level
Read the oil level displayed while unit is at
a standstill. The oil level must be above the
two indicators.
Activate the oil reservoir vent
Unscrew the fastening screw of the hood
and remove the hood.
 Cut off the tip on the cover to the oil reservoir.
Fasten the unit cover.
Mount the accessories
Mount nozzle on the spray lance (see
markings on the top of the setting ring).
 Fit the spray lance to the hand-held spray gun.
For appliances without hose reel:
Undo push-handle clamps.
Adjust push-handle to required height.
Tighten push-handle clamps.
Screw on high-pressure hose to the high-
pressure outlet.
For appliances with hose reel:
Insert the crank handle in the hose reel
shaft, until it snaps into position.
It is advisable to lay the high-pressure hose
out in a straight line before reeling it up.
 Wind the high-pressure hose up in even layers
on the hose reel by turning the crank handle.
Select the rotational direction so that the high-
pressure hose does not kink.
Switching on the unit
Electrical connection
Caution!
The voltage specified on the model rat-
ing plate must correspond to the voltage sup-
plied.
Caution!
Use an extension cable with a sufficient
cable cross-section (see Technical Specifica-
tions) and unwind it fully from the cable drum.
For connected loads see model rating plate/
Technical Specifications.
Caution!
It is essential that the unit is connected
to the power supply by means of a plug. An in-
separable connection to the power supply is
prohibited. The plug is used to disconnect
from the mains.

English
8

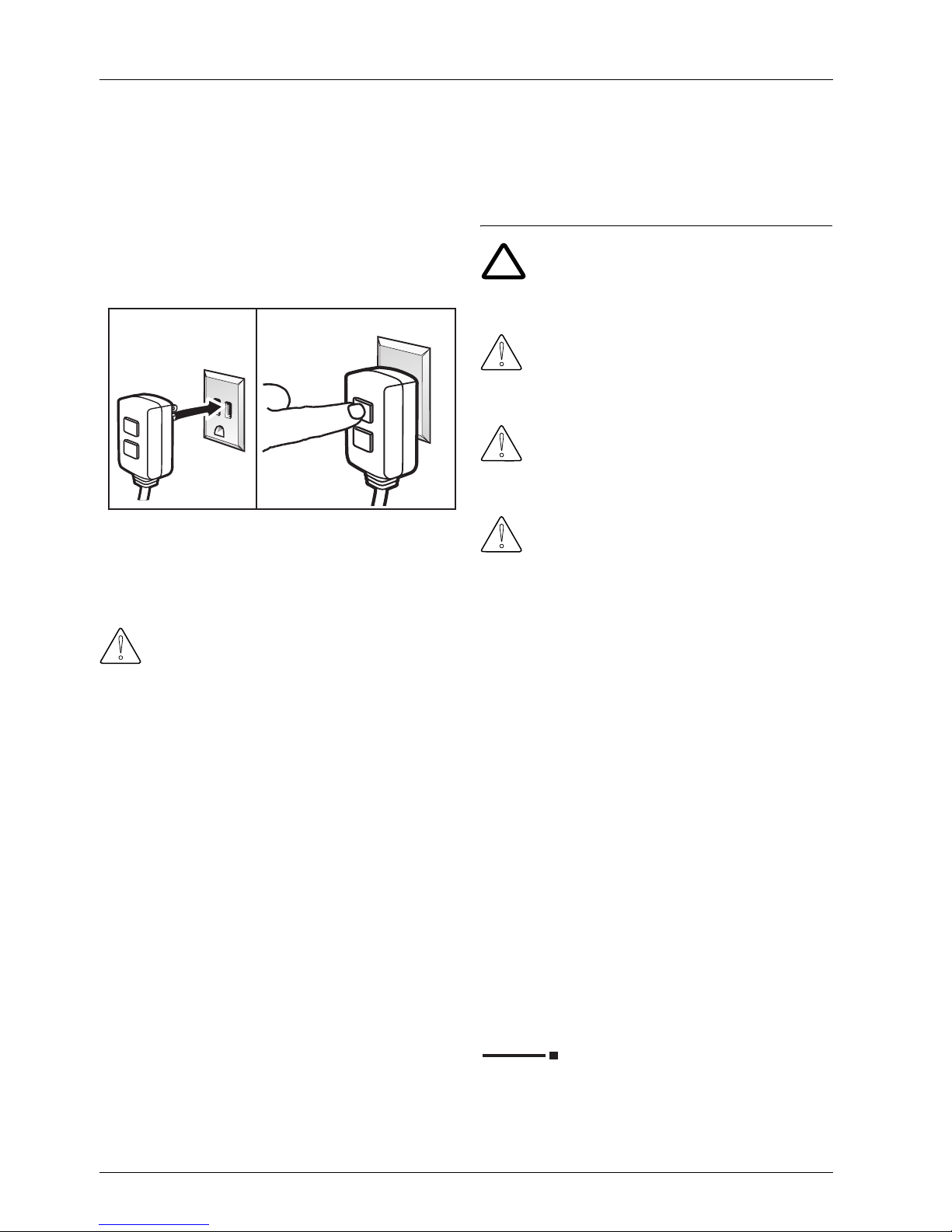

GFCI INSTRUCTIONS
STEP 1: Plug the Ground Fault Circuit
Interrupter (GFCI) into a working outlet.
STEP 2: Press ’’TEST’’, then press
’’RESET’’ to assure proper connection to
power.
Note: The actual appearance of the GFCI
may be different from this illustration.
12
Water connection/Suction feed
operation
Connection to water main
Caution!
Pay attention to the regulations of the
water supply company; according to DIN
1988, the unit may not be connected direct to
the public drinking water supply. A short-term
connection via a non-return valve
(Order no. 6.412-578) is allowed.
For connected loads see Technical Specifica-
tions.
Connect a supply hose (not supplied) to the
water outlet on the unit and to the water in-
let (e.g. water tap).
Open water inlet.
Suctioning water from an open container
Screw suction hose with filter
(Order no. 4.440-238) to the water outlet.
Vent the unit before using.
To evacuate air from the unit, unscrew the
nozzle and leave the unit running until wa-
ter exits with no air bubbles. If necessary
allow unit to continue running for 10 sec-
onds and then switch off. Repeat this pro-
cedure several times.
Switch off the unit and screw the nozzle
back on.
Operating the unit
!
Danger!
Observe the relative safety regulations
when using the unit at filling stations or other
high-risk areas.
Caution!
Only clean engines in places which
have appropriate oil separators (protection of
the environment).
Caution!
Only wash animals with the low-
pressure fan jet (see "Selecting the type of
spray").
Caution!
Risk of blockaging. Always place the
nozzles in the accessories compartment with
the orifice facing upwards.
Operating with high pressure
The unit is equipped with a pressure switch.
The motor only starts up when the lever is re-
tracted.
Unwind the high-pressure hose fully from
the cable drum.
Set the unit switch to "I".
Unlock the hand-held spray gun and retract
the lever of the gun.
Adjust operating pressure and flow rate
by rotating the pressure/flow control (infi-
nitely variable).
Selecting the type of spray
The handgun must be closed.
Rotate the housing of the nozzle until the
desired symbol corresponds with the
marking:
High-pressure pencil jet
for particularly stubborn accumu-
lation of grime.

English
9
Low-pressure fan jet
for operating with detergent or
cleaning with negligible pressure.
High-pressure fan jet
for dirt accumulation over a large
surface.
Operating with detergent
Caution!
Unsuitable detergents can harm the
cleaner and the object which is to be cleaned.
Use only detergents which are released by
Kärcher. Proportions of detergent to be used
and accompanying instructions should be not-
ed carefully. Use detergents sparingly out of
consideration for the environment.
Kärcher cleaning agents guarantee trouble-
free operation. Please seek advice or ask for
our catalogue of information sheets on clean-
ing agents.
Pull out the cleaning agent suction hose
and immerse the filter in the cleaning agent
canister.
Set nozzle to .
Set the detergent metering valve to the
desired concentration.
Recommended cleaning methods
Spray detergent with low pressure jet spar-
ingly over the dry surface to be cleaned and
let it take effect but not dry out.
Spray off (rinse off) the loosened dirt using
the high-pressure spray.
After use immerse filter in clean water.
Turn metering valve to maximum cleaning
agent concentration setting. Start unit and
rinse through for one minute.
Interrupting the operation
Release lever of the handgun, the unit
switches off. Retract lever again and the
unit switches on again.
Switching the unit off
 Set unit switch to "0" and pull out power plug.
Close water inlet.
Retract lever until the unit is without pres-
sure.
Actuate the handgun's safety catch to se-
cure the handgun lever from accidentally
being triggered.
Transporting the cleaner
To transport the cleaner over relatively long
stretches, take hold of it by the handle and
pull it along behind you.
 To carry units without a hose reel place the
push-handle in the lower position. Carry the
unit by the handles, not the push-handle.
Storing the cleaner
Place the handgun in the support.
Reel in the high-pressure hose and hang it
over the hose rest.
or
Wind the high-pressure hose on to the
hose reel. Push in the crank handle to lock
the hose drum.
Wind the connection cable around the ca-
ble holder.
Fix the plug using the installed clip.
Frost protection
Caution!
Frost will destroy a unit that is not com-
pletely empty of water! Store the unit where it
will be free of frost.
If storage away from frost is not possible:
Drain off the water and rinse the unit
through with anti-freeze.
Leave the unit to dry for max. 1 minute.
Use the standard glycol-based anti-freezes
for cars.
Follow the handling instructions of the anti-
freeze manufacturer.

English
10
Care and maintenance
!
Danger!
Before any care and maintenance work
on the unit draw out the mains plug.
Caution!
When changing the oil, dispose of any
waste oil only at authorised collection points.
Safety inspection/Maintenance
contract
You can arrange with your dealer to have a
regular safety inspection carried out or to
have a maintenance contract. Please seek
advice.
Before each use
Check connecting cable for damage (risk of
getting an electric shock), have a damaged
connecting cable replaced without delay by
authorised Customer Service personnel or
an electrician.
Check high-pressure hose for damage
(danger of explosion), replace a damaged
high-pressure hose without delay.
Check unit (pump) for any leaks.
Three drops per minute are allowable and
can appear on the underside of the unit.
Seek the help of Customer Service if leaks
are more serious.
Every week
Check oil level in oil reservoir: if the oil is
milky (water in oil), seek the help of Cus-
tomer Service immediately.
Clean the strainer in the water connection.
Clean the filter at the suction hose for de-
tergent.
Annually or after 500 operating
hours
Change the oil
– For oil quantity and type see Technical
Specifications.
– Undo the fastening screw, remove the
hood, remove the oil tank cover, tilt unit.
– Drain oil into a suitable container.
– Fill slowly with fresh oil; air bubbles have
to escape.
– Attach the oil tank cover.
Troubleshooting
!
Danger!
Before any repair work is undertaken,
switch the unit off and pull out the power plug.
Have electrical components checked and re-
paired only by authorised Customer Service
personnel.
For faults which are not identified in this chap-
ter, or when in doubt or when expressly in-
structed to do so, consult authorised
Customer Service personnel.
Unit does not work
Check connecting cable for damage.
Check the triggering speed of the mains
fuse (delay-action/char. C).
Check the mains voltage.
An involuntary triggering of the mains fuse
when the appliance is turned on may be
prevented by inserting an extension cable.
Consult Customer Service if there is an
electrical fault.
Unit does not come up to pres-
sure
Set nozzle to "high pressure".
Clean/replace nozzle.
Evacuate air from the cleaner (see Switch-
ing on the unit).
Clean the strainer in the water connection.
Check water inlet volume (see Technical
Specifications).
Check all supply lines to the pump for leaks
or obstructions.
Seek the help of Customer Service if nec-
essary.

English
11
Pump is leaky
Three drops per minute are allowable and
can appear on the underside of the unit.
Seek the help of Customer Service if leaks
are more serious.
Pump makes a knocking noise
Check all supply lines as well as the deter-
gent system for leaks.
Close the cleaning agent metering valve
when running the unit without cleaning
agent.
Evacuate air from the cleaner (see Switch-
ing on the unit).
Seek the help of Customer Service if nec-
essary.
Detergent is not being drawn in
Set nozzle to "Chem".
Check detergent suction hose with filter for
leaks or obstructions and clean it if neces-
sary.
Open detergent metering valve or check it
for leaks/remove obstruction.
Seek the help of Customer Service if nec-
essary.
Spare parts
You will find a list of spare parts at the end of
these operating instructions.
Warranty
The warranty terms issued by our authorised
marketing company are valid in every country.
We remedy any fault in the unit free of charge
within the warranty period providing the cause
of the fault proves to be a material or manu-
facturing error.
The warranty only becomes operative when
your dealer has completed the reply card ac-
companying the sale of the unit, has stamped
and signed it and you have then sent the reply
card to the marketing company in your coun-
try.
Should you wish to call upon the guarantee,
please apply to your dealer or nearest author-
ised Customer Service centre taking along
also the accessories and bill of sale.

English
12
Technical Specifications
HD 2.3/15 C
Ed
1.150-611
HD 3.0/20 C
Ea
1.151-610
Mains connection CDN/CSA/USA
Voltage V120 240
Type of current Hz 1~60 1~60
Connected load hp / kW 3,2 / 2,4 6 / 4,5
Supply fuse (delayed-action, char. C) A20 20
Extension cable 30 m AWG / mm212 / 2,5 11 / 2,5
Water connection
Supply temperature max. °C 60 60
Supply volume min. gpm / l/min 3,0 / 11,4 4,0 / 15,1
Supply hose – minimum length ft / m 25 / 7,5 25 / 7,5
Supply hose – minimum diameter inches 3/4 3/4
Suction height from an open container 20 °C ft / m 1,6 / 0,5 1,6 / 0,5
Supply pressure max. psi / MPa 145 / 1 145 / 1
Performance data
Operating pressure psi / MPa 1500 / 10,3 2000 / 13,8
Max. operating overpressure
(safety valve)
psi / MPa 1800 / 12,4 2300 / 15,9
Flow rate gpm / l/min 2,3 / 8,7 3,0 / 11,4
Detergent intake gpm / l/min 0,16 / 0,62 0,16 / 0,62
Recoil force of the handgun N21 21
Sound emission
Sound pressure level
(EN 60704-1)
dB (A) 72 77
Garanted sound pressure level
(2000/14/EC)
dB (A) 86 91
Vibrations of unit / total of vibration (ISO 5349)
Handheld gun m/s² 2,2 2,0
Spray lance m/s² 2,2 2,3
Dimensions
Length mm 360 360
Width mm 375 375
Height mm 925 925
Weight without accessories kg 23 24
Oil quantity, pump l0,35 0,35
Oil type, pump SAE 0W40 SAE 15W40
