Kärcher K 3.67 M User manual

5.961-623.0 04/05
K 3.92 M

2 English
Overview 3
Important Safety Instructions 4-5
Assembly Instructions 5
Operating Instructions 6
GFCI Instructions 7
Using the Accessories 7
Working with Detergents 8
Shut Down & Clean Up 9
Care and Maintenance Instructions10
Taking a Break 10
Winterizing and Long-Term Storage10
Cleaning Tips 11-12
Optional Cleaning Accessories 13-14
Troubleshooting 15-16
Call: 1-800-537-4129 for help or visit
our website: www.karcher-usa.com
DANGER
indifies ’’an imminently hazardous situa-
tion which, if not avoided, will result in
death or serious injury.’’
WARNING
indifies ’’a potentially hazardous situa-
tion which, if not avoided, could result in
death or injury.’’
CAUTION
indifies ’’a potentially hazardous situa-
tion which, if not avoided, may result in
minor or moderate injury’’ or in property
damage incidents.
HIGH PRESSURE WASHER OPERATOR MANUAL
Specifications
Max. pressure 1750 PSI
Water volume 1.5 GPM
Amp draw 13 AMPS
Voltage 120 V
Part No. 1.423-854.0
Serial no.
Kärcher Customer Support USA
Safety Alert Symbols
Environmental protection
The packaging material can be
recycled. Please do not place
the packaging into the ordinary
refuse for disposal, but arran-
ge for the proper recycling.
Old appliances contain valua-
ble materials that can be re-
cycled. Please arrange for the
proper recycling of old ap-
pliances. Batteries, oil, and si-
milar substances must not
enter the environment. Please
dispose of your old appliances
using appropriate collection
systems.

English 3

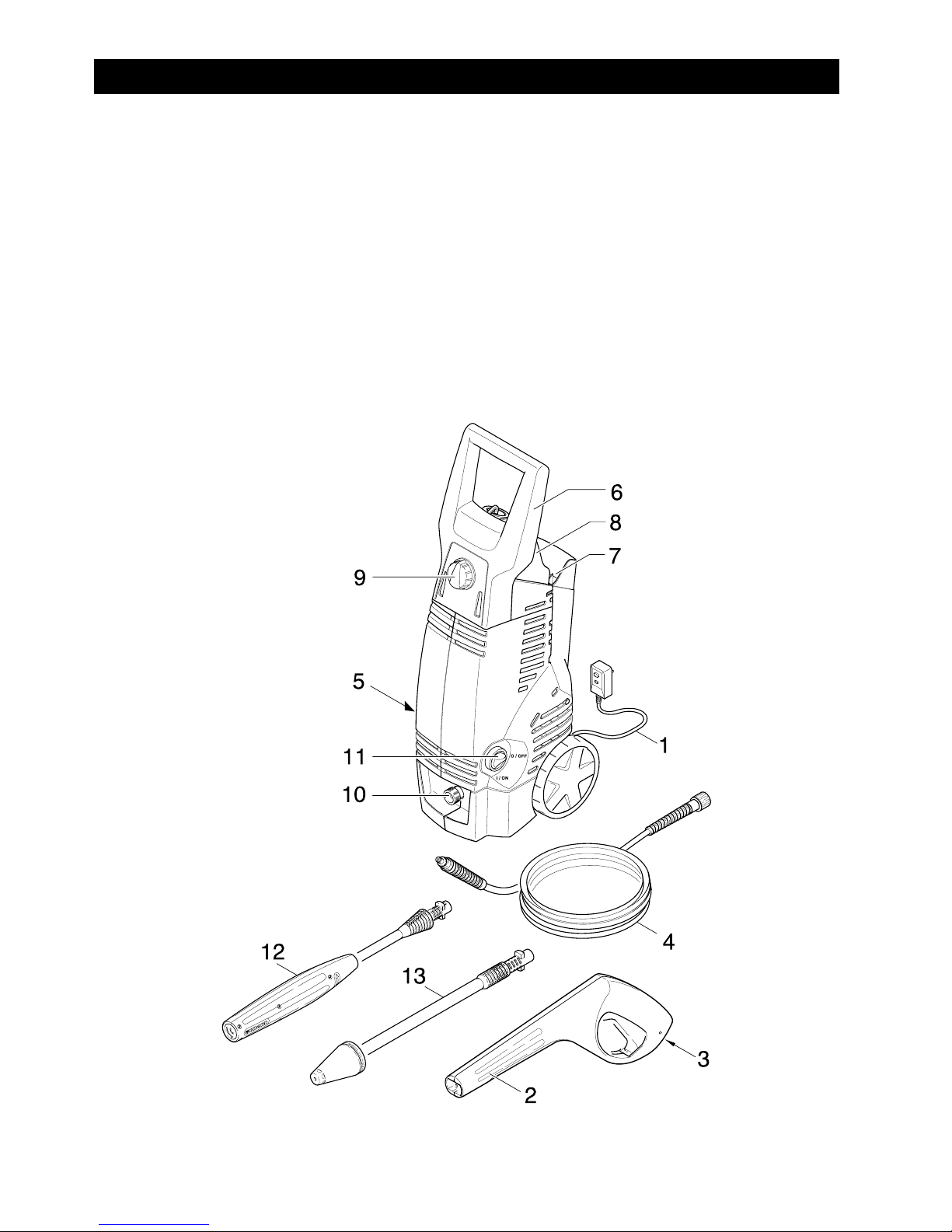

1 Power cord with Ground Fault Circuit
Interrupter (GFCI)
2 Trigger gun
3 Trigger gun safety lock
4 High pressure hose
5 Water inlet with garden hose con-
nector
6 Transport handle
7 Accessory compartment
8 Detergent tank
9 Detergent metering regulator
10 High pressure outlet
11 On/OFF switch
12 Vario Spray wand
13 Dirtblaster® (Rotating spray wand)
CAUTION
Follow the maintenance instructions
specified in the manual
This machine has been designed for
use with cleaning detergents by the ma-
nufacturer. The use of other cleaning
detergents may affect the operation of
the machine and void the warranty.
For household use only!
MODEL OVERVIEW

4 English
WARNING!
When using this product basic
precautions should always be followed,
including the following:
!Read all the instructions before
using the product.
!To reduce the risk of injury, close su-
pervision is necessary when a pro-
duct is used near children.
!Know how to stop the product and
bleed pressures quickly. Be thoroug-
hly familiar with the controls.
!Stay alert — watch what you are
doing.
!Do not operate the product when fa-
tigued or under the influence of alco-
hol or drugs.
!Keep operating area clear of all per-
sons.
!Do not overreach or stand on unsta-
ble support. Keep good footing and
balance at all times.
!Follow the maintenance instructions
specified in the manual.
!This Product Is Provided With A
Ground Fault Circuit Interrupter (GF-
CI) Built Into The Power Cord Plug.
If Replacement Of The Plug Or Cord
Is Needed, Use Only Identical Re-
placement Parts.
!Risk of Injection or Injury to persons
- Do not direct discharge stream at
persons.
!High pressure jets can be dangerous
if subject to misuse. The jet must not
be directed at persons, animals,
electrical devices, or the machine
itself.
!Wear safety goggles.
!Do not use acids and solvents in this
product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
!To reduce the risk of electrocution,
keep all connections dry and off the
ground. Do not touch plug with wet
hands.
!The Trigger Gun Safety Lock PRE-
VENTS the trigger from accidentally
being engaged. This safety feature
DOES NOT lock trigger in the ON
position.
!Do not use extension cord for this
unit.
WARNING
To reduce the risk of electrocution, keep
all connections dry and off the ground.
Do not touch plug with wet hands.
This product must be grounded. If it
should malfunction or breakdown,
grounding provides a path of least resis-
tance for electric current to reduce the risk
of electric shock. This product is equipped
with a cord having an equipment-ground-
ing conductor and a grounding plug. The
plug must be plugged into an appropriate
outlet that is properly installed and
grounded in accordance with all local
codes and ordinances.
DANGER
Improper connection of the equipment-
grounding conductor can result in a risk
of electrocution. Check with a qualified
electrician or service personnel if you
are in doubt as to whether the outlet is
properly grounded. Do not modify the
plug provided with the product - if it will
not fit the outlet, have a proper outlet in-
stalled by a qualified electrician. Do not
use any type of adapter with this prod-
uct.
IMPORTANT SAFETY INSTRUCTIONS
Grounding Instructions

English 5
This product is supplied with a Ground
Fault Circuit Interrupter (GFCI) built into
the power cord plug. This device pro-
vides additional protection from the risk
of electric shock. If power is interrupted
in the line, the GFCI will automatically
re-close the circuit to the load after pow-
er is restored. Depending on the GFCI
model, it may be necessary to manually
operate the reset button to restore pow-
er to the GFCI load circuit. If replace-
ment of the plug or cord is needed use
identical replacement parts.
CAUTION
When connecting the water inlet to the
water supply mains, local regulations of
your water company must be observed.
In some areas the unit must not be con-
nected directly to the public drinking wa-
ter supply. This is to ensure that there is
no feedback of chemicals into the water
supply. Direct connection via a receiver
tank or backflow preventer for example,
is permitted.
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
!Water hose must be at least 5/8 inch
in diameter.
!Flow rate of water supply must not
fall below 2 GPM (gallons per minu-
te).
!Flow rate can be determined by run-
ning the water for one minute into an
empty 5-gallon container.
!The water supply temperature must
not exceed 104°F/40°C.
!Never use the pressure washer to
draw in water contaminated with sol-
vents, e.g. paint thinners, gasoline,
oil, etc.
!Always prevent debris from being
drawn into the unit by using a clean
water source.
SAVE THESE
INSTRUCTIONS!!

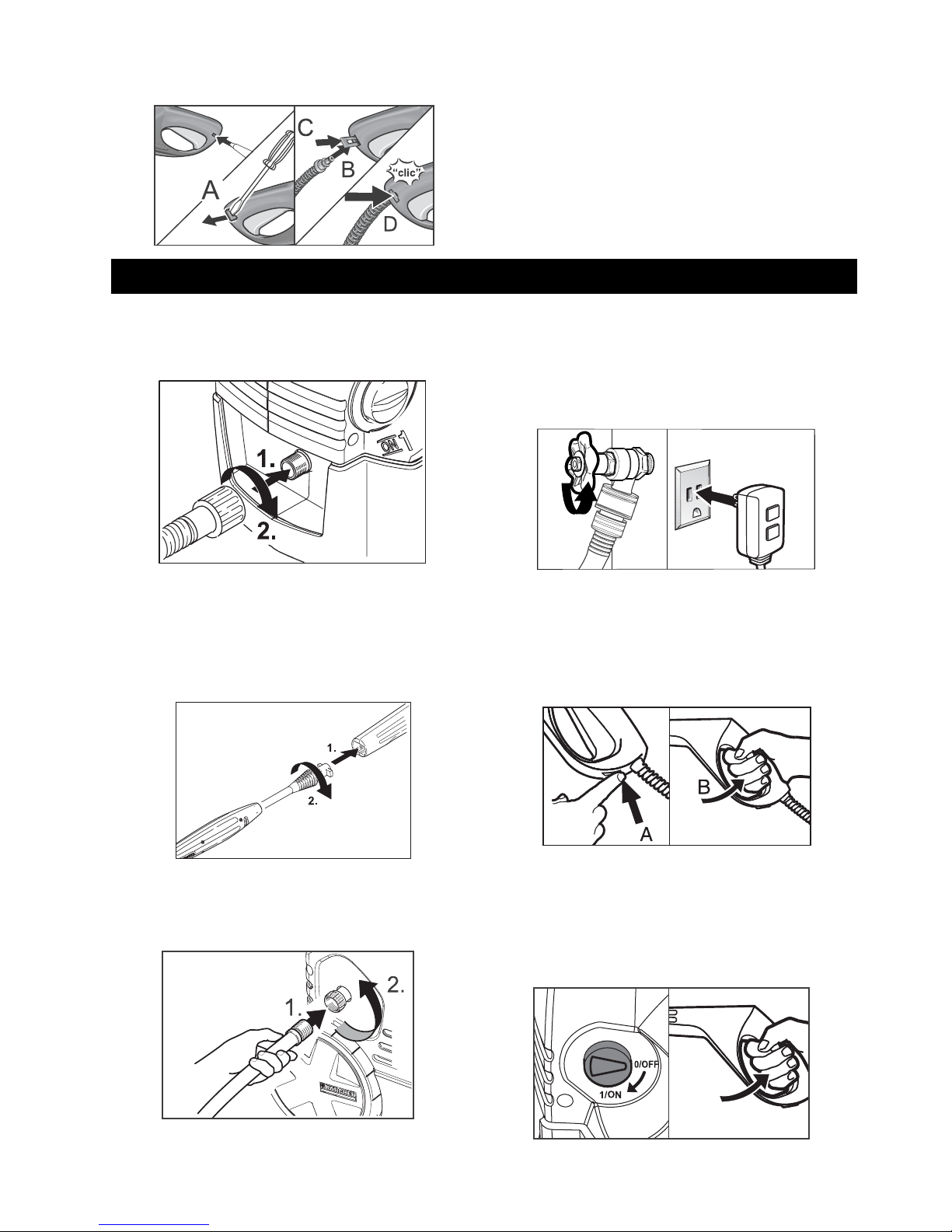

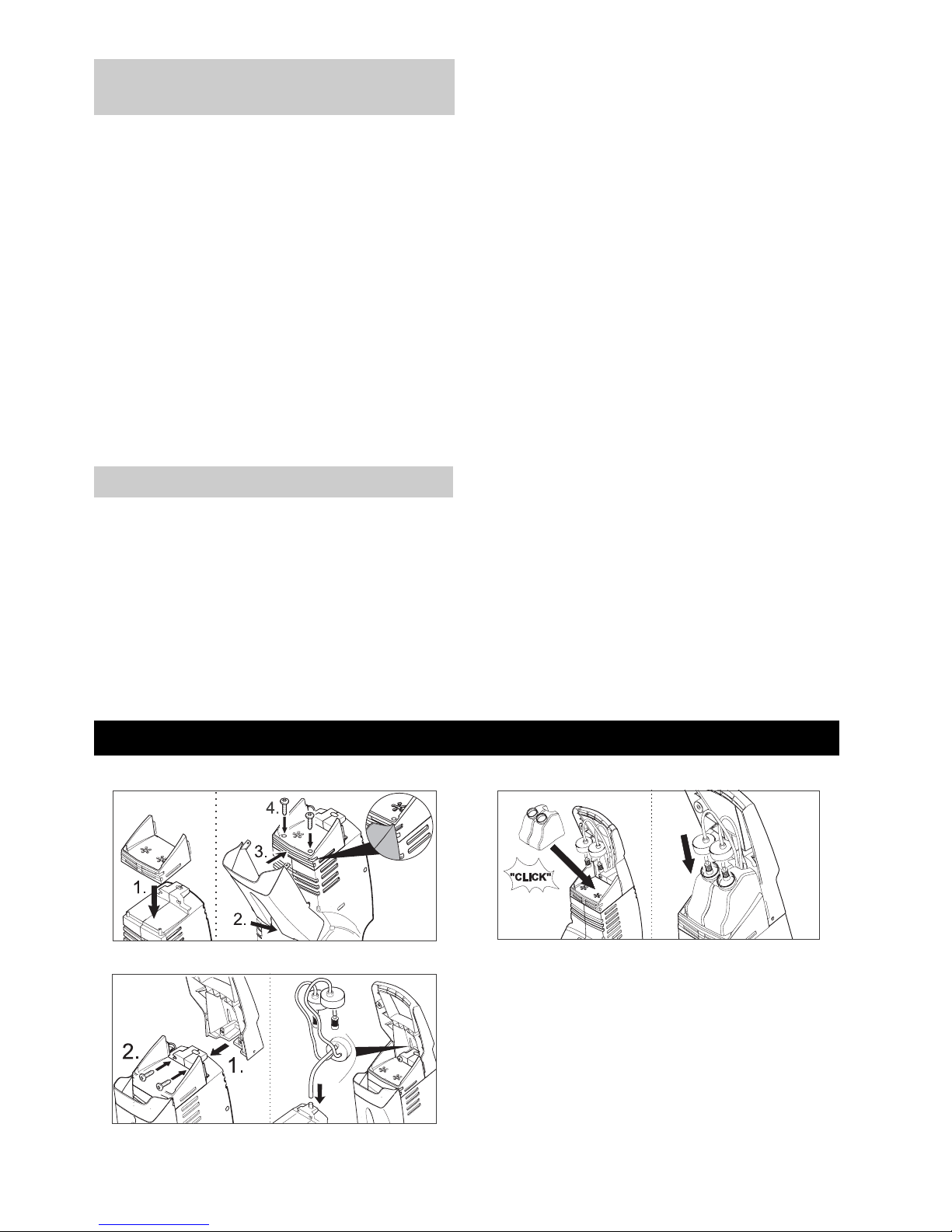

"STEP 1 - 2:
"STEP 3 - 4:
"STEP 5 - 6:
"STEP 7:
Attach the high pressure hose to the
trigger gun. Pull out the locking slide
from the right side of the trigger gun
handle (A), and insert the small end
of the high pressure hose into place
(B). Push the locking slide back into
Ground Fault Circuit Interrupter
(GFCI) Protection
WATER SUPPLY (Cold Water Only)
ASSEMBLY INSTRUCTIONS

6 English
the trigger gun (C) to lock the hose in
position (D).
"STEP 1:
Connect the high pressure hose to
the unit’s high pressure outlet.
"STEP 2:
Insert the spray wand of your choice
to the trigger gun. Press in against
the spring tension and twist into lok-
ked position.
"STEP 3:
Connect garden hose to unit’s water
inlet.
"STEP 4:
Connect garden hose to the cold wa-
ter source and turn water on comple-
tely. Plug the power cord into the
power outlet.
"STEP 5:
Unlock the Safety lock. Trigger the
gun to eliminate trapped air, wait for
a steady flow of water to emerge
from the spray nozzle.
"STEP 6:
Turn on the high pressure washer (I).
The motor starts only if the trigger
of the gun is pulled and shuts off
when the trigger is released.
OPERATING INSTRUCTIONS

English 7

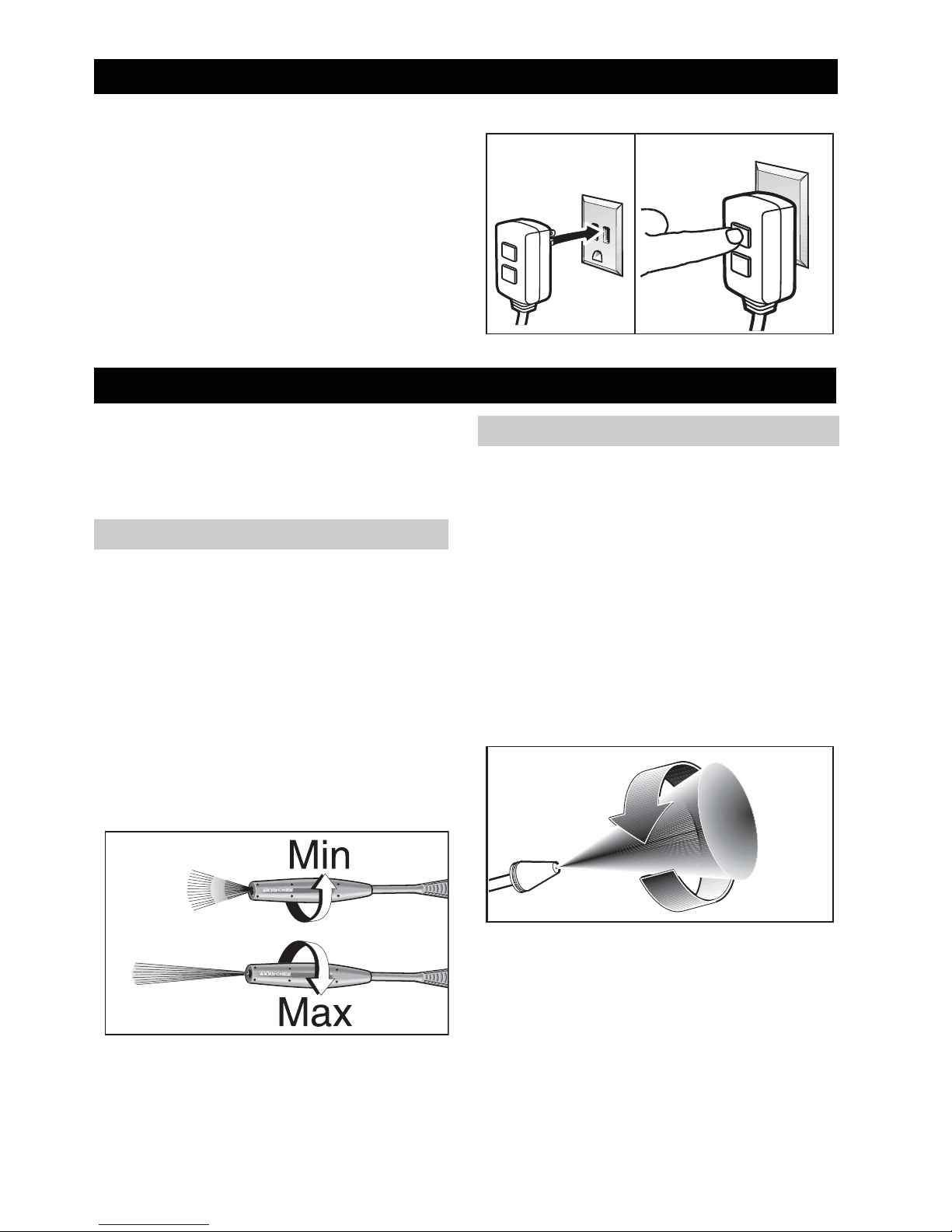

"STEP 1: Plug the Ground Fault Cir-
cuit Interrupter (GFCI) into a working
outlet.
"STEP 2: Press ’’TEST’’, then press
’’RESET’’ to assure proper connec-
tion to power.
Note: The actual appearance of the
GFCI may be different from this illus-
tration.
WARNING
To avoid serious injury never point
spray nozzle at yourself, other per-
sons or animals.
!The Vario Power Spray Wand allows
you to adjust the cleaning pressure.
To clean at maximum pressure, the
wand must be positioned to the high
pressure setting (Max).
For lower pressure turn the wand
collar in the minus (Min) direction.
To apply detergent, the wand must
be positioned to the lower pressure
setting (Min).
!This nozzle features a 0º pencil jet
which rotates 360º for maximum dirt
cutting action, effectively increasing
cleaning performance up to 50%.
This nozzle combines the cleaning
performance of a 0º pencil jet with
the surface coverage of a wide angle
nozzle.
Not recommended for soft materi-
als, siding, painted surfaces,
decks or autos.
GFCI INSTRUCTIONS
12
USING THE ACCESSORIES
Vario Power Spray Wand
Dirtblaster®

8 English
Detergents can only be applied at
low pressure (Min.).
"STEP 1:
Install the vario power spray wand.
Set the spray wand to the low pres-
sure setting (Min.).
"STEP 2:
Fill the Detergent Tank with the sel-
ected Ready To Use detergent.
"STEP 3:
Adjusting the detergent metering
Turn to the left:
Meter detergent from container 1
Turn to the right:
Meter detergent from container 2
"STEP 4:
Turn on the high pressure washer
(I).
Pull trigger to operate unit: Liquid de-
tergent is drawn into the unit and mi-
xed with water. Apply detergent to
work area. Do not allow detergent to
dry on surface.
For best results see Cleaning Tips
for specific information on how to
clean different surfaces.
Always Use Kärcher Detergent for Best
Results
Kärcher biodegradable detergents are spe-
cially formulated to protect the environment
and your pressure washer. Special formula
won’t clog the suction tube filter and will pro-
tect the internal parts of the pressure washer
for a longer life. For Kärcher Detergents,
check your retailer or call our service center
for help.
The following Kärcher detergents are
available:
One Gallon ready to use
!Vehicle Wash
!All Purpose Cleaner
!Deck Wash
!Degreaser
!House Wash
CAUTION
Never use:
– Bleach, Chlorine products and other
corrosive chemicals
– Liquids containing solvents (i.e.,
paint thinners, gasoline, oils)
– Tri-sodium phosphate products
– Ammonia products
– Acid-based products
These chemicals will harm the unit and
will damage the surface being cleaned.
WORKING WITH DETERGENTS

English 9

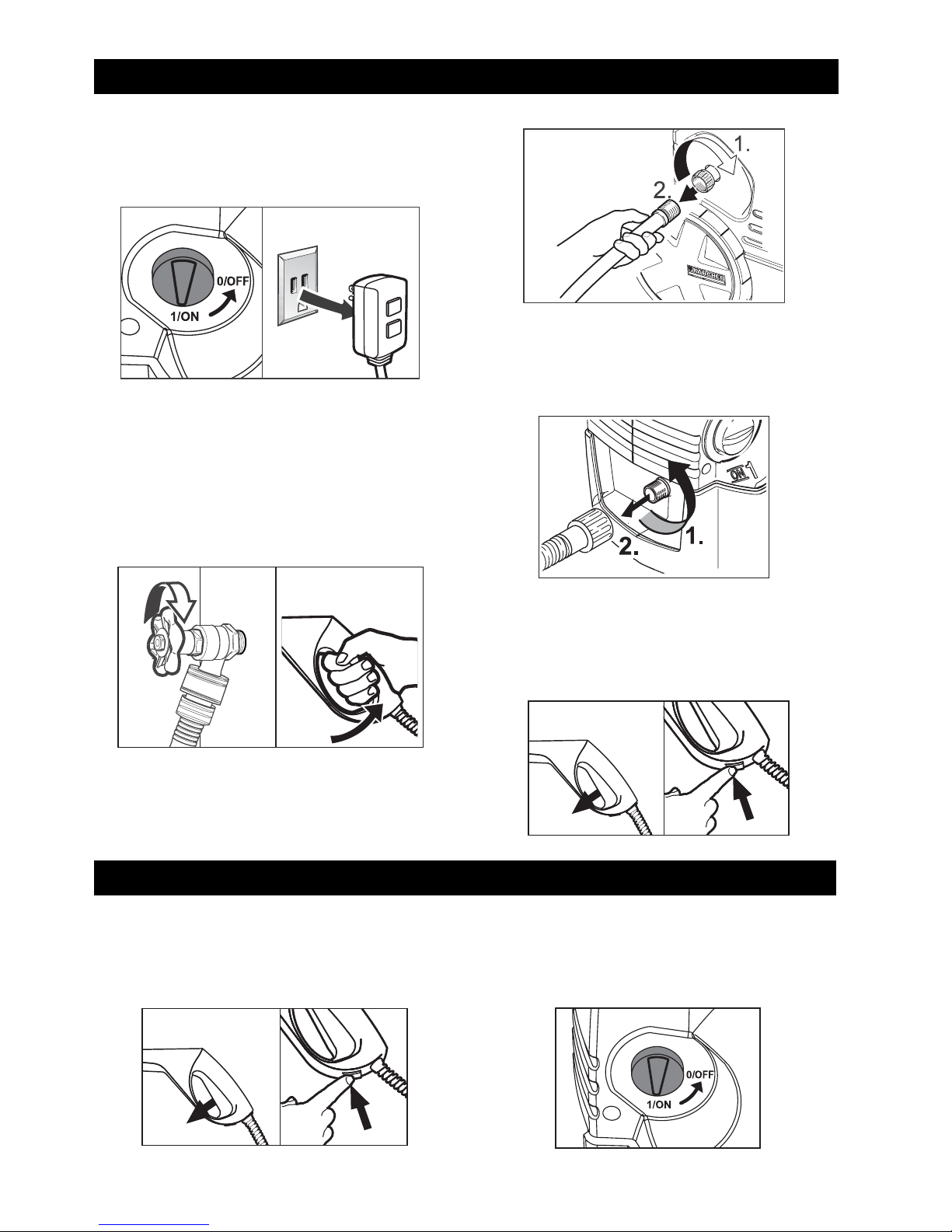

"STEP 1:
Turn the switch to OFF (0) position
and unplug cord from outlet.
"STEP 2:
Turn off the water source.
"STEP 3:
Press trigger to release water pres-
sure.
"STEP 4:
Disconnect the garden hose from
the water inlet on the unit.
"STEP 5:
Disconnect the high pressure hose
from the high pressure outlet.
"STEP 6:
Release trigger and engage gun
safety lock.
"STEP 1:
Release trigger and engage gun
safety lock.
"STEP 2:
Turn pressure washer to OFF (O)
position.
SHUTTING DOWN & CLEAN-UP
23
B
A
TAKING A BREAK ..five minutes or more
B
A

10 English
"1: Disconnect all water connections.
"2: Turn on the machine for a few se-
conds, until the water which had
remained in the pump exits, turn off
immediately.
"3: Do not allow high pressure hose
to become kinked.
"4: Store the machine and accesso-
ries in a room which does not reach
freezing temperatures. DO NOT
store near furnace or other sources
of heat as it may dry out the pump
seals.
CAUTION
Failure to follow the above directions
will result in damage to the pump as-
sembly and accessories.
Pull out the water inlet filter with flat-
nose pliers and rinse out in warm water.
Pull it out and rinse out in warm water.
The unit is maintenance-free.
WINTERIZING AND LONG-TERM STORAGE
CARE AND MAINTENANCE INSTRUCTIONS
Cleaning the water inlet filter
Cleaning the detergent inlet filter
Maintenance

English 11
(with or without detergent). Pre-rinse
deck and surrounding area with fresh
water. If using Kärcher Deck Wash, ap-
ply to surface at low pressure. For best
results, limit your work area to smaller
sections of approximately 25 square
feet. Allow Deck Wash to remain on sur-
face 1-3 minutes. Do not allow deter-
gent to dry on surface. Rinse at high
pressure in a long sweeping motion
keeping the spray nozzle approximately
3-6 inches from the cleaning surface.
Always clean from top to bottom and
from left to right. When moving on to a
new section of the cleaning surface, be
sure to overlap the previous section to
eliminate stop marks and ensure a more
even cleaning result.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If
using Kärcher Pressure Wash, apply to
surface at low pressure (for best results,
limit your work area to sections of ap-
proximately 6 feet and always apply de-
tergent from bottom to top). Allow
Pressure Wash to remain on surface 1-
3 minutes. Do not allow detergent to dry
on surface, if surface appears to be
drying, simply wet down surface with
fresh water. If needed, use special wash
brush attachment (not included) to re-
move stubborn dirt. Rinse at high pres-
sure from top to bottom in an even
sweeping motion keeping the spray
nozzle approximately 6 inches from the
cleaning surface.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If
using Kärcher Pressure Wash or De-
greaser, apply to surface at low pressu-
re. For best results, limit your work area
to smaller sections of approximately 25
square feet. Allow Pressure Wash or
Degreaser to remain on surface 1-3 mi-
nutes. Do not allow detergent to dry on
surface. Rinse at high pressure in a
sweeping motion keeping the spray
nozzle approximately 3-6 inches from
the cleaning surface. Always clean from
top to bottom and from left to right. For
removing extremely stubborn stains,
use the Dirtblaster Nozzle.
(with or without detergent). Pre-rinse
vehicle with fresh water. If using Kär-
cher Touchless Vehicle Wash, apply to
surface at low pressure. For best resul-
ts, clean one side of vehicle at a time
and always apply detergent from bottom
to top, do not allow detergent to dry on
surface. If needed, use special wash
brush attachment (not included) to re-
move stubborn dirt. Rinse at high pres-
sure in a sweeping motion keeping the
spray nozzle approximately 6-8 inches
from the cleaning surface (distance
should increase when rinsing pin-stri-
ping or other sensitive surfaces). Al-
ways clean from top to bottom and from
left to right. For best results, wipe sur-
face dry with a chamois or soft dry cloth.
CLEANING TIPS
Deck Cleaning
House Siding
Cement Patios, Brick and Stone
Cars, Boats & Motorcycles

12 English
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If
using Kärcher Pressure Wash or De-
greaser, apply detergent at low pressu-
re. Allow Pressure Wash to remain on
surface 1-3 minutes.Do not allow deter-
gent to dry on surface. Rinse at high
pressure keeping the spray nozzle ap-
proximately 3-6 inches from the cle-
aning surface. For removing extremely
stubborn dirt, it may be necessary to
move the spray nozzle even closer to
the surface for greater dirt cutting ac-
tion.
(with or without detergent). Pre-rinse
furniture and surrounding area with
fresh water. If using Pressure Wash, ap-
ply to surface at low pressure. Allow
Pressure Wash to remain on surface 1-
3 minutes. Do not allow detergent to dry
on surface. If needed use special Wash
Brush Attachment (not included) to re-
move stubborn dirt. Rinse at high pres-
sure in a sweeping motion keeping the
spray nozzle approximately 3-6 inches
from the cleaning surface. For best re-
sults, clean from top to bottom and from
left to right.
!Before cleaning any surface an in-
conspicuous area should be cleaned
to test spray pattern and distance for
maximum cleaning results.
!If painted surfaces are peeling or
chipping, use extreme caution as
pressure washer may remove the
loose paint from the surface.
!When using on surfaces which might
come in contact with food, flush sur-
faces with plenty of drinking water.
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
Patio & Lawn Furniture
Recommendations

English 13
Optional cleaning accessories are
available to further enhance your cle-
aning capabilities. These accessories
are accurate as of the printing date of
this manual. Please check our website
http://home.karcher-usa.com for pricing
and up-to-date information.
Specially formulated to protect your
pressure washer from freezing, corro-
sion and premature wear. The Pump
Guard also adds lubrication to valves
and seals to prevent sticking. Highly
recommended for all Karcher pressure
washers!
Part No. 9.556-999.0
Attach this accessory to your pressure
washer to quickly pump large quantities
of water out of a standing source, such
as a barrel or bucket. Fits most Karcher
pressure washers up to 2300 PSI.
Part No. 2.637-214.0
Replacement hose fits Kärcher pres-
sure washer with screw-on type gun
connections from 2400psi to 2500psi,
Extension Hose for all Kärcher high
pressure washers between the original
equipment hose and machine up to
2500 psi.
Part No. 2.640-850.0
Need to clean second story windows or
other high areas? Increase the reach of
your pressure washer by up to 66" with
this extension kit. Includes 4 aluminum
sections for variable length. 66" fully as-
sembled. Fits most Karcher pressure
washers up to 2300 PSI. (bayonet)
Part No. 2.640-746.0
For more effortless cleaning of all
smooth surfaces (painted, glass and
plastic) try Karcher's Rotating Wash
Brush. Use it on your automobile, house
siding or windows. The water pressure
from your pressure washer causes the
inner brushes to gently spin, making
your cleaning job much easier. The an-
gle of brush head is adjustable to help
you reach difficult areas. Excellent for
the application of detergent. A must-
have accessory designed for Karcher
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.640-743.0
Made with soft bristles that will not harm
painted surfaces. Easily attaches direct-
ly to the trigger gun. Ideal for stubborn
dirt on cars, boats, patio furniture and
other surfaces. Great for applying deter-
gent. Fits most Karcher pressure wash-
ers up to 2300 PSI. (bayonet)
Part No. 2.640-740.0
OPTIONAL CLEANING ACCESSORIES
Pump Guard
Water Pumping Kit
25 Ft. Extension /Replacement High-
Pressure Hose
66" Extension Wand (Four piece)
Rotating Wash Brush (bayonet)
Soft Clean Washing Brush

14 English
Need to clean blocked pipes, drains or
downspouts? Karcher's pipe cleaning
kit is the answer! The pipe cleaner pro-
pels itself forward while simultaneously
flushing out debris. For example, insert
the cleaning nozzle in the base of a
downspout, pull the trigger on the pres-
sure washer gun and watch as the
nozzle shoots out leaves and other de-
bris while climbing upward. Connects
directly to the trigger gun of most Kar-
cher pressure washers up to 2300 PSI.
(bayonet)
Part No. 2.640-747.0
Why spend hours stripping old paint and
rust by hand using harsh chemicals?
Let Karcher's Wet Sandblasting Kit do
the work! Attach the kit to your pressure
washer, add abrasive material and at-
tack the rust and paint with our eco-
friendly alternative. Fits most Karcher
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.638-792.0
Ideal for applications which require a
thick foam. Simply fill the resevoir cup
with liquid pressure washer detergent to
generate a foam spray. Connects di-
rectly to the trigger gun. Fits most
Karcher pressure washers up to 2300
PSI. (bayonet)
Part No. 6.964-507.0
For cleaning surfaces such as patios,
terraces and driveways without splash-
back, there is no better solution than
Karcher's T-Racer. It saves time by
cleaning a 12" wide area gently as it
hovers, providing consistent, streak-
free cleaning. When you finish cleaning
the patio and driveway, remove the
wand and use the handle to clean ga-
rage doors and other vertical surfaces.
Includes two height-adjustable nozzles
which spin at high speed for optimum
results. Our top selling accessory for
Karcher pressure washers up to 2300
PSI. (bayonet)
Part No. 2.640-508.0
Call: 1-800-537-4129 for help or visit
our website: www.karcher-usa.com
25 ft. Pipe Cleaning Kit (bayonet)
Wet Sandblasting Kit (bayonet)
Detergent Foamer Attachment
T-Racer Wide Area Surface Cleaner
Kärcher Customer Support USA

English 15
CAUTION Disconnect the machine from the power
source before making any repair.
TROUBLESHOOTING
Symptom Cause Solution
Motor will not start On/Off switch is in the “OFF”
(O) position.
Turn switch to the “ON” (I)
position
Power cord is not plugged in. Plug in power cord.
Electrical outlet does not sup-
ply adequate power.
Try a different outlet.
Tripped circuit breaker. Switch off pressure washer.
The reset will be automatical-
ly, for that wait that the tem-
perature goes down.
Unit does not reach
high pressure.
Diameter of garden hose is
too small.
Replace with a 5/8 inch gar-
den hose.
Water supply is restricted. Check garden hose for kinks,
leaks and blockage.
Not enough inlet water supp-
ly.
Open water source full force.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Spray wand is on low pressu-
re position.
Turn spray wand to high
pressure position.
Output pressure va-
ries high and low.
Not enough inlet water supp-
ly.
Turn water on full force.
Check garden hose for kinks,
leaks or blockage.
Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squee-
zing trigger gun until a steady
flow of water emerges throu-
gh the nozzle.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Discharge nozzle is obstruc-
ted.
Blow out or remove debris
with a fine needle.
Calcified gun, hose or spray
wand.
Run distilled vinegar through
detergent suction tube.

16 English
Call: 1-800-537-4129 for help or visit
our website: www.karcher-usa.com
If you encounter any additional difficul-
ties not listed, please call for help.
No detergent. Detergent suction tube not
properly connected to the
machine.
Check connection.
Detergent is too thick. Dilute detergent, for best re-
sults use Kärcher detergent.
Filter on detergent suction
tube is clogged.
Run warm water through filter
to remove debris.
Damaged or clogged deter-
gent suction tube.
Remove obstruction or repla-
ce detergent suction tube.
Spray wand is in high pressu-
re position.
Turn spray wand tip to low
pressure position.
Discharge nozzle is obstruc-
ted.
Blow out or remove debris
with fine needle.
Garden hose con-
nection leaks.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
Spray wand leaks. Spray wand not properly atta-
ched.
Insert the spray wand into the
trigger gun. Carefully press in
against the spring tension
and twist into the locked posi-
tion.
Broken o-ring or plastic in-
sert.
Call Customer Support.
Pump is noisy. Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squee-
zing trigger gun until a steady
flow of water emerges throu-
gh the nozzle.
Water leaks from
pump (up to 10
drops per minute is
permissible).
Loose fittings. Check that all fittings are
tight.
Water seals are damaged or
worn.
Call Customer Support.
Oil Drip. Oil seals are damaged or
worn.
Call Customer Support.
Symptom Cause Solution
Kärcher Customer Support USA
