K 3.450

2 English
DANGER
indicates “an imminently hazardous situ-
ation which, if not avoided, will result in
death or serious injury.”
WARNING
indicates “a potentially hazardous situa-
tion which, if not avoided, could result in
death or injury.’’
몇CAUTION
indicates “a potentially hazardous situa-
tion which, if not avoided, may result in
minor or moderate injury or in property
damage incidents.”
The owner and/or user must have an un-
derstanding of the manufacturer’s oper-
ating instructions and warnings before
using this pressure washer.
Warning information should be empha-
sized and understood.
If the operator is not fluent in English,
the manufacturer’s instructions and
warnings shall be read to and discussed
with the operator in the operator’s native
language by the purchaser/owner, mak-
ing sure that the operator comprehends
its contents.
Owner and/or user must study and
maintain for future reference the manu-
facturers’ instructions.
For household use only!
In the U.S. or Canada, please call
1-800-537-4129 for warranty issues and
visit www.karcher-help.com for techni-
cal support and product assistance.
Please take a moment to register your
pressure washer online at
www.karcher-register.com. Be sure to
save your purchase receipt, it will be re-
quired for repairs covered by warranty.
Call: 01-800-024-13-13 for help or visit
our website: www.karcher.com.mx
HIGH PRESSURE WASHER OPERATOR MANUAL
Model Overview 3
Important Safety Instructions 4
Assembly Instructions 6
Operating Instructions 7
Using the Accessories 8
Working with Detergents 9
Taking a Break 10
Shutting Down and Clean-Up 10
Winterizing and Long-Term Storage 11
Maintenance Instructions 11
Cleaning Tips 12
Optional Cleaning Accessories 13
Troubleshooting 15
Safety Alert Symbols
Specifications
Max. Pressure 1800 PSI
Max. Water Flow 1.5 GPM
Amp draw 13 AMPS
Voltage 120 V
Part No. 1.601-770.0
Serial no.
Owner/User Responsibility
Customer Support
USA and Canada
Customer Support Mexico

English 3

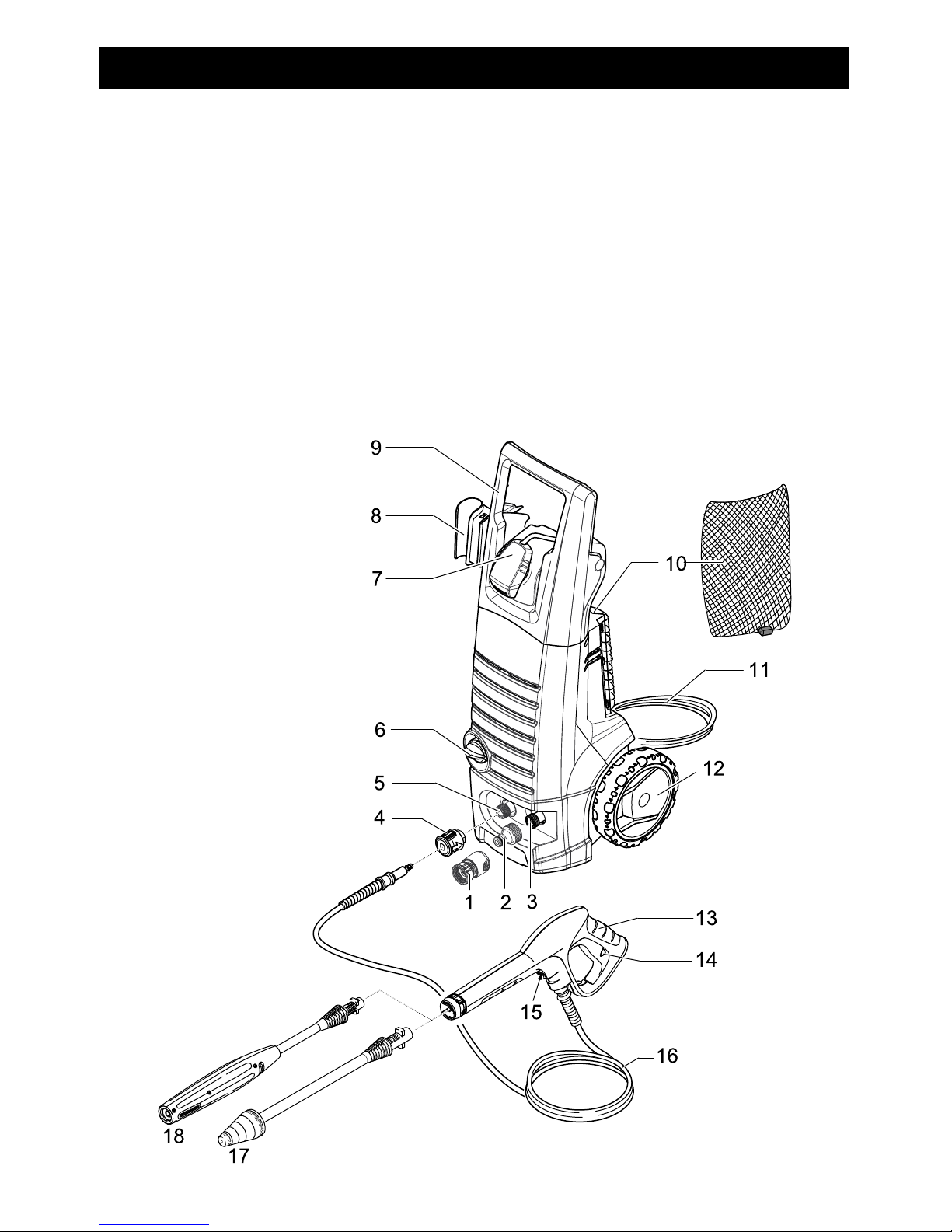

1 Garden hose connector (female)
2 Water inlet connector
3 Water inlet with filter
4 Quick connect high pressure outlet
5 High pressure outlet
6 ON/OFF switch
7 Detergent tank (removeable)
8 Storage for trigger gun
9 Transport handle
10 Accessory storage
11 Power cord with Ground Fault Circuit
Interrupter (GFCI)
12 Wheels
13 Trigger gun
14 Trigger gun safety lock
15 Key to detach high pressure hose
from trigger gun
16 High pressure hose
17 Dirtblaster® (Rotary spray wand)
18 Vario Power Spray wand
MODEL OVERVIEW

4 English
WARNING
When using this product basic precau-
tions should always be followed, includ-
ing the following:
Read all the instructions before using
the product.
To reduce the risk of injury, close su-
pervision is necessary when a prod-
uct is used near children.
Know how to stop the product and
bleed pressures quickly. Be thor-
oughly familiar with the controls.
Stay alert – watch what you are do-
ing.
Do not operate the product when fa-
tigued or under the influence of alco-
hol or drugs.
Keep operating area clear of all per-
sons.
Do not overreach or stand on unsta-
ble support. Keep good footing and
balance at all times.
Follow the maintenance instructions
specified in the manual.
This product is provided with a
Ground Fault Circuit Interrupter built
into the power cord plug. If replace-
ment of the plug or cord is needed,
use only identical replacement parts.
ADVERTENCIA
Risk of Injection or Injury – Do Not
Direct Discharge Stream At Persons.
High pressure jets can be dangerous
if misused. The jet must not be di-
rected at persons, animals, electrical
devices, or the unit itself.
Wear safety goggles.
WARNING
Risk Of Explosion – Do not spray
flammable liquids.
Do not use acids, alkaline, solvents,
or any flammable material in this
product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
WARNING – Risk of Electrocu-
tion
Inspect cord before using – Do not
use if cord is damaged.
Keep all connections dry and off the
ground.
Do not touch plug with wet hands.
Do not use extension cord with this
product.
Connect to individual branch circuit
only.
몇CAUTION
This unit has been designed for use with
cleaning detergents recommended by
the manufacturer. The use of other
cleaning detergents may affect the oper-
ation of the machine and void the war-
ranty.
몇CAUTION
Gun Kicks Back – Hold with both
hands.
The Spray Gun Safety Lock prevents
the spray from accidentally being en-
gaged. This safety feature DOES
NOT lock spray in the ON position.
WARNING
DO NOT SPRAY ELECTRICAL APPA-
RATUS AND WIRING.
DO NOT USE WITH FLAMMABLE LIQ-
UIDS AND TOXIC CHEMICALS.
HIGH PRESSURE. KEEP CLEAR OF
NOZZLE.
INJECTION HAZARD: EQUIPMENT
CAN CAUSE SERIOUS INJURY IF
THE SPRAY PENETRATES THE
SKIN. DO NOT POINT THE GUN AT
ANYONE OR ANY PART OF THE
BODY. IN CASE OF PENETRATION
SEEK MEDICAL AID IMMEDIATELY.
THIS SYSTEM IS CAPABLE OF PRO-
DUCING 1800 PSI TO AVOID RUP-
IMPORTANT SAFETY INSTRUCTIONS

English 5
TURE AND INJURY, DO NOT
OPERATE THIS PUMP WITH COM-
PONENTS RATED LESS THAN 1800
PSI WORKING PRESSURE (INCLUD-
ING BUT NOT LIMITED TO SPRAY
GUNS, HOSE AND HOSE CONNEC-
TIONS).
BEFORE SERVICING, CLEANING OR
REMOVING ANY PARTS, SHUT OFF
POWER AND RELIEVE PRESSURE.
IF CONNECTION IS MADE TO A PO-
TABLE WATER SYSTEM, THE SYS-
TEM SHALL BE PROTECTED
AGAINST BACK FLOW.
This product must be grounded. If it
should malfunction or breakdown,
grounding provides a path of least resis-
tance for electric current to reduce the
risk of electric shock. This product is
equipped with a cord having an equip-
ment-grounding conductor and a ground-
ing plug. The plug must be plugged into
an appropriate outlet that is properly in-
stalled and grounded in accordance with
all local codes and ordinances.
DANGER
Improper connection of the equipment-
grounding conductor can result in a risk
of electrocution. Check with a qualified
electrician or service personnel if you are
in doubt as to whether the outlet is prop-
erly grounded. Do not modify the plug
provided with the product - if it will not fit
the outlet, have a proper outlet installed
by a qualified electrician. Do not use any
type of adapter with this product.
This pressure washer is provided with a
ground-fault circuit-interrupter (GFCI)
built into the plug of the power-supply
cord. This device provides additional
protection from the risk of electric shock.
Should replacement of the plug or cord
become necessary, use only identical
replacement parts that include GFCI
protection.
몇CAUTION
When connecting the water inlet to the
water supply mains, local regulations of
your water company must be observed.
In some areas the unit must not be con-
nected directly to the public drinking wa-
ter supply. This is to ensure that there is
no feedback of chemicals into the water
supply. Direct connection via a receiver
tank or backflow preventer, for example,
is permitted.
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
Garden hose must be at least 13 mm
or 16 mm (1/2 inch or 5/8) inch in di-
ameter.
Flow rate of water supply must not
fall below 7.6 L/min. (2 GPM/gallons
per minute).
Flow rate can be determined by run-
ning the water for one minute into an
empty 20 litre (5-gallon) container.
The water supply temperature must
not exceed 40°C/104°F.
Never use the pressure washer to
draw in water contaminated with sol-
vents, e.g. paint thinners, gasoline,
oil, etc.
Always prevent debris from being
drawn into the unit by using a clean
water source.
GROUNDING INSTRUCTIONS
GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
WATER SUPPLY
(Cold Water Only)

6 English

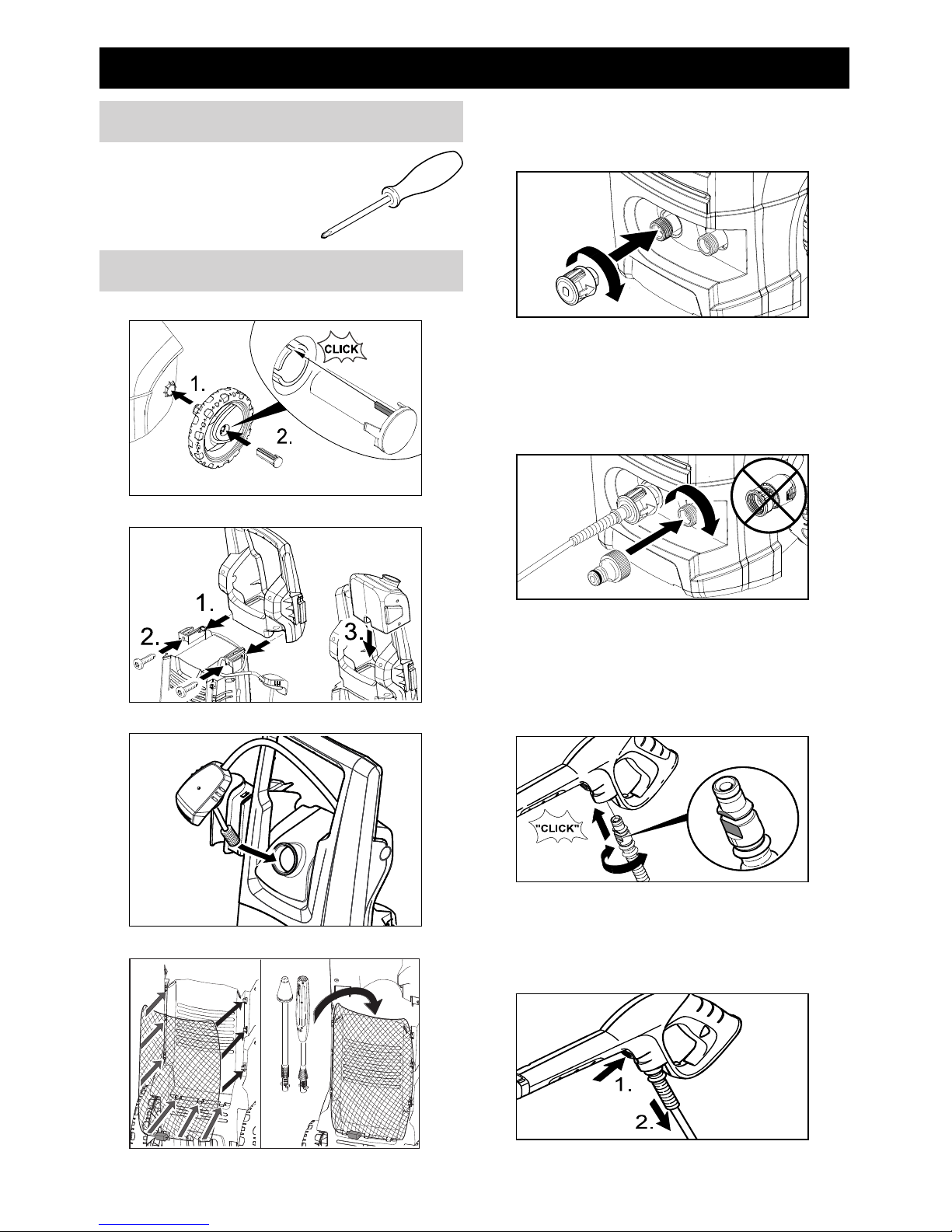

Philips Screwdriver,
medium size (not sup-
plied)
for final assembly
STEP 1:
STEP 2:
STEP 3:
STEP 4:
STEP 5:
Fasten the quick connect to the high
pressure outlet.
STEP 6:
Install the supplied connector to the
unit’s water inlet.
Note: Never attach the garden hose
connector to the unit’s water inlet!
STEP 7:
Push the high pressure hose into the
trigger gun until it locks audibly.
Note: Make sure the connection nip-
ple is aligned correctly.
Disconnect:
Press the disconnect key on the trig-
ger gun and remove the high pres-
sure hose from the trigger gun.
ASSEMBLY INSTRUCTIONS
Required tools
Assembly

English 7

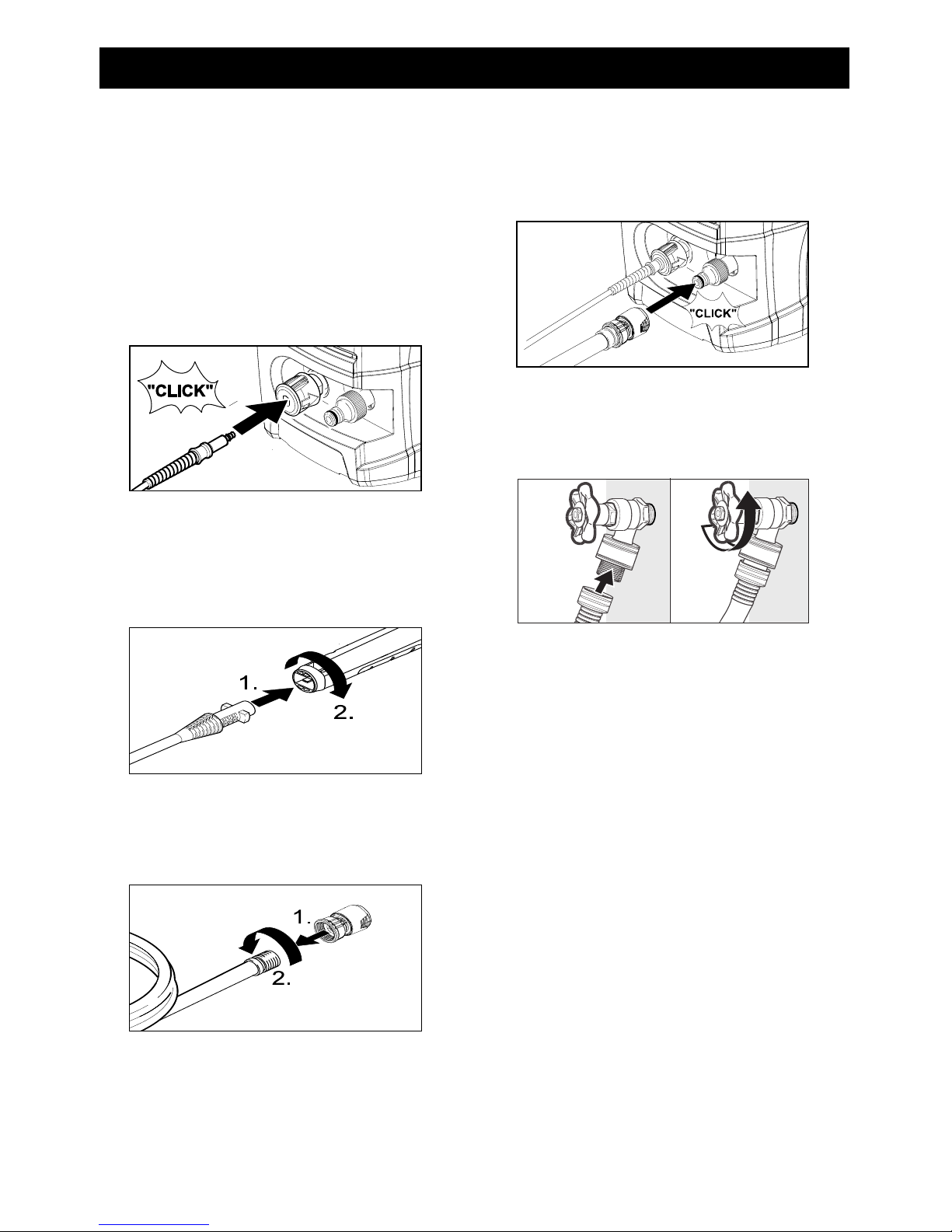

STEP 1:
Insert one end of the high pressure
hose tightly into the quick connect on
the unit, it will lock in audibly.
Note: Make sure the connection nip-
ple is aligned correctly. Check the
connection by pulling on the high
pressure hose.
Check the secure connection by pull-
ing on the high pressure hose.
STEP 2:
Insert the spray wand of your choice
into the trigger gun. Press in against
the spring tension and twist into
locked position.
STEP 3:
Screw the supplied garden hose con-
nector on to the end of your garden
hose.
STEP 4:
Push the garden hose connector on
to the water inlet connector and
make sure you hear it click into place
before proceeding.
STEP 5:
Connect garden hose to the cold wa-
ter source and turn water on com-
pletely.
STEP 6:
Plug the Ground Fault Circuit Inter-
rupter (GFCI) into a receptacle.
Press RESET button, indicator
should be “ON”.
Press TEST button, indicator should
be “OFF”.
Press RESET button for use.
We recommend that you test the GFCI as
part of your startup procedure each time
you use your pressure washer. To learn
how to peform this test on your unit, visit
http://www.karcherresidential.com/
gfci_test.php for detailed instructions for
your type of GFCI.
WARNING
Do not use if above test fails.
OPERATING INSTRUCTIONS

8 English
STEP 7:
Unlock the trigger gun safety lock.
Trigger the gun to eliminate trapped
air, wait for a steady flow of water to
emerge from the spray nozzle.
STEP 8:

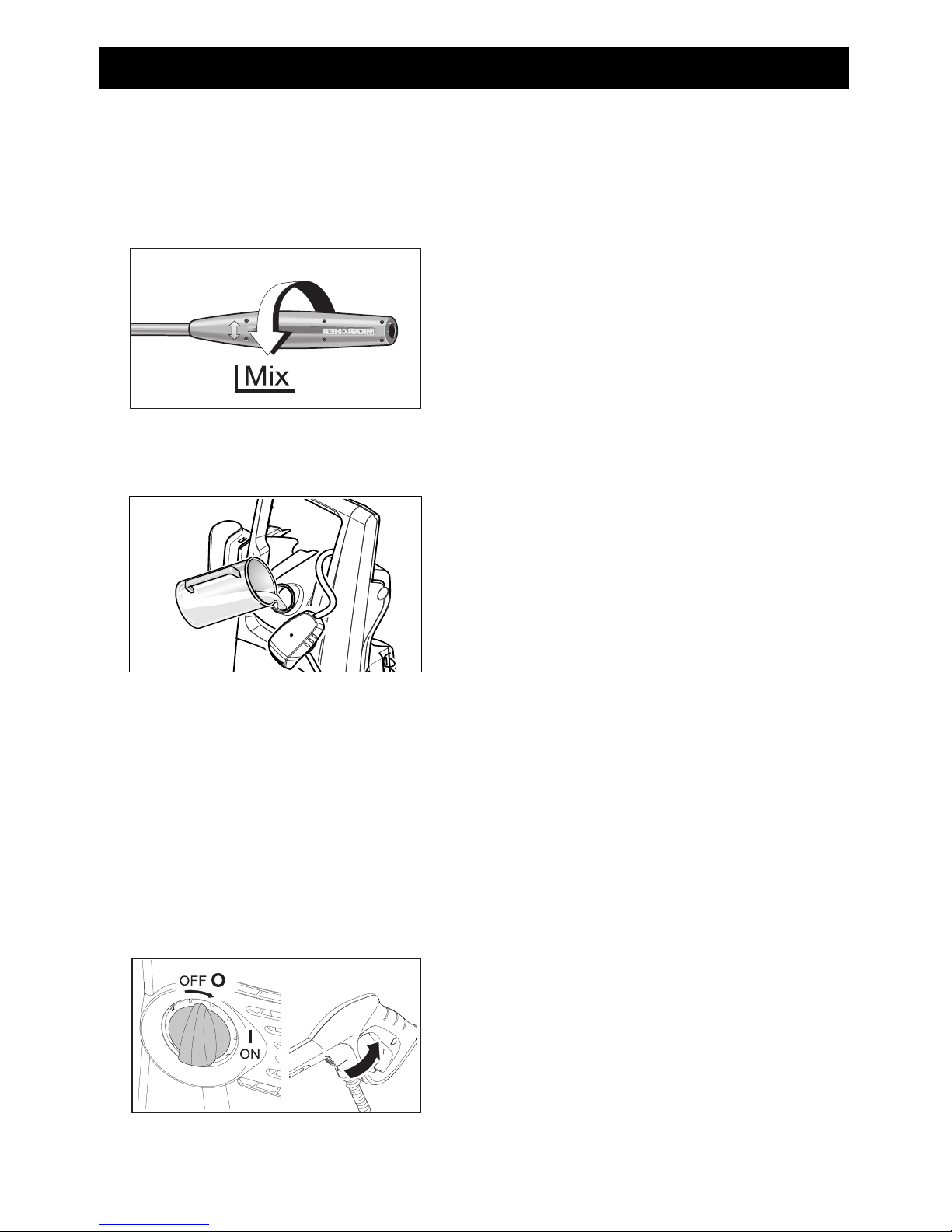

Turn on the high pressure washer (I/
ON).
The motor starts only if the trigger
of the gun is pulled and shuts off
when the trigger is released.
WARNING
To avoid serious injury never point
spray nozzle at yourself, other per-
sons or animals.
Always test an inconspicuous area
before cleaning with high pressure.
The Vario Power Spray Wand allows
you to adjust the cleaning pressure.
To clean at maximum pressure, the
wand must be positioned to the high
pressure setting (Max).
For lower pressure turn the wand col-
lar in the minus (Min) direction.
To apply detergent, the wand must
be positioned to the lower pressure
setting (Mix).
This nozzle features a 0º pencil jet
which rotates 360º for maximum dirt
cutting action, effectively increasing
cleaning performance up to 50%.
This nozzle combines the cleaning
performance of a 0º pencil jet with
the surface coverage of a wide angle
nozzle.
Not recommended for soft materi-
als, siding, painted surfaces,
decks or autos.
Always test an inconspicuous area
before cleaning with the Dirtblaster® .
USING THE ACCESSORIES
Vario Power Spray Wand
Dirtblaster ®

English 9
Detergents can only be applied at low
pressure setting (Mix).
STEP 1:
Install the Vario Power Spray Wand.
Set the spray wand to the low pres-
sure setting (Mix).
STEP 2:
Fill the Detergent Tank with the se-
lected detergent.
STEP 3:
Turn on the pressure washer (I). Pull
trigger to operate unit. Liquid deter-
gent is drawn into the unit and mixed
with water. Apply detergent to work
area. Do not allow detergent to dry
on surface.
STEP 4:
To rinse, move the VPS out of "Mix"
position and pull trigger to operate
unit.
STEP 5:
Cleaning up: Always draw fresh wa-
ter through the detergent tank or si-
phon tube when done to flush any
remaining detergents from the injec-
tion system.
For best results see Cleaning Tips for
specific information on how to clean
different surfaces.
Always Use Kärcher® Detergent for
Best Results
Kärcher® biodegradable detergents are
specially formulated to protect the envi-
ronment and your pressure washer. The
special formula won’t clog the suction
tube filter and will protect the internal
parts of the pressure washer for a longer
life. For Kärcher® detergents, check
your retailer or visit our website:
www.buykarcher.com
CAUTION
Never use:
–Bleach, Chlorine products and other
corrosive chemicals
–Liquids containing solvents (i.e.,
paint thinners, gasoline, oils)
–Tri-sodium phosphate products
–Ammonia products
–Acid-based products
These chemicals will harm the unit and
will damage the surface being cleaned.
Use of these items will void the war-
ranty.
WORKING WITH DETERGENTS

10 English
STEP 1:
Release trigger and engage gun
safety lock.
STEP 2:
Turn pressure washer to OFF (0) po-
sition.
STEP 1:
Turn the switch to OFF (0) position
and unplug cord from outlet.
STEP 2:
Turn off the water source.
STEP 3:
Press trigger to release water pres-
sure.
STEP 4:
Release trigger and engage gun
safety lock.
STEP 5:
Disconnect the garden hose from the
water inlet on the unit.
STEP 6:
Disconnect the high pressure hose
from the high pressure outlet.
TAKING A BREAK ... five minutes or more
SHUTTING DOWN AND CLEAN-UP

English 11
1: Disconnect all water connections.
2: Turn on the machine for a few sec-
onds, until the water which had re-
mained in the pump exits, turn off
immediately.
3: Do not allow high pressure hose to
become kinked.
4: Store the machine and accesso-
ries in a room which does not reach
freezing temperatures. DO NOT
store near furnace or other sources
of heat as it may dry out the pump
seals.
CAUTION
Failure to follow the above directions will
result in damage to the pump assembly
and accessories and will void the war-
ranty.
Kärcher®also recommends the regular
practice of using a pump protector like
“Kärcher®Pump Guard” to prevent cold
weather damage during storage in the
winter months.
STEP 1:
Pull out water inlet filter with flat-nose
pliers.
STEP 2:
Rinse out water inlet filter in warm
water.
STEP 3:
Reinsert water inlet filter.
The unit is maintenance-free.
WINTERIZING AND LONG-TERM STORAGE
CARE AND MAINTENANCE INSTRUCTIONS
Cleaning the water inlet filter
Maintenance

12 English
몇CAUTION
Before cleaning any surface an in-
conspicuous area should be cleaned
to test spray pattern and distance for
maximum cleaning results.
If painted surfaces are peeling or
chipping, use extreme caution as
pressure washer may remove the
loose paint from the surface.
When using on surfaces which might
come in contact with food, flush sur-
faces with plenty of drinking water.
For additional cleaning tips and a
complete video library, visit our web-
site:
www.karcherresidential.com
(with or without detergent). Pre-rinse
deck and surrounding area with fresh
water. If using detergent, apply to sur-
face at low pressure. For best results,
limit your work area to smaller sections
of approximately 2.3 m² (25 sq. ft.). Al-
low detergent to remain on surface 1-3
minutes. Do not allow detergent to dry
on surface. Rinse at high pressure in a
long sweeping motion keeping the spray
nozzle approximately 7.5-15 cm (3-6 in.)
from the cleaning surface. Always clean
from top to bottom and from left to right.
When moving on to a new section of the
cleaning surface, be sure to overlap the
previous section to eliminate stop marks
and ensure a more even cleaning result.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent, apply to surface at low
pressure (for best results, limit your
work area to sections of approximately
1.8 m (6 ft.) and always apply detergent
from bottom to top). Allow detergent to
remain on surface 1-3 minutes. Do not
allow detergent to dry on surface, if sur-
face appears to be drying, simply wet
down surface with fresh water. If need-
ed, use special wash brush attachment
(not included) to remove stubborn dirt.
Rinse at high pressure from top to bot-
tom in an even sweeping motion keep-
ing the spray nozzle approximately
1.8 m (6 ft.) from the cleaning surface.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply to
surface at low pressure. For best re-
sults, limit your work area to smaller sec-
tions of approximately 2.3 m² (25 sq. ft.).
Allow detergent or Degreaser to remain
on surface 1-3 minutes. Do not allow de-
tergent to dry on surface. Rinse at high
pressure in a sweeping motion keeping
the spray nozzle approximately 7.5-
15 cm (3-6 in.) from the cleaning sur-
face. Always clean from top to bottom
and from left to right. For removing ex-
tremely stubborn stains, use the
Dirtblaster® Nozzle.
(with or without detergent). Pre-rinse
vehicle with fresh water. If using deter-
gent, apply to surface at low pressure.
For best results, clean one side of vehi-
cle at a time and always apply detergent
from bottom to top, do not allow deter-
gent to dry on surface. If needed, use
special wash brush attachment (not in-
cluded) to remove stubborn dirt. Rinse
at high pressure in a sweeping motion
keeping the spray nozzle approximately
15-20 cm (6-8 in.) from the cleaning sur-
CLEANING TIPS
Deck Cleaning
House Siding
Cement Patios, Brick and Stone
Cars, Boats and Motorcycles

English 13
face (distance should increase when
rinsing pin-striping or other sensitive
surfaces). Always clean from top to bot-
tom and from left to right. For best re-
sults, wipe surface dry with a chamois or
soft dry cloth.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply deter-
gent at low pressure. Allow detergent to
remain on surface 1-3 minutes. Do not
allow detergent to dry on surface. Rinse
at high pressure keeping the spray noz-
zle approximately 7.5-15 cm (3-6 in.)
from the cleaning surface. For removing
extremely stubborn dirt, it may be nec-
essary to move the spray nozzle even
closer to the surface for greater dirt cut-
ting action.
(with or without detergent). Pre-rinse
furniture and surrounding area with
fresh water. If using detergent, apply to
surface at low pressure. Allow detergent
to remain on surface 1-3 minutes. Do
not allow detergent to dry on surface. If
needed use special Wash Brush Attach-
ment (not included) to remove stubborn
dirt. Rinse at high pressure in a sweep-
ing motion keeping the spray nozzle ap-
proximately 7.5-15 cm (3-6 in.) from the
cleaning surface. For best results, clean
from top to bottom and from left to right.
Optional accessories are available to
further enhance your cleaning capabili-
ties. These accessories are accurate as
of the printing date of this manual.
Please check our website for pricing and
up-to-date information.
Specially formulated to protect your
pressure washer from freezing, corro-
sion and premature wear. The Pump
Guard also adds lubrication to valves
and seals to prevent sticking. Highly rec-
ommended for all Kärcher® pressure
washers!
Part No. 9.558-998.0
Extension Hose for all Kärcher® high
pressure washers between the original
equipment hose and gun up to 2000 PSI.
Part No. 2.642-588.0
Need to clean second story windows or
other high areas? Increase the reach of
your pressure washer by up to 1.67 m
(66 in.) with this extension kit. Includes 4
aluminum sections for variable length.
1.67 m (66 in.) fully assembled. Fits
most Kärcher® pressure washers up to
2300 PSI. (bayonet)
Part No. 2.640-746.0
For more effortless cleaning of all
smooth surfaces (painted, glass and
plastic) try the Kärcher® Rotating Wash
Brush. Use it on your automobile, house
siding or windows. The water pressure
from your pressure washer causes the
inner brushes to gently spin, making
your cleaning job much easier. The an-
gle of brush head is adjustable to help
Barbecue Grills, Outdoor Power
Equipment and Gardening Tools
Patio and Lawn Furniture
OPTIONAL CLEANING ACCESSORIES
Pump Guard
7.5 m (25 ft.) Extension High-
Pressure Hose
1.67 m (66 in.) Extension Wand
(four-piece)
Rotating Wash Brush (bayonet)

14 English
you reach difficult areas. Excellent for
the application of detergent. A must-
have accessory designed for Kärcher®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.640-743.0
Made with soft bristles that will not harm
painted surfaces. Easily attaches direct-
ly to the trigger gun. Ideal for stubborn
dirt on cars, boats, patio furniture and
other surfaces. Great for applying deter-
gent. Fits most Kärcher® pressure
washers up to 2300 PSI. (bayonet)
Part No. 2.640-740.0
Need to clean blocked pipes, drains or
downspouts? The Kärcher® pipe clean-
ing kit is the answer! The pipe cleaner
propels itself forward while simultane-
ously flushing out debris. For example,
insert the cleaning nozzle in the base of
a downspout, pull the trigger on the
pressure washer gun and watch as the
nozzle shoots out leaves and other de-
bris while climbing upward. Connects di-
rectly to the trigger gun of most
Kärcher® pressure washers up to
2300 PSI. (bayonet)
Part No. 2.640-747.0
Why spend hours stripping old paint and
rust by hand using harsh chemicals? Let
the Kärcher® Wet Sandblasting Kit do
the work! Attach the kit to your pressure
washer, add abrasive material and at-
tack the rust and paint with our eco-
friendly alternative. Fits most Kärcher®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.638-792.0
Ideal for applications which require a
thick foam. Simply fill the resevoir cup
with liquid pressure washer detergent to
generate a foam spray. Connects direct-
ly to the trigger gun. Fits most Kärcher®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 6.964-507.0
For cleaning surfaces such as patios,
terraces and driveways without splash-
back, there is no better solution than the
Kärcher® T 200. It saves time by clean-
ing a 30 cm (1 ft.) wide area gently as it
hovers, providing consistent, streak-free
cleaning. When you finish cleaning the
patio and driveway, remove the wand
and use the handle to clean garage
doors and other vertical surfaces. In-
cludes two nozzles which spin at high
speed for optimum results. Our top sell-
ing accessory for Kärcher® pressure
washers up to 2300 PSI. (bayonet)
Part No. 2.642-188.0
Soft Clean Washing Brush
7.5 m (25 ft.) Pipe Cleaning Kit
(bayonet)
Wet Sandblasting Kit (bayonet)
Detergent Foamer Attachment
T 200 Wide Area Surface Cleaner

English 15
WARNING
TROUBLESHOOTING
Disconnect the unit from the power source before making any repair.
Issue Cause Solution
Motor will not start On/Off switch is in the “OFF”
(0) position.
Turn switch to the “ON” (I) po-
sition
Power cord is not plugged in. Plug in power cord.
Electrical outlet does not sup-
ply adequate power.
Try a different outlet.
Tripped GFCI plug. Press “RESET” button on
GFCI plug.
Tripped circuit breaker. Switch off pressure washer.
The reset comes automatically
once the temperature of the
unit drops.
Unit does not reach
high pressure.
Diameter of garden hose is
too small.
Replace with a 16 mm (5/8
inch) or larger garden hose.
Water supply is restricted. Check garden hose for kinks,
leaks and blockage.
Not enough inlet water supply. Open water source full force.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Spray wand is on low pressure
position.
Turn spray wand to high pres-
sure position.
Output pressure
varies high and
low.
Not enough inlet water supply. Turn water on full force. Check
garden hose for kinks, leaks or
blockage.
Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow
of water emerges through the
nozzle.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Discharge nozzle is obstruct-
ed.
Blow out or remove debris with
a fine needle.
Calcified gun, hose or spray
wand.
Run distilled vinegar through
detergent suction tube.

16 English
No detergent. Detergent siphon tube not
properly connected to the ma-
chine.
Check connection.
Detergent is too thick. Dilute detergent, for best re-
sults use Kärcher detergent.
Filter on detergent siphon tube
is clogged.
Run warm water through filter
to remove debris.
Damaged or clogged deter-
gent siphon tube.
Remove obstruction or replace
detergent siphon tube.
Spray wand is in high pres-
sure position.
Turn spray wand tip to low
pressure position.
Discharge nozzle is obstruct-
ed.
Blow out or remove debris with
fine needle.
Garden hose con-
nection leaks.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
Spray wand leaks. Spray wand not properly at-
tached.
Insert the spray wand into the
trigger gun. Carefully press in
against the spring tension and
twist into the locked position.
Broken o-ring or plastic insert. Call Customer Support
Pump is noisy. Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow
of water emerges through the
nozzle.
Water leaks from
pump (up to 10
drops per minute is
permissible).
Loose fittings. Check that all fittings are tight.
Water seals are damaged or
worn.
Call Customer Support
Oil drip. Oil seals are damaged or
worn.
Call Customer Support
Issue Cause Solution
If you encounter any additional difficulties not listed, please visit our website.
USA / Canada:
www.karcher-help.com
Mexico:
www.karcher.com.mx

Español 17
PELIGRO
indica “una situación de peligro inminen-
te que, si no se evita, puede causar le-
siones graves e incluso la muerte”.
ADVERTENCIA
indica “una situación de peligro poten-
cial que, si no se evita, puede causar le-
siones e incluso la muerte”.
ATENCIÓN
indica “una situación de peligro poten-
cial que, si no se evita, puede causar le-
siones de poca importancia o leves", o
daños materiales.
El propietario y/o el usuario deben com-
prender bien las instrucciones de servi-
cio y advertencias del fabricante antes
de empezar a utilizar este limpiador de
alta presión.
Debe prestarse especial atención y te-
ner muy claras las advertencias.
Si el operador no habla bien el español,
el propietario/comprador debe respon-
sabilizarse de leer y comentar las ins-
trucciones y las advertencias en su
lengua natal, y asegurarse de que en-
tienda a la perfección su contenido.
El propietario y/o el usuario deben leer y
guardar como referencia para el futuro
las instrucciones del fabricante.
Sólo para uso doméstico.
En EE.UU: o Canadá, llame al
1-800-537-4129 para temas de garantía
y visite www.karcher-help.com para el
servicio técnico y asesoramiento sobre
productos.
Registre su limpiadora a alta presión on-
line en www.karcher-register.com.
Guarde bien el ticket de compra, será
necesario para reparaciones que cubra
la garantía.
Llame al: 01-800-024-13-13 si necesita
ayuda o visite nuestra página Web:
www.karcher.com.mx
MANUAL DE USUARIO DEL LIMPIADOR DE ALTA
PRESIÓN
Vista general del modelo 18
Instrucciones de seguridad 19
Instrucciones de montaje 21
Instrucciones de funcionamiento 22
Utilicación de los accesorios 23
Trabajar con detergentes 24
Tomarse un descanso 25
Apagado y limpieza 25
Almacenamiento prolongado 26
Instrucciones de mantenimiento 26
Consejos de limpieza 27
Accesorios de limpieza opcionales 28
Localización y reparación de averías 31
Símbolos de aviso de seguridad
Especificaciones
Máx. presión 1800 PSI
Máx. caudal de agua 1.5 GPM
Corriente 13 AMPS
Tensión 120 V
Nº de pieza 1.601-770.0
Nº de serie
Responsabilidades del
propietario/usuario
Ayuda a clientes
EE.UU. y Canadá
Soporte México

18 Español
1 Conector para manguera de jardín
(female)
2 Conector para entrada de agua
3 Entrada de agua con filtro
4 Conexión rápida a toma de alta pre-
sión
5 Salida de alta presión
6 Interruptor de encendido/apagado
7 Depósito de detergente (desmontable)
8 Zona de recogida para pistola pulve-
rizadora manual
9 Asa de transporte
10 Soporte de accesorios
11 Cable de potencia con interruptor de
circuito de avería por puesta a tierra
12 Ruedas
13 Pistola de disparo
14 Pestillo de seguridad de la pistola de
disparo
15 Tecla para separar la manguera de
alta presión de la pistola pulverizado-
ra manual
16 Manguera de alta presión
17 Dirtblaster® (Lanza rotativa de alta
presión)
18 Lanza de alta presión variable
VISTA GENERAL DEL MODELO

Español 19
ADVERTENCIA
Al utilizar este producto, tome siempre
las precauciones básicas, incluidas las
siguientes:
Lea todas las instrucciones antes de
usar el producto.
Para reducir el riesgo de lesiones, es
preciso vigilar atentamente si se usa
el producto cerca de niños.
Es necesario saber cómo parar rápi-
damente el producto y parar hemo-
rragias. Estar familiarizado con los
mandos.
Estar atento, prestar atención a lo
que se está haciendo.
No ponga en funcionamiento el pro-
ducto si está cansado o está bajo la
influencia de alcohol o drogas.
Mantenga la zona de trabajo libre de
personas.
No sobrecargar o colocar sobre un
soporte inestable. Mantener el equi-
librio en todo momento.
Seguir las instrucciones de manteni-
miento especificadas en el manual.
Este producto se suministra con un
interruptor de circuito de avería por
puesta a tierra, que está montado en
el enchufe del cable de potencia. Si
es necesario reemplazar el enchufe
o el cable, utilice sólo piezas de re-
puesto idénticas.
ADVERTENCIA
Riesgo de inyección o lesiones - no
dirigir el chorro directamente sobre
personas.
Los aparatos a alta presión pueden
resultar peligrosos si se usan de for-
ma incorrecta. No se debe dirigir el
aparato a personas, animales, dis-
positivos eléctricos o la equipo mis-
mo.
Utilizar gafas de seguridad.
ADVERTENCIA
Riesgo de explosión - no pulverizar
sobre líquidos inflamables.
No usar ácidos, alcalinos, disolven-
tes, o cualquier material inflamable
con este producto. Estos productos
pueden causar heridas físicas al
operario y daños irreparables a la
máquina.
ADVERTENCIA – Riesgo de
electrocución
Examine el cable eléctrico antes del
uso – No utilice cable dañados.
Mantenga todas las conexiones se-
cas y alejadas del suelo.
No toque el enchufe con las manos
mojadas.
No se debe usar el cable de exten-
sión para esta máquina.
Conéctese solo a un circuito eléctri-
co individual.
몇ATENCIÓN
Este aparato ha sido diseñado para ser
utilizado con detergentes de limpieza
del fabricante. El uso de otros detergen-
tes de limpieza puede afectar al funcio-
namiento del aparato y hacer que deje
de tener validez la garantía.
몇ATENCIÓN
La pistola tiene efecto de retrocesco
- sujetar con las dos manos.
El seguro del gatillo de la pistola evi-
ta que el gatillo salte de forma invo-
luntaria. El dispositivo de seguridad
NO bloquea el gatillo en la posición
ON (encendido).
INSTRUCCIONES IMPORTANTES DE SEGURIDAD

20 Español
Este producto se tiene que poner a tie-
rra. Si funcionase mal o si se rompiese,
la puesta a tierra proporcionaría una cir-
cuito menos resistente a la energía
eléctrica para reducir el riesgo de elec-
trochoque. Este producto está equipado
con un cable que tiene un conductor a
tierra y un enchufe a tierra para el equi-
po. El enchufe se tiene que enchufar a
un tomacorriente adecuado, que esté
correctamente instalado y puesto a tie-
rra conforme a todas las normas y regla-
mentos locales.
PELIGRO
Si la conexión del conductor a tierra del
equipo es incorrecta puede existir ries-
go de electrochoque. En caso de duda,
compruebe con ayuda de un electricista
cualificado o del personal del servicio
técnico que el tomacorriente está co-
rrectamente puesto a tierra. No modifi-
que el enchufe proporcionado con el
producto; si no encaja en el tomaco-
rriente, pida a un electricista cualificado
que le instale un tomacorriente adecua-
do. No utilice ningún tipo de adaptador
con este producto.
Este producto se suministra con un inte-
rruptor de circuito de avería por puesta
a tierra montado en el enchufe del cable
de potencia. Este aparato proporciona
una protección adicional contra el riesgo
de electrochoque. Si es necesario
reemplazar el enchufe o el cable, utilice
piezas idénticas.
ATENCIÓN
Al conectar la toma de agua a la red de
suministro del agua, es obligatorio res-
petar la normativa local establecida por
la compañía del agua. En algunas zo-
nas, está prohibido conectar la unidad
directamente a la red pública de sumi-
nistro de agua potable. Esto es así para
garantizar que no penetren sustancias
químicas en la red de suministro del
agua. Sí se permite efectuar la conexión
directamente por ejemplo a través de un
depósito receptor o un dispositivo anti-
rretorno.
Si el agua de alimentación está sucia, la
unidad sufrirá daños. Para evitar este
riesgo, le recomendamos que monte un
filtro de agua.
La manguera de agua tiene que te-
ner al menos 1/2“ (13 mm) pulgadas
de diámetro.
El caudal de agua no debe ser infe-
rior a 450 l/h (litros por hora).
El caudal de agua se puede determi-
nar llenando de agua un recipiente
vacío de 8 litros durante un minuto.
La temperatura de la toma de agua
no debe sobrepasar los 104°F/40°C.
No utilice nunca el limpiador a pre-
sión para aspirar agua contaminada
con disolventes como, p. ej., diluyen-
tes de pintura, gasolina, aceite, etc.
Evite siempre que la unidad aspire
residuos utilizando una fuente de
abastecimiento cuya agua esté lim-
pia.
Instrucciones de puesta a tierra
Protección mediante interruptor
de circuito de avería por puesta a
tierra
SUMINISTRO DE AGUA (sólo
agua fría)
