(Figure 1-1)
English
Thank you for choosing a Katadyn portable water microfiltration system. The
Katadyn Combi Microfilter meets industry standards for reduction of bacteria
(99.9999% Klebsiella terrigena) and protozoan cysts (99.9% Giardia and
Cryptosporidium). It also reduces chemicals and improves the taste of water. The
Combi is Katadyn’s most multi-functional filter for all-round use. It is ideal for
1-4 persons while trekking, on journeys and on expeditions.
Input Barb
Ceramic Element
Plastic Sleeve
Bottle Adapter
Output Barb
Pump Handle
O-Ring
Pump Handle
Black Button
Filled Carbon
Cartidge
Cover of Carbon
Cartidge
Measuring Gauge
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 2

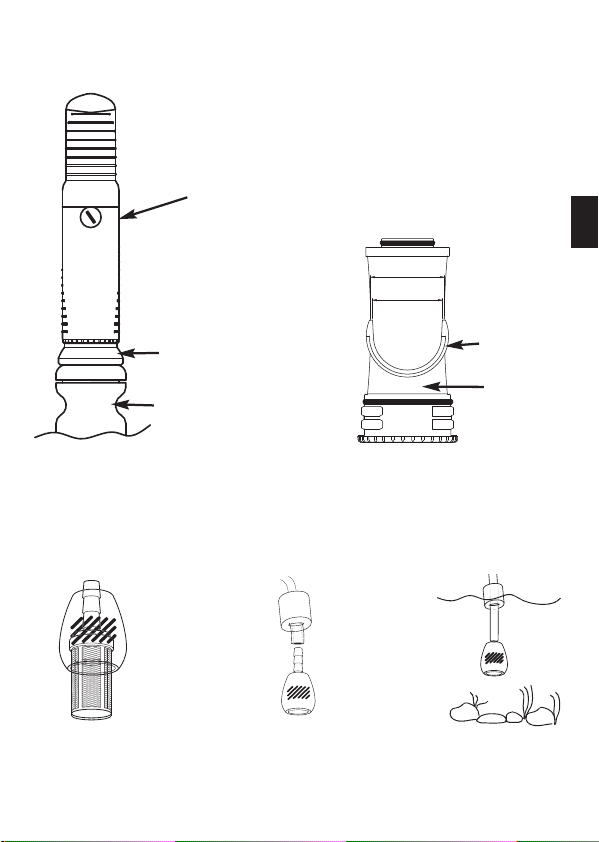

Key Components
GB
(Figure 2-2) (Figure 2-3)
Ceramic
Element
Measuring
Gauge
Bottle
Input Barb
Bottle
Adapter
(Figure 2-1)
y
x
X<Y
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 3

Product Set-up
The Combi requires minimal set up. For best results, try out the Combi before first field use to
familiarize yourself with its operation.
1) Prefilter
The modular prefilter (Figure 2-1) is effective in still and running water. It consists of two
components: a strainer and a weight. The prefilter is important because it prevents large
particles (larger than 130 microns) from entering the water system. See Field Performance
Tips for helpful hints.
2) Connect Hoses
Push the hose float on to the input hose (hose with prefilter). Position the float approx.
4 inches (10 cm) from prefilter. Attach the hose to the input barb in the middle of the filter
housing. (Figures 1-1, 2-1, 2-2)
3) Filling Carbon Cartige
The Combi may be used with or without the carbon cartridge filled. Use the Combi with filled
activated carbon cartridge whenever the water is chemically contaminated or tastes bad.
Detach the upper part of the filter housing by turning counter clockwise. Remove the pump
handle. Remove the grey activated carbon cartridge from the lower part of the filter housing
and remove the lid. Open package of activated carbon and pour into the cartridge. Close
the lid and insert the carbon cartridge firmly into the housing. Re-attach the pump handle to
the housing and tighten by turning clockwise.
Note: There is more activated carbon in the package than is required to fill the carbon
cartridge in case some is spilled.
4) Flush System
Important: Before first use, flush system by pumping approximately 0.5 litres of water
through the unit to remove harmless ceramic dust and carbon dust (if carbon cartridge is
filled) See following section on Normal Operation on how to filter water.
Note: If using the Combi with carbon cartridge filled, harmless carbon dust may be
deposited on the surface of the ceramic. The ceramic must be cleaned after the first 0.5 litres
to prevent early plugging of the filter. Repeat this procedure any time carbon is replaced.
See following section on Field Performance Tips on how to clean the ceramic.
Normal Operation
1) Place input hose in untreated water source. Adjust the float to keep prefilter off the bottom
and away from sediment.
2) Connect a PET-Bottle to the bottom of the Combi filter. Use the extra bottle adaptor included
for compatibility with other bottles (e. g. Sigg, Nalgene)*. (Figure 2-2)
3) Hold the filter vertically and begin pumping the handle in a slow, steady manner. Make sure
the input hose is not kinked.
4) Unscrew water container after filling with filtered water and remove input hose from water
source. Continue pumping to remove remaining water from pump body.
5) Store unit in the carry bag. To prevent the possibility of cross contamination, the input hose
should not contact the output barb.
*Note: Before each use, pump and discard a small amount (0.2 litres) of water to remove
stale taste.
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 4

GB
Field Performance Tips
The Katadyn Combi is designed to remove bacteria and protozoan cysts such
as Legionella, Giardia and Cryptosporidium. To extend ceramic life, always use the best
water source available. Keep the input prefilter clean and off the bottom. In heavy sediment
conditions, wrap a coffee filter or bandanna around the input prefilter. Where possible, place
untreated water in container and wait for sediment to settle out until water appears clear - then
filter from water above the sediment.
Maintain your Katadyn water system to keep it operating smoothly.
1) If handle is hard to push
Clogged filter pores. If the filter pores of the ceramic are clogged, the ceramic needs to
be cleaned. Never use force when pumping. Remove ceramic element by turning the
filter base at lower end of housing counter clockwise one quarter turn (the bottom end of the
bottle adaptor may be used to aid turning). Clean the ceramic element by brushing it with
the supplied cleaning pad until the light, originally colour appears again. Insert the
ceramic element into the housing. Push and turn the filter base clockwise one quarter turn.
Attention: The filter housing can be under pressure - unfiltered water can splash out while
taking out the ceramic element.
2) Lubricate pump handle o-ring. Silicone lubricant is provided with your new unit.
Unscrew the upper part of the filter housing counter clockwise and remove the whole pump
handle. (Figure 1-1) Clean excess build-up from black rubber o-ring on bottom of handle.
Place a small amount of silicone lubricant all the way around the o-ring. Re-assemble.
3) If unit pumps easily, but no water flow:
Make sure prefilter is submerged. Make sure that input hose is not blocked or pinched.
Hold the filter vertically until water flows. The membrane on the lid of the carbon cartridge
could be clogged. Remove or clean carbon cartridge (see below) to restore flow.
4) Carbon Cartidge: Remove dirt particles on the lid of the cartridge by swirling it around
in water or by rinsing. For a more thorough cleaning, gently brush with an old toothbrush
or the green cleaning pad provided.
Attention: Don’t use pressure, otherwise the membrane could tear.
5) Prefilter: Rinse the prefilter in water to remove any particles that may be caught in the
strainer.
6) Storage: Your Katadyn water system comes with a carry bag for storage. To prevent the
possibility of cross contamination the input hose should not contact the output barb.
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 5

Long-Term Storage (After Your Trip is Over)
Store the Combi filter as follows:
1) Remove and clean the ceramic element by brushing with the supplied cleaning pad. Allow
to air-dry completely.
2) Rinse the filter housing and remove any dirt.
3) Lubricate the o-rings with silicone lubricant.
4) Re-assemble the filter.
5) Store Combi, hose and accessories in the carry bag.
Note: When removing unit from long-term storage, flush the system with one litre of water
to remove any stale tasting water.
Ceramic Capacity
Ceramic capacity depends on water quality. The dirtier the water the more often you will have to
clean the element. This reduces the capacity of approx. 13,000 gallons (50,000 litres). If the gap
of the measuring gauge fits over the ceramic it is time to replace the filter. (Figure 2-3) Inspect the
ceramic for cracks after cleaning, if you dropped the filter or if you had freezing temperatures. If
the filter shows cracks it will no longer protect you from microorganisms.
Ceramic Installation
Replacement filter elements are available from the dealer where you purchased your Katadyn
Combi.
1) Remove ceramic element by turning the filter base at lower end of housing counter clockwise
one quarter turn (the bottom end of the bottle adaptor may be used to aid turning).
Attention: The filter housing can be under pressure - unfiltered water can splash out while
taking out the ceramic element.
2) Remove new ceramic element from packaging.
3) Insert the new ceramic element into the housing. Push turn clockwise one quarter turn.
4) Flush ceramic element by pumping and discarding the first litre.
Activated Carbon Capacity
Activated Carbon capacity depends on water quality. Normal capacity of carbon is 50 gallons
(200 litres) High chemical or odour concentration can reduce the capacity of the carbon. Replace
the carbon when you notice an unpleasant taste or odour after filtering or after 6 months of
constant use –whichever comes first. Use the black button on the front side of the housing to keep
track of when the carbon needs to be changed. Use a coin to adjust to the adequate month.
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 6

When You Travel Abroad, Camp or Backpack…
…you run a risk of illness ranging from the inconvenience and discomfort of diarrhoea to more
serious illnesses caused by protozoan cysts (i.e., Legionella, Giardia, Cryptosporidium), viruses
and bacteria.
The microorganisms that cause these diseases are often found in the food and water you consume.
Lakes, streams and the local water supply may be contaminated.
To minimize the risk of contracting these illnesses, we suggest that you consult with your physician,
state health department or traveller’s clinic 4-6 weeks before you depart.
And while you are travelling…
• Make sure that prepared food is thoroughly cooked.
• Select non-cooked foods (fruits, nuts, etc.) that have intact shells or skins, and clean your hands
before peeling the food.
• Wash your hands with soap and water thoroughly and often, especially before you eat. Filter all
drinking water with your Katadyn Combi Water Microfilter.
The Katadyn Combi Microfilter is an essential piece of outdoor equipment. For questions or
suggestions, please contact us at [phone].
GB
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 7

Combi Plus Water Microfilter
(Model #2041000 + 8016099)
Combi Plus Faucet Attachment Kit
(Model # 20730)
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 8

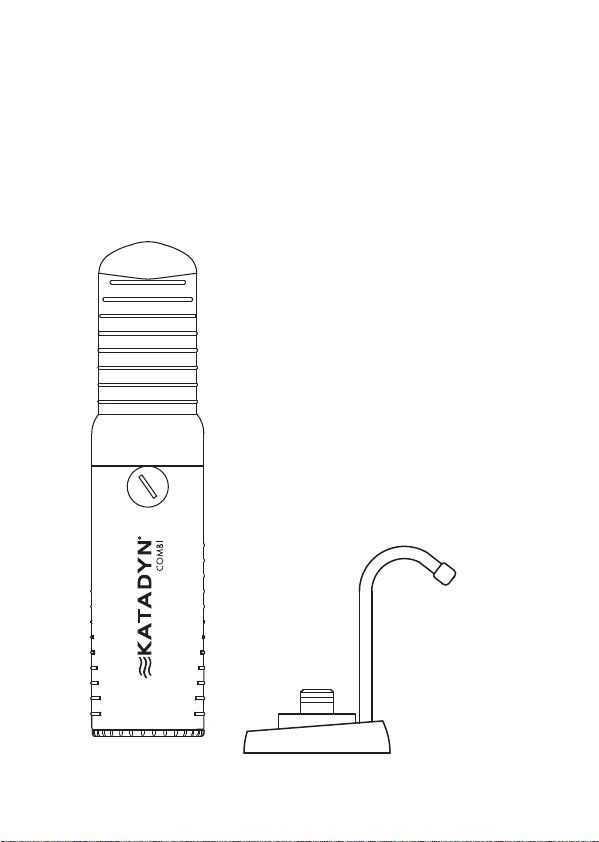

Faucet Attachment kit for Katadyn Combi Filter
(optional)
The Faucet attachment kit enables the Combi filter to be connected to a water faucet and makes it
the only travel filter which can be used indoors and outdoors.
(Figure 3-1)
Input Barb
Universal Adapter
Faucet
Mixer Jet
Outlet Tab
Base
Diverter Valve
with Hose Rubber Gasket
Diverter Valve
with Hose
Input
Hose
Hose
Connector
Reduction Piece
Faucet
GB
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 9

Faucet Attachment Kit Set-up
To attach the Combi to a water faucet:
1) Position the black rubber gasket into the opening in the middle of the base. Screw the Combi
tightly onto the base.
2) Insert the outlet tap into the smaller opening at the edge of the base.
3) Slide red hose connector on to white hose with threads towards end of hose. Attach the white
hose to the input barb in the middle of the filter housing. Secure by tightening hose
connector clockwise.
4) Unscrew the mixer jet from the water faucet and connect the diverter valve to the faucet.
Tighten the diverter valve to the water faucet. If diverter valve does not fit your faucet, install
using universal adaptor. (Figure 3-1)
Note: Additional adaptors can be found at your local hardware store if the universal
adaptor included does not fit your faucet.
Normal Operation
1) Turn faucet on. Switch diverter valve so that water runs out of outlet tap. Note: the faucet will
be drip for a few seconds after shut off.
2) The flow rate of the Combi Plus depends on the available water pressure and can be
increased through additional pumping (With pumping: Approx. 1 l/min at 1 bar, without
pumping: Approx. 0.6 l/min at 3 bar).
Warning: The Combi Plus has no return pressure regulating valve – the pressure built up at
the filter may exceed the pressure allowed for your other installations. Make sure the other
systems are protected by an overpressure valve.
For maintenance please follow the details of your Katadyn Combi filter.
Product Registration
Please take a moment to register your new Katadyn product by completing the short product
registration form online at www.katadyn.com/technischer-support/filter-support/produktregistrierung.
The information you provide will enable us to better serve you with products developed to meet
your needs and interests. Register your Katadyn product online and you will be automatically
entered into a drawing to win a free Katadyn product.
Limited Warranty
Your Katadyn Combi/Combi Plus Microfilter and the add-on kit are warranted for two (2) years
from the date of purchase against defects in materials and workmanship. Should your Katadyn
Combi prove defective within one year from the date of purchase, return it to the Katadyn retailer
from whom it was purchased. If you have any questions please contact Katadyn at
[phone]. Katadyn, at its discretion, will replace or repair the damaged item. Please
retain your purchase receipt as proof of date purchased. This warranty gives you specific legal
rights and you may have other legal rights which vary from state to state.
Contact International:
Katadyn Products Inc.
Pfäffikerstrasse 37
8310 Kemptthal/Switzerland
[email protected] / www.katadyn.com
143850 Katadyn-B-int100591_a 01.12.14 10.22 Pagina 10

FACT SHEET
PRODUCT CHARACTERISTICS
Technology: Pump lter, ceramic depth ltration
(0.2 microns = 0.0002mm pores)
Effect: Eliminates bacteria, protozoa, cysts, algae,
spores, sediments and viruses in combination
with particles greater than 0.2 microns. Also
reduces chemicals.
Output: Approx. 1 l/min
Capacity: Ceramic up to 50’000 l depending on the
water quality
Activated carbon up to 400 litres (2 llings)
Weight: 580 g
Dimensions: 27 x 6 cm
Guarantee: 2 years
Material: Resistant plastics, stainless steel, silicone, ceramic
Accessories: Prelter, bottle adaptor, carry bag
Article No.: 8017685 Combi
8016099 Combi Plus
Series: Endurance
FACTS
• All-around lter for water qualities around the world.
• The tried and tested ceramic depth lter removes bacteria, protozoa and other disease-causing agents. The principle:
the micro-organisms cannot pass through the mini pores of the lter ceramic (0,2 microns) because of their size
(greater than 0,2 microns = 0,0002 mm).
• Test result from Stiftung Warentest (01/2001): “Recommended“ (best water lter in the test).
• Unlike disposable lters, the ceramic can be cleaned many times - even in the eld.
• Optional „Plus“ add-on kit for home, caravan or boat use.
PRODUCT CHARACTERISTICS > BENEFITS
• 2-stage lter (active carbon, ceramic) > not only removes disease-causing agents,
but also chemicals and improves the taste of the drinking water
• Simple change to 1-stage operation (only ceramic without activated carbon stage)
> reduces use of active carbon granules and ensures maximum use of capacity
• Robust design > long lasting and extremely reliable
• Tap add-on kit “Plus“ > simple connection to a tap in a kitchen, caravan,
camper or boat - the only water lter for both indoor and outdoor use!
• Cleanable ceramic lter element > also lters very cloudy water
• Measuring gauge supplied > indicates when the lter element should be changed
SHORT PROFILE
All-round lter with many
useful features. For
1-4 people. Trekking,
travelling, expeditions.
With the “Plus“ add-on kit,
also suitable for use in
caravans and boats.
1
KATADYN COMBI - the award-winning all-around lter

Replaceable activated carbon
reduces chemicals and bad tastes in
water
Water in Carbon indicator - keeps track of
your carbon use
Silvered Ceramic - exclusive 0.2
micron cleanable ceramic cartridge
for extra protection
Integrated bottle adapter ts directly
on top of most bottles
Water out
CUT MODEL
For details on spare parts, please contact your Katadyn dealer.
TESTS
Bachema AG, Switzerland, 01.07.2010 - Raoultella terrigena, Salmonella typhimurium, E.coli
Bachema AG, Switzerland, 07.12.2004 - Pseudomonas aeruginosa
Stiftung Warentest, Germany, 16.11.2000 - E.coli, Pseudomonas aeruginosa
Ministre de la Défense, France, 25.07.1995 - Total Coliform, Fecal Coliform, Fecal Streptococci, Heterothrophic Plate
Katadyn Products Inc. I Pfäfkerstrasse 37 I 8310 Kemptthal I Switzerland
Tel: [phone] Fax: [phone]
[email protected] I www.katadyn.com
FACT SHEET
2
KATADYN COMBI - the award-winning all-around lter
Katadyn reserves the right to modify product characteristics
«Plus» add-on kit for
connecting to taps
at home, in a boat,
in a caravan, etc.
