Katadyn Gravity Camp 6L
(Model # 8019297)
Katadyn Base Camp Pro 10L
(Model # 8019296)

Thank you for choosing a Katadyn portable water microfiltration system.
The Katadyn Gravity Camp 6L and Katadyn Base Camp Pro 10L Micro lters meet
industry standards for reduction of bacteria (99.9999% Klebsiella terrigena) and
protozoan cysts (99.9% Giardia and Cryptosporidium).
These products are designed to be used with untreated fresh water sources, such
as lakes, rivers and streams. They are ideal for single persons or small groups
while trekking or camping. These portable water  lters are designed for the
 ltering of water only – never use it for any other purposes.
KEY COMPONENTS
Bag, Filter, Cap with built-in Quick Connector, Hose, On/Off output hose valve
English
HOW IT WORKS
The Katadyn Gravity Camp 6L and Katadyn Base Camp Pro 10L Micro lters
utilize a cleanable  lter protection sheet as a pre lter to extend the cartridge
life and on a second step a 0.2 micron Ultra Flow Filter TechnologyTM pleated
glass ber cartridge to remove bacteria and protozoa like Giardia and amoeba
as well as particles larger than 0.2 microns.
WARNING
IMPORTANT SAFETY MESSAGE
Read before using Katadyn Micro lter
• When you travel abroad, camp or backpack, you run a risk of illness ranging
from the inconvenience and discomfort of diarrhea to more serious illnesses
Filter Cap with Quick Connector
Waterbag
On/Off Valve

EN
DE
FR
NL
DK
SWE
NOR
FIN
IT
ESP
POR
caused by protozoan cysts (i.e., Giardia, Cryptosporidium), viruses and
bacteria.
• The microorganisms that cause these diseases are often found in the food and
water you consume. Lakes, streams and the local water supply may also be
contaminated.
• To minimize the risk of contracting these illnesses, we suggest that you consult
with your physician, state health department or travelers’ clinic 4 - 6 weeks
before you depart.
• And while you are traveling
–Make sure that prepared food is thoroughly cooked to the following
instructions.
–Select non-cooked foods (fruits, nuts, etc.) that have intact shells or skins,
and clean your hands before peeling the food.
–Wash your hands with soap and warm water thoroughly and often,
especially before you eat.
–Filter all drinking water with your Katadyn Gravity Camp 6L Microlter or
Base Camp Pro 10L Microlter, including water used for brushing teeth,
washing your face, etc.
WARNING
Improper use of this lter increases your risk of getting gastrointestinal
illness. Read manual before assembling or using this water lter and
f o l l o w a l l i n s t r u c t i o n s . I f y o u h a v e a n y q u e s t i o n s , c o n t a c t K a t a d y n a t
[phone] or email us at customerser[email protected] or visit our
website at www.katadyn.com.
Keep output hoses and other parts away from untreated water to prevent cross
contamination.
If there is any risk of virus in the water, use a registered disinfectant such as
Micropur Forte Tablets as post treatment, boil your water or use 4 drops of
ordinary household bleach.
PRODUCT SET-UP
The Camp Microlters require minimal set up. For best results, try out the products
before rst use and familiarize yourself with their operation.

1. Install Filter Protector (pre-assembled)
The Filter Protector is a cleanable screen that covers the Ultra Flow FilterTM
Cartridge. A frequent cleaning is not required; however, using the Filter
Protector will extend the life of your cartridge.
It may be used continually or when source water contains suspended
particulates or dirt.
Step 1: Wrap protector sheet around cartridge (there will be approximately a
5 cm overlap) and hold in place.
Step 2: Slip the exible netting over the cartridge. Adjust lter protector sheet
and netting so they are positioned evenly. (Figure 1)
Filter
Step 1
Step 2
(Figure 1)
Protective Screen
Netting

EN
DE
FR
NL
DK
SWE
NOR
FIN
IT
ESP
POR
2. Install Filter
Screw cartridge clockwise inside cap as far as it will go. Do not grasp the
cartridge around the pleated surface, since it may damage the  lter. Screw
the cap clockwise on the external threads of the bag as far as it will go.
Connect the output hose to cap by pushing the connector at hose into the cap
connector until it clicks in place. (Figure 2)
3. Flush System (Important!)
Before  rst use,  ush system by running approximately 2 liters of water through
the unit to remove harmless particles and dust. See following section on
Normal Operation on how to  lter water.
WARNING
Improper threading of  lter cartridge to cap could cause  uid leakage and
result in illness.
Follow instructions for proper installation of the cartridge. A damaged and
contaminated  lter could expose you to harmful microorganisms and result in
illness.
• Always handle  lter carefully.
• If  lter has been dropped into contaminated water source, follow instructions
for storage to completely disinfect hoses and  lter before use.
• If  lter is damaged or contaminated, do not use.
Thread
Outlet Hose
On-Off Output
Hose Valve
Cartridge Cap Quick Connection System
including On/Off Valve
(Figure 2)

NORMAL OPERATION
1. Ensure  lter cartridge is properly tightened into the bag (per Product Set Up
instructions).
2. Remove output hose from the cap by disconnecting the quick connection
system. As long as the output hose is not attached to cap, the integrated quick
connection valve closes the quick connect valve, turning off the water  ow.
Once output hose is reconnected, the quick connection valve will be opened
and water will begin  owing.
3. Fill bag with water using a separate container. If a separate container is
not available, open bag and  ll directly from water source. Do not allow
contaminated water to contact outlet connection or end of outlet hose.
IMPORTANT (to avoid the risk of illness): Dry off outside of bag and outlet hose
to avoid untreated water running down bag/hose into your water container.
WARNING
To minimize the risk of illness, dry off outside of bag and outlet hose to prevent
untreated water from running down bag/hose and into your water container.
Improper use of  lter can lead to contamination and illness. To minimize risk,
when  ltering water, do not splash dirty or un ltered water into clean container
and follow all of the instructions in this manual.
4. Close bag by folding ends. (Figure 3) Dry bag and outlet connector with
clean cloth.
(Figure 3)

EN
DE
FR
NL
DK
SWE
NOR
FIN
IT
ESP
POR
5. Elevate bag in convenient location. For best  ow, position the  lter in an
upright position and hang from the highest possible location. (Figure 4)
6. Close the output hose valve. Connect the output hose to the connector at the
cap (this will initiate water  ow into the output hose). Open hose valve clamp
to begin water  ow. Close hose valve clamp to stop water  ow. Ensure hose
valve clamp is in wide open position (not pinching hose whatsoever) while
 ltering to ensure maximum  ow rate.
FIELD PERFORMANCE TIPS
This product is designed to remove bacteria and protozoan cysts such as Giardia
and Cryptosporidium from water. To extend cartridge life, always use the best
available water source along with the Filter Protector. Read WARNING on the end
of the manual before using this product.
Maintain your Katadyn water system to keep it operating properly.
1. If Water Flow is Slow
Check Outlet Hose: Ensure outlet hose valve clamp is in the wide open
position, not pinching the hose whatsoever. Ensure outlet hose quick connect
is securely connected to the quick connect on the cap or water will not  ow
into outlet hose.
Clogged cartridge: A clogged cartridge requires cleaning and may require
replacement. As a solution in the  eld, screw cap counterclockwise from the
bag to expose the  lter cartridge and remove cleanable Filter Protector. Clean
Filter Protector by placing it on  at surface and clean with damp sponge or
fabric. Next, swish cartridge in water to remove any built-up sediment. Hold
at quick connector to avoid submerging the  lter in untreated water. If  ow
(Figure 4)

is not restored to desired level, replace cartridge with new Ultra Flow Filter
Cartridge.
Clogged Outlet valve: Unscrew cap counterclockwise from the bag. Then
screw the lter counterclockwise out of the cap. Swish cap in water to remove
any sediment from connection.
Add the output hose and ush the cap and the hose with clean water. If clean
water is unavailable, ush the system with the rst liter of treated water when
you start ltering water again.

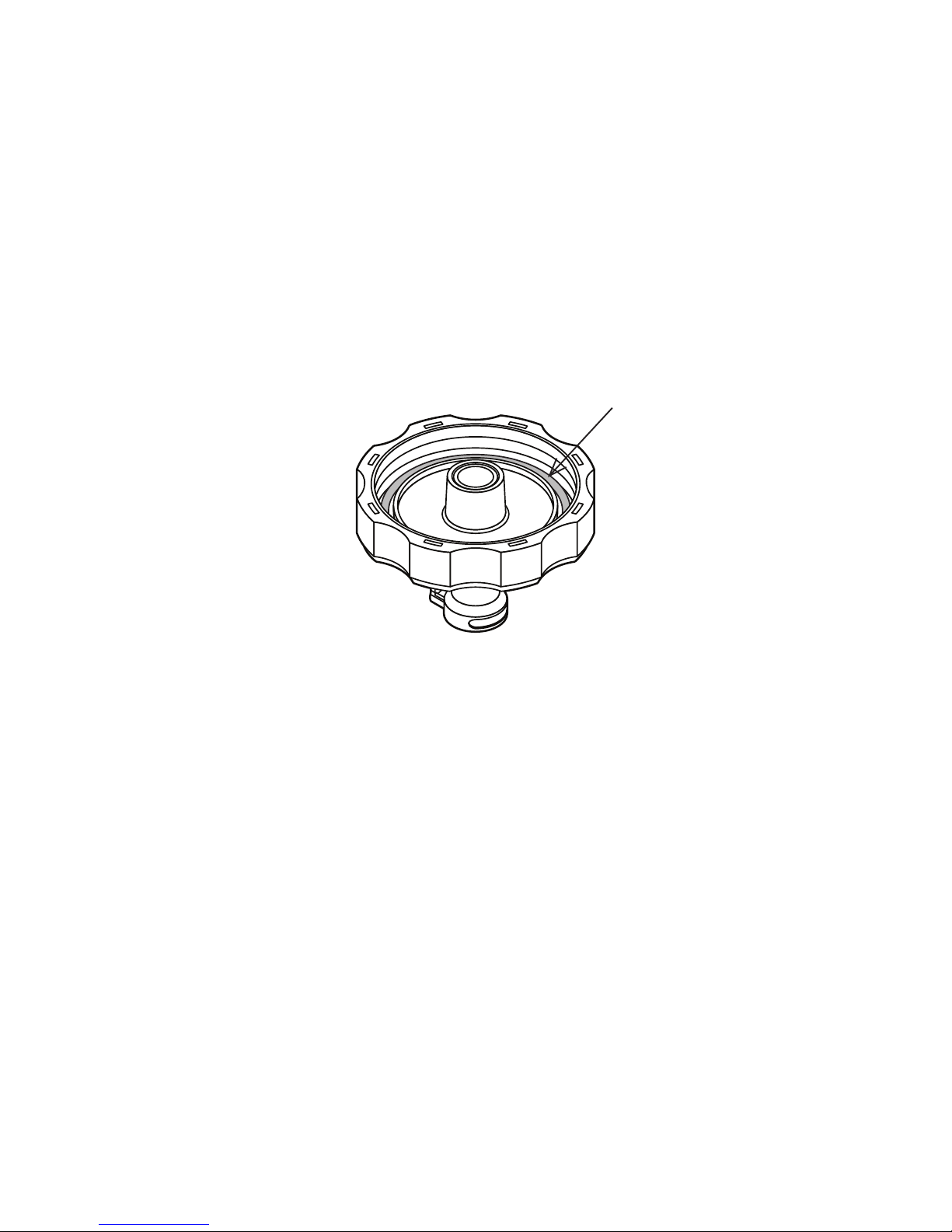

2. If System Leaks Near the Cap
Defective or missing seal: Unscrew cap counterclockwise from the bag. Check
if the white seal is still in place and not damaged. If not replace it (Figure 5).
LONG TERM STORAGE (AFTER YOUR TRIP IS OVER)
Disinfect your microfilter before storage to prevent microbiological growth
within the cartridge.
1. Fill a 2 liter container with tap water and add 4 Micropur MP1 Purication
Tablets or Micropur Forte MF 1T. (If not available use 4 drops of ordinary
household bleach.)
2. Pour solution into water bag.
3. Hang bag and allow the entire amount of solution to run through cartridge
(into sink or container) to disinfect lter, hoses, bag, etc.
4. Unscrew the lter cartridge and cap. Remove the lter protector and ush all
parts with clean water.
5. Allow the components to air dry completely before reassembling the lter.
6. Store all dry components inside the carry bag.
Note: When removing unit from long-term storage, ush the system with 2 liters of
water to remove any stale tasting water.
(Figure 5)
White Seal

EN
DE
FR
NL
DK
SWE
NOR
FIN
IT
ESP
POR
FILTER CARTRIDGE CAPACITY & REPLACEMENT
Cartridge capacity depends on water quality. To extend cartridge life, use lter
protector and clean it regularly. The Katadyn Gravity Camp 6L and Base Camp
Pro 10L were tested and found effective for removal of bacteria and protozoan
cysts like Giardia and Cryptosporidium. To keep the lter cartridge performing
at a high level, it should be replaced after 1500L or if water ow has stopped
(review Field Tips to ensure best product performance).
Replacement Cartridge Installation
Replacement cartridges (Ultra Flow Filter Cartridge) are available from the dealer
where you purchased your Katadyn Gravity Camp 6L or Katadyn Base Camp Pro
10L. Both the Gravity Camp 6L and Base Camp Pro 10L will allow a Hiker Pro
Replacement Cartridge or Siphon Ceramic Microlter Element to be used as well
(see sections in this manual for installation instructions). A manual is included in the
packaging of the Hiker Pro Replacement Cartridge or available in the download
area of www.katadyn.com.
To replace the Ultra Flow Filter Element:
1. Remove output hose and unscrew cap. Screw the cartridge counterclockwise
to remove. Do not grasp the cartridge around the pleated surface, since it
may damage the lter.
2. Rinse the inside of water bag with clear water (non-ltered water is ok).
Discard water. Wipe inside of water bag with soft cloth to remove sediment.
3. Insert new cartridge as described in Product Set-up step 2 (See Figure 2).
KATADYN HIKER PRO REPLACEMENT CARTRIDGE COMPATIBLE
The Katadyn Hiker Pro Replacement Cartridge (sold separately) is also compatible
with the Gravity Camp 6L or the Base Camp Pro 10L. This allows customers who
own the Hiker, Hiker Pro or old Base Camp to use the same cartridge in multiple
products. The Hiker Pro Replacement Cartridge has a carbon core which improves
WARNING
Before long-term storage, disinfect lter thoroughly to prevent growth of mold,
mildew and bacteria which could cause illness.
Do not use dishwasher or microwave to disinfect parts. Doing so will damage
or melt the parts from high heat.

the taste of the water and reduces chemicals.
(Note: the ow rate will be slower than the Gravity Camp 6L and Base Camp Pro
10L lter due to the carbon core - approximately 0.5 l per minute)
Install Filter Cartridge
Press cartridge into external threaded opening of bag until the o-ring can no
longer be seen. This may require some effort. A small amount of food grade,
water resistant multipurpose grease for rubber-elastic seals and plastic bearings
(e. g. BERUSIL FO 26) or Katadyn silicon grease on the cartridge o-ring will aid
the insertion.
Do not grasp the cartridge around the pleated surface, since it may damage the
lter. Attach threaded cap (sold separately) to the external threads of the bag and
turn clockwise to hold the cartridge rmly in place. Attach output hose to cartridge
output barb (Figure 6).
KATADYN SIPHON CERAMIC MICROFILTER COMPATIBLE
The Katadyn Siphon Ceramic Microlter (sold separately) is also compatible
with the Gravity Camp 6L or the Base Camp Pro 10L. Some customers prefer
the benets of our long lasting, cleanable ceramic lters. They are excellent for
extremely dirty/silty water, although the ow rate of the Siphon Ceramic Filter is
slower than the standard pleated lter in the Gravity Camp 6L and Base Camp
Pro10L (approximately 0.5 l per hour).
Installing Siphon Ceramic Filter Cartridge
Screw the cap clockwise on the external threads of the bag as far as it will go.
Screw cartridge clockwise inside cap as far as it will go. Connect the output hose
to cap by pushing the connector at hose into the cap connector until it clicks in
place (Figure 7).
8014644
8014782
(Figure 6)

EN
DE
FR
NL
DK
SWE
NOR
FIN
IT
ESP
POR
CAMP SERIES ACCESSORIES
Shower Adaptor Accessory (sold separately) - quickly and easily converts your
Gravity Camp 6L or Base Camp Pro 10L into a shower. Remove the  lter and
cap from your Gravity Camp 6L or Base Camp Pro 10L and install the Shower
Adaptor Cap in its place (Figure 8). Simply turn the window of the bag toward
the sun to warm up the water inside the bag prior to your shower. Always test the
water before showering to ensure it is not too hot.
Carbon Cartridge Post Filter (sold separately) - The carbon cartridge helps
improve the taste of the water and reduces chemicals. The Carbon Cartridge
is easily attached to the end of the output hose and acts as a bottle adaptor for
wide and small mouth water bottles and hydration bladders (Figure 9). It can also
be added in-line by splicing the output hose and installing the Carbon Cartridge
anywhere along the length of the output hose.
IMPORTANT! Before  rst use,  ush the Carbon Cartridge to remove harmless
carbon dust from the Post Filter. Fill bag with water. Connect the output hose valve
with the assembled cartridge to the connector at the cap. Open hose valve clamp
to begin water  ow. At the beginning the water will be black from the carbon
dust. This is normal when  ushing. Flush until the water is clear, but at least for
2 liters.
8019256
(Figure 7)
(Figure 8)

Kit Contains: Gravity Camp 6L or Base Camp Pro 10L water bag with
clear window and water level marks
Ultra Flow Filter Element 0.2 micron water  lter with
cleanable  lter protector
Filter Cap with On/Off quick connect valve
Output hose
Black quick connect to connect output hose to Filter Cap
White quick connect to connect to hydration systems
Black hose clamp shut off valve
Output hose bag
Storage bag
Sponge for easy cleaning
PRODUCT REGISTRATIONS & SPECIFICATIONS
PRODUCT REGISTRATION
Please take a moment to register your new Katadyn product by completing the
short product registration form online at www.katadyn.com/productregistration.
The information you provide will enable us to better serve you with products
developed to meet your needs and interests.
Register your Katadyn product online and you will be automatically entered
into a drawing to win a free Katadyn product. We will keep you informed of
new products from Katadyn, Optimus and our dehydrated food brands (see our
website for more details).
PRODUCT SPECIFICATIONS
8013450
(Figure 9)

EN
DE
FR
NL
DK
SWE
NOR
FIN
IT
ESP
POR
Flow Rate: Up to 2 l of water per minute
Filter Capacity: Up to 1,500 l, depending on water quality
Gravity Camp 6L
Weight:
290 g
Dimensions: 25 x 15 x 6 cm / 10 x 6 x 2.4 in
Base Camp Pro
10L Weight:
350 g
Dimensions: 27 x 15 x 7 cm / 10.6 x 6 x 2 in
PRODUCT WARRANTY
AntiClogTM GUARANTEE
ONE-YEAR FULL WARRANTY ON ULTRA FLOW FILTER CARTRIDGE
What is covered: Katadyn warrants your Ultra Flow Filter Cartridge to be free
from defects that cause the lter to clog as long as the product is used only with
untreated fresh water sources, such as lakes, rivers and streams.
How long does the coverage last: One year from the date you purchased your
Gravity Camp 6L or Base Camp Pro 10L Water Filtration System.
What Katadyn will do: If your lter clogs or you are unhappy with its ow rate
during the one-year full warranty period, Katadyn will send you a replacement
Ultra Flow Filter Cartridge free of charge.
LIMITED WARRANTY
2 YEAR LIMITED WARRANTY ON REMAINDER OF GRAVITY CAMP 6L OR
BASE CAMP PRO 10L WATER FILTRATION SYSTEM
What is covered: The remainder of your Gravity Camp 6L or Base Camp Pro
10L Water Filtration System is warranted to be free from defects in materials and
workmanship. This warranty is extended only to the original end-use purchaser or
the person receiving the product as a gift, and shall not be extended to any other
person or transferee.
How long does the coverage last: Two years from the date you purchased your
Gravity Camp 6L or Base Camp Pro 10L Water Filtration System.
What Katadyn will do: In the event of a defect in materials or workmanship within
the Two-Year limited warranty period, Katadyn will either repair or replace your
Gravity Camp 6L or Base Camp Pro 10L Water Filtration System, at Katadyn’s
discretion.

What Katadyn will not do: Pay shipping, insurance or transportation charges from
you to Katadyn, nor any import fees, duties and taxes.
WHAT THE KATADYN PRODUCT WARRANTY DOES NOT
COVER
The remedies provided in Katadyn’s One-Year Full Warranty and Two-Year Limited
Warranty shall be the user’s exclusive remedies for all claims arising from the
purchase, use or performance of Katadyn’s Ultra Flow Filter Cartridge and Gravity
Camp 6L or Base Camp Pro 10L Water Filtration System, including claims for non-
conforming or defective goods. Katadyn expressly disclaims and excludes from
its warranties, and shall not be responsible for, any incidental or consequential
damages arising out of the purchase, use or performance of its Ultra Flow Filter
Cartridge or Gravity Camp 6L or Base Camp Pro 10L Water Filtration System.
WHAT YOU SHOULD DO TO GET COVERAGE
To receive coverage under Katadyn’s Product Warranty, please return your Ultra
Flow Filter Cartridge or Gravity Camp 6L or Base Camp Pro 10L Water Filtration
System to the retailer from whom it was purchased for repair or replacement. If
you are not completely satised with the service you receive from your retailer,
call Katadyn Customer Relations for service assistance. Please retain purchase
receipt as proof of date purchased. This limited warranty gives you specic legal
rights and you may have other legal rights, which may vary from state to state or
country to country.
CONTACT INTERNATIONAL
Katadyn Products Inc.
Pfäfkerstrasse 37
8310 Kemptthal
Switzerland
Phone: [phone]
[email protected]

Contact International
Katadyn Products Inc.
Pfäfkerstrasse 37
8310 Kemptthal
Switzerland
Phone: [phone]
[email protected]
Log on to our website to learn more about our full line of products
including Katadyn, Optimus Stoves and Trek’n Eat Foods.
www.katadyn.com
www.optimusstoves.com
www.trekneat.com
Print No. 8019380/0
