Kathrein FCM 100 User manual

1
1
User Manual
FCM 100 2220000010
CO Detector

2
Introduction
Thank you for purchasing the KATHREIN Digital Systems GmbH CO detector. Please
take the time to read the following safety and installation information carefully and
attentively before using the CO detector. It is imperative to comply with these
instructions in order to ensure the safe operation of the device. If you have any further
questions, please contact your local retailer or KATHREIN Digital Systems GmbH
directly. Your CO detector was developed and built with state-of-the-art technology
and complies with European and German standards.
Please keep this manual safe to be able to answer possible questions in the future.
The manual is an integral part of the product even in case it is resold to a third party.
Disclaimer
All technical details and descriptions in this manual were compiled with the greatest
care. However, KATHREIN Digital Systems GmbH cannot entirely exclude mistakes in
this manual. Therefore, we do not assume any legal responsibility or liability resulting
from wrong information in this manual. Descriptions, technical illustrations and
technical data are subject to change without notice according to technical progress.
In addition, KATHREIN Digital Systems GmbH reserves the right to change the product
and the manual without prior notice. We do not assume any guarantee with regard to
the content of this document. We appreciate any comments on mistakes or
inaccuracies which may help us to improve this product and this manual.

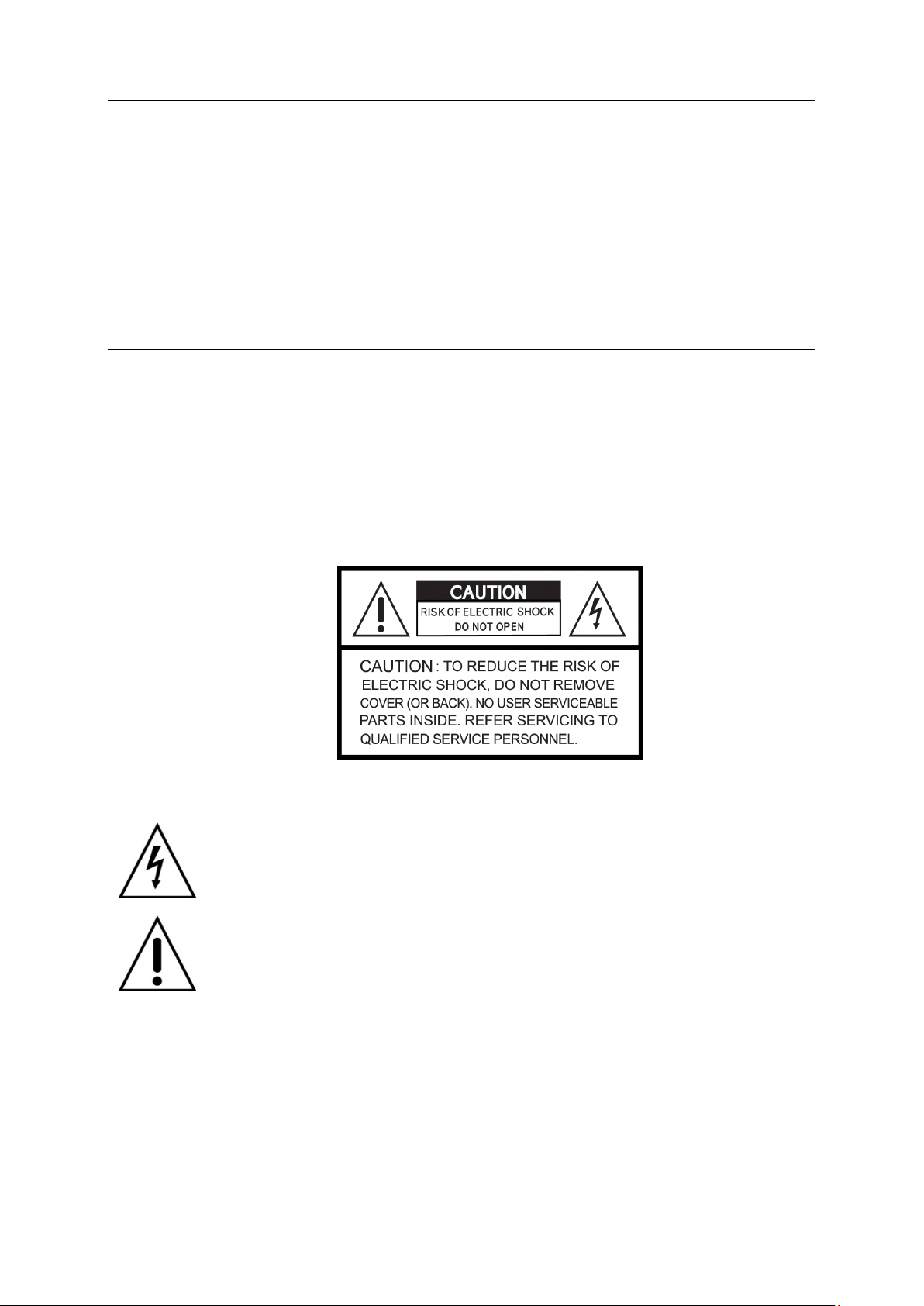

This symbol is intended to attract the user’s attention to the potential
risk of dangerous unprotected voltage inside the housing. This may
lead to electric shock.
This symbol is intended to attract the user‘s attention to user and
maintenance instructions in the manual and documents enclosed
with the product.

3
WARNING:
TO MINIMISE THE RISK OF ELECTRIC SHOCK, YOU MUST NOT EXPOSE THIS PRODUCT
TO WET AND MOIST CONDITIONS AT ANY TIME.
All KATHREIN Digital Systems GmbH products are lead-free and meet
the requirements stated under the European Directive on the
Restriction of Hazardous Substances (RoHS). This guarantees that
the entire production process and the product itself are free of lead
and of all listed hazardous substances.
This product was tested and complies with the regularities for a class
of
digital devices stated under FCC part 15. These limits were
specified to provide reasonable protection against harmful exposure
when operating the device in a commerci
al environment. This
product generates, uses and
may emit radio energy. It may in
addition interfere with other radio
communication systems if not
installed or used according to this manual.
Using the device in
residential areas may cause disturbances to be possibly remedied at
the user’s expense.
Hereby KATHREIN Digital Systems GmbH declares that the CO
detector FCM 100 (order number 2220000010, EAN 4021121548871) is
in conformity with the relevant provisions of Directive 1999/5/EG.
Conformity:
The declaration of conformity is available at http://www.kathrein-ds.com in
the download section of the respective product. Alternatively, you can
request the declaration of conformity directly from us:
KATHREIN Digital Systems GmbH
Anton-Kathrein-Str. 1–3
83022 Rosenheim, Germany

4
Important Safety Information
WARNING
The warranty claim will expire in case of damages resulting from the
non-observance of this manual.
We do not assume any liability for consequential damages.
We do not assume any liability for damages to persons and/or
material whatsoever which result from improper handling or
noncompliance with the safety instructions. The warranty claim
will expire in such cases!
The CO detector FCM 100 is equipped with a high-quality housing. However, please
observe the following safety instructions:
•Do not open the housing of the FCM 100. Opening it is dangerous for you
and others and will result in the expiration of any warranty claims.
•Operate the CO detector only with the provided batteries.
•Handle the CO detector with care, heavy vibration or bumps may damage
the device.
•Do not expose the CO detector to direct sunlight or strong heat, e.g.
heaters.
•Do not install the CO detector close to strong electric power lines or
magnetic fields, as this may impair the transmission quality significantly.
•Do not install the CO detector directly on iron or aluminium surfaces, as
this may impair the wireless transmission significantly. Use a non-
conducting material to insulate the device from the installation surface.
•Do not install the CO detector in moist, very cold or very hot environments.
Please observe the maximum humidity and temperature limits (-10 °C to
+45 °C (14 °F to 113 °F), maximum 85% relative humidity).
•Persons (including children) with limited physical, sensory or mental
abilities and/or lacking experience and/or knowledge must not use this
product.
•Keep children away from the product and other connected electrical
appliances at all times. The CO detector includes small parts they can
swallow. Lay cables expertly so that they are neither bent nor otherwise
damaged. Install the CO detector out of children’s reach. Do not leave
packaging materials unattended, as they may be dangerous for playing
children.
•Use a damp cloth to clean the CO detector’s surface, then dry it. Cleaning
agents will damage the surface.

5
Malfunctions and Defects
If you notice any kind of defect, remove the batteries from the CO detector FCM 100
and contact your retailer or KATHREIN Digital Systems GmbH directly. Any further
usage of the system may lead to fire or electric shock!
Intended Use
The KATHREIN Digital Systems GmbH CO detector detects the highly toxic carbon
monoxide gas. Install the CO detector FCM 100 indoors only. Any other use than that
described in this manual is not permitted and will void any warranty or guarantee as
well as liability claims. The same applies if the device is modified or retrofitted.
Disposal
Do not dispose of the device with domestic waste!
This product complies with the EU Directive on waste electrical and
electronic equipment (WEEE) and therefore must not be disposed of
with domestic waste. Dispose of the device via your local collection
point for waste electronic equipment!
This product contains software programs subject to the GPL free software license.
This product contains software that was developed by third parties and/or software
subject to the GNU General Public License (GPL) and/or the GNU Lesser General
Public License (LGPL). We will send you the source code of these programs on request.
The GPL and/or LGPL code used and offered in this product is EXCLUSIVE OF ANY
GUARANTEE WHATSOEVER and is subject to the copyright of one or several authors.
For further details, please refer to the GPL and/or LGPL code of this product and to
the terms of use of GPL and LGPL.
You can read the complete license text at http://www.gnu.org/licenses/gpl-2.0.html.
For an unofficial German translation, please go to
http://www.gnu.de/documents/gpl.de.html.

6
CO Detector FCM 100
Product description:
The CO detector is a sensor that detects the highly toxic carbon monoxide gas and
reports reliably and promptly to the alarm panel whenever the natural level is
exceeded, which triggers the alarm accordingly. The CO detector is battery-operated
and communicates wirelessly with the alarm panel. Cables for signal transmission or
power supply are NOT required.
Sensor data:
Dimension: 130 x 100 x 41 mm (5.11 x 3.93 x 1.61 in)
Weight: 280 g (0.51 lbs)
Place of installation: Only indoors
Operating temperatures: -10 °C to +45 °C (14 °F to 113 °F)
Humidity: Maximum 85% (non-condensing)
Radio frequency: 868.6375 MHz
Certification: DIN EN50291
Detection method: Electromechanical CO detector
Internal siren: 85 dB / 1 m distance
1. Two colour LED
•Flashes yellow: low battery
•2 x red + 2 beeps: transmission
•Flashes red: Alarm
2. Learn button
•Activates the learn and range mode
•Deactivates alarm
Battery:
The CO detector requires three 1.5 V AA batteries. The average battery life is two years.
The CO detector will inform the alarm panel when the batteries are running low (about
two months before they are empty).
Connecting the CO detector and putting it into operation
1. Insert the supplied batteries.
2. After their insertion, the CO detector emits two short beeps and the LED
lights up once in red.
3. Close the housing.
4. Open the configuration page of the alarm panel, open the menu “Sensors” 
“Add”, and press “Start”.
5. Press the Learn button of the CO detector for about one second.
6. The configuration page of the alarm panel should list the CO detector.
7. Add the CO detector.

7
Range test:
To test the signal strength at the desired installation location, perform a range test.
1. Open the alarm panel menu “Sensors” “Range” and press “Start”.
2. Press the Learn button of the CO detector.
3. The sensor and the signal strength should be indicated. The higher the
indicated number the better the reception (1 – 9).
4. Click “Stop” to end the test.
Please note:
If there is no signal at the installation location or the signal strength is below 4 or
frequently falls below this level (signal fluctuations of 2 to 3 are normal), we
recommend using a repeater to improve the signal.
Notes:
•The CO detector reports exclusively an unnatural concentration of carbon
monoxide.
•We recommend installing the CO detector at a height of approx. 1.5 meters
(4.92 feet), as carbon monoxide weighs about as much as air and is evenly
distributed in the room.
•You can test the CO detector e.g. by means of cigarette smoke.
•The CO detector has a limited service life due to the electromechanical
detection method and should be replaced by a new model every five years.

8
For your notes
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
