Kawai Stage Piano MP8 User manual

Kawai Musical Instruments
Manufacturing Co., Ltd.
Manufacturing Date August 2005
MP8
Service Manual
PROFESSIONAL STAGE PIANO
SE985E-S0509

– 2 –
■Contents
Specifications................................................................... 3
Hardware List ................................................................... 4
Opening Procedure ......................................................... 5
Case Assembly ................................................................ 6
Panel Assembly ............................................................... 7
Keyboard Unit (WK88 Type) ............................................ 8

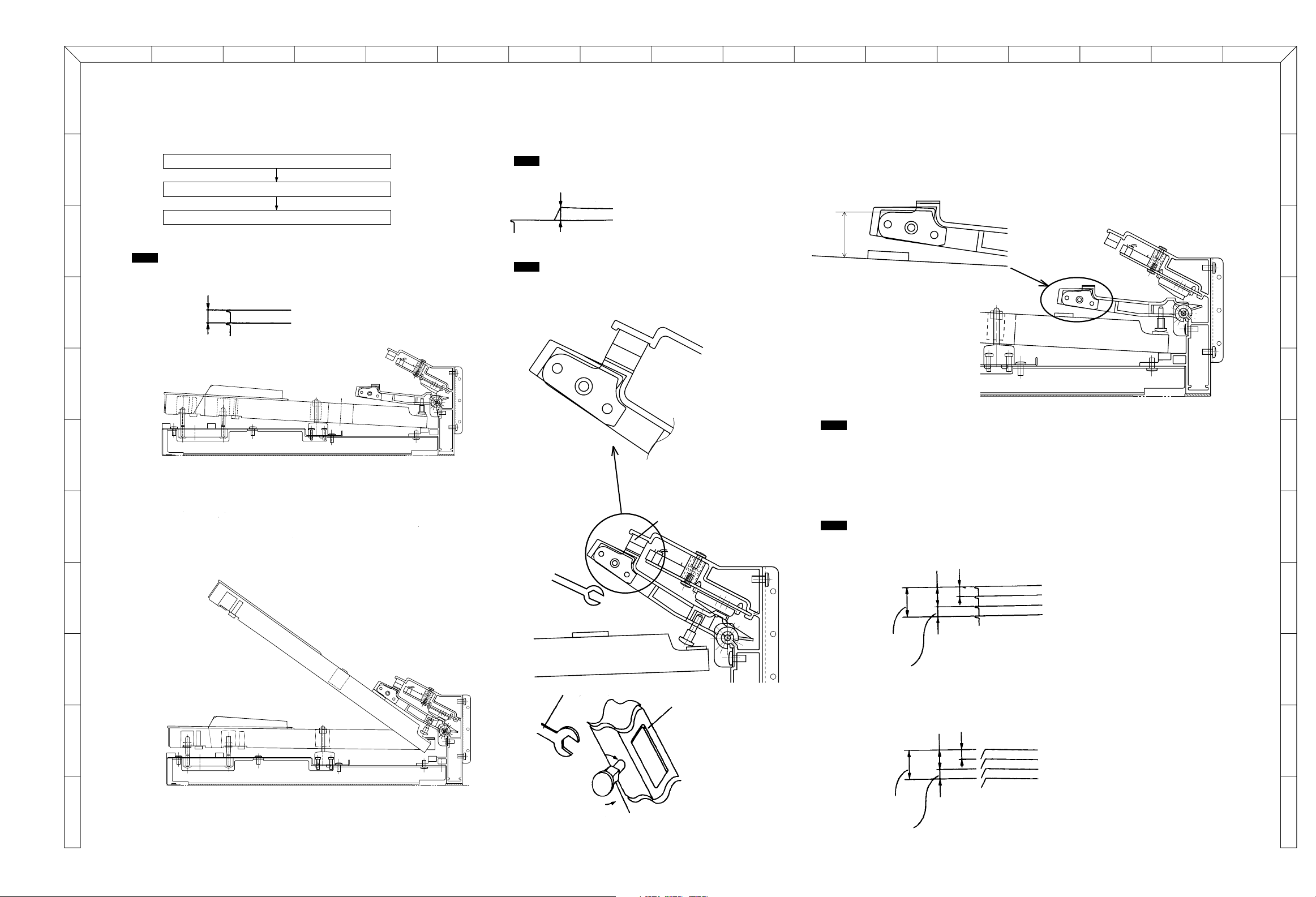

Keyboard Disassembling Procedure ............................... 9
Electrical Parts List ........................................................ 11
P.W.B. KEP-191(1) Assembly Parts List ........................ 12
P.W.B. KEP-179~185(2) Assembly Parts List ................ 13
P.W.B. KEP-186~189 (4) (5) (6) Assembly Parts List ... 14
P.W.B. KEP-099 (3) Assembly Parts List ....................... 16
Cable Wiring Specification............................................. 17
Block Diagram................................................................ 18

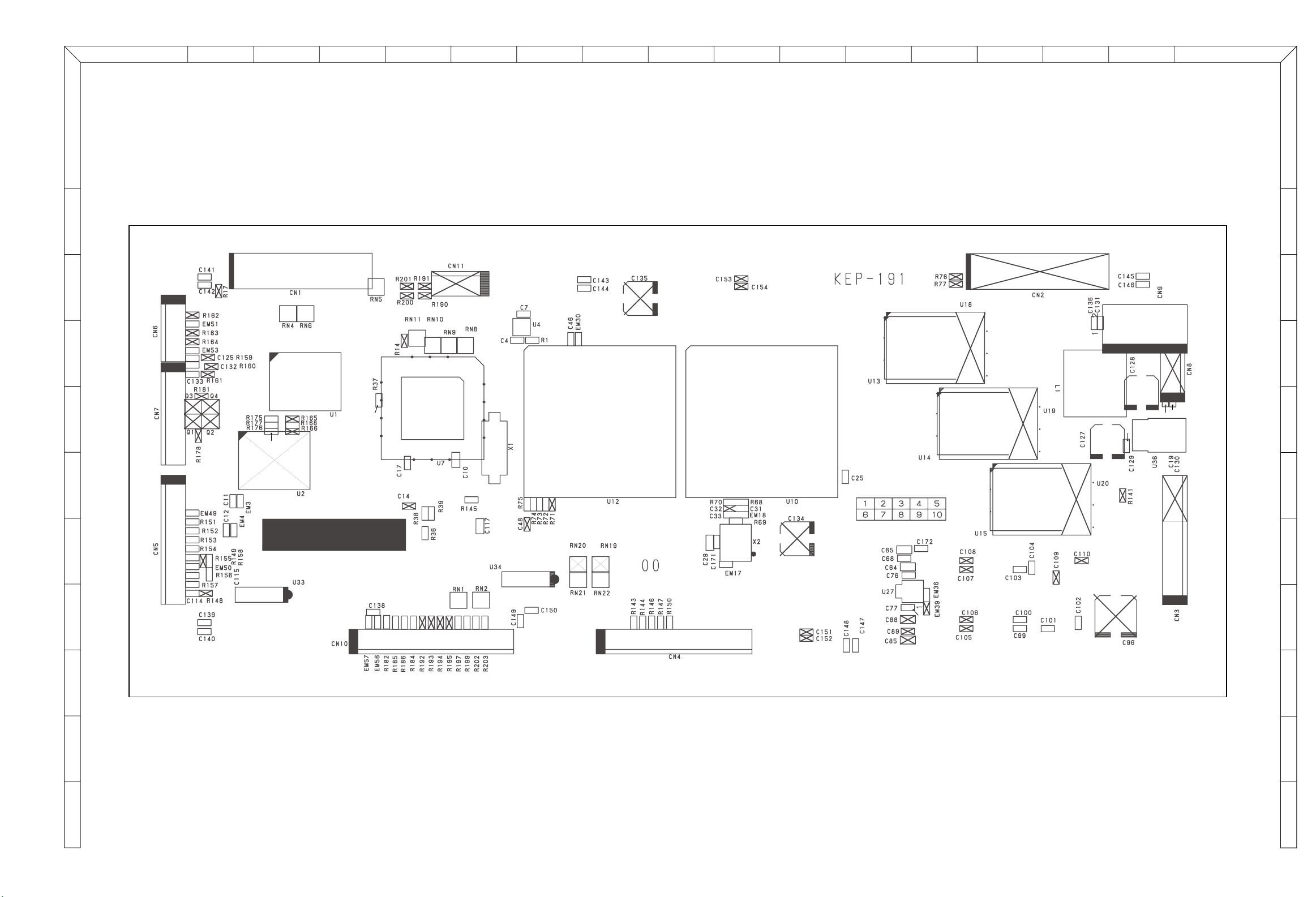

P.W.B. KEP-191 (1) Assembly [TOP] ............................. 19

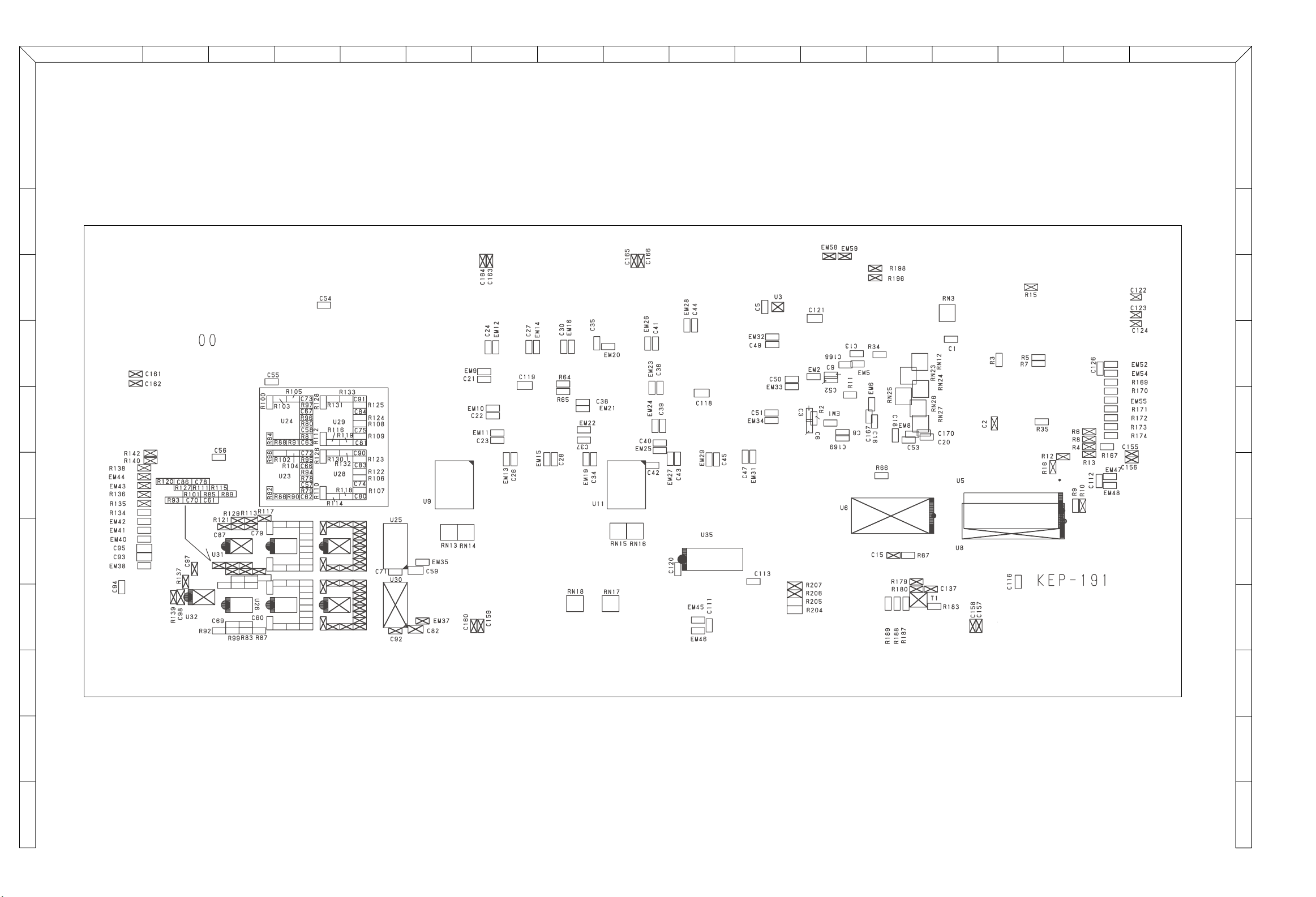

P.W.B. KEP-191 (1) Assembly [BACK] .......................... 20

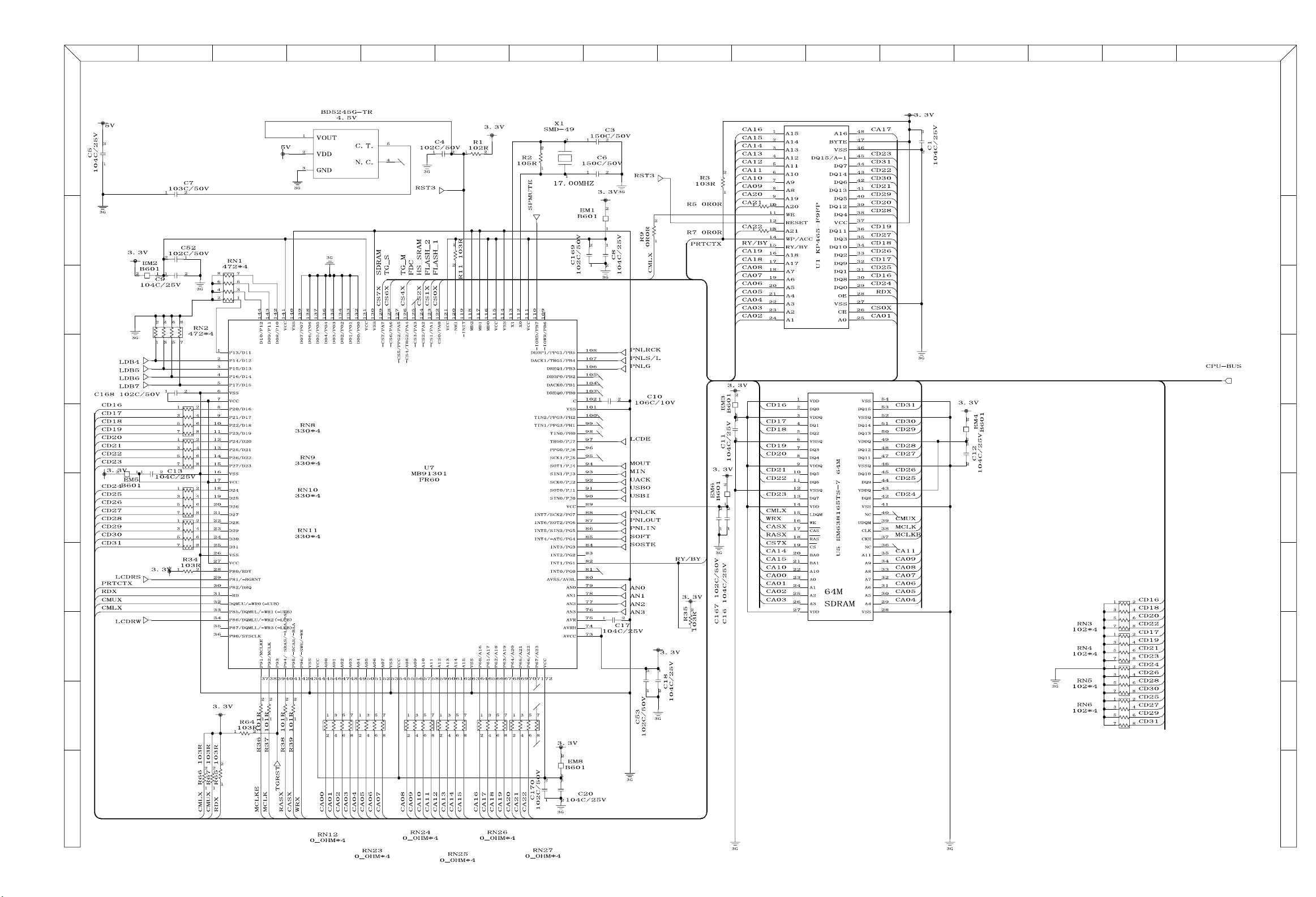

P.W.B. KEP-191 Circuit 1/6 ............................................ 21
P.W.B. KEP-191 Circuit 2/6 ............................................ 22
P.W.B. KEP-191 Circuit 3/6 ............................................ 23
P.W.B. KEP-191 Circuit 4/6 ............................................ 24
P.W.B. KEP-191 Circuit 5/6 ............................................ 25
P.W.B. KEP-191 Circuit 6/6 ............................................ 26
P.W.B. KEP-179-185 (2) Assembly ................................ 27
P.W.B. KEP-179-185 Circuit 1/2 .................................... 28
P.W.B. KEP-179-185 Circuit 2/2 .................................... 29
P.W.B. KEP-186-189 (4) Assembly ................................ 30
P.W.B. KEP-186-189 (5) Assembly ................................ 31
P.W.B. KEP-186-189 (6) Assembly ................................ 32
P.W.B. KEP-186-189 Circuit 1/3 .................................... 33
P.W.B. KEP-186-189 Circuit 2/3 .................................... 34
P.W.B. KEP-186-189 Circuit 3/3 .................................... 35
P.W.B. KEP-099 (3) Assembly ....................................... 36
P.W.B. KEP-099 Circuit .................................................. 37
P.W.B. KKB-008 Circuit .................................................. 38
Key Switch Matrix .......................................................... 39

– 3 –
■Specifications
* Specifications are subject to change without notice.
88 Keys with AWA Grand PRO Wooden-Key Action
192 Voices
Harmonic Imaging Technology
256 Sound
Piano (28), Harpsichord (4), E. Piano (20), Clavi (4), Mallet (8), Drawbar (32), Organ (28),
Accordion (4), Strings (20), Vocal (12), Brass (32), Pad&Synth (32), Bass (12), Guitar (16),
DrumKit (4)
256 Setup Memories
4 Band (±12dB)
Plate, Hall 1, Hall 2, Stage 1, Stage 2, Room 1, Room 2
Chorus, Flanger, Celeste, Ensemble, Delay 1, Delay 2, Delay 3, Delay 4, Auto Pan 1, Auto
Pan 2, Tremolo 1, Tremolo 2, Phaser 1, Phaser 2, Rotary 1, Rotary 2, Auto Wah, Pedal Wah,
Enhancer, Overdrive (* It is selected to each 4 zones)
Panel Lock (On/Off), Touch Curve (On/Off), Rotary Speed (Slow/Fast), EQ Bypass (On/Off),
Wheel Lock (On/Off), FSW Lock (On/Off), EXP Lock (On/Off), External Seq (Start/Stop)
16 Character x 2 line; Backlit LCD
Pitch Bend, Modulation
Master Volume, 4 Zone Volumes
4 Knobs
EFX rate, EFX depth, REV time, REV depth
Lo, Mid Lo, Mid Hi, Hi
Cutoff, Attack, Decay, Release
A, B, C, D (assignable) [External] CC# 0~119
[Internal] Pan, Expression, Sustain, Resonance, Vib rate, Vib depth, Vib delay, Chorus depth
Damper/Soft Pedal, Footswitch (assignable), Expression (assignable)
4Zones
Internal, External, Both (Internal + External)
8 Sections Edit
Master Volume, Expression CC#, Footswitch CC#, Temperament (7 Historical + User),
Stretch, Sound Select (TX Ch/Bank#/PC#), Damper Effect, String Resonance, Voicing, Key
Range Hi, Key Range Lo, Velocity SW, Velocity Comp./Offset, Zone Transpose, Volume, Pan,
Fine Tune, Damper (On/Off), Foot SW (On/Off), Exp Pedal (On/Off), Modulation (On/Off),
Bender (On/Off), Bender Range, Solo (On/Off), Solo Mode
Current, All
Tempo, Volume
Heavy+, Heavy, Normal, Light, Light+, Off, User1, User2
Hi, Lo
Stereo, 2 x Mono
XLR output with Grand Lift SW (L,R), 1/4 inch output (L/Mono, R), Headphones,
MIDI (In, Out,Thru), USB (MIDI interface)
1466 x 442 x 189 mm (58" x 17" x 7")
35 kg (77 LB's)
Music Rack, Power Cable, Damper/Soft Pedal (F-20), Owner's Manual
Keyboard
Max. Polyphony
Sound
Setup
EQ
Reverb
Effects
SW
(Assignable function)
Display
Wheels
Sliders
Knob Control
Effect
EQ
Tone Modify
MIDI CC#
Pedal Sockets
Zone
Zone Modes
Menu Parameters
Common
Section
Setup Data Dump
Metronome
Touch Curves
LED Brightness
Output Modes
Sockets
Dimensions
Weight
Accessories

– 4 –
+Binding Head +Binding Head Machine Screw
with External Tab Washer
P-TiteB-Tite S-TiteMachine
+Truss Head
+Oval Countersunk Head +Pan Head
Machine MachineTapping #1Tapping #1
External
Tab
Washer
■Hardware List
No. Type Size Remarks
1 +Binding Head Machine Screw M2.6 x 4
2 +Binding Head Machine Screw M3 x 6, 8
3 +Binding Head Machine Screw M4 x 8 Black Chromating
4 +Binding Head Machine Screw with External Tab Washer M4 x 8
5 +Binding Head/S-Tite 3 x 6
6 +Binding Head/S-Tite 3 x 8 Black Chromating
7 +Binding Head/S-Tite 4 x 8 Black Chromating
8 +Binding Head/B-Tite 3 x 6, 8, 12
9 +Binding Head/P-Tite 3 x 10 Black Chromating
10 +Truss Head Tapping #1 4 x 14, 16
11 +Truss Head Machine Screw M4 x 16
12 +Truss Head Machine Screw M4 x 20, 25 Black Chromating
13 +Truss Head Machine Screw M5 x 25 Black Chromating
14 +Pan Head Machine Screw M5 x 25 w/Washers
15 +Oval Countersunk Head/Tapping #1 3 x 10 Black Chromating
16 Plain Washer 3, 4, 7, 9 mm
17 Volume Nut M9, M12
18 Hexagon Nut M7

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 234567891011121314151617
– 5 –

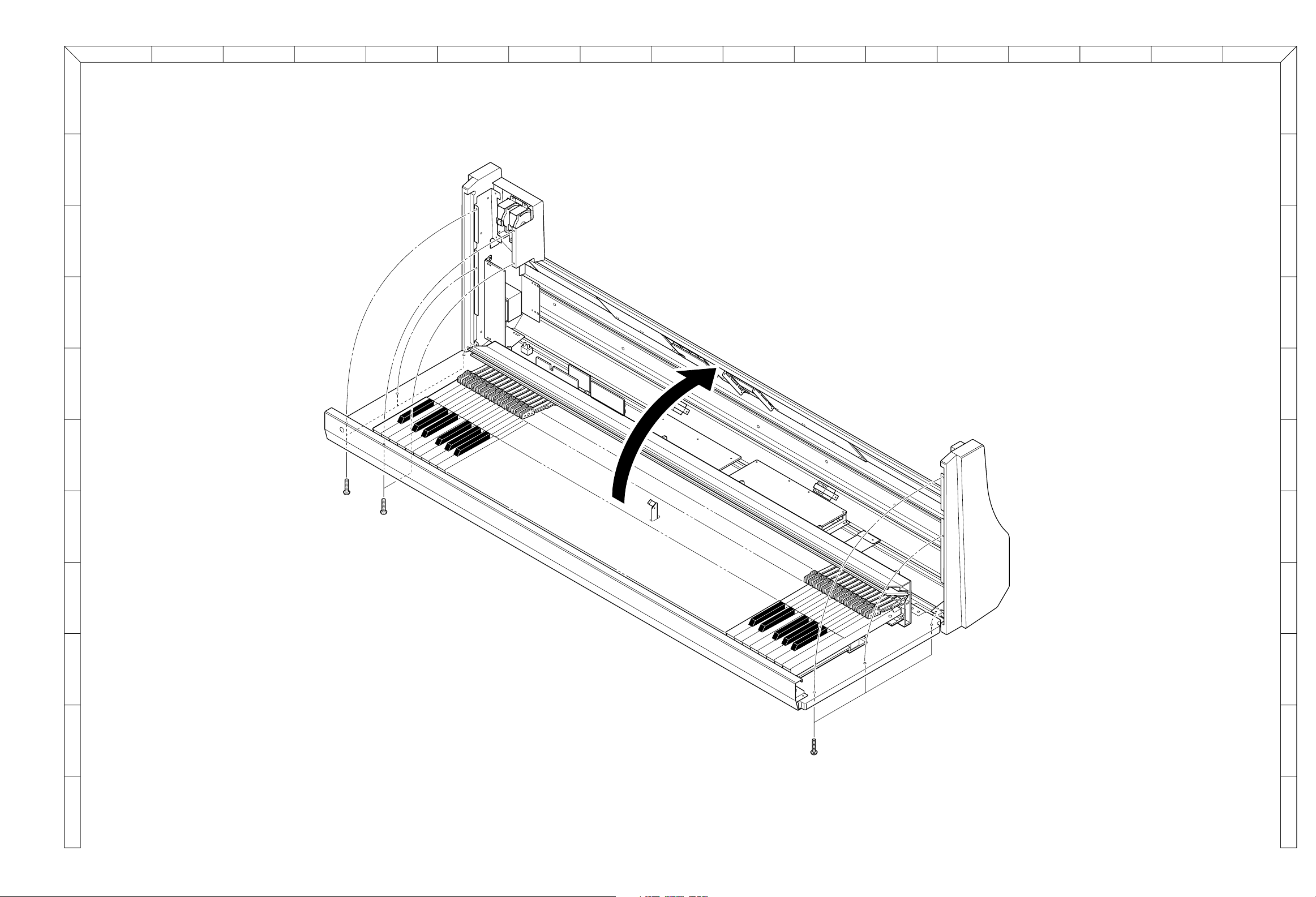

■Opening Procedure
M5 x 25 Q'ty 8
+Truss Head Machine Screw

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 234567891011121314151617
–6 –
■Case Assembly
12
14
13
Screws
(4x16)
Screws
(4x14)
Screws
(4x14)
Screws
(3x8)
Screws
(3x8)
3
2
M4x25
M5x25
M5x25
M5x25
M5x25
M4x20
M4x20
M5x25
Screws
(4x16)
Screws
(4x16)
Screws
(4x16)
Screws
(4x16)
Screws
(4x16)
Screws
(M4x16)
Screws
(M4x16)
Screws
(M4x16)
Screws
(M4x16)
Screws
(4x8)
Screws
(3x6)
M4x25
M4x25
KEP-185
4
2
2
Screws
(3x6)
Volume Nut
(M12)
27
27
27
27
5
6
28
Screws (3x8)
Washer (M3)
8
9
15
16
Screws
(4x14)
Screws
(4x14)
Screws
(M4x8)
Screws
(M4x8)
Screws
(M3x6)
Screws
(3x8)
Screws
(M3x6)
Screws
(M4x8)
Screws
(3x8)
Hexagon Nut
(M7)
Washer
(M7)
26 25
26
25
24
17
20
21
KEP-181
KEP-179 KEP-180
KEP-182
LCD
KEP-191
KEP-186
KEP-187
KEP-189
KEP-183
KEP-188
KEP-099
24
23
23
Screws
(3x12)
Screws
(3x8)
Screws
(3x12)
Screws
(M3x8)
Screws
(M3x8)
Volume Nut
(M9)
Screws (3x6)
Screws
(M3x6)
Screws (3x8)
Screws
(3x8) Screws
(3x8)
Screws
(3x8)
Screws
(3x8)
Screws
(3x8)
Screws
(3x8)
Screws
(M2.6x4)
Washer
(M9)
18
Screws
(3x10)
Screws
(3x10)
Screws
(3x10)
Screws
(3x8)
Screws
(3x8)
Screws
(4x8)
Screws
(4x8)
Screws
(4x8)
Screws
(4x8)
Screws
(3x6)
Washer
(M4)
11
22
7
15
1
19
No. Code No. Name Description Q'ty
1 944490 Key Bed 1
2 812626 Rubber Foot with Washer 5
3 948344 Key Slip Assy. 1
4 948257 Headphone Fitting 1
5 944500 EMI Spring Fitting 1
6 815082 EMI Spring 1
7 263352 Arm Assembly (L) 1
8 948345 Arm (L) 1
9 948347 Arm Bracket (L) 1
10 948350 Cheek Block (L) 1
11 263351 Arm Assembly (R) 1
12 948346 Arm (R) 1
13 948348 Arm Bracket (R) 1
14 948349 Cheek Block (R) 1
15 263353 Wheel Assembly 1
16 948351 Power PWB Fitting 1
17 948352 Front Panel 1
18 948353 Rear Panel 1
19 939885 Rotary Volume Fitting 1
20 948223 LCD Fitting (L) 1
21 948224 LCD Fitting (R) 1
22 815083 Keyboard Felt (Dark Blue) 1
23 932975 PCB Fitting 4
24 804041 Spacer 6
25 810030 Music Rack Stopper 2
26 944485 Music Rack Stopper Fitting 2
27 813590 Hinge 4
28 812765 Stopper Sheet 1

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 234567891011121314151617
–7 –
■Panel Assembly
