INSTALLATION INSTRUCTIONS

LTSIU_F-6120_091118

Luminaires for Tunnel Applications

LUXTRAN™

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions

should always be followed, including the following:

THIS PRODUCT MUST BE INSTALLED IN

ACCORDANCE WITH THE APPLICABLE

INSTALLATION CODE BY A PERSON FAMILIAR

WITH THE CONSTRUCTION AND OPERATION OF

THE PRODUCT AND THE HAZARDS INVOLVED.

CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE

CODE D’INSTALLATION PERTINENT, PAR UNE

PERSONNE QUI CONNAÎT BIEN LE PRODUIT ET

SON FONCTIONNEMENT AINSI QUE LES RISQUES

INHÉRENTS. DISCONNECT POWER TO ALL CIRCUITS

BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH

ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT

TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS

AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.

SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE

FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING

ORIENTATION, OR MOUNTING RESTRICTIONS.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

LTSIU SERIES

The LuxTran LTSIU series luminaires contains sensitive electronics. Take care to avoid damage by improper

handling or static electricity discharge (ESD). Either type of damage could render the system inoperable or cause

latent failure.

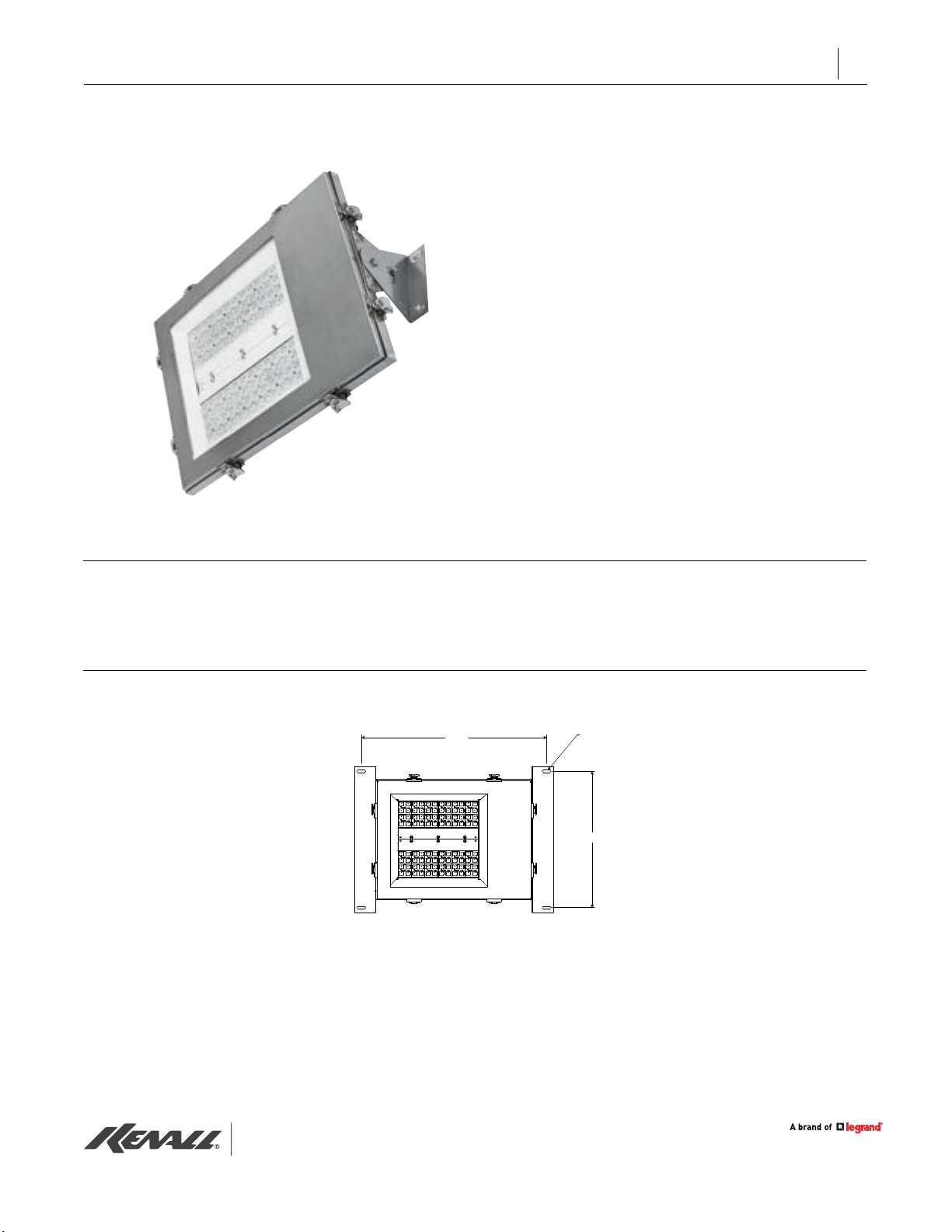

1. Secure xture to wall or ceiling using user supplied hardware. 3/8 × 1-3/8 slots in mounting brackets are

provided. See Figure 1.

.37" x 1.37"

OBROUND (4X)

27.75

20.39

2. Connect electrical service:

Black- Input line

White- Neutral

Green- Ground

NOTE: If the xture has directional optics, note the label indicating the direction of light and install appropriately.

Figure 1
