kENDALL
Electronic Thermometer
Operating Manual
Thermomètre électronique - Manuel de fonctionnement
Elektronisches Thermometer - Bedienungsanleitung
Termometro elettronico - Manuale d’uso
Termómetro electrónico - Manual de funcionamiento
Elektronisk termometer - Bruksanvisning
Elektronische thermometer - Gebruiksaanwijzing
Termómetro Electrónico - Manual de utilização
Elektroninen lämpömittari - Käyttöopas
Elektronisk termometer - Brugervejledning
Ηλεκτρονικό θερμόμετρο - Εγχειρίδιο λειτουργίας
Elektronický teploměr - Návod k obsluze
Elektronikus hőmérő - Működtetési kézikönyv
Электронный термометр - Руководство по эксплуатации
Termometr elektroniczny - Instrukcja obsługi
Elektronik Termometre - Çalıştırma Kılavuzu
Elektronisk termometer - Brukerhåndbok
3000AD/ADA
0123

3000AD/ADA
Electronic Thermometer
TABLE OF CONTENTS
SECTION PAGE
I. About Body Temperatures................................................................................................................................................. 1
II. General Information ............................................................................................................................................................ 1
III. Safety and Warnings ........................................................................................................................................................... 2
IV. Icon Identification................................................................................................................................................................ 2
V. Instructions For Use............................................................................................................................................................. 4
Probe Covers —Applying & Removing.......................................................................................................... 4
Changing Isolation Chambers and Probes.................................................................................................... 4
Oral & Axillary Temperature Taking................................................................................................................ 5
Rectal Temperature Taking............................................................................................................................... 5
Direct Mode .......................................................................................................................................................... 6
Quick Mode .......................................................................................................................................................... 6
Cold Mode ............................................................................................................................................................ 6
Recall Last Temperature .................................................................................................................................... 6
Pulse Timer Mode................................................................................................................................................ 6
Bio-Tech Mode (Option Configuration Menu) ............................................................................................. 7
VI. Cleaning and Sterilization.................................................................................................................................................. 9
VII. Battery Replacement / Installation.................................................................................................................................. 9
VIII. Mounting Instructions ........................................................................................................................................................ 9
IX. Anti-Theft Features & Options .......................................................................................................................................... 9
X. Troubleshooting.................................................................................................................................................................10
XI. Specifications ...................................................................................................................................................................... 10
XII. Customer Service ...............................................................................................................................................................11
XIII. Warranty...............................................................................................................................................................................13
This product contains software solely owned by Tyco Healthcare Group LP. Tyco Healthcare Group LP grants the user a non-exclusive, limited
license to use the software according to the operating instructions. A copy of the license can be obtained from Tyco Healthcare Group LP.
ENGLISH

1Electronic Thermometer
3000AD/ADA
I. ABOUT BODY TEMPERATURE
It is a common myth that 98.6°F (37°C) is the “normal body temperature.” The truth is that 98.6°F (37°C) is an average body
temperature. Normal body temperature is actually a range that varies with age, gender, and measurement site. Body temperatures
also fluctuate through out the day, typically cooler temperatures in the morning, warmer in the afternoon, and cooling down again in
the evening. Other factors that can influence body temperature are: the patient’s recent level of activity, metabolism rate, or
medications. Normal body temperatures also tend to decrease with age.
Please see the chart below for normal temperature ranges by patient age and site. Readings from different body sites, even when
taken at the same time, should not be directly compared; body temperatures will vary by site.
References:
Chamberlain, J, Terndrup, T., et al. (1995) Determination of Normal Ear Temperature with an Infrared Emission Detection Thermometer. Annals of Emergency
Medicine, Volume 25, Issue 1, Pages 15-20
Braim. S., Preston, P., and Smith, R. (1988) Getting a better read on thermometry. RN. 1998 Mar; 61(3):57-60
Munk, P, Woods, S, Leduc, D., et al Canadian Paediatric Society Statement; Temperature Measurement in Paediatrics; Paediatric Child Health Vol 5 No 5: July/
August, 2000
Brunner, L. and Suddarth, Dl, et.al. (1982) The Lippincott Manual of Nursing Practice, Third Edition; J. B. Lippincott Company, Philadelphia, PA; 1982; p.1145
Houdas, Y. and Ring, E. F. J.. Human Body Temperature, Its Measurement and Regulation; Plenum Press, NY, 1982; p.81-87.
II. GENERAL INFORMATION
1. The FILAC
TM
3000 electronic thermometer is a fast, highly accurate, and easy to use clinical instrument for measuring patient
temperatures by Oral, Axillary or Rectal means.
2. The electromagnetic compatibility of this device has been verified by test according to the EN60601-1-2:2005 requirements.
3. This device requires no user maintenance other than periodic cleaning and replacement of expired batteries.
Features
• Fasttemperaturemeasurements
Standard Mode - 6-10 second oral, 10-15 second axillary/rectal
Quick Mode - 3-4 second oral, 10-15 second axillary/rectal
Cold Mode - 12-15 second oral, 15-20 second axillary/rectal
• Measurementrange:30°Cto43°C(86°Fto109°F)
• PushbuttonalternatesCelsius/Fahrenheitscale
• Audibleindicationofcompletion(“beep”sound)
• Interchangeable,color-codedisolationchamberswithmatchingprobes.
Helps keep probe covers and probes together for aiding in infection control (Blue -oral/axillary; Red -rectal)
• Easilywipedclean
• Usesfourstandarddisposable“AA”batteries
• “Auto-On”whenprobeiswithdrawnfromtheprobewell
• “Auto-Off”conservesbatterylife
• LowBatteryandDeadBatteryindicators
• LasttemperatureRecall
Temperature Site
Ear
Oral
Core
Rectal
Axillary
Normal Body Temperatures by Patients Age
>65 Years
96.4° - 99.5°F
35.7°- 37.5°C
96.4° - 98.5°F
35.7°- 36.9°C
96.6° - 98.8°F
35.8°- 37.1°C
97.1° - 99.2°
36.1°- 37.3°C
96.0° - 97.4°F
35.5°- 36.3°C
11-65 Years
96.6° - 99.7°F
35.8°- 37.6°C
97.6° - 99.6°F
36.7°- 37.8°C
98.2° - 100.2°F
36.7°- 37.8°C
98.6° - 100.6°F
37°- 38.1°C
95.3° - 98.4°F
35.1°- 36.8°C
0-2 Years
97.5°- 100.4°F
36.3°- 38°C
-
-
97.5° - 100.0°F
36.3°- 37.7°C
97.9° - 100.4°F
36.6°- 38°C
94.5° - 99.1°F
34.7°- 37.2°C
3-10 Years
97.0°- 100.0°F
36.1°- 37.7°C
95.9° - 99.5°F
35.3°- 37.5°C
97.5° - 100.0°F
36.3°- 37.7°C
97.9°- 100.4°F
36.5°- 38°C
96.6° - 98.0°F
35.8°- 36.6°C

2Electronic Thermometer
3000AD/ADA
• 15,30,45and60secondpulseTimer
• Easilyaccessibleprobecoverbox
• EasytoreadLCDdisplaywithbacklight
• ColdMode–lowerpre-heattemperatureoptionprovidesquicker,accuratereadingsforpost-ORpatients
• Theftpreventionlockoutandanti-theftaccessories
III. SAFETY AND WARNINGS
Caution: Federal law (USA) restricts this device to sale by or on the order of a physician.
1. Read this booklet thoroughly before using the FILAC 3000 electronic thermometer.
2. Do not use this device near flammable anesthetics. Not suitable for use in the presence of flammable anesthetic mixture with air,
oxygen or nitrous oxide.
3. Do not use this thermometer without first installing a new FILAC 3000 electronic thermometer probe cover.
4. Use only FILAC 3000 electronic thermometer probe covers
with this device.
Use of any other probe cover will result in erroneous temperature readings.
5. The device and probe covers are Non-sterile. Do not use on abraded tissue.
6. To limit cross contamination, use Blue devices for Oral and Axillary temperature taking only.
7. Use RED devices only for RECTAL temperatures.
8. Thoroughly dry all electrical contacts on both probe and thermometer after washing, or device may fail to function properly.
9. For re-calibration, service or integrity checks, refer to a qualified Biomedical Technician or return to manufacturer.
10. Do not open unit. No user-serviceable parts inside. Opening of device may affect calibration and voids warranty.
11. Disposal of used probe covers must be performed in accordance with current medical practices or local regulations regarding
disposal of infectious, biological medical waste.
12. Removal of the batteries is recommended if the unit is not going to be used for an extended period of time.
13. Dispose of batteries in a manner consistent with local environmental and institutional policy for Lithium or Alkaline battery
disposal.
14. Dispose of old battery-powered electronic equipment in a manner consistent with institutional policy for expired equipment
disposal.
15. Cleaning frequency and practices must be consistent with institutional policy for cleaning of non-sterile devices.
16. Device to be used by trained personnel.
NOTE:
Even though this device has been designed to minimize the effects of electromagnetic interference, it does generate radio frequency
energy. If not used in accordance with the instructions, the device could cause interference in other equipment operating within its
vicinity. If the device is causing interference, the following actions may be taken in an attempt to correct the interference:
• Re-orientorre-locatethereceivingdevice.
• Increasetheseparationbetweenthedevices.
• Consultacustomerservicerepresentative.
IV. ICON IDENTIFICATION
See Accompanying
Documents Manufacturer Serial Number
Type BF Equipment
Degree of protection against
electricalshock–noconductive
connection to the patient
Date of Manufacture
EN 50419

3Electronic Thermometer
3000AD/ADA
Pulse Timer Button
Use to start and stop pulse
timer
Return to Base
Return unit to Anti-theft base
to clear anti-theft lock out
feature
Pulse Timer
15 or 30 second timer

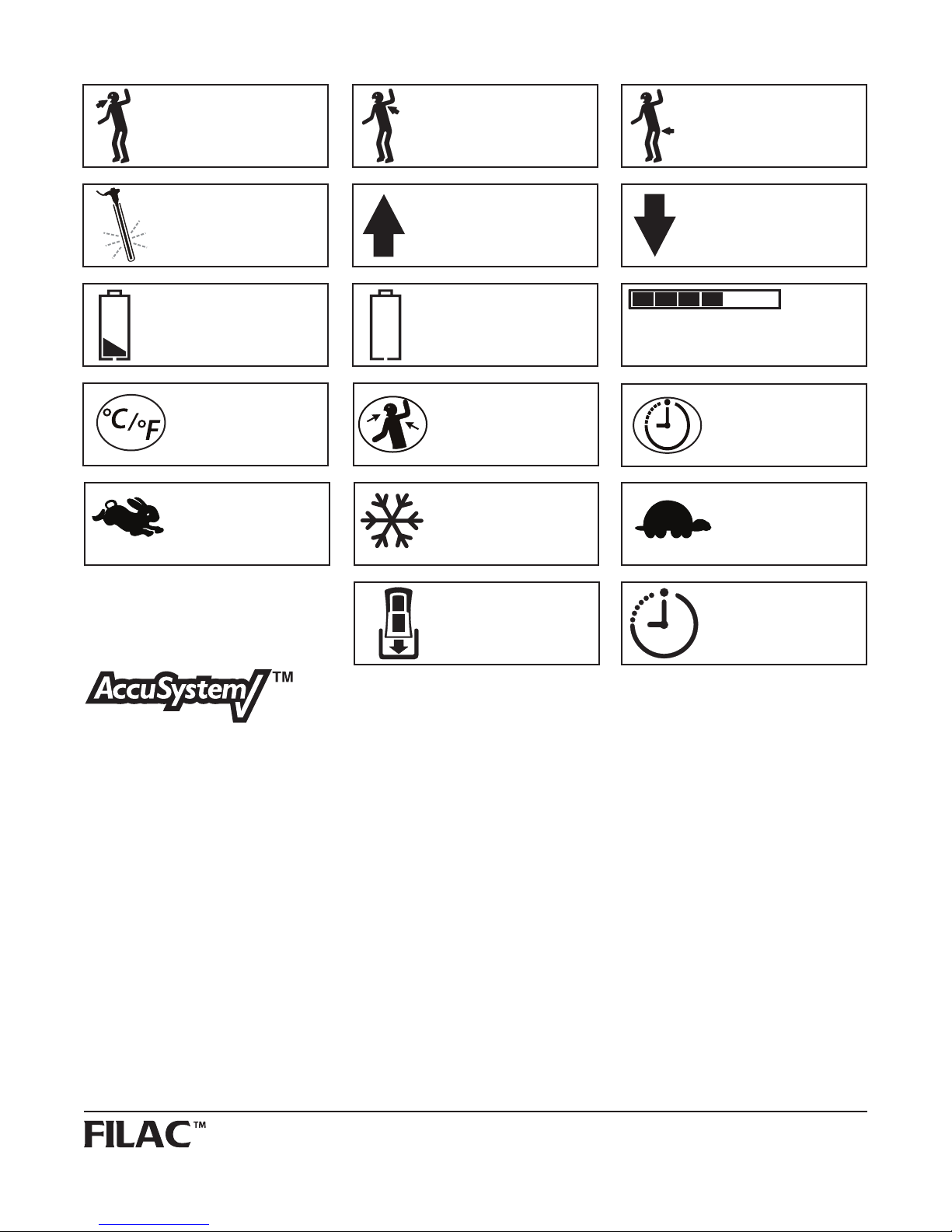

The FILAC 3000 Electronic Thermometer is a reliable and accurate temperature taking device. The accuracy of the FILAC 3000 Electronic
Thermometer is derived from the design, controlled calibration methods, and stringent manufacturing controls. One of the most critical parts
of the thermometer is the FILAC 3000 ACCUSYSTEM√ probe cover produced by Tyco Healthcare Group LP. When placed on the FILAC 3000
Electronic Thermometer probe, the probe cover serves as an infection control barrier between the patient and the device and acts as a medium
for heat transmission from the patient to the thermometer. The functionality of the FILAC 3000 ACCUSYSTEM√ probe cover is extremely
important for preventing device contamination and for allowing accurate patient temperature measurements.
The reason the FILAC 3000 Electronic Thermometer and FILAC 3000 ACCUSYSTEM√ probe covers have satisfied our customers’ expectations
is due to the integration of these two parts during the manufacturing process. The probe cover molding process parameters are tightly
controlled at Tyco Healthcare Group LP to minimize variation and produce consistent, reliable products.
The special grades of thermoplastic materials are also tightly controlled and are specifically chosen to deliver consistent temperature
measurements with FILAC 3000 Electronic Thermometers. The factory calibration and final acceptance determination of a FILAC 3000
Electronic Thermometer is dependent on the use of Tyco Healthcare Group LP produced FILAC 3000 ACCUSYSTEM√ probe covers. The use
of generic probe covers or other probe covers not produced by Tyco Healthcare Group LP is not supported or sanctioned by Tyco Healthcare
Group LP. The use of unauthorized probe covers could jeopardize the accuracy of the FILAC 3000 Electronics Thermometer. Check your probe
cover carton for the ACCUSYSTEM√ logo to be certain that your thermometer will deliver an accurate temperature every time it is utilized.
Quick Mode
Fast predictive measurement
mode–displaystemperature
measurement in 3.5 seconds
Cold Mode
Post-operative mode.
Pre-heat temperature of 91°F
(33°C)
Install/Remove Probe Cover
Flashing probe cover reminder
to install probe cover prior to
use and remove cover after use
Out of Range - High
Temperature measurement is
above 109°F (43°C)
Out of Range - Low
Temperature measurement is
below 86°F (30°C)
Dead Battery
Unit will not operate until new
batteries are installed
Low Battery
Batteryvoltageislow–replace
batteries as soon as possible
Progress Bar
Temperature measurement status
indication
ORAL
Temperature Mode
Works only with BLUE probe
and isolation chamber
AXILLARY
Temperature Mode
Works only with BLUE probe
and isolation chamber
RECTAL
Temperature Mode
Works only with RED probe
and isolation chamber
Direct Mode
Non-predictive temperature
measurement mode
Site Button
Use to change measurement
location
°C/°F Button
Use to change temperature
scale

4Electronic Thermometer
3000AD/ADA
V. INSTRUCTIONS FOR USE
Probe Covers —Applying & Removing
1. Open probe cover box by lifting tab at top corner and pulling to remove top panel.
2. Insert box of probe covers into top of isolation chamber. (To aid infection control,
never switch boxes between blue and red isolation chambers. Also, never switch
probes between blue and red isolation chambers.
Keep like colors together.)
3. Remove probe from the probe well. This automatically turns on the thermometer.
4. To help remind the user to apply or remove a probe cover, a probe icon with
flashing probe cover will be displayed when the probe is withdrawn from the probe
well and following a completed temperature measurement.
5. Insert the probe end into a cover in the box. Push the handle firmly until you feel
the cover “snap” into place.
6. Take appropriate temperature measurement (oral, axillary or rectal).
7. Eject the used cover into bio-waste container by pressing top button.
8. Remove, discard and replace box when empty.
Changing Isolation Chambers
and Probes
1. For aiding in infection control, use only the Blue probe and Blue isolation chamber
for Oral and Axillary temperature taking. The Red probe and Red isolation chamber
must only be used for Rectal temperature taking.
2. Do not attach a Red probe to a Blue isolation chamber or vice-versa.
3. To remove or replace any isolation chamber/probe assembly, grasp the isolation
chamber from each side as shown.
4. Squeeze inward releasing the snaps and slide the isolation chamber up to pull off.
5. To replace, align probe well finger with opening in the top of the unit.
6. Slide the isolation chamber down until the side snaps “click” into place.
7. The probe is connected to the thermometer automatically.
8. To change probes, remove the isolation chamber as described previously.
9. Grasp the sides of the L-shaped
connector piece with one hand
and then using other hand pull
backward on the latch holding the
end of the L-shaped connector.
10. Once free of the latch, slide the
L-shaped connector out of isolation
chamber.
11. To replace, properly align the top
of the L-shaped connector to the
slot on the back of the isolation
chamber.
12. Then slide the connector up into the
slot pressing firmly on the bottom
of the connector until it “clicks” into
place.

5Electronic Thermometer
3000AD/ADA
Oral & Axillary Temperature Taking
1. Make certain that the Blue isolation chamber/probe unit is attached.
2. Withdraw probe and apply a probe cover.
The thermometer turns on automatically.
3. An icon identifying Oral or Axillary mode is displayed. The Rectal icon can not be
displayed when a blue isolation chamber/probe is attached.
4. Press the Site button on the front panel to select either the Oral or Axillary mode.

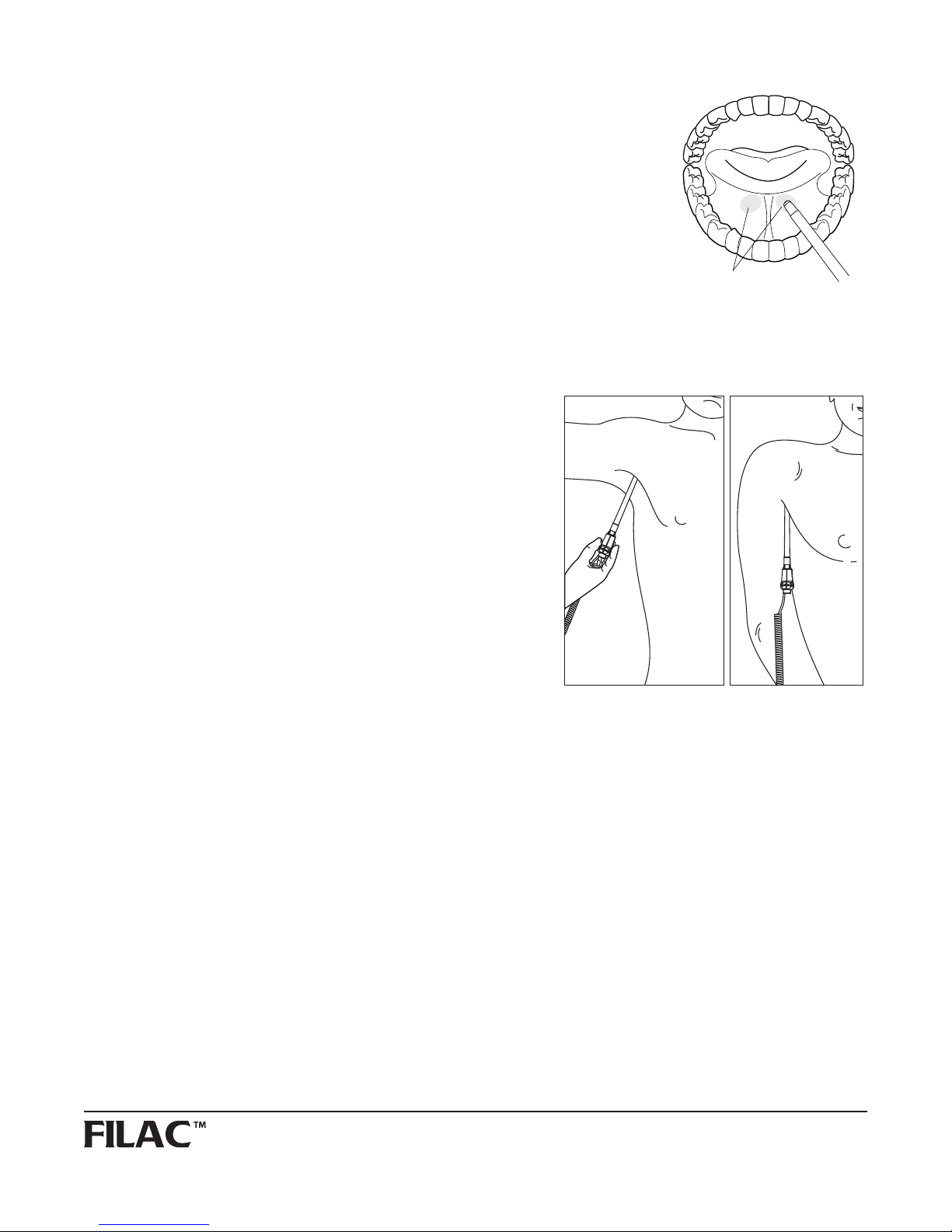

5. For Oral temperatures, insert the probe tip deep into the sublingual pocket next to the
frenulum linguae, (vertical fold of tissue in middle of tongue), on one side or the other,
toward the back of the mouth.
Note: Accurate body temperature readings can only be obtained in one of these two “heat
pocket” locations as shown. Temperatures taken in other mouth locations will result in
inaccurate body temperature readings.
6. Patient’s mouth must be CLOSED.
7. Securely hold the probe in place until the temperature is displayed.
8. For Axillary temperatures, have the patient raise the arm, then place
the probe tip in the axilla. Press gently to assure good contact.
For the most accurate temperature the probe tip should be placed
directly against the patients skin.
9. Have the patient then lower the arm and remain as still as possible.
Hold the probe parallel to the arm as shown.
10. If two short beeps are heard, it means the unit switched to Direct
(slow) mode for this temperature only.
11. A “long beep” is sounded when measurement is complete and the
final temperature is displayed.
12. To change between Celsius and Fahrenheit scales, press the °C/°F
button. Press again as needed.
13. Eject the used cover into a bio-waste container by pushing top
button.
14. After returning the probe to the probe well, the temperature is
stored for recall until the probe is once again withdrawn. If the
probe is returned to the probe well before the “long beep” is heard,
no temperature will be stored for the recall function.
Rectal Temperature Taking
1. Make certain that the Red isolation chamber/probe unit is attached.
2. Withdraw the probe and apply a probe cover. Thermometer turns on automatically.
3. An icon identifying Rectal mode is always displayed provided the Red isolation chamber/probe assembly is attached. Pressing the
Site button on the front panel to change modes has no effect.
4. Apply lubrication if desired.
5. Insert the probe into the patient’s rectum. To ensure proper tissue contact, angle the probe slightly after insertion.
6. Depth of insertion is recommended at 1/2” to 3/4” (12 mm - 19 mm) for adults and 1/4” to 1/2” (6 mm - 13 mm) for children.
7. If two short beeps are heard, it means the unit switched to Direct (slow) mode for this temperature only.
8. A “long beep” is sounded when measurement is complete and the final temperature is displayed.
9. To change between Celsius and Fahrenheit scales, press the °C/°F button. Press again as needed.
10. Eject the used cover into a bio-waste container by pushing top button.
11. After returning the probe to the probe well, the temperature is stored for recall until the probe is once again withdrawn. If the
probe is returned to the probe well before the “long beep” is heard, no temperature will be stored for the recall function.
Heat Pockets

6Electronic Thermometer
3000AD/ADA
Direct Mode
1. The FILAC 3000 electronic thermometer normally operates in Predictive mode for accurate temperature measuring. In certain
cases, such as with a hypothermic patient, the thermometer will automatically shift to Direct (slow) mode and will then act as a
temperature monitor.
2. The FILAC 3000 electronic thermometer can be set to operate exclusively in Direct mode (disable Predictive mode). See
instructions within the Bio-Tech Mode section for information on how to lock Direct mode on.
3. In Direct mode the device may require up to 60 seconds to reach equilibrium and display patient temperature.
4. A turtle icon will be continuously displayed whenever the thermometer is functioning in Direct mode.
5. To change between Celsius and Fahrenheit scales, press and release the °C/°F button. Press and release again as needed.
6. An Up or Down arrow will appear on the display whenever the current temperature reading is out of range, either High or Low,
respectively.
7. The Direct mode auto feature is always functional regardless of Red or Blue isolation chamber/ probe.
8. A “long beep” is sounded when measurement is complete and the final temperature is displayed.
9. After returning the probe to the probe well, the temperature is stored for recall until the probe is once again withdrawn. If the
probe is returned to the probe well before the “long beep” is heard, no temperature will be stored for the recall function.
Quick Mode
1. Quick Mode is provided for more rapid, time consistent, oral temperature predictions. This mode is indicated by a rabbit icon on
the display. In this mode, a temperature measurement prediction is provided in approximately 3.5-4 seconds.
2. See instructions within the Bio-Tech Mode section to turn this feature On or Off.
3. Quick Mode is not available with Axillary or Rectal Body Sites, with Cold Mode, or when in Direct Mode.
Cold Mode
1. Cold Mode is provided for use in applications where body temperatures may be lower than normal, such as for patients recently
out of surgery.
2. See instructions within the Bio-Tech Mode section to turn this feature On or Off.
3. When selected, as indicated by the snowflake on the display, the probe preheats to 91°F (33°C). All other functions are
unchanged.
4. Cold Mode is not available with Quick Mode or when in Direct Mode.
Recall Last Temperature
1. After each temperature measurement, a “long beep” is heard. The “beep” indicates the temperature measurement has been
completed and stored and is available for recall. This temperature can be recalled after the probe is returned to the probe well.
2. To recall the most recent temperature measurement, press and release °C/°F button on the front panel. The last measurement
taken will appear for several seconds.
3. While the recalled measurement is displayed, the user may press and release the °C/°F button again to change between the
Celsius and Fahrenheit scales.
4. Withdrawing the probe from the probe well erases last temperature memory.
5. If the most recent temperature measurement was incomplete or out of range, dashes will appear on the display during the recall
operation.
Pulse Timer Mode
1. The FILAC 3000 electronic thermometer may also be used to help measure a patient’s pulse rate.
2. To access, do not remove probe from the probe well.
3. Press and release the Timer button on the front panel. The Clock icon and 0.0 will be displayed.
4. Press and release the Timer button a second time to start the timer and elapsed time display.
5. A “beep” is sounded at 15 seconds, 2 beeps at 30 seconds, 1 beep at 45 seconds and 2 beeps at 60 seconds.
The count stops at 60 seconds.
Pressing the Timer button again will shut the unit off.
6. The Timer mode will turn off automatically, 5 seconds after stopping at 30 or whenever the probe is removed from the probe
well.

7Electronic Thermometer
3000AD/ADA
Bio-Tech Mode (Option Configuration Menu)
1. To enter Bio-Tech mode, the thermometer must be in sleep mode (probe securely in place with blank screen).
2. Press and hold the Site and °C/°F buttons at the same time for 4 seconds. A “beep” is heard and a dash scrolls in the display. The
software version of the device will be shown in the alpha-numeric section of the display
3. The thermometer is now in Bio-Tech mode. To navigate the Bio-Tech mode menu, follow the chart below.
4. The Pulse Timer button is used to move forward through the different configuration options. °C/°F button is used to change an
option configuration.
5. To exit Bio-Tech mode and resume normal operation, press the Site and °C/°F buttons at the same time and hold for 1 full second.
Last settings are saved.
6. Bio-Tech mode also exits automatically after 20 seconds of inactivity. The last settings are saved.

8Electronic Thermometer
3000AD/ADA

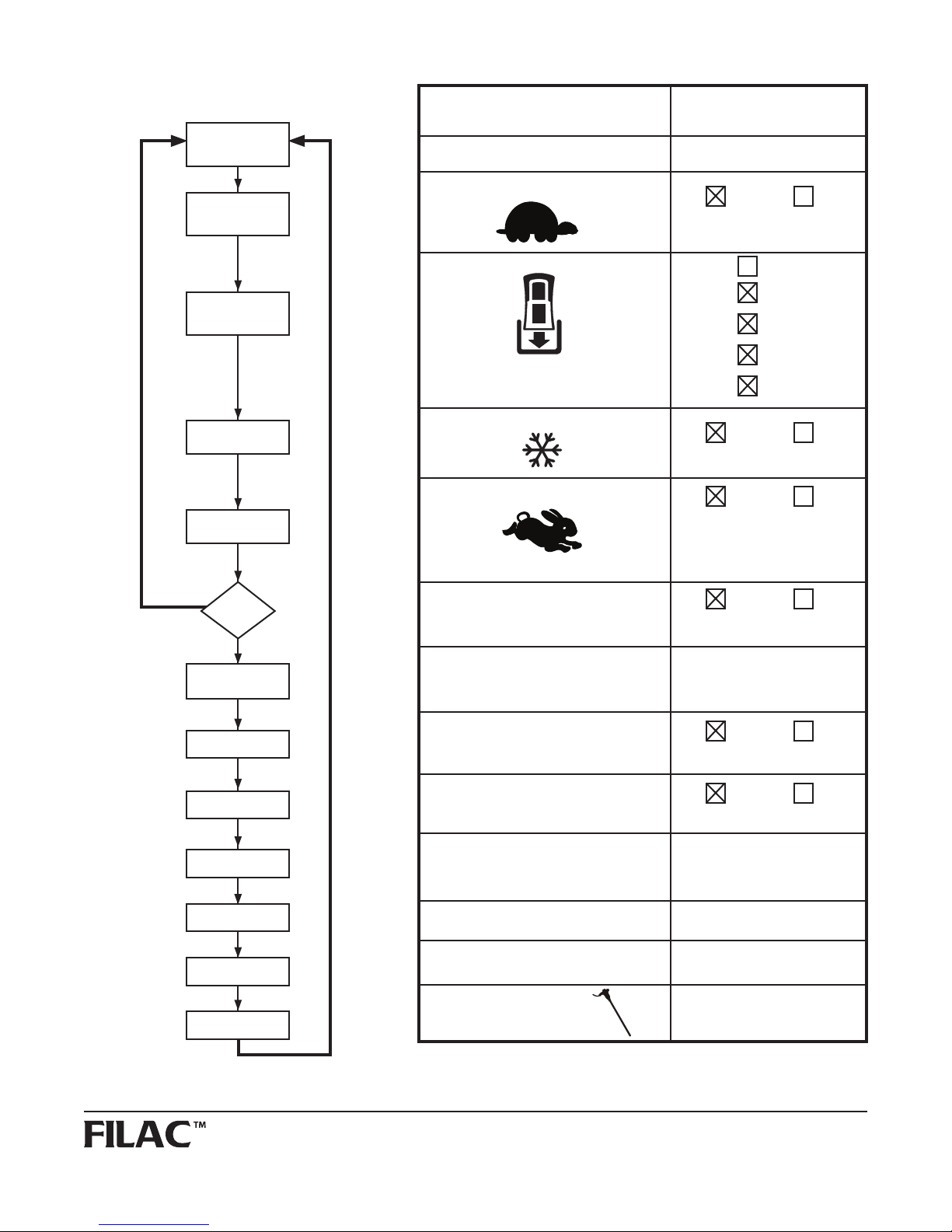

DIR with Blinking
THEFT with Blinking
COLD with Blinking
FAST with Blinking
MORE
8 programmable characters, selected
alpha-numeric characters blinking
“Beep” with Beeper Beeping Continuously
LIGHT with Backlight Blinking
Continuously
A number indicating amount of times the
unit has been turned on in
preparation for a measurement
LCD Test
A. BC V
PROBE SN
ON OFF
(blank) OFF
10 ON
20 ON
50 ON
90 ON
ON OFF
ON OFF
ON OFF
Step to next character
location*
ON OFF
ON OFF
No Function
 Starttest••
No Function
View Serial Number
* The Pulse Timer button is used to move forward through the different configuration options.
Press the °C/°F button to step to next character location
** Press the Site button to return to the initial LCD Test screen
What You See or Hear Option Configuration
X, YZ with moving dash No Function
Dashes & Software
Version
Direct Mode
Lock
Anti-Theft
(Off, 10, 20,50, 90)
Cold Mode
Quick Mode
Sounds
Alpha
Programming
Probe Data
Battery Voltage
LCD Test
Cycle Counts
Backlight
NO
YES
More
Options

9Electronic Thermometer
3000AD/ADA
VI. CLEANING AND STERILIZATION
1. The entire device may be easily wiped clean. Water temperature should not exceed 130° F (55° C).
Do not submerge or soak under water.
2. A mild detergent may be added to water. Use of cleaners such as Spray Nine
TM
*, Phisohex
TM
*, Hibiclens
TM
*, or Vesta-Syde
TM
*
Cidex
TM
* may result in damage to the thermometer case.
3. Use of 10:1 water and hypoclorite mixture or a damp isopropyl alcohol wipe occasionally, is acceptable.
Prolonged and repeated use of these chemicals may result in damage to the thermometer case and display area.
4. Use of a cloth or sponge is recommended for cleaning. Abrasive pads may result in damage to the thermometer case and display
area.
5. This thermometer is provided non-sterile. DO NOT use ethylene oxide gas, heat, autoclave, or any other harsh methods to sterilize
this unit.
6. Isolation chambers may be replaced inexpensively instead of cleaning.
7. After cleaning the unit, shake the probe handle to drain out any excess solution.
Thoroughly dry the electrical contacts on both probe and thermometer.
VII. BATTERY REPLACEMENT / INSTALLATION
1. To access the batteries, remove the isolation chamber by depressing the tabs on the
sides of the unit and slide off upwardly.

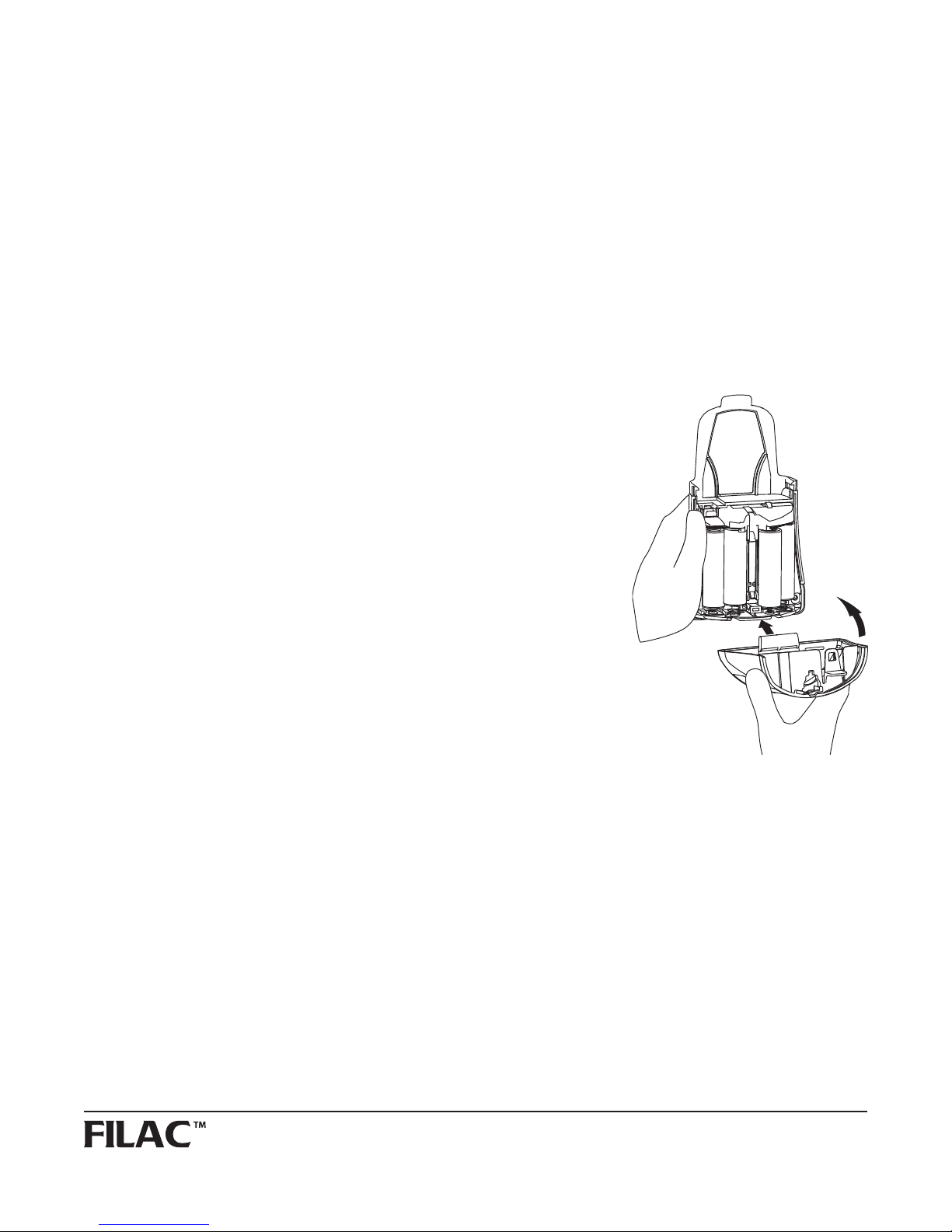

2. Pull back on the finger tab on the top of the battery door. The battery door should
hinge open to expose the batteries.
3. The batteries may be removed by pressing firmly on the positive end (opposite the
compressed spring) and lifting up.
4. Be certain to dispose of used batteries in a manner consistent with local
environmental and institutional policy for lithium or alkaline battery disposal.
5. To install new batteries, place the negative end on the spring. Press down firmly to
compress spring and tilt battery into place.
6. To replace the battery door, insert the tab on the bottom of the door into the slot
on the bottom of the unit to create a hinge. Swing the top half of the door upwards
pressing firmly on the top of the door until the small tab on the main unit “clicks”
into the catch on the battery door.
7. Reinstall isolation chamber with probe attached.
VIII. MOUNTING INSTRUCTIONS
1. To mount the FILAC 3000 electronic thermometer onto any vertical surface, a
convenient mounting base is provided.
2. For hollow wall mounting, locate a stud and use the 2 screws provided. If mounting
between studs, substitute 2 standard hollow wall anchors.
3. Rolling stand mounting brackets and pole clamps are also available for this device.
IX. ANTITHEFT FEATURES & OPTIONS
1. The FILAC 3000 electronic thermometer is equipped with an electronic system that deters casual theft by disabling the
thermometer after a preset number of temperatures have been taken.
2. A FILAC 3000 electronic thermometer Mounting Base is required in order for this option to function.
3. To reactivate the thermometer it must be momentarily returned to any FILAC 3000 electronic thermometer Mounting Base when
indicated by a displayed icon.
4. The anti-theft option is normally disabled as shipped from the factory.
5. Key-locking is also possible where a more positive anti-theft deterrent is desirable.

10 Electronic Thermometer
3000AD/ADA
X. TROUBLESHOOTING
1. If device fails to function properly after washing & reconnecting probe, rinse all contacts in de-ionized water and blow dry.
2. Icons indicate all other possible errors and remedies.
3. Device Error Codes:
E01 - System error during synchronization
E02 - System error during patient thermistor calibration
E03 - System error during heater thermistor calibration
E04 - System timing error
E05 - Heater error
E06 - LCD communication error
E07 - Shut off error
P01 - Probe configuration (or no probe connected) error
P02 - Direct Mode patient thermistor unstable or out of range
P03 - Direct Mode heater thermistor unstable or out of range
P04 - Predict Mode patient thermistor unstable or out of range
P05 - Predict Mode heater thermistor unstable or out of range
P06 - Unable to pre-heat probe tip
4. No user-serviceable parts inside.
5. Refer to a factory or qualified Biomedical Technician for service.
XI. SPECIFICATIONS
UL LISTING
Medical Equipment
FILAC 3000 electronic thermometer
47DA
Classified with respect to electrical shock, fire, and mechanical hazards only in accordance with UL60601-1
Classified with respect to electrical shock, fire, and mechanical hazards only in accordance with
CAN/CSA C22.2 NO.601.1
Dimensions (Approximate, without base): in.- 3.2 W x 6.0 H x 2.1 D ; mm - 84 W x 152 H x 56 D
Dimensions (Approximate, with base): in.- 4.1 W x 7.5 H x 3.1 D ; mm - 105 W x 190 H x 79 D
Weight (Approximate, without base): 13.5 Ounces ; 385 Grams
Temperature Measurement Range: 30°C to 43°C; 86°F to 109°F
Ambient Operating Temperature Range: 10°C to 40°C; 50°F to 104°F, at 10% - 95% RH, non-condensing.
Average prediction times
(after insertion into measurement site): Quick mode: less than 4 seconds
Standard mode: less than 6 seconds
Typical times for switch to Direct Mode: If no measurement site detected: 60 seconds (after pulling probe from probe well)
If temperature does not stabilize: 70 seconds (after measurement site insertion)
Pulse Timer: 60 Second count with a “beep” at 15 seconds, 2 “beeps” at 30 seconds, 1 “beep” at 45 seconds
and 2 “beeps” at 60 seconds
Water Bath Accuracy (35.5°C to 42.0°C):
Direct Mode: ±0.1°C
Standard Prediction Mode**: ±0.1°C
Quick Prediction Mode (Oral Only)**: ±0.3°C
**Greater than 95% of the prediction mode readings will be within the specified accuracy.

11 Electronic Thermometer
3000AD/ADA
Patient Accuracy: In standard predict mode, thermometer accuracy meets EN 12470-3
A Standard Prediction Mode reading and a Direct Mode reading will differ by
less than ±0.2°C (±0.4°F) on 98% of tested patients
Batteries:  Four“AA”Required.StandardIECpackagesize.Alkaline–1.5Volt
Approximately 6000 temperature readings.
Probe: Replaceable.
For probe integrity/safety checks, refer to qualified Biomedical Technician or return to Kendall.
Isolation Chamber: Removable, replaceable, washable, Polycarbonate-polyester blend.
Device Materials: Thermometer Case: Flame retardant Polycarbonate/Polyester Blend
Isolation Chamber: Flame retardant Polycarbonate/Polyester Blend
Probe Handle: Flame retardant Polycarbonate/Polyester Blend
Probe Shaft: Flame retardant Polyester
Probe Cable: Polyurethane jacket with TPE over mold
Tip: Aluminum
ALL MATERIALS ARE LATEX FREE.
Type of Protection Against Electrical Shock: Internally Powered Equipment.
Degree of Protection Against Electrical Shock: Type BF
Mode of Operation: Continuous Use . Intended for hand held use.
Degree of Safety of Application in the Presence: Not suitable for use in the presence of flammable anesthetic mixture with air, oxygen or nitrous oxide.
Transport and Storage: Not to exceed 30 days
Transport and store this device between temperatures of -25°C to 55°C (-13°F to131°F).
Relative humidity range should be between 10%-95% RH, non-condensing.
Return unit to the factory if the device is dropped and performance appears degraded, or in the event that the environmental conditions for transport, storage and
operation are exceeded.
The FILAC 3000 electronic thermometer is in compliance with the following International Regulatory and Safety standards:
UL60601-1
CAN/CSA C22.2 No. 601-1
EN60601-1:2005
EN60601-1-2:2005
EN 12470-3:2000
MDD 93/42/EEC
BS EN980:1997
ASTM E 1112: 2006
XII. CUSTOMER SERVICE
The circuitry of the FILAC 3000 electronic thermometer is not customer serviceable. In particular, electronic assembly re-work will
likely affect accuracy. Certain replacement items such as probes and isolation chambers are available from the service centers listed
below.
All service personnel must be properly trained, qualified and familiar with operation of the thermometer. Improper service may impair
proper operation of the FILAC 3000 electronic thermometer.
A FILAC 3000 electronic thermometer Calibration Plug (reorder number 500099) is available to check accuracy of the FILAC 3000
electronic thermometer. It replaces the regular probe and verifies the accuracy of the main unit electronics. Replace the main unit if
accuracy is deficient. Follow the instructions that accompany the FILAC 3000 electronic thermometer Calibration plug.
Probe accuracy can be checked in any mode using a calibrated water bath.
A FILAC 3000 electronic thermometer should provide direct mode accuracy to within ±0.1°C of the calibrated water bath temperature.
A FILAC 3000 electronic thermometer should have a standard predict mode accuracy within ±0.1°C of the calibrated water bath
temperature.
A FILAC 3000 electronic thermometer should have a quick predict mode accuracy within ±0.3°C of the calibrated water bath
temperature.
The probe cable connector is designed to exceed 1,000 insertions. Do not lubricate or solvent clean. Replace the probe if the
connector is thought to be faulty.

12 Electronic Thermometer
3000AD/ADA
In the event that it becomes necessary to return a unit for service, please follow these instructions:
1. Call the appropriate phone number listed below for an Authorized Return Number and shipping instructions.
2. Pack the instrument carefully and ship insured parcel to the appropriate location:
United States
Tyco Healthcare Group LP
98.6 Faichney Drive
Watertown, NY 13601
Phone: [phone] or 315-788-5246
Canada
Tyco Healthcare Canada
7500 Trans Canadian Hwy
Pointe-Claire, QC H9R 5H8
Phone: [phone]
Outside US & Canada
Tyco Healthcare Group LP
20 Garryduff Road
Ballymoney, BT53 7AP, UK
Phone: [phone]
To Order/Reorder/Replace device components and accessories, specify one or more of the following
Reorder Numbers:
Probe Covers Case of 500 Reorder No. 500500
Case of 2,000 Reorder No. 502000
Note: Use of any other brand or style probe cover will result in erroneous temperature readings.
Complete Oral /Axillary Thermometer
Includes electronic thermometer with Blue - Oral/Axillary isolation chamber and Blue - Oral/Axillary probe, with 4-foot (1.2m) cord, and global
manual on CD
FILAC 3000EZ Reorder No. 504000
FILAC 3000EZA Reorder No. 504003
FILAC 3000AD Reorder No. 505000
FILAC 3000ADA Reorder No. 505003
Complete Rectal Thermometer
Includes electronic thermometer with Red - Rectal isolation chamber and Red - Rectal probe, with 4-foot (1.2m) cord, and global manual on
CD
FILAC 3000EZ Reorder No. 504005
FILAC 3000EZA Reorder No. 504008
FILAC 3000AD Reorder No. 505005
FILAC 3000ADA Reorder No. 505008
Isolation Chamber
Blue - Oral/Axillary Reorder No. 500028
Red - Rectal Reorder No. 500038
Probe (with 4-foot standard cord)
Blue - Oral/Axillary Reorder No. 500026
Red - Rectal Reorder No. 500036
Probe (with 9-foot standard cord)
Blue - Oral/Axillary Reorder No. 500027
Red - Rectal Reorder No. 500037
Calibration Plug Reorder No. 500099

13 Electronic Thermometer
3000AD/ADA
Mounting Base for Wall Reorder No. 500046
Mounting Base for Rolling Stand Reorder No. 500047
Mounting Base with Pole Clamp Reorder No.500048
Rolling Stand Reorder No. 303059
Rolling Stand Basket Reorder No. 8884813711
XIII. WARRANTY
LIMITED WARRANTY: Kendall, a Tyco Healthcare Group LP company, warrants to the original purchaser (“Customer”) that this product
will be free of defects in materials and workmanship, under normal use, for one (1) year from the date of original purchase from
Kendall or its authorized distributor. If this product does not operate as warranted above during the applicable warranty period,
Kendall may, at its option and expense, replace the defective part or product with a comparable part or product, repair the defective
part or product, or, if neither replacement nor repair is reasonably available, refund to Customer the purchase price for the defective
part or product. Dated proof of original purchase will be required.
Kendall does not assume any liability for loss arising from unauthorized repair, misuse, neglect, or accident. Removal, defacement, or
alteration of serial lot number voids warranty. Kendall disclaims all other warranties, expressed or implied, including any implied
warranty of merchantability or fitness for a particular purpose or application other than as expressly set forth in the product labeling.

™ Trademark of Tyco Healthcare Group LP or its affiliate.
TYCO HEALTHCARE GROUP LP • MANSFIELD, MA 02048 • MADE IN U.S.A. • © 2007 TYCO HEALTHCARE GROUP LP.
ALL RIGHTS RESERVED. • 070831 • IN U.S. 1-800-962-9888 www.tycohealthcare.com
TYCO HEALTHCARE U.K. LTD, GOSPORT, PO13 OAS, U.K.
182508
kENDALL

ENGLISH
Electronic Thermometer
