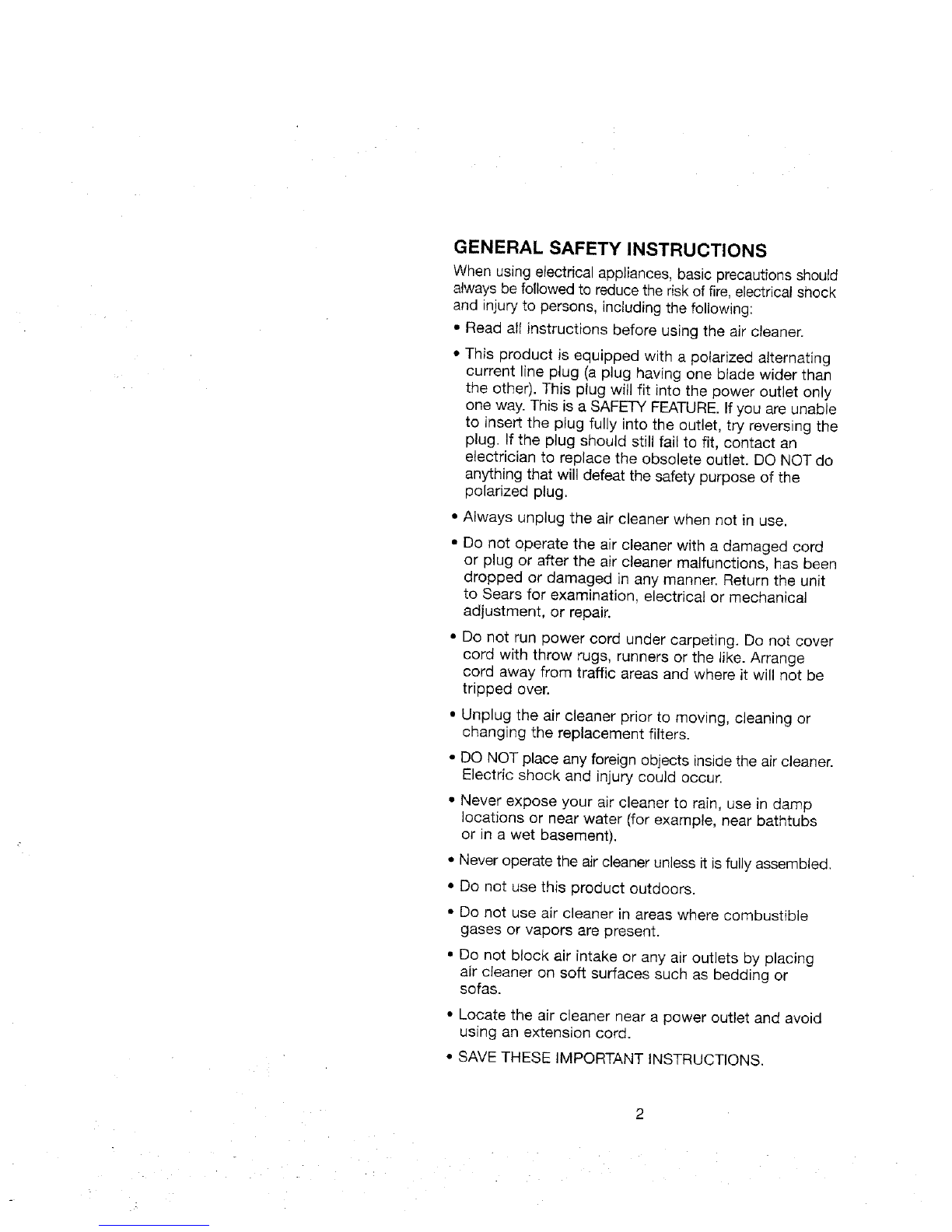

GENERAL SAFETY INSTRUCTIONS
When using electrical appliances, basic precautions should
always be followed to reducethe risk of fire, electrical shock
and injury to persons, including the following:
• Read all instructions before using the air cleaner.
•This product is equipped with a polarized alternating
current line plug (a plug having one blade wider than
the other). This plug will fit into the power outlet only
one way. This is a SAFETY FEATURE. If you are unable
to insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact an
electrician to replace the obsolete outlet. DO NOT do
anything that will defeat the safety purpose of the
polarized plug.
• Always unplug the air cleaner when not in use.
• Do not operate the air cleaner with a damaged cord
or plug or after the air cleaner malfunctions, has been
dropped or damaged in any manner. Return the unit
to Sears for examination, electrical or mechanical
adjustment, or repair.
• Do not run power cord under carpeting. Do not cover
cord with throw rugs, runners or the like. Arrange
cord away from traffic areas and where it will not be
tripped over.
• Unplug the air cleaner prior to moving, cleaning or
changing the replacement filters.
• DO NOT place any foreign objects inside the aircleaner.
Electric shock and injury could occur.
• Never expose your air cleaner to rain, use in damp
locations or near water (for example, near bathtubs
or in a wet basement).
• Never operate the air cleaner unless it isfully assembled.
• Do not use this product outdoors.
• Do not use air cleaner in areas where combustible
gases or vapors are present.
• Do not block air intake or any air outlets by placing
air cleaner on soft surfaces such as bedding or
sofas.
• Locate the air cleaner near a power outlet and avoid
using an extension cord.
• SAVE THESE MPORTANT INSTRUCTIONS.

INTRODUCTION
Congratulations on your choice of the Kenmore HEPAAir
Cleaning System. HEPA is an acronym for High Efficiency
Particulate Air, which describes a fibrous media designed
to remove 99.97% of particulates of 0.3 microns or larger
in size. A micron is one millionth of a meter. For example,
a human hair is approximately 100 microns in diameter,
while pollen and plant spores are greater than 1 micron
in diameter.
Air pollution can and does exist inour homes. The Kenmore
HEPA Air Cleaner has been designed to thoroughly clean
the air which WE CAN CQNTR©L: the airwithin our homes.
With your Kenmore HEPA Air Cleaning System, you can
provide clean and healthy air to your family, air that is free
of smoke particles, dust, pollen and other pollutants.
We highly recommend that you utilize the Kenmore HEPA
Air Cleaning System 24 hours each day to ensure that the
air circulating through your room is continuously being
cleaned and filtered.
This HEPA air is most effective when used in a room with
doors and windows closed.
t Purified t
CleanAir
Replaceable
charcoalpre- Replaceable
filter heJps ultra high-
remove efficiency
unpleasant HEPAfilter
odors, removesup
to 99.97%of
pollutantsas
smallas0.3
microns.
Dirty Air Di '
quiet-running motor

FULL ONE YEAR WARRANTY
If within one (1) year from the date of purchase, this Air
Cleaner fails due to a defect in material or workmanship,
Sears will repair or replace it free of charge.
This warranty applies only while this product is in use
in the United States or Canada.
This warranty gives you specific legal rights and you
may also have other rights which may vary from state
to state.
This warranty DOES NOT cover the replacement HEPA
filter or pre-filter.
Sears, Roebuck and Co.
817WA, Hoffman Estates, IL 60179
GETTING TO KNOW YOUR
HEPA 130 AIR CLEANING SYSTEM
HOW YOUR FILTERING SYSTEM OPERATES:
Dirt, dust, pollen and smoke particulate-laden air isforced
through our three-stage filtering system, including the ionizer,
before it leavesthe air cleaner.
Stage 1: Charcoal Pre-filter - Helps remove odors and
harmful gases.
Stage 2: HEPA Filter - The HEPAfilter will remove pollen
and most other airborne particulates that affect people
who suffer from allergies and upper respiratory problems.
Stage 3: Electronic IONIZER - Prior to exiting the air
cleaner, the air is exposed to an IONIZER which places
a negative charge on any remaining airborne particles.
The negative charge given to these particulates
enables them to be trapped more easily when they
pass through the system again. A further benefit of
the IONIZER is that it enhances indoor air "freshness".

Ionizer Control
Switch and
Light
Filter Change
Date Calendars
Carrying Handle Power Control
Switch and
Indicator Light
Locking
Me(
(on bottom)
Intake
Grille

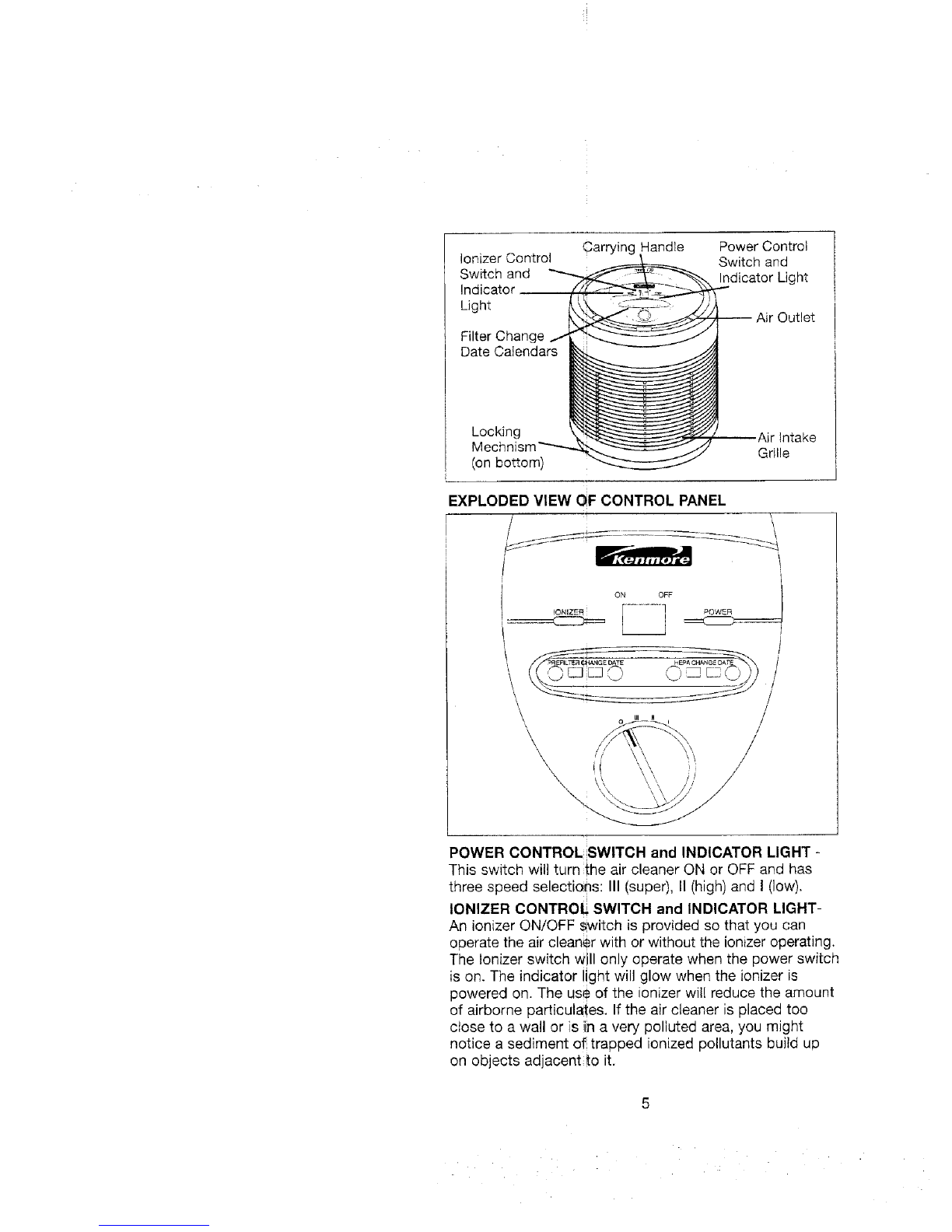

EXPLODED VIEW OF CONTROL PANEL
/\\
ON OFF
_QNIZER POWEF l
_," 'Fq r'f'_ _',_F C'; )) /
\\_ _._L-_,,j ,, ...... /./j J
/
/
POWER CONTROL SWITCH and INDICATOR LIGHT -
This switch will turn the air cleaner ON or OFF and has
three speed selections: III (super), II (high) and I (low).
IONIZER CONTRO_ SWITCH and INDICATOR LIGHT-
An ionizer ON/OFF Switch is provided so that you can
operate the air cleaner with or without the ionizer operating.
The Ionizer switch will only operate when the power switch
is on. The indicator light will glow when the ionizer is
powered on. The use of the ionizer wil! reduce the amount
of airborne particulates. If the air cleaner is placed too
close to a wall or is in a very polluted area, you might
notice a sediment of trapped ionized pollutants build up
on objects adjacent to it.

AIRINTAKEGRILLE-Dirtyairisdrawnin360°intothe
KenmoreHEPAAirGleaner,
AIROUTLET-AftertheairhasbeencleanedbytheHEPA
filter,itisdispersed_PWARDSintothesurrounding
atmosphere.
CARRYINGHANDLE-Aconvenienthandleisprovidedto
enableeasyrelocatiilnofyouraircleaner.
FILTERCHANGED&TECALENDARS-Twofilterchange
datewheelsarepro'_idedasaconvenientreminderwhen
toreplacethepre-fil'_erandtheHEPAfilter.
SET-UP
Visually inspect the NEPA air cleaner upon removing the
I
unit from its box. Remove and discard any packaging
material. Return the un t if it shows any signs of damage or
mishandling. This urltt was thoroughly inspected and tested
at the factory prior t_ packaging.
i
Upon start up of YOUrKenmore HEPA Air Cleaner, set the
Pre-filter Change DcIe Calendar ahead 3 months and the
HEPA Change Date _alendar ahead 2 years to indicate
when the next fiter _p acement is necessary.
i
CAUTION; DO NOTp ace the a r c eaner within 3 feet of
any computer or anylmagnetically sensitive devices such
as floppy disks or tapes.
ELECTRICAL HOOK-UP
Plug the air cleaner into a polarized 120 Volt AC wall outlet.
WARNING
To avoid fire or shock hazard, the HEPA air cleaner should
only be plugged intqia polarized 120 Volt AC outlet.
NEVER operate the _EPA air cleaning system without the
HEPA filter propedy !i#stalled. Permanent motor damage
could result.
OPERATION
Each time the air cleaner is operated, turn the control
switch to the III (super) position for a fast initial cleaning for
a few seconds. Theei adjust the control switch to the
desired output setting:
III (super) - Maximur_ operation - fast initial cleaning
II (high) - Daytime o_eration - fast fan speed
I (low) -Night-time -quieter operation
Turn iONIZER switc_ ON.

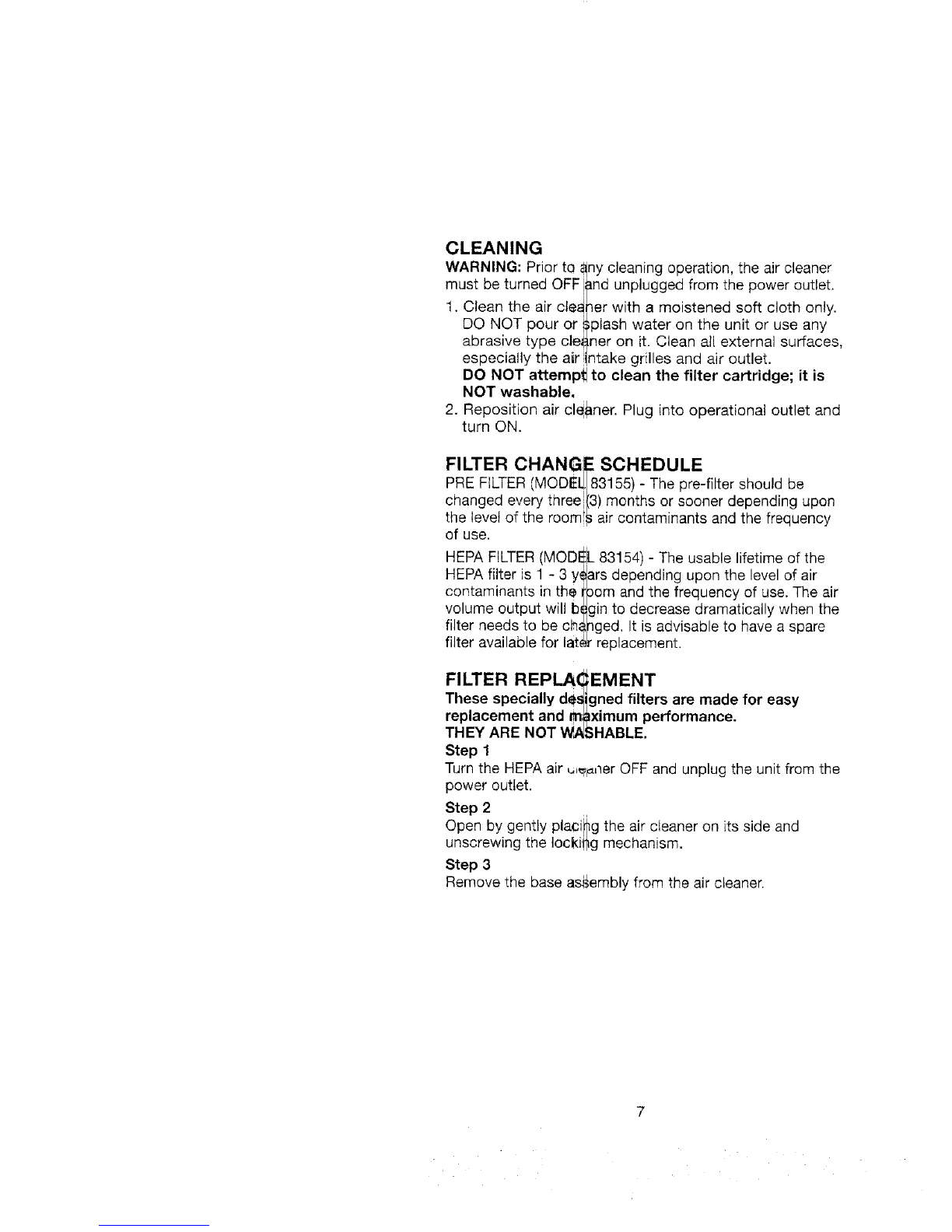

CLEANING
WARNING: Prior to _ny cleaning operation, the air cleaner
must be turned OFF i_nd unplugged from the power outlet.
1. Clean the air cte_qer with a moistened soft cloth only.
DO NOT pour or _plash water on the unit or use any
abrasive type cte_ner on it. Clean all external surfaces,
especially the air intake grilles and air outlet.
DO NOT attemptl to clean the filter cartridge; it is
NOT washable,
2. Reposition air cl_&ner. Plug into operational outlet and
turn ON.
FILTER CHANG E SCHEDULE
PRE FILTER (MODEI_83155) - The pre-filter should be
changed every three [3) months or sooner depending upon
the level of the roomt_ air contaminants and the frequency
of use.
HEPA FILTER (MODI_L83154) - The usable lifetime of the
HEPA filter is 1 - 3 ye_arsdepending upon the level of air
contaminants in the [_om and the frequency of use. The air
volume output will b_gin to decrease dramatically when the
filter needs to be cha_ged. It is advisable to have a spare
filter available for lat_Lrreplacement.

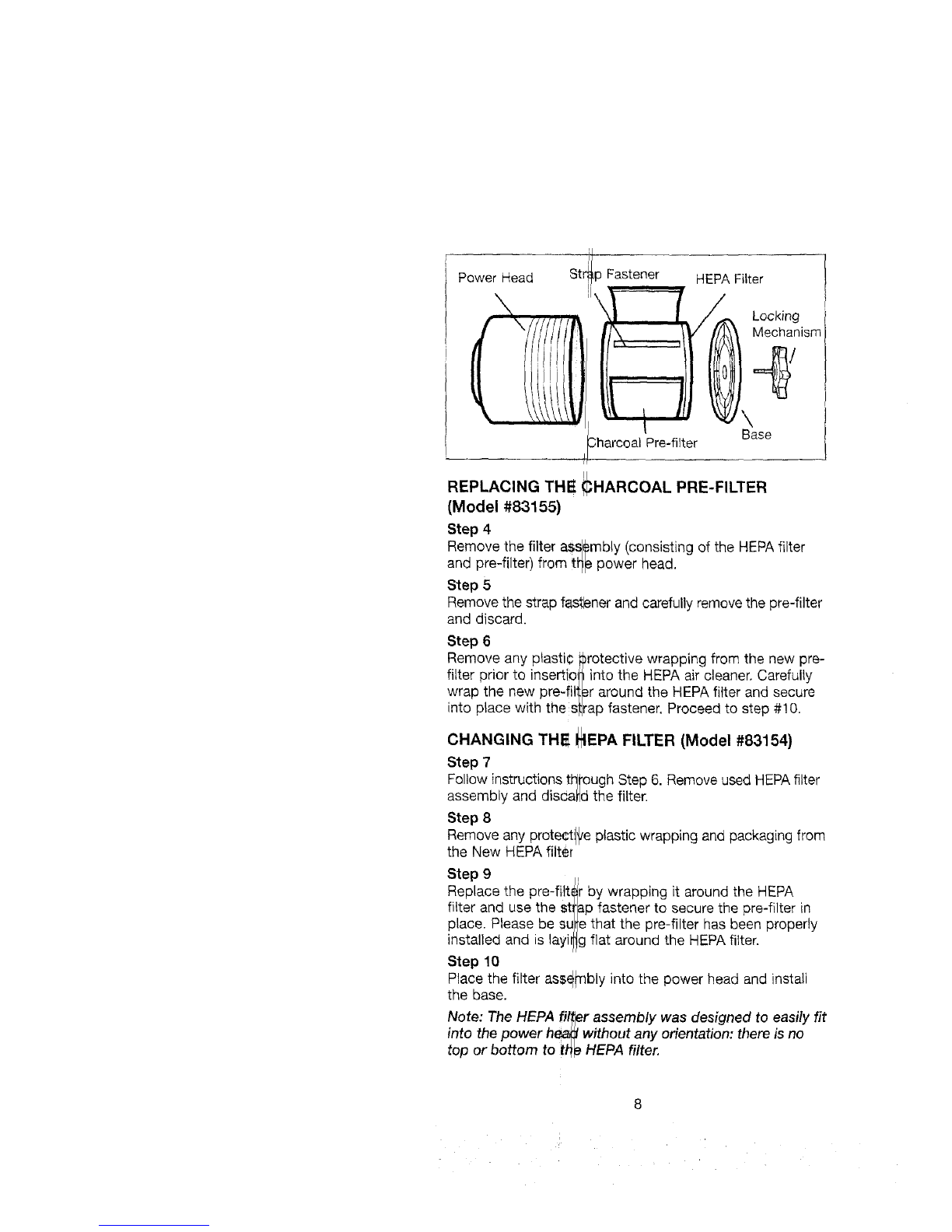

FILTER REPLA(_EMENT
These specially designed filters are made for easy
replacement and m_ximum performance.
THEY ARE NOT wAJSHABLE.
Step 1
Turn the HEPAair ,_,_,ler OFF and unplug the unit from the
power outlet.
Step 2
Open by gently placing the air cleaner on its side and
unscrewing the Iockiitg mechanism.
Step 3
Remove the base asi_embly from the air cleaner.

PowerHead
REPLACING THE,
(Model #83155)
Step 4
Fastener
._harcoalPre-filter
HEPAFilter
/Locking
/_ Mechanism
Base
;HARCOAL PRE-FILTER
Remove the filter assJ_mbly(consisting of the HEPAfilter
and pre-filter) from tl_ power head.
Step 5
Remove the strap fasflenerand carefully remove the pre-filter
and discard.
Step 6
Remove any plastic _rotective wrapping from the new pre-
filter prior to insertioi) into the HEPA air cleaner. Carefully
wrap the new pre4ilt_r around the HEPA filter and secure
into place with the s_rap fastener, Proceed to step #!0.
CHANGING THE I_EPA FILTER (Model #83154)
Step 7
Follow instructions t_l_'oughStep 6. Remove used HEPAfilter
assembly and discaHdthe filter.
Step 8
Remove any protectt_/eplastic wrapping and packaging from
the New HEPAfilter
Step 9 H
Replace the pre-filt_r by wrapping it around the HEPA
filter and use the st[_apfastener to secure the pre-filter in
place. Please be suJlethat the pre-filter has been properly
installed and is layiltg flat around the HEPA filter.
Step 10
Place the filter ass_nbly into the power head and instali
the base,
Note: The HEPA fil_er assembly was designed to easily fit
into the power hea_ without any orientation: there is no
top or bottom to th_ HEPA filter,

Step 11
Lock the base into I_lace by replacing and tightening the
locking mechanism_ecurely.
Step 12
Adjust the filter charpgecalendar(s) to properly indicate
when the next filter _hange is necessary.
Step 13
Turn the HEPA air cleaner upright and the HEPA air cleaner
is ready for operat oh

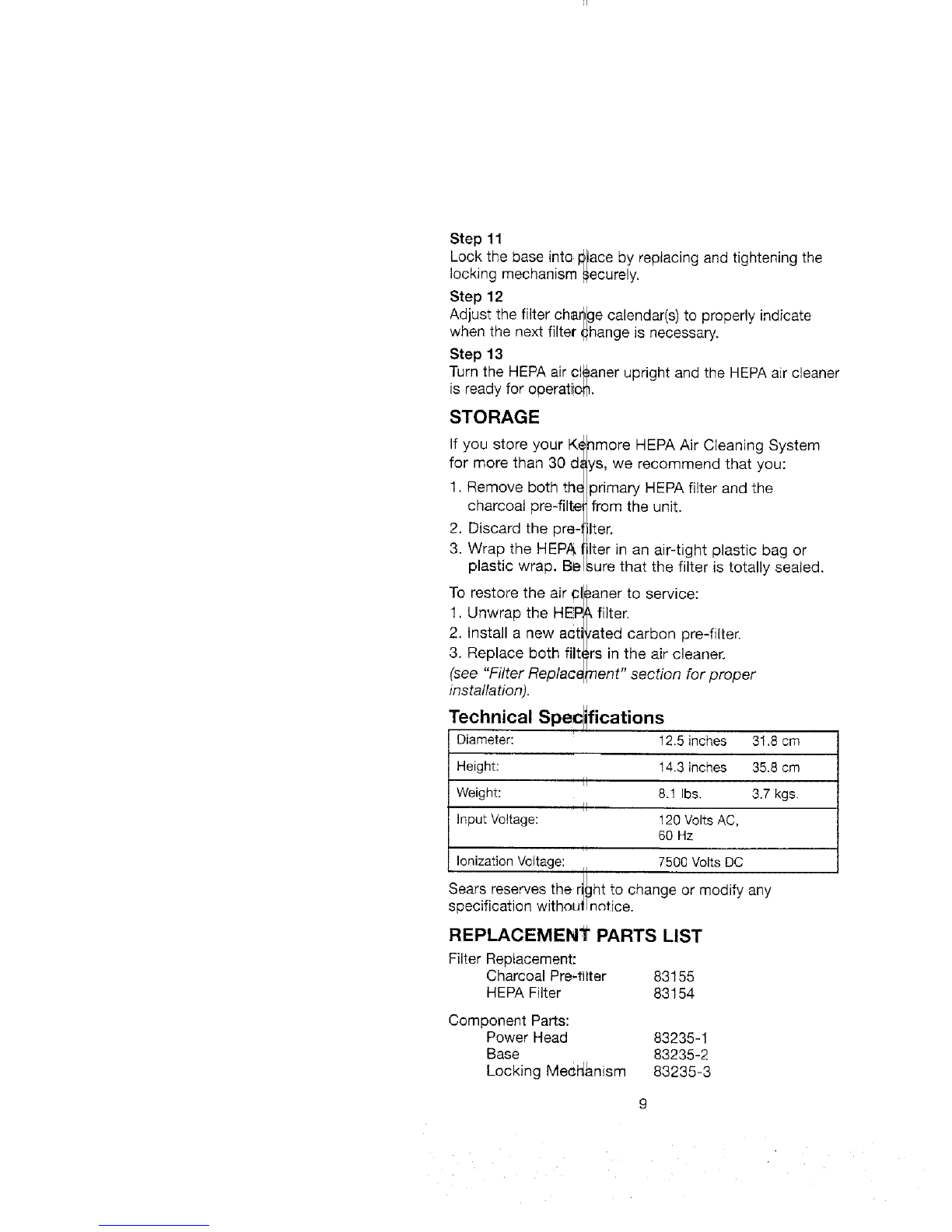

STORAGE
If you store your K_
for more than 30 d_
1. Remove both the
charcoal pre-filte
2. Discard the pre-
3. Wrap the HEPA
plastic wrap. Be
qmore HEPA Air Cleaning System
ys, we recommend that you:
primary HEPA filter and the
from the unit.
Iter.
Iter in an air-tight plastic bag or
Jure that the filter is totally sealed.
To restore the air cleaner to service:
1. Unwrap the HEPI_,filter.
2. Install a new activated carbon pre-filter.
3. Replace both filters in the air cleaner.
(see "Filter Reptac_nent" section for proper
installation).
Technical Specllfications
Diameter: 12.5inches 31.8cm
Height: 14.3inches 35.8cm
II
Weight: 8.1 Ibs, 3.7 kgs,
, II
Input Voltage: 120 Volts AC,
80 Hz
II
IonizationVoltage: 7500 VoltsDC
//
Sears reserves the right to change or modify any
specification withoult nntice.
REPLACEMENT PARTS LIST
Filter Replacement:
Charcoal Pro-tilter 83155
HEPA Filter 83154
Component Parts:
Power Head 83235-1
Base 83235-2
Locking Meet_.nism 83235-3

CUSTOMER
There are no custom
cleaner. If you experi
warranty for informal
this unit yourself. Do
could cause damage
to yourself. If you hay
ance, please call toll
1-800-554-4558
$1STANCE LINE
,r-serviceable parts inside this air
,nce any problem, please see the
an. Please DO NOT attempt to repair
lg so wil! void your warranty and
to the air cleaner or personal injury
,any questions concerning this appli-
:tee:
Business Hours:
Mon. - Fri., 8:00 am H10:00pm EST,
Sat.- Sun., 8:30am,- 5:00 pm EST.
HOW TO ORDE R REPLACEMENT PARTS
To order replacemen_ parts by phone, call toil free:
1-800-FON-PAR_ (1-800-366-7278)
7am-7pm, 7 days a greek
When ordering rep!a_ement parts, always give the
following informationl
Part Number:
Part Description:
Model Number:
Name of the Item:
See Replacement Parts List
See Replacement Parts List

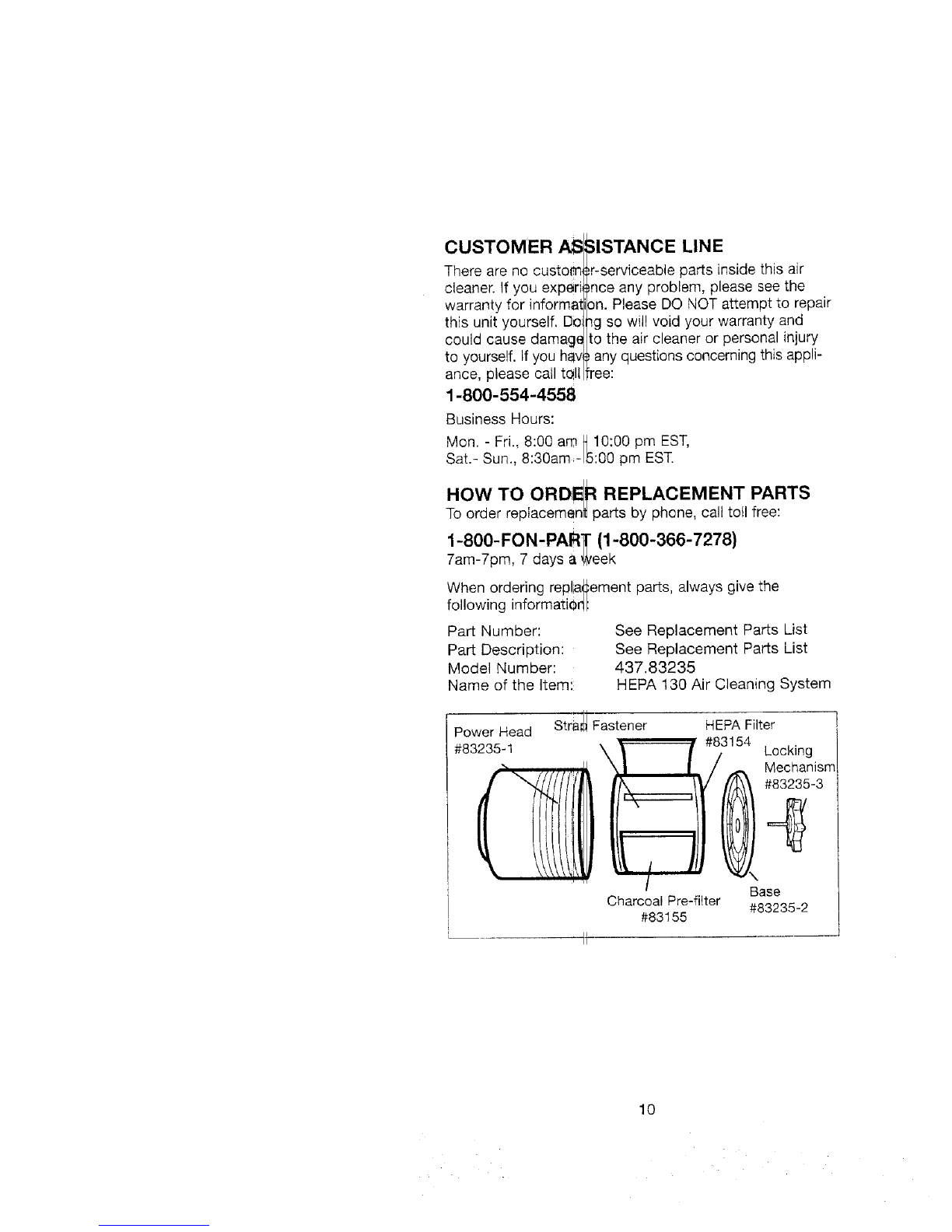

437.83235
HEPA 130 Air Cleaning System
Power Head stia_ Fastener HEPA Filter
#83235-1 ' #83154 Locking
_ii /Q Mechdnism
#83235-3
I
[Base
Charcoal Pre-filter #83235-2
#83155
10

SEARS
Sears, Roebuck a4n¢ Co., Hoffman Estates, IL 60179 U.S.A.
