Use & Care Guide
®
Liquid Propane Gas Grill
Sears Model No: 119.16433010
Safety
Parts
Use and Care
Assembly
Espa_ol, Pg. 30
This Grill is for Outdoor Use Only
• Read and follow all Safety, Assembly,
and Use & Care Instructions in this
Guide before assembling and
cooking with this grill.
• Failure to follow all instructions in
this Use & Care Guide may lead
to fire or explosion, which could
result in property damage, personal
injury or death.
Grill Information Center
Missing Parts? Assembly Questions?
Operation Problems? Before
returning grill to store,
call 1-800-933-0527
Tools needed for assembly:
Protective work gloves and eyewear
Phillips head screwdriver (included
in hardware pack)
SAVE THESE INSTRUCTIONS!
See our extensive assortment of outdoor living products on-line at
www.sears.com and www.kmart.com
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
© 2010 Sears Brands, LLC Printed in China B10SR9-R

Primary Safety Warnings. .................................. 1-3
Warranty Information ............................................ 2
Pre-Assembly instructions .................................... 3
Part Diagram and Lists ...................................... 4-7
Assembly Instructions ..................................... 8-18
Use & Care Instructions ................................. 19-27
Frequently Asked Questions ................................... 28- 29
Spanish Guide ........................................................... 30-58
Repair Protection Agreement ...................................... 59
Sears Parts and Service Information ......................... 60
Kenmore Full Warranty
If this grill fails due to a defect in material or workmanship
within one year from the date of purchase, call 1-800-4-
MY-HOME® to arrange for
free repair (or replacement if repair proves impossible).
For five years from the date of purchase, the
stainless steel burners will be replaced free of
charge if they rust through. After the first year
from the date of purchase, you must pay the labor
cost to have them installed.
All warranty coverage excludes ignitor batteries,
grill part paint loss, discoloration, and surface
rusting, which are either expendable parts that can
wear out from normal use within the warranty
period, or are conditions that can be the result of
normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever used for
commercial or rental purposes.
All warranty coverage applies only if this grill is used in the
United States.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
Sears, Roebuck and Co,, Hoffman Estates, IL
60179
IF YOU SMELL GAS:
Shut off gas to the appliance.
Extinguish any open flame.
Open lid.
If odor continues, keep away
from the appliance and immediately
call your gas supplier or your fire
department.
• Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance,
•An LP cylinder not connected for use
shall not be stored in the vicinity of thh
or any other appliance,
If you are missing parts, need assistance during
assembly, or have any other questions, please call 1-
800-933-0527 between the hours of 8:30am and
5:00pm, Monday through Friday, Central time.
Note that you will be speaking with a representative
of the grill manufacturer and not a Sears employee.
Product Record
IMPORTANT: Fill out the product record
information on below.
•Model Number 119.16433010
Serial Number
(See silver CSA plate inside of left door)
•Date Purchased
For residential use only. Do not use for commercial cooking.
California Proposition 65
1. Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead and
lead compounds, known to the State of California to
cause cancer, birth defects or other reproductive harm.

DO NOT light this grill without first reading
the Lighting Instructions.
DO NOT light this grill without checking the
burner tubes for blockage that could have
occurred during shipment. See the Cleaning
and Maintenance Instructions.
The installation must conform with local codes or,
in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
or CAN/CGA B149.1, Natural Gas and Propane
Installation Code, or Propane Storage and
Handling Code, B149.2.
•DO NOT use any type of charcoal in this grill.
• DO NOT operate the main burners and back
burner at the same time. (If Equipped)
• ALWAYS inspect the grease tray before each
use. Remove and clean as necessary.
All electrical accessories (such as a rotisserie or
light) must be electrically grounded in accordance
with local codes, or in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70,
or the Canadian Electrical Code, CSA C22.1. Keep
any electrical cords away from hot surfaces.
This outdoor cooking gas appliance is not intended
to be installed in or on boats or recreational
vehicles.

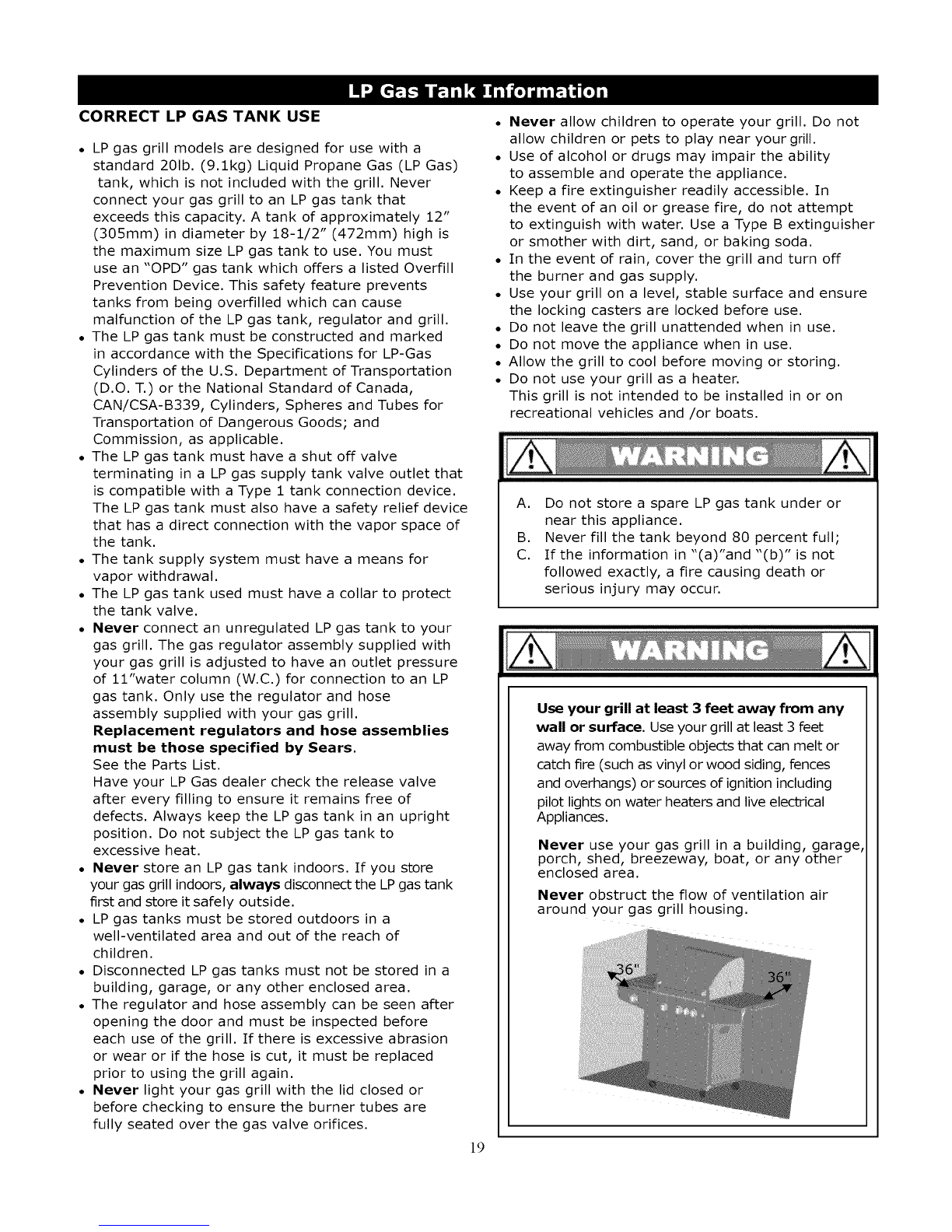

Liquid Propane Gas (LPG) grills must be used with
the liquid propane gas regulator assembly supplied.
This grill is not convertible to natural gas.
ALWAYS keep the gas hose assembly away from
any heated surface and dripping grease. Avoid
unnecessary twisting of the hose. Visually
inspect the hose prior to each use for cuts,
cracks, excessive wear, or other damage. Do not
use the gas grill if the hose appears damaged.
Call Sears at 1-800-4-MY-HOME®
(1-800-469-4663) for a Kenmore replacement
gas hose assembly.
• NEVER use your gas grill in a building,
garage, porch, shed, breezeway or any
other enclosed area.
• NEVER obstruct the flow of ventilation
air around your gas grill cabinet.
• DO NOT leave children and pets
unattended in the area when the grill is
in operation.
• ENSURE the grill is on a level surface
when in operation. You can adjust the
feet in front to level and stabilize the grill.
• NEVER attach an unregulated gas line
to this appliance.
PRE-ASSEMBLY
• Two people will be necessary to assemble the
larger parts of the grill.
• Lay a cardboard sheet on the floor and use as a
work surface to protect floor and grill parts from
scratches.
• Once all parts are removed and unpacked,
use the Hardware and Part Diagrams to ensure all
items are included and free of damage.

A
Phillips Head Bolt M6×35mm
Qty: 4 pcs
F
Phillips Head Screwdriver
Qty: 1 pc
lm B
Phillips Head Bolt M6x16mm
Qty: 24 pcs
Battery Size AA
Qty: 1 pc
G
C
Phillips Head Bolt M6xl0mm
Qty: 4 pcs
Cabinet Door Stop
Qty: 1 pc
H
D
Phillips Head Bolt M4×Smm
Qty: 22 pcs
"S" Hook
Qty: 3 pcs
Plastic Washer M6
Qty: 8 pcs
E
Washer M4
Qty: 4 pcs

Key Qty Part No. Description
A1 1 *ASMA0085-01 Hood Assembly
A2 2 *ASMA0014-03 Hood Bolt Assembly
A3 1 CA0046-001 Hood Handle Seat Assebmly
A4 2 FLPP0114 Hood Handle Heat Insulator
A5 1 SE0213 Thermometer
A6 1 CA0045-002 Thermometer Seat
A7 1 *ASMA0014-05 Hood Handle
B1 1 *ASMB0085-01 Firebox Assembly
B2 1 SC1020 Gas Manifold Assembly
B3 1 *ASMB0085-02 Firebox Front Heat Shield
B4 1 SD0051 Rotisserie Burner
B5 1 *ASMB0085-03 Rotisserie Burner Orifice Support
B6 1 SC0097 Rotisserie Burner Orifice
B7 1 $1027-037D-006 Rotisserie Burner Cover
B8 3 SD0024-A Main Burner
B9 3 SE9009 Main Burner Electrode
B10 1 $1018-000C-026 Grease Tray
Bll 3 PLABS0090-001 Control Knob- Large
B12 1 PLABS0103-001 Control Knob- Small
B13 1 PLABS0104-001 Control Knob Seat - Small
B14 3 FA0121-001 Control Knob Seat - Large
B15 1 SE0286-012 Warming Rack
B16 1 SE0287-013 Grease Pan Bracket
B17 1 $1020-023D-004 Grease Pan
B18 1 *ASMB0085-04 Electronic Igniter Wire Set
B19 1 SB0131B Electronic Igniter Button
B20 1 SE0078 Electronic Igniter
B21 1 *ASMB0085-05 Main Burner Control Panel top Panel
B22 1 *ASMB0085-06 Main Burner Control Panel
B23 3 S1007-012E-016 Heat Diffuser
B24 1 SC0101 Side Burner Valve
B25 1 SE0148 Regulator and Hose Assembly
B26 2 CI0018-012 Cooking Grate
B27 1 SC0100 Rotisserie Burner Flame Sensor
B28 1 SE0237Z Rotisserie Burner Electrode
B29 1 *ASMB0085-07 Rotisserie Burner Electrode Protection Box
B30 1 SH1100-A Rotisserie Burner Stem
B31 1 $1046-000C-001 Rotisserie Burner Electrode Support
B32 4 FE0025M Hood Bumper
C1 1 SE0153-002 Side Burner Cover Pin

Key Qty Part No.
C2 1 $7004-042D-001
C3 1 $7001-042D-017
C4 1 *ASMD0085-01
C5 1 *ASMD0085-02
C6 1 PLABS0090-001
C7 1 PLABS0103-001
C8 1 S7005-F00B-026
C9 1 *ASMC0012-08
C10 1 SE0084-012
Cll 1 *ASMD0085-03
C12 1 SE0083
C13 2 SB0045-001
D1 1 $7002-042D-005
D2 1 *ASMD0085-02
D3 1 $7005-000B-027
D4 1 *ASMC0012-08
D5 3 SE0123-002
E1 1 *ASMC0085-01
E2 2 SE0257
E3 1 $4025-042D-002
E4 2 SE0055
E5 1 *ASMC0085-02
E6 1 SE0080-001
E7 1 SE0290-002
E8 2 SE0150
E9 1 *ASMC0085-03
El0 1 SE9027-011
Ell 1 *ASMC0085-04
E12 1 *ASMC0085-05
E13 2 PLABS0092N-001
E14 1 *ASMC0085-06
E15 1 SE0019-001
E16 2 SE0289-001
E17 2 SE0288-001
Description
Side Burner Cover
Side Burner Outer Frame Assembly
Side Burner
Side Burner Upper Control Panel
Control Knob Seat- Large
Control Knob - Large
Side Burner Lower Control Panel
Towel Bar Handle
Side Burner Cooking Grate
Side Burner Inner Frame
Side Burner Electrode
Side Burner Stopper
Side Shelf Assembly
Side Shelf Upper Front Panel
Side Shelf Lower Front Panel
Towel Bar Handle
"S" Hook
Cabinet Assembly
Swivel Caster
Cabinet Door Stop
Swivel Locking Caster
Cabinet Toe Plate
Regulator and Hose Support Ring
Cylinder Support Ring
Magnetic Door Stop
Cabinet Front Crossbar
Condiment Basket
Cabinet Left Door
Cabinet Right Door
Cabinet Door Handle
Cabinet Back Panel
Manual Igniter Stick
Door Bottom Pin
Door Top Pin
N/A 1 ASMF085 Hardware Pack
N/A 1 RNA0103 Manual
If you are missing hardware or have damaged parts after unpacking grill, call 1-800-933-0527 for replacement.
To order replacement parts after using grill, call 1-800-4-MY-HOME®.

_----(

Remove Firebox from Cabinet
[] Cut fastening straps on Cabinet Toe Plate. Remove the Toe Plate and set aside. Cut fastening
straps securing regulator and hose to cabinet.
[] Unscrew and discard the 8 Phillips Head Bolts (M6x35mm) and 8 Washers (M6) from the corner
holes of the cabinet. Remove the crossbar and set aside.
[] With the aid of an assistant, carefully lift the cabinet up from the firebox and set aside. Remove
all foam packing from the Firebox. Raise lid and remove and unpack parts inside Firebox.
Cabinet Front Crossbar
Cabinet Toe Plate
Install Casters to Cabinet
[] Place the Cabinet Assembly upside down and attach the 4 Casters to the bottom using 16 Phillips
Head Bolts (M6x16mm). Install both locking casters on rear of cabinet.
Swivel Caster
Phillips Head Bolt M6x16mm
Qty: 16
Swivel Locking Caster
g

Install Cabinet Toe Plate
[] Attach the Cabinet Toe Plate to the Cabinet Bottom Panel using 4 Phillips Head Bolts
(M6xl0mm),
[] Place cabinet in upright position on casters,
Phillips Head Bolt M6xl0mm
Qty: 4
Install Cabinet Doors and Cabinet Front Crossbar
[] Insert the Cabinet Right Door bottom pin into the Cabinet Bottom Panel (Inset 1), and insert the
Cabinet Right Door top pin into the Cabinet Front Crossbar (Inset 2), With door magnets
extending into Cabinet, attach the Cabinet Front Crossbar to the right side of the Cabinet using
2 Phillips Head Bolts (M6x35mm) and Plastic Washers (M6) (Inset 3), Do not fully tighten bolts
at this time,
[] Insert the Cabinet Left Door in the same way and attach Cabinet Front Crossbar to the left side
of the Cabinet using 2 Phillips Head Bolts (M6x35mm) and Plastic Washers (M6), Fully tighten
all 4 Front Crossbar bolts at this time,
Phillips Head Bolts M6x35mm
Qty: 4
Plastic Washer M6
Qty: 4
\
Inset 2 9 Inset 1 Inset 3

Hang Condiment Basket and attach Cabinet Door Stop
[] Attach the Cabinet Door Stop to the front of cabinet bottom using 2 Phillips Head Bolts
(M4x8mm),
[] Hang Condiment Basket on the inside of Cabinet Right Door,
Phillips Head Bolt M4x8mm
Qty: 2
Cabinet Door Stop
Qty: 1
/.
Attach Firebox to Cabinet
[] With the aid of an assistant, place the Firebox onto the Cabinet Frame with Regulator Hose and
Side Burner Ignition Wire hanging inside of Cabinet, Note: Rear of Firebox rests on two tabs at
back of Cabinet,
[] Line up the holes and attach the firebox to the cabinet frame using 4 Phillips Head Bolts
(M6x16mm) and 4 Plastic Washers (M6),
Hint: You may need to slide the Firebox Assembly forward, backward, or lift slightly for the bolt
holes to properly line up,
[] Push the 3 Main Burner Control Knobs and smaller Rotisserie Control Knob onto Valve Stems as
shown,
Phillips Head Bolt M6x16mm
Qty: 4
Plastic Washer M6
Qty: 4
10
