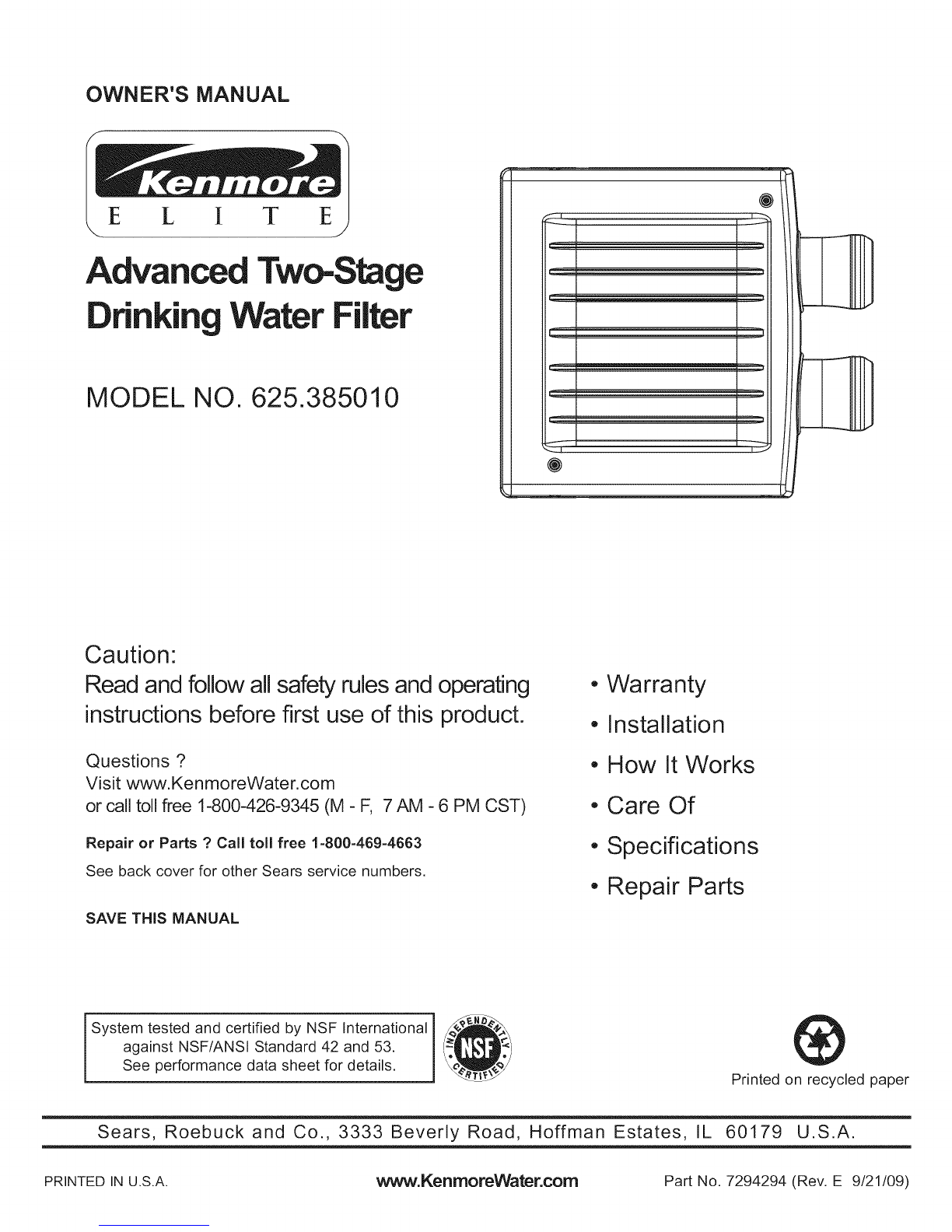

OWNER'S MANUAL
E L IT
Advanced Two-Stage
Drinking Water ter
MODEL NO. 625.385010
"-------I
...,=====_
,,=___ ]
2!
®
®
Caution:
Read and follow all safety rules and operating
instructions before first use of this product.
Questions ?
Visit www.KenmoreWater.com
or call toll free 1-800-426-9345 (M - F, 7 AM - 6 PM CST)
Repair or Parts ?Call toll free 1o8004694663
See back cover for other Sears service numbers.
SAVE THiS MANUAL
•Warranty
•Installation
•How It Works
•Care Of
•Specifications
•Repair Parts
System tested and certified by NSF International
against NSF/ANSl Standard 42 and 53.
See performance data sheet for details, ®
Printed on recycled paper
Sears, Roebuck and Co., 3333 Beverly Road Hoffman Estates, IL 60179 U.S.A.
PRINTED IN U.S.A. www.KenmoreWater.com Part No. 7294294 (Rev. E 9/21/09)

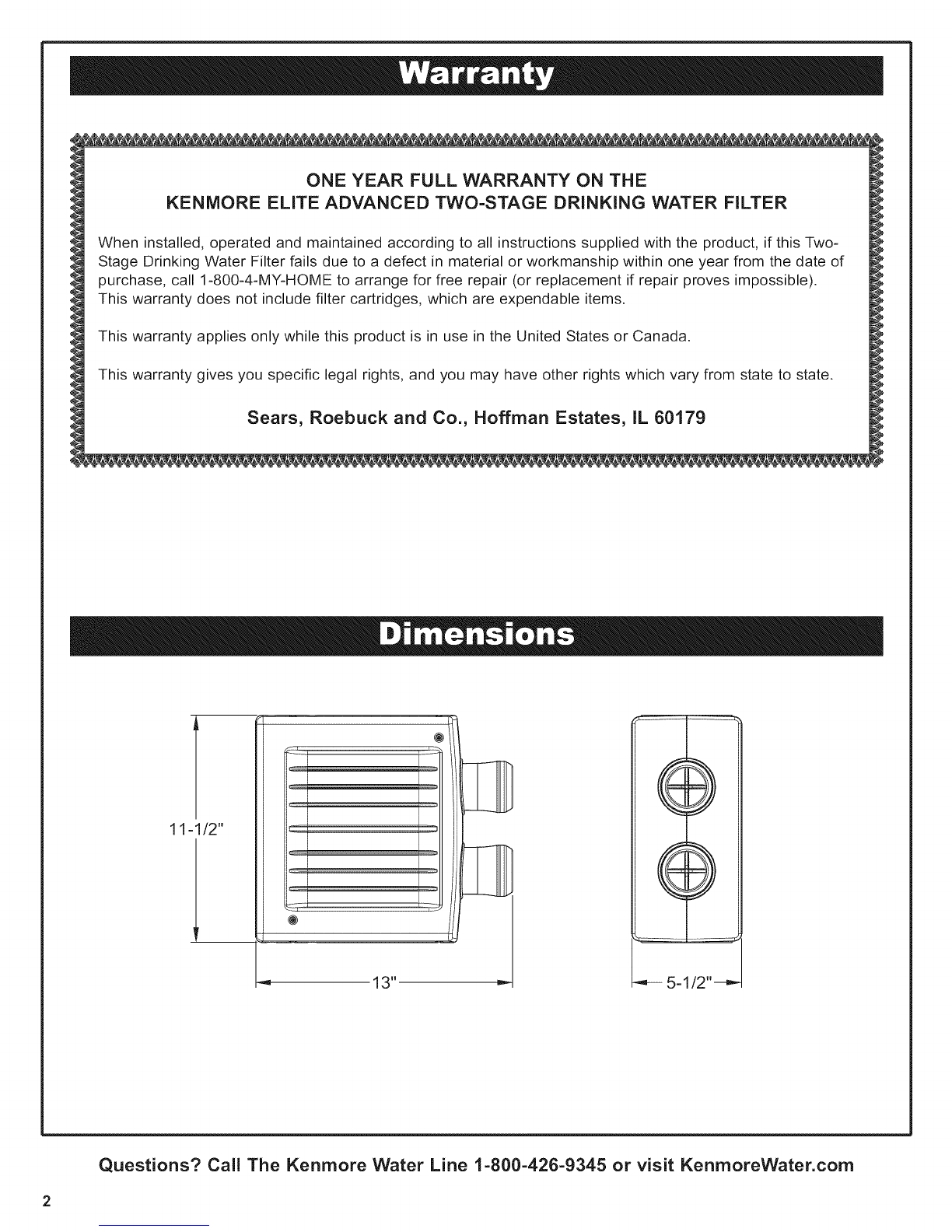

ONE YEAR FULL WARRANTY ON THE
KENMORE ELITE ADVANCED TWO-STAGE DRiNKiNG WATER FILTER
When installed, operated and maintained according to all instructions supplied with the product, if this Two-
Stage Drinking Water Filter fails due to a defect in material or workmanship within one year from the date of
purchase, call 1=800=4=MY-HOME to arrange for free repair (or replacement if repair proves impossible).
This warranty does not include filter cartridges, which are expendable items.
This warranty applies only while this product is in use in the United States or Canada.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffrnan Estates, IL 60179
11-1/2"
-_ 13" 5-1/2
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

Unpack and Check Shipment ............................................................................. 4
Plan Your installation ................................................................................... 5
Step lqnstall Supply Water Fitting ........................................................................ 6
Step 2qnstall Filtered Water Faucet ........................................................................ 7
Step 3-Connect Tubes .................................................................................... 8
Maintenance ........................................................................................... 9

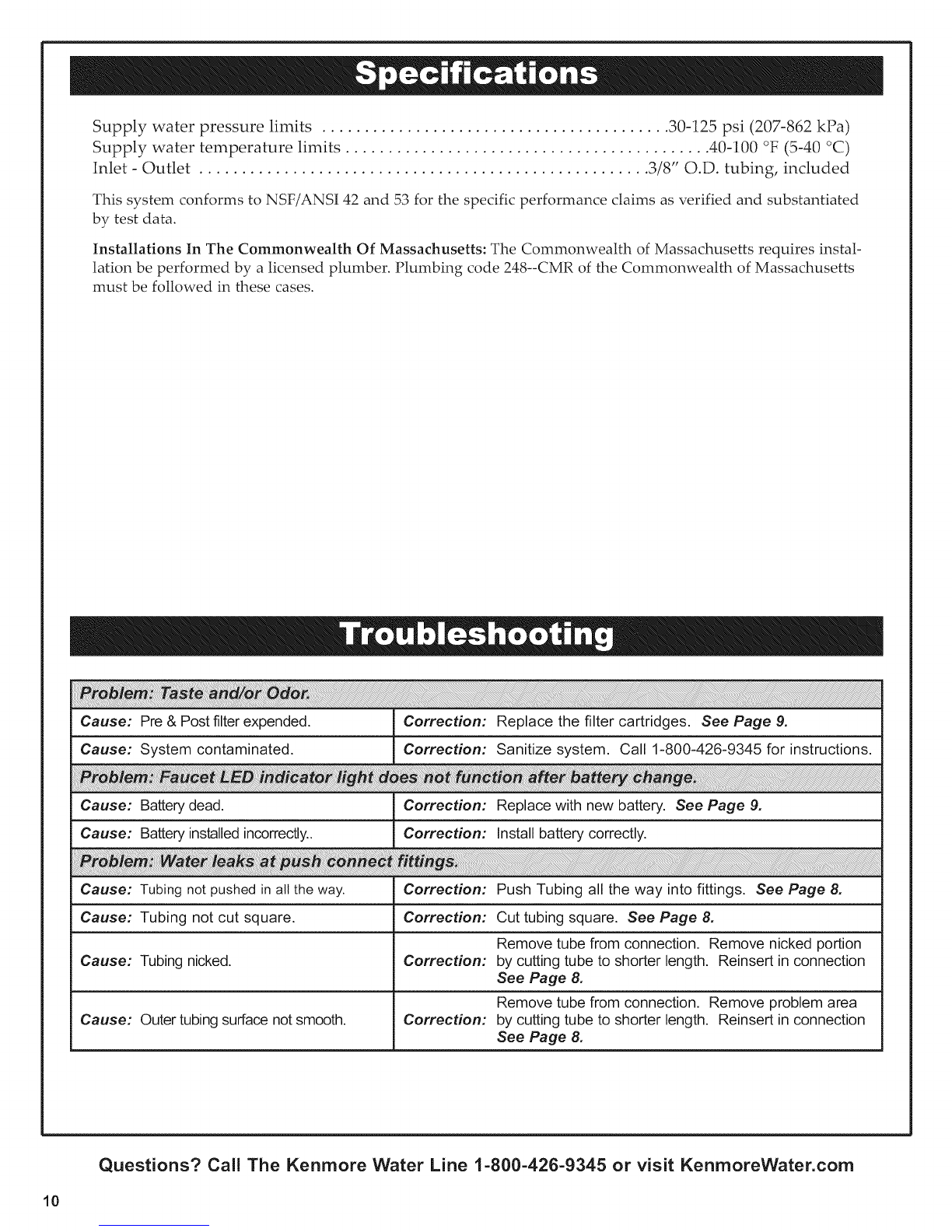

Specifications .......................................................................................... 10
Troubleshooting ....................................................................................... 10

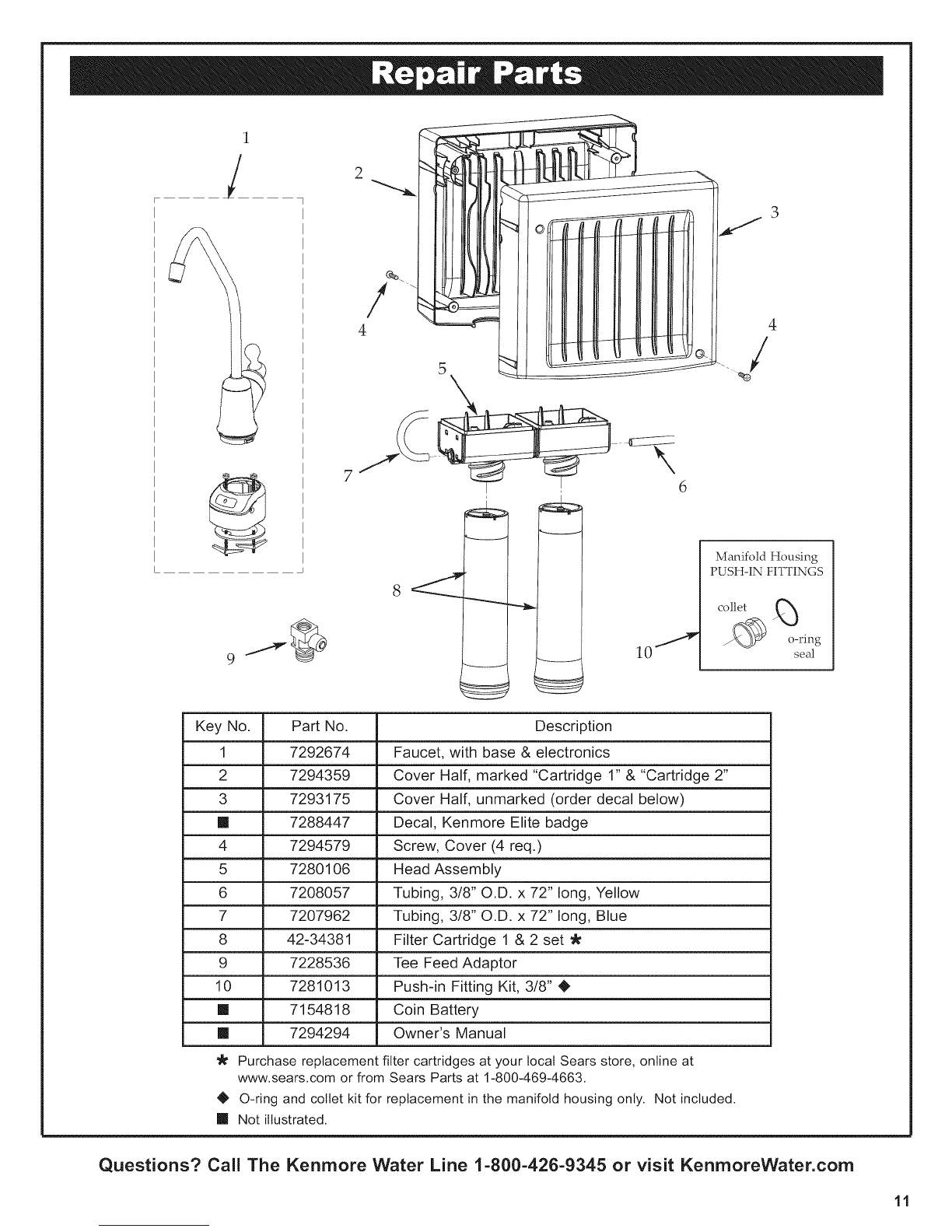

Exploded View & Parts List ............................................................................. 11
Y Read all steps and guides carefully before installing
and using your Advanced Two-Stage Drinking Water
Filter. Follow all steps exactly to correctly install.
Reading this manual will also help you to get all the
benefits from the Advanced Two-Stage Drinking
Water Filter.
V Do not attempt to use this product to make safe
drinking water from non-potable water sources. Do
not use the system on microbiologically unsafe water,
or water of unknown quality without adequate disin-
fection before or after the system. This system is certi-
fied for cyst reduction and may be used on disinfec-
ted water that may contain filterable cysts.
Y Check with your local public works department for
plumbing and sanitation codes. You must follow
their guides as you install the system. Follow your
local codes if they differ with guides in this manual.
in Massachusetts, plumbing code 248-CMR 3.00 and
10.00 shall be adhered to. Consult with a licensed
plumber.
V
V
The Advanced Two-Stage Drinking Water Filter works
on water pressures of 30 psi (minimum) to 125 psi
(maximum). If your house water pressure is over the
maximum, install a pressure reducing valve in the
water supply pipe to the Advanced Two-Stage
Drinking Water Filter.
Do not install the Advanced Two-Stage Drinking
Water Filter outside, or in extreme hot or cold temper-
atures. Temperature of the water supply to the
Advanced Two-Stage Drinking Water Filter must be
between 40°F and 100°F. Do not install on hot water.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

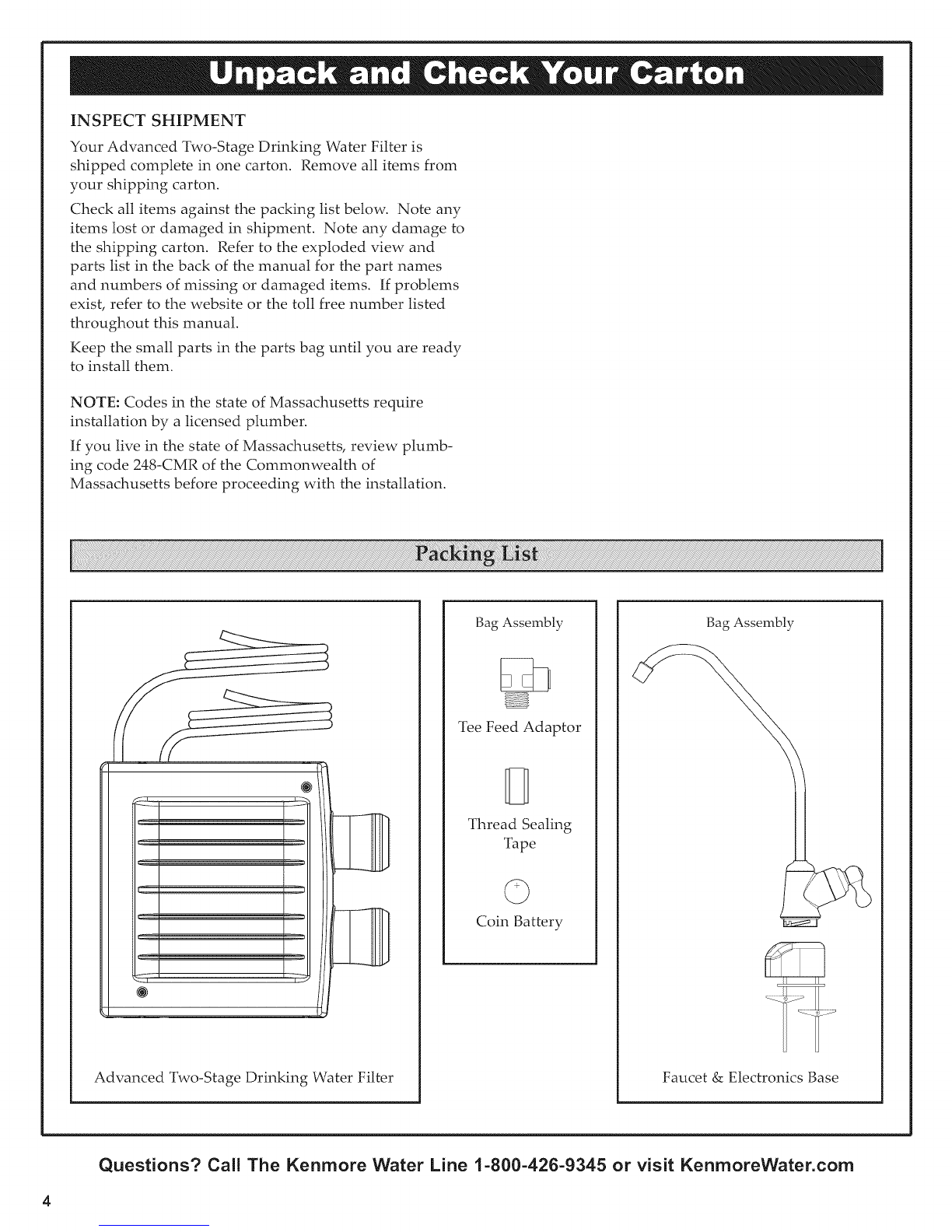

INSPECT SHIPMENT
Your Advanced Two-Stage Drinking Water Filter is
shipped complete in one carton. Remove all items from
your shipping carton.
Check all items against the packing list below. Note any
items lost or damaged in shipment. Note any damage to
the shipping carton. Refer to the exploded view and
parts list in the back of the manual for the part names
and numbers of missing or damaged items. If problems
exist, refer to the website or the toll free number listed
throughout this manual.
Keep the small parts in the parts bag until you are ready
to install them.
NOTE: Codes in the state of Massachusetts require
installation by a licensed plumber.
if you live in the state of Massachusetts, review plumb-
ing code 248-CMR of the Commonwealth of
Massachusetts before proceeding with the installation.
®
®
Advanced Two-Stage Drinking Water Filter
Bag Assembly
©
Tee Feed Adaptor
Thread Sealing
Tape
©
Coin Battery
Bag Assembly
Faucet & Electronics Base
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

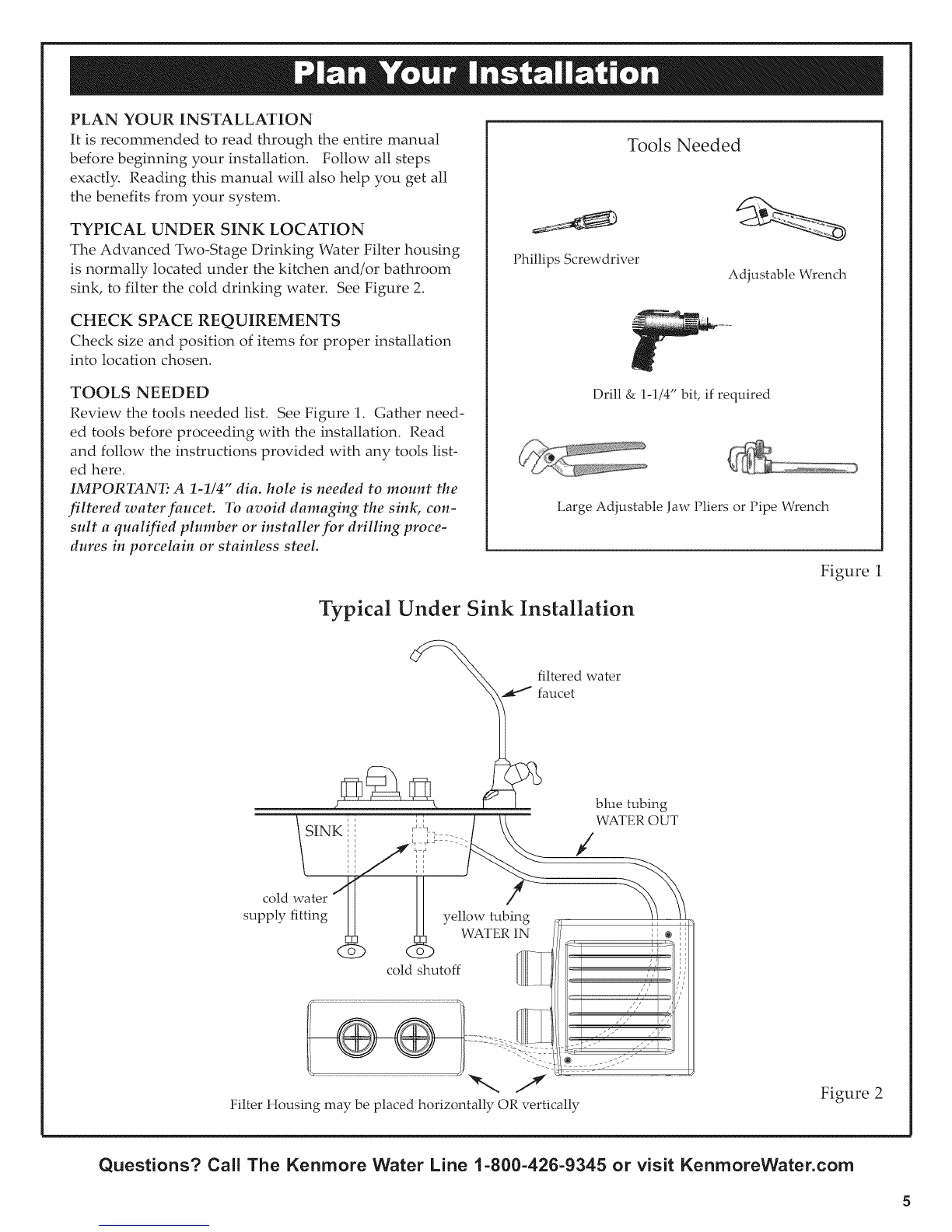

PLAN YOUR INSTALLATION
it is recommended to read through the entire manual
before beginning your installation. Follow all steps
exactly. Reading this manual will also help you get all
the benefits from your system.
TYPICAL UNDER SINK LOCATION
The Advanced Two-Stage Drinking Water Filter housing
is normally located under the kitchen and/or bathroom
sink, to filter the cold drinking water. See Figure 2.
CHECK SPACE REQUIREMENTS
Check size and position of items for proper installation
into location chosen.
TOOLS NEEDED
Review the tools needed list. See Figure 1. Gather need-
ed tools before proceeding with the installation. Read
and follow the instructions provided with any tools list-
ed here.
IMPORTANT'. A 1-1/4" dia. hole is needed to mount the
filtered water faucet. To avoid damaging the sink, con-
sult a qualified plumber or installer for drilling proce-
dures in porcelain or stainless steel.
Tools Needed
Phillips Screwdriver Adjustable Wrench
Drill & 1-1/4" bit, if required
Large Adjustable Jaw Pliers or Pipe Wrench
Figure 1
Typical Under Sink Installation
filtered water
blue tubing
WATEROUT
SINK ii
cold water
supply fitting yellow tubing
WATER IN
cold shutoff
J
Filter Housing may be placed horizontally OR vertically Figure 2
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

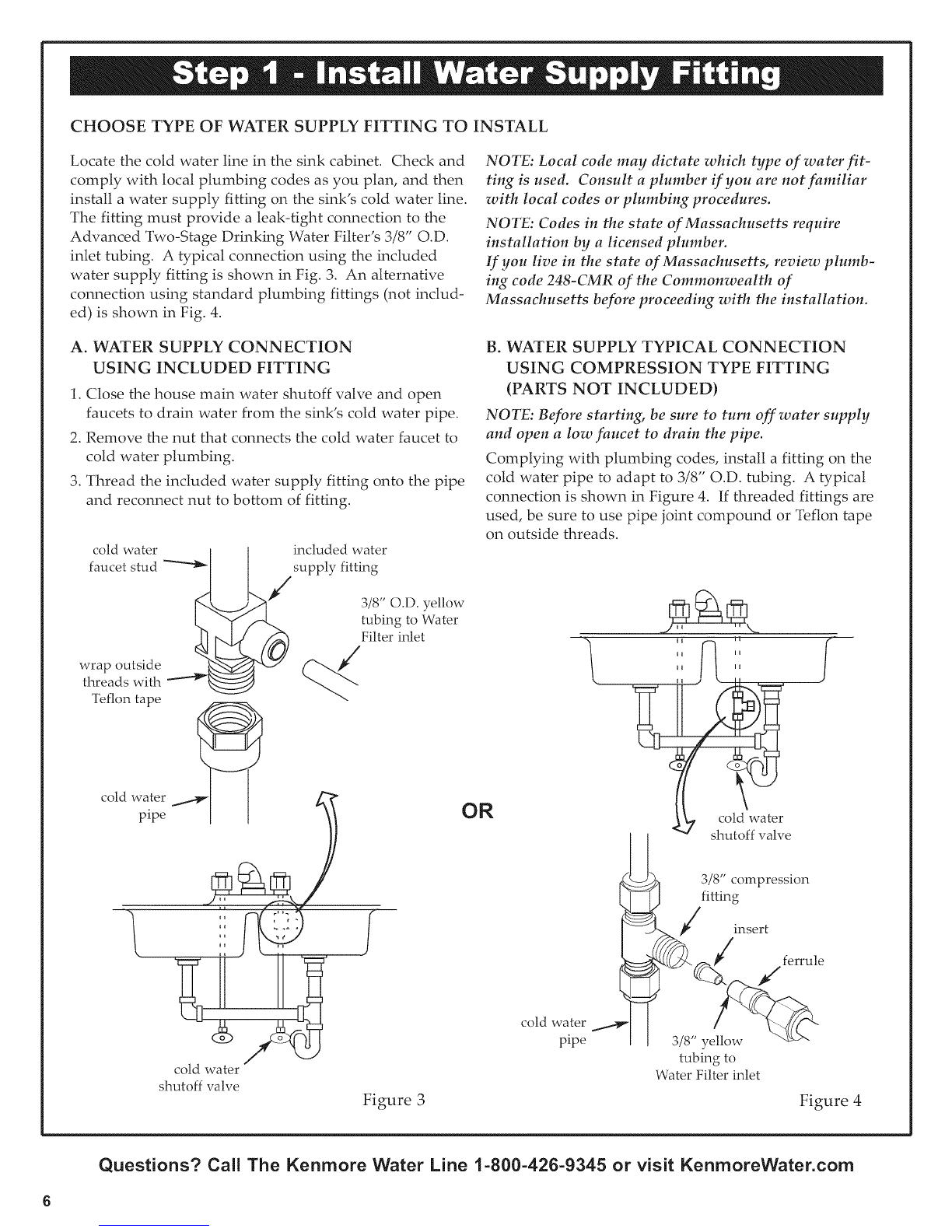

CHOOSE TYPE OF WATER SUPPLY FITTING TO INSTALL
Locate the cold water line in the sink cabinet. Check and
comply with local plumbing codes as you plan, and then
install a water supply fitting on the sink's cold water line.
The fitting must provide a leak-tight connection to the
Advanced Two-Stage Drinking Water Filter's 3/8" O.D.
inlet tubing. A typical connection using the included
water supply fitting is shown in Fig. 3. An alternative
connection using standard plumbing fittings (not includ-
ed) is shown in Fig. 4.
A. WATER SUPPLY CONNECTION
USING INCLUDED FITTING
1. Close the house main water shutoff valve and open
faucets to drain water from the sink's cold water pipe.
2. Remove the nut that connects the cold water faucet to
cold water plumbing.
3. Thread the included water supply fitting onto the pipe
and reconnect nut to bottom of fitting.
cold water included water
faucet stud _ supply fitting
3/8" O.D. yellow
tubing to Water
Filter inlet
wrap outside
threads with
Teflon tape ?
cold water
shutoff valve
/
OR
NOTE: Local code may dictate which type of water fit-
ring is used. Consult a plumber if you are not familiar
with local codes or plumbing procedures.
NOTE: Codes in the state of Massachusetts require
installation by a licensed plumber.
If you live in the state of Massachusetts, review plumb-
ing code 248-CMR of the Commonwealth of
Massachusetts before proceeding with the installation.
B. WATER SUPPLY TYPICAL CONNECTION
USING COMPRESSION TYPE FITTING
(PARTS NOT INCLUDED)
NOTE: Before starting, be sure to turn off water supply
and open a low faucet to drain the pipe.
Complying with plumbing codes, install a fitting on the
cold water pipe to adapt to 3/8" O.D. tubing. A typical
connection is shown in Figure 4. If threaded fittings are
used, be sure to use pipe joint compound or Teflon tape
on outside threads.
),, ,,\o _
t _ bif.'
J
l_ cold water
shutoff valve
cold water
pipe
3/8" compression
fitting
J-_ /insert
_@_ /ferrule
3/8" yellow
tubing to
Water Filter inlet
Figure 3 Figure 4
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

MAKE HOLE FOR FAUCET
IMPORTANT'. A1-1/4" dia. hole is needed to mount the
filtered water fauceL To avoid damaging the sink, con-
sult a qualified plumber or installer for drilling proce-
dures in porcelain or stainless steel.
1. Select one of the following options to install the faucet.
Make sure there is room underneath to make the need-
ed connections.
o Use an existing sink top hole for spray hose or
soap dispenser (must be 1-1/4" in diameter).
o Drill a new hole in the sink top.
o Drill a hole in the countertop next to the sink.
2. Check to make sure the filtered water faucet base will
sit flat against the mounting surface.
3. if drilling is needed, make a 1-1/4" dia. (minimum)
hole for the faucet in the mounting surface.
faucet base
"N,_ __ 1-1/4" dia. hole
rubber gasket _ [ ..... s through sink or
toggle bolts_
Figure 5
faucet base faucetx_
INSTALL FAUCET BASE
1. Locate the faucet base (See Fig. 5) and feed the toggle
bolts down through the hole until the faucet base is
square against the mounting surface (sink or counter-
top). The rubber gasket should be between the faucet
base and mounting surface.
2. Tighten the toggle bolts until the faucet base is firmly
mounted to the surface. Do not overtighten.
CONNECT BLUE TUBE TO FAUCET
1. Place the Advanced Two-Stage Drinking Water Filter
housing under the sink. it can sit upright or on its side.
2. Locate the blue tube. One end is attached to the filter
housing. Feed the other end up through the mounting
hole and faucet base. See Figure 6.
3. Refer to the "Cut Tubes to Length" section on Page 8
and cut the blue tube square and to length as needed,
leaving about 6 inches above the faucet base.
4. Locate the faucet. Refer to the "Connect Tubes" section
on Page 8 and insert the blue tube all the way into the
3/8" quick connect fitting on the faucet bottom.
5. Pull on the tube to be sure it is held firmly in the fit-
ting.
faucet
.blue tubing
filter
housing
Figure 6
INSTALL FAUCET ON BASE
1. Lower the faucet onto the base. See Figure 7.
2. Give the faucet a 1/4 turn clockwise to attach the faucet
to the base.
3. install battery in faucet base (See "Change Battery" sec-
tion on Page 9) then continue installation with Step 3
on Page 8.
faucet base
1/4 turn to connect
faucet to base
Figure 7
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

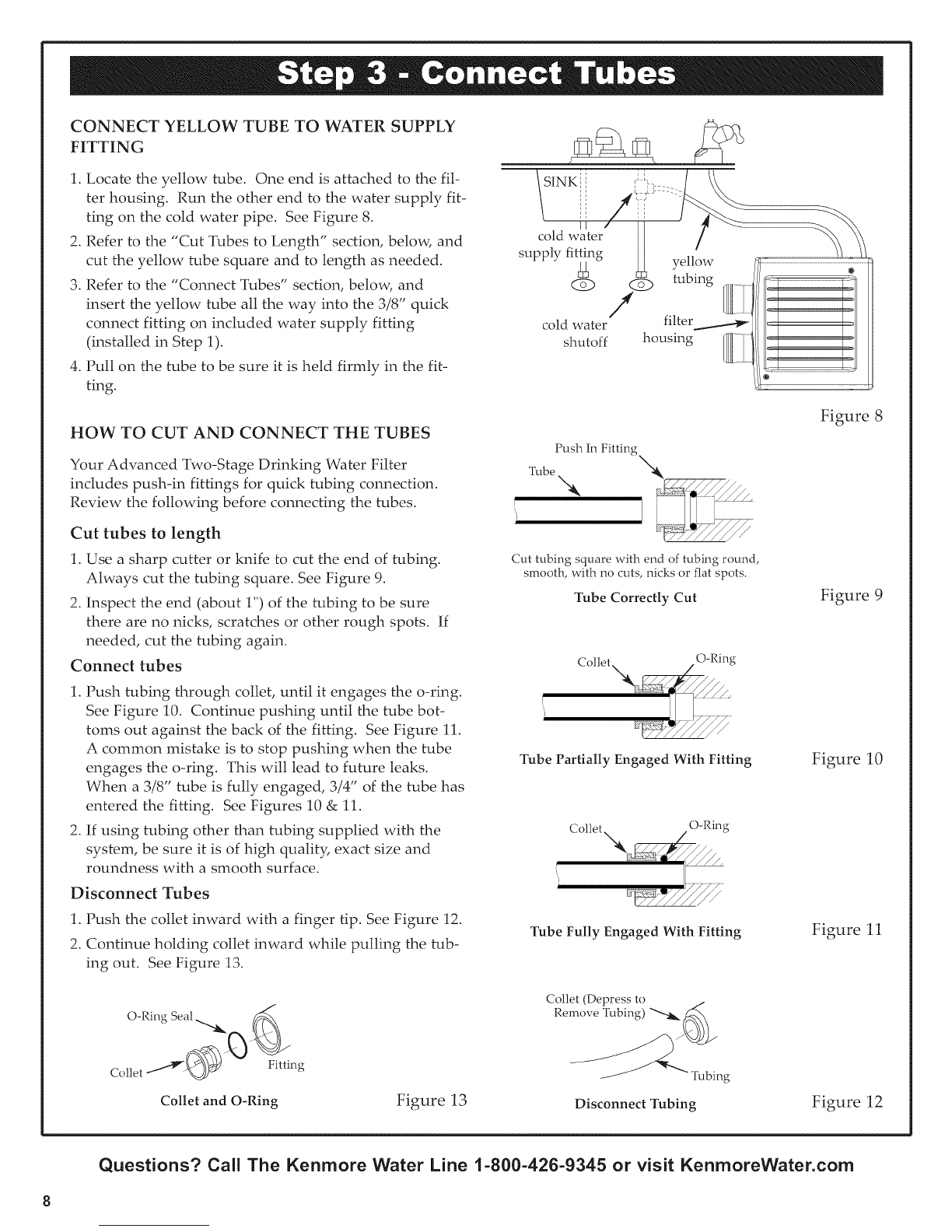

CONNECT YELLOW TUBE TO WATER SUPPLY
FITTING
1. Locate the yellow tube. One end is attached to the fil-
ter housing. Run the other end to the water supply fit-
ting on the cold water pipe. See Figure 8.
2. Refer to the "Cut Tubes to Length" section, below, and
cut the yellow tube square and to length as needed.
3. Refer to the "Connect Tubes" section, below, and
insert the yellow tube all the way into the 3/8" quick
connect fitting on included water supply fitting
(installed in Step 1).
4. Pull on the tube to be sure it is held firmly in the fit-
ting.
HOW TO CUT AND CONNECT THE TUBES
Your Advanced Two-Stage Drinking Water Filter
includes push-in fittings for quick tubing connection.
Review the following before connecting the tubes.
Cut tubes to length
1. Use a sharp cutter or knife to cut the end of tubing.
Always cut the tubing square. See Figure 9.
2. inspect the end (about 1") of the tubing to be sure
there are no nicks, scratches or other rough spots, if
needed, cut the tubing again.
Connect tubes
1. Push tubing through collet, until it engages the o-ring.
See Figure 10. Continue pushing until the tube bot-
toms out against the back of the fitting. See Figure 11.
A common mistake is to stop pushing when the tube
engages the o-ring. This will lead to future leaks.
When a 3/8" tube is fully engaged, 3/4" of the tube has
entered the fitting. See Figures 10 & 11.
2. if using tubing other than tubing supplied with the
system, be sure it is of high quality, exact size and
roundness with a smooth surface.
Disconnect Tubes
1. Push the collet inward with a finger tip. See Figure 12.
2. Continue holding collet inward while pulling the tub-
ing out. See Figure 13.
cold water
supply fitting yellow
(_)) tubing
cold water filter _..-_
shutoff housing
Push In Fitting
Tube NN4K
Cut tubing square with end of tubing round,
smooth, with no cuts, nicks or flat spots.
Tube Correctly Cut
O-Ring
f
Tube Partially Engaged With Fitting
O-Ring
Tube Fully Engaged With Fitting
®
Figure 8
Figure 9
Figure 10
Figure 11
Collet (Depress to
Remove Tubing) -"-_1_ (
_-"_ Tubing
Figure 13 Disconnect Tubing Figure 12
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

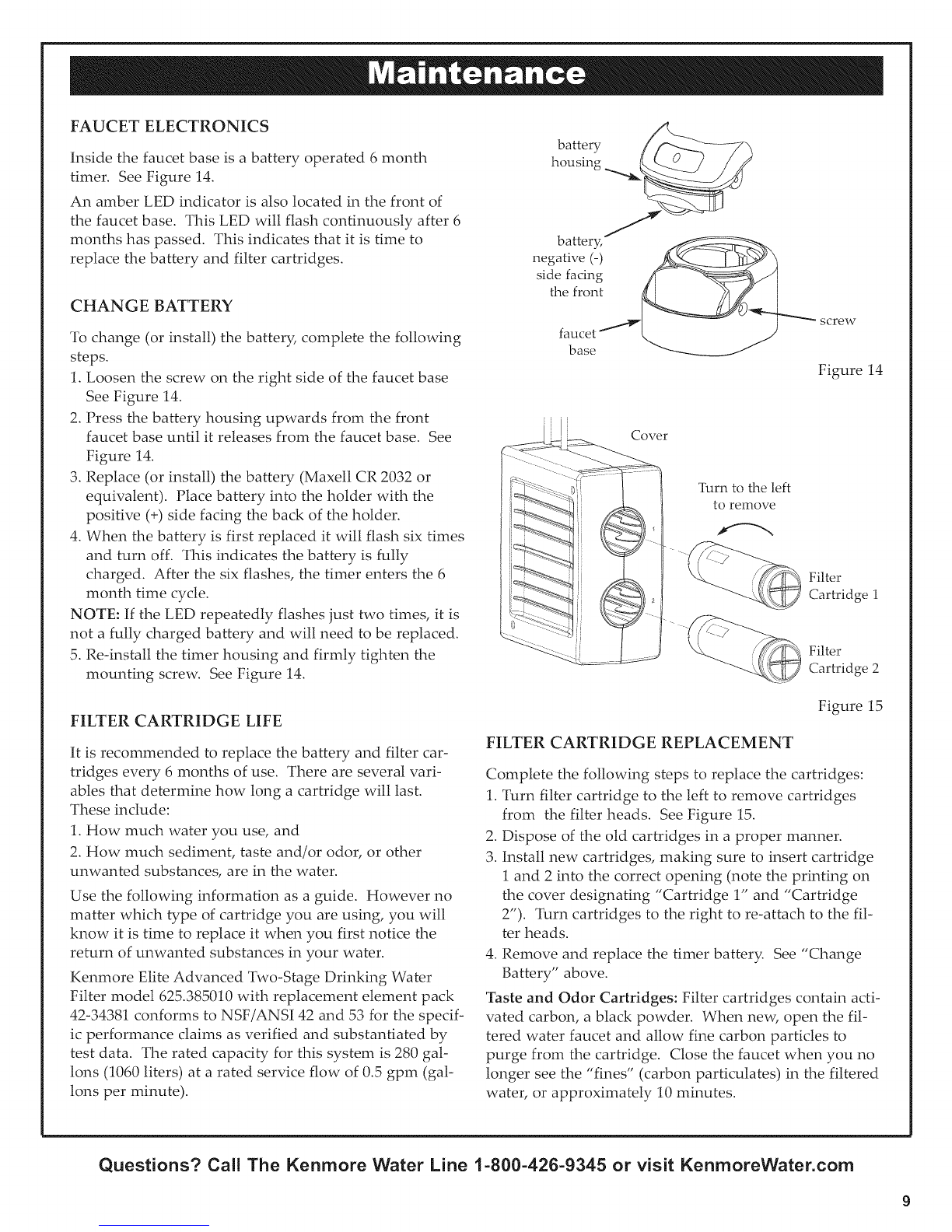

FAUCET ELECTRONICS
inside the faucet base is a battery operated 6 month
timer. See Figure 14.
An amber LED indicator is also located in the front of
the faucet base. This LED will flash continuously after 6
months has passed. This indicates that it is time to
replace the battery and filter cartridges.
CHANGE BATTERY
To change (or install) the battery, complete the following
steps.
1. Loosen the screw on the right side of the faucet base
See Figure 14.
2. Press the battery housing upwards from the front
faucet base until it releases from the faucet base. See
Figure 14.
3. Replace (or install) the battery (Maxell CR 2032 or
equivalent). Place battery into the holder with the
positive (+) side facing the back of the holder.
4. When the battery is first replaced it will flash six times
and turn off. This indicates the battery is fully
charged. After the six flashes, the timer enters the 6
month time cycle.
NOTE: If the LED repeatedly flashes just two times, it is
not a fully charged battery and will need to be replaced.
5. Re-install the timer housing and firmly tighten the
mounting screw. See Figure 14.
FILTER CARTRIDGE LIFE
it is recommended to replace the battery and filter car-
tridges every 6 months of use. There are several vari-
ables that determine how long a cartridge will last.
These include:
1. How much water you use, and
2. How much sediment, taste and/or odor, or other
unwanted substances, are in the water.
Use the following information as a guide. However no
matter which type of cartridge you are using, you will
know it is time to replace it when you first notice the
return of unwanted substances in your water.
Kenmore Elite Advanced Two-Stage Drinking Water
Filter model 625.385010 with replacement element pack
42-34381 conforms to NSF/ANSI 42 and 53 for the specif-
ic performance claims as verified and substantiated by
test data. The rated capacity for this system is 280 gal-
lons (1060 liters) at a rated service flow of 0.5 gpm (gal-
lons per minute).
battery
housing
Cover
Turn to the left
to remove
Filter
Cartridge 1
Filter
Cartridge 2
Figure 15
FILTER CARTRIDGE REPLACEMENT
Complete the following steps to replace the cartridges:
1. Turn filter cartridge to the left to remove cartridges
from the filter heads. See Figure 15.
2. Dispose of the old cartridges in a proper manner.
3. install new cartridges, making sure to insert cartridge
1 and 2 into the correct opening (note the printing on
the cover designating "Cartridge 1" and "Cartridge
2"). Turn cartridges to the right to re-attach to the fil-
ter heads.
4. Remove and replace the timer battery. See "Change
Battery" above.
Taste and Odor Cartridges: Filter cartridges contain acti-
vated carbon, a black powder. When new, open the fil-
tered water faucet and allow fine carbon particles to
purge from the cartridge. Close the faucet when you no
longer see the "fines" (carbon particulates) in the filtered
water, or approximately 10 minutes.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
9

Supply water pressure limits ......................................... 30-125 psi (207-862 kPa)
Supply water temperature limits ........................................... 40-100 °F (5-40 °C)
Inlet - Outlet ..................................................... 3/8" O.D. tubing, included
This system conforms to NSF/ANSI 42 and 53 for the specific performance claims as verified and substantiated
by test data.
Installations In The Commonwealth Of Massachusetts: The Commonwealth of Massachusetts requires instal-
lation be performed by a licensed plumber. Plumbing code 248--CMR of the Commonwealth of Massachusetts
must be followed in these cases.
Cause: Tubing not pushed in all the way. Correction: Push Tubing all the way into fittings. See Page 8.
Cause: Tubing not cut square. Correction: Cut tubing square. See Page 8.
Remove tube from connection. Remove nicked portion
Cause: Tubing nicked. Correction: by cutting tube to shorter length. Reinsert in connection
See Page 8.
Remove tube from connection. Remove problem area
Cause: Outer tubing surface not smooth. Correction: by cutting tube to shorter length. Reinsert in connection
See Page 8.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
10

1
/2
9
4
5
10 7
3
4
Manifold Housing
PUSH-IN FITTINGS
collet ._
o-ring
seal
Key No. Part No. Description
1 7292674 Faucet, with base & electronics
2 7294359 Cover Half, marked "Cartridge l"& "Cartridge 2"
3 7293175 Cover Half, unmarked (order decal below)
[] 7288447 Decal, Kenmore Elite badge
4 7294579 Screw, Cover (4 req.)
5 7280106 Head Assembly
6 7208057 Tubing, 3/8" O.D. x 72" long, Yellow
7 7207962 Tubing, 3/8" O.D. x 72" long, Blue
8 42-34381 Filter Cartridge 1 & 2 set
9 7228536 Tee Feed Adaptor
10 7281013 Push-in Fitting Kit, 3/8" O
[] 7154818 Coin Battery
[] 7294294 Owner's Manual
Purchase replacement filter cartridges at your local Sears store, online at
www.sears.com or from Sears Parts at 1-800-469-4663.
• O-ring and cottet kit for replacement in the manifold housing only. Not included.
[] Not illustrated.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
11

iiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_....
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
!!!!!!!!!!!!!!!!!!!!
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiHH_

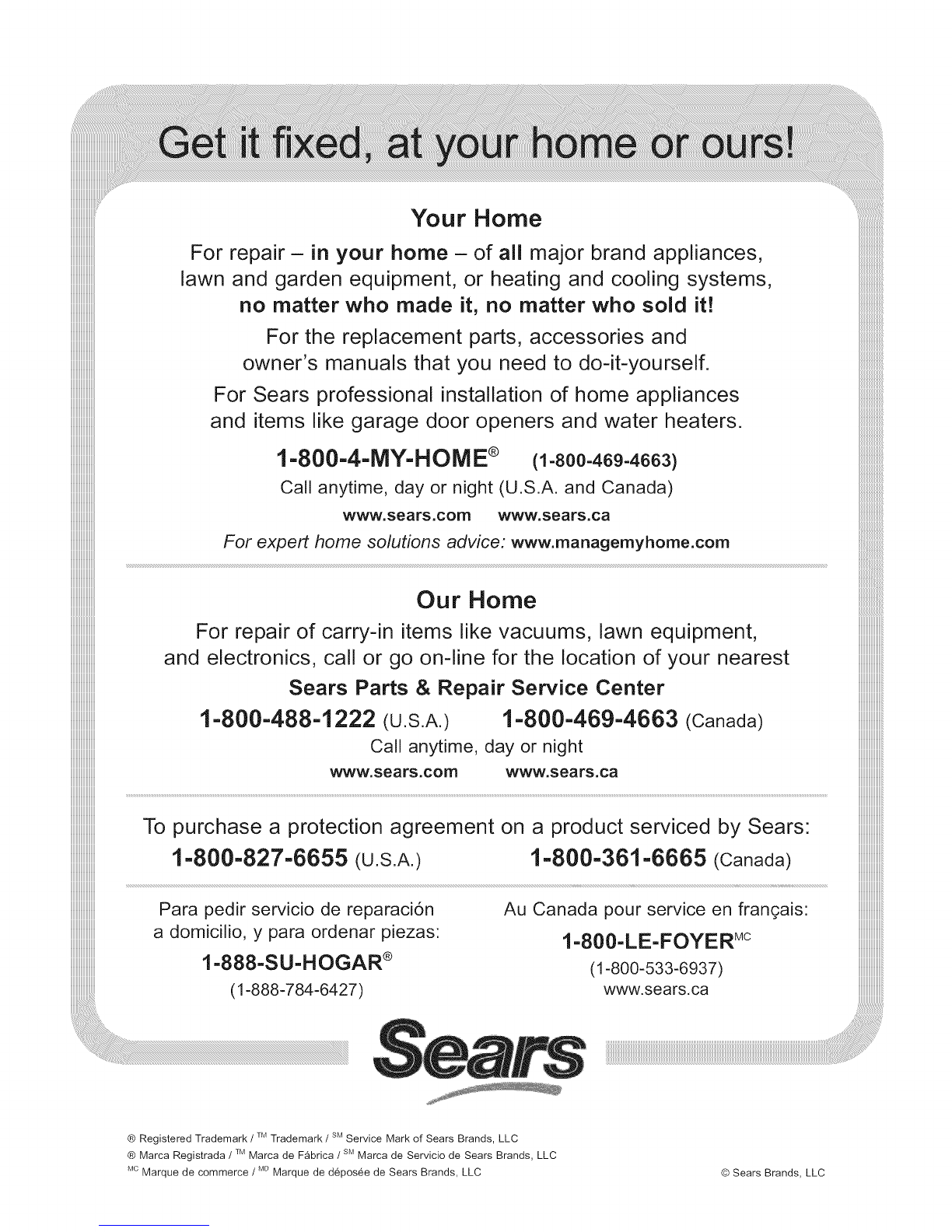

Your Home
For repair -in your home -of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
For expert home solutions advice: www.managemyhome.com
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
Call anytime, day or night
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
Au Canada pour service en fran(_ais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
,i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!_
® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC
® Marca Registrada /TMMarca de F_brica /SMMarca de Servicio de Sears Brands, LLC
MCMarque de commerce /MDMarque de deposee de Sears Brands, LLC © Sears Brands, LLC

MANUAL DEL PROPIETARIO
Filtro avanzado
dos etapas para
agua potable
MODELO No. 625.385010
2!
®
®
Precauci6n:
Antes de usar este producto por primera
vez, lea y siga todas las reglas de seguri-
dad y las instrucciones de operaci6n.
_.,Tiene preguntas?
Visite el sitio web www.KenmoreWater.com
o Ilame gratis al 1-800-426-9345
(lun. a vie., de 7 a.m. a 6 p.m., hora del Centro)
&Necesita reparacion o repuestos? Llame gratis al 1-800-469-4663
Vea otros n_meros de servicio de Sears en la cubierta posterior.
•Garantia
•Instalaci6n
•C6mo funciona
•C6mo cuidar el producto
•Especificaciones
•Piezas de repuesto
CONSERVE ESTE MANUAL
Este sistema ha sido probado y certificado por
NSF International para el cumplimiento de las
Normas NSF/ANSI 42 y 53. Consulte los
detalles en la hoja de datos de rendimiento. ®
Impreso en papel reciclado
Sears, Roebuck and Co., 3333 Beverly Road, Hoffman Estates, IL 60179 U.S.A.
IMPRESO EN LOS EE.UU. www.KenmoreWater.com Pieza No. 7294294 (Rev. E 9/21/09)

EL FILTRO AVANZADO DE DOS ETAPAS PARA AGUA POTABLE KENMORE ELITE
VIENE CON UN ANO DE GARANT{A TOTAL
Cuando se haya instalado, operado y mantenido conforme a todas las instrucciones suministradas con el
producto, si este filtro de dos etapas para agua potable fallara debido a defectos en materiales o mano de
obra dentro de un a_o a partir de la fecha de compra, Ilame al 1-800=4=MY-HOME para solicitar la
reparaci6n gratuita (o el reemplazo si se demuestra que es imposible repararlo). La presente garanfia no
incluye los cartuchos filtrantes, los cuales son articulos consumibles.
Esta garantia se aplicara solamente mientras el producto se use en los Estados Unidos o Canad&
Esta garantia le otorga derechos legales especificos, yes posible que usted tenga otros derechos, los
cuales varian de una jurisdicci6n a otra.
Sears, Roebuck and Co., Hoffrnan Estates, IL 60179
11-1/2"
13" ,'-- -_--5-1/2"--_
&Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1=800=426-9345
ovisite el sitio web KenmoreWater.com.

Desempaque y revise el envlo ............................................................................ 4

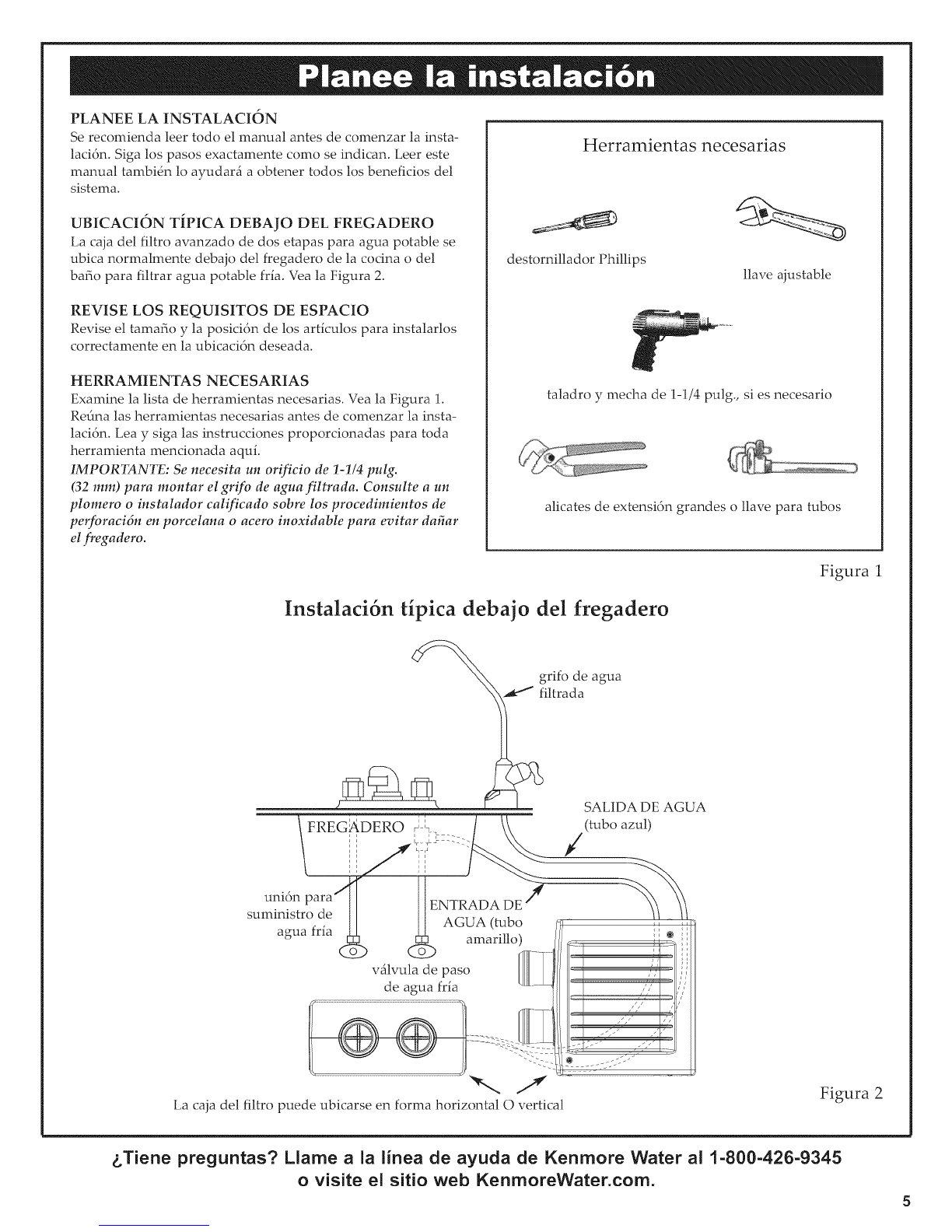

Planee la instalaci6n ..................................................................................... 5

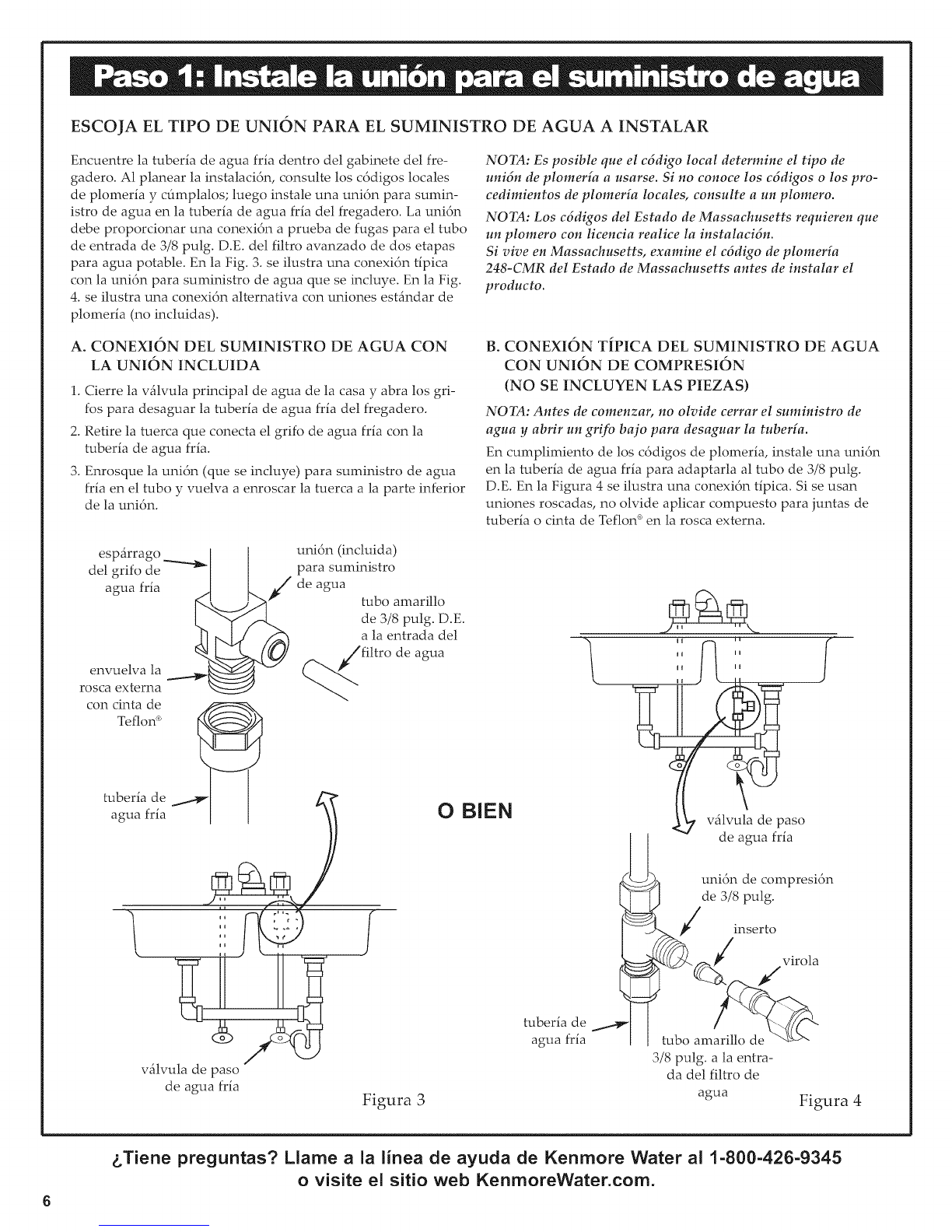

Paso 1: instale la uni6n para el suministro de agua .......................................................... 6

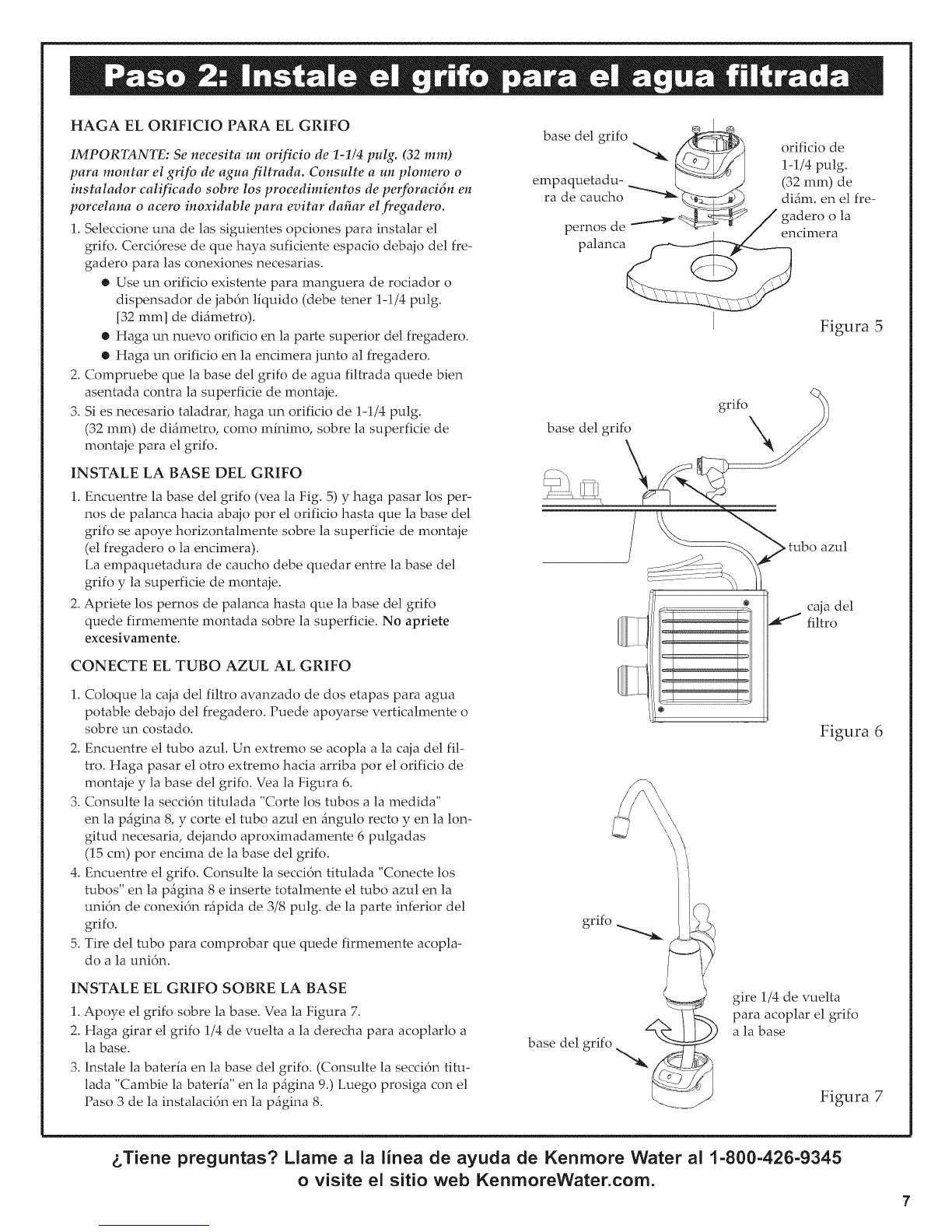

Paso 2: Instale el grifo para el agua filtrada ................................................................. 7
Paso 3: Conecte los tubos ................................................................................ 8
Mantenimiento ......................................................................................... 9
Especificaciones ....................................................................................... 10
Soluci6n de problemas ................................................................................. 10
Vista detallada y lista de piezas .......................................................................... 11
V Antes de instalar y usar el filtro avanzado de dos eta-
pas para agua potable, lea atentamente todos los
pasos y las pautas. Siga exactamente todos los pasos
para lograr la instalaci6n correcta. Leer este manual
tambi_n lo ayudarfi a obtener todos los beneficios del
filtro avanzado de dos etapas para agua potable.
V No intente utilizar este producto a fin de potabilizar
agua proveniente de fuentes no potables. Si el agua es
microbiol6gicamente impura o si se desconoce su cali-
dad, no use el sistema sin una adecuada desinfecci6n
antes o despu6s del sistema. Este sistema se ha certifi-
cado para la reducci6n de quistes y puede usarse con
agua desinfectada que pueda contener quistes filtra-
bles.
V
V
E1 filtro avanzado de dos etapas para agua potable
funciona con presiones de agua de 30 psi (mlnima) a
125 psi (mSxima). Si la presi6n del agua de su casa
supera la mSxima, instale una v5lvula reductora de
presi6n en la llnea de suministro de agua al filtro
avanzado de dos etapas para agua potable.
No instale el filtro avanzado de dos etapas fuera de la
casa ni bajo temperaturas extremadamente calientes
o frlas. La temperatura del suministro de agua al filtro
avanzado de dos etapas debe estar entre 40 °F y 100 °F
(4 °C y 38 °C). No lo instale en tuber_as de agua
caliente.
V Consulte los c6digos de plomer_a y sanidad a su
departamento local de obras ptlblicas. A1 instalar el
sistema deber_ seguir las pautas que le indiquen.
Siga sus c6digos locales si difieren con las pautas del
presente manual. En el Estado de Massachusetts, se
debe cumplir con los c6digos de plomer_a 248-CMR
3.00 y 10.00. Consulte a un plomero con licencia.
i.,Tiene preguntas? Llame ala linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.

INSPECCIONE EL ENVIO
E1 filtro avanzado de dos etapas para agua potable se envla
completo en una caja de cart6n. Retire todos los arficulos de la
caja de cart6n del envlo.
Revise todos los artlculos contra la lista de empaque que figura
a continuaci6n. Tome nota de todo arficulo faltante o dafiado
durante el envk). Tome nota de cualquier dafio en la caja del
envlo. Consulte la vista detallada y la lista de piezas que est_n
en la parte posterior del manual para tomar nota de los hom-
bres y los nt_meros de los arficulos faltantes o dafiados.
Si hubiera problemas, consulte el sitio web o llame al nhmero
telef6nico gratuito que figura en todo este manual.
Conserve las piezas pequefias dentro de la bolsa de piezas
hasta que est_ listo para instalarlas.
NOTA: Los c6digos del Estado de Massachusetts requieren que
un plomero con licencia realice la instalaci6n.
Si vive en Massachusetts, examine el c6digo de plomerla
248-CMR del Estado de Massachusetts antes de instalar el pro-
ducto.
®
Filtro avanzado de dos etapas para agua potable
Conjunto que contiene
la bolsa
Adaptador de ali-
mentacidn en T
Cinta selladora
para rosca
©
Bater_a plana
Conjunto que contiene la bolsa
Grifo y base de sistema electr6nico
&Tiene preguntas? Llame ala linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.

PLANEE LA INSTALACION
Se recomienda leer todo el manual antes de comenzar la insta- Herramientas necesarias
laci6n. Siga los pasos exactamente como se indican. Leer este
manual tambi_n lo ayudarfi a obtener todos los beneficios del
sistema.
UBICACION TIPICA DEBAJO DEL FREGADERO
La caja del filtro avanzado de dos etapas para agua potable se
ubica normalmente debajo del fregadero de la cocina o del
ba15o para filtrar agua potable frla. Vea la Figura 2.
REVISE LOS REQUISITOS DE ESPACIO
Revise el tamafio y la posici6n de los artlculos para instalarlos
correctamente en la ubicaci6n deseada.
HERRAMIENTAS NECESARIAS
Examine la lista de herramientas necesarias. Vea la Figura 1.
Refma las herramientas necesarias antes de comenzar la insta-
laci6n. Lea y siga las instrucciones proporcionadas para toda
herramienta mencionada aquL
IMPORTANTE: Se necesita un orificio de 1-1/4 pulg.
(32 ram) para montar el grifo de agua f!ltrada. Consulte a un
plomero o instalador calificado sobre los procedimientos de
perforaci6n en porcelana o acero inoxidable para evitar dafiar
el fregadero.
destornillador Phillips llave ajustable
taladro y mecha de 1-1/4 pulg., si es necesario
alicates de extensi6n grandes o llave para tubos
Figura 1
Instalaci6n tipica debajo del fregadero
grifo de agua
filtrada
FREGADERO
uni6n
suministro de
agua fria
vfilvula de paso
de agua frla
SALIDA DE AGUA
(tubo azul)
La caja del filtro puede ubicarse en forma horizontal Overtical Figura 2
&Tiene preguntas? Llame ala linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.

ESCOJA EL TIPO DE UNION PARA EL SUMINISTRO DE AGUA A INSTALAR
Encuentre la tuberia de agua frla dentro del gabinete del fre-
gadero. A1 planear la instalaci6n, consulte los c6digos locales
de plomeria y cflmplalos; luego instale una uni6n para sumin-
istro de agua en la tuberia de agua frla del fregadero. La uni6n
debe proporcionar una conexi6n a prueba de fugas para el tubo
de entrada de 3/8 pulg. D.E. del filtro avanzado de dos etapas
para agua potable. En la Fig. 3. se ilustra una conexi6n tlpica
con la uni6n para suministro de agua que se incluye. En la Fig.
4. se ilustra una conexi6n alternativa con uniones est_ndar de
plomerla (no incluidas).
NOTA: Es posible que el c6digo local determine el tipo de
uni6n de plomeria a usarse. Si no conoce los c6digos o los pro-
cedimientos de plomeria locales, consulte a un plomero.
NOTA: Los c6digos del Estado de Massachusetts requieren que
un plomero con licencia realice la instalaci6n.
Si vive en Massachusetts, examine el c6digo de plomeria
248-CMR del Estado de Massachusetts antes de instalar el
producto.
A. CONEXION DEL SUMINISTRO DE AGUA CON
LA UNION INCLUIDA
1. Cierre la vfilvula principal de agua de la casa y abra los gri-
fos para desaguar la tuberia de agua fria del fregadero.
2. Retire la tuerca que conecta el grifo de agua fria con la
tuberia de agua fria.
3. Enrosque la uni6n (que se incluye) para suministro de agua
fria en el tubo y vuelva a enroscar la tuerca a la parte inferior
de la uni6n.
B. CONEXION TIPICA DEL SUMINISTRO DE AGUA
CON UNION DE COMPRESION
(NO SE INCLUYEN LAS PIEZAS)
NOTA: Antes de comenzm, no olvide cerrar el suministro de
agua y abrir un grifo bajo para desaguar la tuberfa.
En cumplimiento de los c6digos de plomeria, instale una uni6n
en la tuberia de agua fria para adaptarla al tubo de 3/8 pulg.
D.E. En la Figura 4 se ilustra una conexi6n tipica. Si se usan
uniones roscadas, no olvide aplicar compuesto para juntas de
tuberia o cinta de Teflon _ en la rosca externa.
esp_rrago
del grifo de
agua fria
envuelva la
rosca externa
uni6n (incluida)
para suministro
,_de agua tubo amarillo
de 3/8 pulg. D.E.
a la entrada del
filtro de agua
tuberia de _ _"
agua fria
vfilvula de paso
de agua fria
0 BIEN
Figura 3
tuberia de
agua fria
ii i, f'
II IO
II II
Ii
l_ vfilvula de paso
de agua fria
_ denk35/8delCg).mpresi6n
/inserto virola
tubo amarillo de _"
3/8 pulg. a la entra-
da del filtro de
agua Figura 4
&Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.

HAGA EL ORIFICIO PARA EL GRIFO
IMPORTANTE: Se necesita un orificio de 1-1/4 pulg. (32 ram)
para montar el grifo de agua f!ltrada. Consulte a un plomero o
instalador calificado sobre los procedimientos de peu_oraci6n en
porcelana o acero inoxidable para evitar dafiar el yS'egadero.
1. Seleccione una de las siguientes opciones para instalar el
grifo. Cerci6rese de que haya suficiente espacio debajo del fre-
gadero para las conexiones necesarias.
® Use un orificio existente para manguera de rociador o
dispensador de jab6n llquido (debe tener 1-1/4 pulg.
[32 mm] de di_metro).
® Haga un nuevo orificio en la parte superior del fregadero.
® Haga un orificio en la encimera junto al fregadero.
2. Compruebe que la base del grifo de agua filtrada quede bien
asentada contra la superficie de montaje.
3. Si es necesario taladrar, haga un orificio de 1-1/4 pulg.
(32 mm) de di_metro, como mlnimo, sobre la superficie de
montaje para el grifo.
INSTALE LA BASE DEL GRIFO
1. Encuentre la base del grifo (vea la Fig. 5) y haga pasar los per-
nos de palanca hacia abajo por el orificio hasta que la base del
grifo se apoye horizontalmente sobre la superficie de montaje
(el fregadero o la encimera).
La empaquetadura de caucho debe quedar entre la base del
grifo y la superficie de montaje.
2. Apriete los pernos de palanca hasta que la base del grifo
quede firmemente montada sobre la superficie. No apriete
excesivamente.
CONECTE EL TUBO AZUL AL GRIFO
1. Coloque la caja del filtro avanzado de dos etapas para agua
potable debajo del fregadero. Puede apoyarse verticalmente o
sobre un costado.
2. Encuentre el tubo azul. Un extremo se acopla a la caja del ill-
fro. Haga pasar el otro extremo hacia arriba por el orificio de
montaje y la base del grifo. Vea la Figura 6.
3. Consulte la secci6n titulada "Corte los tubos a la medida"
en la p_gina 8, y corte el tubo azul en _ngulo recto yen la lon-
gitud necesaria, dejando aproximadamente 6 pulgadas
(15 cm) por encima de la base del grifo.
4. Encuentre el grifo. Consulte la secci6n titulada "Conecte los
tubos" en la p_gina 8 e inserte totalmente el tubo azul en la
uni6n de conexi6n r_pida de 3/8 pulg. de la parte inferior del
grifo.
5. Tire del tubo para comprobar que quede firmemente acopla-
do a la uni6n.
INSTALE EL GRIFO SOBRE LA BASE
1. Apoye el grifo sobre la base. Vea la Figura 7.
2. Haga girar el grifo 1/4 de vueha a la derecha para acoplarlo a
la base.
3. Instale la baterla en la base del grifo. (Consulte la secci6n titu-
lada "Cambie la baterla" en la p5gina 9.) Luego prosiga con el
Paso 3 de la instalaci6n en la p5gina 8.
base del grifo ,_;_, orificiode
-- _._ f._ 1-1/4 pulg.
empaquetadu- [ -_--_-_1_ J (32 11"11"1"l)de
ra c ucho diamen fre
_/gadero o la
pernos de "_ _ -/ encimera
Figura 5
base del grifo grif°x_
azul
c_a del
filtro
Figura 6
grifo
base del grifo
gire 1/4 de vueha
para acoplar el grifo
a la base
Figura 7
i.,Tiene preguntas? Llame ala linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.

CONECTE EL TUBO AMARILLO A LA UNION PARA
SUMINISTRO DE AGUA
1. Encuentre el tubo amarillo. Un extremo se acopla a la caja
del filtro. Tienda el otro extremo hasta la uni6n para sumin-
istro de agua en la tuberla de agua frla. Vea la
Figura 8.
2. Consulte mils abajo la secci6n titulada "Corte los tubos a la
medida", y corte el tubo amarillo en fingulo recto yen la lon-
gitud necesaria.
3. Consulte mils abajo la secci6n titulada "Conecte los tubos",
e inserte totalmente el tubo amarillo en la uni6n de conexi6n
rfipida de 3/8 pulg. de la uni6n para suministro de agua
(instalada en el Paso 1).
4. Tire del tubo para comprobar que quede firmemente acopla-
do a la uni6n.
COMO CORTAR Y CONECTAR LOS TUBOS
E1filtro avanzado de dos etapas para agua potable incluye
uniones de presi6n para la conexi6n rlpida de los tubos. Antes
de conectar los tubos, examine las siguientes instrucciones.
Corte los tubos a la medida
1. Use un cortador o cuchfllo ffloso para cortar el extremo del
tubo. Siempre corte el tubo en ingulo recto. Vea la Figura 9.
2. Inspeccione el extremo del tubo (aproximadamente de
1 pulg. o 25 mm) para cerciorarse de que no haya mellas, ras-
paduras ni ninguna otra secci6n despareja. Si es necesario,
vuelva a cortar el tubo.
Conecte los tubos
1. Haga pasar el tubo por el collarin, hasta que se acople al aro
t6rico. Vea la Figura 10. Siga empujando el tubo hasta que
sobresalga por la parte posterior de la uni6n. Vea la Figura 11.
Un error comdn es dejar de empujar cuando el tubo se
acopla al aro t6rico. Eso producirl fugas en el futuro.
Cuando un tubo de 3/8 pulg. estl totalmente acoplado,
3/4 pulg. del tubo ha entrado en la uni6n. Vea las Figuras 10
y11.
2. Si usa algdn tubo que no es el incluido en el sistema, cer-
ci6rese de que sea de alta calidad, de exactamente el mismo
tamafio y redondez, y que la superficie sea lisa.
Desconecte los tubos
1. Empuje el collarln hacia dentro con la punta de un dedo.
Vea la Figura 12.
2. Siga manteniendo el collarln apretado hacia dentro mientras
tira del tubo hacia fuera. Vea la Figura 13.
FREG_DERO FI i
uni6n para suministro
de agua fria tubo
(@)?amarillo
vfilvula de paso caja del _,_
de agua frla filtro
®
Figura 8
uni6n de presi6n
tubo ,,aK NNqK
Corte el tubo en flngulo recto; el extremo del mismo debe
quedar redondo y liso, sin cortes, mellas ni perfiles pianos.
Tubo cortado correctamente Figura 9
aro tdrico
Tubo parcialmente acoplado a la uni6n Figura 10
aro tdrico
Tubo completamente acoplado a la unidn Figura 11
sell() tdrico
collarln _@ unidn
Collarln y sello t6rico Figura 13
collarln (apretar para
retirar el tub()) --_--_
Desconecte el tubo Figura 12
&Tiene preguntas? Llame ala linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.
