Kenmore 625.344800 User manual

I
OWNERS
MANUAL
CAUTION
READ THIS MANUAL
CAREFULLY
BEFORE YOU USE
YOUR PURIFIER
IF YOU HAVE ANY
QUESTIONS ABOUT
THIS PRODUCT CALL
TOLL-FREE
1-800-426-9345
Nww.KenmoreWater.corr
SAVE THIS
MANUAL
MODEL NO.
625.344800
MODEL NO.
625.344810
Kenmore Countertop
Water Purifier
-HOW IT WORKS -
-CARE OF -
-REPAIR PARTS -
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
7224613 (Rev. D 9/5/03)

LIMITED WARRANTY
FULL ONE YEAR WARRANTY ON WATER PURIFIER
(except carbon filter)
For one year from the date ofpumhase, Sears wifireplace thisWater Purifier (except carbon filter) free
of charge, if defective in matf_dal or workmanship.
WARRANTY SERVICE IS AVAILABLE BY SIMPLY RETURNING THE WATER PURIFIER TO THE NEAR-
EST SEARS STORE THROUGHOUT THE UNITED STATES.
This warranty gives you specific legal rights, and you may have other rights which vary from state to
state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

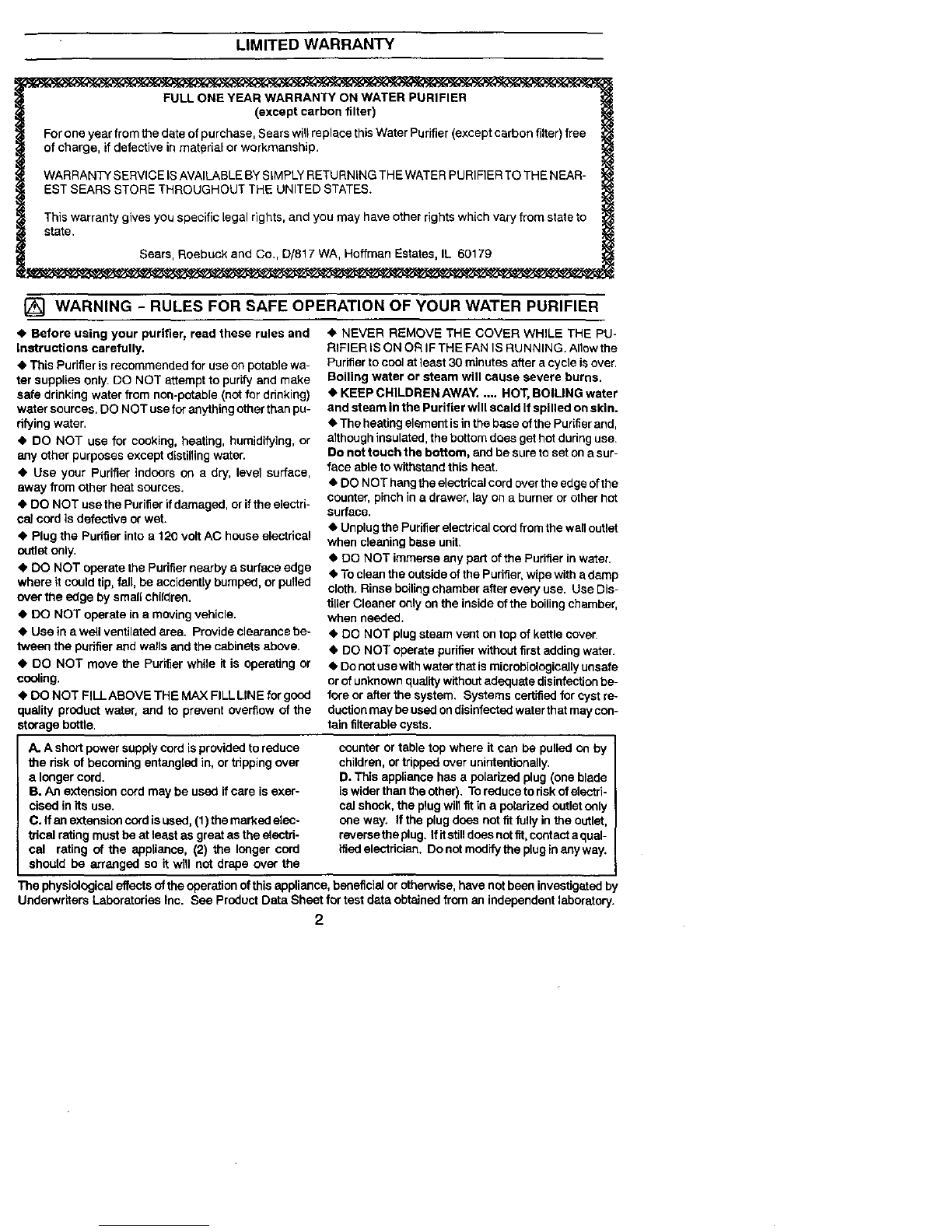

WARNING -RULES FOR SAFE OPERATION OF YOUR WATER PURIFIER
4_Before using your purifier, read these rules and
Instructions carefully.
•This Purifier is recommended for use on potable wa-
ter supplies only. DO NOT attempt to purify and make
safe drinking water from non-potable (not for drinking)
water sources, DO NOT use for anything other than pu-
rifying water,
•DO NOT use for cooking, heating, humidifying, or
any other purposes except distilling water.
•Use your Purifier indoors on a dry, level surface,
away trom other heat sources.
•DO NOT use the Purifier ifdamaged, orif the eiectd-
ca] cord is defective or wet.
•Plug the Purifier into a 120 volt AC house electrical
outlet only,
•DO NOT operate the Pudfier nearby a surface edge
where it cOuld tip, fall, be accidently bumped, or pulled
over the edge by small chitdren.
•DO NOT operate in a moving vehicle.
•Use in a we41ventilated area. Provide clearance be-
tween the purifier and walls and the cabinets above.
•DO NOT move the Purifier while it is operating or
cooling.
•DO NOT FILL ABOVE THE MAX FILL LINE for good
quality product water, and to prevent overflow of the
storage bottle,
• NEVER REMOVE THE COVER WHILE THE PU-
RIFIER ISON OR IF THE FAN IS RUNNING. Anew the
Purifier to cool at least 30 minutes after a cycle is over.
Roiling water or steam will cause severe burns.
•KEEP CHILDREN AWAY..... HOT, BOILING water
and steam in the Purifier will scald If spilled on skin.
•The heating element isin the base of the Purifier and,
although insulated, the bottom does get hot during use.
Do not touch the bottom, and be sure to set on a sur-
face able to withstend this heat.
4_DO NOT hangthe electrical cord over the edge of the
counter, pinch in a drawer, lay on aburner or other hot
surface.
•Unplug the Purifier electdcal cordfrom the wall outlet
when cleaning base unit.
•DO NOT immerse any part of the Purifier in water.
•To clean the outside of the Purifier, wipe with a damp
cloth. Rinse boilingchamber after every use. Use Dis-
tiller Cleaner only on the inside of the boilingchamber,
when needed.
• DO NOT plug steam vent on top of kettle cover.
•DO NOT operate purifier without first adding water.
•Do not use with water that is microbialogically unsafe
orof unknown qualitywithout adequate disinfection be-
fore or after the system. Systems certified for cyst re-
ductionmay be used on disinfected water that may con-
tain filterable cysts.
A. A short power supply cord isprovided to reduce
the risk of becoming entangled in, or tripping over
a longer cord.
B. An extension cord may be used ifcare is exer-
cised in its use.
C. Ifan extension card isused, (1) the marked alec-
_cal rating must be at least as great as the electri-
cal rating of the appliance, (2) the longer cord
shOuld be arranged so it wIU not drape over the
counter or table top where it can be pulled an by
children, ortripped over unintentionally.
D. This appliance has a polarized plug (one blade
iswider than the other). To reduce to risk of electri-
cal shock, the plug will fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet,
revereetheplug. If itetiUdees notfit, contact a qual-
ified electrician. Do not modifythe plug inany way.
The physialogicaJeffectsoftheoperationofthisappliance,beneficialorotherwise, havenotbeeninvestigatedb
UnderwritersLaboratories Inc. See product Data Sheetfor test dataobtainedtrom as independentlaboratory.
2

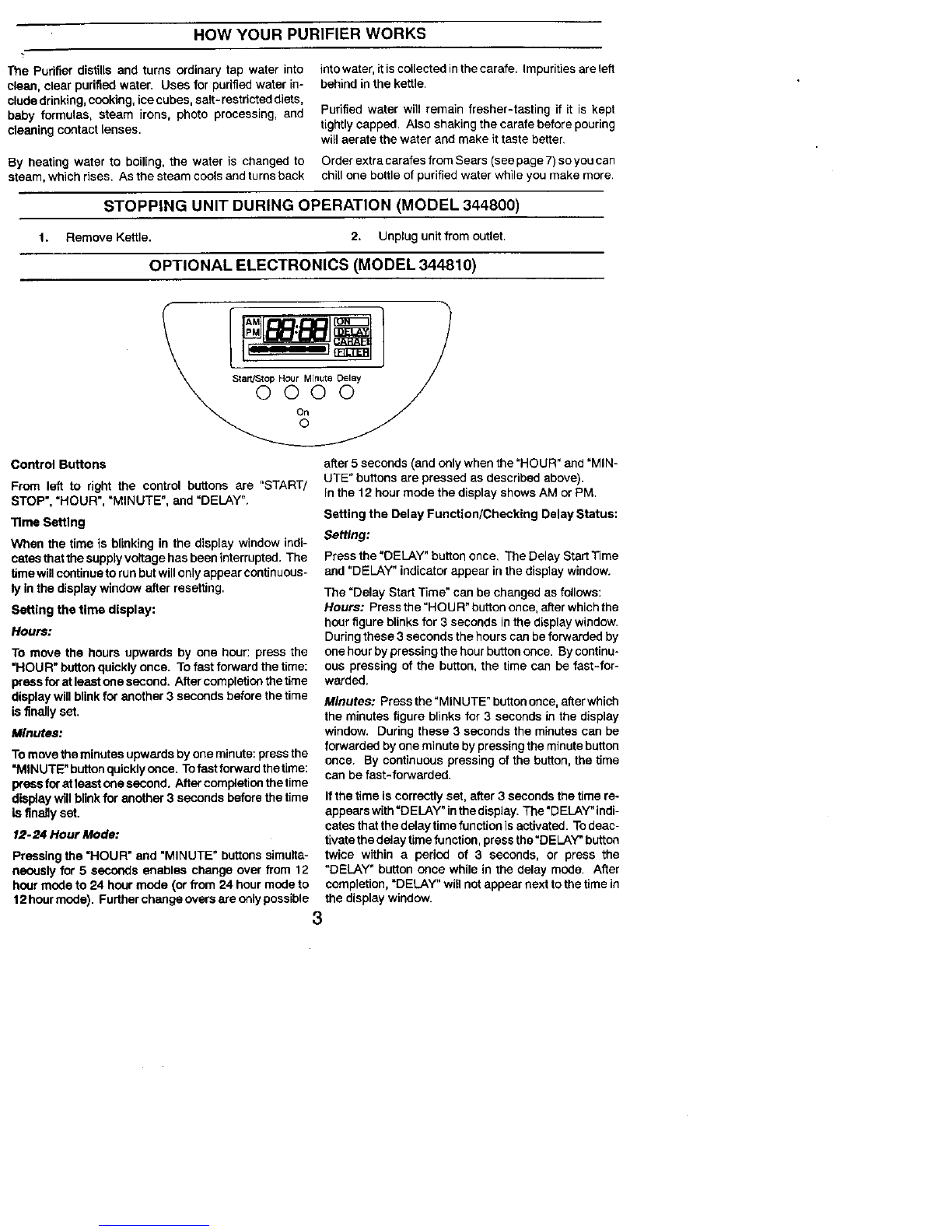

HOW YOUR PURIFIER WORKS
T_e Purifier distills and turns ordinary tap water into
clean, clear purified water. Uses for purified water in-
elude drinking, cooking, ice cubes, salt-restricted diets,
baby formulas, steam irons, photo processing, and
cleaning contact lenses.
By heating water to boiling, the water is changed to
steam, which rises. As the steam cools and turns back
into water, itiscollected in the carafe. Impurities are left
behind in the kettle.
Purified water will remain fresher-tasting if it is kept
tightly capped. Also shaking the carafe before pouring
win aerate the water and make it taste better.
Order extra carafes from Sears (see page 7) so you can
chill one bottle of purified water while you make more,
STOPPING UNIT DURING OPERATION (MODEL 344800)
1. Remove Kettle. 2. Unplugunitfrom outlet.
OPTIONAL ELECTRONICS (MODEL 344810)
Control Buttons
From left to right the control buttons are "START/
STOP", "HOUR", "MINUTE", and "DELAY".
Time Setting
When the time is blinking in the display window indi-
catas that the supply voltage has been interrupted. The
time willcontinue to run butwill only appear continuous-
ly in the display window after resetting.
Setting the time display:
Hours:
To move the hours upwards by one hour: press the
=HOUR" button quickly once. To fast forward the time:
press for at least one second. After completion the time
display will blink far another 3 seconds before the time
is finally set.
Minutes:
To move the minutes upwards by one minute: pressthe
"MINUTE" buttonquickly once, To fast forward the time:
prass for at least one second. After completion the time
display will blink for another 3 seconds before the time
is finally set.
12-24 Hour Mode:
Pressing the =HOUR" and "MINUTE" buttons simulta-
neously for 5 seconds enables change over from 12
hour mode to 24 hour mode (or from 24 hour mode to
12 hour mode). Further change overs are only possible
after 5 seconds (and only when the"HOUR" and "MIN-
UTE" buttons are pressed as described above).
In the 12 hour mode the display shows AM or PM.
Setting the Delay Function/Checking Delay Status:
Setting:
Press the "DELAY" button once, The Delay Start Time
and "DELAY" indicator appear in the display window.
The "Delay Start Time" can be changed as follows:
Hours: Press the "HOU R" button once, after whichthe
hour figure blinks for 3 seconds in the display window.
During these 3 seconds the hours can be forwarded by
one hour by pressing the hour button once. By continu-
ous pressing of the button, the time can be fast-for-
warded.
Minutes: Press the "MINUTE" button once, after which
the minutes figure blinks for 3 seconds in the display
window. During these 3 seconds the minutes can be
forwarded by one minute by pressing the minute button
once. By continuous pressing of the button, the time
can be fast-forwarded.
If the time is correctly set, after 3 seconds the time re-
appears with=DELAY" inthe display. The "DELAY" indi-
cetes that the delay time function is activated. To deac-
tivate the delay time function, press the "DELAY' button
twice within a period of 3 seconds, or press the
"DELAY" button once while in the delay mode. After
completion, "DELAY" will not appear next to the time in
the display window.
3

OPTIONAL ELECTRONICS (MODEL 344810)
Gheek Delay Time Status:
Press the "DELAY" button once. The D_lay Star Time
appears in the display window with "DELAY" inthe dis-
play. After 3 seconds the current time reappears.
Switching the Purifier On/Off:
To turn the Purifier on or off, press the"ON/OFF" button.
When turning the Purifier on, "ON" appears in the dis-
play window and the Red Indicator Lightappears• After
turning the Pudfier off, the Red Indicator Lightturns off.
Carafe Indicator:
If the carafeis not inthe correct position,the Red Indica-
tor Light blinks and =CARAFE" blinksinthe display win-
row for 90 seconds. Then the unit will shut off. If the
carafe is removed from the base unitduring operation,
the "CARAFE" indicator will appear in the display for 90
seconds. At 90 seconds the unit willshut off. To restart,
place the carafe in position and press "START'.
Kettle Indicator:
If the kettle is removed dudng a cycle, the unitwill shut
offimmediately. The red indicator light will blinkcontin-
uously if kettle is not correctly positioned.
Filter Status Indicator /Filter Change Indicator:
The Carbon Filter Indicator shows four status barsto in-
dicate tilter life. Four bars indicate a new filter and zero
bars indicate the filter needs to be changed. ]n addition
to the bars a"FILTER" indicator (not the bars) will flash
in the display when the filter needs to be changed.
To reset the Filter Status Bars to new filter status, press
and hold the delay button for 7 seconds.
BEFORE USING WATER FROM YOUR WATER PURIFIER FOR THE FIRST TIME
Although care istaken so your Purifier and plasticstor- 7. The carbon filter (included with model 344810) is
age bottle are clean, someharmlessmatter mayremain packed in a separate plastic bag. Remove the
from manufacturing, packaging, or shipping. This could cover of the carbon filter housing from inside the
leaveanunwantedtasteorodorinthepudfiedwaterthe carafe lid. Remove carbon tilter from bag and
firsttime you use it. To remove any taste or odor caus- place into housing. Replace cover on housing,
ing matter, do the following, and replace lid on carafe (see view on page 6).
1. Set the Pudfier on your counter or tabletop.
2. Remove kettle from iL_receptacle.
3. Remove kettle cover by twisting counter clock-
wise, then lift.
4. Wash inside of kettle with soap and water, dnse
and fill the kettle to the "max"line.
5. Replace the cover onto the kettle. Twist clock-
wise to lock. Plug the kettle intothe base recap-
tacle,
6. Wash carafe and lid with soap and water, then
rinse.
8. _: Before using the carbon tilter
dnse the filter under pudfied water for 30 sec-
onds, so that it is wet on all surfaces. If the tilter
ever ddes out as a result of not using the purifier,
remove it and rinse it to re-wet it down.
9. Place the carafe on the base unit, and plug the
power cord into a wall outlet.
10. For model 344800, press the "RESET" button to
turn the Purifier on. Run one batch ofwater to the
carafe. Unplug the kettle from the base unit.
11. For model 344810, press the "START" button to
turn the Pudfier on. Run one batch ofwater to the
carafe. Press =STOP" button to stop purifier.
continued, page 5.

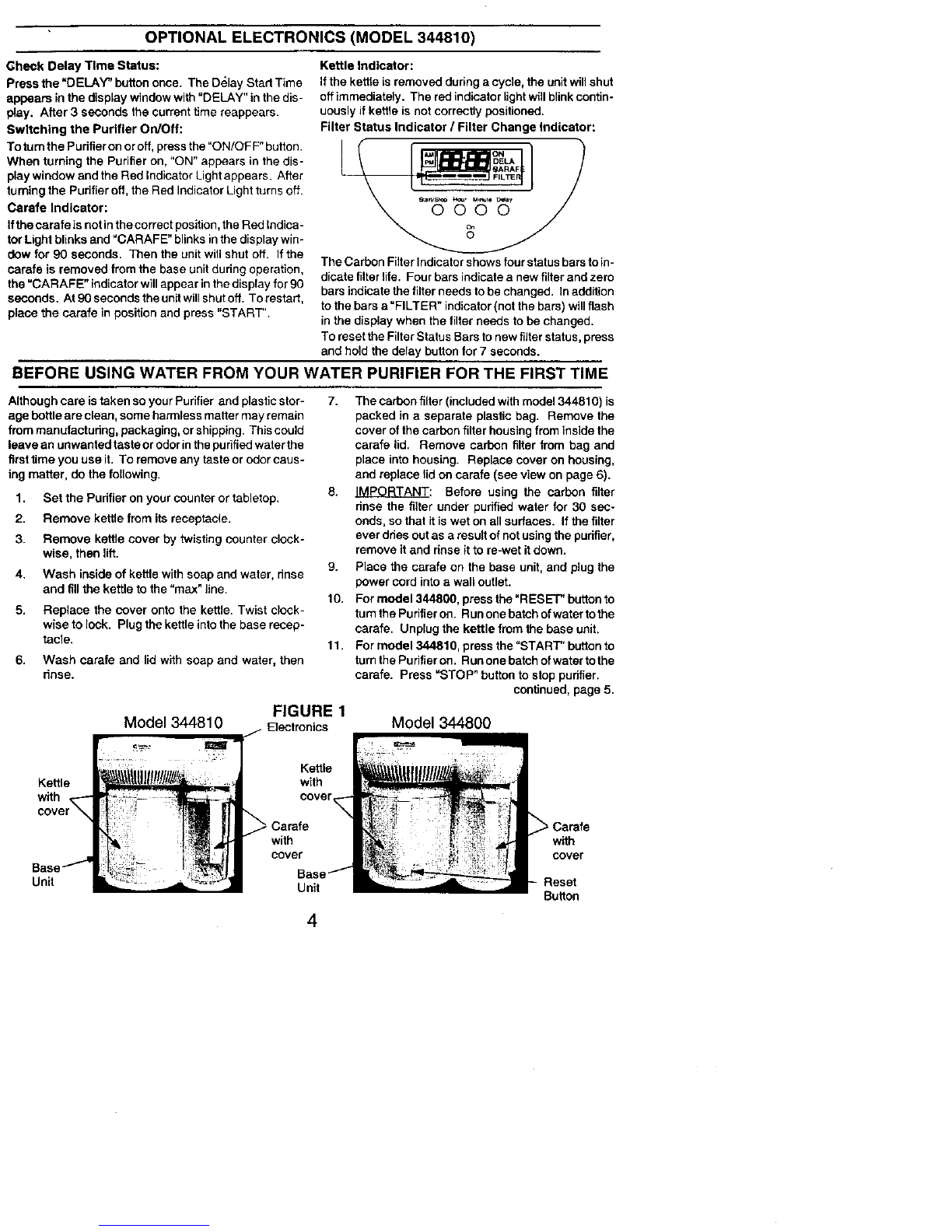

Kettle
with
cover',
Base-''"
Unit
Model 344810 FIGURE 1
/.. Electronics Model 344800
Kettle
with
cover
_Carafe
with
cover
Unit
with
cover
Reset
Button
4

BEPORE USING WATER FROM YOUR WATER PURIFIER FOR THE FIRST TIME
continued from page 4
12. Stearowillcontinuetopassthroughforafewmin- water which may have some harmless carbon
utes. After unit cools, rinse out kettle, tines (very fine black particles) init fromthe filter.
13. Shake the carafe, then discard the first batch of
MAKING PURIFIED WATER
1. Set the Purifier on your countertop or table. 6. Plug the power cord into any 120 volt outlet.
2. Unplug the kettle from the base (Figure 1). Twist
the cover counter-clockwise to remove, and set
aside.
3. Rinse and fill the ketfie with tap water up to the
max. fill line.
NOTE: You can pudfy less than the full amount. Use
this chart as a guide. DO NOT fill the kettle over the
max. fill line because the carafe will overflow.
WHEN YOU FILLWlTH THE CYCLE TAKES
TAP WATER TO...
Model 344800 (3 qt.) 5 hours
Modet 3448"t0 (1 gallon) 4hours
4. Replace the cover on the kettle. Twist cover
clockwise to lock. Plug the kettle into the base
unit. Carry carefully and keep level to prevent
splashing.
7. Press the reset or start button. The red indicator
light will illuminate.
WhenthecyclaisoverthePurifiertumsoffautoroa_cal-
ly. AFTER THE FAN MOTOR GOES OFF, WAIT AT
LEAST 30 MINUTES BEFORE REMOVING THE
COVER...
WARNING: NEVER REMOVE THE COVER WHILE
THE FAN MOTOR IS RUNNING, OR FOR 30 MIN-
UTES AFTER IT STOPS. YOU COULD GET SE-
VERE BURNS FROM THE BOILING WATER OR
STEAM.
B. To pour water from carafe, open spout by pulling
on center stdp in direction of the arrow indicator
near thumb position.
9. Store the carafe filled withproductwatar inthe re-
frigerator until you need it.
5, Setthe carafe into placeonbase unit,
CARE AND CLEANING OF YOUR WATER PURIFIER
10. After the Purifier has ccoled (wait for 30 roinutes
after the fan motor stops running) remove the
kettle to clean.
KEI-rLE
After each use, dnse theinside with lukewarm tap water
and remove any residue. Clean by wipingout the inside
of the kettle with adamp cloth and rinse. If a deposit
starts to form at the bottom, use Kenroore Water Pudfier
cleaner (see page 7). ReSidue build up on the bottom
of the kettle will prevent the system from purifying
a complete batch of water. Remove the kettle from
base unit. Fill kettle at the sink wfth hot water and follow
the instructions on the cleaner boffie. Rub with a soft
scouring pad and rinse thoroughly.
CAUTION: DO NOT IMMERSE THE PURIFIER OR
KETTLE IN WATER.
CARAFE
Clean with mild dish detergent and softcloth. Rinse
thoroughly with water.
CLEANING EXTERIOR SURFACES
TOkeep your Purifier looking new, you shouldpaded-
icafly clean the exterior plastic surfaces witha soft,
damp cloth. DO NOT use any caustic cleaning solu-
tions, scoudng pads or powder because they will
damage the plastic finish.
NOTICE J
THERE ARE NO USER SERVICEABLE PARTS
INSIDE THE UNIT.
CHANGING THE CARBON RLTER
IMPORTANT: The purifieruses a carbon filterinthe ca-
rafecover to remove traces of odors before the purified
water iscollected in thecarafe. The filterslast about2-3
months. A retum of unwanted odor means the tilter
should be replaced. Order replacement carbon filters
from Sears (see page 7).
continued, page 6.
5

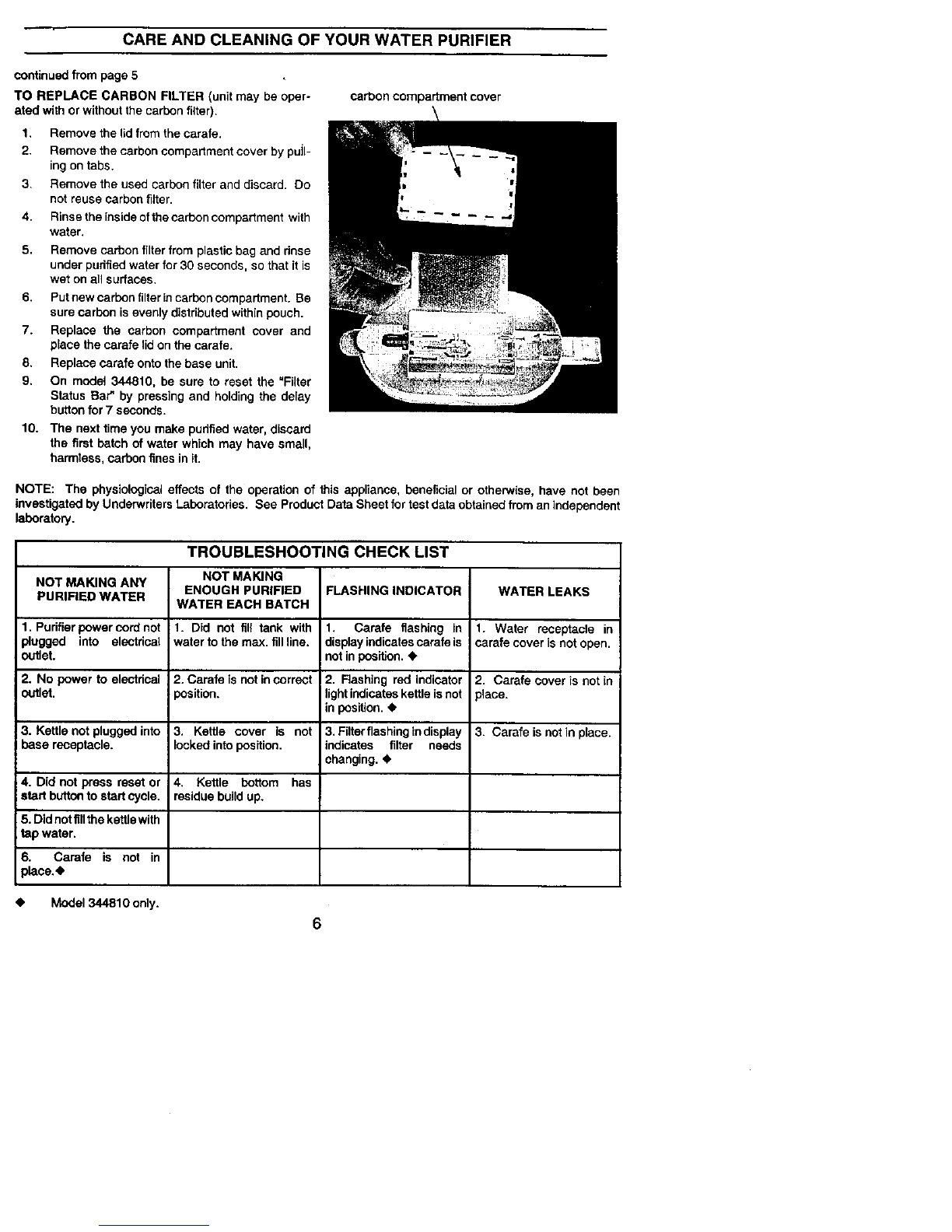

CARE AND CLEANING OF YOUR WATER PURIFIER
continued from page 5
TO REPLACE CARBON FILTER (unit may be oper-
eted with or without the carbon fiitar).
1. Remove the lid fromthe carafe.
2. Remove the carbon compartment cover by puJl-
ing on tabs.
3. Remove the used carbon filter and discard. Do
not reuse carbon filter.
4. Rinse the inside of the carbon compartment with
water.
5. Remove carbon filter from plastic bag and dnse
under purified water for 30 seconds, so that it is
wet on all surfaces.
6. Put new carbon filter in carbon compartment. Be
sure carbon is evenly distributed within pouch.
7. Replace the carbon compartment cover and
place the carafe lid on the carafe.
8. Replace carafe onto the base unit.
9. On model 344810, be sure to reset the "Filter
Status Bar" by pressing and holding the delay
button for 7 seconds.
10. The next fime you make pudfied water, discard
the first batch of water which may have small,
harmloss, carbon fines in it.
carbon compartment cover
NOTE: The physiological effecLs of the operation of this appliance, beneficial or otherwise, have not been
investigated by Underwriters Laboratories. See Product Data Sheet for test data obtained from an independent
laboratory.
TROUBLESHOOTING CHECK LIST
NOT MAKING ANY NOT MAKING
PURIFIED WATER ENOUGH PURIFIED FLASHING INDICATOR WATER LEAKS
WATER EACH BATCH
1. Pudfier power cord not 1. Did not fill tank with 1. Carafe flashing in 1. Water receptacle in
plugged into electrical water to the max. fill line. displayindicates carafeis carafe cover is not open.
outlet, not in posit_on. •
2. No power to electrical 2. Carafe is not incorrect 2. Rashing red indicator 2. Carafe cover is not in
outlet, position, light indicates kettle isnot 31ece.
mposition. •
3. Kettle not plugged into 3. Kettle cover is not 3. Filterflashing in display 3. Carafe isnot in piece.
base receptacle, locked into position, indicates filter needs
changing. _.
4. Did not press reset or 4. Kettle bottom has
start button to start cycle, residue build up.
5. Did not fillthe kettle with
tap water.
6. Carafe is not in
)lace._
•Model 344810 only. 6

PRODUCT SPECIFICATIONS
Kenmore Model 344800
Rating:
Filling Volume:
Production Capacity:
Dimensions:
Weight:
120 VAC /60 Hz /500 W
3quarts
.16 gallon/hour (.7 liter/hour), 4 gallons/day
15.4" width X 13.0" height X 10.5" depth
11 Ibs.
Kenmore Model 344810
Rating:
Filling Volume:
Production Capacity:
Dimensions:
Weight:
120 VAC /60 Hz /800 W
1 gallon
.25 gallon/hour (1 liter/hour), 6 gallons/day
14.5" width X 15.0" height X 10.5" depth
13 Ibs.
These products conform to ANSI/NSF 62 for the specific perfor-
mance claims as verified and substantiated by test data.
REPLACEMENT PARTS
DESCRIPTION PART NUMBER
Kenmore 3 qt. Replacement Carafe (Opaque) 42-34482
for use with model # 844800
Kenmore 1 gallon Replacement Carafe (Clear) 42-34483
for use with model # 344810
Kenmore Carbon Filter Replacement 42-34484
Kenmore Water Purifier Cleaner 42-34543
Gasket for Kettle 7251199
Lid for Kettle 7254820
Steam Pipe 7254781
Steam Pipe Connecting Tube 7254799
For replacement items contact your nearest Sears outlet.
Sears, Roebuck and Co.
Sears Merchandise Group
3333 Beverly Road
Hoffman Estates, IL 60179
1-800-426-9345
