1.

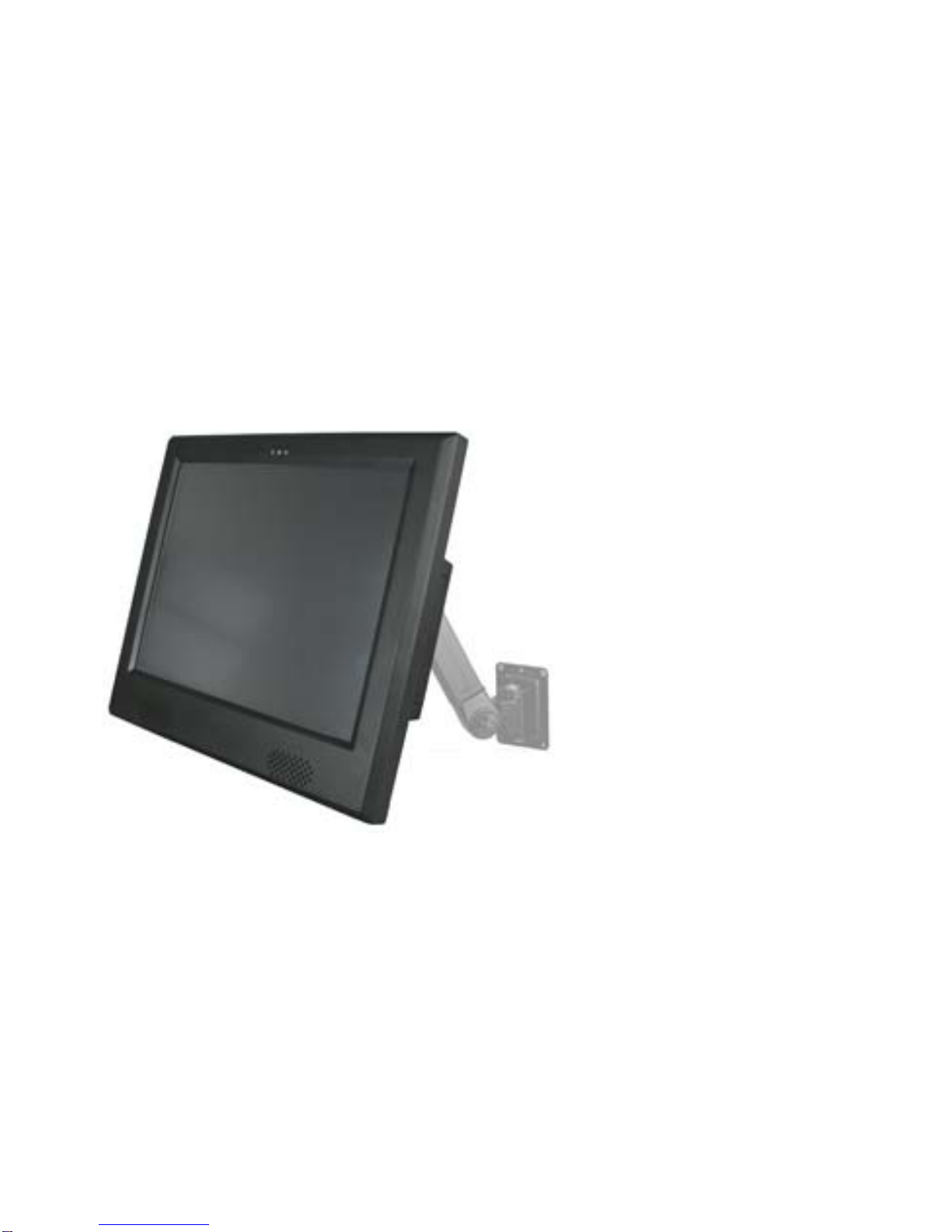

Introduction
Comes with a large TFT 5-Wire Resistive type LCD touchscreen panel (15”, 17”
and 19” available ), EZPPC 70 (EZPOS 70) features Intel Celeron M 1.5 Ghz CPU
and 1GB (maximum) SO-DIMM DDR RAM, delivering high performance to meet
most of requirements from current and future applications. For the thermal issue
arising from such hot performance, EZPPC 70 (EZPOS 70) adopts advanced
“Fanless” thermal solution which not only keeps the working temperature under
the normal value efficiently but also eliminates maintenance cost, voltage
consumption and possible failure of CPU cooler fan.
Ultra-slim design combined with maximum strength and durability of ultra slim
die-cast aluminum alloy chassis help EZPPC 70 (EZPOS 70) set a new industry
PC standard. Thanks to high rigidity die-casting aluminum alloy chassis, EZPPC
70 (EZPOS 70) can defend and resist corrosion and impact damage from any
high loaded crucial industry and public service environment. Ultra slim chassis of
EZPPC 70 (EZPOS 70) offers most flexible installation options. With multiple
optional installation accessories (for more information, please contact our
business representative), EZPPC 70 (EZPOS 70) can be installed in everywhere
and meet every installation requirement from every application.
Originated and introduced advanced and precision battery technology from
notebook, EZPPC 70 (EZPOS 70) could be equipped with onboard “smart
battery” (optional accessory) which is unparalleled in IPC and POS industry.
Beyond traditional and dull “battery backup”, EZPPC 70 (EZPOS 70) detects and
“communicates” with the onboard smart battery, and allows user to monitor and
manage battery allocation depends on variable operation environments as the
power management on notebook. The onboard smart battery can supply voltage
to EZPPC 70 (EZPOS 70) more than one hour without any external power supply
and regulate the power supplied from wall outlet, and to extend the life time of
EZPPC 70 (EZPOS 70) to the maximum and reduce electronic failures to the
minimum.
Combined and equipped with all industry-standard I/O port, EZPPC 70 (EZPOS
70) is an all-in-one touch POS terminal with unlimited flexible compatibility and
extensibility to integrate with other accessories and devices. With one cash
drawer port, Gigabit Ethernet port, 4 USB 2.0 ports, one RS-232/422/485 port and
Chapter 1 1

Chapter 1
2
3 RS-232 ports equipped, EZPPC 70 (EZPOS 70) can be expanded and
connected with all external devices required - Wireless LAN, VFD, MSR and
iButton…etc, to help user to conquer challenges from variable business markets.
For future upgrades and fast assembly/disassembly, EZPPC 70 (EZPOS 70)
adopts tool-free and idiot-proof modular design, everyone can
assembly/disassembly EZPPC 70 (EZPOS 70) without special tool and
install/replace all main modularized components intuitionally.
What you benefit from high compatibility and extensibility, easy and fast
assembly/disassembly, and modular design of EZPPC 70 (EZPOS 70) are low
budget and short maintenance time-cost, which helps enterprise to cut-down cost
and make more profit.
EZPPC 70 (EZPOS 70) supports most popular Microsoft Windows series
operation system (Windows XP Home Edition, Windows XP Professional Edition,
WEPOS and Linux, making user spend less effort on technology and software-
related issues— so user can devote all energy making your business successful
Features:
Intel® low power consumption and high performance technology
Durable ultra-slim & robust die-casting aluminum chassis
Smart Battery Backup (Optional) - supply voltage more than one hour without
any external power supply
Tool-free and modular design - easy upgrade and assembly/disassembly
4x USB 2.0,1 x RS-485/422/232, 3 x RS-232, Gigabit Ethernet port (RJ-11)
and cash drawer port (RJ-11) equipped
Wireless LAN supported
Microsoft Windows series operation system (Windows XP Home Edition,
Windows XP Professional Edition and WEPOS) and open-source Linux
operation system supported.

2.
Unpacking the Box
Verify that the box contains the following items.
1 Device X 1
2 Power Adaptor X 1
3 Power Cord X 1
4 Driver and utility CD X 1
5 Wall mount Kit x 1
Chapter 2 3

3.
Hardware Setup
3.1. Quick Tour
Front View
LED Indicator
The Power indicator will glow green when power is on.
The HDD indicator will blink green when the HDD is accessed.
The LAN indicator will blink green when transferring data though the LAN.
Chapter 3
4

Back Panel I/O
Note: For details of I/O ports on the back panel, please refer to Chapter
7 – I/O Definition.
3.2. Connect Battery Pack (Optional)

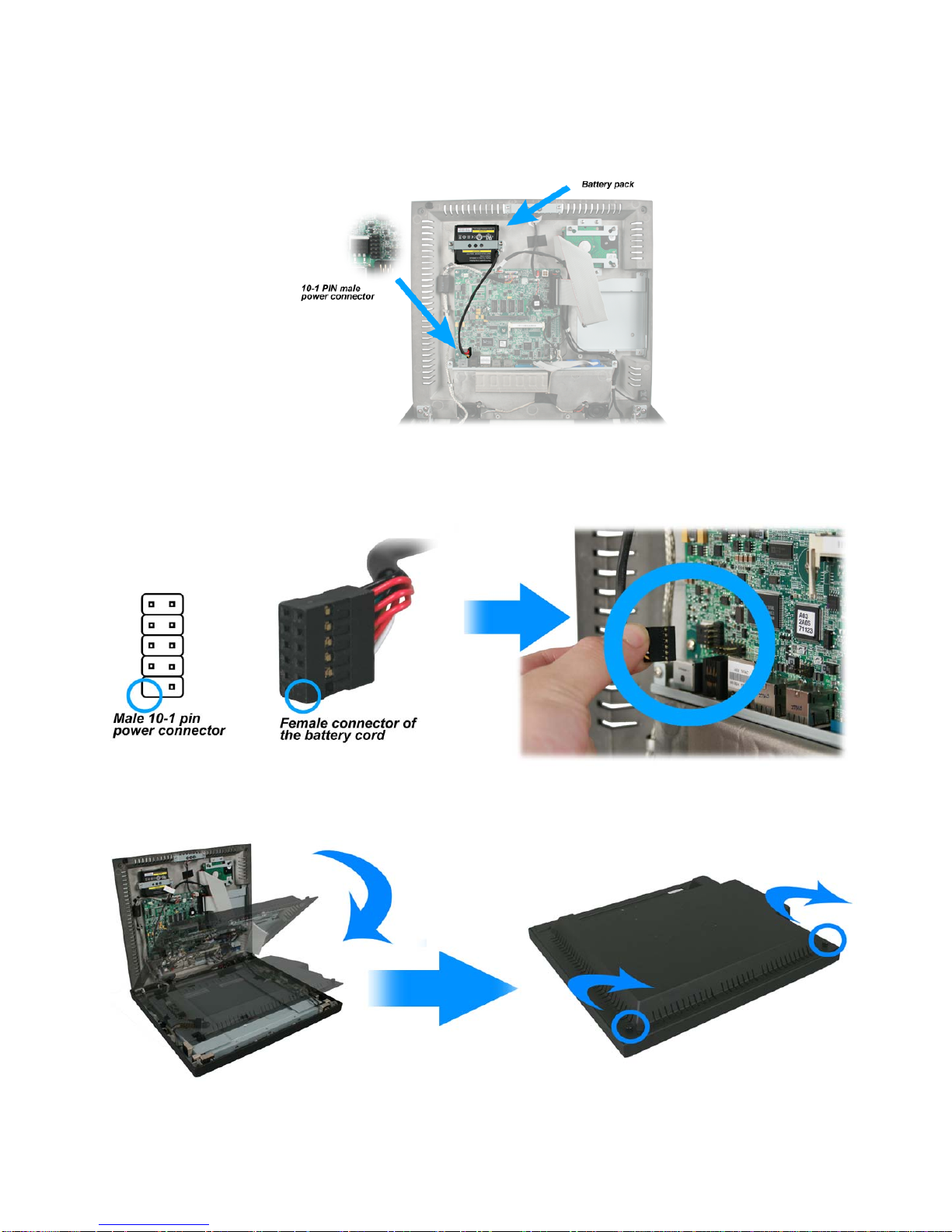

Before power-on the device, please connect the battery to the mainboard:
1. Un-tighten two screws on the back panel anticlockwise.
2. Open the back panel.
Chapter 3 5

3. For the location of the battery pack and the 10-1 pin male power connector,
please refer the picture shown below.
3. Plug the power cable to the 9-pin power connector in the correct orient.
4. Close the back panel and tighten two screws on the back panel.
Chapter 3
6

3.3. Peripherals Installation
Power Adapter
Connect the 4-pin output jack of the adapter to the DC 19V jack on the back panel
of the device.
USB Mouse, USB Keyboard and USB ODD
Connect your USB Mouse, USB Keyboard and USB ODD to USB ports on the
back panel of the device.
LAN Cable
Connect one end of RJ-45 LAN cable to the LAN port on the back panel of the
device, another end to your internet device.
Chapter 3 7

Cash Drawer
Connect one end of RJ-11 cable to the Cash Drawer port on the back panel of the
device, another end to your cash drawer.
MSR
1. Connect the female connector of the external device to the PS2/COM port on
the back panel of the device in the correct orient.
2. Align two screws of the MSR assembly to the holes in blue circles as
shown below.
Chapter 3
8

3. Tighten two screws of the MSR assembly as shown below.
4. Finished.
3.4. Wall mount Kit installation
1. Separate the wall mount kit.
2. Align the screw holes of the wall mount kit to the holes of the device and tighten the
four screws.
Chapter 3 9

3.5. Turn on the Device
1. Make sure all peripherals are connected properly.
2. Press and hold the power switch until the power indicator on the front panel
glow green.
Chapter 3
10

4.
Driver and Utility Installation
4.1. Before the installation
All installation procedures described below are based on Microsoft Windows XP.
1. Connect an external USB CDROM drive to the USB port and insert the
driver CD and turn on the device. The program autoruns and displays the
DRIVER BANK screen.

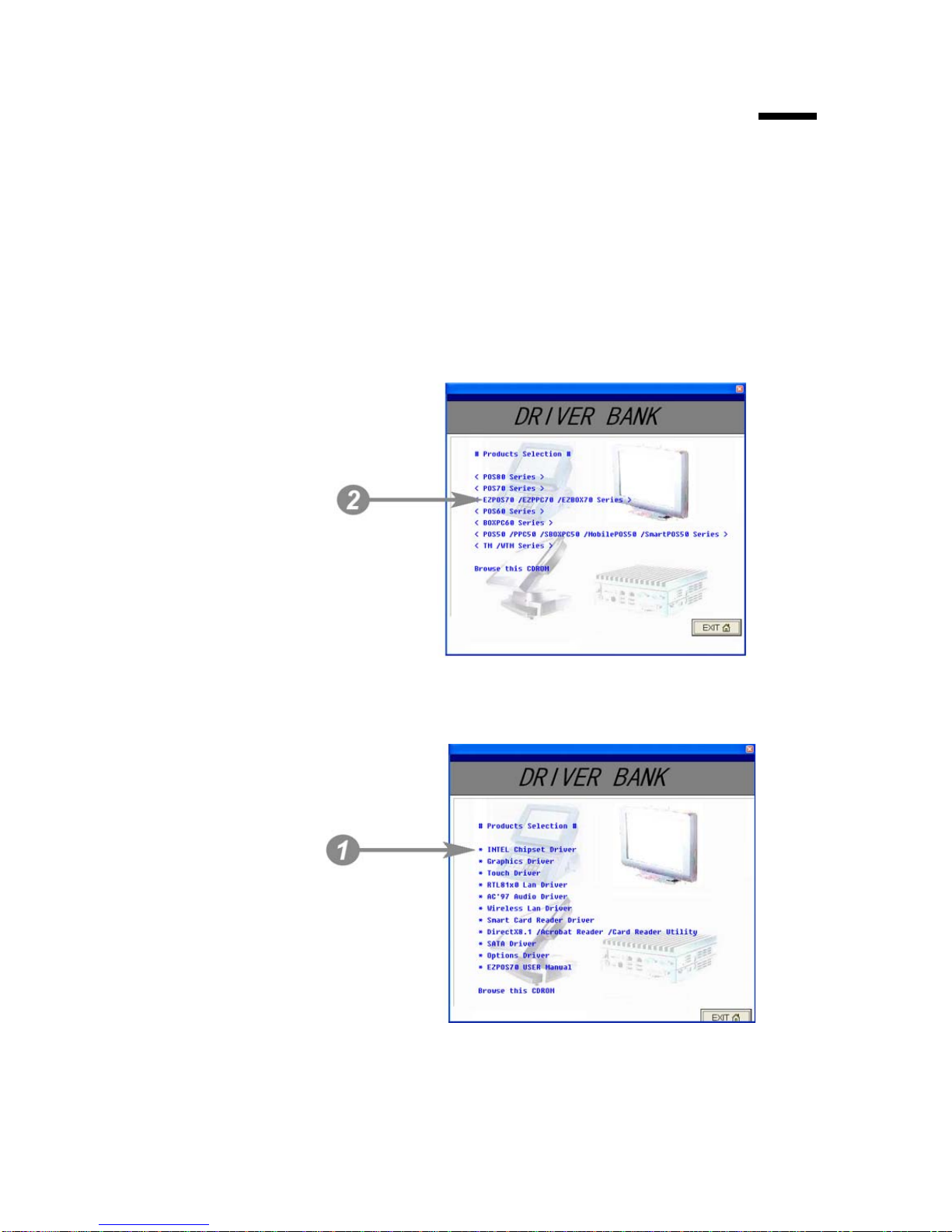

2. Click “EZPOS70 /EZPPC70 /EZBOX70 Series”.
4.2. Chipset Software Installation
1. Click INTEL Chipset Driver.
Chapter 4 11

2. Click Next.
3.1. Click Next.
3.2. Read the License Agreement carefully and click Yes.
4. Click Next.
Chapter 4
12

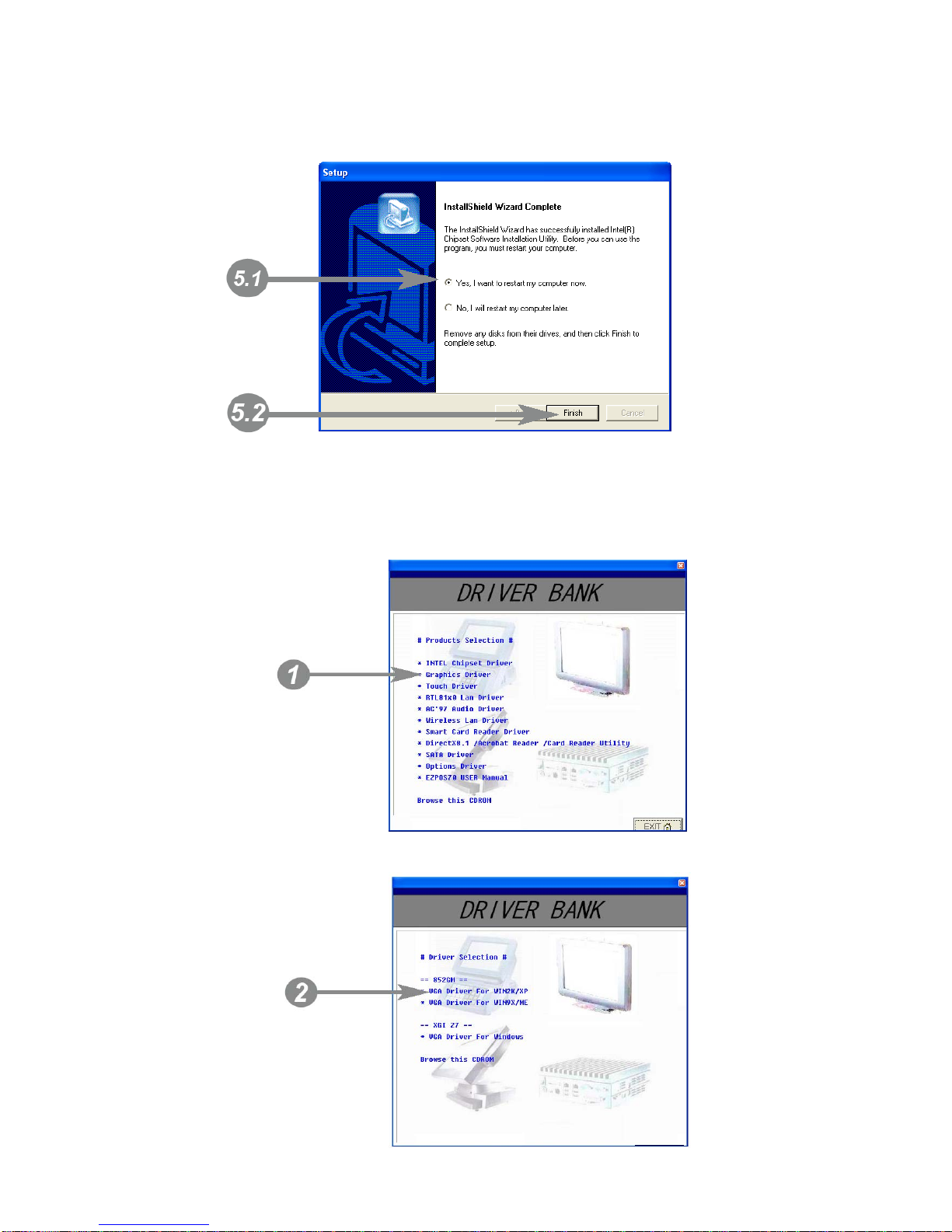

5.1. Select restart your computer right now or later.
5.2. Click Finish.
4.3. VGA Driver Installation
1. Click Graphic Driver.
2. Click VGA Driver for WIN2K/XP.

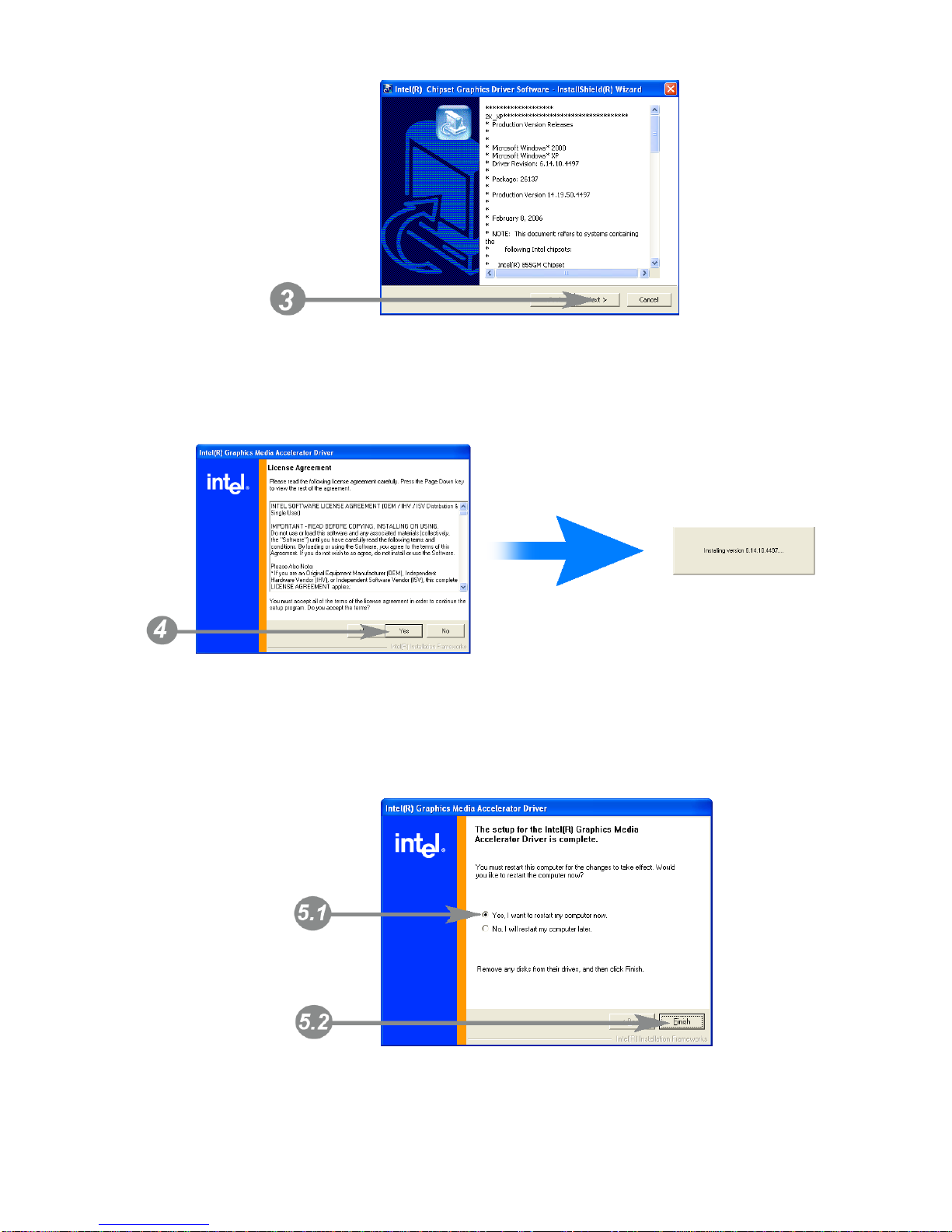

Chapter 4 13

3. Click Next.
3.1. After files extracted, click Next on the welcome screen.
4. Read the License Agreement carefully and click Yes, and then the installation
starts.
5.1. Select restart your computer right now or later.
5.2. Click Finish.
Chapter 4
14

4.4. LAN Driver Installation

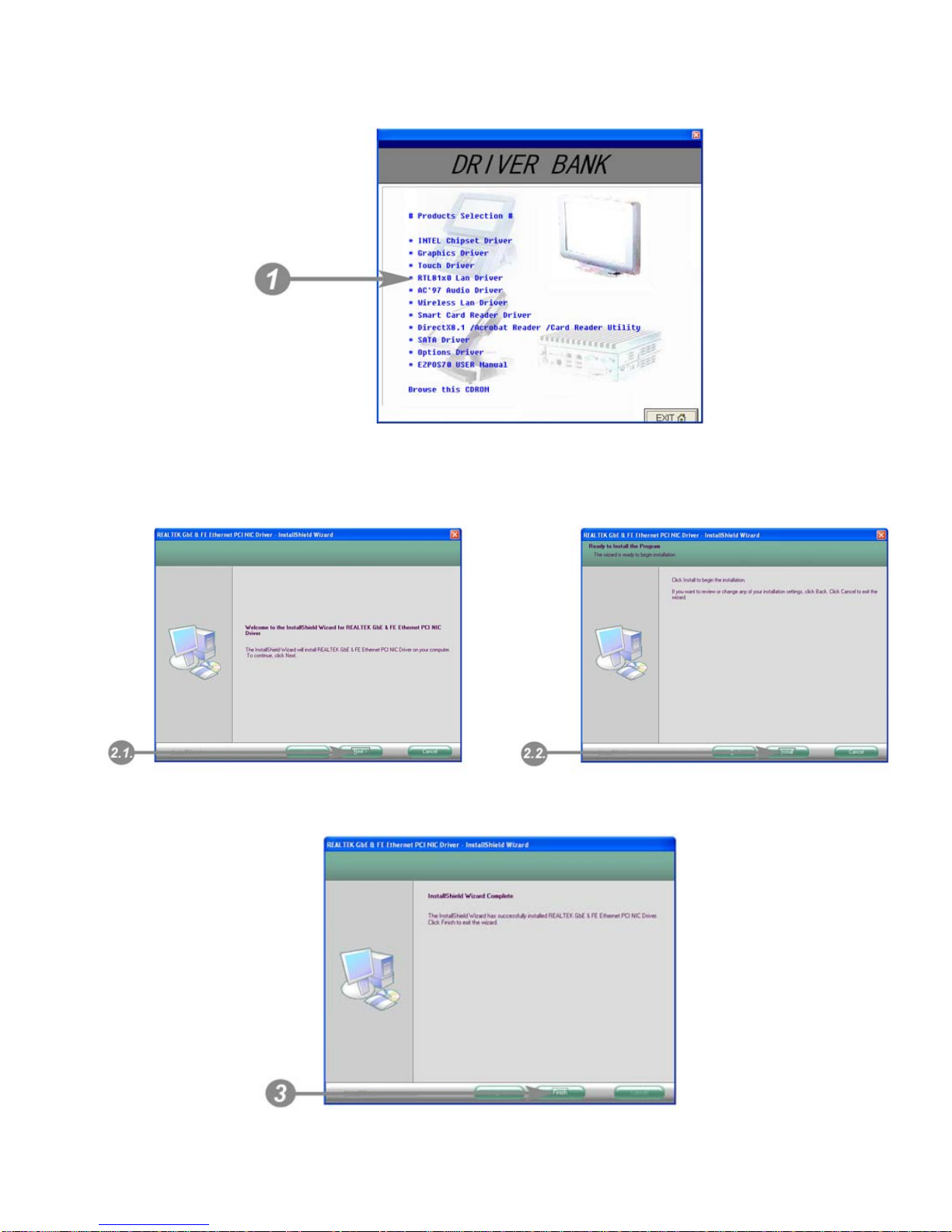

1. Click RTL81x0 LAN Driver.
On the welcome screen, click Next.
Click Install to begin the installation.
3. Click Finish.
Chapter 4 15
