KENT Li'l Farmer 81692 User manual

WARNING! TO AVOID SERIOUS INJURY
2
1. This product should be used under the direct supervision of an adult at all times.
2. It is recommended that riders always wear a properly fitted helmet that complies
with US Consumer product safety Commission (CPSC) Standards.
3. Only one rider should use this product at atime.
4. Riding barefoot is not recommended, user should always wear shoes.
5. This product is a toy, instruct your child how to use it correctly and draw attention
to possible sources of danger. The product should be used with caution, as it
requires skill, so as to avoid falls and collisions.
6. Recommended age is 2 years and older.
Maximum Weight for trike: 130 lbs; wagon: 100 lbs..
7. Always adjust the use of the product to conditions encountered.
8. This product should be used on safe level ground. It should NOT be used near
steps, slopes, roadways, motor vehicles, swimming pools, driveways or inclines.
9. This product is an unlighted toy and should not be used in the dark.
10. In case of sudden and/or strong turns of the handlebar the product could tip
over and cause injury tothe rider.
11. Climbing or standing on the trike could cause the trike totip over and cause
injury tothe rider.
12. Unpredicted situations may arise when children are at play, for which the
manufacturer/distributor cannot be held liable for damage or injury.
13. This tricycle must not be connected with other vehicles or similar devices
and not driven/pulled by them. Never subject your child (while on the trike) to
speeds exceeding a walking pace!
14. This trike does not possess a continuously effective brake system. Therefore,
safeguard the product against rolling away when parking it.
15. Never park the toy unattended with a child on it!
16. Regular safety checks should be carried out on the product to ensure integrity of
assembly. Check for loose, damaged or missing components. Damaged
components may endanger the safety of your child or shorten the lifespan of
the product.

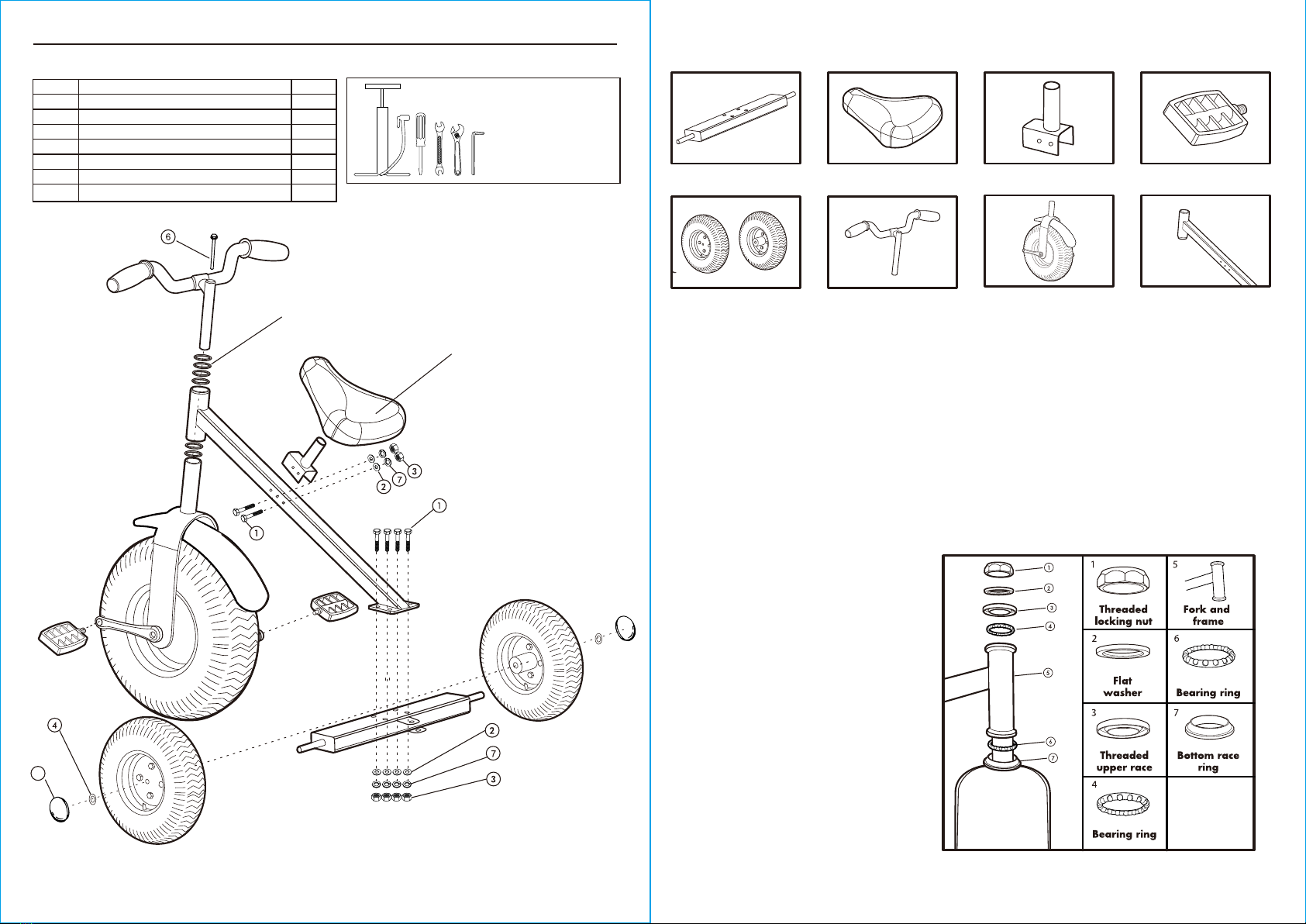

ASSEMBLY INSTRUCTIONS
TRICYCLE ASSEMBLY INSTRUCTIONS
STEP 1:
STEP 2:
STEP 3:
STEP 4:
STEP 5:
3 4
No:
1
2
3
4
5
6
6
6
6
2
2
1
Bolt 8mm
Washer 8mm
Nut 8mm
Washer
Wheel Cover
Stem Bolt
Description Qty
5
See step 4 for assembly
Place seat on the seat
connector, tighten screw
on the seat support at
the bottom of the seat
TRICYCLE PART LIST:
A. Back Axle x1 B. Seat x1 C. Seat Connector x1 D. Pedals x2
E. Back Wheels x2 G. Front Wheel x1 H. Fork and Frame x1 F.Handlebars x1
HARDWARE IDENTIFICATION TOOLS REQUIRED FOR ASSEMBLY
6mm Allen (Hex) Head Wrench
Adjustable Wrench
Standard Screw Driver
Lubricating Grease
Air Pump
Place the back wheel (E) onto the back axle (A), put a flatwasher (4) on the axle, use the
wheel cover (5) to lock the back wheel in place. Repeat step 1 to assemble other back wheel.
Attach the back axle (A) to the frame(H) using 8mm bolts (1), 8mm washers (2), spring
washers (7) and 8mm nuts (3).
Use an adjustable wrench to secure the pedal (D) onto the threaded crank attached to the
front wheel (G). Repeat step 3 to install the pedal on the opposite side.
Follow the diagram to the right, to secure
nut, washer, rings, fork and frame in the
proper order.
To assemble the handlebars (F). Insert the
stem bolt (6) into the opening at the top
of the handlebar stem. Insert the handle-
bars (F) into the head of the frame (H).
Please ensure handlebar is inserted past
the minimum insertion marking on the
handlebar stem. Tighten stem bolt (6)
securely.
7Spring Washer 6

TRICYCLE ASSEMBLY INSTRUCTIONS continued...
WAGON ASSEMBLY INSTRUCTIONS
STEP 1:
56
WAGON ASSEMBLY INSTRUCTIONS
WAGON HARDWARE:
No:
1
2
3
4
5
6
1
1
1
1
2
2
Bolt M8 x 45mm
Washer 8mm
Nut M8
Spring Washer
Washer 16mm
Axle Cap
Description Qty
A. Deck x1 C. Long Fence x2
D. Short Fence x2
B. Wheels x2
E. Axle x1
1
2
3
6
5
STEP 6:
STEP 7:
Test the tricycle by checking all bolts and fittings, make sure everything is securely tightened
before allowing your child to ride the trike. Roll the tricycle to check for proper wheel operation
and alignment.
WARNING: NEVER INFLATE A TIRE BEYOND THE MAXIMUM PRESSURE
MARKED ON THE TIRE’S SIDEWALL. EXCEEDING THE RECOMMENDED
MAXIMUM PRESSURE MAY BLOW THE TIRE OFF THE RIM, WHICH COULD
CAUSE DAMAGE TO THE TRIKE AND INJURY TO THE RIDER AND OTHERS. THE
BEST WAY TO INFLATE A TRICYCLE TIRE TO THE CORRECT PRESSURE IS
WITH A BICYCLE PUMP. GAS STATION AIR HOSES MOVE A LARGE VOLUME OF
AIR VERY RAPIDLY, AND WILL RAISE THE PRESSURE IN YOUR TIRE VERY
RAPIDLY. WE DO NOT RECOMMEND USING GAS STATION AIR HOSES OR ANY
OTHER TYPE OF COMPRESSOR.
WAGON PARTS LIST:
Insert the axle (E) into the bottom of the wagon deck (A). Slide the wheels (B) onto the ends of
the axle (E). Attach using the 16mm washer (5) and axle cap (6). Tighten securely.
STEP 2:
Attach the wagon deck (A) to the back of the tricycle using the 45mm bolt (1), 8mm washer (2),
Spring Washer (3), and the Nut (4). Tighten securely.
STEP 3:
Insert long fences (C) and short fences (D) into slots on each side of the wagon deck (A).
4
To adjust the seat position, remove seat
connector bolts, align seat connector with
holes in frame at the desired position, re-
insert bolts and tighten nuts to lock seat
in place.
After assembling your trike, it will be necessary to inflate the tires. Check the sidewall of the
tire for the correct pressure (PSI) and inflate tires accordingliy with a MANUAL BICYCLE PUMP.
Improper inflation is the biggest cause of tire failure. Due to their slightly porous nature,
it is normal for your tires to lose pressure over time. For this reason it is critically
important to maintain the proper tire inflation. Do not exceed 35 PSI for the front tire and
30 PSI for the rear tires.

7 8
DO NOT RETURN TO STORE!
For Customer Service Call:
1-800-451-5368
