How to Connect and Set Up Your Entr6 Entertainment Hub

Unpacking
Connecting and Setting Up Your New Kenwood Sovereign Entr6
Welcome to the Connection and Setup Guide for your new Kenwood Sovereign
Entre. With Entre, you can enjoy traditional media, like FM/AM radio, CDs, and
movies, alongside exciting new media, such as MP3s and Internet radio. Entre
allows you to control, organize and enjoy your collections from one easy-to
navigate interface.
Use this guide to connect all your current audio and video components- Entre
has a variety of connection jacks so you can customize your entertainment
Many of Entre’s features require Entre to be connected to the Internet, a Ken-
wood Sovereign DVD/CD changer, Kenwood CD changer with CDDB capabil-
ity, and/or a Kenwood Sovereign Receiver. Features requiring external products
or services are noted throughout the manual.
Entre is a dvnamic product. Software updates will allow Kenwood and
OpenGlobe to provide new functions and capabilities. Refer to the Kenwood
USA w&site at www.kenwoodusa.com for the latest information regarding your
setup. new Entre.
OpenGlobe, the OpenGlobe logo, CE-Commerce and entertain simplicity are trademarks of OpenGlobe, Inc.
enGlobe
CDDB is a registered trademark and GraceNote is a trademark of CDDB, Inc. (dba GraceNote)
All other trademarks are property of their registered owners.

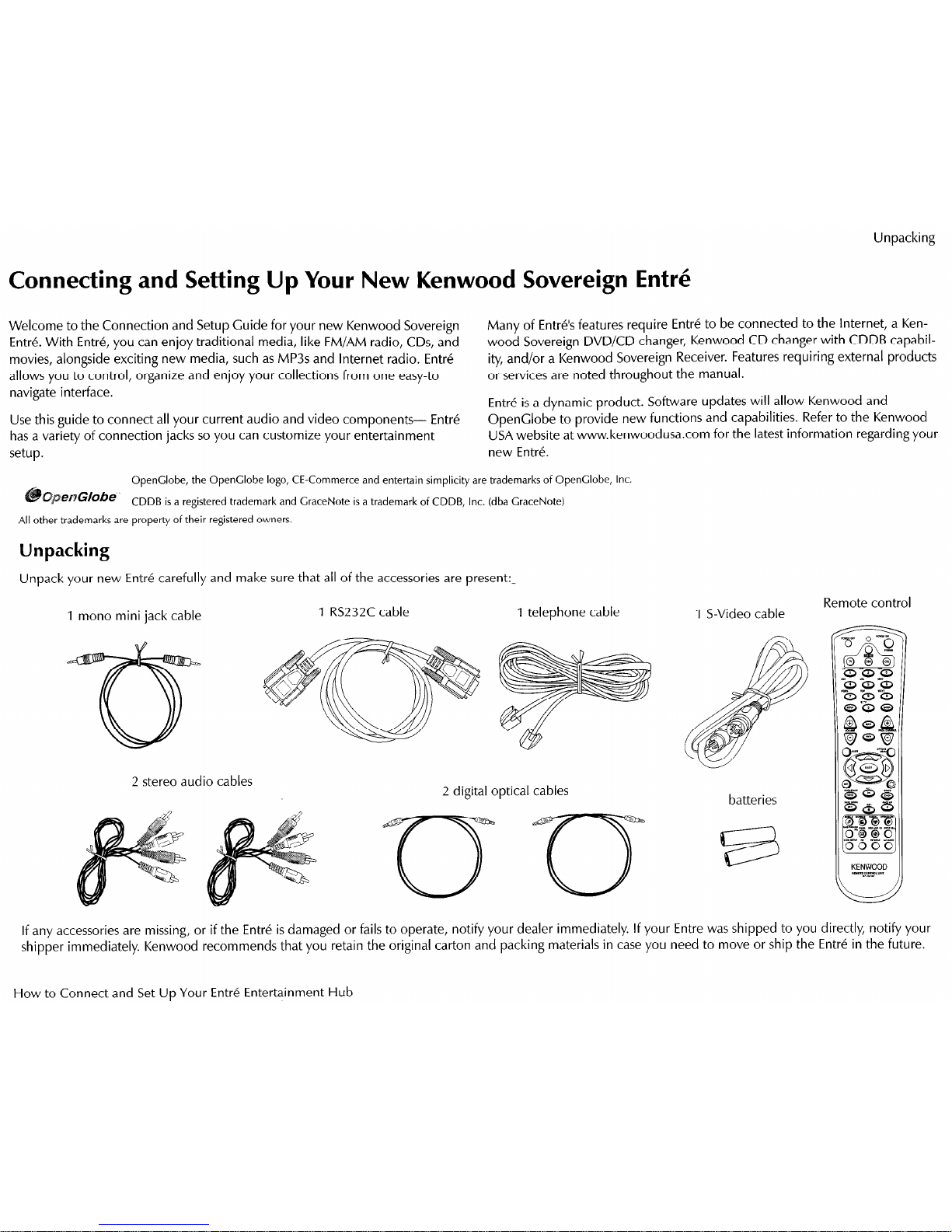

Unpacking
Unpack your new Entre carefully and make sure that all of the accessories are present:-
1 mono mini jack cable 1 RS232C cable 1 telephone cable 1 S-Video cable
2 stereo audio cables 2 digital optical cables batteries
Remote control
KENWOOD
“““““L”“”
If any accessories are missing, or if the Entre is damaged or fails to operate, notify your dealer immediately. If your Entre was shipped to you directly, notify your
shipper immediately. Kenwood recommends that you retain the original carton and packing materials in case you need to move or ship the Entre in the future.
How to Connect and Set Up Your Entre Entertainment Hub

Connecting and Setting Up Your New Kenwood Sovereign Entre

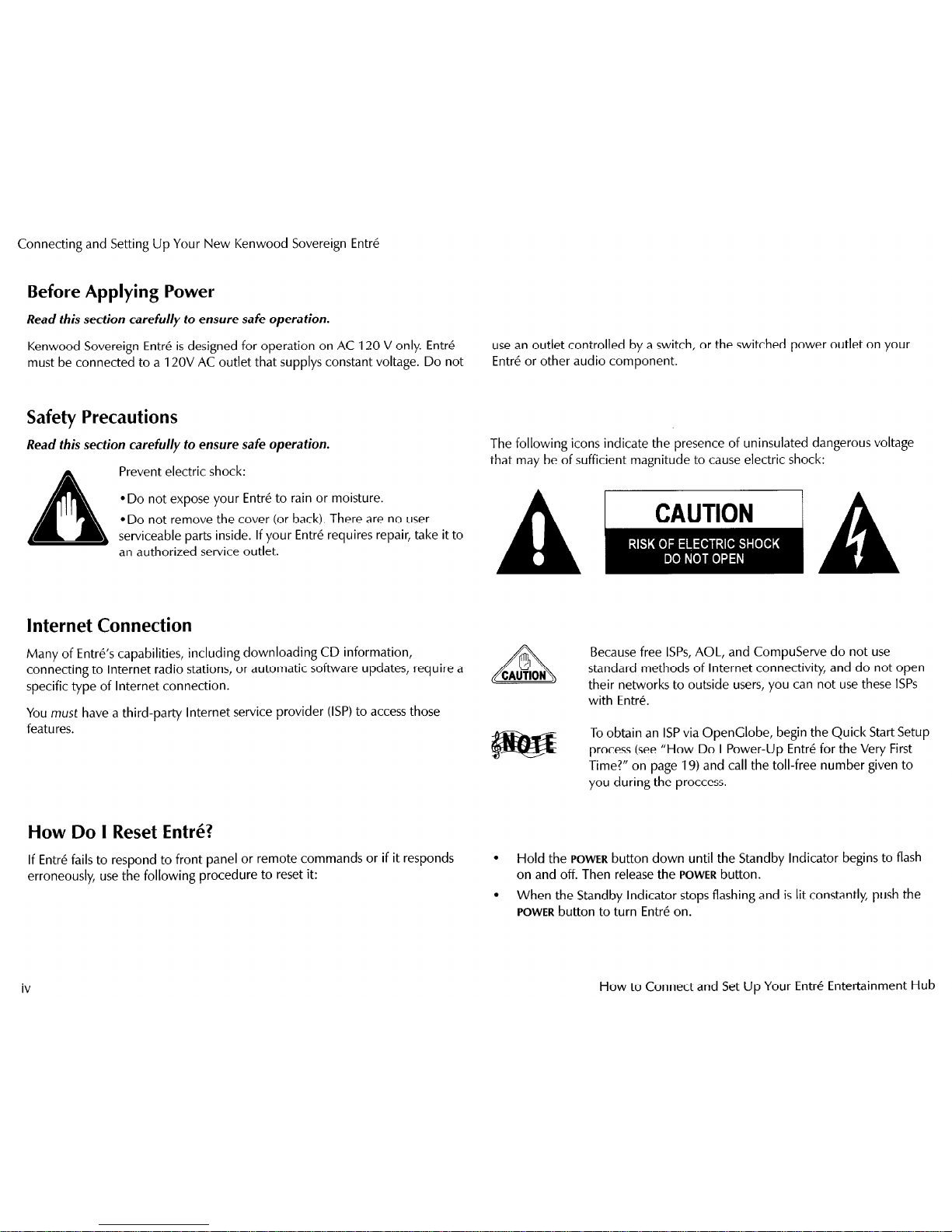

Before Applying Power
Read this section carefully to ensure safe operation.
Kenwood Sovereign Entre is designed for operation on AC 120 V only. Entre use an outlet controlled by a switch, or the switched power outlet on your
must be connected to a 120V AC outlet that supplys constant voltage. Do not Entre or other audio component.
Safety Precautions
Read this section carefully to ensure safe operation.
Prevent electric shock:
*Do not expose your Entre to rain or moisture.
The following icons indicate the presence of uninsulated dangerous voltage
that may be of sufficient magnitude to cause electric shock:
*Do not remove the cover (or back). There are no user
serviceable parts inside. If your Entre requires repair, take it to
an authorized service outlet.
A
Internet Connection
Many of Entre’s capabilities, including downloading CD information,
connecting to Internet radio stations, or automatic software updates, require a
specific type of Internet connection.
Because free ISPs, AOL, and CompuServe do not use
standard methods of Internet connectivity, and do not open
their networks to outside users, you can not use these ISPs
with Entre.
You must have a third-party Internet service provider (ISP) to access those
features. To obtain an ISP via OpenGlobe, begin the Quick Start Setup
process (see “How Do I Power-Up Entre for the Very First
Time?” on page 19) and call the toll-free number given to
you during the proccess.
How Do I Reset Entrb?
If Entre fails to respond to front panel or remote commands or if it responds
erroneously, use the following procedure to reset it:
l
Hold the POWER button down until the Standby Indicator begins to flash
on and off. Then release the POWER button.
l When the Standby Indicator stops flashing and is lit constantly, push the
POWER button to turn Entre on.
iv How to Connect and Set Up Your Entre Entertainment Hub

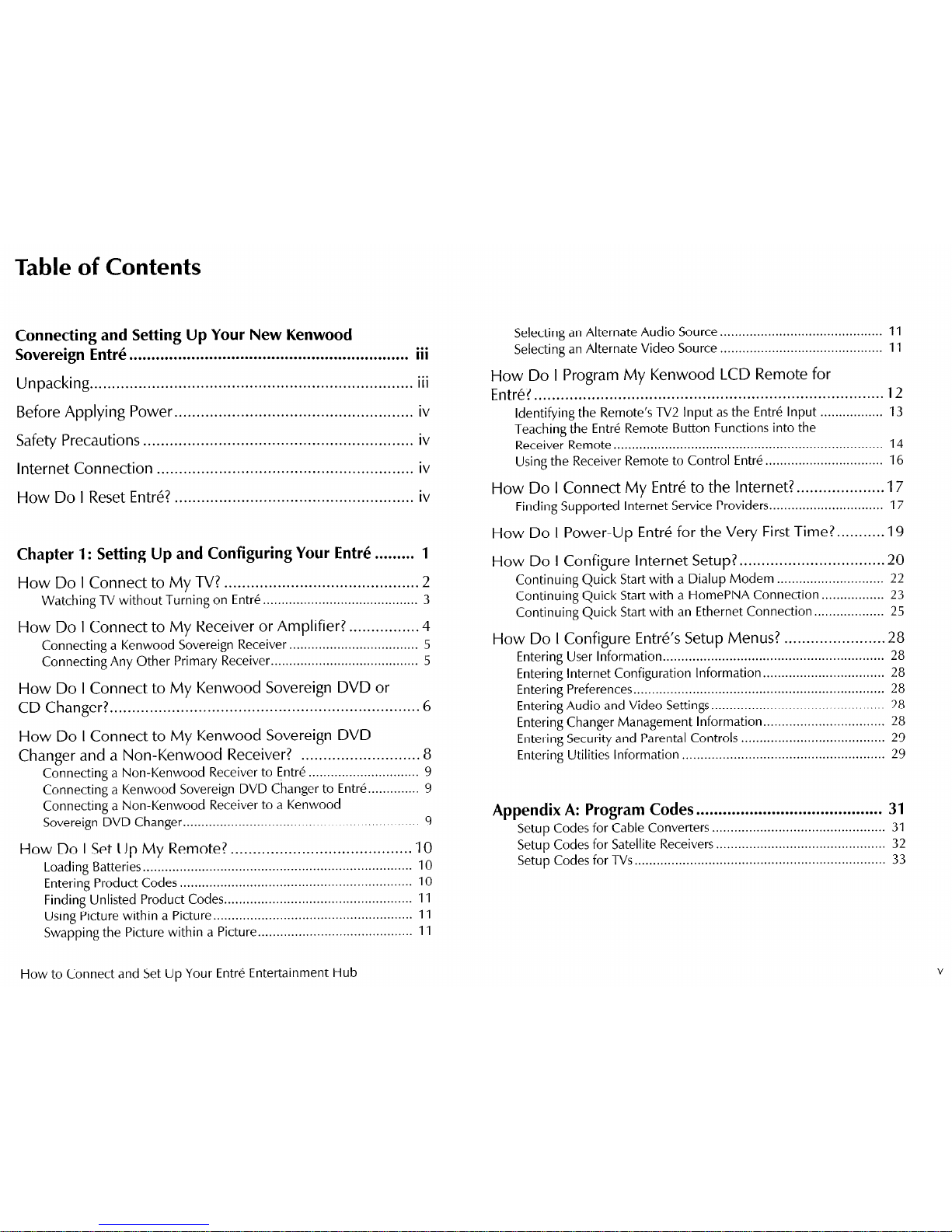

Table of Contents
Connecting and Setting Up Your New Kenwood
Sovereign Entrb ...
............................................................... III
Unpacking.. ....................................................................... iii
Before Applying Power.. .................................................... iv
Safety Precautions ............................................................. iv
Internet Connection .......................................................... iv
How Do I Reset Entre? ...................................................... iv
Chapter 1: Setting Up and Configuring Your Entrk
......... 1
How Do I Connect to My TV? ........................................... .2
Watching TV without Turning on Entre.. ........................................ 3
How Do I Connect to My Receiver or Amplifier?. .............. .4
Connecting a Kenwood Sovereign Receiver.. ................................. 5
Connecting Any Other Primary Receiver.. ...................................... 5
How Do I Connect to My Kenwood Sovereign DVD or
CD Changer?....................................................................... 6
How Do I Connect to My Kenwood Sovereign DVD
Changer and a Non-Kenwood Receiver? .......................... .8
Connecting a Non-Kenwood Receiver to Entre .............................. 9
Connecting a Kenwood Sovereign DVD Changer to Entre.. ............ 9
Connecting a Non-Kenwood Receiver to a Kenwood
Sovereign DVD Changer.. .............................................................. 9
How Do I Set Up My Remote? ......................................... IO
Loading Batteries ......................................................................... 10
Entering Product Codes ............................................................... 10
Finding Unlisted Product Codes ................................................... 11
Using Picture within a Picture ...................................................... 11
Swapping the Picture within a Picture .......................................... 11
Selecting an Alternate Audio Source.. .......................................... 11
Selecting an Alternate Video Source ............................................ 11
How Do I Program My Kenwood LCD Remote for
Entre?
................................................................................ 12
Identifying the Remote’s TV2 Input as the Entre Input ................. 13
Teaching the Entre Remote Button Functions into the
Receiver Remote ......................................................................... 14
Using the Receiver Remote to Control
Entre
................................ 16
How Do I Connect My Entre to the Internet?. .................. .I7
Finding Supported Internet Service Providers.. ............................. 17
How Do I Power-Up Entre for the Very First Time?. ......... .I9
How Do I Configure Internet Setup?. ............................... .20
Continuing Quick Start with a Dialup Modem ............................. 22
Continuing Quick Start with a HomePNA Connection.. ............... 23
Continuing Quick Start with an Ethernet Connection.. ................. 25
How Do I Configure Entre’s Setup Menus? ...................... .28
Entering User Information.. .......................................................... 28
Entering Internet Configuration Information.. ............................... 28
Entering Preferences.. .................................................................. 28
Entering Audio and Video Settings.. ............................................. 28
Entering Changer Management Information.. ............................... 28
Entering Security and Parental Controls ....................................... 29
Entering Utilities Information ....................................................... 29
Appendix A: Program Codes .......................................... 31
Setup Codes for Cable Converters.. ............................................. 31
Setup Codes for Satellite Receivers.. ............................................ 32
Setup Codes for TVs.. .................................................................. 33
How to Connect and Set Up Your Entre Entertainment Hub

Table of Contents

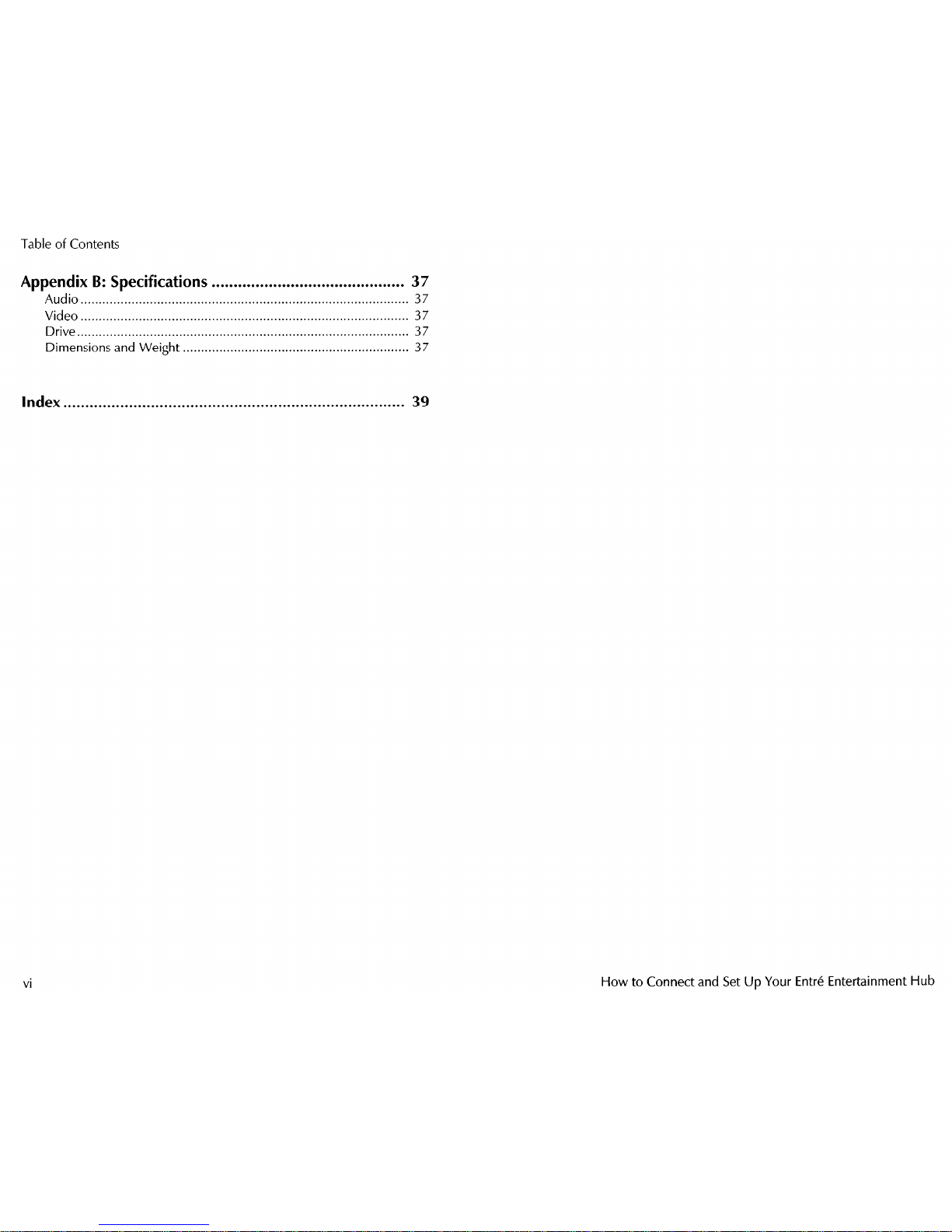

Appendix B: Specifications ............................................ 37
Audio.. ........................................................................................ 37
Video ................................................................................. ......... 37
Drive.. ......................................................................................... 37
Dimensions and Weight .............................................................. 37
Index .............................................................................. 39
vi How to Connect and Set Up Your Entr6 Entertainment Hub

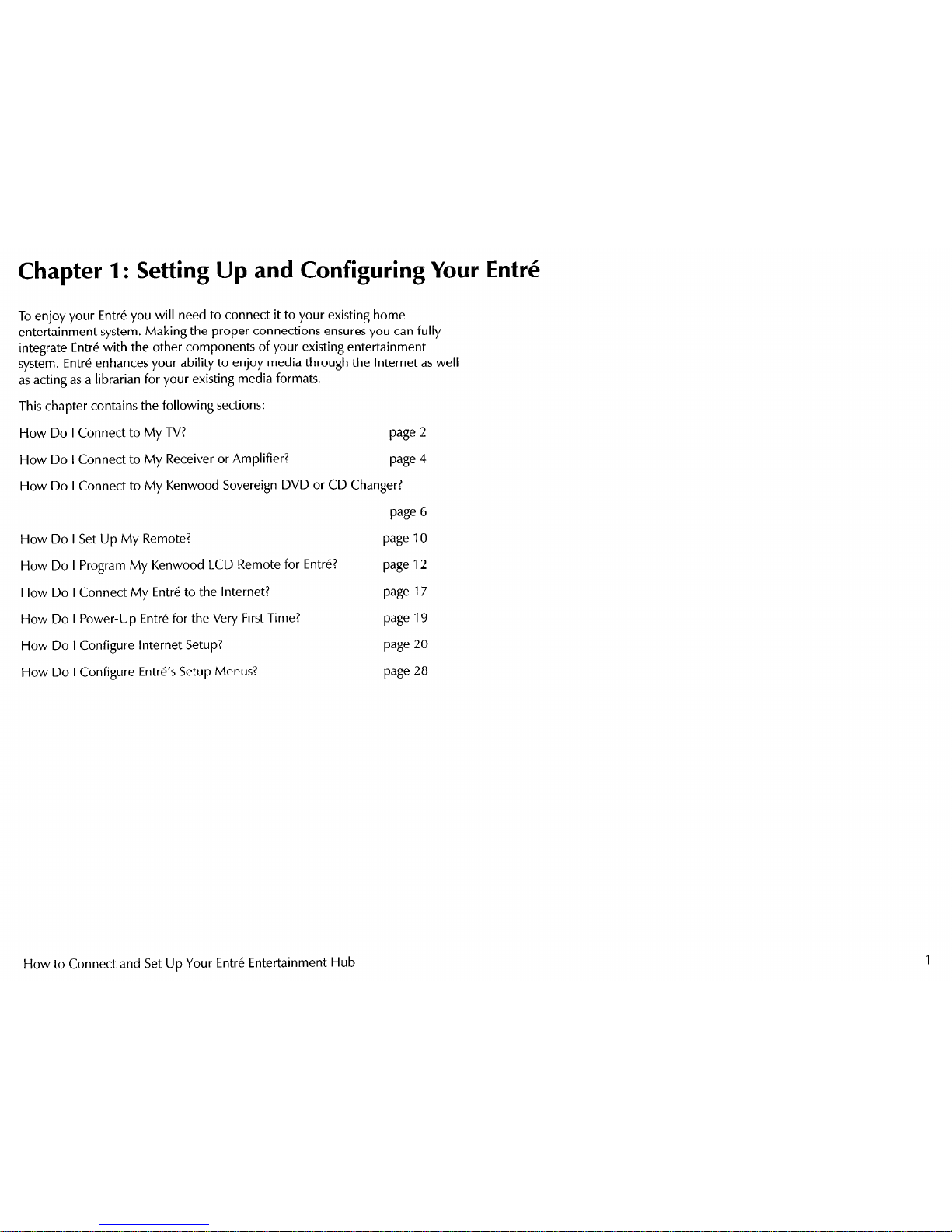

Chapter 1: Setting Up and Configuring Your Entr6
To enjoy your Entre you will need to connect it to your existing home
entertainment system. Making the proper connections ensures you can fully
integrate Entre with the other components of your existing entertainment
system. Entre enhances your ability to enjoy media through the Internet as well
as acting as a librarian for your existing media formats.
This chapter contains the following sections:
How Do I Connect to My TV? page 2
How Do I Connect to My Receiver or Amplifier? page 4
How Do I Connect to My Kenwood Sovereign DVD or CD Changer?
How Do I Set Up My Remote?
How Do I Program My Kenwood LCD Remote for Entre?
How Do I Connect My Entre to the Internet?
How Do I Power-Up Entre for the Very First Time?
How Do I Configure Internet Setup?
How Do I Configure Entre’s Setup Menus?
page 6
page 10
page 12
page 17
page 19
page 20
page 28
How to Connect and Set Up Your Entre Entertainment Hub

How Do I Connect to My TV?
How Do I Connect to My TV?
To
VIDEO
INPUT
-\ ,
‘.
“2
*
:,, ”
,s-
,” 5,
‘
2
-- ; ~- __... _._..
‘. .s. ,r
-,; ;,_,. -~-.-- 111 ,..” :.-. -.““,,,
.-___ . - .,-llL(- --.L. . . 1,
2
How to Connect and Set Up Your Entr6 Entertainment Hub

How Do I Connect to My TV?, continued
How Do I Connect to My TV?, continued
Connect a video cable from Entre’s Video Output jack to your TV’s Video IN
jack shown above.
Before making any video connections to the TV you must choose the type of
connection you will use:
Component video connections provide the best video quality; S-Video con-
nections provide video quality that is superior to standard composite video
connections.
If your A/V receiver is a Kenwood model with Universal Video’” or Univer-
sal Video’” HD, connect Entre to the TV using the highest quality connec-
tion type possible, and connect your receiver to Entre using that same type
of connection. See your receiver’s Setup and Connection Guide for more
information about connecting video components to your receiver.
If your A/V receiver is not a Kenwood model with Universal Video’” or Uni-
versal Video’” HD, connect Entre to the TV using the same type of video
connection that is being used between the rest of your video components
and your A/V receiver. (You must use the same type of connection for all of
your video components.)
If your TV does not have any video connections at all (it only has antenna
connections), you must purchase an RF modulator that converts video sig-
nals into antenna signals to use your TV with Entre. You should be able to
find an RF modulator at a store specializing in electronic parts.
If you previously connected your TV directly to your VCR, you must now
connect it through Entre.
Watching TV without Turning on Entr6
The connection described here sets your TV up as a monitor you can use to
view media played on your other video devices (such as a VCR or DVD player)
via Entre. You can still watch TV without having to use Entre-simply turn on
your TV as you normally do.
How to Connect and Set Up Your Entre Entertainment Hub

How Do I Connect to My Receiver or Amplifier?
How Do I Connec :t to My Receiver or Amplifier?
STEREO AUDIO CABLE 1
REMOVEPLASTIC
TIP PROTECTORFROM
OPTICAL CABLES
REMOVEPROTECTIVE
COVERFROM
OPTICAL SOCKETS.
REPLACE PROTECTIVE
COVERWHEN NOTIN USE.
4 How to Connect and Set Up Your Entr6 Entertainment Hub

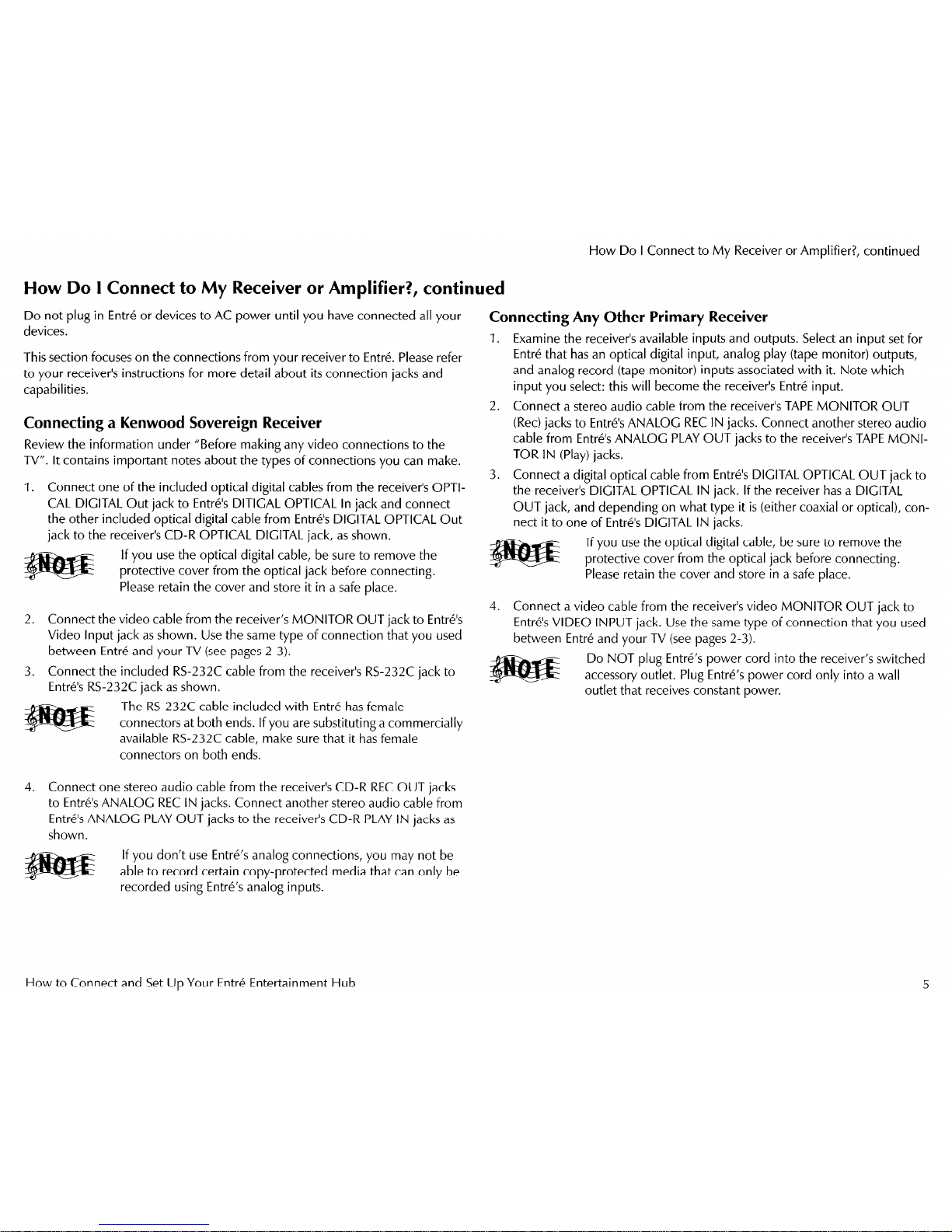

How Do I Connect to My Receiver or Amplifier?, continued
How Do I Connect to My Receiver or Amplifier?, continued
Do not plug in Entre or devices to AC power until you have connected all your
devices.
Connecting Any Other Primary Receiver
This section focuses on the connections from your receiver to Entre. Please refer
to your receiver’s instructions for more detail about its connection jacks and
capabilities.
Connecting a Kenwood Sovereign Receiver
Review the information under “Before making any video connections to the
TV”. It contains important notes about the types of connections you can make.
1. Connect one of the included optical digital cables from the receiver’s OPTI-
CAL DIGITAL Out jack to Entre’s DITICAL OPTICAL In jack and connect
the other included optical digital cable from Entre’s DIGITAL OPTICAL Out
jack to the receiver’s CD-R OPTICAL DIGITAL jack, as shown.
If you use the optical digital cable, be sure to remove the
protective cover from the optical jack before connecting.
Please retain the cover and store it in a safe place.
2. Connect the video cable from the receiver’s MONITOR OUT jack to Entre’s
Video Input jack as shown. Use the same type of connection that you used
between Entre and your TV (see pages 2-3).
3. Connect the included RS-232C cable from the receiver’s RS-232C jack to
Entre’s RS-232C jack as shown.
The RS-232C cable included with Entre has female
connectors at both ends. If you are substituting a commercially
available RS-232C cable, make sure that it has female
connectors on both ends.
4. Connect one stereo audio cable from the receiver’s CD-R REC OUT jacks
to Entre’s ANALOG REC IN jacks. Connect another stereo audio cable from
Entre’s ANALOG PLAY OUT jacks to the receiver’s CD-R PLAY IN jacks as
shown. If you don’t use Entre’s analog connections, you may not be
able to record certain copy-protected media that can only be
recorded using Entre’s analog inputs.
Examine the receiver’s available inputs and outputs. Select an input set for
Entre that has an optical digital input, analog play (tape monitor) outputs,
and analog record (tape monitor) inputs associated with it. Note which
input you select: this will become the receiver’s Entre input.
Connect a stereo audio cable from the receiver’s TAPE MONITOR OUT
(Ret) jacks to Entre’s ANALOG REC IN jacks. Connect another stereo audio
cable from Entre’s ANALOG PLAY OUT jacks to the receiver’s TAPE MONI-
TOR IN (Play) jacks.
Connect a digital optical cable from Entre’s DIGITAL OPTICAL OUT jack to
the receiver’s DIGITAL OPTICAL IN jack. If the receiver has a DIGITAL
OUT jack, and depending on what type it is (either coaxial or optical), con-
nect it to one of Entre’s DIGITAL IN jacks.
If you use the optical digital cable, be sure to remove the
protective cover from the optical jack before connecting.
Please retain the cover and store in a safe place.
4. Connect a video cable from the receiver’s video MONITOR OUT jack to
Entre’s VIDEO INPUT jack. Use the same type of connection that you used
between Entre and your TV (see pages 2-3).
Do NOT plug Entre’s power cord into the receiver’s switched
accessory outlet. Plug Entre’s power cord only into a wall
outlet that receives constant power.
How to Connect and Set Up Your Entre Entertainment Hub

How Do I Connect to My Kenwood Sovereign DVD or CD Changer?

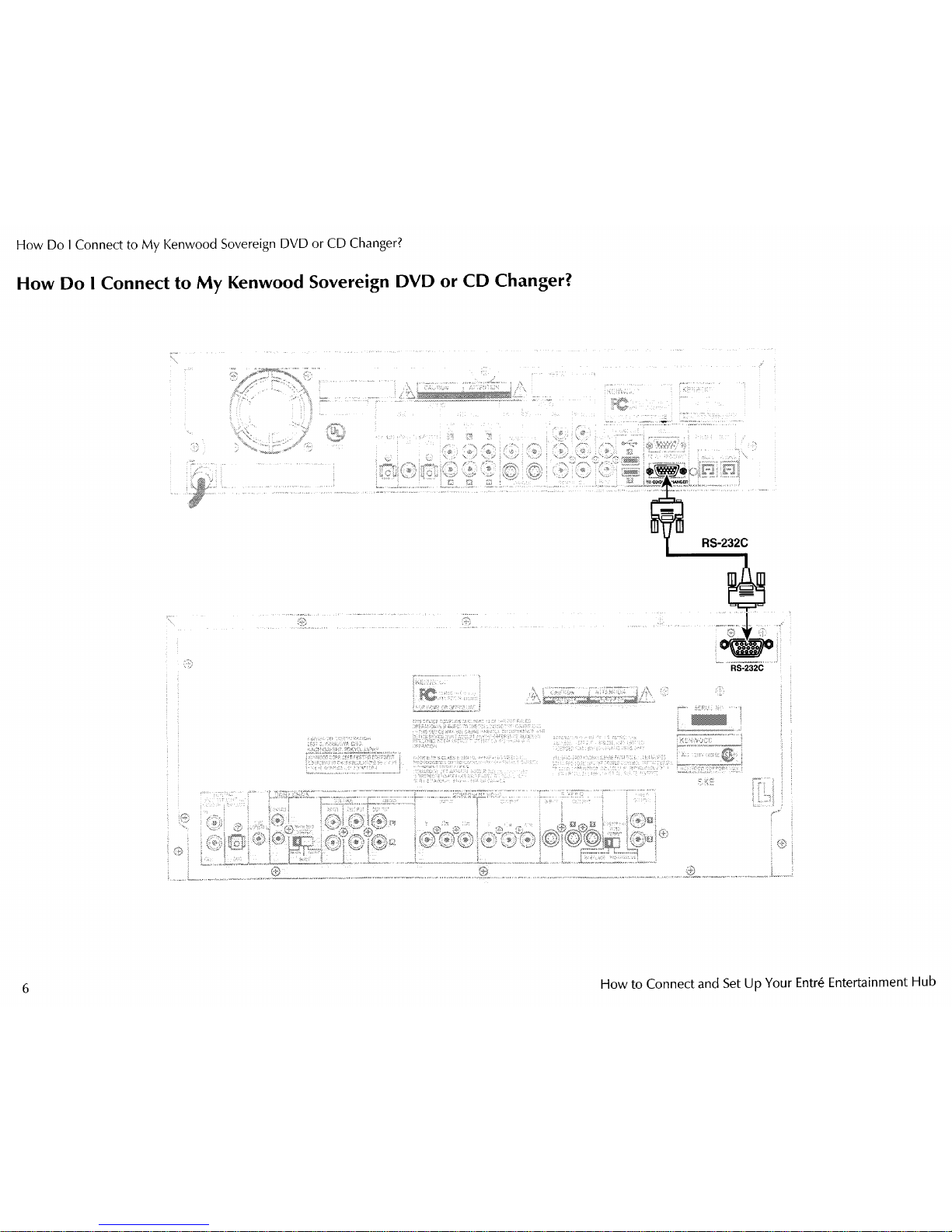

How Do I Connect to My Kenwood Sovereign DVD or CD Changer?
.
/
RS-232C
6 How to Connect and Set Up Your Entrk Entertainment Hub

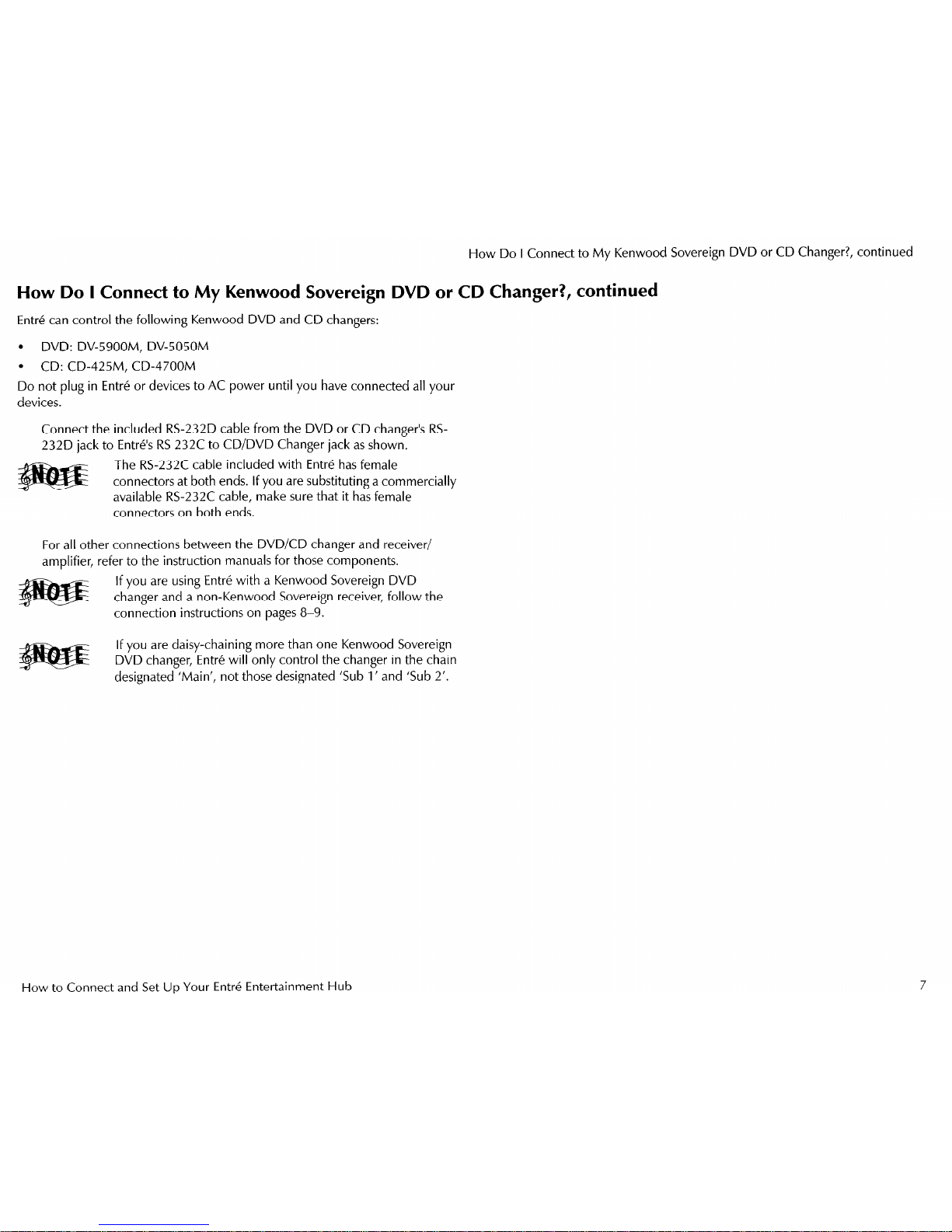

How Do I Connect to My Kenwood Sovereign DVD or CD Changer?, continued
How Do I Connect to My Kenwood Sovereign DVD or CD Changer?, continued
Entre can control the following Kenwood DVD and CD changers:
. DVD: DV-5900M, DV-5050M
l CD: CD-425M, CD-4700M
Do not plug in Entre or devices to AC power until you have connected all your
devices.
Connect the included RS-232D cable from the DVD or CD changer’s RS-
232D jack to Entre’s RS 232C to CD/DVD Changer jack as shown.
The RS-232C cable included with Entre has female
connectors at both ends. If you are substituting a commercially
available RS-232C cable, make sure that it has female
connectors on both ends.
For all other connections between the DVD/CD changer and receiver/
amplifier, refer to the instruction manuals for those components.
If you are using Entre with a Kenwood Sovereign DVD
changer and a non-Kenwood Sovereign receiver, follow the
connection instructions on pages 8-9.
If you are daisy-chaining more than one Kenwood Sovereign
DVD changer, Entre will only control the changer in the chain
designated ‘Main’, not those designated ‘Sub 1' and ‘Sub 2’.
How to Connect and Set Up Your Entre Entertainment Hub

How Do I Connect to My Kenwood Sovereign DVD Changer and a Non-Kenwood Receiver?

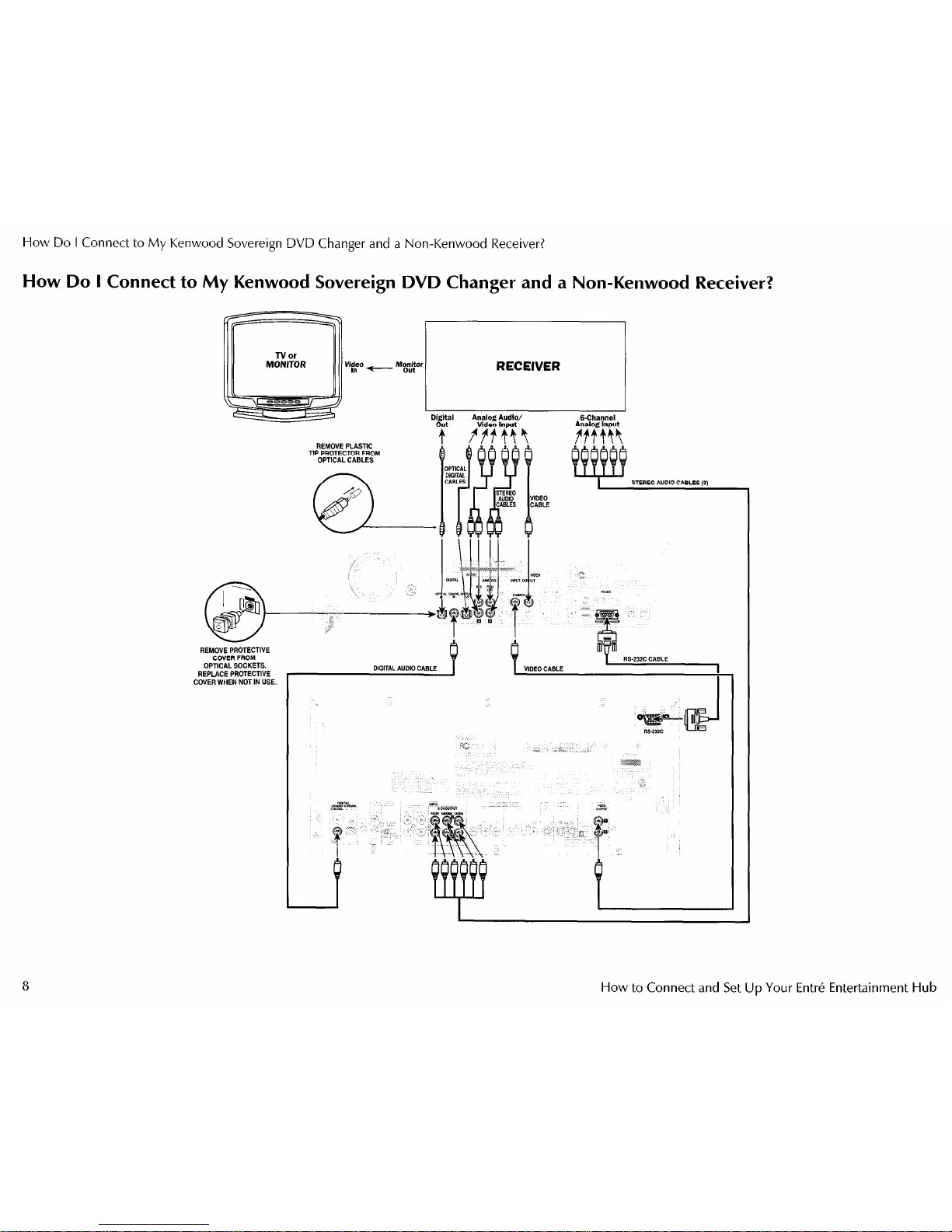

How Do I Connect to My Kenwood Sovereign DVD Changer and a Non-Kenwood Receiver?
B-Channel
Analog Input
REMOVEPROTECTIVE
COVERFROM
OPTICALSOCKETS.
REPLACEPROTECTIVE
COVERWHENNOTIN USE.
8 How to Connect and Set Up Your Entr6 Entertainment Hub

How Do I Connect to My Kenwood Sovereign DVD Changer and a Non-Kenwood Receiver?, continued
How Do I Connect to My Kenwood Sovereign DVD Changer and a Non-Kenwood Receiver?, continued
Do not plug in Entre or devices to AC power until you have connected all your
devices.
This section focuses on the connections from your Kenwood Sovereign DVD
changer and a non-Kenwood receiver to Entre. Please refer to your receiver and
DVD player’s instructions for more detail about their connection jacks and
capabilities.
Though the diagram on page 8 shows a DV-5900M DVD
changer, you can connect a DV-5050M changer to En&6 as
well.
Connecting a Non-Kenwood Receiver to Entr6
Review the information under “Before making any video connections to the
TV”. It contains important notes about the types of connections you can make.
1. Examine the receiver’s available inputs and outputs. Select an input set for
Entre that has an optical digital input, analog play (tape monitor) outputs,
and analog record (tape monitor) inputs associated with it. Note which
input you select: this will become the receiver’s Entre input.
2. Connect one of the included optical digital cables from the receiver’s OPTI-
CAL DIGITAL Out jack to Entre’s DIGITAL OPTICAL In jack and connect
the other included optical digital cable from Entre’s DIGITAL OPTICAL Out
jack to the receiver input’s OPTICAL DIGITAL jack, as shown.
Be sure to remove the protective cover from the optical jack
before connecting. Please retain the cover and store it in a safe
place.
3. Connect the video cable from the receiver’s MONITOR OUT jack to the TV
or Monitor’s VIDEO IN jack as shown. Use the same type of connection
that you use between Entre and the receiver.
4. Connect one stereo audio cable from the receiver’s ANALOG RECORD
OUTPUT jacks to Entre’s ANALOG REC IN jacks, as shown. Connect
another stereo audio cable from Entre’s ANALOG PLAY OUT jacks to the
receiver’s ANALOG PLAY INPUT jacks, as shown.
If you don’t use Entre’s analog connections, you may not be
able to record certain copy-protected media that can only be
recorded using Entre’s analog inputs.
5. Connect one video cable from the receiver’s VIDEO INPUT to Entre’s
VIDEO OUTPUT, as shown.
Connecting a Kenwood Sovereign DVD Changer to Entr6
1, Connect a digital audio cable from the changer’s DIGITAL COAXIAL OUT
jack to Entre’s DIGITAL COAXIAL IN jack, as shown.
2. Connect a video cable from the changer’s VIDEO OUTPUT jack to Entre’s
COMPOSITE VIDEO INPUT jack, as shown.
3. Connect the included RS-232C cable from the changer’s RS-232 jack to
Entre’s RS-232 jack as shown.
Since the DVD player makes a digital connection to Entre,
Entre must make additional digital input and output
connections to the receiver. See step 2 in “Connecting a Non-
Kenwood Receiver to Entre”on this page.
Connecting a Non-Kenwood Receiver to a Kenwood
Sovereign DVD Changer
Connect three stereo audio cables from the receiver’s 6-CHANNEL
ANALOG INPUT to the DVD changer’s 6-CHANNEL ANALOG OUTPUT as
shown.
If you have a DV-5050M, connect one stereo audio cable
from the DVD player’s MIX LINE OUTPUT to the receiver’s
DVD analog input.
How to Connect and Set Up Your Entre Entertainment Hub 9

How Do I Set Up My Remote?

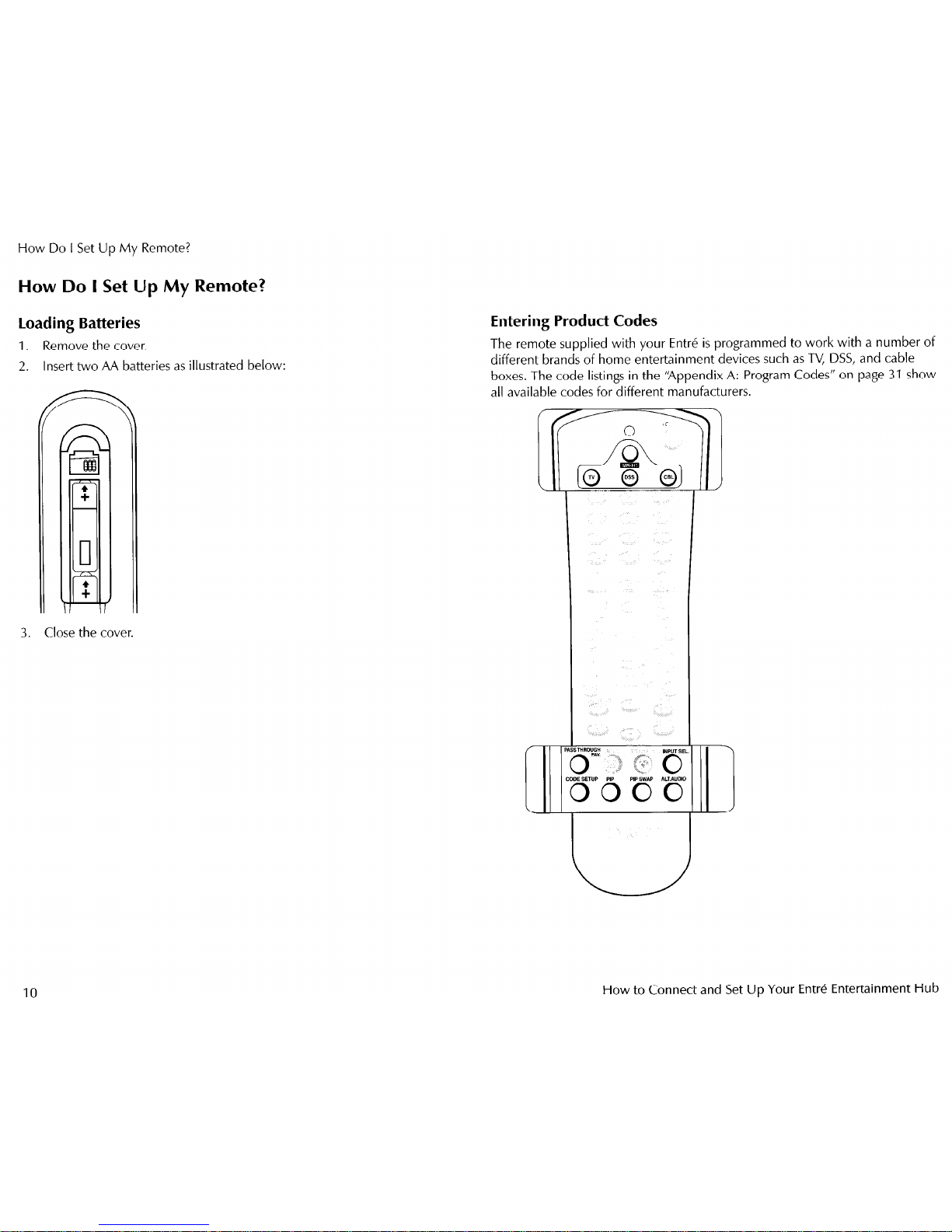

How Do I Set Up My Remote?
Loading Batteries
1. Remove the cover.
2. Insert two AA batteries as illustrated below:
$
3. Close the cover.
Entering Product Codes
The remote supplied with your Entre is programmed to work with a number of
different brands of home entertainment devices such as TV, DSS, and cable
boxes. The code listings in the “Appendix A: Program Codes” on page 31 show
all available codes for different manufacturers.
c
10 How to Connect and Set Up Your Entre Entertainment Hub

How Do I Set Up My Remote?

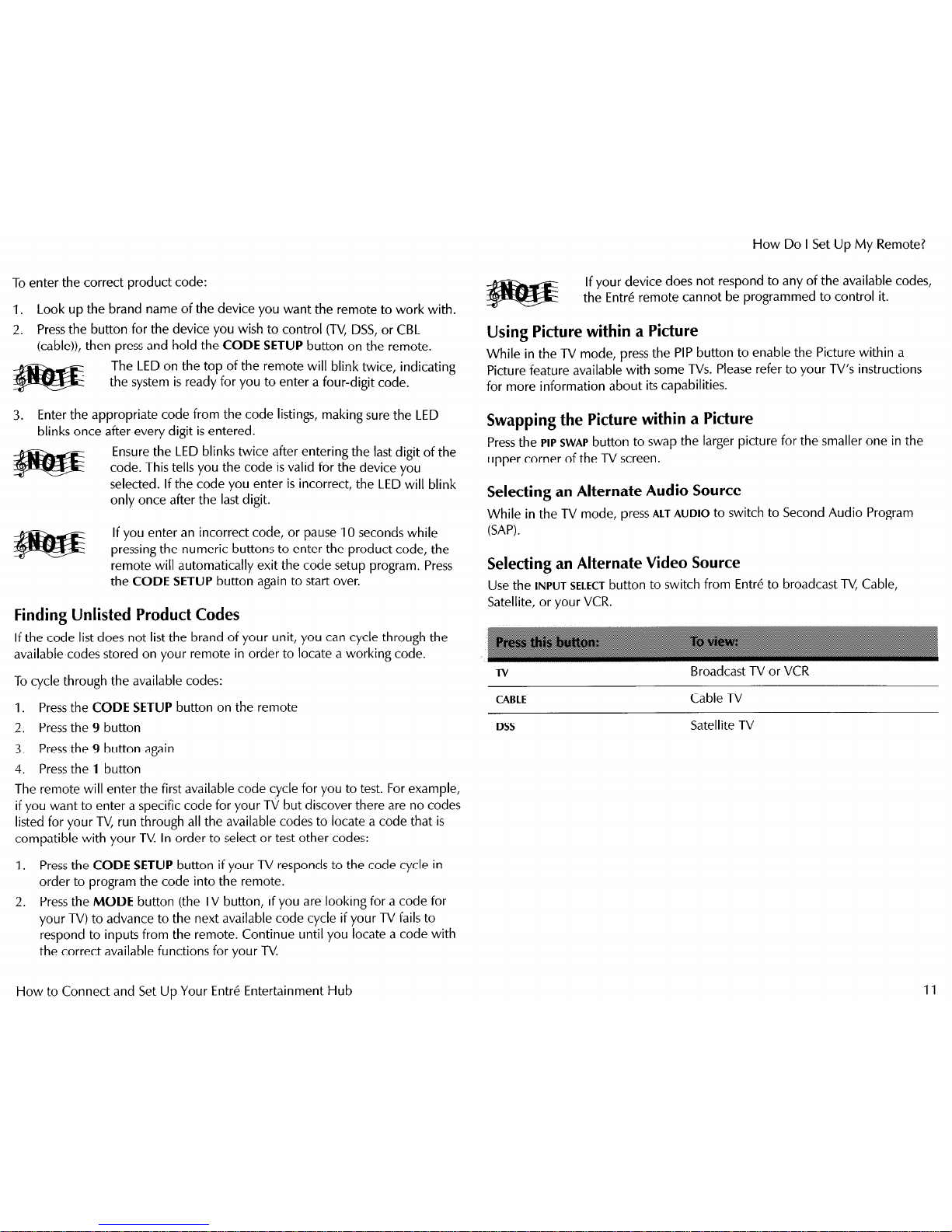

To enter the correct product code:
1. Look up the brand name of the device you want the remote to work with.
2. Press the button for the device you wish to control (TV, DSS, or CBL
(cable)), then press and hold the CODE SETUP button on the remote.
The LED on the top of the remote will blink twice, indicating
the system is ready for you to enter a four-digit code.
3. Enter the appropriate code from the code listings, making sure the LED
blinks once after every digit is entered.
Ensure the LED blinks twice after entering the last digit of the
code. This tells you the code is valid for the device you
selected. If the code you enter is incorrect, the LED will blink
only once after the last digit.
If you enter an incorrect code, or pause 10 seconds while
pressing the numeric buttons to enter the product code, the
remote will automatically exit the code setup program. Press
the CODE SETUP button again to start over.
Finding Unlisted Product Codes
If the code list does not list the brand of your unit, you can cycle through the
available codes stored on your remote in order to locate a working code.
To cycle through the available codes:
1. Press the CODE SETUP button on the remote
2. Press the 9 button
3. Press the 9 button again
4. Press the 1 button
The remote will enter the first available code cycle for you to test. For example,
if you want to enter a specific code for your TV but discover there are no codes
listed for your TV, run through all the available codes to locate a code that is
compatible with your TV In order to select or test other codes:
1. Press the CODE SETUP button if your TV responds to the code cycle in
order to program the code into the remote.
2. Press the MODE button (the TV button, if you are looking for a code for
your TV) to advance to the next available code cycle if your TV fails to
respond to inputs from the remote. Continue until you locate a code with
the correct available functions for your TV
If your device does not respond to any of the available codes,
the Entre remote cannot be programmed to control it.
Using Picture within a Picture
While in the TV mode, press the PIP button to enable the Picture within a
Picture feature available with some TVs. Please refer to your TV’s instructions
for more information about its capabilities.
Swapping the Picture within a Picture
Press the PIP SWAP button to swap the larger picture for the smaller one in the
upper corner of the TV screen.
Selecting an Alternate Audio Source
While in the TV mode, press ALT AUDIO to switch to Second Audio Program
(SAP).
Selecting an Alternate Video Source
Use the INPUT SELECT button to switch from Entre to broadcast TV, Cable,
Satellite, or your VCR.
TV
Broadcast TV or VCR
CABLE
Cable TV
DSS
Satellite TV
How to Connect and Set Up Your Entre Entertainment Hub 11

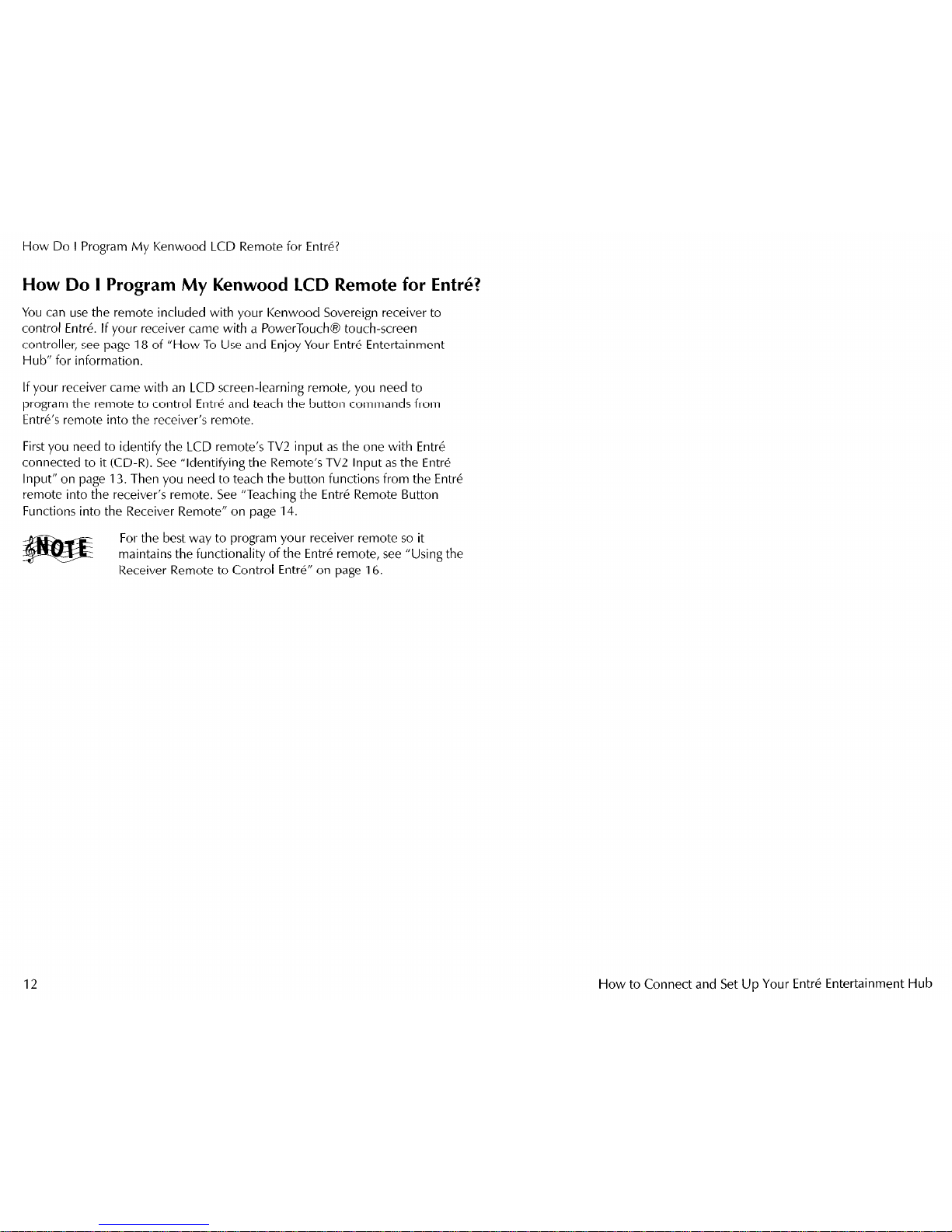

How Do I Program My Kenwood LCD Remote for Entre?
How Do I Program My Kenwood LCD Remote for Entrk?
You can use the remote included with your Kenwood Sovereign receiver to
control Entre. If your receiver came with a PowerTouch@ touch-screen
controller, see page 18 of “How To Use and Enjoy Your Entre Entertainment
Hub” for information.
If your receiver came with an LCD screen-learning remote, YOLIneed to
program the remote to control Entre and teach the button commands from
Entre’s remote into the receiver’s remote.
First you need to identify the LCD remote’s TV2 input as the one with Entre
connected to it (CD-R). See “Identifying the Remote’s TV2 Input as the Entre
Input” on page 13. Then you need to teach the button functions from the Entre
remote into the receiver’s remote. See “Teaching the Entre Remote Button
Functions into the Receiver Remote” on page 14.
For the best way to program your receiver remote so it
maintains the functionality of the Entre remote, see “Using the
Receiver Remote to Control Entre” on page 16.
12 How to Connect and Set Up Your Entre Entertainment Hub

How Do I Program My Kenwood LCD Remote for Entre?
Identifying the Remote’s TV2 Input as the Entr6 Input
1. Press TV. The display will show:
2. Press MENU. The display will
show:
3. Press SETUP. The display will
show:
4. Press ENTER. The display will
show:
5. Press B repeatedly until the
display shows:
6. Press ENTER. The display will
show:
7. Press B repeatedly until the
display shows:
8. Press ENTER. The display will
show:
How to Connect and Set Up Your Entre Entertainment Hub 13

How Do I Program My Kenwood LCD Remote for Entre?
9. Press ENTER The display will
show:
10. Press ENTER. The display will
show:
11. Press HOME. The display will
show:
Teaching the Entrk Remote Button Functions into the Receiver
Remote
1.
Place the Entre remote and the receiver remote on a table “head-to-head”,
about 4 inches apart:
2. Press the TV button on the
receiver remote. The display will
show:
(If the display does not show this,
repeat the steps in “Identifying the
Remote’s TV2 Input as the Entre
Input” on page 13.)
3. Press the
LEARN button on the
receiver remote. The display will
show:
4. Press the button on the receiver
remote you want to learn the
new function onto. The display
will show:
14 How to Connect and Set Up Your Entre Entertainment Hub
