Kenwood HD20GA7 User manual

DIGITAL AUDIO PLAYER
HD20GA7
[PLAYER]
INSTRUCTION MANUAL
Frequently Asked Questions (FAQ):
The latest information can be found in the FAQ. Please consult the
FAQ section on the KENWOOD website of your resident country.
(if necessary you can find a link to your local website on
www.kenwood.com
<http://www.kenwood.com>).

2
EN
PLAYER
Preparation section
Before applying power
Unpacking
Unpack the unit carefully and make sure that all the accessories are present.
AC adaptor
(AC-050150A)
Power cord
7New Clear Digital Amp with high audio quality.
7One-finger control button for easy operation.
Two-way speed control buttons.
7Blue illumination LEDs enabling easy operations even in dark.
7Music distribution DRM compatibility (Windows Media Technology).
7Compatible playback formats: MP3, WMA (DRM compatible), WAV.
72.2-inch QVGA color LCD panel for display of jacket pictures, etc.
7Windows XP/2000 compatible PC application.
7Headphones with high audio quality.
Special features
USB cable
Trademark Information
÷"Microsoft" and "Windows Media" are trademarks or registered trademarks of Microsoft Corporation in the
USA and other countries.
÷"IBM" and "PC/AT" are trademarks or registered trademarks of International Business Machines Corporation in the USA and
other countries.
÷"Pentium" and "Intel" are trademarks or registered trademarks of Intel Corporation in the USA and other
countries.
÷"Adobe Reader" is a trademark of Adobe Systems Incorporated.
Other system names and product names are also trademarks or registered trademarks of their respective developers.
Note that the "™" and "®" markings are omitted in the text of this manual.
Headphone
If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If the unit was
shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and
packing materials in case you need to move or ship the unit in the future.
Keep this manual handy for future reference.
Carrying case
No CD-ROM is provided with the Player. The application software, the instruction manual and other required data are stored in the built-
in HDD of the Player.

3
EN
PLAYER
Preparation section
Contents
Preparation section
Before applying power .................................. 2
Unpacking .................................................... 2
Special features .............................................. 2
Operating Precautions ................................... 4
AC adaptor ................................................... 7
Outline of the Player ...................................... 8

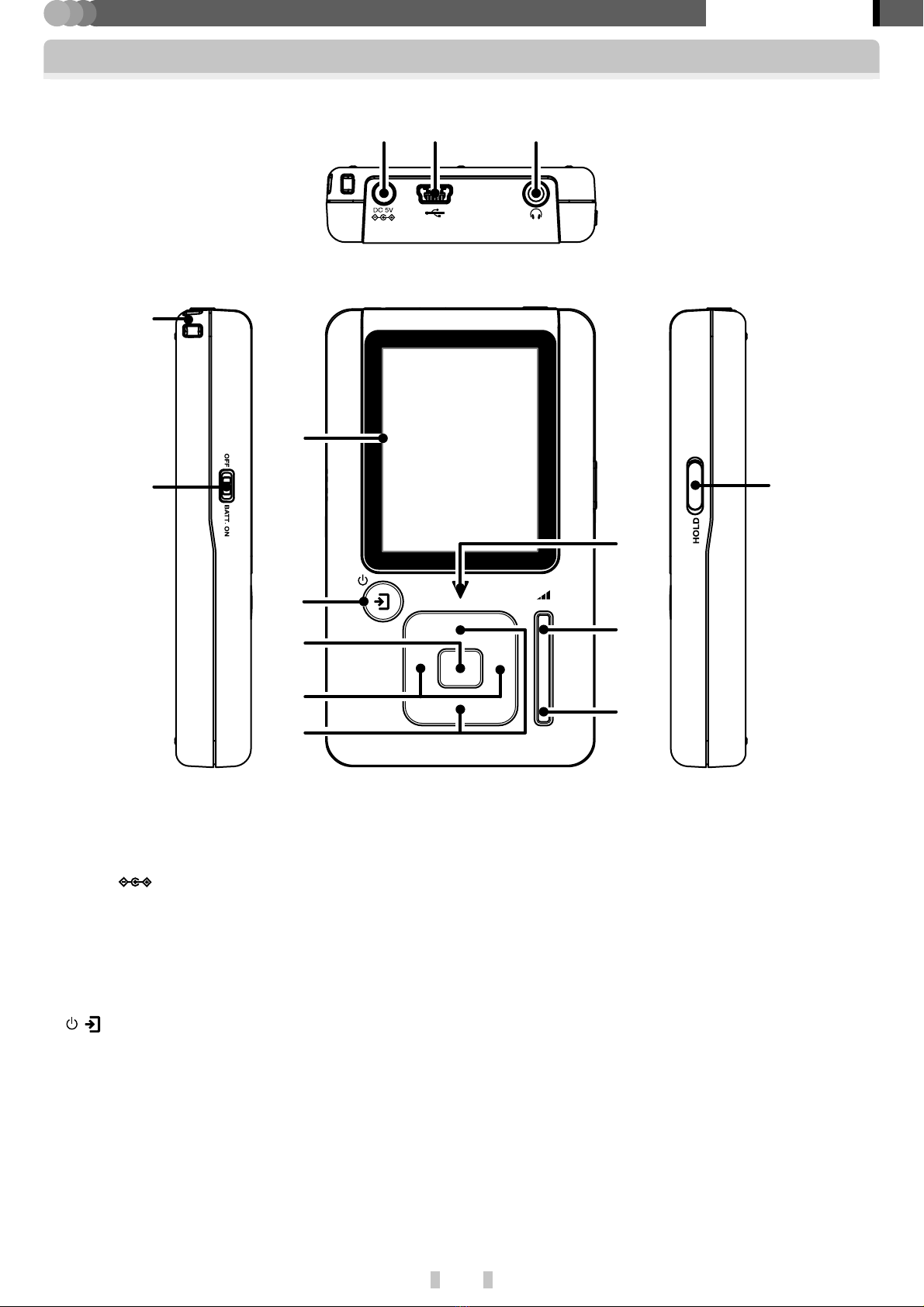

Names and functions of parts....................... 9

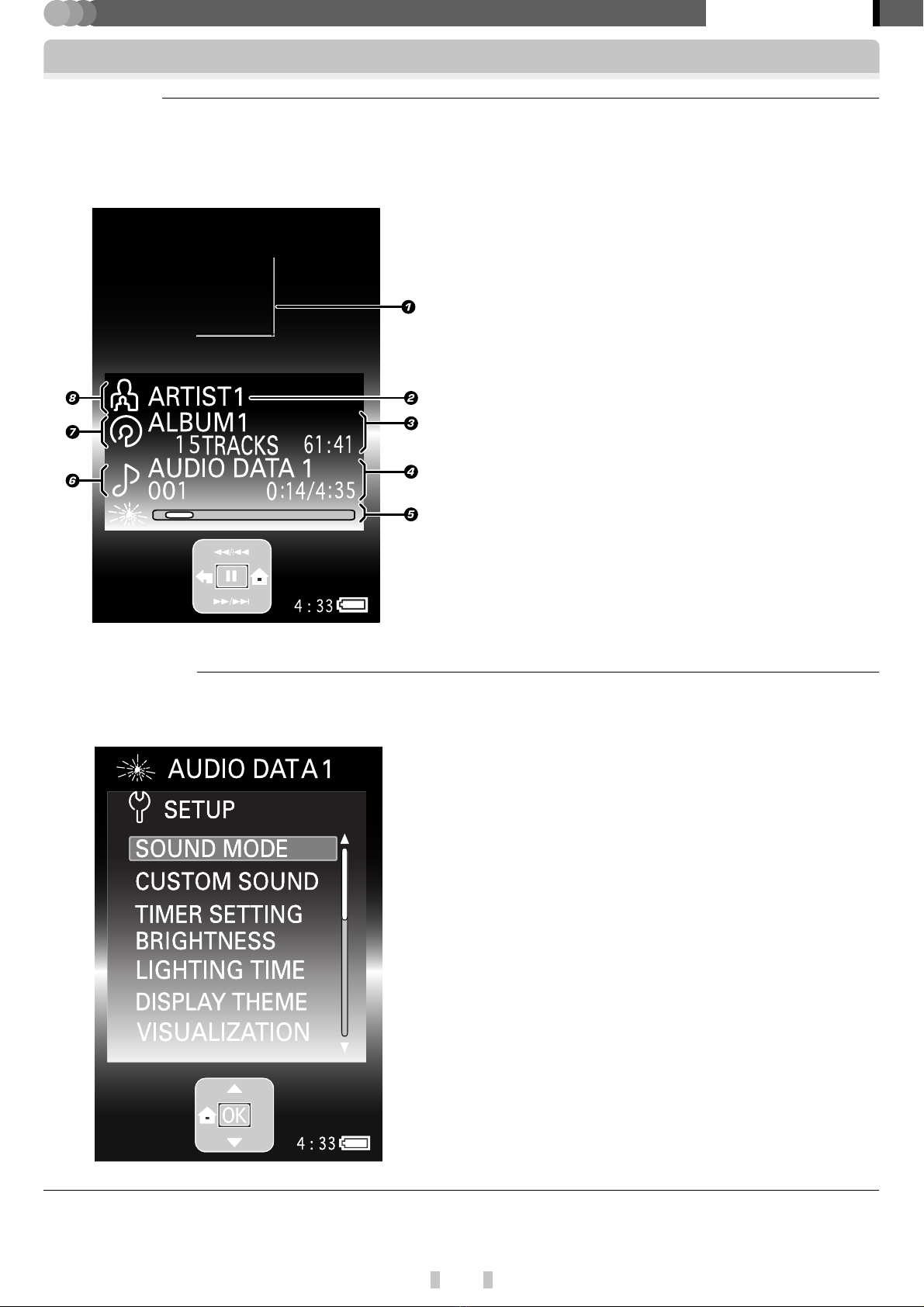

Displayed views ...........................................10
Recharging of the built-in battery ..............14
Recharging through the AC adaptor...........14
Recharging through the USB connection from
the PC ........................................................15
Basic section
Turning the player on/off ............................16
Playback of audio data ................................16

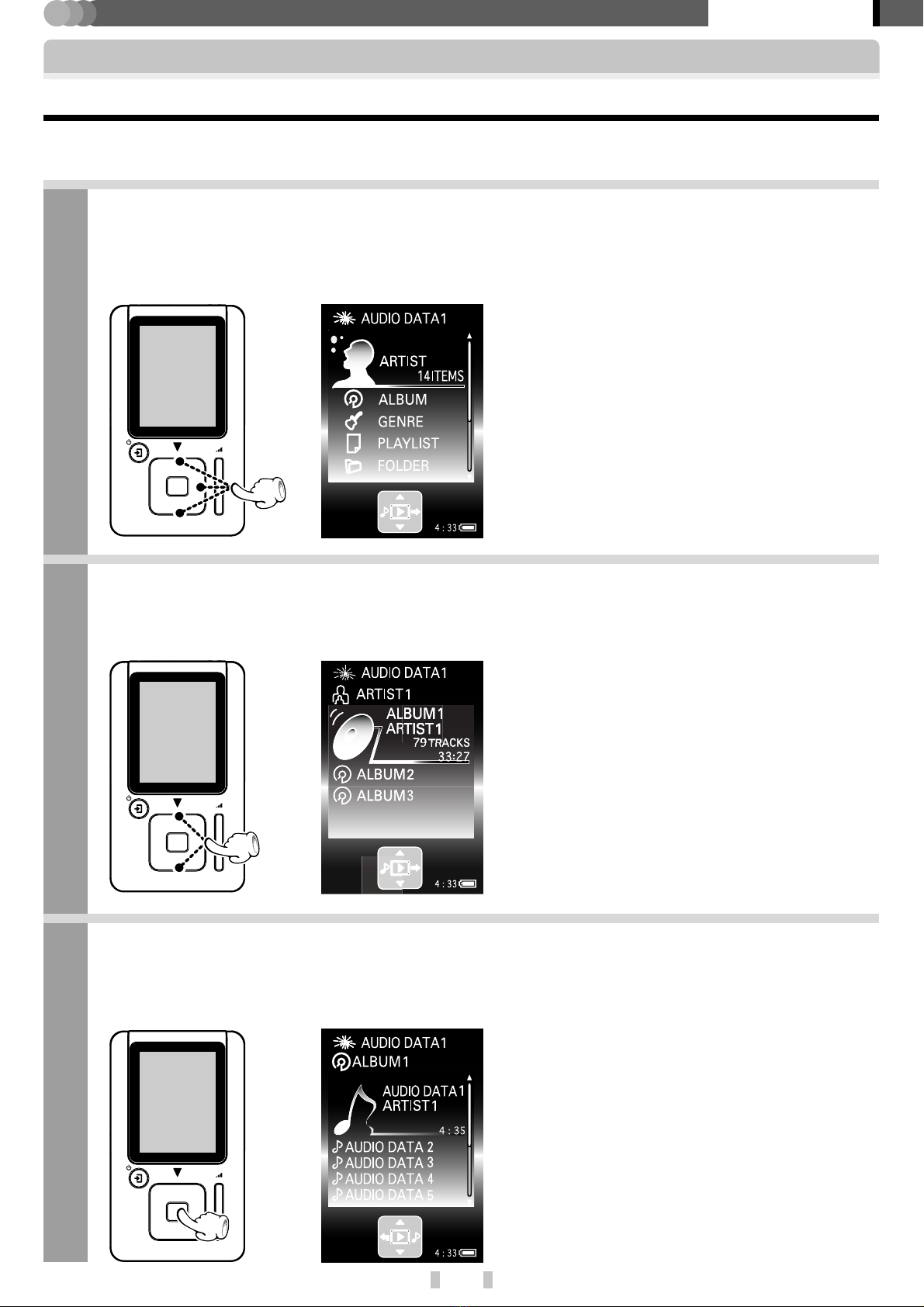

Selecting and playing audio data ................ 17
Stopping playback temporarily (Pause) ......19
Adjusting the volume .................................19
Fast forwarding/fast reversing audio..........20
Skipping to the previous or next audio data
...............................................................20
Skipping to the previous or next album .....21
Application section
Playback of playlist ......................................22
Setup of playback mode..............................23
Setup of sound mode ..................................25
Adjusting [CUSTOM SOUND] .................... 27
Registration of [FAVORITE] .........................29
Checking [FAVORITE] data .........................30
Playing all of the audio data registered as
[FAVORITE] data ......................................30
Display of audio data information .............. 31
Intro playback ............................................... 32
Connection of external component............34
Easy selection of audio data and order of audio
data playback ................................................35
Modification/check of setups .....................36
Setting the date and time .............................. 38
Using the player as external HDD unit....... 39
Firmware Update .........................................39
Knowledgesections
Glossary ........................................................40
Displayed Massages and actions to be taken
against them.................................................41
In case of difficulty .......................................42
Specifications ...............................................43

4
EN
PLAYER
Preparation section
Operating Precautions
7 Handling
¶Do not apply a strong impact to the player. Otherwise, the player may be damaged or the data recorded in it may be
destroyed.
¶Do not apply an excessive force to the LCD panel surface. Otherwise, it may be damaged.
¶Avoid storing the player in a bag together with a hard object. Otherwise, the player may be damaged when the bag is
pushed.
¶Do not expose the player to an insecticide or other volatile substance or bring the player in extended contact with a
rubber or vinyl material. Otherwise, discoloration or peeling of the surface finish may result.
¶Do not put the player in a pocket of trousers. Otherwise, it may be damaged due to a strong impact when you sit
down, etc.
7 Operating conditions
Temperature: 5 to 35°C. Humidity: 30% to 80%(RH), without condensation.
7 Caution on condensation
Condensation (of dew) may occur inside the unit when there is a great difference in temperature between this unit and
the outside. This unit may not function properly if condensation occurs. In this case, leave the unit for a few hours and
restart the operation after the condensation has dried up.
Be specially cautious against condensation in the following circumstances:
When this unit is carried from one place to another across a large difference in temperature, when the humidity in the
room where this unit is installed increases, etc.
7 Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry cloth. Do not use thinner, benzine, alcohol, etc. for
these agents may cause discoloration.
7 In regard to contact cleaner
Do not use contact cleaners because it could cause a malfunction. Be specially careful not to use contact cleaners
containing oil, for they may deform the plastic component.
7 Notes on recorded audio data
¶Even when the recorded audio data is destroyed or erased due to a trouble in the player or the PC, KENWOOD will not
assume any liabilities for the loss of data or other associated damages (such as the expenses required to purchase or obtain
the music audio data).
¶The audio data transferred and stored in the player are encrypted.
¶Even after transfer and storage in the player, it is recommended to store the audio data in the PC. The data encryption
is not decoded even after it is later returned to the PC.
¶Even when the audio data that has been transferred and recorded in the player (HD20GA7) is copied on another player
unit, the copied audio data cannot be played back.
7 Upgrading the application software and firmware versions
To improve the functionality of the player, you may wish to upgrade the versions of the application software and firmware
after shipment.
For how to upgrade their versions, please visit our website. (http://www.kenwood.com)

5
EN
PLAYER
Preparation section
Operating Precautions
7 Caution on built-in hard disk drive (HDD)
The player incorporates a HDD. The HDD is sensitive to environmental changes including impacts, vibrations and
temperature changes. To prevent the data recorded in it from being damaged, observe the following cautions when
using the player. If any caution is disregarded, troubles including a failure, malfunction or loss of data may result.
¶Do not leave the player in a place where the temperature may rise, for example under direct sunlight, in a closed
automobile under the sun or near a heater.
¶Do not leave the player in a place where the temperature may drop extremely.
¶Do not subject the player to a sudden change in temperature.
¶Do not use the player when it is thundering.
¶Do not leave the player in the proximity of a source of magnetism including a magnet or loudspeaker.
¶Do not leave the player in a place subject to strong vibrations.
¶Do not place or drop an object on the player.
¶Do not place the player in a place subject to water drops or under high humidity. If the player is moistened, it may
become unusable or malfunctioning.
¶Do not place a container of liquid near the player. If the player is moistened, it may become unusable or malfunctioning.
¶Do not shake, hit, swing or drop the player whether it is being used or not.
¶Do not push or twist the player with a strong force.
¶Do not switch off the player or unplug the USB cable during the write or read operation in/from the built-in HDD.
¶Note that KENWOOD will not assume any liabilities for damages related to the data stored in the built-in HDD.
7 Note on built-in hard disk (HDD)
Do not attempt to format the built-in HDD. Otherwise, the firmware (the software used for operation of the player)
will be lost and the player becomes unusable.
If you formatted the HDD by mistake, restore the firmware as described in the section mentioned below.
✍[Kenwood Media Application] INSTRUCTION MANUAL [How to restore the firmware]¤
7 Water leak identification sticker
To facilitate troubleshooting during servicing, the Player has a water leak identification sticker attached inside it. This
sticker shows if it has ever been moistened at a glance.

6
EN
PLAYER
Preparation section
Operating Precautions
7 Note on data erasure before disposal or transfer
The player incorporates a HDD. If the player is disposed of or transferred to a third party in the same condition as it has
been used, the data stored in the HDD may be known by the third party. It is recommended erase all HDD data before
disposal or transfer.
However, if you simply perform the data erasure or HDD formatting operation, the data may be restored by a malicious
third party. If you wish to ensure the confidentiality of the data you stored in the HDD, you need to erase the data using
commercially available data erasure software.
7 Note on the built-in battery
¶For the replacement of the built-in battery, contact your dealer.
¶The battery built into the player discharges spontaneously even when the player is not used. This means
that the built-in battery may be exhausted completely when the player is left unused for a long period. If this
happens, recharge the battery before using the player.
¶The battery recharging time is variable depending on the condition of the battery and ambient temperature.
¶The available playback time reduces when the player is used under low temperatures.
¶The built-in battery can be recharged for about 500 times. (This is a reference value and is not guaranteed.)
¶The built-in battery is a consumable part, and the available playback time reduces gradually after repeated
use. If the available playback time becomes very short even after the battery has been recharged fully, the
battery may be degraded; replace it with new one.
¶KENWOOD will not assume any liabilities for the alteration or loss of data caused due to complete discharg-
ing of the built-in battery.
¶The built-in battery is a lithium ion battery.
It is free from the memory effect of Ni-Cad and nickel-hydrogen batteries, with which the capacity decreases if the
battery is charged or discharged incompletely for several times.
The built-in battery therefore accepts additional charging before it has exhausted completely.

7
EN
PLAYER
Preparation section
Operating Precautions
AC adaptor
Use the enclosed AC adaptor (AC-050150A) for this product.
Read "Safety precautions" in the Quick Start Manual before use. Also read the following information thoroughly and
observe the instructions.
¶Do not bring a metallic object into contact with an electrical contact of the AC adaptor.
¶When connecting the AC adaptor to the player, insert the plug of the connection cord firmly into the AC adaptor jack of
the player. To avoid equipment failure, do not insert the plug to any other jack.
¶When unplugging the connection cord, do not pull the cord but always grasp the plug.
¶Do not drop or otherwise apply a strong impact to the AC adaptor.
¶Do not use the AC adaptor under high temperature and high humidity.
¶Do not use an AC adaptor other than the one provided together with the player.
¶The surface temperature of the AC adaptor may rise during use, but this is not malfunction. Before transporting the AC
adaptor, unplug the power cord and wait until the temperature drops.
¶Do not place the AC adaptor on an object that may be affected by heat. Otherwise, a trace of the AC adaptor may be left
on it.
¶The AC adaptor may generate an oscillating tone from inside, but this is not malfunction.
¶Do not use the AC adaptor in the proximity of a radio, TV or cellular phone. Otherwise, interference in reception may
occur.
7 Specifications
Power supply ............................................................ AC 100-240V
Rated input capacity ...................................................... 0.2A 13W
Rated output................................................................. DC5V 1.5A
POINT:
The provided power cord is designed for use in Europe.
When using the player in a country outside Europe, please prepare a power cord matching the power cord standard of
the country.

8
EN
PLAYER
Preparation section
Outline of the Player
The audio data in the MP3, WMA and WAV formats stored in the PC can be transferred to the player using application
software Kenwood Media Application. The audio data stored in the PC can be ripped off from music CDs using the
Windows Media Player 9 or Windows Media Player 10. For details, refer to the [Kenwood Media Application] INSTRUC-
TION MANUAL.
The player can also be used as an external HDD unit.
✍[Using the player as external HDD unit]·
7 Data transfer using Windows Media Player 9 or Windows Media Player 10
POINT :
¶The audio data transferred into the player using Kenwood Media Application, the Windows Media Player 9 or
Windows Media Player 10 is encrypted and playable only on the player.
¶The audio data transferred into the player using a means other than Kenwood Media Application, Windows Media
Player 9 and Windows Media Player 10 cannot be played back on the player.
¶The audio data can be deleted by connecting a PC to the Player and running a PC application such as the Explorer.
✍[Kenwood Media Application] INSTRUCTION MANUAL [Deletion of audio data from the player]*
7 Data transfer using application software Kenwood Media Application
Audio Data
(MP3, WMA, WAV)
PC
USB connection
Application Software
Kenwood
Media Application
Windows Media DRM-
compatible audio data
PC
USB connection
Windows Media Player 9
or
Windows Media Player 10

9
EN
PLAYER
Preparation section
Names and functions of parts
1DC 5V (External power) jack $
2USB jack %
3Phones jack ^
4Strap eyelet
5BATT. ON/OFF (Built-in battery on/off) switch $
6Display
7/(Power/Menu) button
When the player is off, press the button shortly to
switch it on. ^
When the player is on, press and hold the button for
more than 2 seconds to switch it off. ^
When the player is off, press the button to open the
[MENU] view. ¡
Pressing the button when the display backlight is
dimmed or extinguished turns the backlight on.
8Multi-control (Center) button &£
9Multi-control (Right/Left) button &£
0Multi-control (Up/Down) button &£
Press the multi-control (Up/Down) button deeply makes
it possible to scroll the display or increase the fast for-
ward/fast reverse speed.
!Triangle LED
The LED blinks at about 5-second intervals while the
display is extinguished. It blinks twice when the HOLD
switch is set to HOLD.
@Volume (+) button (
#Volume ( - ) button (
$HOLD switch
Slide the switch in the direction of HOLD so that
the player will not change the current operating
condition even when a button is pressed by mis-
take, for example when the player is carried in
power off status or used in a train.
6
5
4
7
9#
@
!
$
12 3
8
0
(Front view)
(Top view)
(Right side view)(Left side view)

10
EN
PLAYER
Preparation section
7 Home view
The Home view displays the items (Artist, Album, Genre, Folder, etc.), from which you can search/play audio data or
modify/check the setups.
Displayed views
1Playback mode/ Played audio data name
2[ARTIST]
Search using Artist name. *
[ALBUM]
Search using Album name. *
[GENRE]
Search using Genre name. *
[PLAYLIST]
Search using Playlist name. The playlists can be cre-
ated using Kenwood Media Application.
✍[Kenwood Media Application]
INSTRUCTION MANUAL
[Creation of playlist](
[FOLDER]
Search using Folder name.
[FAVORITE] ª
[SETTING] fl
3[TIMER SETTING] fl
4Hold mode 9
5[NAVI. ICON] @/ Time display °/
Remaining battery
6[SOUND MODE] ∞
7[PLAY MODE] £
8[INTRO] ¤

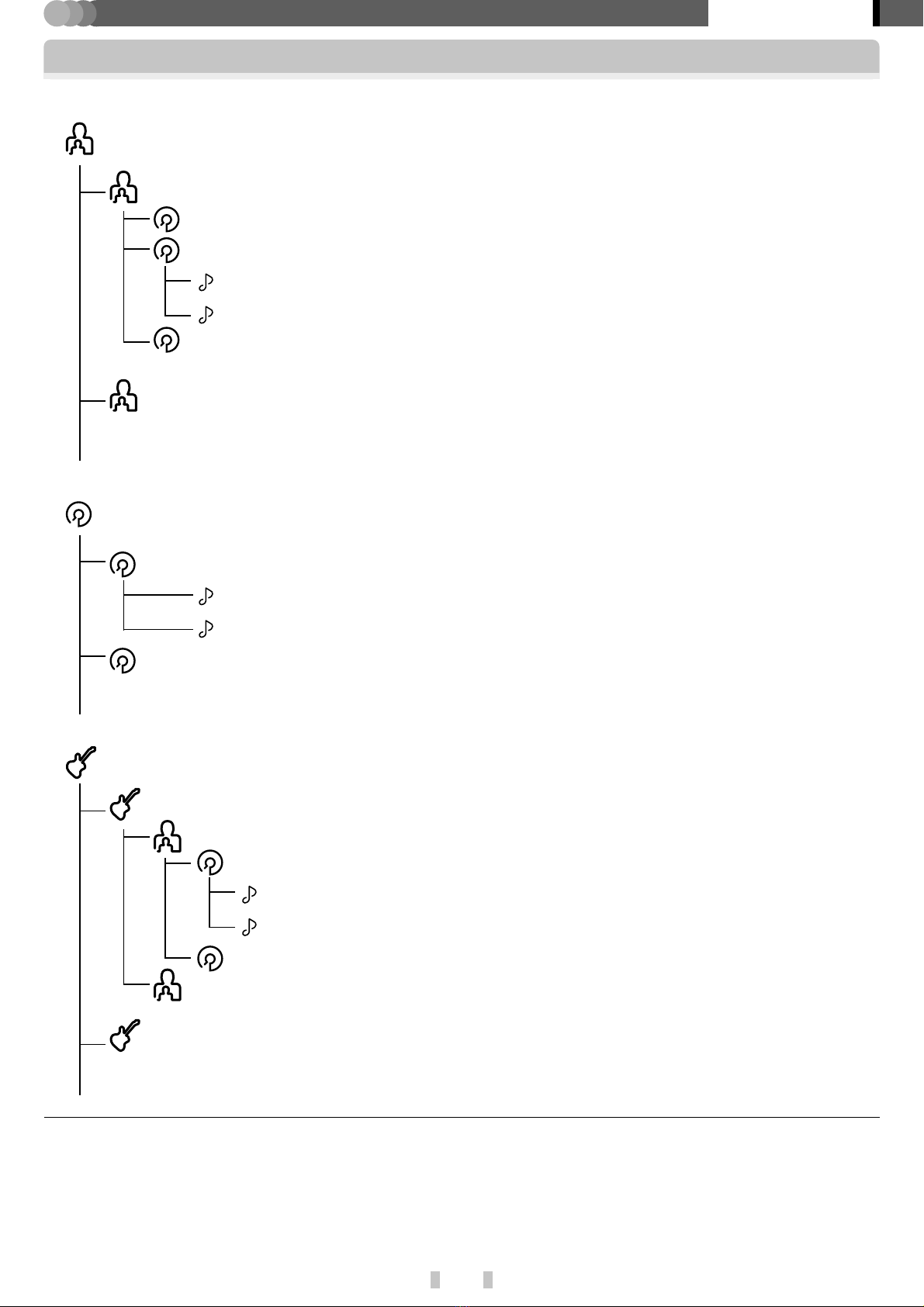

7 Library view
To open the Library view, select an item other than [SETUP], for example [ARTIST], [ALBUM] or [GENRE] in the Home
view, and press the multi-control (Right) button.
1Playback mode/ Played audio data name
2Currently displayed item name
3Selected item, [FAVORITE] data or audio data
4Audio data icon
