KERN UOB 600K200 User manual

KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
email: [e-mail]
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Operating Manual
Pallet scales
KERN UOB
Version 1.3
05/2009
GB
UOB-BA-e-0913

UOB-BA-e-0913
2
GB KERN UOB
Version 1.3 05/2009
Operating Manual
Pallet scales
Table of Contents
1Technical Data__________________________________________________ 4
2Declaration of conformity ________________________________________ 5
3Appliance overview _____________________________________________ 6
4Basic Information (General)_______________________________________ 6
4.1 Proper use_______________________________________________________ 6
4.2 Improper Use ____________________________________________________ 6
4.3 Warranty ________________________________________________________ 7
4.4 Monitoring of Test Resources _______________________________________ 7
5Basic Safety Precautions_________________________________________ 8
5.1 Pay attention to the instructions in the Operation Manual________________ 8
5.2 Personnel training ________________________________________________ 8
6Transportation & Storage_________________________________________ 8
6.1 Testing upon acceptance __________________________________________ 8
6.2 Packaging _______________________________________________________ 8
7Unpacking, Setup and Commissioning _____________________________ 9
7.1 Installation Site, Location of Use ____________________________________ 9
7.2 Unpacking ______________________________________________________ 10
7.2.1 Scope of delivery _____________________________________________________ 10
7.3 Placing_________________________________________________________ 10
7.3.1 Assembly instructions for the use of the wall fixture ___________________________ 11
7.4 Mains connection ________________________________________________ 11
7.5 Battery operation ________________________________________________ 11
7.6 Initial Commissioning ____________________________________________ 12
7.7 Adjustment _____________________________________________________ 12
7.8 Adjustment _____________________________________________________ 12
8Operation_____________________________________________________ 15
8.1 Overview of display ______________________________________________ 15
8.2 Keyboard overview_______________________________________________ 16
8.3 Operation limits _________________________________________________ 16

UOB-BA-e-0913 3
8.4 Load or unload the pallet scales____________________________________ 17
8.5 Weighing _______________________________________________________ 17

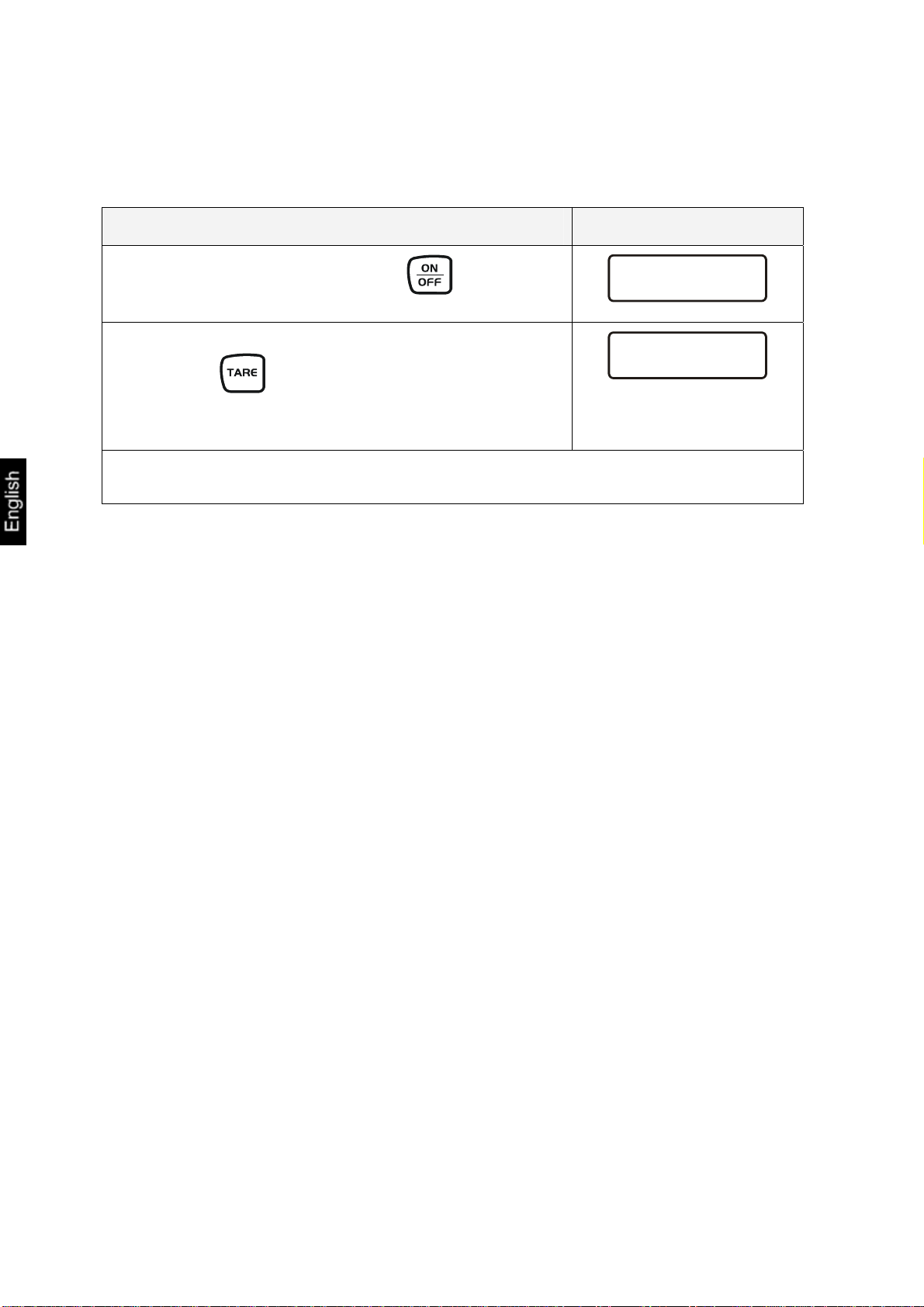

8.6 Taring (TARE button) _____________________________________________ 18

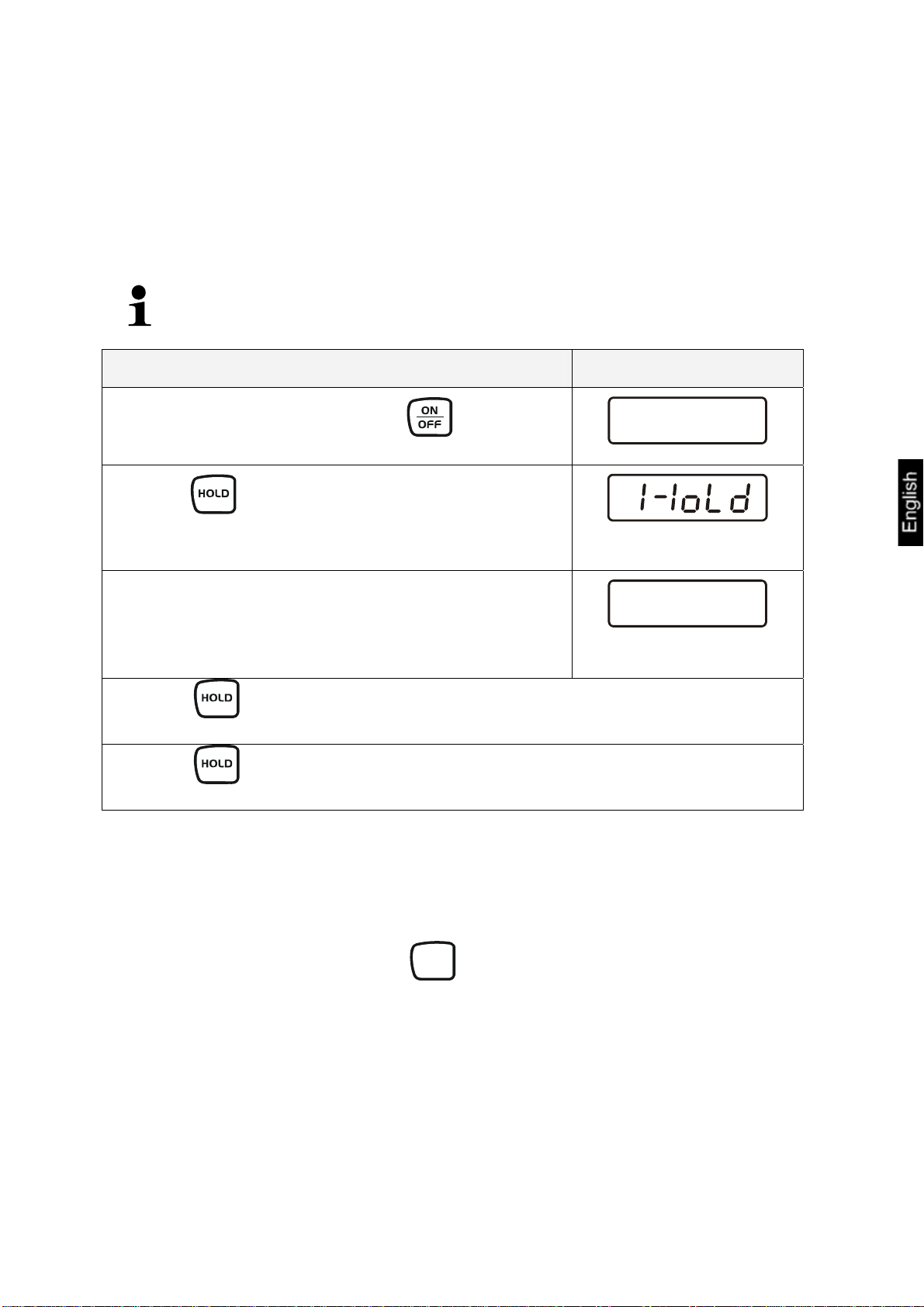

8.7 Hold function (animal weighing function) ____________________________ 19
8.8 Weight units ____________________________________________________ 19
9Service, maintenance, disposal___________________________________ 20
9.1 Cleaning _______________________________________________________ 20
9.2 Service, maintenance_____________________________________________ 20
9.3 Disposal________________________________________________________ 20
10 Instant help _________________________________________________ 21

UOB-BA-e-0913
4
1 Technical Data
KERN UOB
600K200
UOB
1.5T0.5
Readability (d) 200 g 0.5 kg
Weighing range (max) 600 kg 1500 kg
Reproducibility 300 g 0.5 kg
Linearity 400 g 1 kg
Recommended
adjustment weight, not
added (class)
500 kg
(M2)
1000 kg
(M2)
Stabilization time (typical) 3 sec.
Operating temperature +5 C .... + 35° C
Humidity of air max. 95 % (not condensing)
Terminal (B x D x H) mm 210 x 110 x 45
Weighing plate (mm) 1255 x 820 x 90.5
Weight kg (net) 36.7

UOB-BA-e-0913 5
2 Declaration of conformity
KERN & Sohn GmbH
D-72322 Balingen-Frommern
Postbox 4052
email: [email protected]
Phone: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de
Declaration of conformity
EC-Konformitätserklärung EC-Declaration of -Conformity
EC- Déclaration de conformité EC-Declaración de Conformidad
EC-Dichiarazione di conformità EC-Conformiteitverklaring
EC- Declaração de conformidade EC- Prohlášení o shode
EC-Deklaracja zgodności EC-Заявление осоответствии
D Konformitäts-
erklärung
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht,
mit den nachstehenden Normen übereinstimmt.
GB Declaration of
conformity
We hereby declare that the product to which this declaration refers conforms
to the following standards.
CZ Prohlášení o
shode
Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu
s níže uvedenými normami.
E Declaración de
conformidad
Manifestamos en la presente que el producto al que se refiere esta
declaración está de acuerdo con las normas siguientes
F Déclaration de
conformité
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la
présente déclaration, est conforme aux normes citées ci-après.
I Dichiarazione di
conformitá
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si
riferisce è conforme alle norme di seguito citate.
NL Conformiteit-
verklaring
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking
heeft, met de hierna vermelde normen overeenstemt.
P Declaração de
conformidade
Declaramos por meio da presente que o produto no qual se refere esta
declaração, corresponde às normas seguintes.
PL Deklaracja
zgodności
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie
dotyczy, jest zgodny z poniższymi normami.
RUS Заявление о
соответствии
Мы заявляем, что продукт, ккоторому относится данная декларация,
соответствует перечисленным ниже нормам.
Electronic Scale: KERN EOB, EOE, EOS, BOBP, UOB, EOL
Mark applied EU Directive Standards
2004/108/EC EN 61000-6-1 : 2007
EN 61000-3-2 : 2006
EN 61000-3-3 : 1995+A1 :
2001+A2:2005
EN 61000-6-3 :2007
Date: 27.10.2008 Signature:
Gottl. KERN & Sohn GmbH
Management
Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149

UOB-BA-e-0913
6
3 Appliance overview
Rollers
Oscillating feet and load cells
4 Basic Information (General)
4.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the
material to be weighed is manually put on the weighing plate. The center of gravity of
the load should be in the middle of the plate. As soon as a stable weighing value is
reached the weighing value can be read.
4.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the balance. (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the balance. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be
damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.

UOB-BA-e-0913 7
4.3 Warranty
Warranty claims shall be voided in case
•Our conditions in the operation manual are ignored
•The appliance is used outside the described uses
•The appliance is modified or opened
•Mechanical damage and damage caused by media, liquids
•Natural wear and tear
•The appliance is improperly set up or incorrectly electrically connected
•The measuring system is overloaded
4.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com) with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.

UOB-BA-e-0913
8
5 Basic Safety Precautions
5.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you
are already familiar with KERN balances.
5.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
6 Transportation & Storage
6.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
6.2 Packaging
Keep all parts of the original packaging in case you need to return the appliance.
Only use original packaging for returning.
Before sending, disconnect all connected cables and loose/movable parts.

UOB-BA-e-0913 9
7 Unpacking, Setup and Commissioning
7.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
•Place the balance on a firm, level surface;
•Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
•Protect the balance against direct draughts due to open windows and doors;
•Avoid jarring during weighing;
•Protect the balance against high humidity, vapors and dust;
•Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
•Avoid static charging of the material to be weighed, weighing container and
windshield.
If electro-magnetic fields or static charge occur, or if the power supply is unstable
major deviations on the display (incorrect weighing results) are possible. In that case,
the location must be changed.
•The floor at the installation site must be able to carry safely the weight of the
maximally loaded scales at the resting points.
•The installation site must be completely even in order to ensure a horizontal
position.

UOB-BA-e-0913
10
7.2 Unpacking
ÖTake out of the cardboard box the balance and the weighing terminal.
ÖMake sure that the balance and the weighing terminal are not damaged during
transport.
7.2.1 Scope of delivery
Serial accessories:
KERN UOB
•Platform (varnished metal) and display equipment
•4 x adjustable feet
•Mains power supply
•Wall fixture (with fixing screws)
•Operating Manual
7.3 Placing
ÖPlace pallet scales on the installation site. To transport the pallet scales: Lift-off by
the handle and move it on the conveyor rollers.
ÖAvoid any pressure on the load cells.
ÖPut the cable to the weighing terminal in a manner that it is protected against
damage.

UOB-BA-e-0913 11

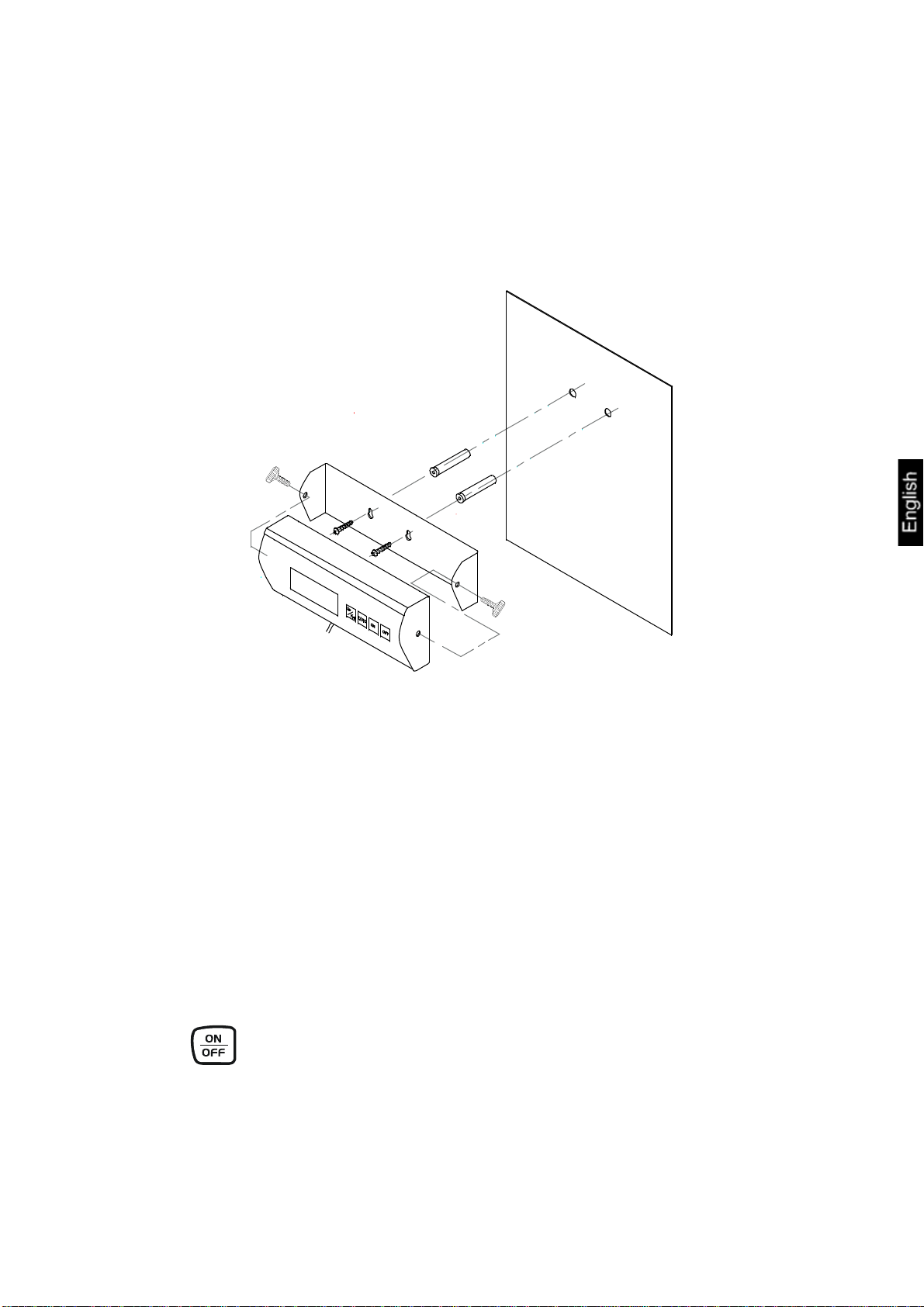

7.3.1 Assembly instructions for the use of the wall fixture
7.4 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.
7.5 Battery operation
ÖRemove battery cover from under the display unit. Connect 6 x 1.5V mignon cells.
Reinsert the battery cover.
In order to save the battery, the balance switches automatically off after 3 minutes
without weighing.
If the batteries are run down, "LO" appears in the display.
ÖPress key and replace the batteries immediately.
If the balance is not used for a longer time, take out the batteries and store them
separately. Leaking battery liquid could damage the balance.

UOB-BA-e-0913
12
7.6 Initial Commissioning
A warming up time of 5 minutes after switching on stabilizes the measuring values.
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
7.7 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out during the initial start-up, after change in
location and variation of surrounding temperature. To receive accurate measuring
values it is also recommended to adjust the balance periodically in weighing
operation.
7.8 Adjustment
With an adjustment weight, the weighing accuracy can be checked and re-adjusted
at any time.

UOB-BA-e-0913 13

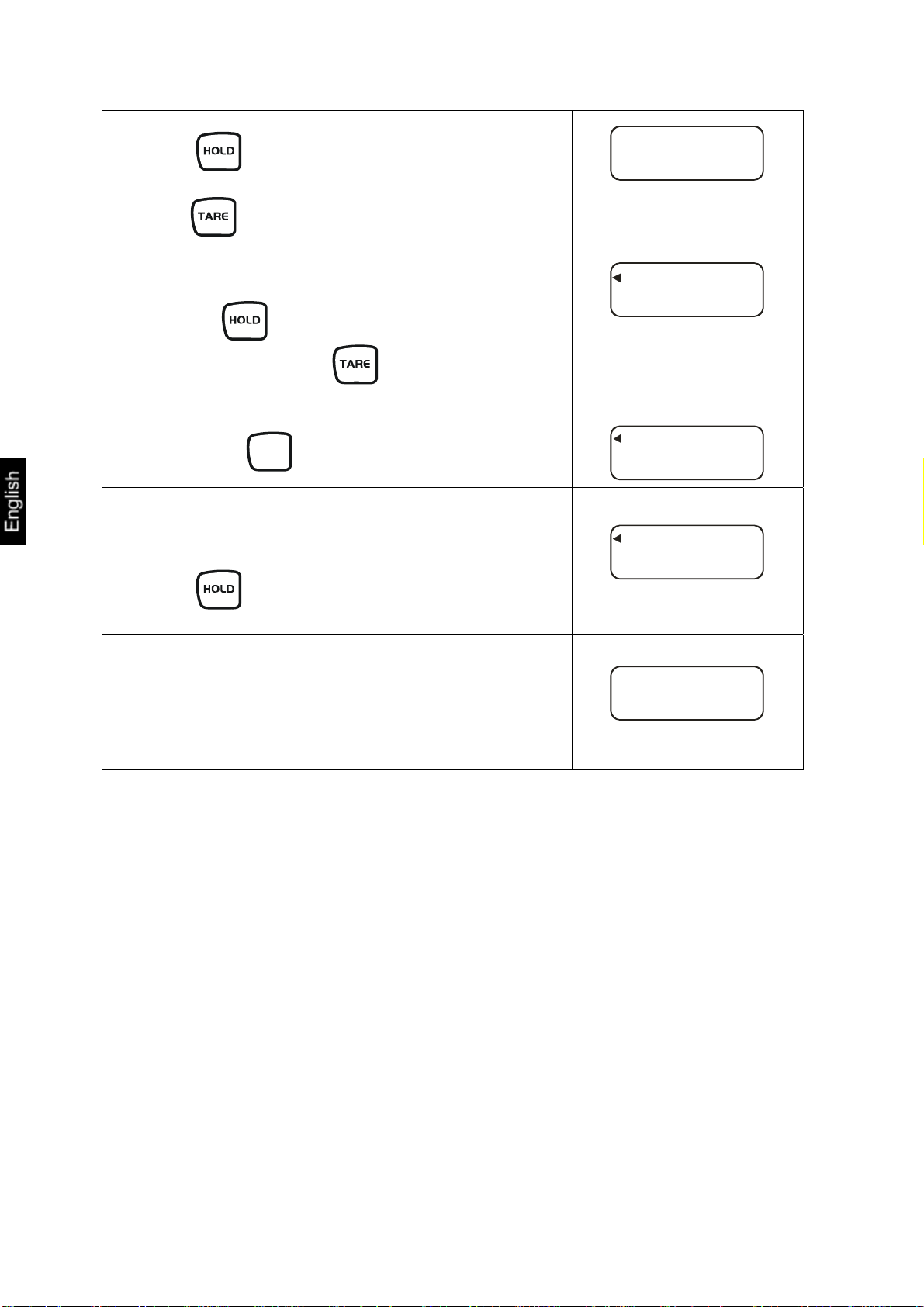

Procedure when adjusting:
Observe stable environmental conditions. A short warming up time of ca. 5 minutes is
recommended for stabilization.
Operation Display
ÖUse the button to switch the balance on.
a
z0
ÖKeep
UNIT
button depressed for approx. 3 sec
until "SETUP" is displayed followed by "UNIT"
SETUP
Ø
UNKT
ÖPress the button as often as required until
"CAL ib" is displayed
CAL
K
B
ÖPress button
CAL U
ÖPress button .
The appeared triangle Wmust be located in the upper
left part of the display. If this is this not the case, press
the button.
ÖPress the button repeatedly until "CAL 0" is
displayed.
CAL U
Ø
CAL O
ÖPress button, in the display appears a
numeric value
ÖAfter that press the
UNIT
button.
30770
(Example)
Ø
CAL O

UOB-BA-e-0913
14
ÖPress button
CAL 5
ÖPress button .
Enter the required size of the adjustment weight (See
Section 1, "Technical Data"):
ÖPress the button to select the item to be
changed and press the button to select the
numerical value.
u000
(Example)
ÖConfirm with
UNIT
button
0
ÖPlace the adjustment weight carefully in the centre
of the weighing plate and a numerical value will
appear in the display.
ÖPress button . The adjustment process is
started.
82077
(Example)
The balance will automatically return to Weighing
mode upon successful completion of the adjustment
and will display the weight of the adjustment weight.
Take away adjustment weight.
u000
(Example)

UOB-BA-e-0913 15
8 Operation
8.1 Overview of display
lb
Max 1500 kg d = 0.5 kg
UNIT
c
a
1
23
0.000
S
No. Display Description
1 [→0←]Balance zero display:
Should the balance not display exactly zero despite an
empty scale pan, press the [→0←]button. Your balance
will be set to zero after a short standby time.
2 [ο]Stability display:
If the display shows the stability display [ο]the balance
is in a stable status. The [ο]indication disappears if the
condition is unstable.
3 [Hold]
SHold/ animal weighing function active

UOB-BA-e-0913
16
8.2 Keyboard overview
Key Description
Turn on/off balance
UNIT
Set balance to zero
Hold/ animal weighing function
Tare balance
8.3 Operation limits
The pallet scales is designed for an even distributed load.
•Avoid falling load, shock loads and impacts from the side.
•The forks of the fork lift truck may not touch the pallet or the balance during
weighing process.
•Do not move the balance at any moment, when it is loaded.

UOB-BA-e-0913 17
8.4 Load or unload the pallet scales
•Place the load on the scales using a pallet lifting truck, a crane or a forklift truck.
Ensure that the load is not swinging when it is placed onto the scales.
•Lift the load first vertically at least 10 cm above the scales before it is removed or
newly placed.
8.5 Weighing
Operation Display
ÖUse the button to switch the balance on.
The balance shows for approx. 3 seconds „88888“ and
then „P1.1“ in the display and then goes to „0“.
Now it is ready for operation.
88888
Ø
Ø
0.0
Should the display flash or not be on „0“, press the TARE button.
ÖOnly now (!) place goods onto weighing plate.
The result is displayed.
30.0
(Example)
If the material to be weighed is heavier than the weighing range, the display will
show "Err" (=Overload).

UOB-BA-e-0913
18
8.6 Taring (TARE button)
Operation Display
ÖSwitch-on the balance using the key and wait
for the „0“ display.
0.0
ÖPlace the tare vessel on the weighing plate and
press the button.
The balance display goes to „0“.
The weight of the container is now internally saved.
0.0
If one after finishing the weighing process presses again the TARE button, „0“
appears anew in the display.
The taring process can be repeated any number of times, e.g. when adding several
components for a mixture (adding).
The limit is reached when the whole weighing range is exhausted.
After removing the taring container the total weight is displayed as negative display.

UOB-BA-e-0913 19
8.7 Hold function (animal weighing function)
The balance has an integrated animal weighing function (mean value calculation).
Using this function it is possible to weigh domestic or small animals exactly (min. load
1% of the max. one), although they do not stand quiet on the weighing plate.
There is no average value calculation in the event of too much movement
(heavy display oscillation).
Operation Display
ÖSwitch-on the balance using the key and wait
for the „0“ display.
0.0
ÖPress button .
„Hold“ will appear in the display and the
S
under
„HOLD flashes.
ÖPut goods to be weighed (animal) on the weighing
plate.
As long as the triangle flashes, the balance takes up
several measured values and displays then the
calculated mean value.
30.0
(Example)
Press the button repeatedly to reset the balance to normal Weighing mode.
Press the button once more to repeat this function as often as required.
8.8 Weight units
There are two units available „kg“ and „lb“.
The weighing unit is selected by the
UNIT
button.
The respective unit is symbolized by the triangle
S
right next to the display!
Unit conversion: 1 kg = 2.20462 lb

UOB-BA-e-0913
20
9 Service, maintenance, disposal
9.1 Cleaning
Before cleaning, please disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth
dampened with mild soap suds. Ensure that no liquid penetrates into the device and
wipe with a dry soft cloth.
Loose residue sample/powder can be removed carefully with a brush or manual
vacuum cleaner.
Spilled weighing goods must be removed immediately.
9.2 Service, maintenance
The appliance may only be opened by trained service technicians who are authorized
by KERN.
Before opening, disconnect from power supply.
9.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
