Key Digital KD-X444LP User manual

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
1
4K 18G HDMI over 230ft / 70m CAT5e/6 Extender Set (Tx +
Rx) with HDR, Power over CAT, HDMI Pass-through, IR or
RS-232

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
2
Table of Contents
About KD-X444LP 3
Application Diagram 4
Quick Connection Guide 5
Connections, LEDs, Rotaries & Switches 6
Rack Mounting 11
Specifications 11
Product Warnings & Safety Instructions 12
Operation Manual
Please visit www.keydigital.com for the latest product documentation,
firmware, control drivers and software downloads. Product features and
specifications are subject to change without notice
Always follow the instructions provided in this Operation Manual.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
3
About KD-X444LP
Key Digital® KD-X444LP is a 4K/UHD 18Gbps, HDCP2.2 compliant HDMI over CAT5e/6 Transmitter plus
Receiver set for extension of digital video signals with the latest standards in resolution, HDR, and Chroma
over a single CAT cable.
KD-X444LP extends video resolutions up to 4096x2160 at 60hz with 4:4:4 chroma sub-sampling over a
single CAT5e/6 cable up to 230ft (70m) or up to 328ft (100) when using CAT6A STP cabling. The Transmit
unit features an HDMI pass-thru port for integration with local monitors or AV Receivers.
In addition to HDMI AV, KD-X444LP carries IR or RS-232 for controlling remotely located equipment. An IR
sensor and IR emitter are included, and the Tx unit’s IR Input port supports Serial IR input directly from a
control system / IR block. With Power over CAT (PoC), only one power supply is needed, and it may be
connected at either unit for ease of installation.
KD-X444LP features Key Digital’s proprietary Full Buffer Technology software suite, with EDID handshake
management, fixed hot plug detection, HDCP authentication to the connected source, and TMDS signal re-
clocking for installation with long cabling or many connectivity layers.
Key Features
•Single CAT5e/6 UTP/STP Extension: Fully automatic equalization, and amplification depending on
cabling length.
•4K Resolution Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps
bandwidth).
•Flexible Power over CAT (PoC): Only one power connection needed. Tx may power Rx, or Rx may
power Tx.
•Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding
10.2Gbps to accommodate transmission channel.
•Low Profile: Super slim chassis design.
•Signal Extension: For resolution and cable quality
o4K/UHD (18G) with CAT5e/6: Up to 230ft / 70m; CAT6A STP: Up to 328ft / 100m
o1080p with CAT5e/6: Up to 230 ft / 70m; CAT6A STP: Up to 328ft / 100m
•10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension.
•HDR10 (High Dynamic Range): More life-like images through a greater range of luminance.
•HDCP 2.2: Compliancy up to HDCP 2.x and backward compliant
•Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
•IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without
external IR connecting block.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
4
•Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and
Rx units.
•RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector..
•Full Buffer Technology: Key Digital’s proprietary suite of EDID, HDCP, TMDS, and HPD management
to overcome Pro AV installation obstacles.
•EDID Management: Internal library with 14 internal EDID handshakes including 4K with HDR in addition
to native EDID data copied from CAT5e/6 or HDMI pass-thru outputs.
•HDCP Authentication: HDCP sources are authenticated by HDCP key on transmit unit, for one-to-one
topology.
•Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to
connected display/output device.
•TMDS Re-Clocking: Re-generation of TMDS (AV signal) channel data at Transmit unit for brand new
AV signal.
•Surround Audio Support: On HDMI pass-thru and UHDoTP outputs:
oHDMI Pass-Thru: Supports Dolby®, Dolby® TrueHD, DTS™ and DTS-HD™ (formats up to 7.1)
oCAT5e/6 Output: Supports Dolby®, DTS™ (formats up to 5.1/6.1)
Accessories
•1x 12V/2A, 24W DC Power Supply (Screw-
In Type). SKU: KD-PS12V2ASC
•4x Mounting Brackets
•1x IR Emitter
•1x IR Sensor

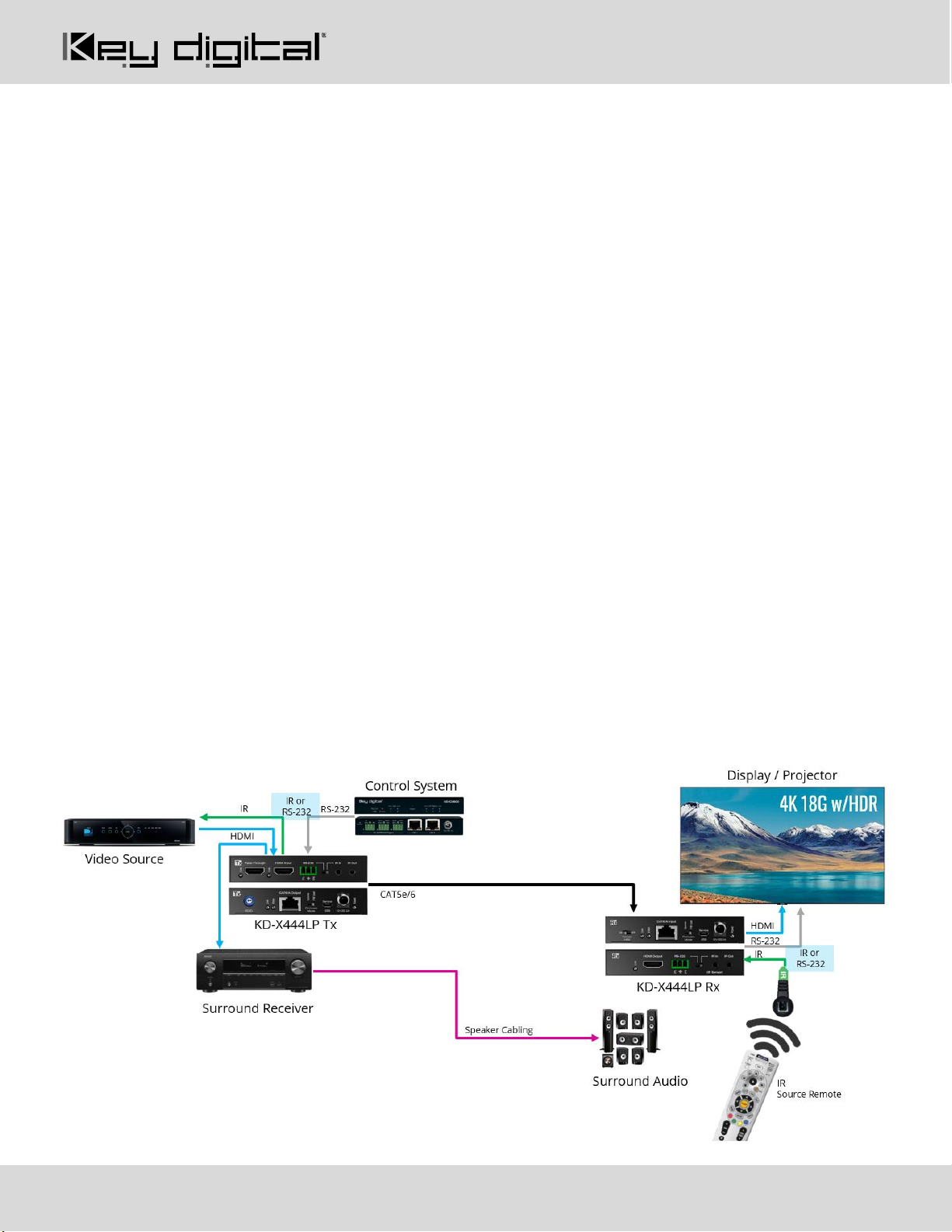

Application Diagram

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
5
Quick Connection Guide
BeginwiththeTxandRxunits andallinput / outputdevicesturned offwithpower cables removed
1. Connect your HDMI source to the input port of the Tx unit.
2. Connect your HDMI display to the output port of the Rx unit.
3. Connect your local monitor / AV Receiver to the HDMI pass-through port of the Tx unit.
4. Connect a CAT5e/6 cable between Tx and Rx unit. Use 568-B termination.
5. Connect IR emitter from the IR Out port of the Tx or Rx unit and mount over the IR receptor of the
device you wish to control.
6. IR Input is specific on the Tx and Rx unit.
a. The Tx unit supports hard-wired / serial IR connections only with the following pinout:
b. The Rx units supports connection with the included IR Sensor only. Mount the sensor in a
location to easily collect line of sight IR signals from remotes.
7. Connect RS-232 from your control system or computer.
a. TxD from the Controller connects into RxD of the extender
b. RxD from the Controller connects into TxD of the extender
c. Ground from the Controller connects into Ground of the extender
8. BEFORE connecting power supply to power outlet, screw-in the power supply to the Tx or Rx unit.
AFTER all connections are made, plug-in power supply to power outlet
9. Power on source and display

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
6
Connections, LEDs, Rotaries & Switches
HDMI Input, Pass-through, and Output
HDMI Input: Using a short HDMI cable, connect your source device.
HDMI Pass-through: Using a short HDMI cable, connect to a surround receiver or local monitor.
HDMI Output: Using a short HDMI cable, connect your display device.
•For DVI-D/DVI-I sources or monitors,
use appropriate adapters. For Display
Port, use active converters.
•Supports up to UHD/4K @ 50/60 fps
[4:4:4], 18Gbps signals. See Supported
standard 4K Video Formats table
•Supports HDR10
•Compliant with HDCP 2.2 and previous
•Supports CEC and ARC pass thru from
HDMI Input to HDMI Pass-through port.
•HDMI Input & Pass-thru ports support
Dolby®, Dolby® TrueHD, DTS™ and
DTS-HD™ formats up to 7.1ch

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
7

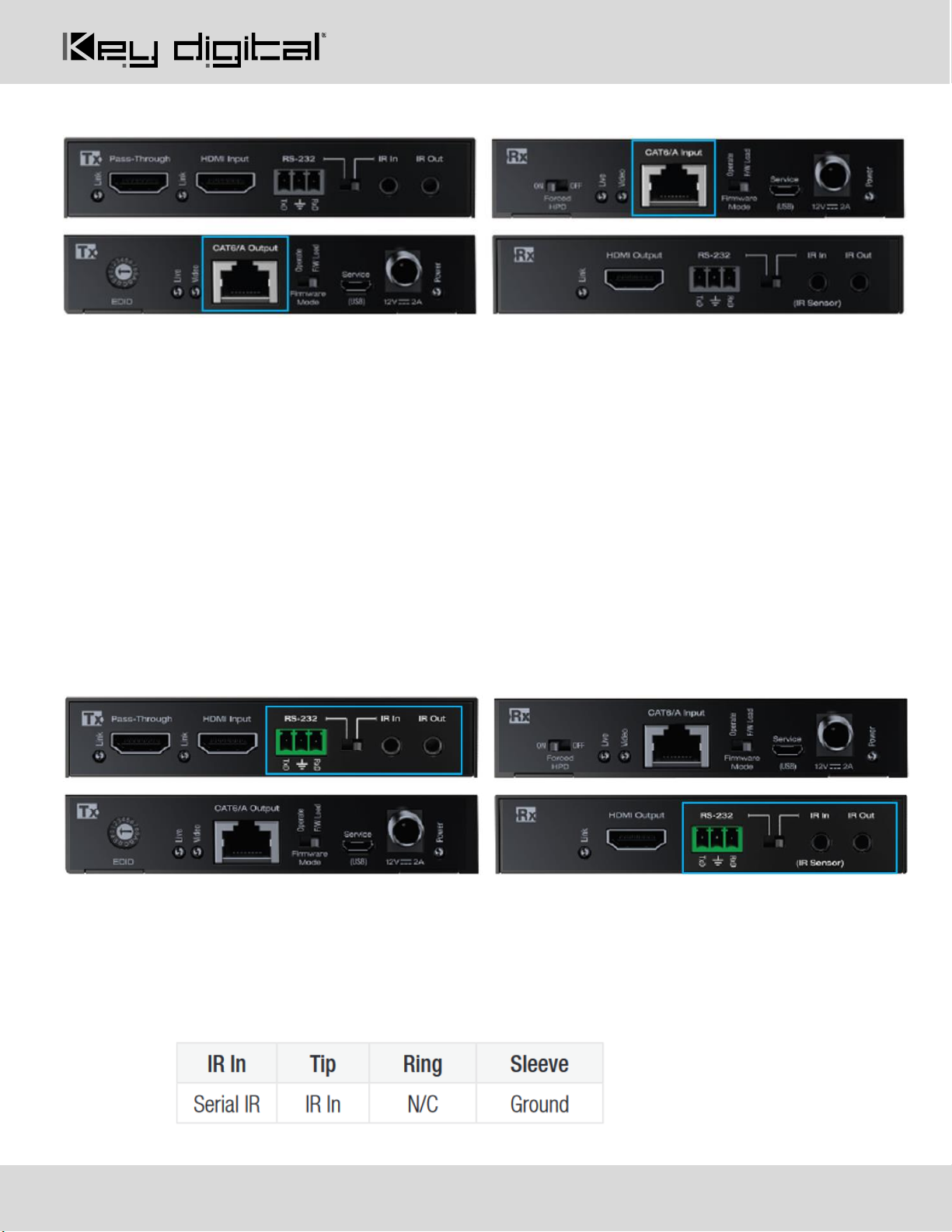

CAT6/A Output and Input
Connect Tx unit’s CAT6/A Output port to Rx unit’s CAT6/A Input port using CAT5e/6 UTP or STP in 568-B
termination.
•4K/UHD (18G) Extension
owith CAT5e/6: Up to 230ft / 70m
owith CAT6A STP: Up to 328ft / 100m
•1080p Extension
owith CAT5e/6: Up to 230 ft / 70m
owith CAT6A STP: Up to 328ft / 100m
•Supports Dolby®, DTS (5.1 formats max)
•Connect to KD-X444LP only. Damage will occur if connected to non-KD-X444LP products and warranty
will be void.
IR, RS-232 Ports and Selection Switch
Select RS-232 or IR control extension as desired. RS-232 and IR may not be extended simultaneously.
•If IR is selected, both IR In and IR Out ports may be utilized simultaneously.
•The Tx unit’s IR In supports a hard-wired / Serial IR from a control system / IR block only. The incoming
IR signal is output on the Rx unit’s IR Out port.
oPinout of Tx unit IR In port:

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
8
•The RX units IR In supports connection with the included IR sensor only. The incoming IR signal is
output on the Tx unit’s IR Out port.
•RS-232 control extension:
oTxD from the Controller connects into RxD of the extender
oRxD from the Controller connects into TxD of the extender
oGround from the Controller connects into Ground of the extender

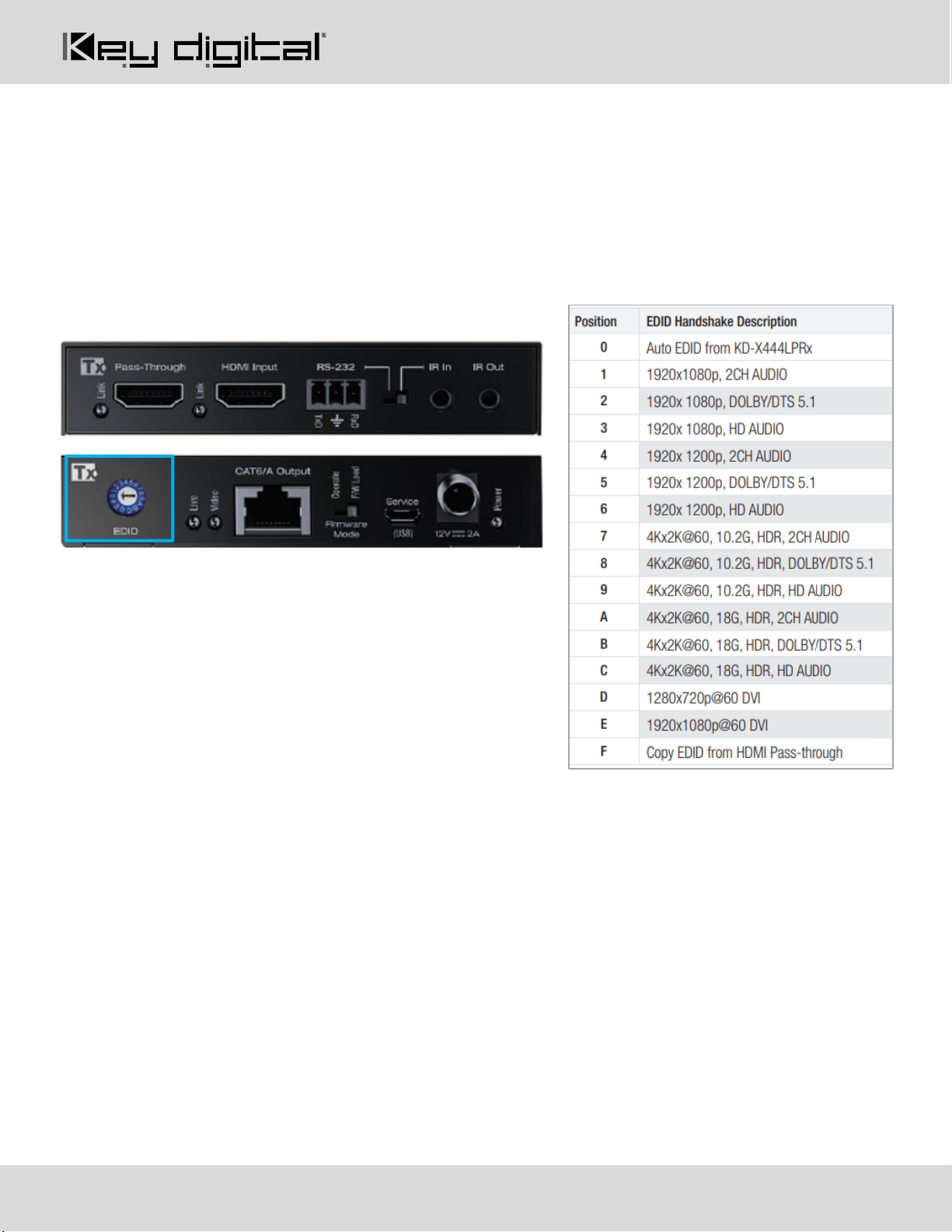

EDID Management Rotary
Use the EDID rotary if you wish for your source to output a
different video resolution and audio format
•The default EDID handshake setting is “A” (4Kx2K@60,
18G, HDR, 2ch audio).
•If setting 0 is selected, the Rx unit collects the EDID
handshake from the connected display and a handshake
is provided to the source that is similar to the EDID file of
the display, but within KD-X444LP’s capabilities.
•Although it is not necessary, power cycling the Tx unit and HDMI source may help the detection of the
newly selected handshake.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
9
Forced HPD Switch
Troubleshooting tool to help overcome installation obstacles.
•In cases of many connectivity layers or use with non-standard devices, hot plug detection (HPD) voltage
may be lost or drop below detectable levels and lead to a “no source connected” error message and/or
no image on the connected display.
•If set to ON, Hot Plug Detection (HPD) voltage is fixed at the HDMI connection of the Rx unit. The
connected display will be fed a constant voltage to inform the device that a partner is always connected
and active.
•If set to OFF, Hot Plug Detection (HPD) voltage is passed thru from connected source to the display
USB Service Port, Operate / FW Load Switch
Used for firmware updates only.
•Ensure that the Firmware Mode switch is set to Operate on the Tx and Rx units for proper functionality.
•Consult with Key Digital Technical Support ([e-mail]) before upgrading firmrware.
•USB to RS-232 interface required. Not included.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
10
Power Connection
•12V/2A (24W) power supply
•Only one power connection needed. May be connected at Tx or Rx unit
•Flexible Power over CAT (PoC). Tx may power Rx, or Rx may power Tx.
•Not compatible with third-party PoC devices
LED Indicators
•Power (Green)
oSolid illumination during power on state, as provided by healthy connection with power supply
and healthy PoC extension.
oSteady blink if unit has a power short
•HDMI Link (Blue)
oTx Unit HDMI Input: Solid illumination from active signal from connected source
oTx Unit Pass-Through: Solid illumination from active Hot Plug Detection voltage with connected
display/output device.
oRx Unit: Solid illumination from active incoming signal from the connected TX and active Hot
Plug Detection voltage from connected display/output device.
•Live (Yellow)
oSteady blink from healthy unit CPU state
•Video (Orange)
oIllumination with active TMDS (video + audio) signal is extended
oOff with no TMDS (video + audio) signal

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
11

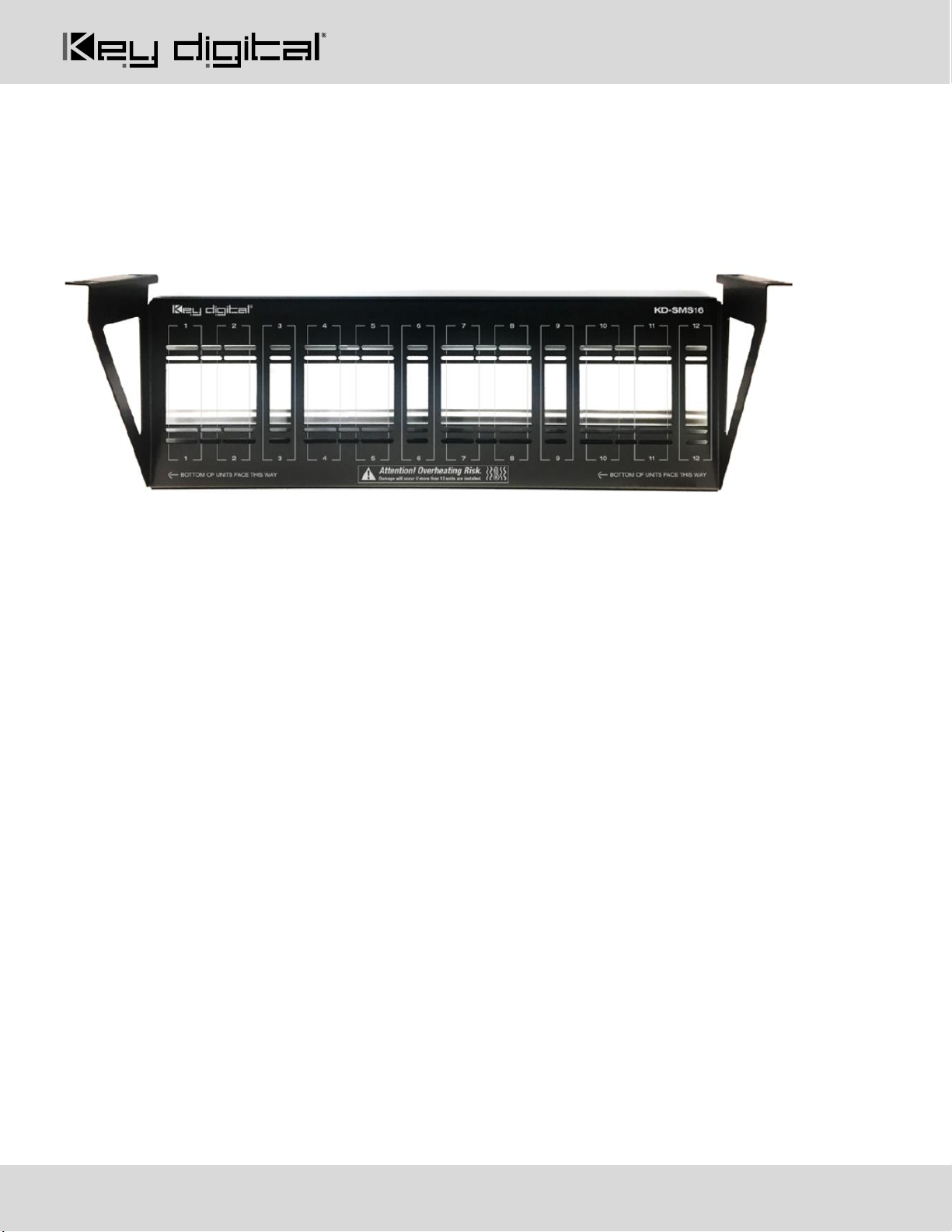

Rack Mounting
In addition to mounting with the supplied L-Brackets, multiple KD-X444LP units may be mounted in KD-SMS16
using the side mounting screws. KD-SMS16 is a mounting shelf for Key Digital units with side mounting screw
spacing of 2.912”, 2.582”, or 2.252”.
Do NOT exceed 12 units as doing so will result in unit damage by overheating.
Specifications
Technical
•Inputs Tx (Each): 1 HDMI, 1 IR, 1 RS-232
•Outputs Tx (Each): 1 CAT6/6A, 1 HDMI
pass-through, 1 IR, 1 RS-232
•Inputs Rx (Each): 1 UHDoTP, 1 IR, 1 RS-
232
•Outputs Rx (Each): 1 HDMI, 1 IR, 1 RS-232
•Bandwidth: TMDS bandwidth 18Gbps
•Deep Color Support: Digital video formats in
Deep Color Mode up to 12 bits per color
•DDC Communication: EDID and HDCP Bi-
directional buffering from Display to Source
•HDMI Connector: Type A, 19 Pin Female
•RJ45 Connector: Shielded Link Connector,
Proprietary TMDS, IR, RS-232 extension
technology
•IR In & Out Connectors (Each): 3.5mm
•RS-232 Connector: 3-pin phoenix
•Power: (1) 12V/2A, 24W DC Power Supply
(Screw-In Type). 100-240VAC, 50-60Hz.
Interchangeable transformer plug with
screw-in connector. SKU: KD-PS12V2ASC
General
•Regulation: CE, RoHS, WEEE, EAC
•Enclosure: Black Metal
•Product Dimensions (ea) (LxWxH): 4.3” x
4.12” x 0.82”(109.2 x 104.6 x 20.8mm)
•Product Weight (ea): 0.595 lbs (0.27 KG)
•Package Dimensions (LxWxH): 10.24” x
5.67” x 3.15” (260 x 144 x 80mm)
•Package Weight: 2.34 lbs (1.06 KG)

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
12
Product Warnings & Safety Instructions
Important Product Warnings:
1. Connect all cables before providing power to the unit.
2. Test for proper operation before securing unit behind walls or in hard to access spaces.
3. If installing the unit into wall or mounting bracket into sheet-rock, provide proper screw support with bolts
or sheet-rock anchors.
Safety Instructions:
Please be sure to follow these instructions for safe operation of your unit.
1. Read and follow all instructions.
2. Heed all warnings.
3. Do not use this device near water.
4. Clean only with dry cloth.
5. Install in accordance with the manufacturer’s instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Refer all servicing to qualified service personnel. Servicing is required when the device has been
damaged in any way including:
oDamage to the power supply or power plug
oExposure to rain or moisture
Power Supply Use:
You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and
risk damage to your unit and associated equipment.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 –Jul, 2022
13
