Key Digital KD-X600ProK User manual

HDBaseT/HDMI via Single CAT5e/6 (Tx + Rx Set) Extenders,
support Ultra HD/4K, EDID Control, Hot Plug Control,
Long Range Mode, Full Buffer System, HDMI Pass-through,
Ethernet, IR Sensor, Up/Down IR & RS-232
The Experts in Digital Video Technology and Solutions™
KD-X600ProK
Key Digital®Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553
Phone : [phone] Fax : [phone] Web : www.keydigital.com
Rev 0 – Dec 2014
Operating Instructions
Key Digital
®
, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
KD-X600ProK_Manual.indd 2-3 1/20/15 12:08 PM

4 1
About KD-X600ProK
KD-X600ProK HDBaseT/HDMI (Tx & Rx) Extenders extend 1080p/60, 1920x1200,
3D signals up to 600 ft. via single Key Digital® KD-CAT6STP1X Super CAT6A
shielded cable, or up to 500 ft. using a single third-party CAT5e/6 cable.
4K/UHD 24/25/30/60 (4:2:0) signals are extended up to 300 ft. using Key Digital
®
KD-CAT6STP1X Super CAT6A Shielded cable, or up to 250 ft. using a single third-
party CAT5e/6 cable. In addition to HDMI video and audio signals, KD-X600ProK
carries Ethernet, IR and RS-232 for controlling remotely located equipment or the
RS-232 port can be used to control the KD-X600ProK. Ethernet ports allow 10/100
LAN Network extension.
Key Features
➔ HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic
adjustment of feedback, equalization, and amplification depending on
cabling length
➔ Signal Extension:
»Standard Mode (HDBaseT Class A). Supports resolutions up to 4K/UHD.
»Up to 300 ft. @ 4K/24/25/30/60 using KD-CAT6STP1X cabling
»Up to 250 ft. @ 4K/24/25/30/60 using third-party CAT5e/6 UTP/STP cabling
»Up to 400 ft. @ 1080p / 1920x1200 using KD-CAT6STP1X cabling
»Up to 300 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP
cabling
»Long Range Mode (4K resolutions not supported):
»Up to 600 ft. @ 1080p / 1920x1200 using KD-CAT6STP1X cabling
»Up to 500 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP
cabling
➔4K/Ultra HD: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4
or 60Hz at 4:2:0.
➔EDID Control: Internal library features 14 default EDID configurations and native
EDID data from Output/Display devices connected via Rx
Table of Contents
About KD-X600ProK ...............................................1
Quick Setup Guide ................................................3
Installation and Operation ...........................................3
Application Example ...............................................4
Connections .....................................................6
Extending Ethernet, IR and RS-232 Control..............................9
Settings.........................................................11
LED Indicator Lights ...............................................15
RS-232 Commands ...............................................16
Specifications ....................................................17
Important Product Warnings & Safety Instructions .........................18
How to Contact Key Digital
®
.........................................19
Warranty Information ...............................................20
© 2014 Key Digital, Inc. All rights reserved.
Please read all instructions to insure safe operation of the product.
You MUST use the Power Supply provided with your unit or you VOID
the Key Digital
®
Warranty and risk damage to your unit and associated
equipment.
KD-X600ProK_Manual.indd 1 1/20/15 12:08 PM

2 3
➔Hot Plug Detection Control: Enables integrator to choose if active signal voltage
is forced to connected input and output devices
➔Full Buffer System
™
:Manages TMDS re-clocking / signal re-generation, HDCP
authentication to source & display, and EDID Control handshake
➔IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from
remote(s) without external IR connecting block
➔Up/Down IR: Two channels of IR enable control to/from devices connected to
Tx and Rx units
➔RS-232: Bi-Directional control to/from Tx and Rx unit on DB9 connector
➔RS-232 Control Mode: Provides control of Tx unit as well as connectivity status
➔Ethernet: Bi-Directional control and/or 10/100 LAN network via TCP/IP RJ45 port
➔3D: Support for standard 3D stereoscopic signal formats
➔Deep Color Support: 12bit Deep Color video / 8bit color for 4K/60.
➔Lossless compressed digital audio: Support for Dolby
®
TrueHD, Dolby
®
Digital
Plus and DTS-HD Master Audio
™
➔CEC Support: For inter-device control between main input and output HDMI
channel
➔HDMI Pass-through: Port on Tx unit connects additional devices up to 20 ft.
➔Daisy Chaining: Connection of Tx and Rx units allows almost unlimited extension
of HDMI, RS-232, IR and Ethernet signals
➔HDMI
®
and HDCP Licensing: Fully licensed and compatible with all HDMI and
HDCP technologies
➔I2C Communication: EDID and HDCP authentication to Display and Source
➔Power Supplies: Included with screw-in type connectors
➔Control System Support: Compatible with Compass Control
®
, AMX
®
, Control4
®
,
Crestron
®
, KNX
®
, RTI
®
, Savant, URC
®
, Honeywell
®
, HAI
®
, Leviton
®
etc.
Accessories
➔(2) 5V 2A DC Power Supplies (Screw-in Type)
➔(3) Locking HDMI Cable Clips �(2) Mounting Brackets
➔(1) IR Emitter �(1) IR Sensor
Quick Setup Guide
Step 1: Find a safe and convenient location to mount or place your
KD-X600ProK units
Step 2: Begin with the KD-X600ProK Tx/Rx units and all input/output devices
turned off with power cables removed
Step 3: Connect your HDMI source to the input port of your KD-X600ProK Tx unit
Step 4: Connect your HDMI displays to the output port of your KD-X600ProK
Rx unit
Step 5: Connect KD-X600ProK Tx unit to KD-X600ProK Tx with CAT5e/6 cable
Step 6: Connect additional IR/RS-232 control connections, IR sensors,
and Ethernet
Step 6: Connect power to the KD-X600ProK Tx/Rx units
Step 7: Power on input/output devices
Installation and Operation
Before permanently securing the unit for
final installation, test for proper operation of the
unit and cables in your system. It is
recommended that you leave enough ventilation
space to provide sufficient airflow and cooling.

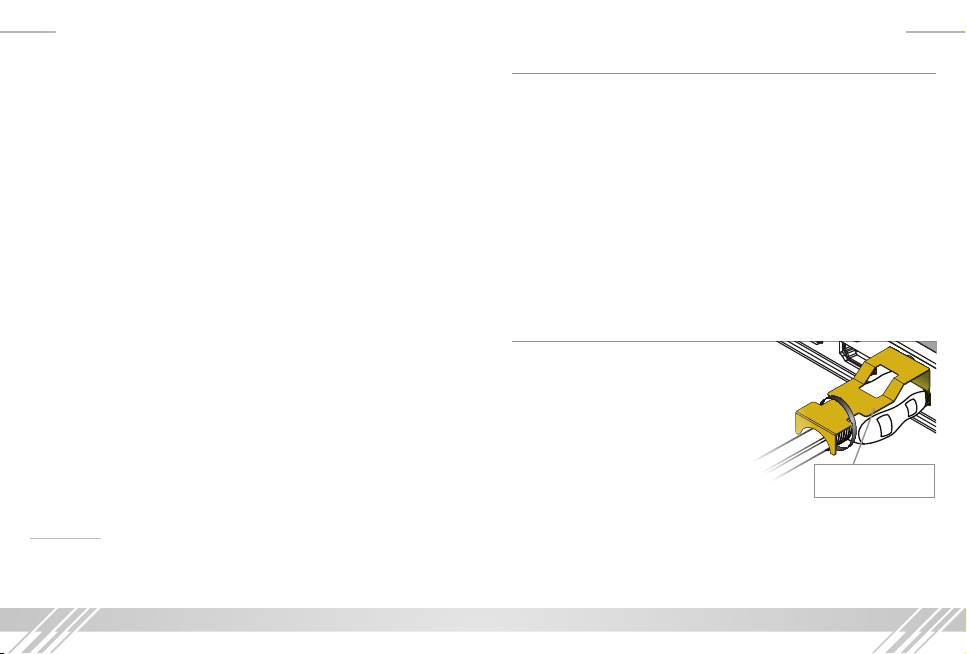

An optional HDMI cable clip (included) allows
for a secure connection of HDMI cables to
KD-X600ProK units and helps prevent
intermittent or complete signal loss due to
poor connectivity.
Optional HDMI Cable
clip (included)
KD-X600ProK_Manual.indd 3 1/20/15 12:08 PM

4 5
Application Example
iPad
Ethernet RJ45
WiFi
EDID Control
KD-MC1000
Master Controller
Satellite
Ethernet
RS-232
RS-232
IR
HDMI
HDMI
CAT5e/6
KD-X600ProK
Red Ray
HDMI
HDMI
CAT5e/6
KD-X600ProK
KD-X600ProK
CAT5e/6
KD-X600ProK
KD-X600ProK
KD-X600ProK
IR Out
Display
Display
Display
Satellite
Remote
IR Sensor
IR In
WiFi Router HDMI Pass-through
Up to 300’ with Key Digital
®
KD-CAT6STP1X
Up to 300’ with Key Digital
®
KD-CAT6STP1X
Achieved 4K HDMI Extension: up to 640’
20’
20’
HDMI
Daisy-Chaining Example
iPad
Ethernet RJ45
WiFi
EDID Control
KD-MC1000
Master Controller
Satellite
Ethernet
RS-232
RS-232
IR
HDMI
HDMI
CAT5e/6
KD-X600ProK
Red Ray
HDMI
HDMI
CAT5e/6
KD-X600ProK
KD-X600ProK
CAT5e/6
KD-X600ProK
KD-X600ProK
KD-X600ProK
IR Out
Display
Display
Display
Satellite
Remote
IR Sensor
IR In
WiFi Router HDMI Pass-through
Up to 300’ with Key Digital
®
KD-CAT6STP1X
Up to 300’ with Key Digital
®
KD-CAT6STP1X
Achieved 4K HDMI Extension: up to 640’
20’
20’
HDMI
KD-X600ProK_Manual.indd 4-5 1/20/15 12:09 PM

6 7
➔Connect a 10/100 Ethernet LAN cable to the TCP/IP port to carry network
information for control, internet, or intranet.
➔Connect a DB9 cable for bi-directional RS-232 control. Refer to the “Extending
Ethernet, IR & RS-232 Control” for more information.
Rx Unit:
➔Using a short HDMI cable, connect your output / display device to the HDMI port
labeled “HDMI Output”.
➔Connect the CAT5e/6 cable at the port labeled “CAT5e/6 Input”.
Connections
Before making any connections, power off your source and display devices.
Tx Unit:
➔Using a short HDMI cable, connect your source device to the HDMI port labeled
“HDMI Input”. To connect DVI or Display Port, use appropriate adapters.
➔Connect the CAT6 STP cable that connects to the Rx Unit at the port labeled
“CAT5e/6 Output”.
➔Use the port labeled “HDMI Pass-Through” to connect (up to 20 ft.)
your AVR, display or other device to the Tx unit.
➔Make IR In and Out connections to receive (IR In port) or send (IR Out port)
control signals. Refer to the “Extending Ethernet, IR & RS-232 Control” for more
information.
KD-X600ProK_Manual.indd 6-7 1/20/15 12:09 PM

8 9
Extending Ethernet, IR and RS-232 Control
Ethernet
➔10/100BaseT LAN data (10/100Mbps)
➔Use TIA 568B or TIA 568A termination
RS-232:
Three different modes of usage are available, determined by the position of the
Control Rotary.
➔RS-232 Pass-through Mode
»Send and receive (bi-directional) RS-232 commands for controlling remote
equipment.
»Requires the use of a null-modem cable on one (either) side.
➔Control Mode
»Provides control of Tx unit as well as connectivity status
»See RS-232 Commands section for more information
➔Firmware Upgrade Mode
»Two different types of firmware may be updated: MCU (KD-X600ProK units),
and HDBaseT (extension over CAT5e/6)
Rotary Control Switch
RS-232 Mode Pin 2 Pin 3 Pin 5 Control Rotary Position
Pass-through Tx Rx Ground 0 – 7
Control Tx Rx Ground 8, 9
F/W MCU Tx Rx Ground A, B
F/W HDBaseT Tx Rx Ground C, D, E, F
➔If you are sending or receiving IR, connect it at this time
➔For Ethernet, connect the cable to TCP/IP RJ45 port.
➔If you are transmitting or receiving RS-232, connect to the RS-232 port
➔Connect power to the Tx and Rx using the included power supplies and then
power up your source and display equipment.
KD-X600ProK_Manual.indd 8-9 1/20/15 12:09 PM

10 11
Some 3.5mm Male plugs feature a plastic sleeve that
extends longer than an average sleeve. This may
cause poor grounding contact. See the example on
the left.
Settings
EDID Control
EDID authentication is provided from the KD-X600ProK Tx unit to the connected
input / source device. The EDID file (AKA “handshake”) is selected using the EDID
Control rotary on the Tx unit and provides a list of compatible video and audio
formats as well as digital data, informing the source device what it should output.
Most sources will comply with a new EDID file without a power-cycle, but each
source may behave differently. Adjustments may be necessary to help achieve
desired video and audio formatting and may speed up sync time.
0Copy EDID from CAT5e/6 Output A4Kx2K@60, 2CH AUDIO
11080i, 2CH AUDIO B4Kx2K@60, DOLBY/DTS 5.1
21080i, DOLBY/DTS 5.1 C4Kx2K@60, HD AUDIO
31080i, HD AUDIO D1280x720p@60 DVI (no audio)
41080p, 2CH AUDIO E1920x1080p@60 DVI (no audio)
51080p, DOLBY/DTS 5.1 FCopy EDID from HDMI pass-
through output
61080p, HD AUDIO
74Kx2K@30, 2CH AUDIO
Rotary EDID
Switch:
84Kx2K@30, DOLBY/DTS 5.1
94Kx2K@30, HD AUDIO
IMPORTANT! Please apply light pressure to the EDID rotary when
making your selection.
IR
➔Bi-directional IR control extension is supported.
»“IR In” port on the Tx unit extends to the “IR Out” port of the Rx unit
»“IR In” port on the Rx unit extends to the “IR Out” port of the Tx unit
➔IR In: IR In ports support two different modes, determined by the position of the
Control Rotary.
»Serial IR:
»A fixed 5V input signal with a 3.5mm mini jack
»IR signal on the tip. Mono or stereo 3.5mm mini jacks are supported, with
the ring having no contact.
»Typically fed from a dedicated control system or an IR distribution block
»IR Sensor:
»IR Sensors can be connected directly into IR In port, without the need for
an external IR distribution block
»IR signal on the Tip, with 5V powering of the IR sensor on the Ring.
IR In Tip Ring Sleeve Control Rotary Position
Serial IR IR In N/C Ground 0-3, 8-B
IR Sensor IR In 5V Ground 4-7, C-F
➔IR Out:
»Pass-through from signal of corresponding IR In port
»Driving power: 5V with 32mA minimum current
»Typically connected with an IR emitter
IR Out Tip Ring Sleeve Control Rotary Position
Serial IR IR Out N/C Ground Any
»The sleeve of the 3.5mm Male connector must have good physical contact
with 3.5 mm Female input/output on the KD-X600ProK.
KD-X600ProK_Manual.indd 10-11 1/20/15 12:09 PM

12 13
Position IR In Mode RS-232 Mode Hot Plug
Detection Control
Extension
Mode
A Serial IR F/W upgrade for MCU Forced HPD ON Standard
B Serial IR F/W upgrade for MCU Forced HPD ON Long Range
C IR Sensor F/W upgrade for HDBaseT Bypass Standard
D IR Sensor F/W upgrade for HDBaseT Bypass Long Range
E IR Sensor F/W upgrade for HDBaseT Forced HPD ON Standard
F IR Sensor F/W upgrade for HDBaseT Forced HPD ON Long Range
Forced Hot Plug Detection (HPD)
Hot Plug Detection (HPD) may be forced on the Tx and/or Rx units in order to
provide connected devices with necessary voltage to inform the device that a partner
(source/display) is connected and active. If the Control rotary is set to any HPD
Bypass setting, HPD signals from the output to the input device will pass as normal.
In cases of many layers of connectivity, HPD may be lost leading to no signal at the
display. In those cases, fix the Control rotary to any Forced HPD setting.
Extension Modes
KD-X600ProK supports two different modes of signal extension selectable using
the Control rotary.
»Standard Mode (HDBaseT Class A): Supports resolutions up to 4K/UHD
»Long Range Mode: 4K resolutions not supported
The desired Extension Mode must always match on the Tx and Rx units.
»Note: Distance performance is significantly increased when
using Key Digital KD-CAT6STP1X Super CAT6/STP cabling.
Control Rotary
The Control rotary enables the integrator to choose the desired
setting for IR In ports, RS-232 Mode, Hot Plug Detection
Control, and Extension Mode.
In many settings, the Control rotary setting may not match on
the Tx and Rx units. However, the desired Extension Modes
must always match on the Tx and Rx units.
IMPORTANT! Please apply light pressure to the Control rotary when
making your selection
Control Rotary Position Assignments:
Position IR In Mode RS-232 Mode Hot Plug
Detection Control
Extension
Mode
0 Serial IR Pass-through Bypass Standard
1 Serial IR Pass-through Bypass Long Range
2 Serial IR Pass-through Forced HPD ON Standard
3 Serial IR Pass-through Forced HPD ON Long Range
4 IR Sensor Pass-through Bypass Standard
5 IR Sensor Pass-through Bypass Long Range
6 IR Sensor Pass-through Forced HPD ON Standard
7 IR Sensor Pass-through Forced HPD ON Long Range
8 Serial IR Control Mode Bypass Standard
9 Serial IR Control Mode Bypass Long Range
KD-X600ProK_Manual.indd 12-13 1/20/15 12:09 PM

14 15
LED Indicator Lights
Power:
»Color: Red
»Solid illumination during power on state, as provided by healthy connection
with power supply.
HDMI Active (HDMI Input/Output):
»Color: Blue
»Solid illumination during active link (voltage + data link)
with connected HDMI input/output device
»If Hot Plug Detection is forced to input or output device from Tx or Rx unit
respectively, the HDMI Active light will illuminate solid regardless of HDMI
signal from connected device.
HDMI Active (HDMI Pass-through):
»Color: Blue
»Solid illumination during active link (voltage + data link) with connected HDMI
input device
CAT5e/6 Input/Output:
»Color: Blue
»Solid illumination during healthy linking to Rx unit and/or if HPD is forced at
Rx unit.
»Will regularly blink once per second if Extension mode is mismatched
between Tx and Rx units.
Range and Resolution:
➔Standard Mode (HDBaseT Class A). Supports resolutions up to 4K/UHD.
»Up to 300 ft. @ 4K/24/25/30/60 using KD-CAT6STP1X cabling
»Up to 250 ft. @ 4K/24/25/30/60 using third-party CAT5e/6 UTP/STP cabling
»Up to 400 ft. @ 1080p / 1920x1200 using KD-CAT6STP1X cabling
»Up to 300 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP
cabling
➔Long Range Mode (4K resolutions not supported):
»Up to 600 ft. @ 1080p / 1920x1200 using KD-CAT6STP1X cabling
»Up to 500 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP
cabling
NOTE: Use shielded metal RJ45 connectors with
soldered ground wires when terminating shielded
CAT5e/6. Key Digital part: KD-RJ45SC (compatible
with KD-CAT6STP1X and other third-party CAT6/STP)
KD-X600ProK_Manual.indd 14-15 1/20/15 12:09 PM

16 17
Specifications
Technical:
➔Inputs Tx (Each): 1 HDMI, 1 IR In, 1 RS-232, 1 TCP/IP
➔Outputs Tx (Each): 1 CAT5e/6 UTP/STP, 1 HDMI pass-through, 1 IR Out
➔Inputs Rx (Each): 1 CAT5e/6 UTP/STP, 1 IR In
➔Outputs Rx (Each): 1 HDMI, 1 IR Out, 1 TCP/IP, 1 RS-232
➔DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
➔HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
➔HDMI Connector: Type A, 19 Pin Female
➔RJ45 Connector: Shielded Link Connector, HDBaseT
➔Ethernet RJ45 Connector: Shielded TCP/IP 10/100 BaseT
➔IR Connector: 3.5 mm monaural mini jack
➔RS-232 Connector: D-Sub 9 Pin
General
➔Regulation: CE, FCC, RoHS, WEEE
➔Enclosure: Black Metal
➔Product (Each): 6” x 4.1” x 1.2”, Weight: 0.8 lbs
➔Shipping Carton: 15.4” x 8.7” x 3.6”, Weight: 4 lbs
➔Power: UL Certified Power Supply – 5V / 2A, 110-240 VAC, 50-60 Hz
➔Power Consumption: Tx - 2.5 Watts, Rx - 5 Watts
➔Accessories: (2) Mounting Brackets, (3) Locking HDMI Cable Clips,
(1) IR Emitter, (1) IR Sensor
RS-232 Commands
Pin 5 – Ground
Pin 3 – Receive
Pin 2 – Transmit
RS-232 cable pin out
Connection protocol is as follows:
➔Baud Rate = 57600 bits per second
➔Data Bits = 8
➔Stop Bits = 1
➔Parity = None
➔Flow Control = None
➔Carriage Return: Required
➔Line Feed: Required
Commands are not case-sensitive. Spaces shown below may be excluded.
Carriage return and line feed is required at the end of each string.
Commands:
Status:
KD-X600ProK_Manual.indd 16-17 1/20/15 12:09 PM

18 19
How to Contact Key Digital
®
System Design Group (SDG)
For system design questions please contact us at:
➔Phone: [phone]
➔E-mail: [email protected]
Customer Support
For customer support questions please contact us at:
➔Phone: [phone]
➔E-mail: [email protected]
Technical Support
For technical questions about using Key Digital
®
products, please contact us at:
➔Phone: [phone]
➔E-mail: [email protected]
Repairs and Warranty Service
Should your product require warranty service or repair, please obtain a
Key Digital
®
Return Material Authorization (RMA) number by contacting us at:
➔Phone: [phone]
➔E-mail: [email protected]
Feedback
Please email any comments/questions about the manual to:
➔E-mail: [email protected]
Important Product Warnings:
1. Connect all cables before providing power to the unit.
2. Test for proper operation before securing unit behind walls or in hard to access
spaces.
3. If installing the unit into wall or mounting bracket into sheet-rock, provide proper
screw support with bolts or sheet-rock anchors.
Safety Instructions:
Please be sure to follow these instructions for safe operation of your unit.
1. Read and follow all instructions.
2. Heed all warnings.
3. Do not use this device near water.
4. Clean only with dry cloth.
5. Install in accordance with the manufacturer’s instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Refer all servicing to qualified service personnel. Servicing is required when the
device has been damaged in any way including:
»Damage to the power supply or power plug
»Exposure to rain or moisture
Power Supply Use:
You MUST use the Power Supply provided with your unit or you VOID
the Key Digital®Warranty and risk damage to your unit and associated
equipment.
KD-X600ProK_Manual.indd 18-19 1/20/15 12:09 PM

20 21
Warranty Information
All Key Digital® products are built to high manufacturing
standards and should provide years of trouble-free operation.
They are backed by a Key Digital Limited Lifetime Product
Warranty Policy.
http://www.keydigital.com/warranty.htm
KD-X600ProK_Manual.indd 20-21 1/20/15 12:09 PM
