4x4 4K 18G HDMI Matrix Switch with Independent Audio
Routing, Digital Optical and Analog Balanced / Un-balanced
Audio De-Embedding, Web Control UI

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
2
Table of Contents
About KD-MS4X4G-2 3
Quick Setup Guide 4
Connect 4
Configure Using KDMS Pro 4
Control 6
Application Example 10
Connections, Buttons, and LEDs 10
TCP/IPand RS-232 Commands 13
Specifications 17
Warranty Information 18
Product Warnings & Safety Instructions 18
OperationManual
Please visit www.keydigital.com for the latest product documentation,
firmware, control drivers and software downloads. Product features and
specifications are subject to change without notice
Always follow the instructions provided in this Operating Manual.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
3

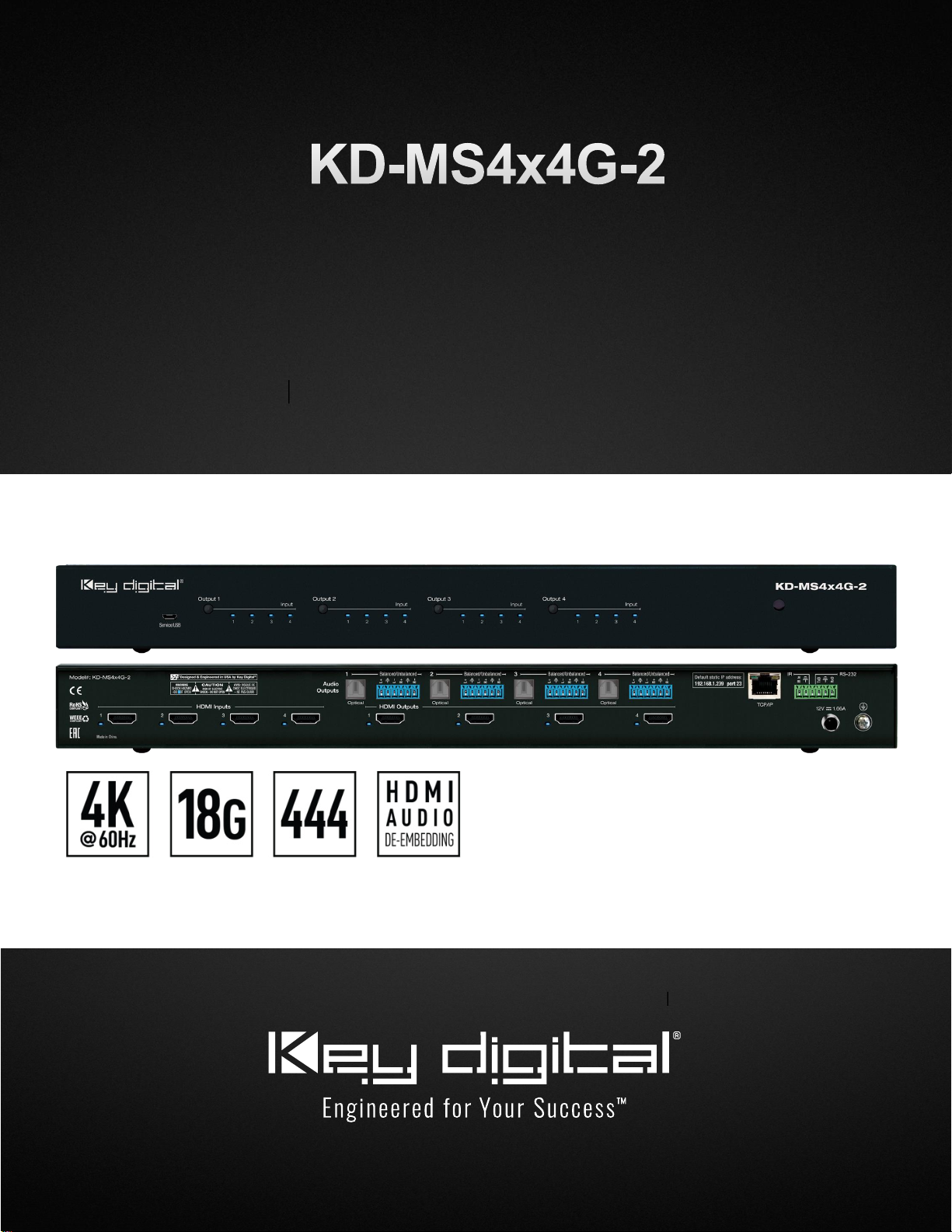

About KD-MS4X4G-2
Key Digital’s KD-MS4x4G-2 is a 4K matrix switcher with support of 18Gbps signal bandwidth and HDCP 2.2 for
routing and distributing 4 HDMI source signals to 4 displays. KD-MS4x4G-2 features 4 analog
balanced/unbalanced and optical digital audio outputs which may be independently controlled to follow the
HDMI output selection or separately switched to accommodate a wide variety of usage applications in
professional AV systems integration. KD-MS4x4G-2 supports all SD, HD, VESA and Ultra HD/4K video
standards up to and including UHD/4K 18G and 1080p. All UHD/4K EDID handshake files include HDR header
information.
Key Features
•HDMI Matrix Switching: 4 HDMI sources to 4 HDMI outputs
•Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps
bandwidth)
•HDCP Licensing: Fully licensed and compatible with HDCP 2.2
•HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
•Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to
4096x2160p
•Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
•Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
•Independent Audio and Video Matrix: Output HDMI and Audio ports may route together or
independently
•Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to
source & display, and EDID Control handshake
•EDID: Internal library with 15 internal EDID configurations per input, in addition to native EDID data for
any Output/Display
•TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
•Dolby Digital® & DTS™Audio: Supports 2-channel and multi-channel surround formats up to DTS-HD
Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
•Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
•Web UI: Control AV routing and other basic functions from any web browser
•Control System Support: Key Digital® app ready, Compass Control® Pro ready. Fully controllable by
all IR, RS-232, and TCP/IP supported control systems via open API.
•Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control
via Key Digital® App and Key Digital Management Software™Pro (KDMS™Pro) PC setup Software
Accessories
•Power supply, KD-PS20W12VC 12V/1.66A
(20W) DC Power Jack, Screw In Type
•(2) Rack ears
•IR Remote Control, model KDRMSG
•(5) 6-pin terminal block
•USB Setup Cable, USB Micro to USB A

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
4
Quick Setup Guide
Begin with the KD-MS4X4G-2, all source, display devices, audio system, and any other connected
peripherals powered off.
Connect
1. Connect HDMI sources to the input ports
2. Connect HDMI displays to the output ports
3. Connect analog audio outputs to amplifiers/receivers via the analog 6-pin phoenix terminals
4. Connect digital audio outputs to amplifiers/soundbars/receivers via the Optical outputs
5. Connect Control System. For KD-App control and/or IP control from a control system or PC, connect
TCP/IP port to network. RS-232 and IR control may also be utilized
6. Connect Power Supply. Screw-in the power supply to KD-MS4x4G-2, then plug-in to power outlet
7. Connect to KD-MS4X4G-2 from your PC using the USB micro port on the face of the unit
Configure

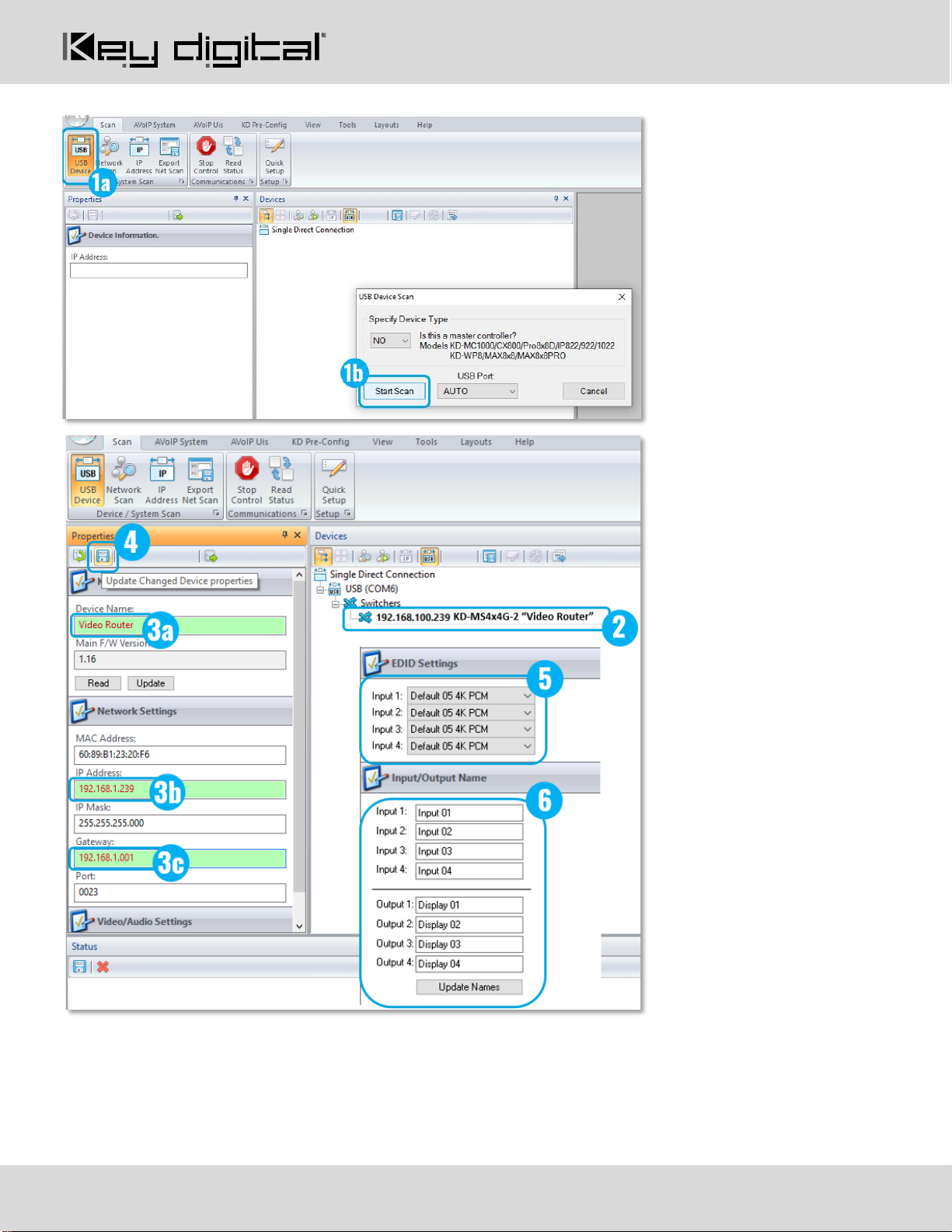

Configure KD-MS4X4G-2 with Key Digital Management Software Pro (KDMS Pro). Download HERE
1. With the USB cable connected as instructed above, open the KDMS Pro software and perform a USB
scan (fig. 1a). Choose “NO” and Start Scan when the USB Device Scan prompt appears (fig. 1b)
2. Choose the detected device from the Devices window (fig. 2)
3. Enter the desired unit name (fig. 3a), IP address (fig. 3b) and IP gateway (fig. 3c) settings for the unit
4. Save (fig. 4)
5. Select the desired EDID handshake for each video source (fig. 5)
6. Enter the desired Input and Output names and press Update Names (fig. 6)
7. Your unit is now ready to control from the web UI, KDMS Pro control panel, KD-App, or by professional
control system. Full access to all settings/commands is achieved via terminal session using Tera Term
or PuTTy software.
8. Power on video sources and displays / output devices to use system
.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
5

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
6
Control
Option 1: Control via Remote Control
•Matrix Switching –Video and Audio together
oIR Button Sequence = A, B
oA = Output # [1-4], B = Input # [1-4]
•Matrix Switching –HDMI AV ONLY
oIR Button Sequence = R1, A, B
oA = Output # [1-4], B = Input # [1-4]
•Matrix Switching –Audio ONLY
oIR Button Sequence = R2, A, B
oX = Output # [1-4], Y = Input # [1-4]

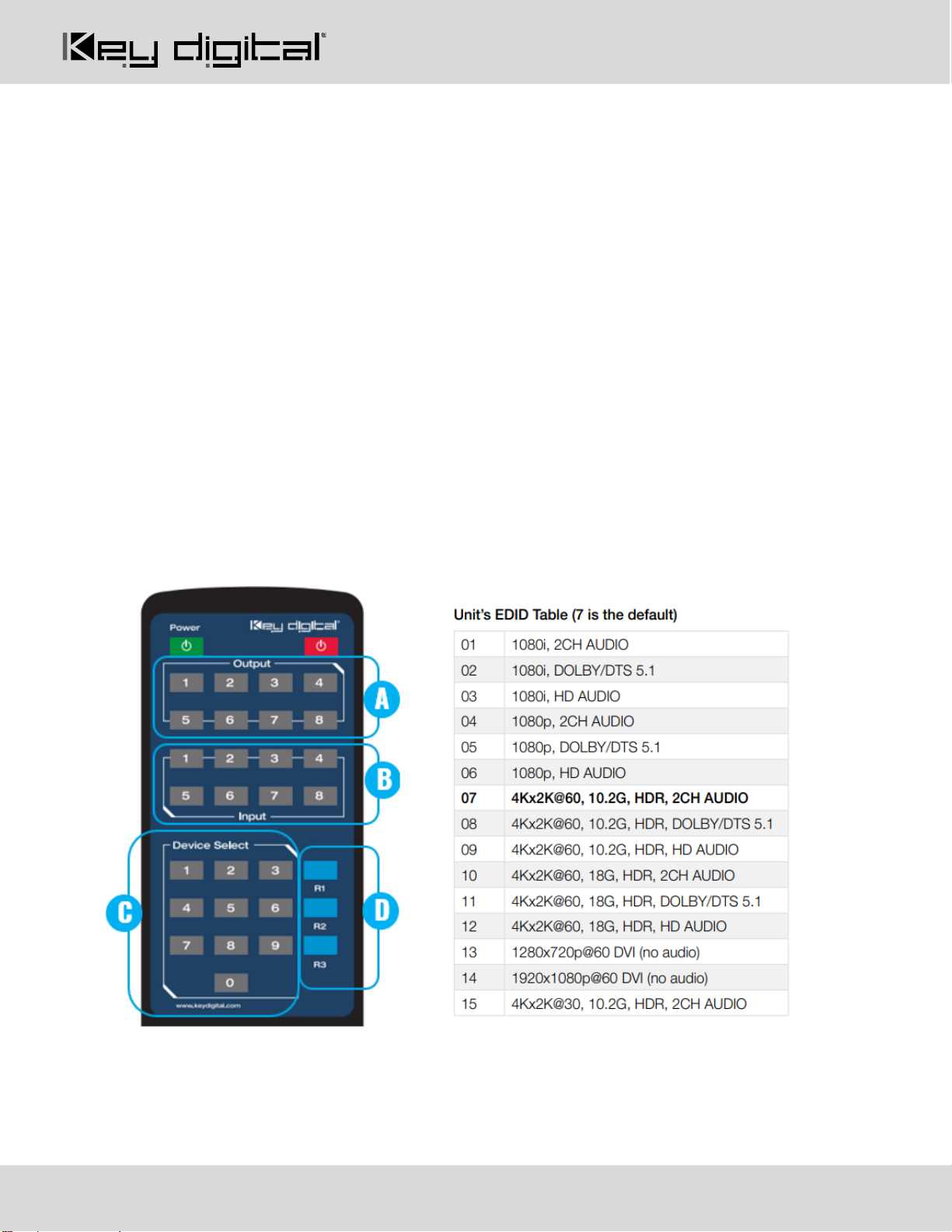

•Assign EDID Handshake to Input from EDID Table
oIR Button Sequence = R3, B, CC
oB = Input # [1-4], CC = Device Select # [01-15]
•Assign EDID Handshake Copy from Output A to Input B
oIR Button Sequence = R3, B, A

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
7
Option 2: Control via KD-App, KDMS Pro™
KD-MS4x4G-2 is controllable by Key Digital’s user-friendly iOS App (downloadable in
the App Store) or Key Digital® Management Software™Pro (downloadable here).
1. Connect and Configure your KD-MS4x4G-2 as described in the Connect &
Configure sections
2. Download and open KD-App and/or KDMS™
3. Ensure the iOS device and/or PC computer are on the same network with KD-
MS4x4G-2
4. Perform a network scan in the KD-App/KDMS™and select the unit.
5. To control, first select the display / output,
then the source / input
6. Use the buttons at the bottom of the screen
to choose HDMI + External Audio (6a),
HDMI AV only (6b) or External Audio only
(6c) routing.
7. To enter KDMS Pro end-user mode, key
CTRL + ALT + N after selecting the unit in
the devices tree.
Option 3: Control via web UI
Access KD-MS4x4G-2’s web UI from any phone,
tablet, or PC. The web UI shows the input, output,
and unit name, for a user-friendly experience.
1. Connect and Configure your KD-MS4x4G-2
as described in the Connect & Configure
sections
2. Ensure the PC, phone, or tablet are on the
network with KD-MS4x4G-2
3. Enter IP Address of KD-MS4x4G-2 unit into
the web browser search bar
4. Enter password. Default password is
“admin”

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
8
5. Use the web UI to control video + external audio routing (5a), HDMI AV routing only (5b), or External
Audio routing only (5c). Audio muting is also available for the HDMI and/or External Audio ports (5d).
6. Use the Web UI Settings Menu (6a) to update names of the device, inputs, and outputs (6b), as well as
updating the network settings and Admin password (6c).

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
9
Option 4: Control via professional control system
KD-MS4x4G-2 allows control over serial interface for bi-directional communication.
•For RS-232 control use pins 4, 5, and
6 of the Unit Control port. Baud Rate is
57,600
•For TCP/IP control the default static IP
address is 192.168.1.239, with port 23.
•KD-MS4x4G-2 supports KD’s standard matrixing protocol, so if you have controlled a KD matrix with a
third-party control system before, you will likely have success with the same driver/module.
a. Switching HDMI AV + External Audio together
i. SPOxxSIyy xx = output (01-04), yy = input (01-04)
b. Switching HDMI AV Only
i. SPOxxSByy xx = output (01-04), yy = input (01-04)
c. Switching External Audio only
i. SPOxxSAyy xx = output (01-04), yy = input (01-04)
•A carriage return is required at the end of each string. See the TCP/IP and RS-232 Commands section
for full command set and protocol.
Test for proper operation of the unit and cables in your system before permanently securing the
unit for final installation. Ensure that you leave enough ventilation space to provide sufficient
airflow and cooling

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
10

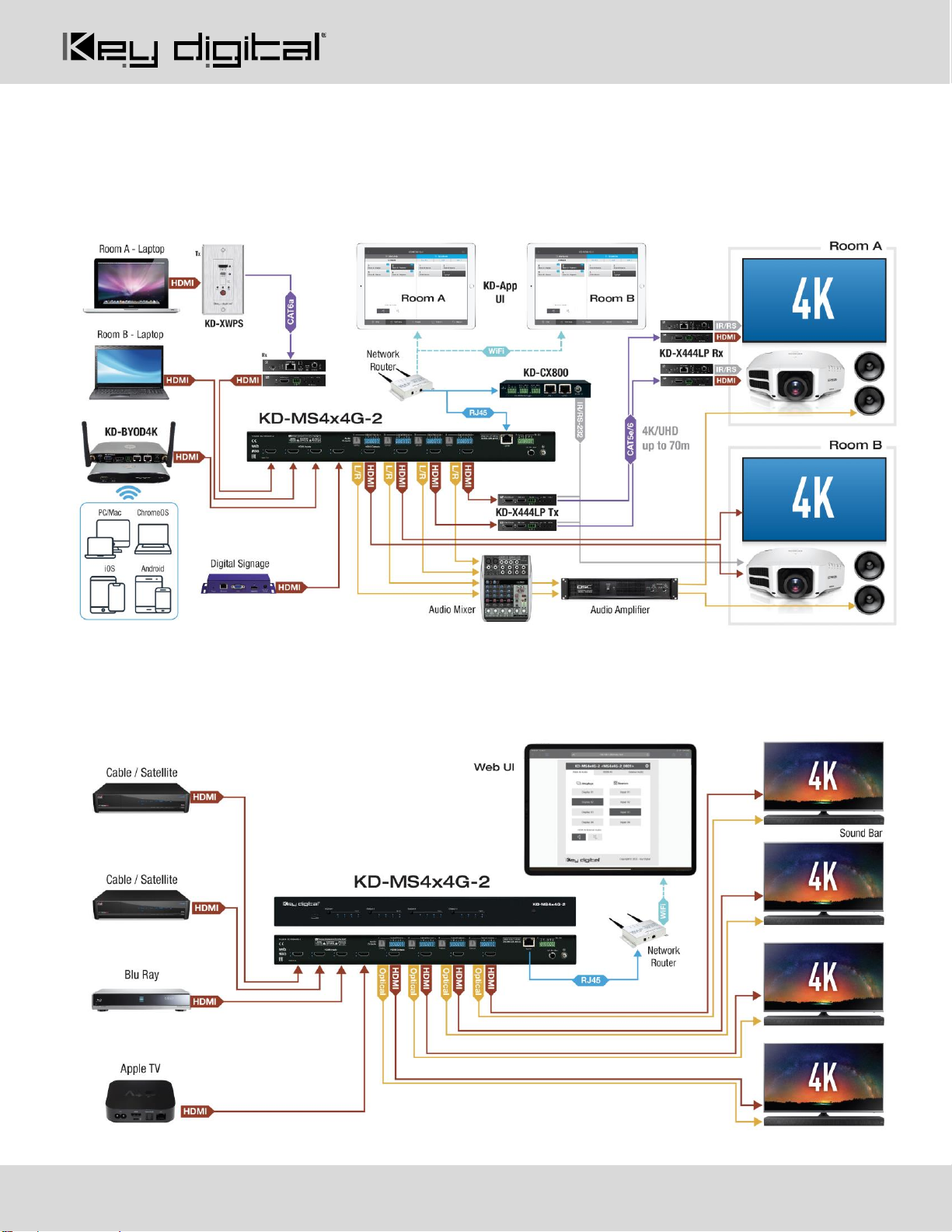

Application Example
Room Combine Ballrooms with projector and display in each room, wall plate plugin, and wireless casting. Each
audio de-embed port provides the audio of the HDMI sources to the audio mixer. Add Compass Control Pro to
fully integrate the devices with an iOS touchscreen.
Residential multi-zone AV with HDMI and de-embeded audio to each zone. The viewer can choose any of the
connected HDMI sources, with audio and video going to the display and soundbar. Web UI control from any
smart tablet or phone.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
11
Connections, Buttons, and LEDs
Front Buttons and LEDs (4): Using an HDMI cable, connect your HDMI sources.
•Press an output button to select the next HDMI input.
oA blue LED indicates which Input has been selected for each Output.
•Front button control can be disabled/enabled via serial control if desired.
•Press and hold Output 1 + Output 4 buttons simultaneously for 10 seconds to reset the unit to factory
default. The front LEDs will scroll during boot up
IR Sensor: Mount IR an IR emitter from control system or IR connection block. Refer to IR Remote Control
section for correct button press sequence
HDMI Inputs and LEDs (4):Using an HDMI cable, connect your HDMI sources.
•LED (Blue) illuminates solid to indicate an active incoming HDMI signal.
HDMI Outputs and LEDs (4):Using an HDMI cable, connect your HDMI displays.
•LED (Blue) with active Hot Plug Detection voltage from the connected display/sync device.
HDMI Input & Outputs Port Specifications
•Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps signals
oSee Supported standard 4K Video Formats table
•Supports HDR10
•Compliant with HDCP 2.2 and previous
•Supports lossless compressed audio formats including Dolby® TrueHD, Dolby® Digital Plus, Dolby
Atmos®, and DTS-HD Master Audio™
•Does not support CEC
•For DVI-D/DVI-I sources or monitors, use appropriate adapters. For Display Port, use active
converters

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
12

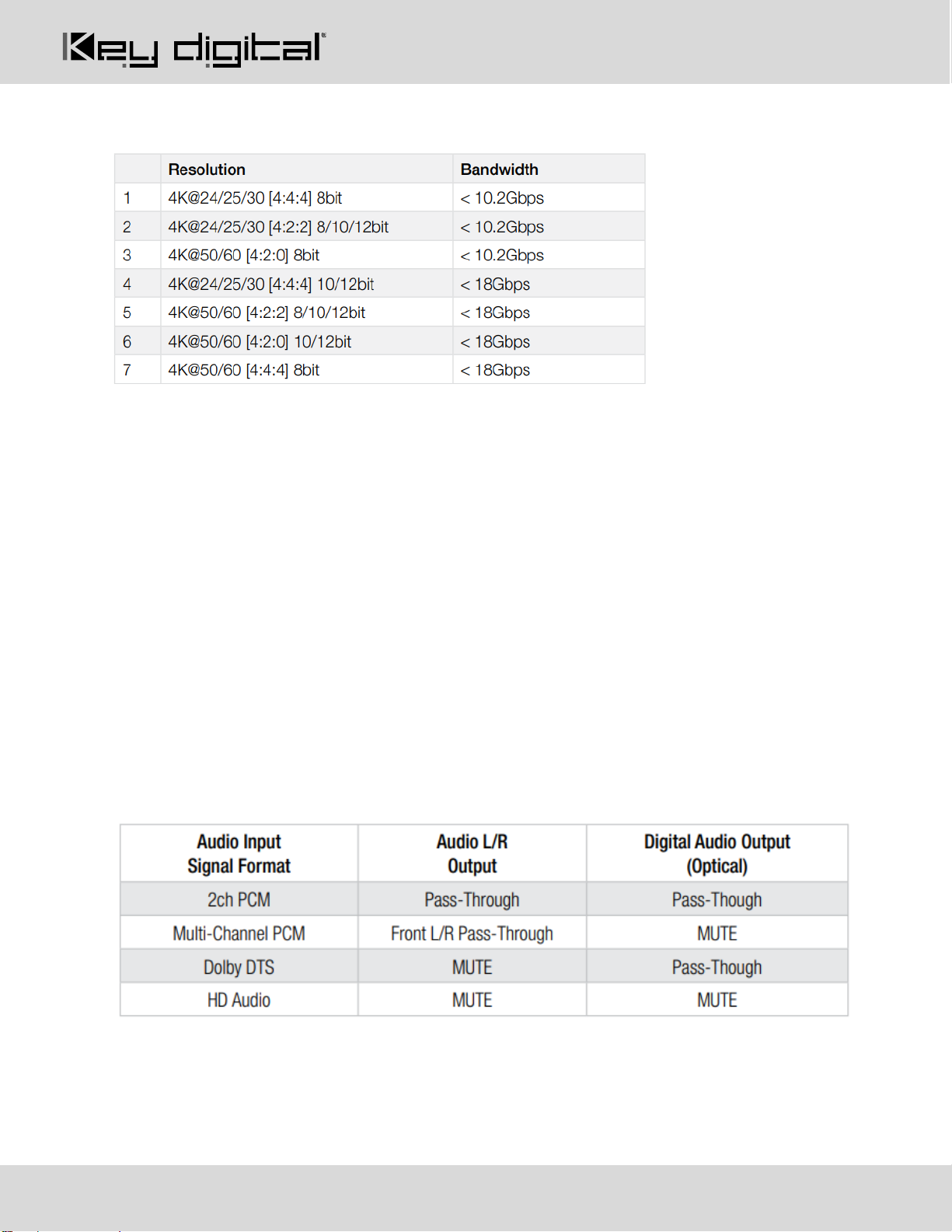

Supported Standard 4K Video Formats
Analog Audio Outputs (4): 6-pin phoenix balanced / un-balanced
•Provides 2ch balanced or un-balanced analog audio output from the selected HDMI input source.
•The Pin assignment for the audio is as follows:
oLeft + is Pin 1; Left - is Pin 3; Left Ground is Pin 2.
oRight + is Pin 4; Right - is Pin 6; Right Ground is Pin 5.
•For un-balanced audio, use the + and Ground pins of each channel
•Drives audio signals up to 2VRMS with a sampling rate of 192KHz
•There are no volume or tone control features
•There are no format conversion features. For example, to achieve 2ch analog audio output, the selected
HDMI input source audio format must be 2ch.
Digital Audio Outputs (4): Optical
•Provides digital audio output from the selected HDMI input source.
•Supports PCM, SPDIF (IEC 60958), Dolby Digital®, and DTS™up to 5.1 / 6.1
•There are no volume or tone control features
•There are no format conversion features. For example, to achieve 2ch analog audio output, the selected
HDMI input source audio format must be 2ch.
Service USB (1):
•Micro USB port

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
13
•Used for configuration and control from
PC via KDMS Pro, KDMS, or third-
party control terminal
•Used for firmware updates (consult
with Key Digital tech support before
updating firmware).
oNote: After updating firmware,
all unit settings are restored to
defaults except IP information.
Please collect all customized
settings info before loading
firmware.
•Supports USB driver for Windows, Mac
•Will register as “Prolific USB-to-Serial
Comm Port in Device Manager
•Can be used as RS-232 control port.
Baud rate is 115,200.
Ground Screw: Connect to ground screw on rack or direct to ground wire from ground post to ensure solid
grounding of the main unit.
TCP/IP Unit Control: Used for unit control from a control system and/or PC
•Connect ethernet cable from the KD-MS4x4G-2 to a network router or connect a straight through cable
directly from a PC
•Default static IP address is 192.168.1.239, port 23
•Unit configuration, control, and firmware updates are achieved with Key Digital Management Software™
Pro (KDMS™Pro) downloaded HERE.
•See TCP/IP and RS-232 Commands section for full API
IR & RS-232 Unit Control: Used for unit control from a control system and/or PC
•6-Pin Terminal Block for IR and RS-232
•Pin out:
oPin 1 = Serial (Wired) IR In
oPin 2 = IR Ground
oPin 3 = No Connection
oPin 4 = RS-232 Tx Data
oPin 5 = RS-232 Ground
oPing 6 = RS-232Rx Data
•See TCP/IP RS-232 Commands section for full API

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
14
TCP/IP and RS-232 Commands
TCP/IP Connection Protocol
•Default IP address = 192.168.1.239
•TCP/IP Port Number = 23
•Notes: Use Raw / Other service, not Telnet.
Maximum of two TCP/IP socket supported at a time.
Simultaneous TCP/IP and web sockets are supported. Multiple web sockets are supported.
RS-232 Connection Protocol
•Baud Rate = 57,600 bits per second as default
•Data Bits = 8
•Stop Bits = 1
•Parity = None
•Flow Control = None
•Carriage Return = Required at end of each string
Notes:
•Commands are not case-sensitive
•Spaces are shown for clarity; commands should NOT have any spaces
•After a new command is received, a prompt should be sent back
Help Command (H). Returns entire API in readable format:
-------------------------------------------------------------------------
-- Key Digital Systems HELP --
-------------------------------------------------------------------------
-- KD-MS4x4G-2 F/W Version : 1.00 --
-- --
-- H : Help --
-- STA : Show Global System Status --
-- PF : Power Off --
-- PN : Power ON --
-- --
-- Video Input Setup Command : ( xx=[01~04,A=All] ) --
-- SPI xx ON/OFF : Set Input xx ON/OFF --
-- --

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
15
-- Video Output Setup Command : --
-- (xx=[01~04,A=All], yy=[01~04, U=Up, D=Down]) --
-- SPO xx SB yy : Set Video Output xx to Input yy --
-- SPO xx SI yy : Set Video-Audio Output xx to Input yy --
-- SPO xx DBG ON/OFF : Set Video Output xx's Debug Mode to ON/OFF --
-- --
-- Audio Output Setup Command : --
-- (xx=[01~04,A=All], yy=[01~04, U=Up, D=Down]) --
-- SPO xx HA E/D : Set HDMI Audio Output xx to Enable/Disable --
-- SPO xx SA yy : Set Audio Output xx to Input yy --
-- SPO xx AA E/D : Set Balanced Audio Output xx to Enable/Disable --
-- SPO xx DA E/D : Set Optical Output xx to Enable/Disable --
-- --
-- Input/Output/Device Naming Commands (Max. 16 Chars) --
-- SPI xx WN cccccccccccccccc : Write Input xx Name --
-- SPI xx RN : Read Input xx Name --
-- SPO xx WN cccccccccccccccc : Write Output xx Name --
-- SPO xx RN : Read Output xx Name --
-- SPC WN cccccccccccccccc : Write Device Name --
-- SPC RN : Read Device Name --
-- --
-- Network Setup, ( xxx=[000-255], zzzz=[0001~9999] ) --
-- SPCETIPA xxx.xxx.xxx.xxx : Set Host IP Address to xxx.xxx.xxx.xxx --
-- SPCETIPM xxx.xxx.xxx.xxx : Set Net Mask to xxx.xxx.xxx.xxx --
-- SPCETIPR xxx.xxx.xxx.xxx : Set Route IP Address to xxx.xxx.xxx.xxx --
-- SPCETIPP zzzz : Set TCP/IP Port to zzzz --
-- SPCETIPB : Apply New Network Config --
-- --
-- EDID Setup Command ( xx=[01~04,A=All], yy=[01~04], zz=[01-15] ) --
-- SPCEDID xx H yy : Copy EDID from HDMI Ouput yy to Input xx --
-- SPCEDID xx D zz : Copy EDID from Default EDID zz to Input xx --
-- DEFAULT EDID 01 : HDMI 1080i@60, 2CH PCM Audio --
-- DEFAULT EDID 02 : HDMI 1080i@60, Audio PCM,DTS/DOLBY --
-- DEFAULT EDID 03 : HDMI 1080i@60, Audio PCM,DTS/DOLBY/HD --
-- DEFAULT EDID 04 : HDMI 1080p@60, Audio 2CH PCM Audio --

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
16
-- DEFAULT EDID 05 : HDMI 1080p@60, Audio PCM,DTS/DOLBY --
-- DEFAULT EDID 06 : HDMI 1080p@60, Audio PCM,DTS/DOLBY/HD --
-- DEFAULT EDID 07 : HDMI 4Kx2K@60/3D/HDR10/10G, 2CH PCM Audio --
-- DEFAULT EDID 08 : HDMI 4Kx2K@60/3D/HDR10/10G, PCM,DTS/DOLBY --
-- DEFAULT EDID 09 : HDMI 4Kx2K@60/3D/HDR10/10G, PCM,DTS/DOLBY/HD --
-- DEFAULT EDID 10 : HDMI 4Kx2K@60/3D/HDR10/18G, 2CH PCM Audio --
-- DEFAULT EDID 11 : HDMI 4Kx2K@60/3D/HDR10/18G, PCM,DTS/DOLBY --
-- DEFAULT EDID 12 : HDMI 4Kx2K@60/3D/HDR10/18G, PCM,DTS/DOLBY/HD --
-- DEFAULT EDID 13 : DVI Video Max. 1280x720@60, No Audio --
-- DEFAULT EDID 14 : DVI Video Max. 1920x1080@60, No Audio --
-- DEFAULT EDID 15 : HDMI 4Kx2K@30/3D/HDR10/10G, 2CH PCM Audio --
-- --
-- System Control Setup Commands: ( z=[0~4] ) --
-- SPC FB E/D : Set Front Panel Buttons E/D (E=Enable,D=Disable) --
-- SPC FCM x : Set A/V Switching Mode x=[0-2] for Front Panel Button --
-- [0: HDMI + Ext. Audio, 1 = HDMI AV, 2= Ext. Audio ] --
-- SPC RSB z : Set Main RS232 Baud Rate to z bps, z=[0-4] --
-- [0:57600, 1:38400, 2:19200, 3:9600, 4:4800] --
-- SPCDF : Reset All Settings to Factory Default --
-- SPCDF 00 : Reset All Settings except of Network/Naming Setting --
-------------------------------------------------------------------------
Status Command (STA). Returns unit status and settings in readable format:
-------------------------------------------------------------------------
-- Key Digital Systems STATUS --
-------------------------------------------------------------------------
-- Model Number: KD-MS4x4G-2, Device Name: MS4x4G-2_0001 --
-- Main F/W Ver: 1.00 --
-- --
-- Power : ON --
-- RS232 : Baud Rate=57600bps, Data=8bit, Parity=None, Stop=1bit --
-- Front Panel Button : Enabled, A/V Switching Mode= HDMI + Ext. Audio --
-- --
-- Network Setting Status --
-- MAC Address = 60:89:B1:21:10:01 --

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
17
-- Host IP Address = 192.168.001.239 --
-- Net Mask = 255.255.255.000 --
-- Router IP Address = 192.168.001.001 --
-- TCP Port = 0023 --
-- --
-- Video Input Status --
-- 01: IN = ON, EDID = DEFAULT10, Link = ON, Name = Input 01 --
-- 02: IN = ON, EDID = DEFAULT10, Link = ON, Name = Input 02 --
-- 03: IN = ON, EDID = DEFAULT10, Link = ON, Name = Input 04 --
-- 04: IN = ON, EDID = DEFAULT10, Link = ON, Name = Input 04 --
-- --
-- Video Output Status --
-- 01: Input = 01, Link = ON, DBG = OFF, HA = Enable , --
Name = Display 01 --
-- 02: Input = 02, Link = ON, DBG = OFF, HA = Enable , --
Name = Display 02 --
-- 03: Input = 03, Link = OFF, DBG = OFF, HA = Enable , --
Name = Display 03 --
-- 04: Input = 04, Link = OFF, DBG = ON , HA = Enable , --
Name = Display 04 --
-- --
-- External Audio Output Status --
-- 01 : Input = 01, Analog Balanced = Enable, Optical = Enable --
-- 01 : Input = 02, Analog Balanced = Enable, Optical = Enable --
-- 01 : Input = 03, Analog Balanced = Enable, Optical = Enable --
-- 01 : Input = 04, Analog Balanced = Disable, Optical = Disable --
-------------------------------------------------------------------------
Specifications
Technical
•Input (Each): 1 HDMI Connector, Type A, 19 Pin Female
•Output (Each): 1 HDMI Connector, Type A, 19 Pin Female
•Output (Each): Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio
input with a sampling rate of 192KHz

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
18
•Output (each): TOSlink optical digital audio following SPDIF format (IEC 60958). Supports sampling rate
up to 192KHz
•Video Bandwidth: TMDS bandwidth 18 Gbps
•DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
•HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
•DDC Communication: EDID and HDCP Bi-directional buffering to Display and Source
•Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
•Audio Bandwidth: 20Hz to 20kHz @ 0dBu
•TND + Noise: 0.33% @0dBu @ 1kHz
•Optical Max Output Level: 1Vpp on 75Ω, DC coupling
•Wired IR: modulated IR signal input, 0-5V TTL or -10 to +10V
•Power: 12V/1.66A (20W) AC Power Supply with Grounded, 2.1mm ID DC Power Jack with Screw In
Type
General
•Regulation: CE, RoHS, WEEE, EAC
•Product Dimensions (LxWxH): 17.24 x 7.48
x 1.73” (438 x 190 x 44mm)
•Product Weight: Weight: 5.62 lbs / 2.55 kg
•Packaging Dimensions (LxWxH): 19.48 x
12.20 x 3.14” (495 x 310 x 80mm)
•Packaging Weight: 7.94 lbs / 3.62 kg
Warranty Information
All Key Digital® products are built to high manufacturing standards and should provide years of trouble-free
operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy.
http://www.keydigital.com/warranty.htm
Product Warnings & Safety Instructions
Important Product Warnings:
1. Connect all cables before providing power to the unit.
2. Test for proper operation before securing unit behind walls or in hard to access spaces.
3. If installing the unit into wall or mounting bracket into sheet-rock, provide proper screw support with bolts
or sheet-rock anchors.
Safety Instructions:
Please be sure to follow these instructions for safe operation of your unit.
1. Read and follow all instructions.

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
19
2. Heed all warnings.
3. Do not use this device near water.
4. Clean only with dry cloth.
5. Install in accordance with the manufacturer’s instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Refer all servicing to qualified service personnel. Servicing is required when the device has been
damaged in any way including:
oDamage to the power supply or power plug
oExposure to rain or moisture
Power Supply Use:
You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and
risk damage to your unit and associated equipment.
NOTES

521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 –Nov, 2022
20
