Keysight 2050 X Series User manual

Keysight 2050/60 X-Series
Wide Dynamic Range Power
Sensors
Wide dynamic range power sensors for
any modulated signals
User’s Guide

2Keysight 2050/60 X-Series User’s Guide
Notices
Copyright Notice
© Keysight Technologies 2015–2018
No part of this manual may be repro-
duced in any form or by any means
(including electronic storage and
retrieval or translation into a foreign
language) without prior agreement and
written consent from Keysight Technol-
ogies as governed by United States and
international copyright laws.
Manual Part Number
U2063-90002
Edition
Edition 1, July 29, 2018
Printed in:
Printed in Malaysia
Published by:
Keysight Technologies
Bayan Lepas Free Industrial Zone,
11900 Penang, Malaysia
Technology Licenses
The hardware and/or software
described in this document are fur-
nished under a license and may be
used or copied only in accordance with
the terms of such license.
Declaration of Conformity
Declarations of Conformity for this
product and for other Keysight prod-
ucts may be downloaded from the
Web. Go to http://www.keysight.com/
go/conformity. You can then search by
product number to find the latest Dec-
laration of Conformity.
U.S. Government Rights
The Software is “commercial computer
software,” as defined by Federal Acqui-
sition Regulation (“FAR”) 2.101. Pursu-
ant to FAR 12.212 and 27.405-3 and
Department of Defense FAR Supple-
ment (“DFARS”) 227.7202, the U.S.
government acquires commercial com-
puter software under the same terms
by which the software is customarily
provided to the public. Accordingly,
Keysight provides the Software to U.S.
government customers under its stan-
dard commercial license, which is
embodied in its End User License
Agreement (EULA), a copy of which can
be found at http://www.keysight.com/
find/sweula. The license set forth in the
EULA represents the exclusive authority
by which the U.S. government may use,
modify, distribute, or disclose the Soft-
ware. The EULA and the license set
forth therein, does not require or per-
mit, among other things, that Keysight:
(1) Furnish technical information
related to commercial computer soft-
ware or commercial computer software
documentation that is not customarily
provided to the public; or (2) Relinquish
to, or otherwise provide, the govern-
ment rights in excess of these rights
customarily provided to the public to
use, modify, reproduce, release, per-
form, display, or disclose commercial
computer software or commercial com-
puter software documentation. No
additional government requirements
beyond those set forth in the EULA
shall apply, except to the extent that
those terms, rights, or licenses are
explicitly required from all providers of
commercial computer software pursu-
ant to the FAR and the DFARS and are
set forth specifically in writing else-
where in the EULA. Keysight shall be
under no obligation to update, revise or
otherwise modify the Software. With
respect to any technical data as
defined by FAR 2.101, pursuant to FAR
12.211 and 27.404.2 and DFARS
227.7102, the U.S. government
acquires no greater than Limited Rights
as defined in FAR 27.401 or DFAR
227.7103-5 (c), as applicable in any
technical data.
Warranty
THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED “AS IS,”
AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN
FUTURE EDITIONS. FURTHER, TO THE
MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT DIS-
CLAIMS ALL WARRANTIES, EITHER
EXPRESS OR IMPLIED, WITH REGARD
TO THIS MANUAL AND ANY INFORMA-
TION CONTAINED HEREIN, INCLUD-
ING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS
OR FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR
PERFORMANCE OF THIS DOCUMENT
OR OF ANY INFORMATION CON-
TAINED HEREIN. SHOULD KEYSIGHT
AND THE USER HAVE A SEPARATE
WRITTEN AGREEMENT WITH WAR-
RANTY TERMS COVERING THE MATE-
RIAL IN THIS DOCUMENT THAT
CONFLICT WITH THESE TERMS, THE
WARRANTY TERMS IN THE SEPARATE
AGREEMENT SHALL CONTROL.
Safety Information
CAUTION
A CAUTION notice denotes a hazard. It
calls attention to an operating proce-
dure, practice, or the like that, if not
correctly performed or adhered to,
could result in damage to the product
or loss of important data. Do not pro-
ceed beyond a CAUTION notice until
the indicated conditions are fully
understood and met.
WARNING
A WARNING notice denotes a hazard. It
calls attention to an operating proce-
dure, practice, or the like that, if not
correctly performed or adhered to,
could result in personal injury or death.
Do not proceed beyond a WARNING
notice until the indicated conditions are
fully understood and met.

Keysight 2050/60 X-Series User’s Guide 3
Environmental Conditions
The 2050/60 X-Series is designed for indoor use and in an area with low condensation. The
table below shows the general environmental requirements for this instrument.
Regulatory Information
The 2050/60 X-Series complies with the following Electromagnetic Compatibility (EMC)
compliances:
– IEC 61326-1/EN 61326-1
– Canada: ICES/NMB-001
– Australia/New Zealand: AS/NZS CISPR11
Environmental condition Requirement
Temperature
Operating condition
– 0 °C to 55 °C
Storage condition
– –40 °C to 70 °C
Humidity
Operating condition
– Up to 95% RH at 40°C (non-condensing)
Storage condition
– Up to 90% RH at 65°C (non-condensing)
Altitude
Operating condition
– Up to 3000 m (9840 ft)
Storage condition
– Up to 15420 m (50000 ft)

4Keysight 2050/60 X-Series User’s Guide
Regulatory Markings
The RCM mark is a registered trademark
of the Spectrum Management Agency of
Australia.
This signifies compliance with the
Australian EMC Framework Regulations
under the terms of the Radio
Communications Act of 1992.
The CE mark is a registered trademark of
the European Community. This CE mark
shows that the product complies with all
the relevant European Legal Directives.
ICES/NMB-001 indicates that this ISM
product complies with the Canadian
ICES-001. Cet appareil ISM est confomre
a la norme NMB-001 du Canada.
ISM GRP.1 Class A indicates that this is
an Industrial Scientific and Medical
Group 1 Class A product.
This symbol indicates the time period
during which no hazardous or toxic
substance elements are expected to leak
or deteriorate during normal use. Forty
years is the expected useful life of the
product.
This product complies with the WEEE
Directive (2002/96/EC) marking
requirement. This affixed product label
indicates that you must not discard this
electrical/electronic product in domestic
household waste.
This symbol is a South Korean Class A
EMC Declaration. This is a Class A
instrument suitable for professional use
and in electromagnetic environment
outside of the home.
MSIP-REM-Kst-
XXXXXXXXX

Keysight 2050/60 X-Series User’s Guide 5
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/
96/EC
This instrument complies with the WEEE Directive (2002/96/EC) marking requirement. This
affixed product label indicates that you must not discard this electrical or electronic
product in domestic household waste.
Product category
With reference to the equipment types in the WEEE directive Annex 1, this instrument is
classified as a “Monitoring and Control Instrument” product.
The affixed product label is as shown below.
Do not dispose in domestic household waste.
To return this unwanted instrument, contact your nearest Keysight Service Center, or visit
http://about.keysight.com/en/companyinfo/environment/takeback.shtml for more
information.

6Keysight 2050/60 X-Series User’s Guide
Sales and Technical Support
To contact Keysight for sales and technical support, refer to the support links on the
following Keysight websites:
–www.keysight.com/find/widedynamicsensor
(product-specific information and support, software and documentation updates)
–www.keysight.com/find/assist
(worldwide contact information for repair and service)

Keysight 2050/60 X-Series User’s Guide 7
Table of Contents
Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Regulatory Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/
EC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Sales and Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1 Getting Started
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

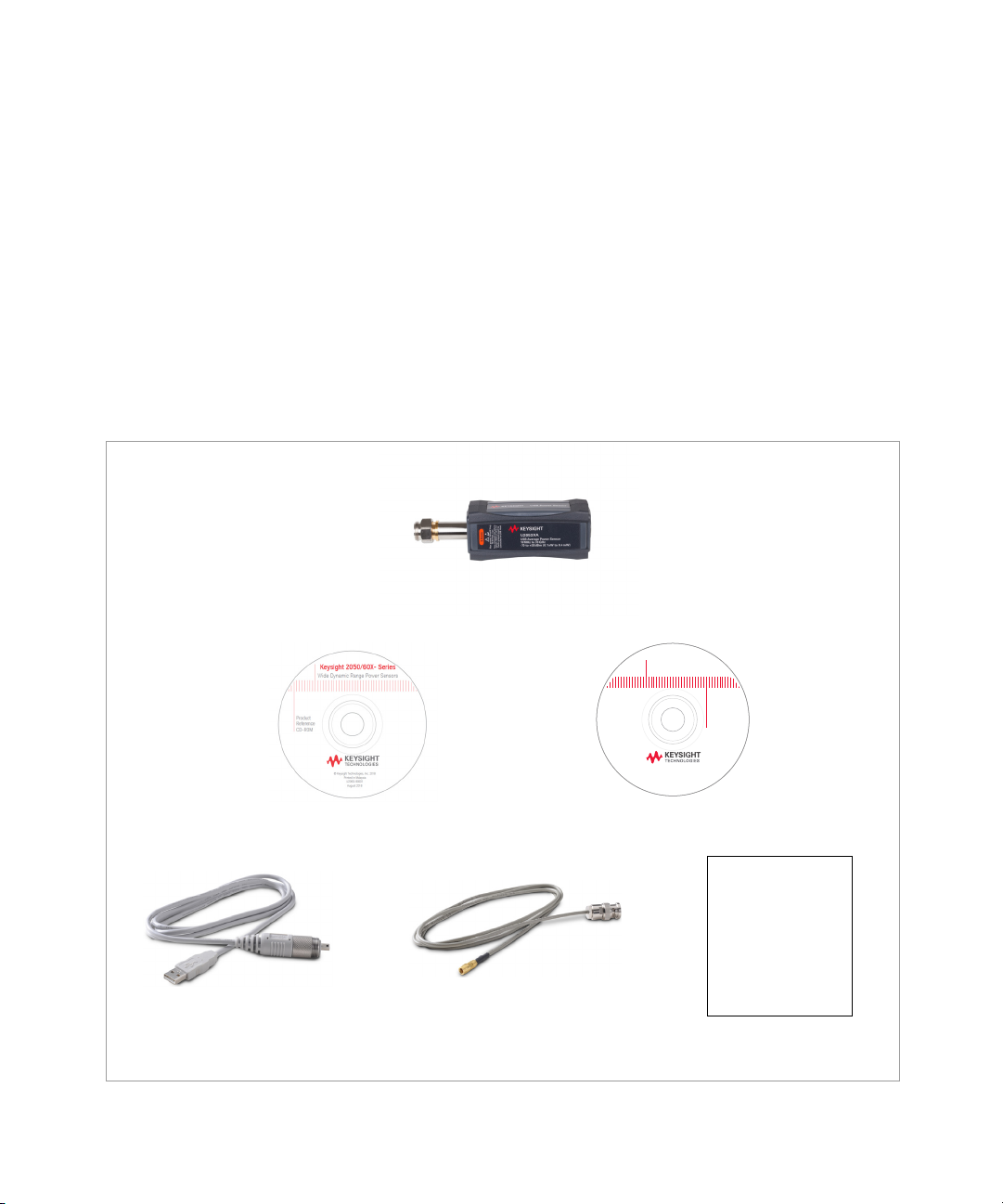

Standard shipped items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Hardware Installation and Configuration . . . . . . . . . . . . . . . . . . . . . . . 21
Connect the U2053XA/63XA sensor . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connect the L2051XA/52XA/53XA/61XA/62XA/63XA sensor . . . . 23
LED Indicator Sequence During Power-Up for the U2053XA/63XA
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Other LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
LED Indicator Sequences for the L2051XA/52XA/53XA/61XA/62XA/63XA
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Other LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2 General Operating Information
Using the 2050/60 X-Series with the Keysight BenchVue . . . . . . . . . . 44
Quick start example to perform an average power measurement . . 45
Quick start example to set up a measurement in the Trace view . . 49
Quick overview of the BenchVue Power Meter . . . . . . . . . . . . . . . . . 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Power meter settings in the Average only mode . . . . . . . . . . . . . . . . . 56
Power meter settings in the Normal mode . . . . . . . . . . . . . . . . . . . . 58
Instrument Setup tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Overview of Multiple Power Sensor Operation . . . . . . . . . . . . . . . . . . . 63
Single bench operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

8Keysight 2050/60 X-Series User’s Guide
Multiple bench operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
3 Characteristics and Specifications
AAppendix
Simplified Measurement Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Typical Averaged Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Bandwidth Filter Shapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Measurement Gates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Limit Checking Application Example . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Keysight 2050/60 X-Series User’s Guide 9
List of Figures
Figure 1-1 U2053XA/63XA sensor . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 1-2 L2051XA/52XA/53XA/61XA/62XA/63XA sensor . . . . 16
Figure 1-3 2050/60 X-Series sensor block diagram . . . . . . . . . . . 17
Figure 1-4 Connect the U2053XA/63XA sensor to the PC . . . . . . 21
Figure 1-5 Auto-locate a USB instrument in Keysight Connection
Expert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 1-6 Connect the L2051XA/52XA/53XA/61XA/62XA/63XA via
Dynamic IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 1-7 Set automatic LAN settings on the PC . . . . . . . . . . . . 24
Figure 1-8 Add a LAN instrument in Keysight Connection Expert via
host name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 1-9 Auto-locate a LAN instrument in Keysight Connection Ex-
pert via Dynamic IP . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 1-10 Connect the L2051XA/52XA/53XA/61XA/62XA/63XA via
Auto IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 1-11 Set automatic LAN settings on the PC . . . . . . . . . . . . 27
Figure 1-12 Auto-locate a LAN instrument in Keysight Connection
Expert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 1-13 Connect the L2051XA/52XA/53XA/61XA/62XA/63XA via
Static IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 1-14 Set automatic LAN settings on the PC . . . . . . . . . . . . 30
Figure 1-15 Auto-locate a LAN instrument in Keysight Connection
Expert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 1-16 Set manual LAN settings on the PC . . . . . . . . . . . . . . 32
Figure 1-17 Auto-locate a LAN instrument in Keysight Connection Ex-
pert via Static IP . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 1-18 Start instrument web interface . . . . . . . . . . . . . . . . . . 35
Figure 1-19 L2051XA/52XA/53XA/61XA/62XA/63XA web-based inter-
face (Welcome page) . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 1-20 View and modify configuration . . . . . . . . . . . . . . . . . . 36
Figure 1-21 View and modify LAN configuration settings . . . . . . . 37
Figure 1-22 Modify configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 1-23 Enter default password . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 1-24 Modify and renew LAN configuration settings . . . . . . 38
Figure 2-1 Launch the Keysight BenchVue . . . . . . . . . . . . . . . . . . 44
Figure 2-2 Accessing the BenchVue Power Meter help
documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Figure 2-3 Performing calibration and zeroing . . . . . . . . . . . . . . . 45
Figure 2-4 Setting the frequency . . . . . . . . . . . . . . . . . . . . . . . . . 45

10 Keysight 2050/60 X-Series User’s Guide
Figure 2-5 Average power meter measurement results . . . . . . . .46
Figure 2-6 Creating Datalog display view . . . . . . . . . . . . . . . . . . .46
Figure 2-7 Selecting one of the measurements . . . . . . . . . . . . . .47
Figure 2-8 Data preview bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Figure 2-9 Placing a marker on the chart . . . . . . . . . . . . . . . . . . .48
Figure 2-10 Creating a trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Figure 2-11 Performing calibration and zeroing . . . . . . . . . . . . . . .49
Figure 2-12 Setting the frequency . . . . . . . . . . . . . . . . . . . . . . . . . .50
Figure 2-13 Setting the trace scales . . . . . . . . . . . . . . . . . . . . . . . .50
Figure 2-14 Adding marker or configuring the trace using Tools Palette
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Figure 2-15 Setting the gates through Instrument Setup tab . . . .51
Figure 2-16 Viewing the power measurement results of the pulse 52
Figure 2-17 Common measurement settings pane . . . . . . . . . . . . .53
Figure 2-18 Datalog settings pane . . . . . . . . . . . . . . . . . . . . . . . . .54
Figure 2-19 Export the data log file . . . . . . . . . . . . . . . . . . . . . . . . .54
Figure 2-20 Save/load the instrument state . . . . . . . . . . . . . . . . . .54
Figure 2-21 Instrument setup (advanced settings) pane . . . . . . . .55
Figure 2-22 Power meter settings in the Average only mode . . . . .56
Figure 2-23 Power meter settings in the Normal mode . . . . . . . . .58
Figure 2-24 Instrument Setup tab . . . . . . . . . . . . . . . . . . . . . . . . . .61
Figure 2-25 Multiple Digital Meter display example . . . . . . . . . . . .63
Figure 2-26 Multi-list display example . . . . . . . . . . . . . . . . . . . . . .64
Figure 2-27 Multi-trace example . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Figure 2-28 Multiple bench display example . . . . . . . . . . . . . . . . .66

Keysight 2050/60 X-Series User’s Guide 11
List of Tables
Table 1-1 Other LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Table 1-2 Other LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table 2-1 Power meter settings in the Average only mode
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Table 2-2 Power meter settings in the Normal mode description .
59
Table 2-3 Additional Instrument Setup tab settings description 62
Table A-1 Range of values for limits . . . . . . . . . . . . . . . . . . . . . . 75

12 Keysight 2050/60 X-Series User’s Guide
THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

Keysight 2050/60 X-Series
Wide Dynamic Range Power Sensors
User’s Guide
1 Getting Started
Overview 14
Theory of Operation 17
Standard shipped items 19
Hardware Installation and Configuration 21
Connect the U2053XA/63XA sensor 21
Connect the L2051XA/52XA/53XA/61XA/62XA/63XA sensor 23
LED Indicator Sequence During Power-Up for the U2053XA/63XA Sensor 40
LED Indicator Sequence During Power-Up for the U2053XA/63XA Sensor 40
Other LED indicators 40
LED Indicator Sequences for the L2051XA/52XA/53XA/61XA/62XA/63XA Sensor 41
Other LED indicators 42
Firmware Upgrade 42
This chapter gets you started with the 2050/60 X-Series wide dynamic range power
sensors.

1 Getting Started
14 Keysight 2050/60 X-Series User’s Guide
Overview
The 2050/60 X-Series wide dynamic range power sensors consist of six USB models and
seven LAN models:
– U2053XA USB average power sensor (10 MHz to 33 GHz)
– U2063XA USB peak and average power sensor (10 MHz to 33 GHz)
– L2051XA LAN average power sensor (10 MHz to 6 GHz)
– L2052XA LAN average power sensor (10 MHz to 18 GHz)
– L2053XA LAN average power sensor (10 MHz to 33 GHz)
– L2061XA LAN peak and average power sensor (10 MHz to 6 GHz)
– L2062XA LAN peak and average power sensor (10 MHz to 18 GHz)
– L2063XA LAN peak and average power sensor (10 MHz to 33 GHz)
The 2050/60 X-Series is capable of measuring the average and peak power of modulated,
pulsed, and continuous wave (CW) signals in 10 MHz to 33 GHz frequency range and
–70 dBm to 26 dBm power range.
The L2050/60 Series LAN power sensor is capable of long distance remote monitoring of
up to 100 meters via the Power over Ethernet (PoE)/LAN connectivity. The PoE connectivity
is compliant to the IEEE 3 W, 802.3af or 802.3at Type 1 standard.
NOTE
The typical LAN port on your PC or Keysight instruments is not able to power up the L2050/
60 Series LAN power sensor. The L2050/60 Series LAN power sensor must be connected to
a PoE port, which supplies the DC power required to power up the L2050/60 Series LAN
power sensor and to transfer data.

Getting Started 1
Keysight 2050/60 X-Series User’s Guide 15
Figure 1-1 U2053XA/63XA sensor
LED indicator
Indicates the U2041/42/43/44/53/63XA state.
Refer to “LED Ind icator Sequence During Power-Up for the U2053XA/
63XA Sensor” on page 40 for more information.
RF input port for
RF/microwave signals
USB cable
Physical secure lock mechanism
USB port
External trigger ports

1 Getting Started
16 Keysight 2050/60 X-Series User’s Guide
Figure 1-2 L2051XA/52XA/53XA/61XA/62XA/63XA sensor
RF input port for
RF/microwave signals
LAN cable
LAN port
External trigger ports
Link state LED ind icators
Indicate the L2051XA/52XA/53XA/61XA/62XA/
63XA link states:
– Green solid ( ): Link speed indicator.
Lights up when the operating speed is 100 Mbps.
No indication when the operating speed is 10 Mbps
or during line isolation.
– Amber blinking ( ): Link activity indicator.
Blinks when a valid link activity is detected.
LED indicators
Indicate the L2051XA/52XA/53XA/
61XA/62XA/63XA/L2051XA/52XA/
53XA/61XA/62XA/63XA state.
Refer to “LED Ind icator Sequences for
the L2051XA/52XA/53XA/61XA/62XA/
63XA Sensor” on page 41 for more
LAN reset
switch
Push the switch button
(a straightened paper clip will do
the job) to reset the L2051XA/
52XA/53XA/61XA/62XA/63XA/
L2051XA/52XA/53XA/61XA/62XA/
63XA LAN configuration to a known
default state.

Getting Started 1
Keysight 2050/60 X-Series User’s Guide 17
Theory of Operation
Figure 1-3 2050/60 X-Series sensor block diagram
The 2050/60 X-Series sensors utilize 4 planer doped barrier diode in a 4-path microwave
circuit that enables fast average power measurements over a wide dynamic range. The 4-
path network splits the input signal into a different power range for each of the 4 diodes
such that all of them can operate in their square-law region. Ensuring diode power sensors
operate within the square-law region means that they can convert RF power to voltage in a
linear manner, regardless of the signal being measured. A single diode sensor square-law
behavior may only provide perhaps 40dB of fast dynamic range. Each of the diodes has
their own signal conditioning and analog to digital convertor which allow subsequent
digital processing to select the best diode for further processing. This in turn presents a
user experience indistinguishable from a single high dynamic range square-law power
sensor.
As a truly universal power sensor, it has features that allow different kinds of power
measurements to be made. Primarily it operates as an average power sensor and
traditionally this type of measurement means that an instrument will output a numeric
result at some rate determined by the instrument. In AVERAGE mode the sensor enables a
chopper amplifier circuit that allows low level signals to be measured in the presence of
low frequency noise. This chopper circuit operates by modulating the signal prior to
amplification; the modulation takes the form of passing or negating the signal for half-
periods of the chopper signal. Recovering the original signal within the digital processing is
achieved by averaging the ‘passing’ half-period samples together with the negated
‘negating’ half-period samples, to provide a new answer once for each period of the
chopper. The corresponding “de-chopping” is carried out in digital section to allow proper
correction and measurement of input signal. The chopper stabilization circuit essentially
remove the offset and low frequency noise contribution of the signal condition stages from

1 Getting Started
18 Keysight 2050/60 X-Series User’s Guide
affecting input signal. In this series of sensor, the chopper concept is extended to allow the
user to set an ‘aperture’ over which averaging is calculated. This aperture is selectable in
100ns resolution and provides a powerful mechanism for precisely tuning the instrument to
the signal being measured. In addition to allowing the aperture to match a particular epoch
of the RF signal, for example setting the aperture equal to a multiple of the modulation
frequency in an AM signal, there is the ability to precisely trigger the occurrence of each
measurement. This allows synchronization between the device under test and the
measurement system.
Sometimes it is necessary to examine the time varying characteristics of the power
envelope. This allows measurements of pulse duration time or pulse period for example.
This series of sensor has NORMAL measurement mode to provide 20MHz sampling of the
power envelope. In common with AVERAGE mode, the best diode from the 4 ranges is
selected transparently within the digital processing. In contract to AVERAGE mode, no
chopper switching is performed and the signal path is a direct coupled differential
amplifier. The analog signal conditioning allows the load resistor and the low pass filter
characteristics to be adjusted. Changing the load resistor also changes the response level
(V/W) of the diode detector and its video bandwidth. Changing the load capacitance will
affect the bandwidth but not the response level. Used together, these controls enable
reduced noise on the measurement for low level signals at the expense of video bandwidth.
A high speed trigger Input and trigger output are also present in each sensor to allow
proper synchronization between test instruments. Besides that, Average and Normal mode
do support internal level trigger mode on top of external trigger mode. This allows flexibility
in triggering on different input signal over a wide dynamic range.
A high speed acquisition and processing engine is also present in the sensor to enable a
complex calibration scheme to track the performance of various modes across frequency,
input power and temperature. The robust back end system also allows 2050/60 X-Series to
be paired with either conventional USB or LAN based interface. With a LAN based
interface, the prefix “U” is replaced with “L”.

Getting Started 1
Keysight 2050/60 X-Series User’s Guide 19
Initial Inspection
When you receive your 2050/60 X-Series sensor, inspect the shipping container for
damages. If the shipping container or packaging material is damaged, it should be kept
until the contents of the shipment have been checked mechanically and electrically. If
there is any mechanical damage, notify the nearest Keysight Sales and Service Office. Keep
the damaged shipping materials (if any) for inspection by the carrier and a Keysight
representative.
Standard shipped items
Verify that you have received the following items. If anything is missing or damaged, please
contact the nearest Keysight Sales Office.
U2053XA/63XA USB power sensor:
• IO Libraries Suite 17.0
• Command Expert 1.3
Update 1
• BenchVue 2.0
Install this first.
Insert this CD into your
PC CD/DVD ROM drive.
If the installation does not start
automatically, run “IOLibraries.hta”
in the Autorun folder on this CD.
© Copyright 1983-2014
Software made in USA
Part Number E2094-10016
Keysight
Instrument Control Collection
U2053XA/63XA USB power sensor
2050/60 X-Series
Product Reference CD-ROM
Keysight Instrument Control
Software CD-ROM
Trigger cable, BNC male to SMB
female, 50 W, 1.5 m (Quantity: 2)
USB cable 5 ft (1.5 m), default
cable length
Certificate of calibration
Certificate of
calibration

1 Getting Started
20 Keysight 2050/60 X-Series User’s Guide
L2051XA/52XA/53XA/61XA/62XA/63XA LAN power sensor:
L2051XA/52XA/53XA/61XA/62XA/63XA LAN
power sensor
Trigger cable, BNC male to SMB
female, 50 W, 1.5 m (Quantity: 2)
(for Option 100)
Certificate of calibration
Certificate of
calibration
Shielded LAN cable 5 ft (1.5 m),
default cable length
(for Option 100)
• IO Libraries Suite 17.0
• Command Expert 1.3
Update 1
• BenchVue 2.0
Install this first.
Insert this CD into your
PC CD/DVD ROM drive.
If the installation does not start
automatically, run “IOLibraries.hta”
in the Autorun folder on this CD.
© Copyright 1983-2014
Software made in USA
Part Number E2094-10016
Keysight
Instrument Control Collection
2050/60 X-Series
Product Reference CD-ROM
Keysight Instrument Control
Software CD-ROM
