Kia D9062 ADUP0 User manual

Genuine Accessories
Glasses Gloves
Mask Hearing Protection
1 Read the entire Installation Instructions prior to beginning the installation of the part.
2 Make sure the vehicle is completelycleanand dryin the area(s) the part is to be installed.
3 Ensure the vehicle is properlyprotected in the area(s) that the accessory is to be installed.
4 NEVER place toolson painted surfaces, seating surfaces, dash pad, console or floor carpet/mats.
5 Alwayswear appropriate personal protective equipment, including gloves, safety glasses, etc., whenrequired.
6 Record radio presets prior to disconnecting battery power, if needed.
7 Ensure the transportationfuse is set to "ON" before starting the install.
8 Roll down the driver's window and adjust the power seats(if applicable) prior to disconnecting batterypower, if needed.
Vehicle Model
D9062 ADUP0
Difficultystated above reflects the minimum level of
expertise required to install the accessory:
( B )
Mirror, Auto-dim with HL4 Comp.
(A) Customer
Denotes cautions to be taken to avoid
vehicle and component damage
Denotes cautions to be taken to avoid
physical injury or electronic component
damage
Language
English
11/23/2015
Basic Required Tools
N
O
T
E
Denotes important information to be
reviewed during the step
Denotes specific tools that are necessary
to complete a step
T20 Torx Driver
Ratchet
Slotted Screwdriver
T20 Torx Socket
Notes to the installer:
10mm Socket
Nylon Panel Removal
Tool
#2 Phillips Screwdriver
Torque Wrench
Side Cutters
Pliers
Tape Measure
Denotes quality processes to be checked
prior to moving to the next step
Denotes personal protective equipment (PPEs) that
may be required for a step. Examples of safety
equipment icons noted below:
Denotes warnings that may lead toserious
physical injury or vehicle damage
Part No.
Model Year
Copy OEM Logo Here (→)
2017~
D9062 ADU00
Difficulty:
Note:
Rev. Date
Accessory:
Sportage
(C) Master Technician or Specialist
(B) Dealer Technician
Instructional Symbols / Definitions
M10 T20
T20
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 1 of 17

Genuine Accessories
No.
1
2
Hardware Kit Contents
1 1 1 6 3
9 1 1
* Indicates extra components intentionally included in kit as spares.
Follow instructions for proper placement of each component.
Radio Presets - record customer preset frequencies if disconnecting battery power
FM10
E
Kit Overview
1
Mirror, Auto-dimming w/ HL4 & Compass
Qty
D
Description
1
Hardware Kit
C
Harness
A-Pillar Tether Clip
(85815 C1000 - White)
Wire Cover
AM1
AM2
A
FM7
F
Wire Ties*
G
Quick Ref. Guide
H
FM6
FM8
Installation Instruction
FM1
FM2
AM5
T-Taps*
FM5
SAT5
AM4
Hardware Total
23
FM4
SAT4
Foam Tape*
B
SAT1
SAT2
SAT3
FM9
FM3
AM3
1
2
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 2 of 17

Genuine Accessories
Wires may be solid color, or striped (tracer). The first color in the description Whendisconnecting the wires, grasp the connectors, not the wires.
indicates the base color of the wire; the second indicates the stripe.
Example: Example:
Solid color wire Striped Wire Correct
Incorrect

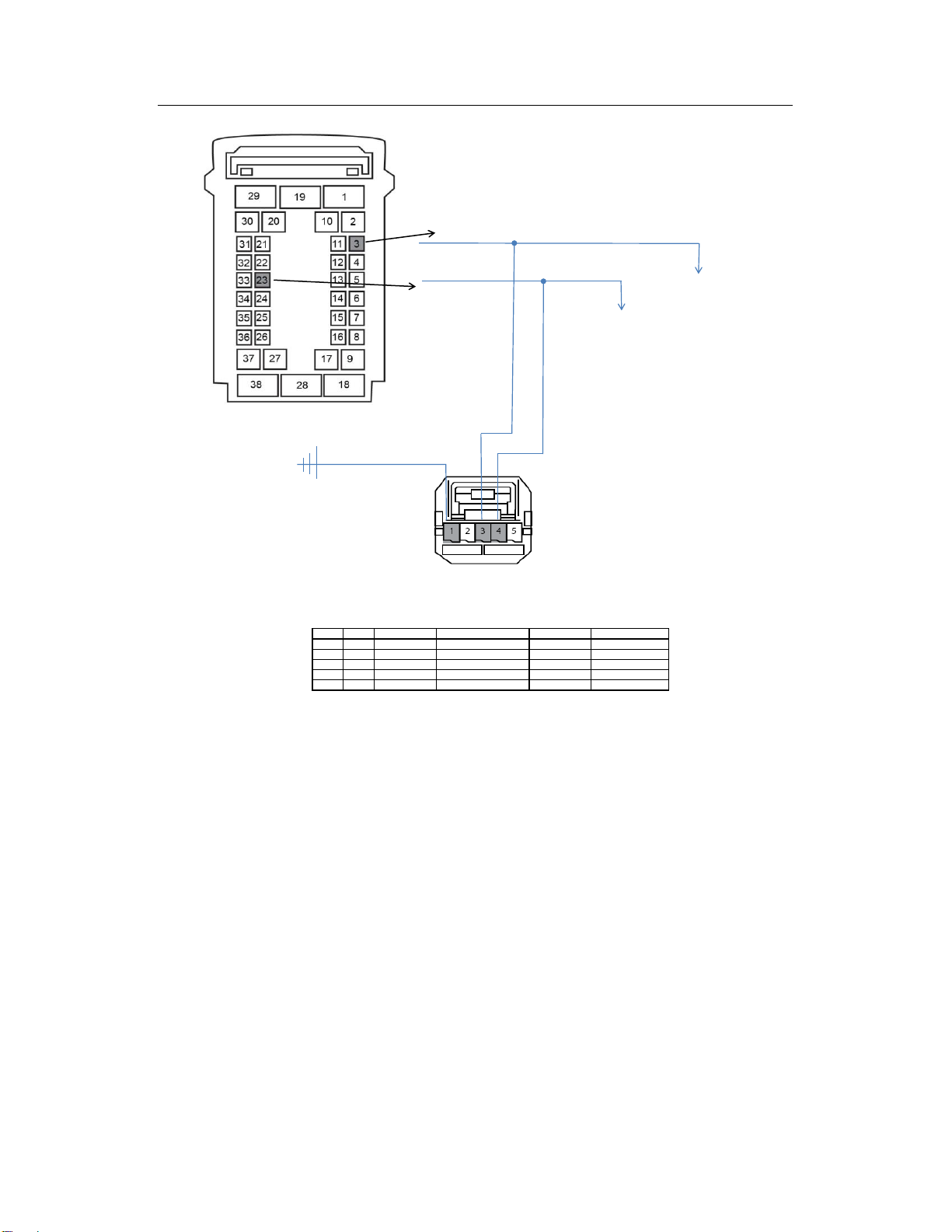

Connector diagrams show the harness side view, unless noted. The wire pin When locking connectors, listen for an audible "click" indicating the connectors
numbers are shown from the wire harness side, not the connector side.
are securely locked.
Example:
1. Place the T-tap on the vehicle wire 2. Using pliers, close and crimp T-tap around the vehicle wire.
** Extreme care must be takento ensure the male spade is inserted into the T-tap properly
3. Insert accessory harness wire withmale spade terminal into the opening in T-tap.
Special Instructions
Electrical Connection Procedure
Wire Appearance
Disconnecting Connectors
Connector Diagrams
Connecting Connectors
T-Tap Install Procedure
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 3 of 17

Genuine Accessories
1. With A-pill trim partially pulled away, reach behind trim panel and cut
tether clip, as shown above.
Side Cutters
4
N
O
T
E

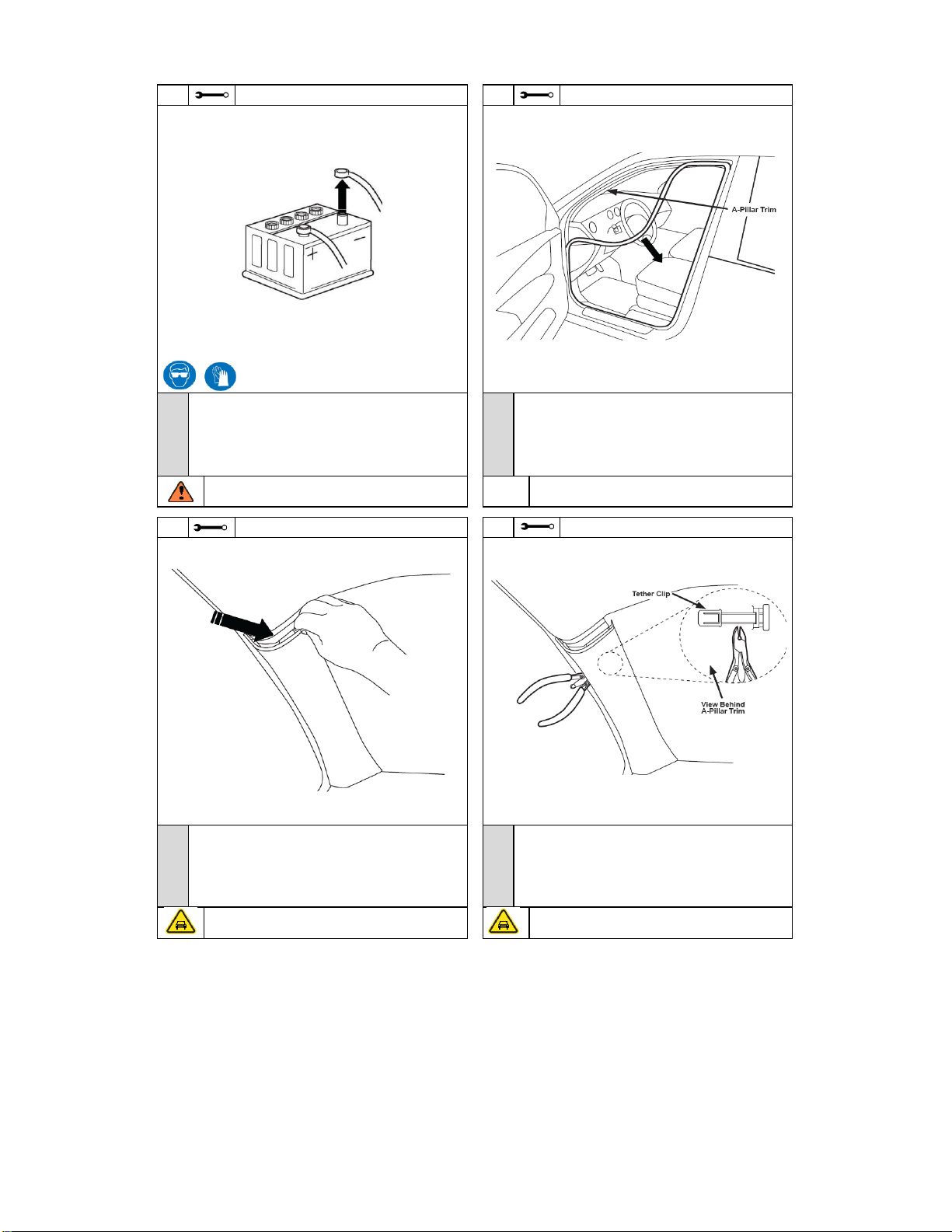

WARNING: Shock Hazard! Do not touch vehicle's negative battery
terminal to vehicle's positive battery terminal. Serious injury and damage
to the vehicle may occur.
1. Ensure the correct part is being installed. Verify the part number on
the installationorders with the part number on the kit boxlabel.
2. Write down allpre-set radio stations (if applicable).
3. Disconnect and isolate vehicle's negative battery cable.
2
N
O
T
E
N
O
T
E
3
CAUTION: Ensure care is taken to prevent damage to the A-pillar trim
panel, wire harness, sunroof drain tube, and side-curtain airbag.
1. Partially remove the A-pillar trim panelby pulling the top out towards
the vehicle passenger-side, until the A-pillar tether clip catches.
Nylon Panel Removal Tool
1. Carefully pullthe front of the driver-side door sealback to allow
removal of the A-pillar trim panel
CAUTION: If needed, use a flashlight to light behind the A-pillar trim to
avoid damaging any vehicle component with the cutting too. DO NOT cut
anything other thanthe A-pillar tether clip.
N
O
T
E
Ratchet and 10mm Socket
1
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 4 of 17

Genuine Accessories
5
6
Pliers
N
O
T
E
7
N
O
T
E
1. Continue removing the A-pillar trim panelby pulling the top out toward
the passenger side of the vehicle, until remaining one (1) clip is
released.
CAUTION: Do no scratch or damage the A-pillar trim panel.
1. Using a Phillips screwdriver, remove screw as shown above.
2. Grasp the clip, and slide toward the bottom of the A-pillar trim, then pullthe
piece out of the trim panel.
1. Using pliers, pull the remaining portion of the A-pillar tether clip out of
the A-pillar, and discard.
CAUTION: Do not damage A-pillar trim panel or headliner.
WARNING: Always use a new tether clip when re-installing the
A-pillar trim panel. Failure to use a new clip may result in serious injury or
death in the event the airbag deploys.
Do not damage the A-pillar trim panel or tether clips.
N
O
T
E
#2 Phillips Screwdriver
#2 Phillips Screwdriver
8

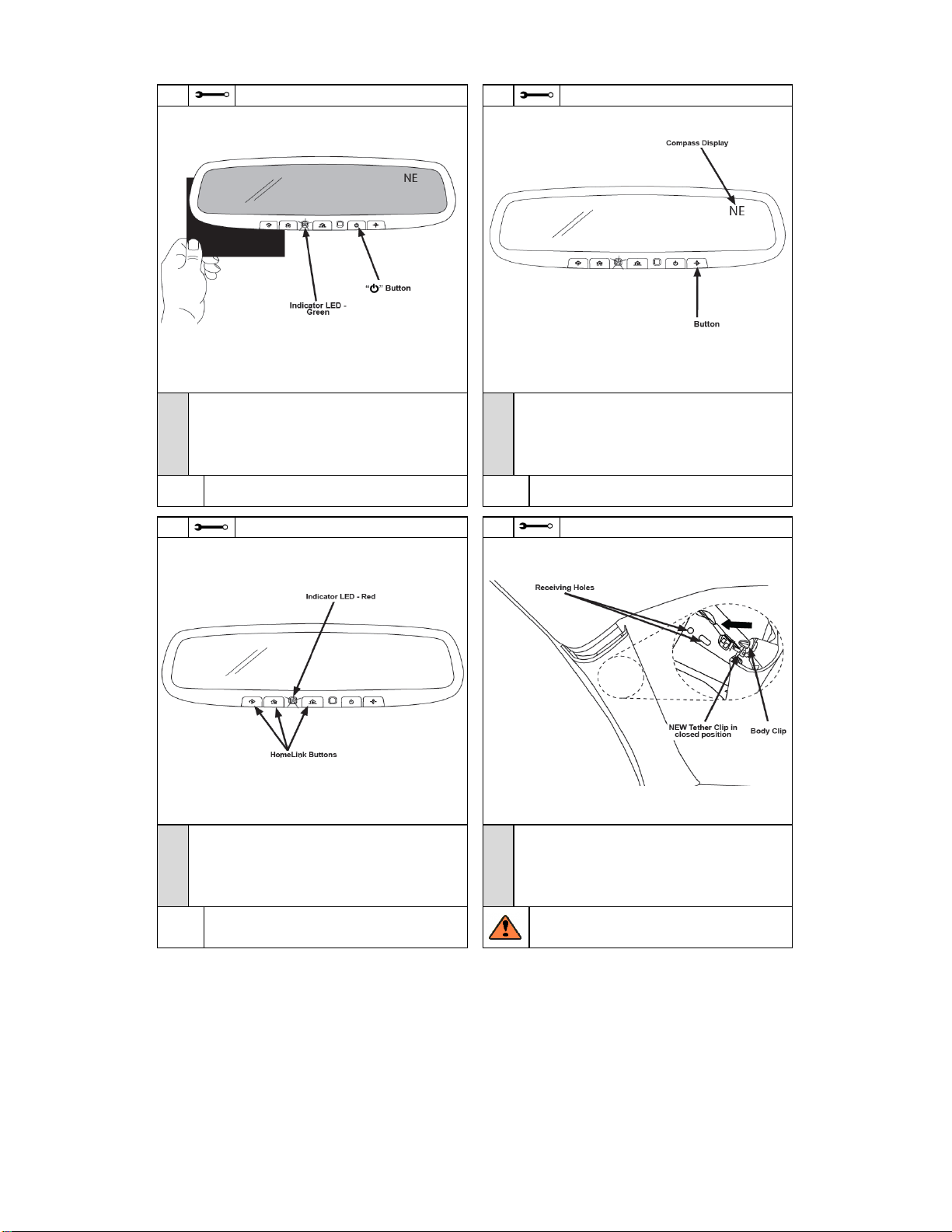

1. Place a new tether clip in the A-pillar trim panelby aligning the slot on
the trim panel with the tether clip.
2. Slide the clip upward untilit locksin place.
3. Re-install the retaining plug and screw, removed in the previous steps.
N
O
T
E
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 5 of 17

Genuine Accessories
#2 Phillips Screwdriver
N
O
T
E
9
T20 Torx Driver
N
O
T
E

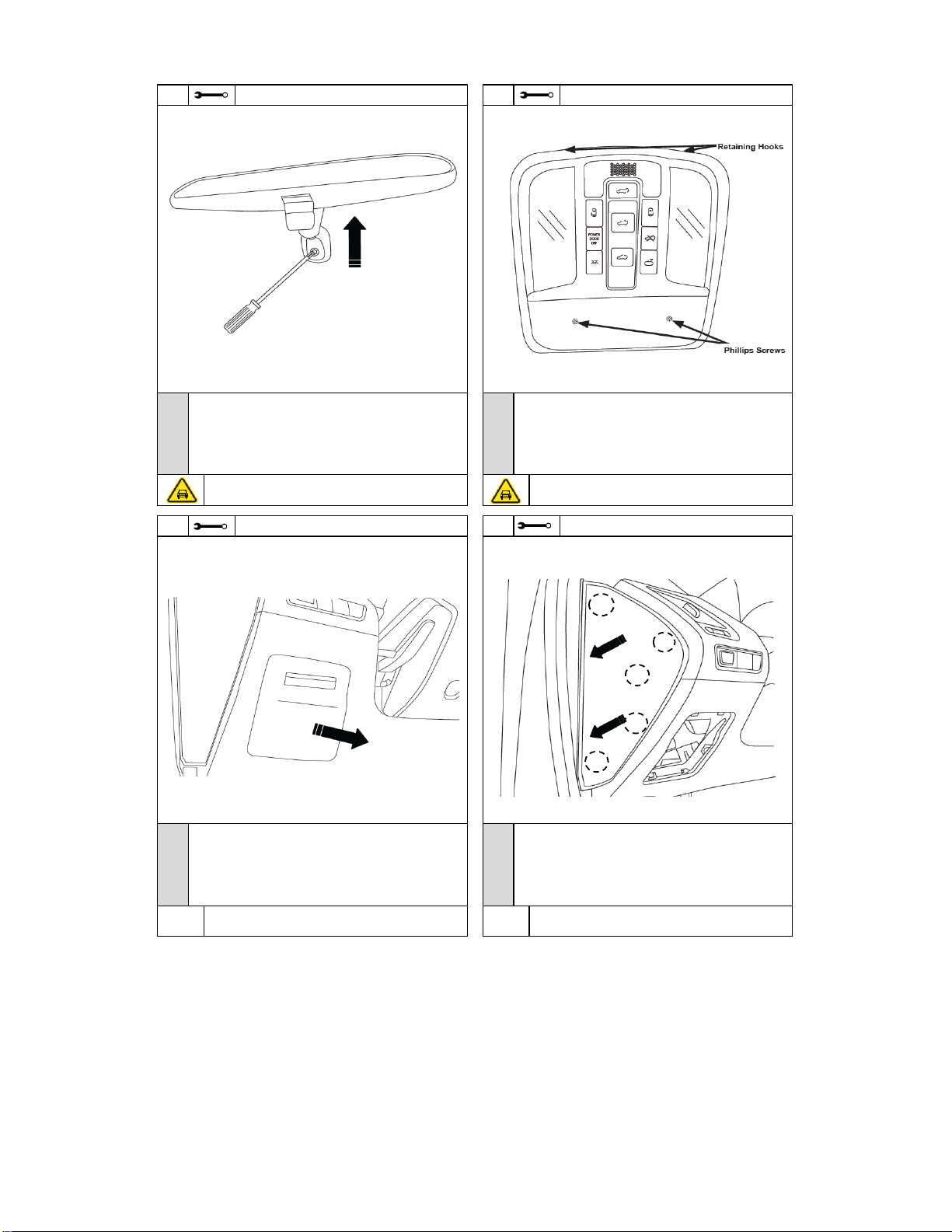

CAUTION: Take care to avoid damaging the mirror mount,
windshield, and headliner.
1. Using a T20 TorxDriver, loosen the screw on the mirror mount.
2. Gently pull the mirror upwards ina parallel direction to the windshield.
DO NOT pull the mirror awayfrom the windshield.
N
O
T
E
N
O
T
E
1. Remove the fuse panel cover, and set aside.
10
1. Reach through the fuse panel opening and push the DashSide Panel out,
by dislodging the five (5) clips.
2. Remove the DashSide Panel and set aside.
1. Open sunglass holder in the overhead console, exposing two (2)
Philips screws, and with a #2 Philips screwdriver, remove them.
2. Remove the overhead console by pulling downward starting from
the side closest to the windshield. Continue rocking side-to-side,
until the console comes free of the retaining hooks.
3. Disconnect anyelectrical connectors and place the console aside.
11
Nylon Panel Removal Tool
CAUTION: Do not damage headliner or overhead console.
12
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 6 of 17

Genuine Accessories
15
N
O
T
E

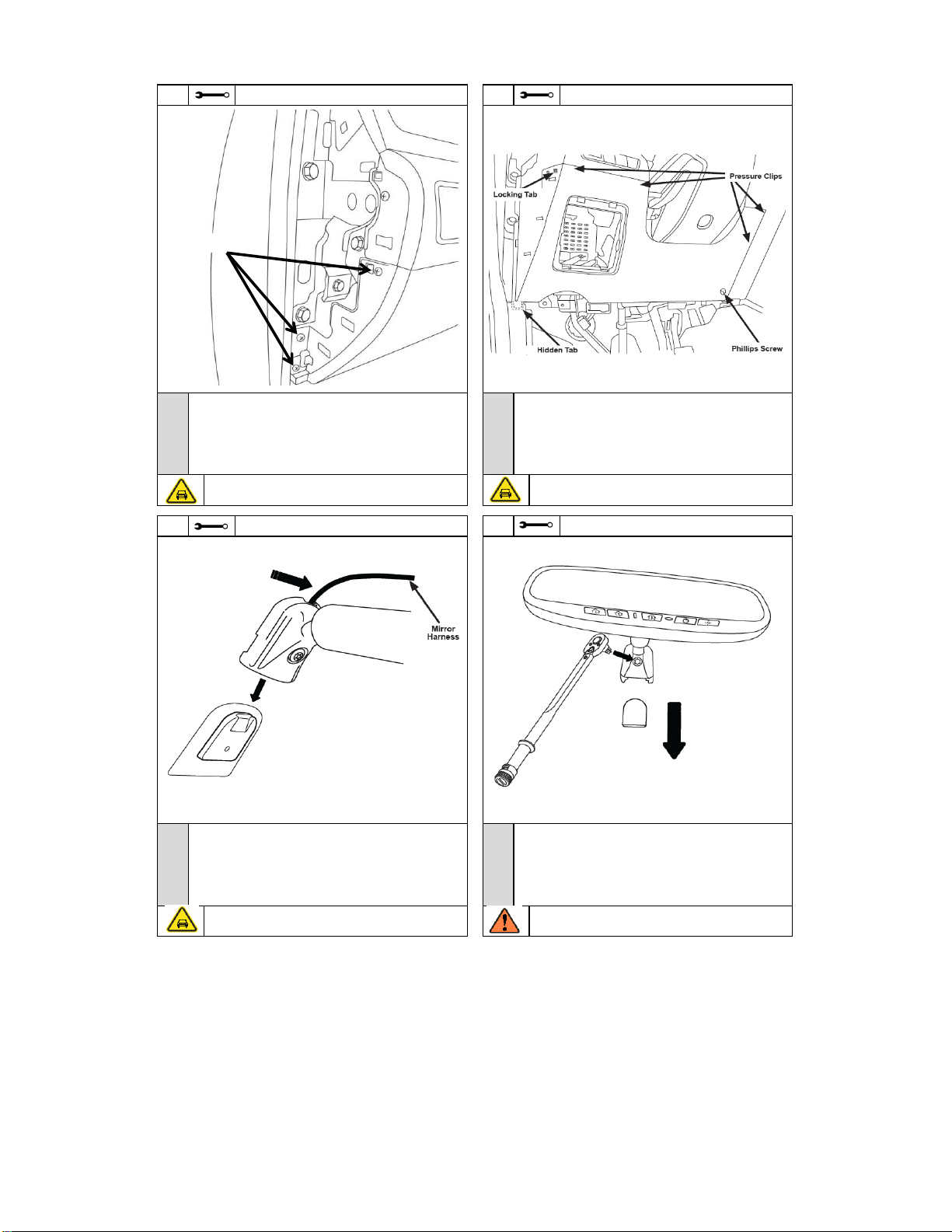

WARNING: Do not over-tighten the screw. Over tightening the
screw will not properly secure the mirror, and could cause the
mirror to break loose and injure the occupants inan accident.
CAUTION: Ensure the mirror harness is not pinched between
the mount and the windshield button.
1. Carefully pullharnesslead extending out from the mirror, through
the grove inthe top side of the mount.
2. Slide the new mirror over the windshield button. Hold the harness
away from the windshield when sliding the mirror over the button.
#2 Philips Screwdriver
N
O
T
E
14
13
N
O
T
E
#2 Philips Screwdriver & Nylon Panel Removal Tool
CAUTION: Do not scratch the lower dash trim panel.
Do not damage wires or connectors in the panel.
Do not break the hidden tab behind the driver's kick panel.
CAUTION: Do not scratch lower dash trim panel.
1. Torque the screw to 1.76 N-m (0.18 kgf-m, 1.3 lb-ft).
16
N
O
T
E
1. Using a screwdriver, remove the three (3) Philips screws from the
outside surface of the lower dash trim panel.
1. Remove one (1) Philips screw from lower right corner of lower dash
trim panel.
2. Disconnect the OBDII connector from the dash panel.
3. Using the Nylon Panel Removal Tool, release the one (1) locking tab on
the dash panel.
4. Starting at the upper right side of the panel, pullthe panel outward
releasing the clips, moving right to left.
T20 Torx Bit & Torque Wrench
Phillips Screws
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 7 of 17

Genuine Accessories

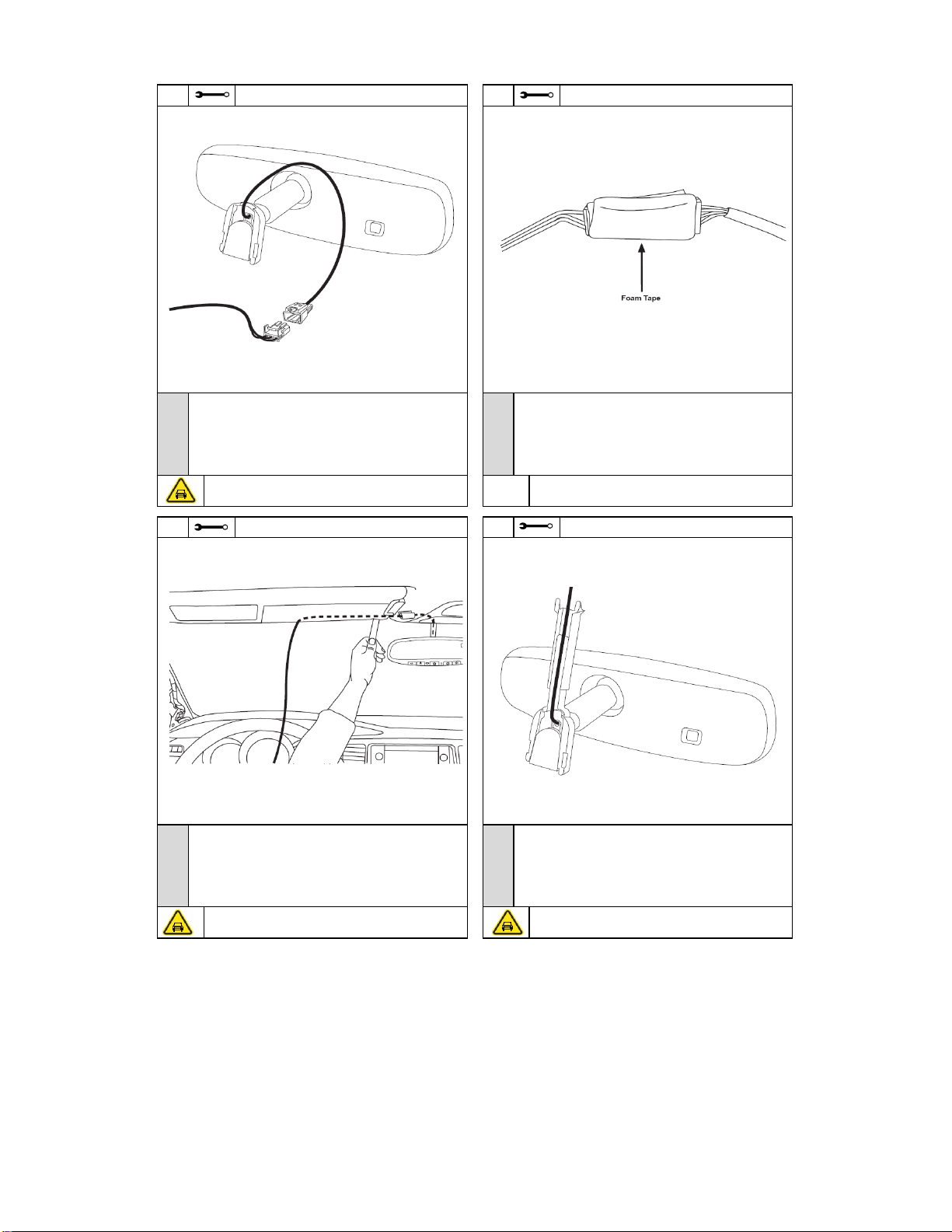

1. Wrap one (1) foam tape around the mirror harness connector, as shown.
N
O
T
E
1. Plug the 5-pin connector from the provided one (1) mirror harnessinto
the harness lead extending out from the mirror.
N
O
T
E
17
18
CAUTION: Ensure 5-pin connector is securely installed.
19
Nylon Panel Removal Tool
20
N
O
T
E
1. Begin tucking the mirror harness between the headliner and the
roof. Stop after the foam-taped harnessconnector ishidden
under the headliner.
N
O
T
E
1. Slide the provided one (1) wire cover over the mirror harness lead,
and click it into the top surface of the mirror base.
2. Extend the upper wire cover until it hooks onto the headliner.
Ensure the cover is vertical.
CAUTION: Use caution when working with the headliner to
prevent creases or damage. Make sure hands are clean.
CAUTION: Ensure cover "forks" are properly seated into mirror
and headliner.
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 8 of 17

Genuine Accessories
N
O
T
E
1. Hold the mirror harnessagainst the headliner and wrap one (1) foam
tape around the harness where it meetsthe corner of the A-pillar.
2. Wrap one (1) foam tape on the harness between the two previously
installed foam tapes.
3. Tuck the harness with the wrapped foam tape into the headliner
acrossfrom the mirror to the A-pillar.
24
N
O
T
E
1. Route mirror harness downthe A-pillar into the dash, toward engine
side of fuse panel.
NOTE: Ensure wire harness is routed away from the side curtain
airbag, and sunroof draintube, if equipped.
2. Secure mirror harness near the vehicle harness clips, and above the
electrical connector at the bottom of the A-pillar, with four (4) wire ties.
3. Trim the excess wire tie length.
CAUTION: Use caution when working with the headliner to prevent
creases or damage.
CAUTION: DO NOT secure to airbag inflator.
DO NOT secure to sunroof drain tube, if equipped.
Tape Measure
N
O
T
E
1. Pull mirror harness wires apart approximately 300mm (12in), as shown.
23
21
Tape Measure & Nylon Panel Removal Tool
22
Side Cutters
CAUTION: Ensure harness does not catchon vehicle component, or is
damaged during the routing.
CAUTION: DO NOT use a razor blade or any other sharp tool to
separate the wires. Ensure wire is not damaged during
separation.
N
O
T
E
1. Route mirror harness through dash, on the engine-side of the
junction block.
2. Route mirror harness below the junction block, pulling the 3 terminals
toward the driver's seat.
Foam Tape
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 9 of 17

Genuine Accessories
27
Pliers
28
N
O
T
E
1. Locate Connector C (38 pinconnector) onthe front side of the
junction block (furthest side from the engine).
N
O
T
E
1. Locate Pin 23 (BROWN wire) of Connector C.
25
26
N
O
T
E
1. Attach one (1) T-tap to the wire at Pin 23 (Brown wire).
Use Pliers to snap the T-tap together.
Refer to the Electrical ConnectionProcedure at the beginning of the
instructions for more details.
N
O
T
E
1. Insert male spade terminal of the mirror harness (Black w/ White wire)
into the T-tap connector (Brown wire), for switched ignitionpower.
Refer to the Electrical ConnectionProcedure at the beginning of the
instructions for more details.
CAUTION: Ensure the correct wire is identified.
NOTE: Factory wire colors are subject to change at any time.
Refer to the pin number to correctly identify the circuit.
CAUTION: Ensure that the wire is in the slot of the T-tap, and that both
halves of the T-tap are snapped together properly.
CAUTION: Ensure the male spade connector is fully inserted into the wire
tape. Check that the spade did not "miss" the female slot. Check that the
males spade is not visible on either side of the female connector.
Connector C
Pin 23
Brown
Pin 20
Pin 19
T-Tap on
Pin23
Brown
Black w/
White wire
connected
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 10 of 17

Genuine Accessories
N
O
T
E

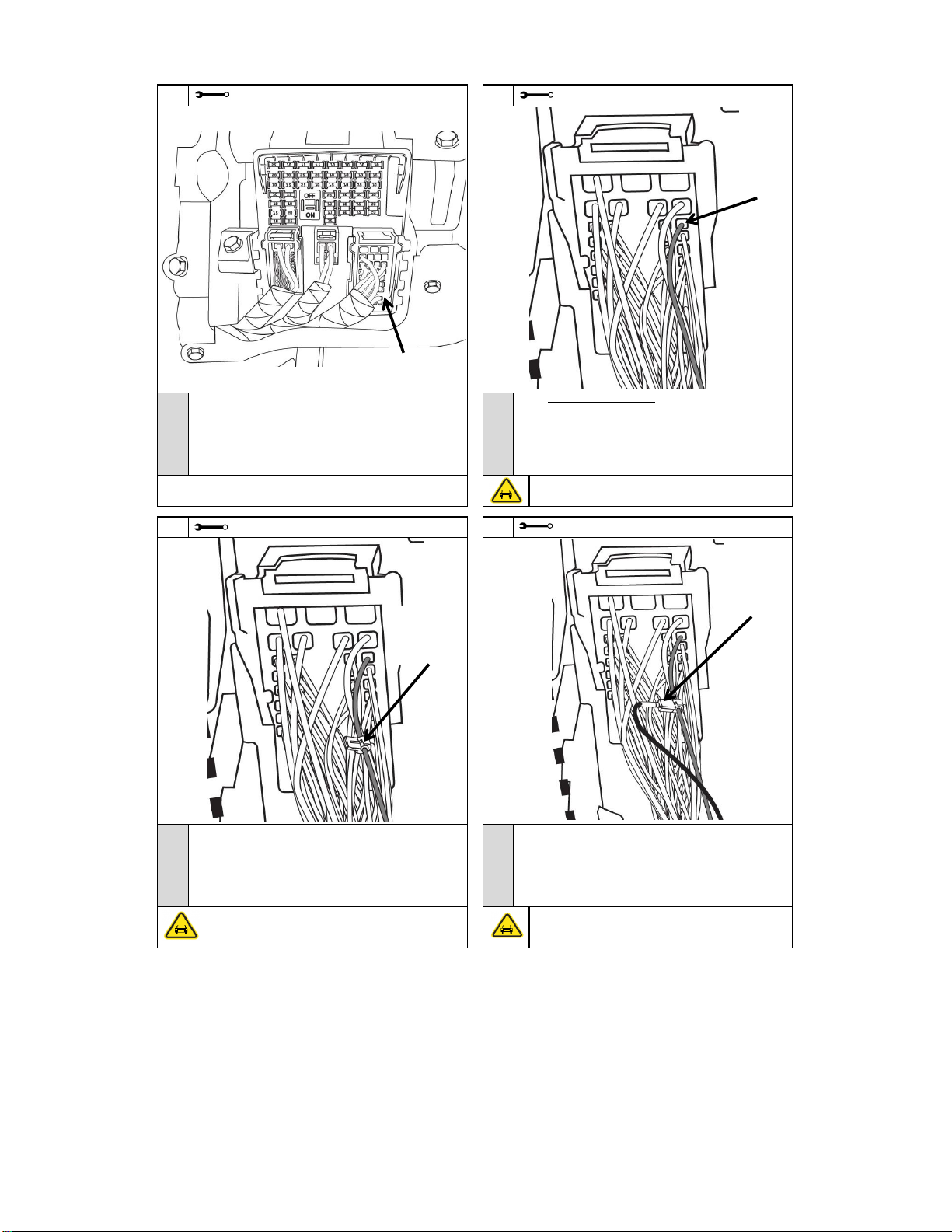

1. Continue working withConnector C (51 pin connector) onthe front side of
the junctionblock (furthest side from the engine).
N
O
T
E
1. Locate Pin 3 (GRAY w/ ORANGE wire) of Connector C.
29
30
CAUTION: Ensure the correct wire is identified.
NOTE: Factory wire colors are subject to change at any time.
Refer to the pin number to correctly identify the circuit.
Pliers
32
N
O
T
E
1. Attach one (1) T-tap to the wire at Pin 3 (Gray w/ Orange wire).
Use Pliers to snap the T-tap together.
Refer to the Electrical ConnectionProcedure at the beginning of the
instructions for more details.
N
O
T
E
1. Insert male spade terminal of the mirror harness (Black wire) into the
T-tap connector (Gray w/ Orange wire), for switched ignition power.
Refer to the Electrical ConnectionProcedure at the beginning of the
instructions for more details.
31
CAUTION: Ensure that the wire is in the slot of the T-tap, and that both
halves of the T-tap are snapped together properly.
CAUTION: Ensure the male spade connector is fully inserted into the wire
tape. Check that the spade did not "miss" the female slot. Check that the
males spade is not visible on either side of the female connector.
Connector C
Pin 3
Grey w/
Orange
T-Tap on
Pin3 Grey
w/ Orange
Black wire
connected
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 11 of 17

Genuine Accessories
33
10mm Socket & Ratchet
34
10mm Socket & Torque Wrench
N
O
T
E
1. Locate the 10mm bolt at the lower left corner of the steel knee bolster.
2. Remove the 10mm bolt.
N
O
T
E
1. Place the ground ring of the mirror harness onto the removed
bolt and reinstall.
2. Secure the ground bolt, and torque to 6.8N-M (0.7 kgf-m, 5.0 lbf-ft).
CAUTION: Ensure the ground bolt is secure.
35
Side Cutters
36
10mm Socket & Torque Ratchet
N
O
T
E
1. Take up any excess harnessslack and secure to vehicle harness
with one (1) wire tie, as shown. Trim excess wire tie length.
2. Place one (1) piece of foam tape over the ground wire to secure it to the
vehicle body as shown.
N
O
T
E
Function Check Preparation:
1. Reconnect the negative battery cable, and torque to 3.93 N.m (0.40 kgf.m,
2.9 lb-ft).
WARNING: Shock Hazard! Do not touch vehicle's negative battery
terminal to vehicle's positive battery terminal. Serious injury and damage
to the vehicle may occur.
10mm Bolt
Ground Ring
Secured
under 10
mm
Bolt
Foam Tape
Wire Tie
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 12 of 17

Genuine Accessories
37
38
Function Check
Function Check
N
O
T
E
1. Cover the forward-facing photocell witha dark clothor towel.
2. Turn the ignition to "ON".
3. Verify that the green LED (light left of center) is on. If not, press and
hold the power button to turn the green LED on.
4. With the dark cloth in place, and the power on, the mirror willdarken.
5. Remove the dark cloth, and the mirror will return to normal.
N
O
T
E
1. Verify that a direction or calibrate (such as "NE" or "C") is displayed
in the display window. If not, ensure the compass feature is
turned on by pressing the compassbutton.
39
40
Function Check
N
O
T
E
1. Turn the ignition to "OFF"
2. Ensure the compassdisplay is no longer visible, and the greenLED is no
longer on.
3. Press each HomeLink button, one-at-a-time, and verify that the LED
indicator to the right of the center buttonilluminates with a red LED when
buttons are pressed.
N
O
T
E
1. Ensuring a new tether clip hasbeen inserted into the A-pillar trim panel
and begin re-install of the A-pillar trim panel.
2. Insert the A-pillar lower surface into the mating surface on the top of the
dash panel.
3. Move the panel closer to the A-pillar, aligning the clips with their
corresponding holes. Carefully snap the panel into place.
WARNING: Always use a new tether clip when re-installing the
A-pillar trim panel. Failure to use a new clip may result in serious injury or
death in the event the airbag deploys.
Do not damage the A-pillar trim panel or tether clips.
Compass
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 13 of 17

Genuine Accessories
N
O
T
E
1. Place the provided one (1) Quick Reference Guide inthe glove box.
3. Cleanfingerprints, smudges, etc. from mirror and windshield.
CAUTION: DO NOT spray glass cleaner or other cleaning liquid
directly on the mirror as it may damage the electronics.
Reassmble Vehicle
N
O
T
E
1. Re-install, in reverse order, all remaining trim panels removed
during installation.
42
41
2
1
N
O
T
E
1. If the compass displays "C", it will need to be calibrated.
2. To calibrate, drive the vehicle inup to three (3) complete circles, at
less than 5mph.
N
O
T
E
1. Identify your approximate compass region on the above map.
2. Press and hold the power compass button for more than 9 sec,
and the current compass region code willdisplay.
3. Press the power button until your desired compass region is displayed.
Release the button, and the correct compass direction appear.
To calibrate the compass:
To adjust compass region variance:
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 14 of 17

Genuine Accessories
Visual Check
Side dash trim panel
Fuse panel access cover
Item to be Checked
Lower dash trim panel
Door seal
Harness
A-pillar trim panel
Ground bolt
Panel is securely in place.
Panel is securely in place.
Panel is securely in place.
All connectors attached are properly re-connected.
Battery cable iscorrectlyfastened to the negative terminal. Nut is properly
torqued.
Seal isproperly replaced, and not wrinkled.
Result
Panel is securely in place.
Ensure A-pillar tether clip is properlyinstalled and
seated in the A-pillar correctly.
Hook is properly secured inplace, and screw is tightened.
Mirror Torx screw replaced and re-tightened
Negative battery terminal re-tightened
Mirror harness connectors are properly connected.
T-Tap spade connectors are properly seated.
Harness is tucked into the headliner without causing a bulge or interference.
Screw is tightened and properly torqued.
Bolt istightened and properlytorqued.
Sun visor hook
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 15 of 17

Genuine Accessories
Troubleshooting
Issue / Concern
Items to be Checked
Confirm constant power circuit is properly connected
Circuit should have 12V power with ignition in"OFF"
-Check that mirror harness is properly connected at mirror
-Check that T-tap is connected to the proper wire
-Check that T-Tap is fully crimped
-Check that male spade iscorrectly inserted inT-tap.
-Check that wire harnessis not damaged
-Replace the mirror
-Replace the mirror
-Check that T-tap is connected to the proper wire
-Check that T-Tap is fully crimped
-Check that male spade iscorrectly inserted inT-tap
-Check that GND ring terminal is seated solidly against ground ring
-Check vehicle interior lamp fuse
Homelink does not work
(red LED does not illuminate)
↑
↑
-Check that T-tap is connected to the proper wire
-Check that T-Tap is fully crimped
-Check that male spade iscorrectly inserted inT-tap
-Check that GND ring terminal is seated solidly against ground ring
-Check vehicle interior lamp fuse
Confirm ignition-switched power circuit is properly connected
Circuit should NOT have power with ignitionin "OFF", but should have
12V power when ignition is switched to "ON"
-Check that mirror harness is properly connected at mirror
-Check that T-tap is connected to the proper wire
-Check that T-tap is fully crimped
-Check that male spade iscorrectly inserted inT-tap
-Check that wire is not damaged
Confirm ground circuit isproperly attached & tightened
-Check that mirror harness is properly connected at mirror
-Check that GND ring terminal is seated solidly against vehicle ground
ring
-Check that wire is not damaged
Homelink does not work
(red LED does not illuminate when any HL buttons pressed)
Auto-dimming function doesnot work properly
(green LED illuminates, but mirror does not darken)
Auto-dimming function doesnot work properly
(green LED does not illuminate)
Mirror does not power up
Compass does not illuminate
-Check that T-tap is connected to the proper wire
-Check that T-Tap is fully crimped
-Check that male spade iscorrectly inserted inT-tap
-Check that GND ring terminal is seated solidly against ground ring
-Check vehicle interior lamp fuse
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 16 of 17

Genuine Accessories
No
Gauge
Wiring Diagram
22
BLK w/ WHT
4
22
1
2
BLK
GND
Color
Function
Circuit
Fuse
3
22
BLK
+B (constant power)
Int. lamp
Int. lamp (10amp)
IG (switched power)
Module 3
Module 3 (10amp)
5
Smart Junction Box Connector "C"
SJB_FLRS_C
Pin 23 -
Brown
Pin 3 -
Grey w/ Orange
Mirror connector
BLK w/ WHT
Module 1 circuit
(Green w/ Orange wire)
BLK
Interior lamp circuit
(Grey w/ Orange wire)
GND
*550-0670-000*
550-0670-000 Rev. 004 Revision Date 11/23/2015
Page 17 of 17
