Kia Front Mudguard Kit User manual


KIA Genuine Accessories
Vehicle Model
Sorento
Accessory
Front Mudguard Kit
Model Year
2016 ~
Difficulty
( B )
- Accessory Installation
Part No.
C6F46 AC100
Basic Required Hand Tools
Instructional Symbols / Definitions
Difficulty stated above reflects the minimum level of expertise required to
install the accessory.
( A ) Customer ( B ) Dealer Technician ( C ) Master Technician
Note:
Right Angle #2 Phillips
Screwdriver
#2 Phillips
Screwdriver
Clip Removal Tool
Denotes safety equipment required to be
used such as a mask, safety glasses, gloves,
and hearing protection.
Safety Glasses
Hearing Protection
Mask
Gloves
Denotes instructional steps
necessary to complete the
process.
Denotes quality processes to be
checked prior to moving to the next
step.
Denotes cautions to be taken to avoid
physical injury or electronic component
damage.
Denotes warnings that may lead to
serious physical injury or vehicle
damage.
Denotes specific tools that are
necessary to complete the step.
Denotes cautions to be taken to avoid
vehicle and component damage.
Notes to the Installer:
1) Read the entire installation instructions prior to beginning the installation of this accessory.
2) Make sure the vehicle is completely clean before the accessory is installed.
3) Ensure the vehicle is properly protected in the area(s) that the accessory is to be installed.
4) To prevent vehicle damage, never place tools on top of painted surfaces, seats, dash pad, console or floor
carpet/mats.
5) Always wear appropriate safety gear to include gloves and safety glasses when required.
Front Mudguard Kit
Revision Date
10/17/2014
Page 1 of 4

6
2
KIA Genuine Accessories

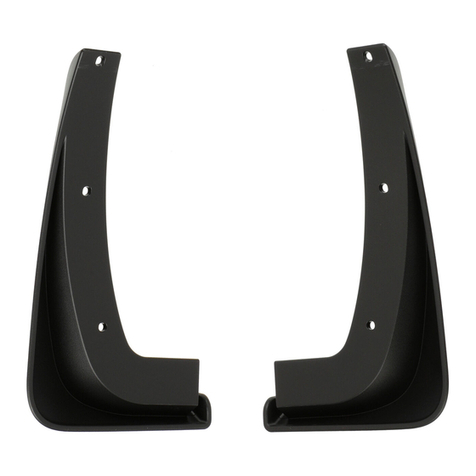

Kit Overview
No.
Qty.
Description
1
1
Front Mudguard (LH)
2
1
Front Mudguard (RH)
3
1
Hardware Bag
4
1
Installation Instructions
Hardware Overview
A
Tapping Screw (M6X25)
B
Plastic Retainer (13mm)
Hardware Total
8
1
3
2
4
Front Mudguard Kit
Revision Date
10/17/2014
Page 2 of 4

KIA Genuine Accessories
Right Angle #2 Phillips Screwdriver and Clip Removal Tool
1
2
N
O
T
E
1. Position the front wheels as needed to access the three (3) Phillips
Screws shown in the drawing.
2. Remove the Center Screw from the Plastic Retainer, then remove the
Plastic Retainer.
3. Remove the three (3) Phillips Screws.
4. Discard the removed hardware.
N
O
T
E
1. Align the mudguard as shown ensuring a proper fit.
3
Right Angle #2 Phillips Screwdriver
4
N
O
T
E
1. Insert one (1) provided Plastic Retainer into the hole as shown.
N
O
T
E
1. While pushing the mudguard up as shown in the drawing, insert and
fasten one (1) Tapping Screw into the upper hole as shown.
2. While pushing the mudguard up as shown in the drawing, Insert and
fasten one (1) Tapping Screw into the inboard hole as shown.
3. While pushing the mudguard up as shown in the drawing,Insert and
fasten one (1) Tapping Screw into the lower hole as shown.
4. Repeat steps 1-4 for the opposite side.
5. Installation is complete.
Make sure to push the mudguard inward during the installation to
eliminate any possible gaps.
After the installation, check for any visible gaps.
If any gap exceeds 1.0mm, loosen the mounting screws and refit the
mudguard to the body to achieve the correct specification.
Be careful not to over-tighten or strip the head of the screw.
Front Mudguard Kit
Revision Date
10/17/2014
Page 3 of 5

KIA Genuine Accessories
Visual Check
Items To Be Checked
Results Of The Check
Make sure mudguard is properly aligned to the vehicle
(steps 3, 4).
Mudguard is properly aligned.
Front Mudguard Kit
Revision Date
10/17/2014
Page 4 of 4
