Kia Sportage 2019 User manual

>> OWNER’S MANUAL
QUICK REFERENCE GUIDE

2

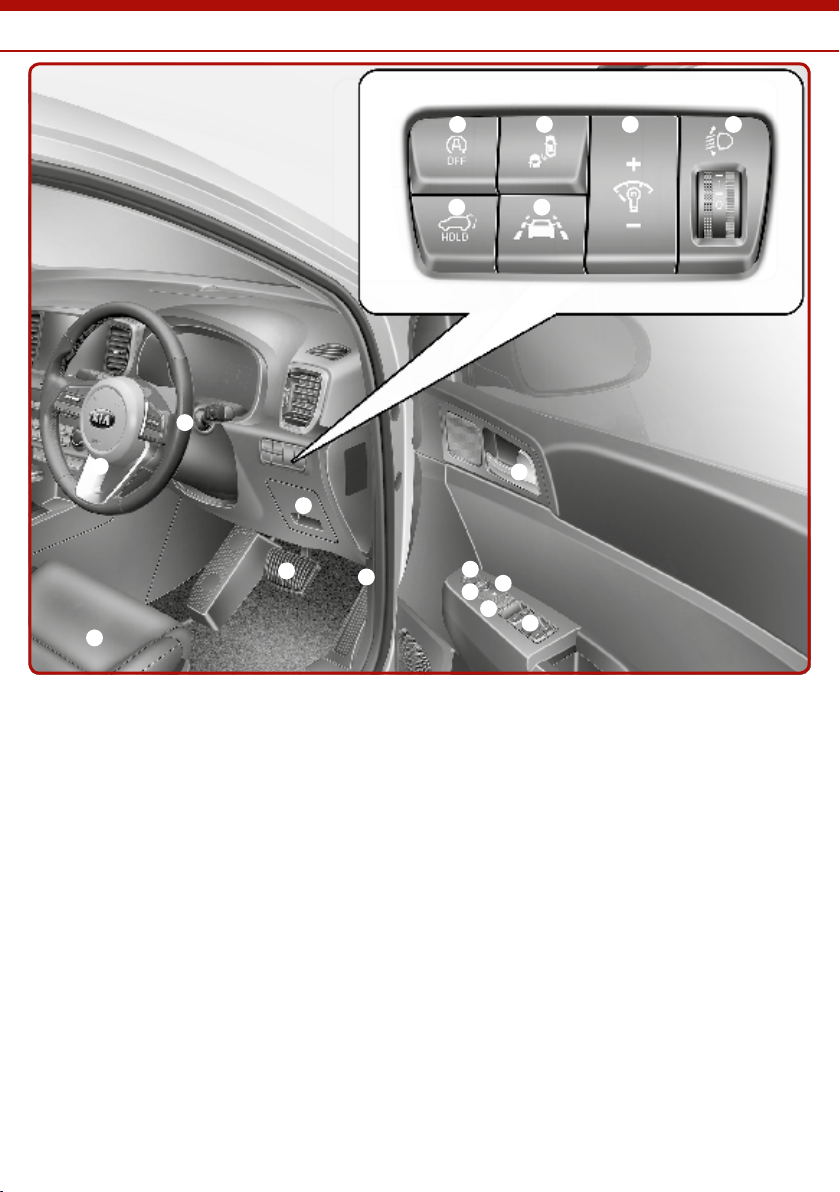

Interior Overview
* if equipped
[#] Number in brackets indicates chapter in Owner‘s Manual.
The illustrations in this guide may vary from the actual vehicle.
a Inside door handle [4]
b Power window switches [4]
c Central door lock switch [4]
d Power window lock
button [4]
e Outside rearview mirror
control switch [4]
f Outside rearview mirror
folding switch* [4]
g Headlight leveling
control* [4]
h Instrument panel
illumination control [4]
i BCW ON/OFF button* [6]
j LKA ON/OFF button* [6]
k Power tailgate open/close
button* [4]
l Idle Stop and Go (ISG) ON/
OFF button [6]
m Steering wheel [4]
n Tilt and telescopic steering
column control lever [4]
o Interior fuse box [8]
p Brake pedal [6]
q Bonnet release lever [4]
r Seat [3]
1
2
3
4
5
6
789
ab
c
d
e
f
gh
j

3
Instrument Panel Overview
a Cruise control/Smart cruise
control buttons* [6]
b Driver’s front air bag [3]
c Horn [4]
d Instrument cluster [4]
e Wiper and washer control
lever [4]
f Ignition switch or ENGINE
START/STOP button* [6]
g Audio remote control
buttons [5]
h AVN (Audio/Video/
Navigation)* [5]
i Hazard warning light [7]
j Climate control system [4]
k Shift lever [6]
l Lighting control lever [4]
m Center console storage
box [4]
n Passenger’s front air bag [3]
o Glove box [4]
p Air ventilation seat*/
Seat warmer button* [4]
q Heated steering wheel
button* [4]
r Smart phone wireless
charger* [4]
s Parking distance warning
ON/OFF button* [4]
t Parking assist system ON/
OFF button* [4]
u Auto Hold button* [6]
v Drive mode button* [6]
w AWD Lock button* [6]
x DBC button [6]
y Electronic parking brake
(EPB) switch* [6]
z USB charger* [4]
{ Power outlet* [4]
1
2
3
4
5
66
7
8
9
a
b
c
d
e
f
g
gh
j
k
l
mn
o
p
q
rs

4
Instrument Cluster / Engine Compartment
a Tachometer
b Speedometer
c Engine coolant temperature
gauge
d Fuel gauge
e LCD information screen
f Warning and indicator lights
a Engine coolant reservoir [8]
b Engine oil filler cap [8]
c Brake/clutch* fluid
reservoir [8]
d Air cleaner [8]
e Engine room fuse box [8]
f Negative battery
terminal [8]
g Positive battery terminal [8]
h Engine oil dipstick [8]
i Windscreen washer fluid
reservoir [8]
Instrument cluster [4]
Engine compartment [2]
Note: Dipstick position will vary depending on engine model.
1
2
3 4
5
6
6
6
1
2
3
45
6
7
8
9

5
Climate Control System
a Fan speed control
b Front windscreen defroster
c Rear window defroster
d Air conditioning*
e Air intake control
f Mode selection
g Temperature control
a Passenger’s temperature
control
b SYNC temperature control
c Front windscreen defroster
d Rear window defroster
e Air conditioning
f Air intake control
g Blower OFF
h Fan speed control
i Mode selection
j Driver’s temperature
control
k AUTO (automatic control)
l Climate information screen
selection
Manual climate control system* [4]
Automatic climate control system* [4]
1
2 3 4 5
66 6 7
1
2
3 4 5 6 7
8 8 9 9 9 a
bc

6
Door Locks / Tailgate / Fuel Filler Lid / Bonnet
Closing the bonnet
> Before closing the bonnet,
check if all filler caps are
correctly installed and any
other combustible material
must be removed from the
engine compartment.
> Lower the bonnet until it is
about 30 cm above the closed
position and let it drop to
securely lock in place.
Opening the tailgate [4] Closing the tailgate [4] Emergency tailgate safety
release [4]
Opening the bonnet [4]
Pull the release lever to unlatch
the bonnet.
a Lift the bonnet slightly
b Push the secondary latch
inside and lift the bonnet
Opening the fuel filler lid [4]
Press the 3 o’clock position
edge of the fuel filler lid.
a Fully open the lid
b Turn cap counterclockwise
to open
Closing the fuel filler
> Turn the cap clockwise until it
“clicks” to ensure it is securely
closed.
> Close the lid and press the
edge until it is securely
locked.
Operating door locks
manually [4]
Child-protector rear door
lock [4]
a Lock position
b Inner door handle
Central door lock switch [4]
a Lock
b Unlock
c Indicator light
1
2
3
1
2
12
1
2
Type C

7
Windows / Wipers and Washers
Wipers and washers [4]
a Driver’s door power window
switch
b Front passenger’s door
power window switch
c Rear door (left) power
window switch
d Rear door (right) power
window switch
e Window opening and closing
f Automatic power window
up*/down*
g Power window lock button*
Note: In cold and wet climates,
power windows may not
work properly due to freezing
conditions.
A: Front wiper speed control
2 High wiper speed
1 Low wiper speed
---/
AUTO*
Intermittent wipe/
Automatic control wipe
O Off
Single wipe
B: Intermittent wipe time adjustment
C: Wash with brief wipes (front)*
D: Rear wiper/washer control
2 Continuous wipe
1 Intermittent wipe*
O Off
E: Wash with brief wipes (rear)
Windows [4]
1
2
2
3
3
4
4
5
5
5
5
6
67
Front
Rear

8
Seat / Air Bag / Child Restraint System
Front seat
a Forward and backward
b Seatback angle
c Seat cushion height*
d Lumbar support (Driver’s
seat)*
e Headrest
Rear seat
f Seatback angle and folding
g Headrest
h Armrest
Passenger’s front air bag ON/
OFF switch* [3]
Rearward-facing child restraint
system [3]
Securing with “Tether
Anchorage” system [3]
Securing with “ISOFIX” system
and “Tether Anchorage”
system [3]
a ISOFIX Anchor Position
Indicator
b ISOFIX Anchor
Installing a child restraint
system by lap/shoulder belt [3]
Seats [3]
1
1
2
2
3
3
3
4
4
5 5
6
77 7
8
1
2

9
Lighting Control / Steering Wheel / Cruise Control System
Lighting control [4]
a OFF
b Auto light
c Position light
d Headlight
Tilt & telescopic steering [4]
Steering wheel adjustment:
a Pull down the lock release
lever
b Adjust the steering wheel to
the desired angle
c Height adjustment
d Lock the steering wheel by
pulling up the lock release
lever
Heated steering wheel* [4]
When the ignition switch or
engine start/stop button is
in the ON position, press the
shown button to switch on
the heated steering wheel.
The indicator on the button
will illuminate. To turn off the
heating function, press the
button once again.
Cruise control system [6]
ON-OFF button ( /CRUISE) to
activate cruise control system
Set cruise control speed by
moving the lever down to SET -
To increase cruise control set
speed
To decrease cruise control set
speed
Cancel cruise control set
speed by pressing the cancel
button (O)
Resume cruising speed by
moving the lever up to RES +
1
2
3
4
1
2
34
2 3
5 6
1
4

10
Towing / Spare Tyre, Jack And Tools / Tyre Mobility Kit
Spare tyre, jack and tools* [7]
The shown tools are stored in
the luggage compartment.
Pull up the luggage box cover to
reach this equipment.
a Jack handle
b Jack
c Wheel lug nut wrench
Tyre Mobility Kit* [7]
Please read the instructions
before using the Tyre Mobility
Kit.
a Compressor
b Sealant bottle
With the Tyre Mobility Kit
you stay mobile even after
experiencing a tyre puncture.
After you ensure that the tyre
is properly sealed you can drive
cautiously on the tyre (up to
200 km (120 miles)) at a max.
speed of 80 km/h (50 mph)
in order to reach a vehicle or
tyre dealer to have the tyre
replaced.
Towing [7]
When towing a 2WD vehicle in
an emergency without wheel
dollies, tow with the front
wheels off the ground and:
1. Set the ignition switch in the
ACC position.
2. Place the transaxle shift
lever in N (Neutral).
3. Release the parking brake.
Emergency towing
If towing is necessary, it is
recommended to have it done
by an authorised Kia dealer or a
commercial tow truck service.
Removable towing hook [7]
1. Open the tailgate and
remove the towing hook
from the tool case.
2. Remove the hole cover by
pressing the lower part of
the cover on the bumper.
3. Install the towing hook by
turning it clockwise until it is
fully secured.
4. Remove the towing hook and
install the cover after use.
CAUTION
The AWD vehicle should never
be towed with the wheels
on the ground. This can
cause serious damage to the
transaxle or the AWD system.
123
1 2

11
Engine Oil / Washer Fluid / Selective Catalytic Reduction
Checking the engine oil level [8]
Pull the dipstick out and check
the level. The level should be in
the C range.
Refilling engine oil [8]
Use only the specified engine oil
[9] and avoid spillage.
Checking the washer fluid
level [8]
Note: Diesel engine derivatives of the Sportage require an urea solution (also known as DEF (Diesel
Exhaust Fluid)) for emission control that is added to a separate tank. The filler for the urea tank is
located behind the fuel flap next to the diesel fuel filler.
If the urea level is not regularly checked and topped up this may cause the vehicle not to start.
Urea solution level gauge* [8]
Low urea solution warning
message* [8]
When “Refill Urea tank or
vehicle will not start” message
is displayed with SCR warning
lamp ( ), the vehicle can’t be
restarted once the engine is
turned off. For the above cases,
full replenishment is always
recommended.
Adding urea solution* [8]
Idle Stop & Go (ISG)
When enabled, ISG
automatically stops the
car’s engine to reduce fuel
consumption and emissions.
The ISG function may not
work if the car’s battery
charge status, ambient
temperature and/or engine
temperature is too low. Air
conditioning/heater control
settings may also affect ISG
function.
Parking brake (handbrake)
When engaging the parking
brake, apply the footbrake
first and keep it depressed.
Then apply the parking
brake.
We strongly recommend
to leave the car in first
or reverse gear or in the
‘P’ (Park) position on
automatics when leaving
the car.
Bluetooth®
Many of our cars have
Bluetooth® connectivity to
enable the driver to safely
enjoy the convenience of the
mobile phone. For Bluetooth®
compatibility please visit
the owners section on our
website.
Additional Info*

Copyright © 2018 Kia Motors Europe GmbH, all rights reserved.
18.000652 - QRG QLe PE - ENG-UK RHD
For full details and instructions on any item contained in this quick reference guide, please read the owner’s manual.
Additional Info*
Kia Service App Kia Service App
Kia Service App
The Kia Service App – now available for
free on iPhone/iPad and Android With the
Kia Service App, you have (almost) all Kia
dealers in Europe within reach*. Looking
for a showroom or just a service, the app
displays all dealers around your current
location on the map. With one click you
can call a dealer, visit their website or get
directions to the showroom.
(*) In selected markets only
