Massage Device Instructions
EN V1.0

2
Start to Use
1. Install / replace massage head
lnstall a massage head into the hole in front of the device according to
your need.
2. Angle adjusting
Press the rotation button and hold it down then rotate the foldable arm
(6 optional angles).
Release the rotation button to 󽗉x the foldable arm, and you can hear a
"click" sound after 󽗉xed.

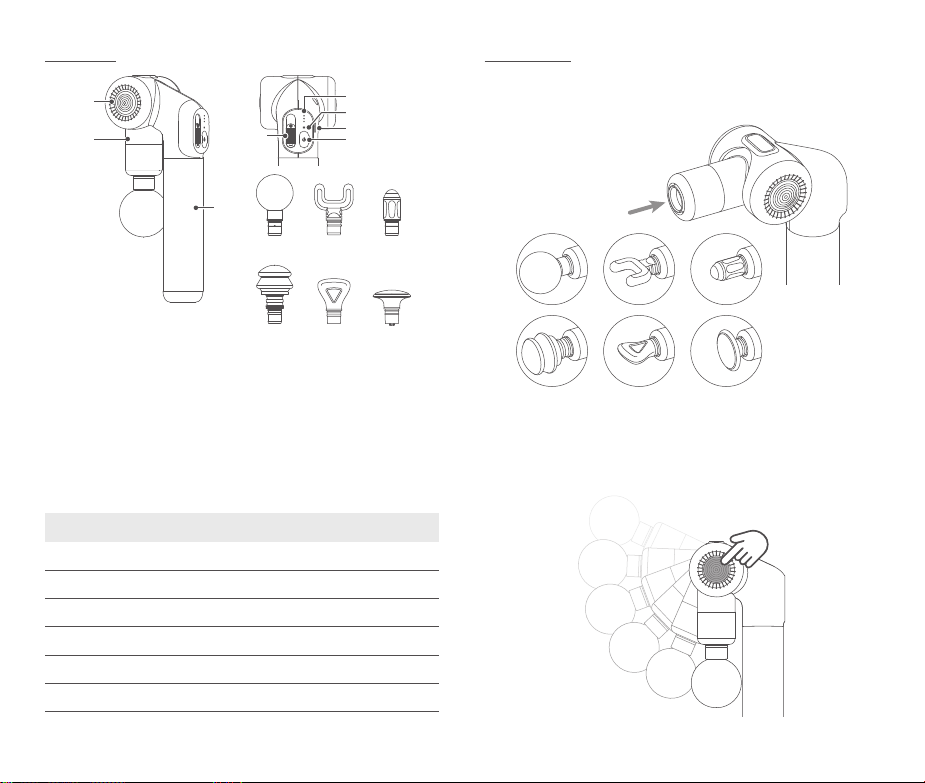

Overview
[1]
[9] [10] [11]
[14][13][12]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[1] Rotation button
[2] Foldable arm
[3] Extendable handle (Built-in battery)
[4] Speed control button
[5] Indicator for battery/revolution speed
[6] Mode indicator
[7] Charging port
[8] Power button/Heating button
[9] Spherical head
[10] U-shaped head
[11] Cone head
[12] Tree head
[13] Wedge head
[14] Heating head
Massage head Reference
Spherical head Relax soft tissues and sensitive muscles
U-shaped head Massage neck (not cervical vertebrae) and tendon
Cone head Percuss deep tissues like meridians and acupoint, etc.
Tree head Relax large, small and sensitive muscle groups
Wedge head Massage lumbar and leg muscles
Heating head Massage the muscles of the body

3
3. Extend and retract
Rotate the handle in direction of icon to unlock, then pull/push it to
extend/retract, and lock it after the adjustment.
Do not hold the gaps when retract the handle, or it may hurt your
hand.
4. Power On / O󽗈
Power On: Long press the power button until hear the tone.
Power O󽗈: Long press the power button until hear the tone to power o󽗈.
The product will auto power o󽗈, if there is no operation within 3 minutes
in pause mode*.
Do not touch the middle and the back of the two massage heads while
the product is running to avoid injuries.
Do not power on the device when it is folded.
* Pause mode: Slide the speed control button down to the bottom, the
revolution speed will down to 0.
5. Hot compress
Install the heating head, and single tap the heating button when the
device is running to turn on this function.
This function is unavailable with other massage heads.
Hot compress Mode indicator Temperature
O󽗈 (Default) Green Room temperature
On Yellow 40℃ ±3℃
6. Speed control
Slide the speed button to adjust revolution speed.
Revolution speed: 0*~3200rpm±10%
Figure Revolution speed
indicator
Revolution
speed
High
Medium
Low
7. Locked motor protection
Do not press the massage head 󽗉rmly to block the motor rotation
while using, otherwise it will reduce the service life of the product!
This product has locked motor protection function. If the rotation is
blocked for 10 seconds, it will stop running automatically.
Single tap the power button to start again.

4
8. Intelligent protection
This product has intelligent protection function. After working for 10
minutes continuously and the product will stop running automatically.
Single tap the power button to start again.

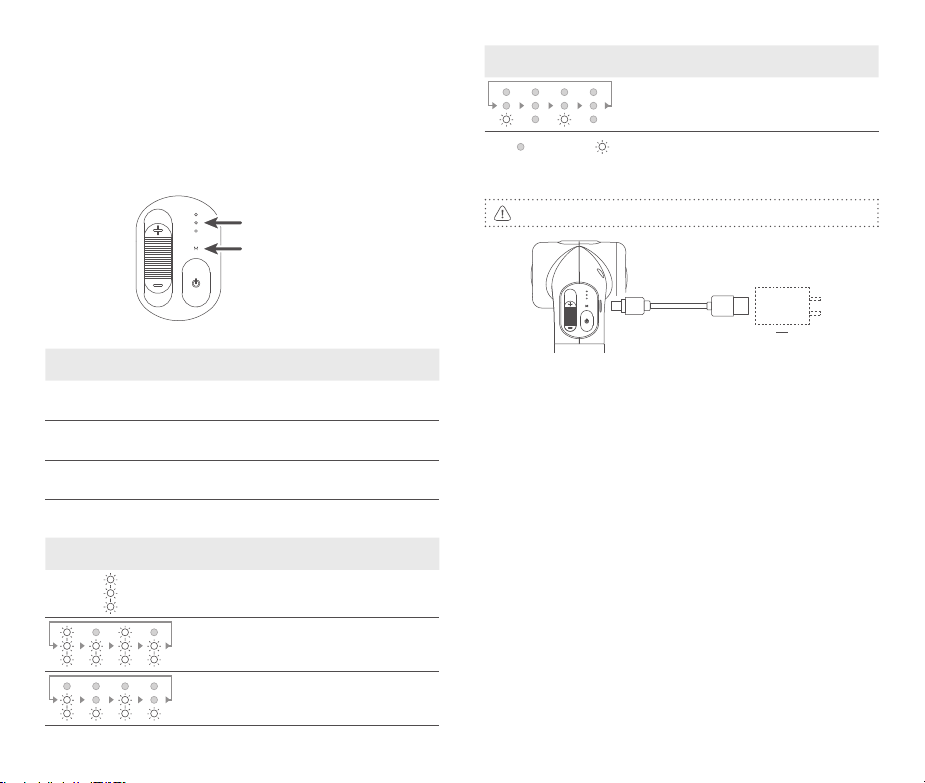

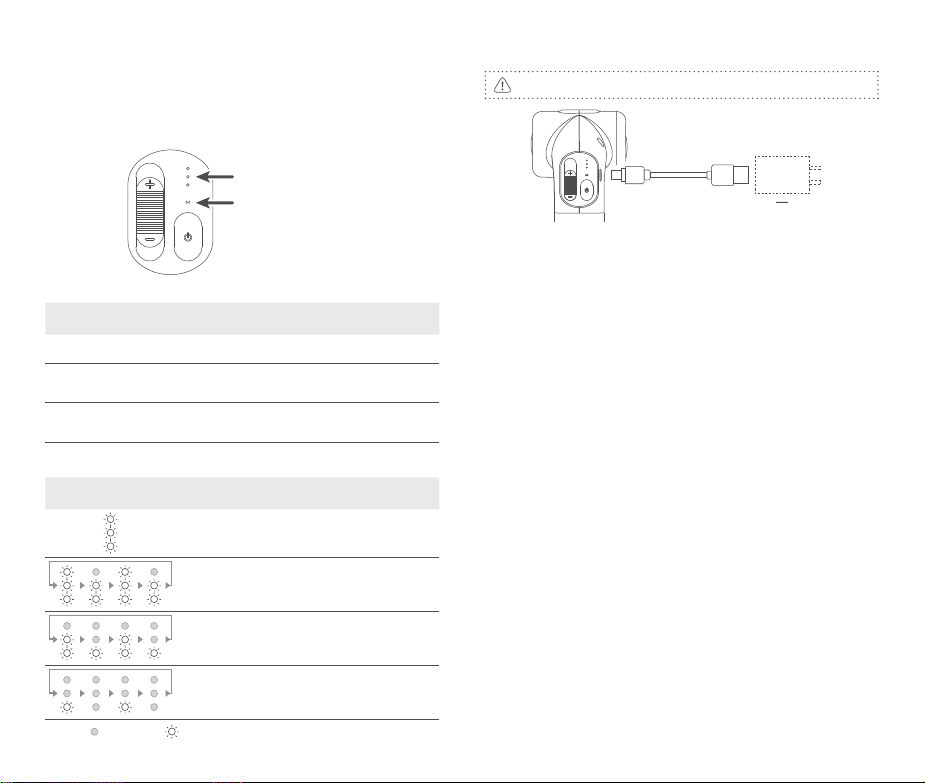

9. Indicator
Indicator for battery/
Revolution speed
Mode indicator
Indicator while using:
Indicator for battery/
Revolution speed Mode indicator Description
White light keeps on Green light keeps on Fully charged
White light 󽗊ashes Green light keeps on Low power,
need recharging
Light o󽗈 Yellow light 󽗊ashes Pause* and the hot
compress function is on
Indicator while charging:
Indicator for battery/
Revolution speed Mode indicator Description
Green light keeps on Charging completed
Red light 󽗊ashes High level of battery
Red light 󽗊ashes Medium level of battery
Red light 󽗊ashes Low power
Figure: Light o󽗈 Light on
10. Charging
Do not use it while charging.
5V --- 2AUSB-C
11. Speci󽗉cations
Product Name: KiCA Evo Massage Device
Product Model: KiCAEvo
Operating Voltage Range: 13.2V-16.8V
Operating Temperature Range: 0℃ ~+40℃
Charging Temperature Range: 0℃ ~+40℃
Battery Capacity: 1600mAh
Charging Time: About 7.5H
Weight: About 730g
Size:
About 98×239×81mm (Fold)
About 148×330×81mm (Unfold to 90° , extended)
Theoretical Battery Life: About 12H (Test in lab environment with Low
speed)
Packing list:
Main body×1, Spherical head×1, U-shaped head×1,
Cone head×1, Tree head×1, Wedge head×1, Heating head×1,
USB-C cable×1, Storage bag×1, Manual×1

5
