Kielder KWT-010 User guide

ORIGINAL INSTRUCTION MANUAL
For use with all variants of KWT-010 Ratchet TYPE18
KIELDER 18V BATTERY SYSTEM
KWT-010
Kielder
18V CORDLESS RATCHET
www.kielder.co
KWT-010-IMA22

3
Kielder WT Ltd KWT-010-IMA22
Noise & Vibration Data
Acoustic Pressure: <82(A) K=3dB
Acoustic Power: <93dB(A) K=3dB
Maximum Vibration: <2.7m/s2 / K = 1.5m/s2
Sound emission values determined according
to EN60745-2-1. The declared vibration total
value has been measured in accordance with
a standard test method used to compare
one tool with another and according to
EN60745. Both sound and vibration values
have an uncertainty factor of K. The declared
total values may be used in a preliminary
assessment of exposure.
WARNING!
The vibration emission during
actual use of the power tool can
dier from the declared total
value depending on the ways in which the tool
is used. The need to identify safety measures
and to protect the operator are based on an
estimation of exposure in the actual conditions
of use (taking account of all parts of the
operating cycle, such as the times the tool is
switched o, when it is running idle, in addition
to trigger time). Identify additional safety
measures to protect the operator such as
proper maintenance of the tool, keeping hands
warm and organisation of work patterns.
EC - Declaration Of
Conformity
We declare that under our responsibility the
product under part number:
KWT-010 18V Cordless Ratchet complies with
the applicable EU directives:
2011/65/EU, 2004/108/EC, 2006/42/EC
including the amendments and are manufactured
in accordance following standards or
standardised documents:
EN 60745-1:2009+A11
EN 60745-2-1:2010
EN 60745-2-2:2010
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:1997+A1:2001+A2:2008
All documentation is held in KWT-011 Technical
File and is available, on request for review.
Authorised Signatory:
Steven Bulloss
Director
Dated: 01/01/2021
Kielder WT Ltd, Unit 14 Carlisle Business Park,
40 Chambers Lane, Sheeld S4 8DA
IMPORTANT!
Please read these operating and
safety instructions carefully and
completely. For your own safety, before using
this equipment check that the voltage is
correct and that all external parts are rmly
secured and the machine in tact. If you are
uncertain about any aspect of using this
equipment, or require support please contact
Kielder WT customer services and we’ll be
happy to help:
Tel: [phone]
Email: [e-mail]
Contents
Safety Rules & Instruction 4
Product Overview Diagram 8
Specication Table 9
Usage
Ratchet 10
Battery 12
Charger 14
Maintenance, LED Light & Belt Clip 14
Warranty & Support 15
Plug Type
• The appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
• Only use this plug in the socket it is
intended.
• A 3 amp fuse is tted in this plug. Should
the fuse need to be replaced please ensure
that the replacement fuse has a 3 amp
rating and it is approved by ASTA or BSI to
BS1362.
• Check for the ASTA mark or the BSI mark
on the fuse.
• If the plug contains a removable fuse
cover, you must ensure that it is retted when
the fuse is replaced.
• If you lose the fuse cover the plug must
not be used until a replacement cover is
obtained.
Intended Use
This tool is designed to tighten and loosen
fastenings. When loosening, we would
always advise to break the fastening by hand
and then run the fastenings o with the tool.

4
KWT-010-IMA22 Kielder WT Ltd
WARNING!
This product uses Lithium
Battery cells, do not use if the
battery has been damaged in
transit or becomes damaged during use.
If Lithium-ion cells are damaged they
present a ammable hazard.
General Safety
Warning: When using electric tools,
basic safety precautions should always
be followed to reduce the risk of re,
electric shock and personal injury.
Please read all of these instructions
before attempting to operate this
machine. Save this manual for future
reference.
• Keep work area clear. Cluttered work
areas invite accidents.
• Consider work area environment. Do
not expose tools to rain. Do not use
tools in damp or wet locations. Keep
work area well lit. Never use tools near
ammable liquids or gases.
• Protect yourself against electric shock.
Avoid body contact with earthed or
grounded surfaces.
• Keep other people away. Do not let
others, especially children, come close
to the work, and touch the tool or power
cable. Keep them away from the work
area.
• Store idle tools. When not in use, tools
should be stored in a dry locked-up
place, out of children’s reach.
• Never force the tools. Your tools will
be more ecient and safer when used
at the rate for which they were intended.
Personal Safety
• Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the inuence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-
skid safety shoes, hard hat, hearing
protection, anti-vibration gloves used
for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting. Ensure
the switch is in the o-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your
nger on the switch or energising power
tools that have the switch on invites
accidents.
• Remove any adjusting key or wrench
before turning a power tool on. A wrench
or a key left attached to a rotating part
of the power tool may result in personal
injury.
• Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
• If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.

5
Kielder WT Ltd KWT-010-IMA22
Safe Use Of Power Tools
Do not force the power tool. Use the
correct power tool for your application.
The correct tool will do the job better and
safer at the rate for which it was designed.
• Do not use the power tool if the switch
does not turn it on and o. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
• Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the tool. Power
tools are dangerous in the hands of
untrained users.
• Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may aect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
• Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
• Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations dierent from those intended
could result in a hazardous situation.
Battery & Charger
Recharge battery only with the charger
specied by the manufacturer. A charger
that is suitable for a certain type of
battery pack may create a risk of re
when used with another battery pack.
• Use power tools only with specically
designated battery packs. Use of any
other battery packs may create a risk of
injury and re.
• Keep battery pack and charger away
from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the terminals together may
cause burns or a re.
• Under abusive conditions, liquid may
be ejected from the battery; avoid
contact. If contact accidentally occurs,
ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid
ejected from the battery may cause
irritation or burns.
Service
Have your power tool serviced or repaired
by Kielder or a qualied technician using
only identical replacement parts. This
will ensure that the safety of the power
tool is maintained.

6
KWT-010-IMA22 Kielder WT Ltd
• Wear ear protectors.
Exposure to noise can
cause hearing loss.
• Wear eye protection to
protect from loose particles
which may be thrown up by
the impact motion of the tool.
• Wear a dust mask if the
work creates dust.
• Apply the power tool to the fastening
only when it is switched o. Rotating tool
inserts can slip.
• When storing or carrying the tool
the lock switch should be set to the
lock position and prevent the tool being
started accidentally.
• Hold the machine with a rm grip. High
reaction torque can occur while the tool is
in use.
• Secure the workpiece. A workpiece is
held more securely in a vice than by hand.
• Always wait until the tool has stopped
completely before setting it down.
• Be aware that this tool is always in an
operating condition as it does not have to
be plugged into an electrical socket.
• If the bit becomes jammed, turn o the
trigger switch to prevent an overload. This
can damage the battery pack or motor. •
During charging the charger may become
slightly warm. This is normal. DO NOT
charge the battery for a long period.
Additional Safety & Working
Instructions
• Do not strain the tool by holding the
speed control trigger halfway so that the
motor stops.
• Do not operate the lock switch while
pulling the trigger. This can cause the
rechargeable battery to wear quickly or
damage the mechanism of the motor.

7
Kielder WT Ltd KWT-010-IMA22
Collection And Disposal Of Old
Equipment And Used Batteries:
These symbols on the products, packaging
and accompanying documents mean that
used electronic products and batteries
should not be mixed with general household
waste.
• When the battery pack is not being
used, the battery should be stored so that
foreign substances like dust and water do
not contaminate the terminals.
• When the battery pack is being
charged, ensure that the terminals are
free of dust and water. Clean the terminals
before using the battery if any foreign
substances are seen.
• The life of the battery pack may be
adversely aected by dust or water during
operation.
• If the motor or battery becomes hot, the
protection function will activate and the
motor or battery will stop operating.
• Before inserting the battery pack,
always check to ensure that the tool is
turned o.
• For safe use ensure that the battery
pack is installed properly and securely to
the main unit before operating.
• Do not use other than the Kielder
battery packs that are designed for use
with this rechargeable tool.
• Kielder is not responsible for any
damage or accident caused by the use of
recycled or counterfeit battery packs.
• Do not dispose of the battery
pack in a re or expose it to
excessive heat.
• Do not attempt to dismantle or modify
the battery pack.
• Do not subject the battery pack to
shocks or drive nails or similar items into it.
• Do not allow metal objects to touch the
terminals on the battery pack.
• Do not carry or store the battery pack in
the same container as nails or small metal
objects.
CAUTION!
This product is powered
by a rechargeable battery
system, please pay
attention to these additional instructions:
• Do not charge the battery
pack in a high temperature
location e.g. next to a re or in
direct sunlight. The battery may
overheat, catch re or explode.
• Do not use other than the dedicated
charger to charge the battery pack as the
battery may leak, overheat or explode.
• When removing the battery pack from
the tool or the charger, always reattach the
pack cover as the battery contacts could be
shorted, leading to a risk of re.
• When the battery pack has deteriorated
replace it with a new one. Continued use of
a damaged battery pack may result in heat
generation, ignition or rupture of the battery.
MAX 45ºC
Li-Ion
For proper treatment, recovery and recycling
of old products and used batteries, please
take them to applicable collection points, in
accordance with the national legislation and
the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to save
valuable resources and prevent any potential
negative eects on human health and the
environment which could otherwise arise
from inappropriate waste handling.
For more information about collection and
recycling of old products and batteries,
please contact your local municipality, your
waste disposal service or the point of sale
where you purchased the items.
Penalties may apply for the incorrect
disposal of waste in accordance with
national legislation.

8
KWT-010-IMA22 Kielder WT Ltd
(2)
(1)
(7)
(6)
(8)
(9)
(10)
(5)
(3)
(4)
(13)
(12)
(11)
PRODUCT OVERVIEW
(1) Steel Head
(2) Square Drive
(3) Lock Switch
(4) Trigger
(5) Hand Grip
(6) Forward/Reverse Toggle
(7) Belt Clip
(8) Battery; attached to tool
(9) Battery Release Button
(10) Battery Charge Level Indicator
(11) Charger
(12) Battery Insert Slide
(13) Charge Indicator

9
Kielder WT Ltd KWT-010-IMA22
SPECIFICATIONS
Main Unit
Model KWT-010
Motor Voltage 18.0V - DC
Motor Type Brushed
Weight (with battery KWT-003-04 tted) 1.25kg
Weight (without battery tted) 1.05kg
No Load Speed 0-200 rpm
Max Torque 60Nm
Battery Type Lithium-ion
Battery Pack
Model KWT-003-04 2.0AH (KWT-003-03 4.0Ah / KWT-003-25 5.0Ah: optional)
Cell Type Lithium-ion
Battery Voltage 18.0V DC
Weight (KWT-003-04) 0.3Kg
Battery Charger
Model KWT-004
Ratings See Rating Label on Base of Charger
Charge Time 2.0Ah (Useable charge from at) 30 mins (KWT-003-04 / 2.0AH)
Charge Time 2.0Ah (Full charge from at) 40 mins (KWT-003-04 / 2.0AH)
Weight 0.4Kg
Symbol Meaning
VVolts
Direct Current
min-1 Revolutions Per Minute
Ah Electrical Capacity
Read Instruction Manual
Before Use
Wear Hearing Protection
Wear Safety Glasses
Indoor Use Only
Class II construction
(double insulated)
Conforms to CE
standard
Do not burn or
incinerate
Maximum safe ambient
temperature for battery
MAX 45ºC

10
KWT-010-IMA22 Kielder WT Ltd

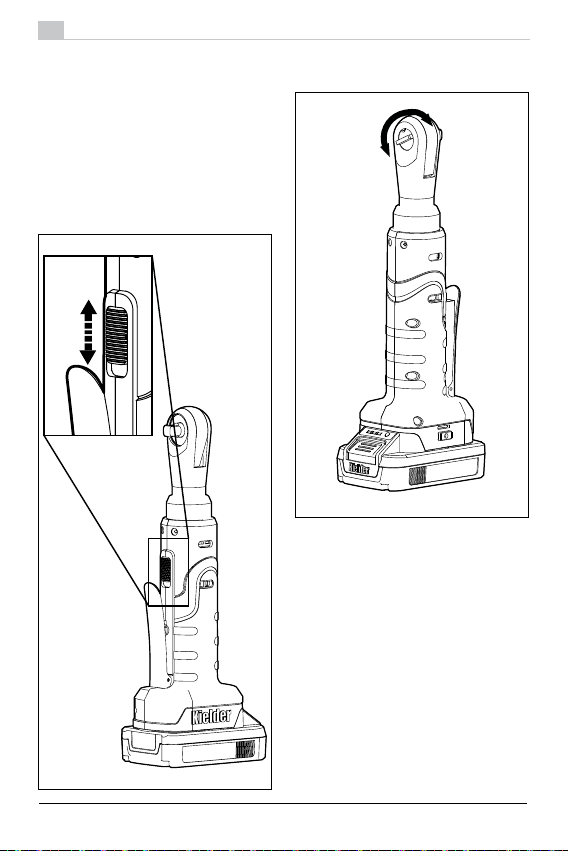

USAGE
Lock Switch
To lock the Trigger, slide the lock switch
down (towards the trigger). To unlock slide
the lock switch up (away from the trigger).
The lock switch will not lock the trigger if
the trigger is depressed. Always lock the
trigger switch or remove the battery before
changing sockets/accessories and when
the tool is not in use.
Selecting Forward/Reverse
Using the Forward/Reverse Toggle For
forward (clockwise) rotation, Reverse
Forward rotate the forward/reverse toggle
counter-clockwise. For reverse (counter-
clockwise) rotation, rotate the forward/
reverse toggle clockwise. Check the
direction of rotation before use.
