Kilews KFA-0830 User manual

Automatic Screw Feeder
User Manual
(English)
Before the use of this machine, please read the manual carefully and preserve
the manual for future references.
Patent applications of this product have been filed in the countries of China,
Taiwan (R.O.C.), Japan and Korea, and legal actions against any patent
infringement by counterfeits will be taken.
Y2F152-1-002
KFA-0830

Before the use of theAutomatic Screw Feeder, please read the
following carefully:
◎Before the use, please be sure to install the machine at a location of solid foundation, and the
machine shall not be subject to any conditions of tilting left or right and elevated front or rear
in order to prevent impacts on the normal operation.
◎During the use of the machine, the machine shall be grounded.
◎If the machine is not used for a long period of time, the power shall be shut down and the
power plug shall be removed.
◎Please be sure to use the transformer provided by the original manufacturer in order to prevent
damages of the machine and impacts on the normal operation.
◎The inner tracks inside the machine are essential components; therefore, please do not damage
or contaminate such parts.
◎Before switching on, please ensure that the screws placed in the machine match with the
specification of the sliding track. Please do not place contaminated screws, foreign objects and
mismatched screws into the machine.
◎During the operation of the machine, please do not place hand or insert foreign object or pour
materials into the container tank.
◎During the operation of the machine, in case of any malfunction or abnormal sounds, please
shut down the power immediately, and perform inspection after removing the power plug.

Table of Contents
Check before Use................................................................................................................................1
Equipped Accessories ..................................................................................................................1
Check Screw Dimension..............................................................................................................1
Description of Machine & PCB Function and Panel Hole Locations ...........................................2
Adjustment .........................................................................................................................................3
Track Adjustment.........................................................................................................................3
Track Removal.....................................................................................................................3
Adjust Track Width..............................................................................................................5
Track Installation .................................................................................................................7
Adjustment of Keep Board ..........................................................................................................8
Adjustment of Infrared Device ....................................................................................................9
Adjustment of Dispensing Mechanism......................................................................................10
Adjustment of Container Funnel Inside Cylinder......................................................................13
Adjustment of Brush..................................................................................................................14
Method of Use...................................................................................................................................16
Quantity of Screws Placed In.....................................................................................................16
Signal Board Connection...........................................................................................................17
Counter Interface Operation.......................................................................................................18
Common Malfunction and Simple Resolution ..............................................................................21
Maintenance and Cleaning..............................................................................................................22
Warranty Clause..............................................................................................................................23

1
Check before Use

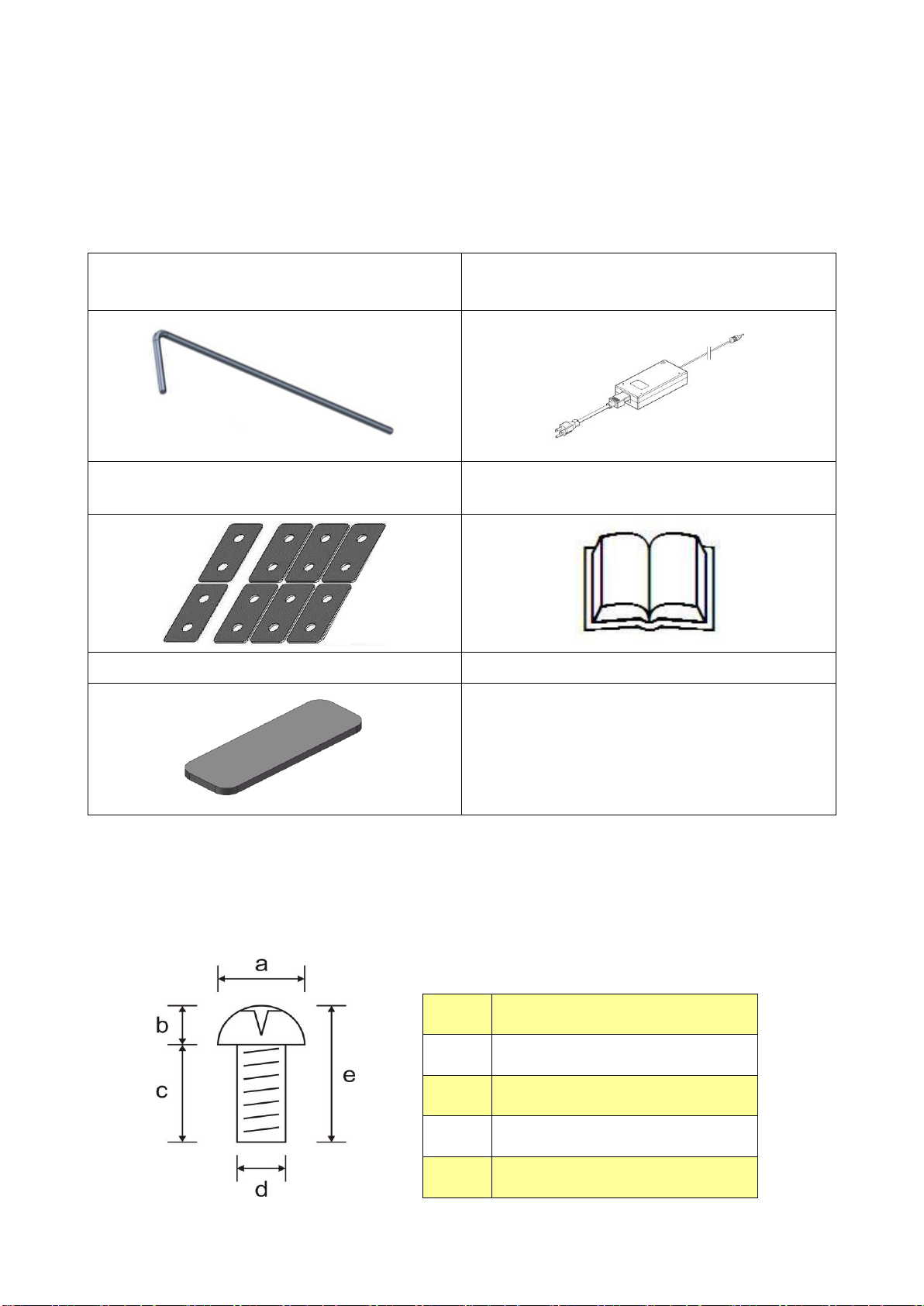

Equipped Accessories
Before the use of the Automatic Screw Feeder, please carefully check whether the following
accessories are complete:
Hex-key wrench 2.0*107mm (L type) *1
Voltage stabilizing transformer
AC 100~240V/DC12V*1
Rear specification sheet for sliding track rear
20*10*0.2mm*2pcs&0.5mm*6pcs
Operation manual *1
Jig plates, 1pcs each for 0.8/1.0/1.2/1.5/2.0
Check Screw Dimension
Before the use of the Automatic Screw Feeder, please check the dimension of the screw used, and
use the Vernier Caliper to perform measurements according to the following drawings:
Table a
a
Screw head width
b
Screw head thickness
c
Screw length
d
Screw diameter
e
Screw total length

2
Description of Machine & PCB Function and Panel Hole Locations
A.
LOCK GATE
Gate adjustment hole
B.
POWER
Power switch
C.
INDICATION
LED signal indicator
D.
DC POWER
DC power input hole
E.
GROUNDING
Grounding hole
F.
SIGNALWIRE
Signal cable
