kim lighting 4300 Series User manual

Revised 7/29/15 ECN 150729013 Rev 16 Part No. 95422
Tools Required: qPhillips Head Screwdriver qB" Allen Wrench qThread Sealant qAdjustable Wrench

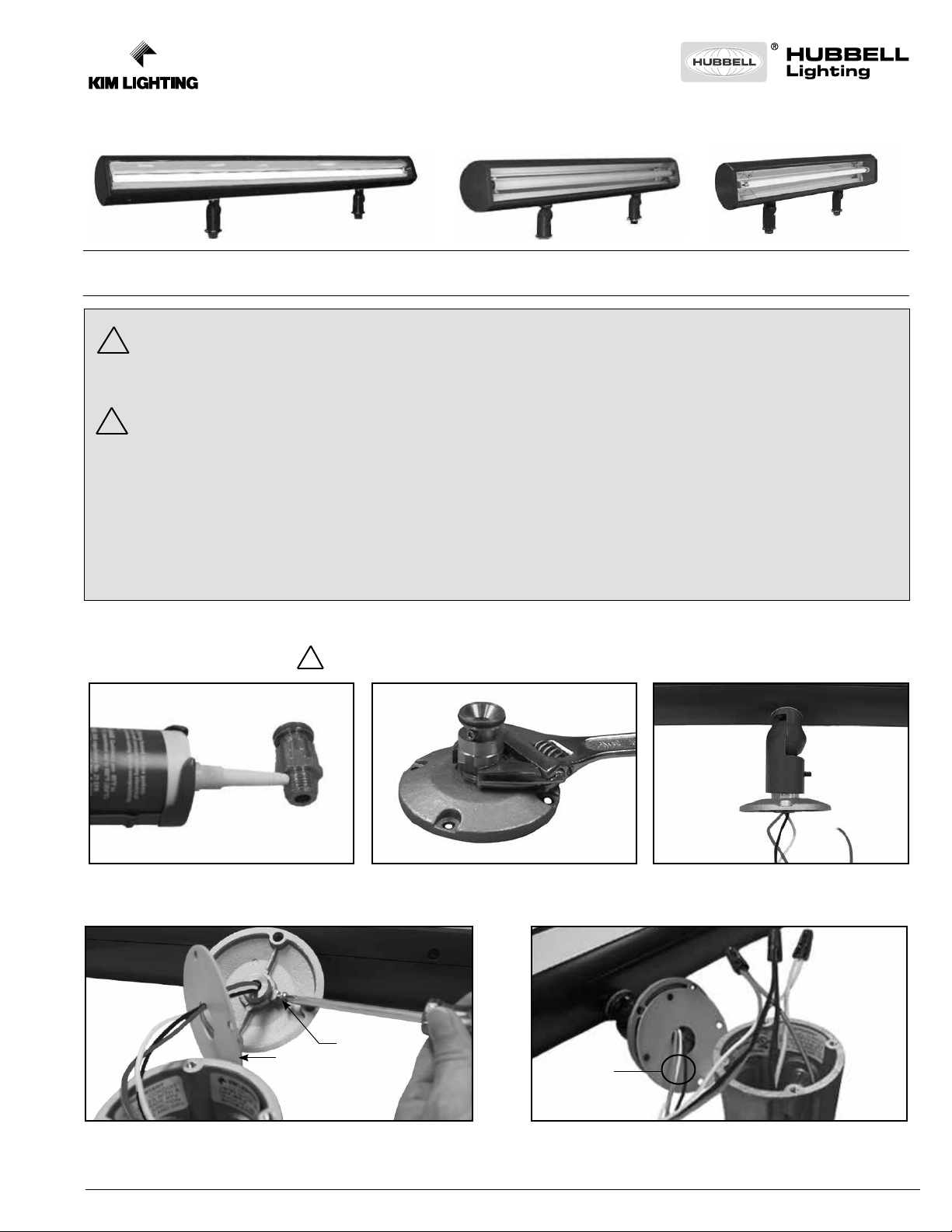

1. Coat swivel threads with thread
sealant to keep moisture from
entering j-box.
2. Tighten coupling onto mounting
device.
5. Attach fixture leads to circuit leads observing polar-
ity, i.e., green ground lead-to-circuit ground, white-
to-common, and black-to-voltage.
4. Tighten set screw under j-box cover.
Fixture
Wires
Installation Instructions: Make certain electrical supply is OFF before starting fixture installation.
!
Gasket Set Screw
3. Attach fixture onto coupling.
4348 - 49" 4324 - 25"4336 - 37"
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
Portable spear mounts must be plugged into a receptacle protected by a Ground Fault Circuit Interrupter
(GFCI) in accordance with the National Electrical Code. Failure to take these steps may result in serious
personal injury. DO NOT operate luminaire with missing or damaged lens.
SAFETY WARNING: To maintain light efficiency and prevent fixture overheating, lenses must be kept
clean and free of dirt, dust, leaves, trash and mineral deposits from water. For optimum performance a
regularly scheduled maintenance program should be followed.
MAINTENANCE: To maintain light efficiency and prevent fixture overheating, lenses must be kept clean
and free of dirt, dust, leaves, trash and mineral deposits from water. For optimum performance a regularly
scheduled maintenance program should be followed.
NOTE: Fixture is approved for upward aiming only. Do not exceed listed backtilt. Fixture may be aimed
downward if protected from rain and sprinklers.
This KIM fixture is supplied with K" NPT male mounting. KEEP THIS SHEET FOR FUTURE REFERENCE.
!
!
16555 East Gale Avenue
City of Industry, CA 91745-1788
626/968-5666 • FAX [phone]
4300 Sign/Wall Lighter 4324, 4336 & 4348 Installation Instructions

5. To adjust backtilt up to 60° maxi-
mum, loosen swivel screws being
careful not to disengage threads.
Hold fixture at desired angle and
firmly tighten swivel screws.
Wall & Sign Lighter - 4324, 4336 & 4348
Installation Instructions
3. Slide the lens back into channel.
Replace lens rail and tighten the
screws.
4. Loosen set screw to adjust fixture
rotation, then tighten the set
screw.
Set Screw
Swivel
Screw
1. To install lamp, loosen the
captive screws on lens
rail. Slide lens out and peel
protective paper off lens.
Protective Paper
over Lens
Lens Rail
LAMP INSTALLATION: Make certain electrical supply is OFF before starting lamp installation.
!
Lamp
2. Install lamp of type and wattage
as shown on fixture label
located on the reflector.#
6. Attach fixture onto coupling. Support opposite end by attaching swivel to rigid pipe
of appropriate length for site local soil conditions.
J-Box Support Pipe
(By Others)
Lens with Protective Paper
WARNING!
This H.I.D./Fluorescent
fixture utilizes a lamp
that contains mercury.
For information on disposal
of lamp, go to website:
www.lamprecycle.org
!
Page 2 Kim Lighting • 16555 E. Gale Ave. • P.O. Box 60080 • City of Industry, CA 91716-0080 • 626/968-5666 • Fax [phone]

Page 3 Kim Lighting • 16555 E. Gale Ave. • P.O. Box 60080 • City of Industry, CA 91716-0080 • 626/968-5666 • Fax [phone]
For warranty see http://www.hubbelllighting.com/resources/warranty
Wall & Sign Lighter - 4324, 4336 & 4348
Installation Instructions
Do not aim fixture down unless
protected from direct water spray.
60°MAX.
backtilt
60°MAX.
backtilt
60°
MAX.
Down
Do not exceed 60° backtilt aiming.
Do not aim fixture down unless
protected from water spray
