kincrome KP87003 User manual

SMART 9 STAGE BATTERY CHARGER
& REJUVENATOR 12V 6 AMP
SMART 9 STAGE BATTERY
CHARGER & REJUVENATOR
12V 6 AMP
KP87003
ED1/Feb 18
100%
AUTOMATIC
SMART BATTERY
CHARGER &
MAINTAINER
ANALYSIS
BATTERY
CONDITION MICROPROCESSOR
CONTROLLED
FULLY PATENTED
BATTERY
REJUVENATION
(RECONDITIONING)
TECHNICAL
EXPERIENCE
NEEDED
NO
100%
AUTOMATIC
SMART BATTERY
CHARGER &
MAINTAINER
ANALYSIS
BATTERY
CONDITION
MICROPROCESSOR
CONTROLLED
FULLY PATENTED
BATTERY
REJUVENATION
(RECONDITIONING)
TECHNICAL
EXPERIENCE
NEEDED
NO
100%
AUTOMATIC
SMART BATTERY
CHARGER &
MAINTAINER
ANALYSIS
BATTERY
CONDITION
MICROPROCESSOR
CONTROLLED
FULLY PATENTED
BATTERY
REJUVENATION
(RECONDITIONING)
TECHNICAL
EXPERIENCE
NEEDED
NO
KP87003 manual_OC1206U_OC1212U_Troy.indd 1 29/03/2018 3:23 PM

2
Part No:............................ KP87003
Output: ............................ 6A @ 12V DC
Input Voltage:.................. 100-240VAC/1.4A (95W)
Input Frequency: ........... 50/60Hz
Boost Charge Voltage: .. Gel - 14.1VDC
........................................... AGM & WET - 14.4VDC
........................................... Calcium - 14.7VDC
Equalising Voltage: ....... Gel - 14.3VDC
........................................... AGM & WET - 14.6VDC
........................................... Calcium - 15.5VDC
Float Trickle Charge Voltage:........... 13.6VDC
Start Voltage: ..................................... 2VDC
Operating Temperature: ..................-15 to 50ºC
Storage Temperature:....................... -25 to 85ºC
Operating Humidity: .......................... 90% RH Max.
Dimensions: ........................................182 x 88 x 48mm
Weight:................................................. 0.75kg
Approvals ............................................ CE, AS/NZS, EMC
Table of Contents
Know Your Product................................................ 2
IMPORTANT Safety Advice and Warnings............ 3
Main Features ........................................................ 3
Electrical Parts & Accessories............................. 5
Temperature & Safety Protection......................... 5
Battery Types & Capacity ...................................... 5
Understanding your Product ................................ 6
Operation Charging Instructions.......................... 7-9

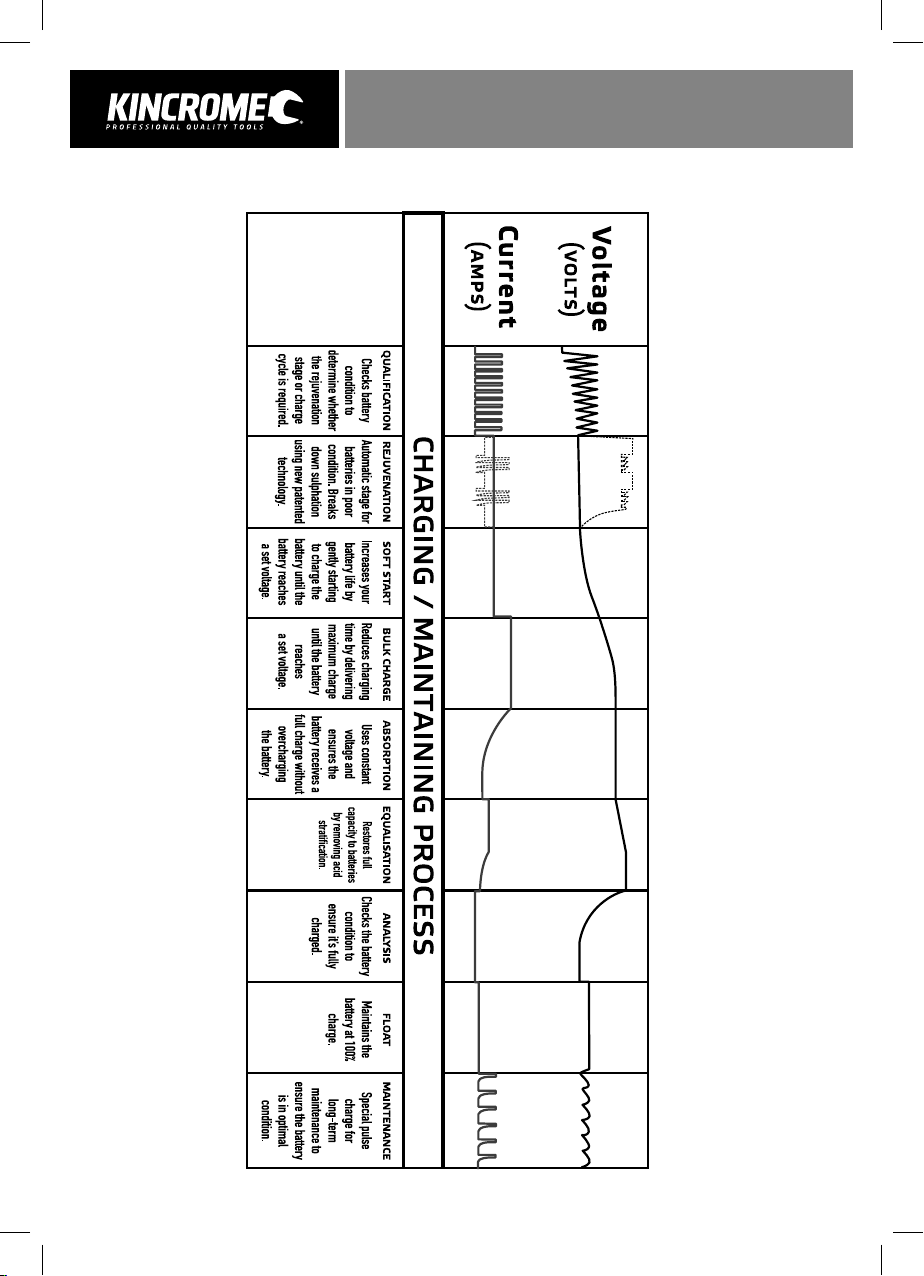

Charging Curve...................................................... 10
Troubleshooting..................................................... 11
Warranty................................................................. 12
SPECIFICATION

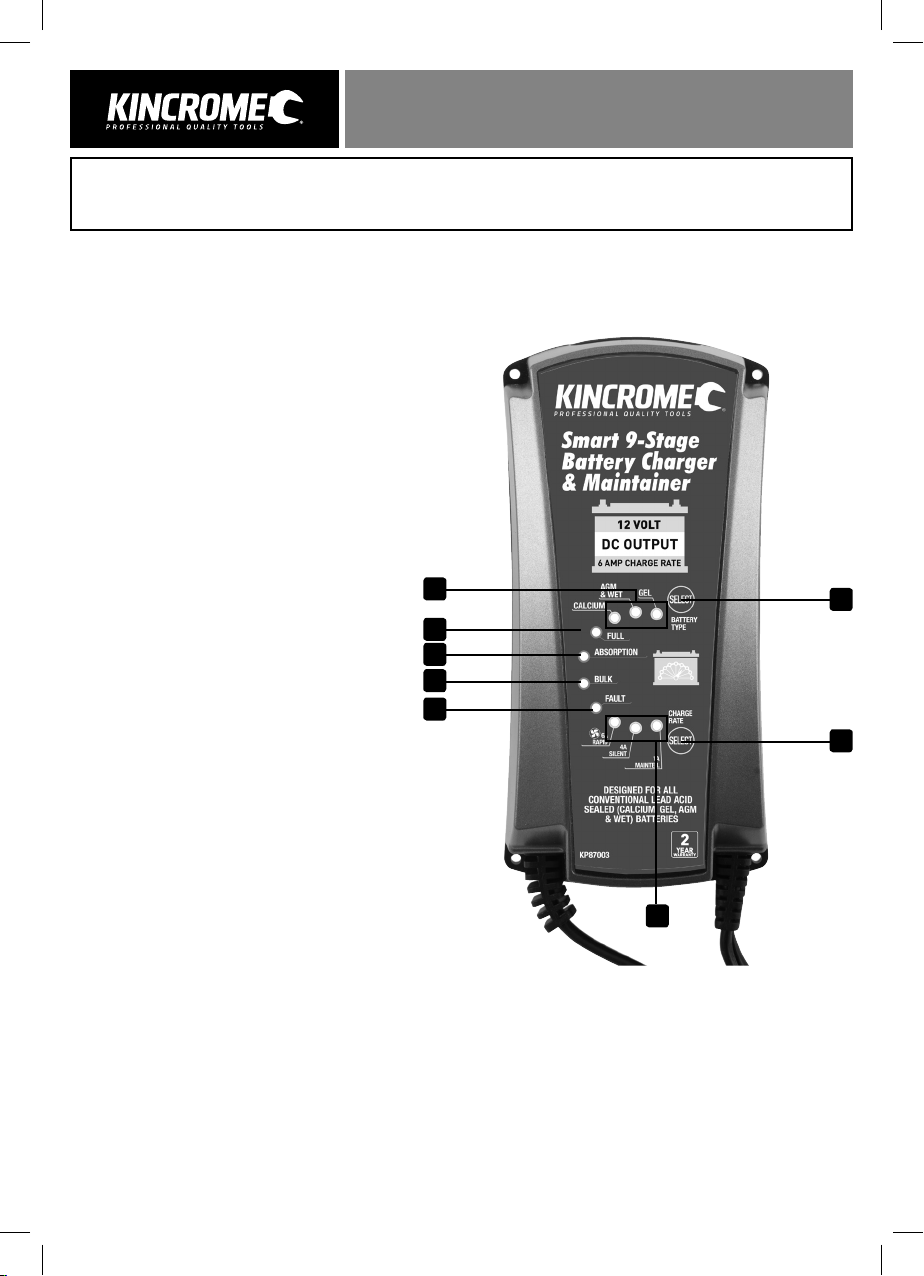

Know Your Product
1. Battery Type Selection Button
2. Charge Rate Selection Button
3. GREEN Charge Rate LEDs
4. RED Fault LED
5. BLUE Bulk LED
6. GREEN Absorption LED
7. GREEN Full LED
8. GREEN Battery Type LEDs
SMART 9 STAGE BATTERY CHARGER
& REJUVENATOR 12V 6 AMP
Congratulations on purchasing a Kincrome KP87003 fully automatic switched mode 12 Volt DC battery
charger, maintainer and rejuvenator. Please take the time to carefully read and understand this
manual before using this product.
1
2
4
5
6
7
8
3
KP87003 manual_OC1206U_OC1212U_Troy.indd 2 29/03/2018 3:23 PM

3
IMPORTANT SAFETY ADVICE AND WARNINGS
• The charger is designed to charge and maintain 12V conventional lead-acid
batteries only. (VRLA), AGM, CALCIUM, GEL & WET.
• Always refer to the battery manufacturers specifications and recommendations if you’re
unsure of your battery charging requirements. Eg. Such as removing or not removing
cell caps whilst charging, battery type, maximum charge rate etc..
• Explosive gases may escape from the battery during charging so please ensure the
battery is charged in a well ventilated area.
• This charger is designed for indoor use only and should never be exposed to water, rain,
snow, liquids etc.
• Do not attempt to use the charger if it has been dropped or damaged.
• Do not attempt to use the charger if the cables or plugs are damaged.
• If battery acid contacts your skin or clothing, wash immediately with soap and water. If acid
enters your eye, immediately flush the eye with running cold water for at least 10 minutes
and seek medical attention. Someone should always be within range of your voice.
• Never attempt to charge a damaged battery, frozen battery or non rechargeable battery.
• Never place the charger on the battery or battery on the charger.
• When working with lead-acid batteries, remove personal metal items such as rings,
bracelets, necklaces, watches and make sure you don’t short circuit the battery
terminals with any type of metal tool or piece of jewellery as this will cause an explosion.
You can wrap your spanner with insulation tape to minimise the risk of a short circuit.
• NEVER smoke, use an open flame or create sparks near a battery or charger during
charging operation as this may cause an explosion and explosive gases.
• Do not disassemble the charger. Take it to a qualified and authorised person for repair.
• If using a generator, you must ensure you use a surge protector to protect the charger
from Voltage spikes.
• The charger must not be used or played with by infirm persons or children. Also keep it
away from any pets.
MAIN FEATURES
• 100% automatic smart battery charger & maintainer with reconditioning.
• The battery charger is easy to use and requires NO technical experience.
• Fully microprocessor controlled with safety timers at every stage.
• Battery condition analysis.
• Selectable battery type.
• Selectable charge rate / mode.
• Patented battery rejuvenation (reconditioning).
• Battery Voltage retention analysis.
• Pulse charge for long term maintenance.
• Ultra lower power consumption (ECO Mode)
SMART 9 STAGE BATTERY CHARGER
& REJUVENATOR 12V 6 AMP
SMART 9 STAGE BATTERY CHARGER
& REJUVENATOR 12V 6 AMP
KP87003 manual_OC1206U_OC1212U_Troy.indd 1 29/03/2018 3:23 PM

4
• Multi Stage:
1 - Qualification - Battery condition check
2 - Battery rejuvenation (recondition mode)
3 - Soft start charging
4 - Bulk charging
5 - Absorption charging
6 - Equalisation charging
7 - Battery analysis
8 - Float mode
9 - Long term maintenance pulse charge
• Automatic diagnosis and charge: On power up, the charger will automatically diagnose
the battery condition and determine if the rejuvenation mode (reconditioning) or charge
cycle is required.
• Patented battery rejuvenation technology: The charger has a unique and patented
rejuvenation feature which uses high Voltage equalising and peak pulse reconditioning
to repair sulphated batteries. This feature is fully automatic and depends on the internal
impedance of the battery. It also depends on whether the battery is still connected in
the vehicle.
• Can be left on 24/7 to ensure your battery is always maintained and fully charged:
The battery charger can be left unattended and left permanently connected all year
round. The intelligent charger will monitor the battery Voltage and will maintain it at
peak performance with a special pulse charge during long term maintenance.
• Short circuit and reverse polarity protection:
• Heavy-duty and corrosion-resistant output connectors:
• Crocodile clips: It comes with a quick connect fly lead and heavy duty, fully insulated
crocodile clip harness. If you require an optional ring terminal harness, please visit our
website www.kincrome.com.au or contact your local reseller.

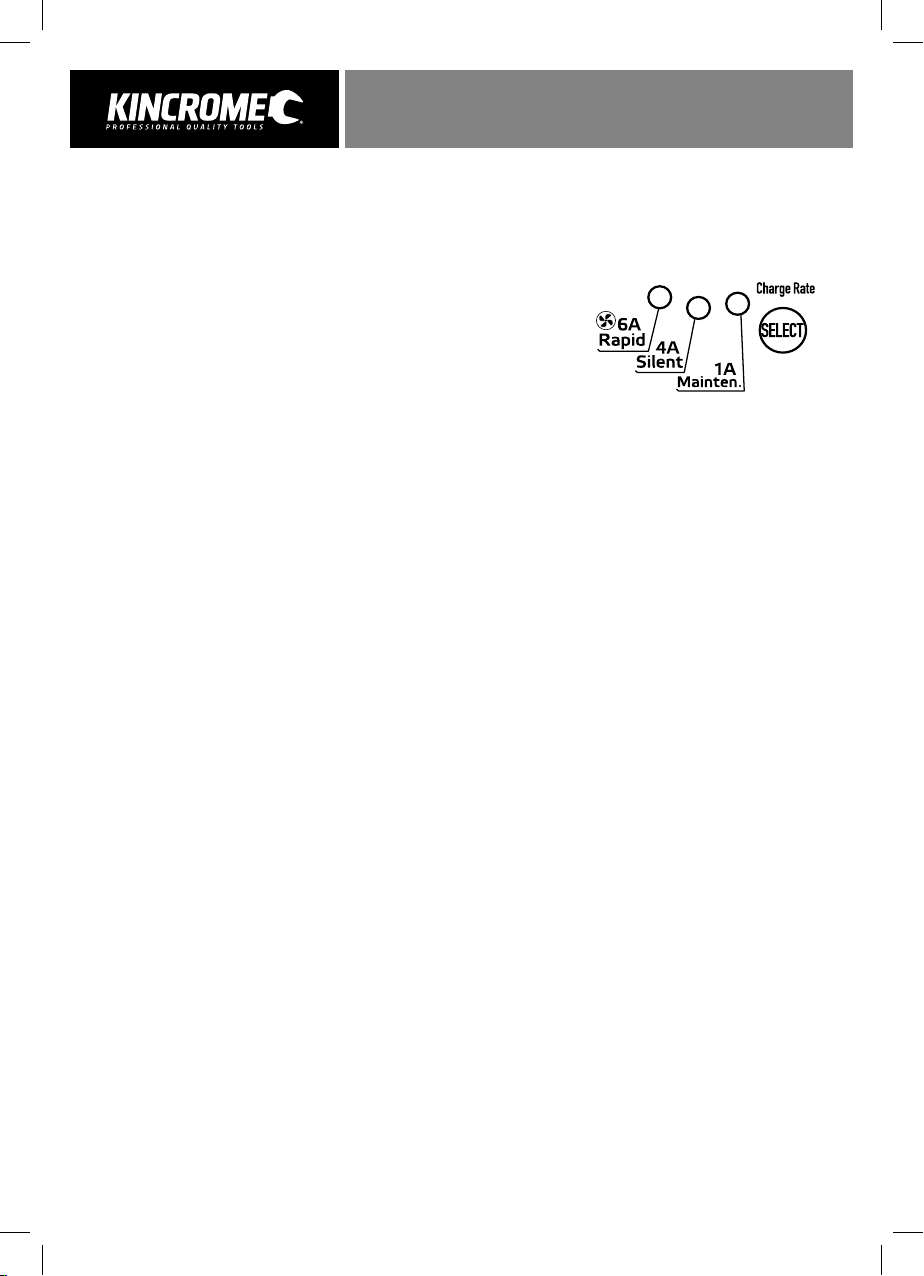

• Rapid Charge Mode: Uses maximum charging current to ensure the fastest charge
time. You may hear the fan turn on during this mode.
• Silent Charge Mode: Charges at a slightly reduced charge rate so the cooling fan is
not required.
• Maintenance Mode: Ideal and recommended for long term maintenance charging or for
charging smaller batteries.
SMART 9 STAGE BATTERY CHARGER
& REJUVENATOR 12V 6 AMP
RED BLACK
RED BLACK
CONNECTION IN VEHICLE
(NEGATIVELY EARTHED)
RED
BLACK
CONNECTION IN VEHICLE
(POSITIVELY EARTHED)
Gel
Battery type
Gel
Battery type
Gel
Battery type
Note: Image shows KP87003 model.
KP87003 manual_OC1206U_OC1212U_Troy.indd 2 29/03/2018 3:24 PM

5
TEMPERATURE & SAFETY PROTECTION:
• INTERNAL OVERHEAT PROTECTION: The charger has a built-in overheat and an
overload electronic circuit. This protects the charger from being damaged if overheated or
overloaded and will automatically decrease the charging current. Once the units
internal temperature decreases to a safe level, the charger will resume normal charging.
•SAFETY TIMER PROTECTION: The charger has safety timers for every stage. If the
battery Voltage doesn’t reach a certain Voltage within a certain time, the unit will stop
charging as it’s highly likely that you’re attempting to charge a severely discharged or
heavily sulphated battery. If any of the stages time out, the charger will immediately
stop charging in order to protect the battery. This will be indicated with the fault LED
flashing slowly.
•REVERSE POLARITY: The charger has reverse polarity protection. If the charger output
leads are connected reverse polarity, the fault LED will come ON and the charger will be
disabled. Simply unplug the charger from AC power and then connect the output leads
to the correct polarity.
• SHORT CIRCUIT PROTECTION: The charger will automatically turn OFF if the output
leads are short circuited and the fault LED will come ON. This prevents the charger from
being damaged if the positive and negative crocodile clips or the optional ring terminals
accidently touch each other while the charger is turned ON.
•ECO MODE: This Kincrome Battery Charger has a built in ultra low power consumption
circuit. If AC power is connected and the battery is disconnected, after 10 seconds the
charger will automatically go into an ECO mode. During this mode the power drawn
is less than 0.36W which totals 0.01kWh per day power consumption. If AC power is
connected and the battery is connected, once the battery is fully charged and during the
long term maintenance stage, the total power consumption is around 0.03kWh per day.
Both the selected Charge rate and Battery type LED’s will flash GREEN to indicate
ECO mode.
BATTERY TYPES & CAPACITY:
•Suits 12V conventional lead acid batteries (VRLA) AGM, Calcium, Gel & Wet.
The Ah (Ampere Hours) capacities shown below are to be used as a general guide only.
Some batteries may be able to handle a higher charge current. Refer to the battery
manufacturers specifications and recommendations for your charging requirements.
Charge Rate: 1A 4A 6A
Charging 3 - 20Ah 12 - 80Ah 18 - 120Ah
Maintaining < 100Ah < 120Ah < 180Ah
SMART 9 STAGE BATTERY CHARGER
& REJUVENATOR 12V 6 AMP
ELECTRICAL PARTS & ACCESSORIES:
AC Power Cord: 1.8m with SAA 2 Pin AU Plug
DC Output Lead: 1.2m with quick connect Plug
Charging Leads: Quick connect 60cm Crocodile Clip Harness
KP87003 manual_OC1206U_OC1212U_Troy.indd 3 29/03/2018 3:24 PM
Quick connect 60cm Ring Terminal Harness
