Kindermann 7488000300 User manual

1
Wireless Presentation Solution
Ref.-No. 7488000300, 7488000301
Installation and User Manual
Release: Firmware 2.0.6
GB - 11.2017

2
Overview
Kindermann Klick & Show makes connecting or participate in a meeting by a most simple way, clicking a button.
It also allows the other to join in the meeting more actively. The result is to make the meeting more efficient and
productive. The Content is transmitted via WLAN from the mobile transmitters or mobile devices to the Base-
unit. Additionally a HDMI Signal can be directly attached to the Base-unit.
The Klick & Show K-10S Kit (7488000300) contains of one Base-unit and two Senor-buttons TOUCH
(7488000301). Additional Sensor-buttons TOUCH (7488000301) are available.
The current version of this manual can also be downloaded from the website www.klickandshow.com.
Contents Klick & Show K-10S Kit (7488000300)
1 x Kindermann Klick & Show Base-unit
2 x Antenna (The antenna can rotate for an optimal wireless connection)
2 x Wireless Klick & Show Sensor-buttons TOUCH
1 Universal power-supply 100 –240 VAC, 12 VDC/2A, with different adapters
1 Mounting set for installation at wall
1 Quick-start-guide
Main features
Wireless transmission of Windows or Mac laptops / PCs to a central screen
Can transmit PC’s mirror/extended desktop or Macbook's mirror desktop to the Base-unit
Can transmit smart devices' mirror, photos, videos, music etc.
Transmits USB-HID (f.e. mouse) for interactive units (Touch-displays, interactive WhiteBoards)
Support VESA PC resolution input, auto-detecting
Support remote mouse to control the active source devices from other smart devices (REMOTE Control)
Can remote monitoring the active display on screen from smart devices (REMOT View)
Support "Airplay" for apple device
External HDMI-Input at Base-Unit for cable-linked connection to another video-source (document camera, DVD, …)
Sensor-buttons TOUCH
Sensor-button with "Show-me" function with fast signal switching (app. 1s)
Status display with colored LEDs:, green indicates active source signal, red indicates power/link.
Support USB plug-in auto configuration/pairing at Base-Unit
“Show-me" button can independently step in/out the source of PC

3
Accessory:
Klick+Show TOUCH T1 Transmitter (7488000301)
Sensor-button for expansion of Klick & Show K-10S Kit
Safety instructions
Please read the instructions carefully and store them
The Kindermann Klick & Show K-10S can only be operated with a safety low voltage via the associated
power supply unit
The device must only be stored and used in a dry, closed environment without mechanical stress
Install the unit in a place with adequate ventilation
Do not use any liquids or thinners for cleaning (remove the power supply beforehand!)
Remove the power supply for long periods of non-use
The use of unsuitable accessories may result in damage or malfunction
Please observe the safety instructions of the devices to be connected
Catalogue
1. Overview..........................................................................................................................................................6
2. Hardware Interface ....................................................................................................................................7
2.1 Connections and Buttons..........................................................................................................................7
2.1.1 Front Panel......................................................................................................................................7
2.1.2 Rear Panel .......................................................................................................................................8
2.1.3 Sensor-Button TOUCH ................................................................................................................11

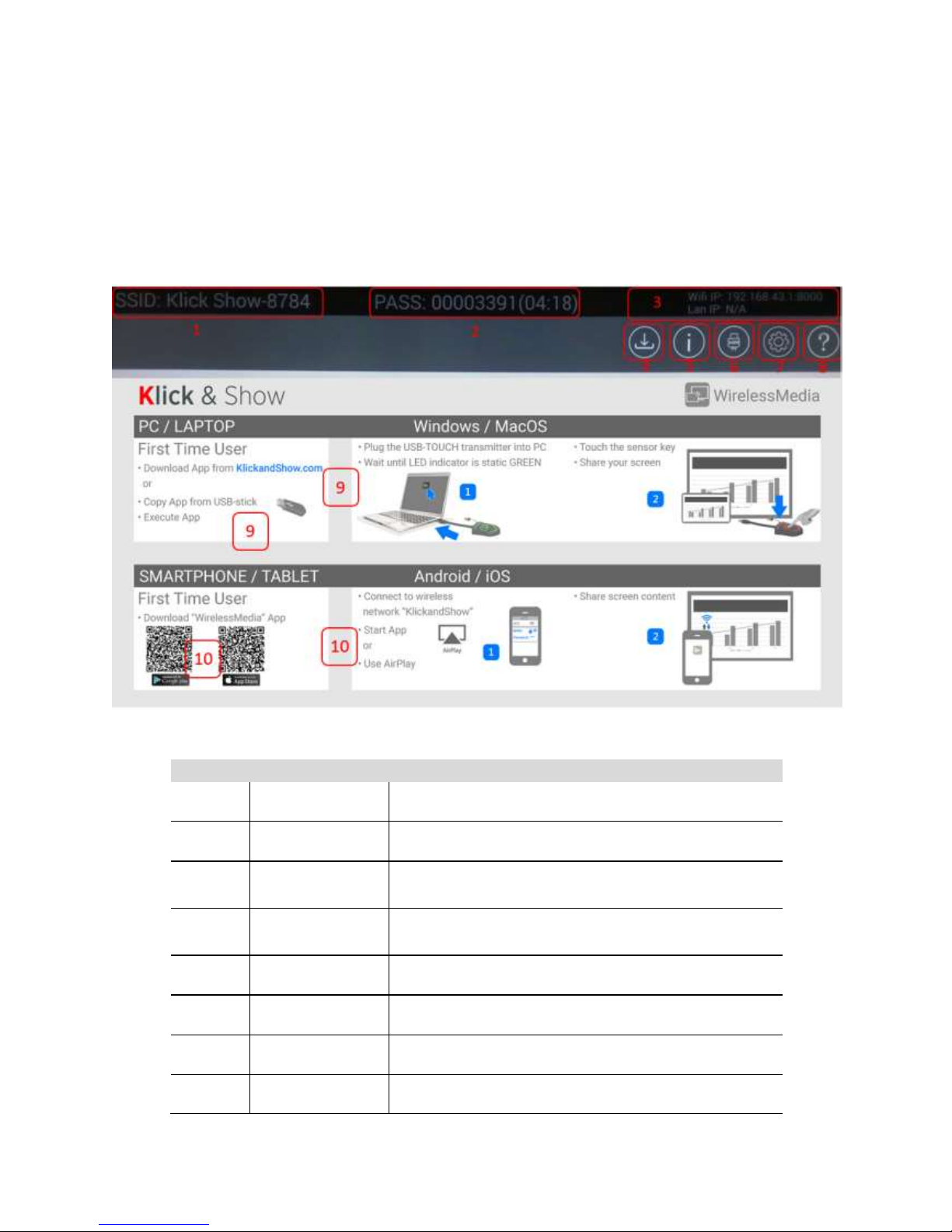

2.2 User Interface .......................................................................................................................................12
2.2.1 Home Page ...................................................................................................................................12
3. Installation Klick & Show ............................................................................................................................16
3.1 Installation methods for the Base-unit..............................................................................................16

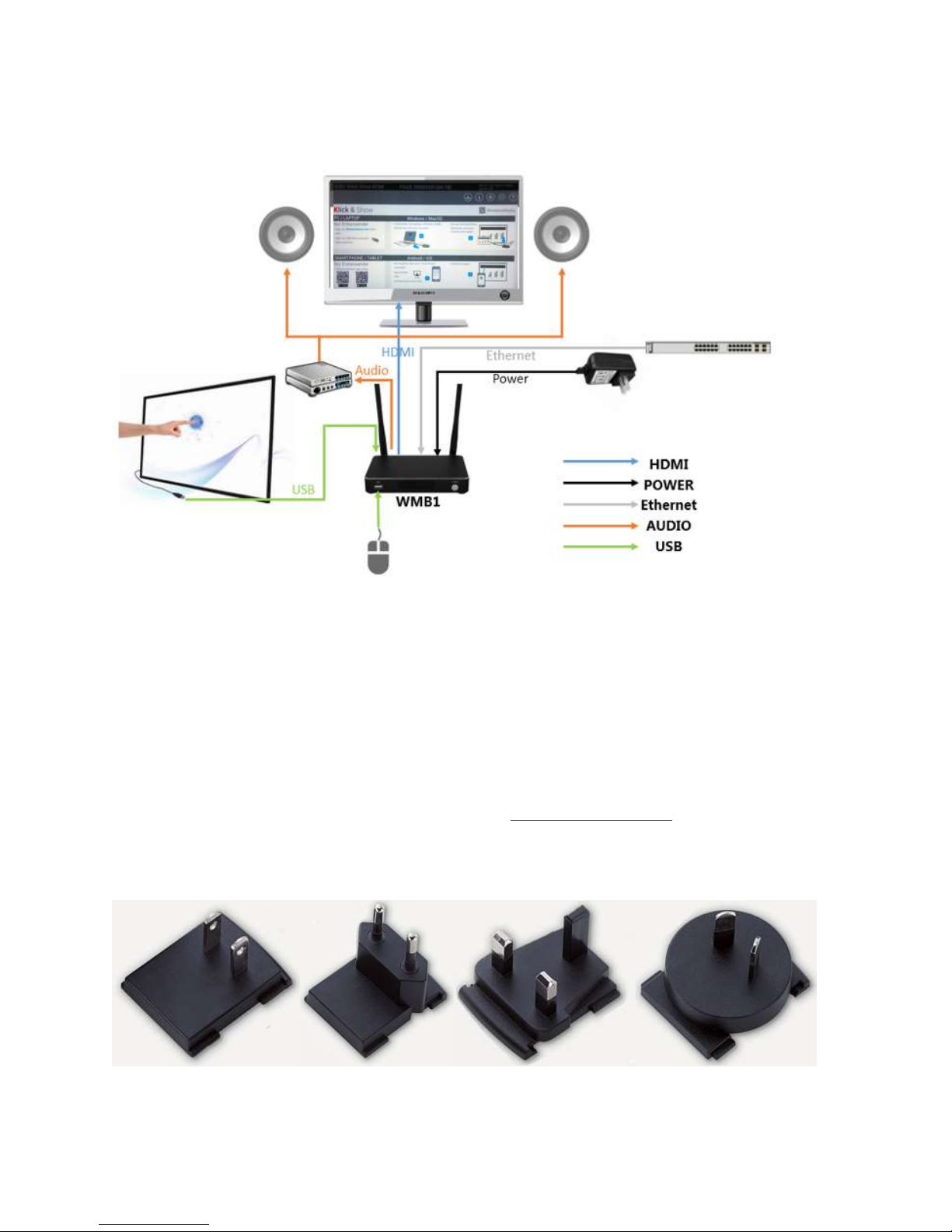

3.2 Wiring diagram.....................................................................................................................................18
3.3 Power Connection................................................................................................................................18
WARNING

4
3.4 Video connection.................................................................................................................................19
3.5 Audio Connection ................................................................................................................................19
3.6 LAN connection....................................................................................................................................20
3.7 Usage of USB devices..........................................................................................................................22
4. Starting-up of Klick & Show.......................................................................................................................23
4.1 Mobile units: Wireless Connection ....................................................................................................23
4.1.1 Enable portable hotspot:.............................................................................................................23
4.1.2 Enable LAN Connection:..............................................................................................................24
4.2 Pairing Sensor-button with Base-unit...............................................................................................25
4.3 Mirroring of the desktop.....................................................................................................................26
4.3.1 PC / Laptop...................................................................................................................................26
4.3.2 Mobiles..........................................................................................................................................26
5. Menu “General setting ................................................................................................................................29
5.1 Ethernet.................................................................................................................................................30
5.1.1 IP address......................................................................................................................................30
5.1.2 Ethernet MAC address.................................................................................................................30
5.1.3 Proxy & IP settings.......................................................................................................................30
5.1.4 PPPoE settings..............................................................................................................................31
5.2 Tethering & portable hotspot............................................................................................................31
5.2.1 Portable Wi-Fi hotspot................................................................................................................31
5.2.2 Show WLAN-name and password .............................................................................................31
5.2.3 Set up Wi-Fi hotspot....................................................................................................................32
5.2.4 Auto change Wi-Fi hotspot password.......................................................................................33
5.2.5 Wi-Fi analyzer...............................................................................................................................34
5.3 General settings ...................................................................................................................................37
5.3.1 Automatic creation of Starter-program....................................................................................37
5.3.2 Auto Standby................................................................................................................................37
5.3.3 Airplay screen quality ..................................................................................................................37
5.3.4 HDMI output resolution..............................................................................................................37
5.3.5 Background image Home screen...............................................................................................38
5.3.6 Volume ..........................................................................................................................................38
5.4 Security setting.....................................................................................................................................38

5
5.4.1 LAN discovery & Connection .....................................................................................................38
5.4.2 Remote view lock .........................................................................................................................38
5.4.3 Clear History after meeting.........................................................................................................38
5.4.4 Change admin password.............................................................................................................39
5.5 Language...............................................................................................................................................39
5.6 System Update .....................................................................................................................................39
5.7 Date & Time..........................................................................................................................................39
5.8 About Device ........................................................................................................................................39
6. System Firmware-Update............................................................................................................................40
6.1Check current firmware information of:............................................................................................40
6.2 Upgrading Firmware Base-unit ..........................................................................................................41
6.3 Upgrading Sensor-button TOUCH ....................................................................................................44
6.4 Software update of Starter-Program.................................................................................................45
6.5 Clean left files of older versions of Starter-program in Laptop.....................................................47
7. Operation Guide for Klick & Show ............................................................................................................48
7.1 Transmitting PC desktop.....................................................................................................................48
7.1.1 Microsoft Windows PC / Laptop................................................................................................48
7.1.2 Mac OS PC/Laptop.......................................................................................................................50
7.2 Transmitting iOS mobile device.........................................................................................................52
7.2.1 How to use airplay? .....................................................................................................................52
7.2.2 App “WirelessMedia” for iOS......................................................................................................52
7.3 Transmit Android device wireless ......................................................................................................57
7.3.1 “WirelessMedia” Apk for Android..............................................................................................57
7.4 HDMI Input Select................................................................................................................................60
8. Specification Klick & Show .........................................................................................................................61
9. Trouble Shooting .........................................................................................................................................63

6

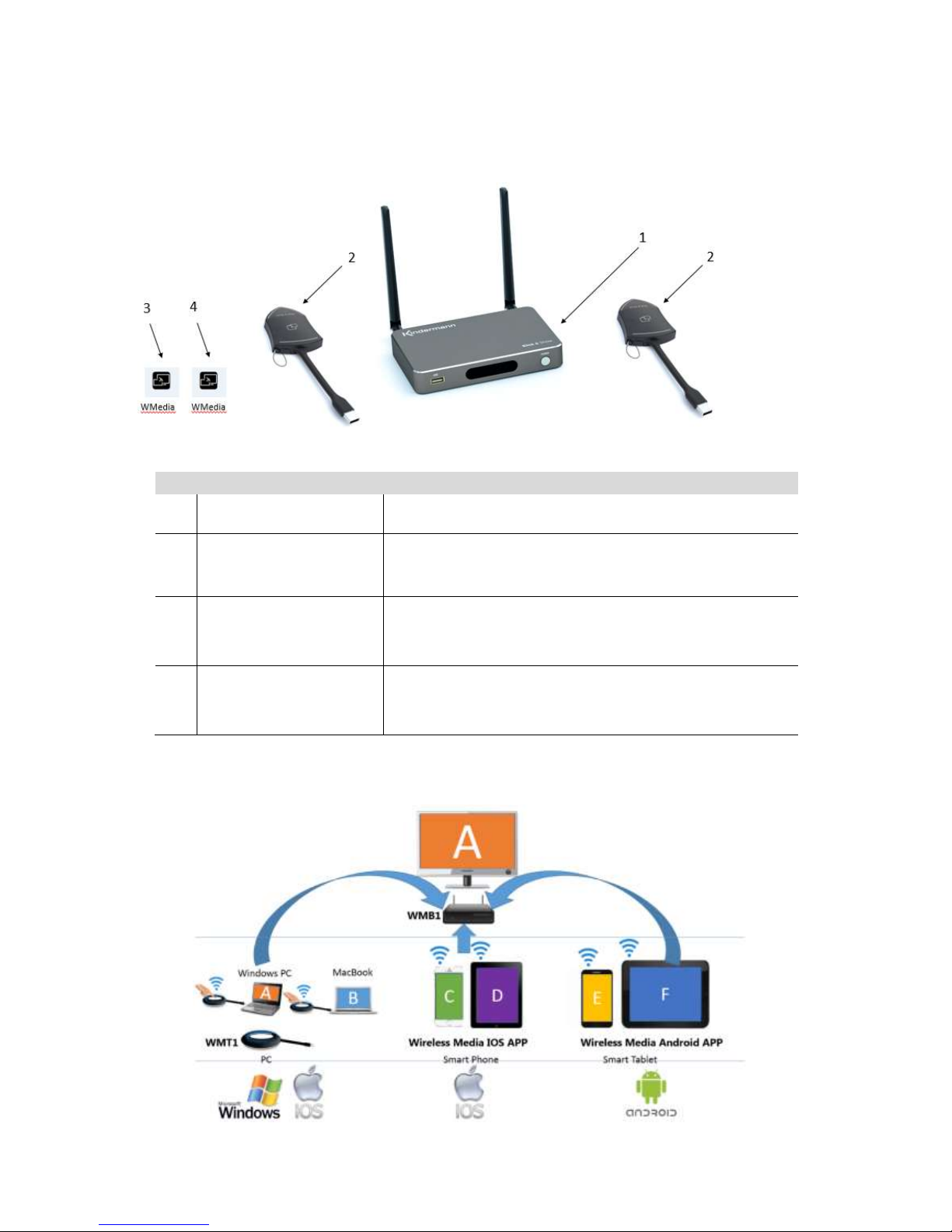

1. Overview
ID
Name
Description
1
Klick & Show Base-Unit
Host / Base-unit with WiFi receiver
2
Sensor-button TOUCH
Sensor-button with WiFi transmitter for PC/Laptop to share
the desktop/extended desktop
3
WirelessMedia for
Android
APP for smart android devices to share the screen, transmit
photos/music/video/files, exchange files, remote view and
review mouse.
4
WirelessMedia for IOS
APP for smart IOS devices to share the screen, transmit
photos/music/video/files, exchange files, remote view and
review mouse.
Action chart:

7
2. Hardware Interface
2.1 Connections and Buttons
Overview
Front panel
Rear Panel

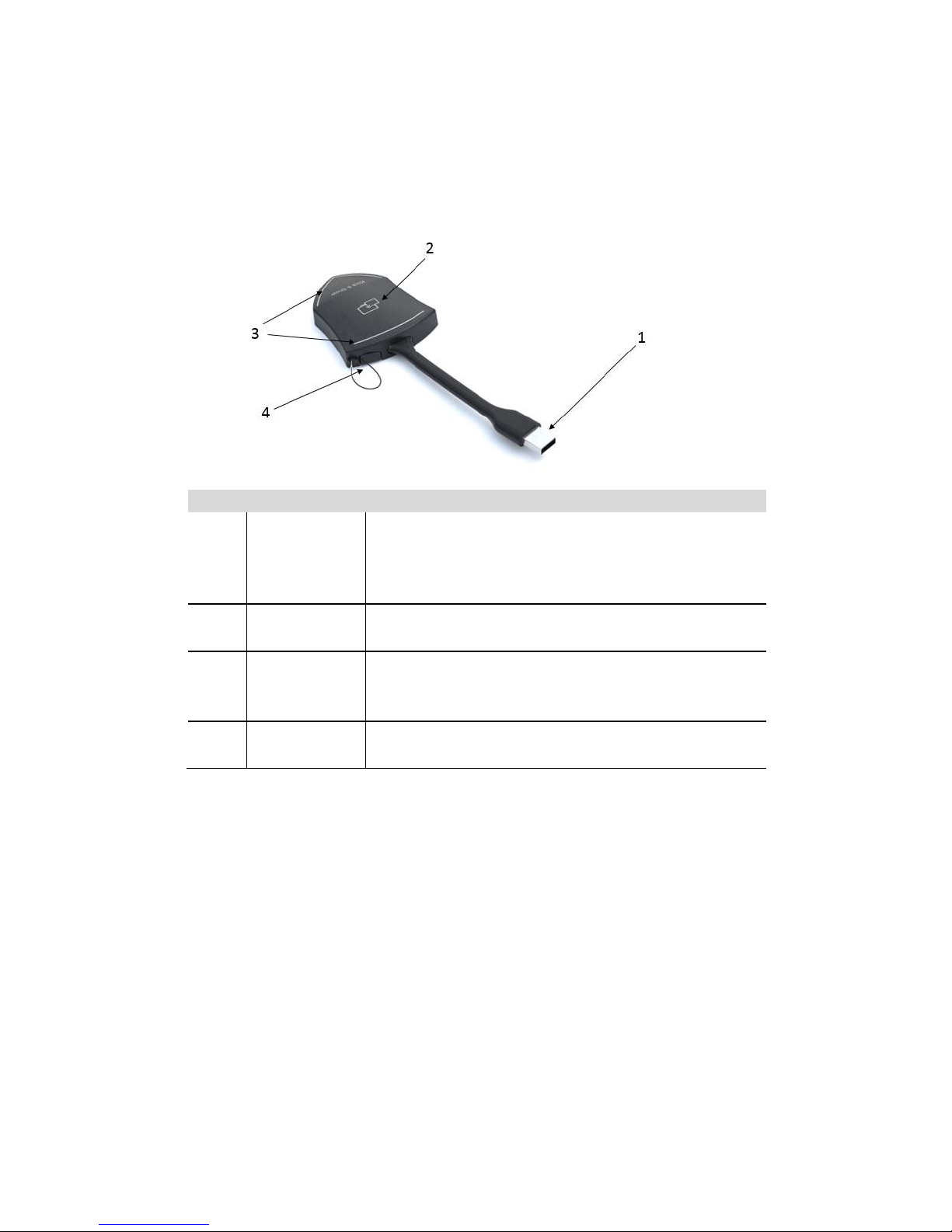

Sensor-button TOUCH
2.1.1 Front Panel
ID
Name
Description
1
Front USB connector
USB port, for Klick & Show TOUCH pairing, mouse control, USB
touch screen etc.
2
POWER button and back-lit LED
indicator
Unit ON/OFF with green status-LED ON/OFF/FLASHING
(STANDBY)
USB port
To be able to use a Sensor-button it should be paired to the Base-unit you are using. Insert the Sensor
button to an USB port of the Base-unit you are using. If necessary, the Firmware of the button is automatically
updating. Follow the instructions at screen.
Other functions of USB-port.
The USB port is used to update the software of Klick & Show.
The USB port is used for connecting a mouse to:
1. Navigate in the SETTING configuration
2. Control a PC desktop that is mirroring to the screen by using the Sensor-button TOUCH
3. Control a PC desktop that is connected to the local HDMI Input

8
Instead of a Mouse also a local connected touch Screen can be used
Via this USB Port you can create a USB Stick containing the Starter-Program-Software for the Sensor-button
TOUCH
POWER button
The button at the front of the Base-unit has a power on/off function once the Base-unit is powered.
Pressing the Button switches the unit on and off (takes a few seconds each).
2.1.2 Rear Panel
ID
Name
Description
1
DC Power socket
Connect the included power adapter DC 12V/2A to this socket,
and connect the plug to an available electrical outlet
2
LAN
Connect an Ethernet cable between this jack and a LAN to
connect the Base-unit to LAN; PoE ready
3
USB port
USB port, for pairing Sensor-button TOUCH, mouse control, USB
touch screen etc.; same functions as front-USB
4
Reset
for restoring the factory default setting
5
HDMI OUT
To connect an HD or 4K/HDMI2.0 output device
6
LINE OUT
2 channel analog audio output. Connect a 3.5 mm mini-jack PC
connector from this jack to the Line In jack of an audio system.
7
HDMI IN
Connect an local HDMI input, up to 4K_60Hz, HDCP2.2 source
device
8
LINE IN
2 channel analog audio input is active, when it detects no audio
signal in HDMI IN, like DVI-Input. Connect a 3.5 mm mini-jack
PC connector from this jack to the Line Out jack of an external
audio source devices.
9
ANT.
Screw up the included two antennas to these two ports

9
Reset button
On pressing the Reset button, a program restart is initiated at Base-unit.
Start up the Base-unit.
When the Home Page is shown up, press the reset button at the rear panel of Base-unit. Press this button
with a pointed object, e.g. an unbent paper clip, until the factory reset page is shown up as below, for at least
2 seconds.
Use a mouse to connect to Base-unit and click Factory Reset. The Base-unit will reboot after 3 seconds to be
default configuration. All previous settings will be lost and you will need to do the set-up once more.
Or click Cancel to return.
After Reset, all Sensor-buttons must be paired again to Base-unit, because SSID has changed (see chapter
4.2).
Default Configuration
Ethernet
Proxy: None
IP setting: DHCP
Tethering & portable hotspot
Portable Wi-Fi hotspot: ON
SSID: WMB-****,
Security: WPA2 PSK
Frequency: 5GHZ
Channel: 40Hz

10
Settings
Airplay quality: High
output Resolution: 1920x1080_60Hz,
Background image: standard
Volume: 100
Security setting
LAN connection: Disable mobile devices can discover/connect the Base-unit in same LAN
Presenter Lock: Disable remote view the main screen from mobile device application
Language: English
Date & time
automatic date & time: use network-provided time
Mechanical fixture points
Brackets for wall-mounting are in delivery. The mechanical fixture points are located at the bottom of the Base-
unit. Wall-mounting see chapter 3.1.
