King Tony 9TY111 Series User manual

www.kingtony.com
GARAGE JACK
OPERATION MANUAL
● The owner must make sure that the user has
fully understood all instructions and warnings.
● Safety information shall be emphasized and
understood prior to use. The jack shall be
inspected as per the instruction manual prior
to use.
Enjoy your work
WARNING
Please wear proper safety gear while working.
NO.
9TY111
NO.
9TY112
RAISING & LOWERING VEHICLE
KT NO. Capacity Work range (mm)
9TY112-02A-B 175~339
9TY112-03A-B 190~368
9TY112-04A-B 190~368
9TY112-05A-B 210~407
9TY112-06A-B 210~407
9TY112-08A-B 225~450
9TY112-10A-B 225~450
9TY112-12A-B 230~465
9TY112-15A-B 230~460
9TY112-16A-B 230~460
9TY112-20A-B 240~450
9TY112-32A-B 260~420
9TY112-50A-B 280~450
2T
3T
4T
5T
6T
8T
10T
12T
15T
16T
20T
32T
50T
KT NO. Capacity Work range (mm)
9TY111-035-B 172~372
9TY111-05-B 218~474
9TY111-10-B 220~483
9TY111-15-B 228~508
9TY111-20-B 241~525
3.5T
5T
10T
15T
20T
1. Always set the vehicle parking brake and block
the wheels.
2. Place the handle into the socket and pump up
and down to raise the vehicle.
3. Place jack stands beneath the vehicle .
Do not get under the vehicle without jack stands.
4. After use, turn the release valve slowly
counterclockwise to lower the vehicle onto the
ground.(Do not get under or let anyone else
under the vehicle while lowering.)
5. Remove the jack stands.
● Make sure the jack and vehicle are on a hard
level surface.
● Consult the vehicle owner’s manual to ascertain
the location of jack points and position the jack
beneath the prescribed lift point.
● Jacks are not designed to maintain heavy loads
for long periods of time.
● The product shall be maintained in accordance
with the product instructions.
● No alterations shall be made to this product.
● Before use, a visual inspection shall be made for
abnormal conditions such as cracked welds,
damage, bent, worn, lose or missing parts.
● The product shall be inspected immediately if it
is believed to have been subjected to abnormal
load or shock.
● Monthly maintenance is recommended.
● Lubrication is more important to jacks, any
restriction due to dirt, rust, etc.,can cause either
slow movement or cause extremely rapid jerks,
damaging the internal components.
● Lubricate the ram, linkages, saddle and pump
mechanism with light oil.
● Visually inspect for cracked welds, bent, loose,
missing parts or hydraulic leaks.
● Any hydraulic jack found damaged in any way,
is found to be worn or operates abnormally
shall be stoping work until repaired.
● Clean all surfaces and maintain all labels and
warnings.
● Check and maintain the ram oil level.
● Check the ram every three months for any sign
of rust or corrosion.
● Clean as needed and wipe with an oil cloth.
● When not in use, always leave the saddle and
ram all the way down.
● Always store your jack in the fully lowered
position. This will help protect critical areas from
corrosion.
● Do not use brake, transmission fluids or regular
motor oil as they can damage the seals.
MAINTENANCE
INSPECTION
The following steps are designed to keep the
jack maintained:
WARNING :
CHECK OIL LEVEL
TROUBLE SHOOTING
1. Turn release valve counterclockwise to allow
ram to fully retract. It may be necessary to apply
force to the saddle for lowering.
2. Remove the inspection plate.
3. With the jack in the level position, remove the
oil fill plug. Stand jack in vertical position with
handle socket down. The oil should be level
with the bottom of the fill hole. If not, top off,
do not overfill.Always fill with new clean hydraulic
jack oil.
4. Replace fill plug and inspection plate.
5.Check jack operation.6.Purge air from system as
required.
System purge:
1. Turn the release valve counterclockwise one
full turn to open.
2. Pump the handle eight full strokes.
3. Turn the release valve clockwise.
4. Pump the handle until the ram reaches
maximum height and continue to pump several
times to remove trapped air in the ram.
5. Carefully and slowly pinch the oil fill plug to
release trapped air.
6. Turn the release valve counterclockwise one
full turn and lower the ram to the lowest position.
Use force if necessary.
7. Turn the release valve clockwise to closed
position and check for proper pump action.
It may be necessary to perform the above more
than once to completely evacuate all the
trapped air.
● Read, study and understand all warning and
operation instructions prior to use.
● Do not overload this jack beyond its rated
capacity.
● This jack is a lifting device only.
● This jack is designed for use on hard level
surgaces only.
● Lift only on areas of the vehicle as specified by
the manufacturer.
● Failure to heed these warnings may result in
damage to jack and/or failure resulting in
personal injury or property damage.
● Inspect before each use.
customer service e-mail : [email protected] 899TY111-KT 297x210mm
TROUBLE SHOOTING
Possible cause
Jack will not lift
to full height
Problem
Jack will
not hold load
Lift arm
will not lower
Low oil level
Release valve not closing
hydraulic jack oil contaminated
pump valves not sealing
cylinder ram binding
Cylinder ram binding parts
worn internal damage broken
return spring or unlocked lift
arm linkage bent or binding

This manual suits for next models

19

Other King Tony Jack manuals

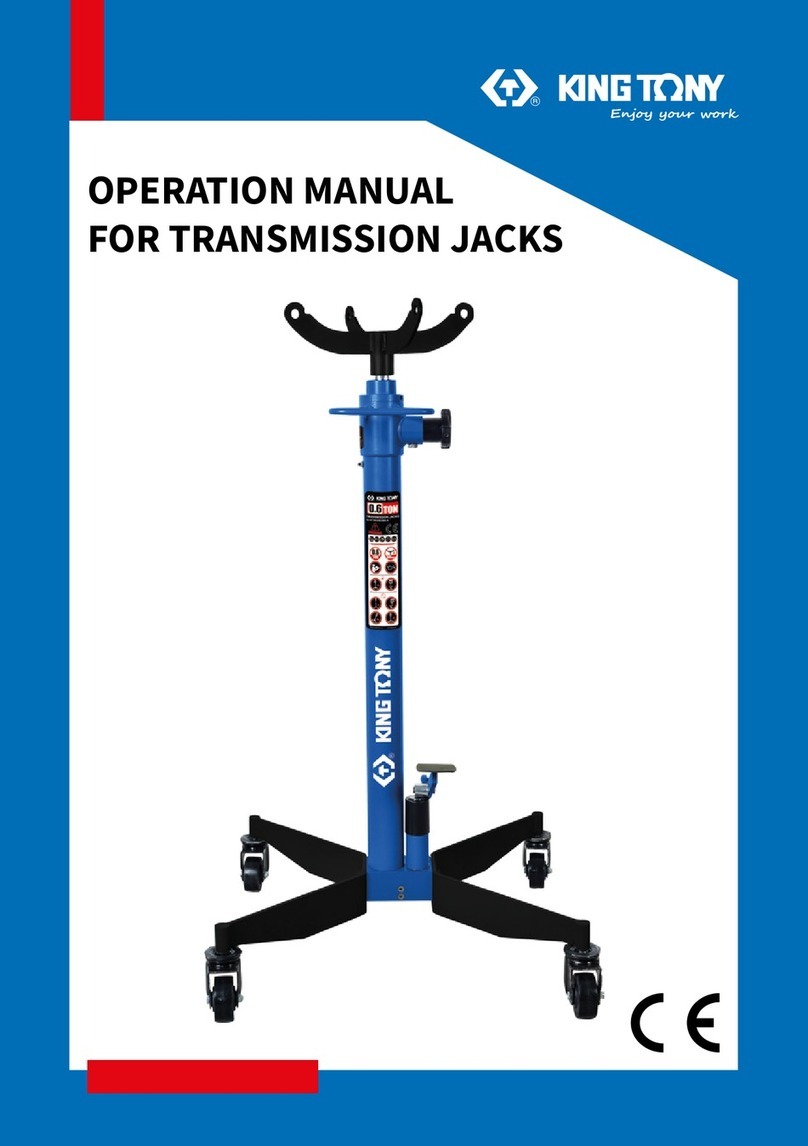

King Tony 9TYN143610AB User manual

King Tony

King Tony 9TYN143610AB User manual

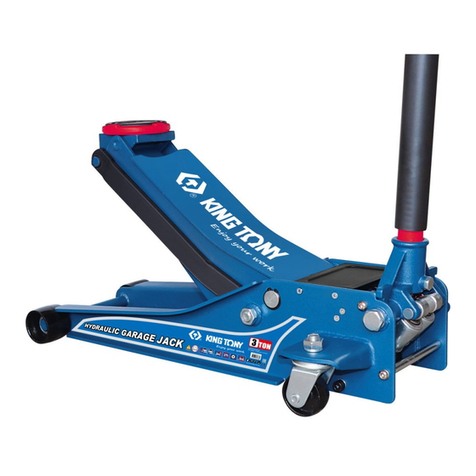

King Tony 9TY132 Series User manual

King Tony

King Tony 9TY132 Series User manual

King Tony 9TY137 User manual

King Tony

King Tony 9TY137 User manual

King Tony 9TYE721AB User manual

King Tony

King Tony 9TYE721AB User manual

King Tony 9TY132A User manual

King Tony

King Tony 9TY132A User manual

King Tony 9TY133 User manual

King Tony

King Tony 9TY133 User manual

King Tony 9TYE13120AB User manual

King Tony

King Tony 9TYE13120AB User manual

King Tony 9TY145-015 User manual

King Tony

King Tony 9TY145-015 User manual

King Tony 9TY153 User manual

King Tony

King Tony 9TY153 User manual

King Tony 9TYT138 User manual

King Tony

King Tony 9TYT138 User manual

King Tony 9TY138 User manual

King Tony

King Tony 9TY138 User manual

King Tony 9TYE13110AB User manual

King Tony

King Tony 9TYE13110AB User manual

King Tony 9TYN13102AB User manual

King Tony

King Tony 9TYN13102AB User manual

King Tony 9TY145-004A-B User manual

King Tony

King Tony 9TY145-004A-B User manual

King Tony 9TYT133 User manual

King Tony

King Tony 9TYT133 User manual

Popular Jack manuals by other brands

Arcan A20018 manual

Arcan

Arcan A20018 manual

Sealey 3290CX instructions

Sealey

Sealey 3290CX instructions

Sealey 300ETJ.V2 instruction manual

Sealey

Sealey 300ETJ.V2 instruction manual

ULTIMATE SPEED 322261 1901 Operation and safety notes

ULTIMATE SPEED

ULTIMATE SPEED 322261 1901 Operation and safety notes

Sealey RJA2500 instructions

Sealey

Sealey RJA2500 instructions

Clarke STRONG-ARM CHDDWD Operation and maintenance instruction

Clarke

Clarke STRONG-ARM CHDDWD Operation and maintenance instruction

Pkm PRO Jack Workshop manual

Pkm

Pkm PRO Jack Workshop manual

ATD Tools ATD-7433 Operating instructions & parts manual

ATD Tools

ATD Tools ATD-7433 Operating instructions & parts manual

JJ JJ-10/920 user manual

JJ

JJ JJ-10/920 user manual

Urrea 2465 User manual and warranty

Urrea

Urrea 2465 User manual and warranty

EXTOL PREMIUM 80110 Translation of the original user manual

EXTOL PREMIUM

EXTOL PREMIUM 80110 Translation of the original user manual

Clarke CTJ2500SUV Operation & maintenance instructions

Clarke

Clarke CTJ2500SUV Operation & maintenance instructions

AIRSLED LiftCart owner's manual

AIRSLED

AIRSLED LiftCart owner's manual

Chicago Pneumatic CP81020 Operator's manual

Chicago Pneumatic

Chicago Pneumatic CP81020 Operator's manual

VEVOR EJ3550B manual

VEVOR

VEVOR EJ3550B manual

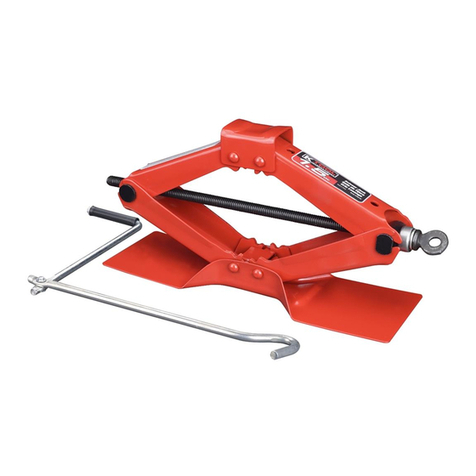

K-Tool KTI63100 owner's manual
