Kingsman Fireplaces Marquis Series User manual

Installation Instructions
Model Numbers MDV31
Multi-Sided Vented Gas Fireplace Heaters
Certified to: ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
Model MDV31 Series - MDVR31N, MDVR31NE, MDVR31NE2, MDVL31N, MDVL31NE, MDVL31NE2, MDVR31LP, MDVR31LPE,
MDVR31LPE2, MDVL31LP, MDVL31LPE, MDVL31LPE2
For Propane Horizontal installations the venting
must be a minimum of one foot vertical off the
flue before going horizontal.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: [phone]
Printed in Canada September 6, 2019
Part # 31-MAN17
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certified kit is
used.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL.

Table of Contents
Cover......................................................................................................................................................................
1
Table of Contents....................................................................................................................................................
2-3
Pre-installation Questions and Answers / Operations and Maintenance Instructions.............................................
4
Safety Screen Installation.......................................................................................................................................
5
Warnings, Installations and Operations - Installation Regulations..........................................................................
6
Installation Requirements for the Commonwealth of Massachusetts / Carbon Monoxide (CO) Detector..............
7
INSTALLATION & FRAMING
Fireplace Installations in Covered Outdoor Locations............................................................................................
8
Locating your Appliance / Unit Dimensions - With Louvers....................................................................................
9
Framing Corner L/H & R/H Installation Instructions - Louvered Unit Only..............................................................
10-11
Framing See-Thru Installation Instructions - Louvered Unit Only...........................................................................
12-13
See Through With CVCK -Dimensions- Enclosures..............................................................................................
14
See-Through With CVCK -Installation-...................................................................................................................
15
Framing and Facing Requirements.........................................................................................................................
16
MDV31 –How to Install Clean View Kit (Z36CVCK)..............................................................................................
17
Framing Peninsula Installation Instructions - Louvered Unit Only..........................................................................
18-19
Low Profile Enclosures - Louvered Unit Only.........................................................................................................
20
Clearances –MDV31 –Mantels & Surrounds........................................................................................................
21
Mantel Leg Clearances –MDV31...........................................................................................................................
22
Accessories and Options
Fan Kit Installation..................................................................................................................................................
23
Split Receptacle- Fan Speed Control Outside of Fireplace....................................................................................
24
Door and Grill Installation.......................................................................................................................................
25
LOGC31 Placement Guidelines for Model MDV31.................................................................................................
26-27
MQRSP7 Rock Support Platform and MQROCK1 for Models MDV31...................................................................
28-29
Brick Panel Installation............................................................................................................................................
30
Burner System
Burner and Valve Removal Instructions.................................................................................................................
31
Gas Line Installation / General Glass Information..................................................................................................
32
Millivolt System, Lighting, and Burner Control........................................................................................................
33
Burner System Maintenance...................................................................................................................................
34
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace.........................................
35
Conversion Kit Instructions –PART A....................................................................................................................
36
Gas Conversion –Part A –MDV31.........................................................................................................................
37
Gas Conversion for Top Convertible Pilot (Series 019065X) –PART B.................................................................
38
Gas Conversion for Modulator –PART C...............................................................................................................
39
Proflame 1
Overview / Components..........................................................................................................................................
40
Remote Control Operation......................................................................................................................................
41
Proflame 1 Parts List –Standard System...............................................................................................................
42
Configuration #1: Basic Manual HI/LO and Manual ON/OFF Capabilities..............................................................
43
Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities......................................................................
44
Operating the Receiver Without Batteries- Millivolt and Proflame 1.................................................................................
45
Configuration #3: Remote ON/OFF, variable HI/LO, and Fan Capabilities.............................................................
46
Electronic Ignition Lighting Instructions...................................................................................................................
47
Proflame 2
Proflame 2 Parts List...............................................................................................................................................
48
Proflame 2 Module and Remote Control.................................................................................................................
49
Cold Climates –CPI Setting - Proflame 2 Remote Control.....................................................................................
50
Proflame 2 Remote Control....................................................................................................................................
51-52
Proflame 2 Label Diagram................................................................................................................................................
53
2

Venting
Vent Terminal Clearances......................................................................................................................................
54
General Vent Installation…………………………………………………………………………………………………...
55
Horizontal Venting Routes......................................................................................................................................
56-57
Venting Straight Up Through Roof………………………………………………………………………………………...
58-59
Approved for Power Vent PVH58 / PVH58FM........................................................................................................
60
Parts Lists
Replacement Parts.................................................................................................................................................
61-63
PVH58 Parts List…………………………………………………………………………………………………………….
64
Parts List for Models MDV31..................................................................................................................................
65-66
Glass Safety / Termination Cap Safety...................................................................................................................
67
Troubleshooting
Troubleshooting the Gas Control System...............................................................................................................
68
Warranty
Limited Lifetime Warranty………………………………………………………………………………………………......
69
3

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors using a fireplace glass cleaner.
Babies, small children, pregnant women and pets should leave the area during the cure phase.
Ventilate well, open doors and windows.
Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odor at first. This is due to the curing of the paint, adhesives, silicones and
any undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g.
marble, tile and the adhesives used to adhere this product to the walls can react with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off (if a fan
is present) after the curing of the paint has been completed. These odours can last upward to 40 hours of burn time; keep
burning at a minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
It is also normal for the fan to make some noise when it comes on. This noise can be reduced somewhat by turning down
the speed of the fan with the variable speed control. Be aware, however, that this will reduce the volume of heated air
circulated into the room by the fan.
Note to the Installer:
Be sure appliance is working properly and its operation (including remote control operation, if included) is fully explained
to and understood by the customer.
Operations and Maintenance Instructions
For safe installation and operation note the following:
Be sure to read and understand all the instructions in this manual before operation of appliance.
Ensure all wiring is correct and properly enclosed to prevent possible shock.
Check for gas leaks.
Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
Make sure venting and termination cap are installed and unobstructed.
If brick or porcelain liners are used, ensure they are installed.
Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
Venting systems should be periodically examined by a qualified agency.
The flow of combustion and ventilation air must not be obstructed.
The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner
areas. See Log Placement page to remove logs. Vacuum burner parts and replace logs.
Never use your gas fireplace as a cooking device.
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
Areas in and around the Chase Vent Openings should be cleaned annually.
4

Safety Screen Installation Z Series
Screen with Side & Horizontal Angles
Hook Lower Clip onto glass door frame.
Press down and push upper clip under top glass door frame.
Contents of Kit:
[1] Safety Screen
[2] Side Angles
[2] Horizontal Angles
[12-16] DT Screws (Depending on screen size)
Assembly: Attach components with supplied
screws as shown.
⚠WARNING:
Wait until unit is COMPLETELY
cool before touching glass or
attempting to install or remove
Child Safety Screens.
To install screens
hook bottom clip
onto glass door
frame, then press
down and push
upper clip under
top glass door
frame, then
release. Clip will
hook onto frame.
To remove
Safety
Screens
WAIT UNTIL
FIREPLACE IS
COMPLETELY
COOL.
Press down on
upper clips and
remove screen
from fireplace
glass door.
TOP VIEW
Upper Clip
Lower Clip
Upper Clip
NOTE: Screens are symmetrical from top to bottom.
CLIPS
Upper Clip
SIDE VIEW
Fireplace with
Screen
5

Warnings, Installations and Operations - Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the
current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the
United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes,
with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product
warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be
removed.
6. Do not strike or abuse glass. Take care to avoid
breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than
factory supplied components.
9. This appliance gives off high temperatures and should
be located out of heavy traffic areas and away from
furniture and draperies.
10. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance and
should stay away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the
house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddlers, young
children and other at risk individuals out of the room
and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood,
paper) be used in this appliance.
13. Under no circumstances should this appliance be
modified. Any parts that have to be removed for
servicing should be replaced prior to operating this
appliance.
14. Any safety screen, guard, or barrier removed for
servicing an appliance must be replaced prior to
operating the appliance.
15. Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control
compartments, burners and circulating air
passageways of the appliance be kept clean. Make
sure that the gas valve and pilot light are turned off
before you attempt to clean this unit.
16. Clothing or other flammable material should not be
placed on or near the appliance. This appliance
should not be used as a drying rack for clothing nor
should Christmas stockings or decorations be hung
from it.
17. Do not use this heater if any part has been under
water. Immediately call a qualified service technician
to inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
18. Do not operate appliance unless completely installed
as per installation instructions.
19. Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
20. WARNING: Do not operate appliance with the
glass front removed, cracked or broken.
Replacement of the glass should be done by a
licensed or qualified service person.
21. The appliance area must be kept clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
22. The front of the fireplace gives off high temperatures
that could ignite combustible material which is kept
close to the front of the unit.
23. Ensure that power to the Fireplace is turned off before
servicing.
24. Do not operate this Fireplace without the glass front or
with a broken glass.
25. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency, or the gas
supplier.
26. Operation of this appliance when not connected to a
properly installed and maintained venting system or
tampering with the blocked vent shutoff system can
result in carbon monoxide (CO) poisoning and
possible death.
27. This appliance is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
28. Gas fired appliances may be used only for
supplemental heat and/or decorative purposes and
under no circumstances shall they provide a primary
heat source.
29. This appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
6

Installation Requirements for the Commonwealth of Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the
Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO
detector per the requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of
the vent terminal and the air intake is installed below four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
Be powered by the same electrical circuit as the appliance or equipment such that only one service switch
services both the appliance and the carbon monoxide detector;
Have battery back-up power;
Meet ANSI./UL 2034 Standards and comply with NFPA 720; and
Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527
CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be
used. Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation
instructions shall remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above
the location of vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet
away, and read “Gas Vent Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of
the vent terminal and the air intake is installed above four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall:
Be located in the room that houses the appliance or equipment;
Be either hard-wired or battery powered or both; and
Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-
off valve must be listed and approved by the state of Massachusetts. This is in reference to the state of Massachusetts
state code CMR238.
Carbon Monoxide (CO) Detector
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of
your home. Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.
In USA see local codes.
7

Fireplace Installations in Covered Outdoor Locations
–FOR BASIC MILLIVOLT UNITS ONLY- NO FAN –NO LIGHTS-
Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected
from direct water impingement.
However, all installation clearances in the appliance manual must be observed. Framing, Clearances to
Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. Use supplied Safety Screen.
CAUTION –Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI
Z21.88 –CSA 2.22 or ANSI Z21.50 –CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The
Intertek safety certification will not apply to this installation method. This installation method must be deemed
acceptable by the Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed.
A Minimum sheltering cover
(overhang) of
1/2 the distance from the base
of the fireplace to the ceiling
(base of roofline) is required.
EXAMPLE:
The bottom of the fireplace is 84”
from the ceiling.
Therefore, 42” of sheltering cover
is required above fireplace.
All wiring connections to line
power shall be in accordance
with outdoor requirements of;
-NECA NFPA 70 in the USA
-Canadian Electrical Code, CSA
C22.1 for Canada.
Outdoor Area
(Deck)
Indoor Area
(Living Room)
⚠NOTE: TEMPERED
GLASS WARNING:
Tempered glass is
vulnerable to rapid
and/or extreme changes
in temperature (thermal
shock). Take care to
prevent water from
contacting the fireplace,
especially if it is hot.
NOTE: See-Through Units are
suitable for an outdoor location,
but not on the outside wall of a
house or other structure, as air
flows through both sides of the
fireplace.
Outdoor
Area
42”
84”
96”
12”
Outdoor
Area
42”
84”
96”
12”
Glass
Door
Glass
Door
The Fireplace is not to be operated in
temperatures below freezing (0°C / 32°F).
Glass
Door
8

SEE - THRU UNIT
41.062"
PENINSULA UNIT
38.062"
TOP VIEW 20.687"
TOP VIEW
23.687"
.50"
.50"
CORNER UNIT R/H
38.062"
REAR
VIEW
16.125"
36.125"
16.125"
21.687"
15.50"
36.062"
29.75"
SIDE VIEW
END
VIEW

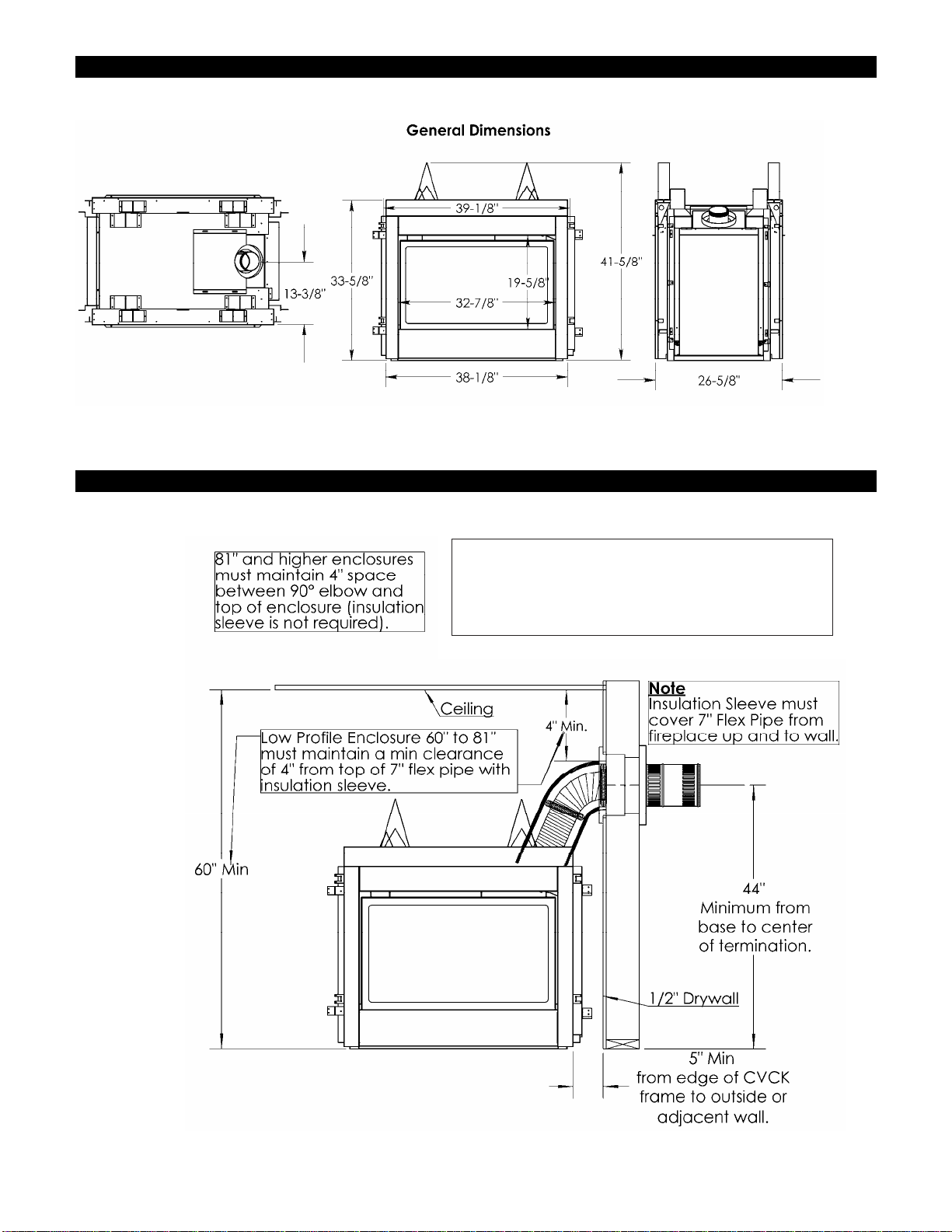

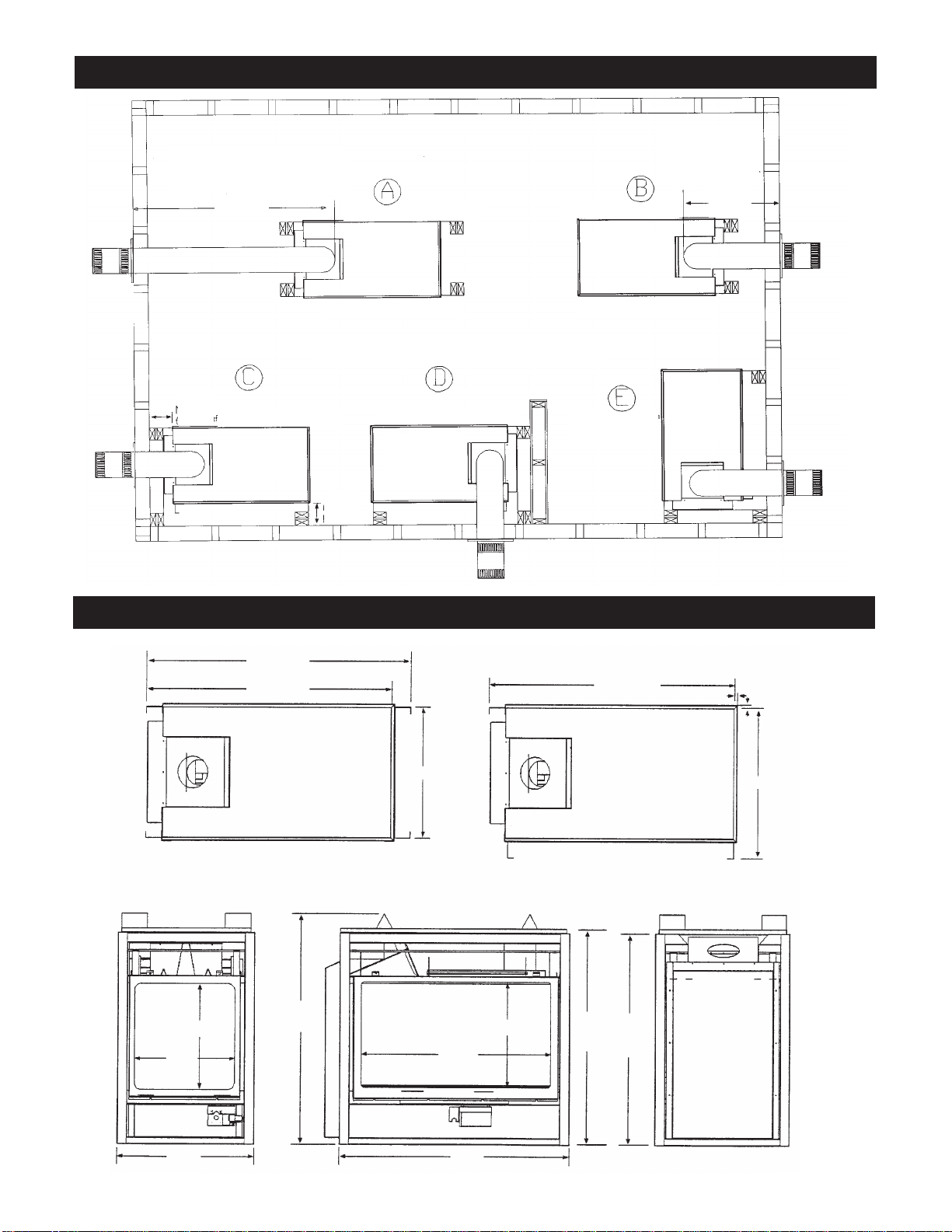

Unit Dimensions - With Louvers
31.875”
32.625”
TOP VIEW
PENINSULA
RIGHT CORNER
TOP VIEW
SEE THRU TOP
VIEW
20'-0"
6.0"
MIN.
MIN.
6.0"
ALL UNITS CAN BE VENTED VERTICAL
MAX. Horizontal Run
With Required Vertical Run
LEFT
CORNERTOP
VIEW
LEFT CORNER TOP
VIEW
MAX.
36.0"
Horizontal Run
With Min. Vertical
Run
RIGHT BURNER SYSTEM
LEFT BURNER SYSTEM
LEFT BURNER
SYSTEM
LEFT BURNER SYSTEM
RIGHT BURNER SYSTEM
RIGHT BURNER SYSTEM
LEFT BURNER SYSTEM
Locating your Appliance
9

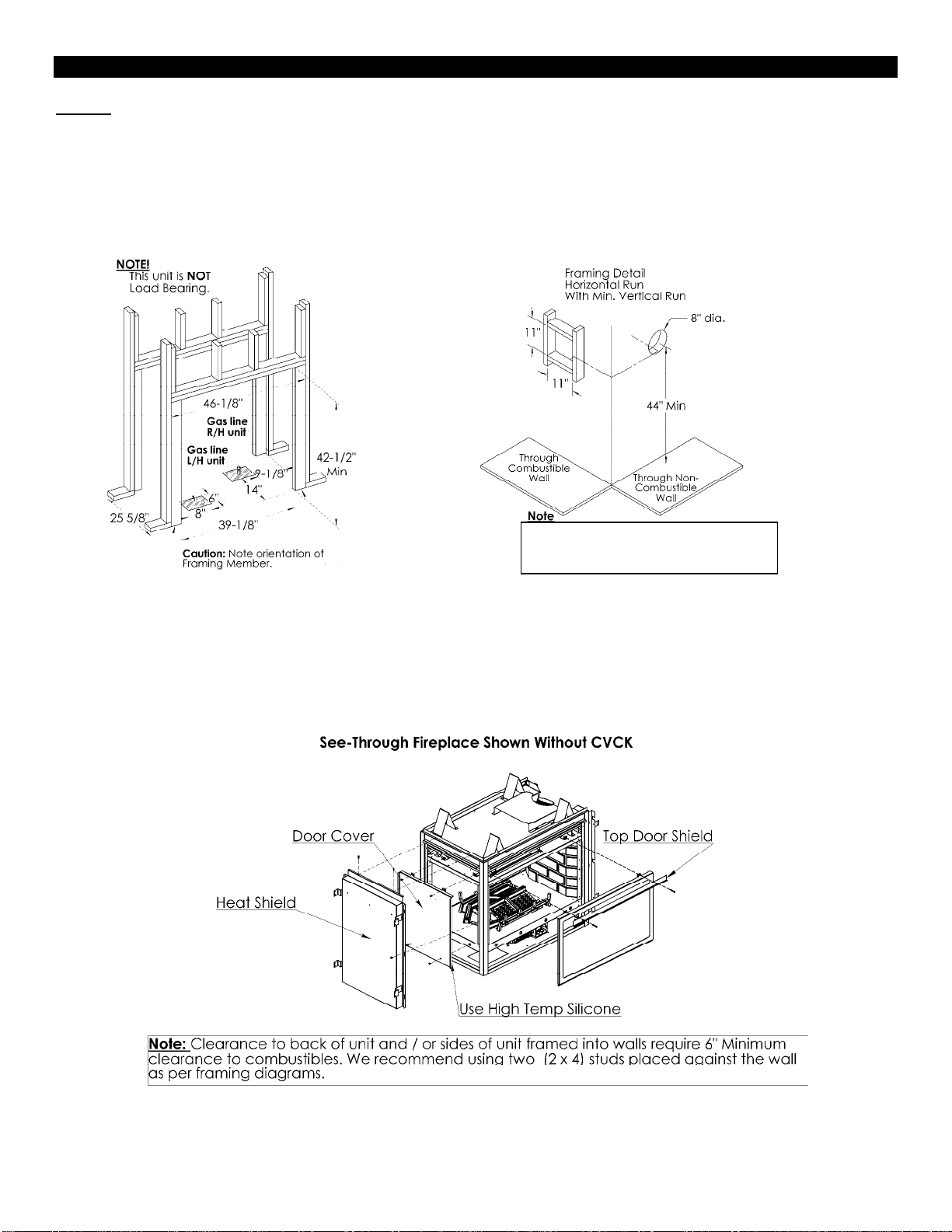

FRAMING
Using 2x4s frame to local building codes.
DO NOT install against aVapour Barrier or Exposed
Insulation.
Framing measurements have been adjusted to
accommodate a 1/2" thick finished wall.FIGURE 1
Combustible materials may be installed flush with
the top and sides of fireplace.
It is not necessary to install a hearth with this
fireplace system.Objects placed in front of the
fireplace should be kept a minimum of 24" away from
the front face.
Fireplace bottom supplies you with two 6"x8"
holes.The use of these holes depends on valve
and Fireplace location on riser or upper floor.

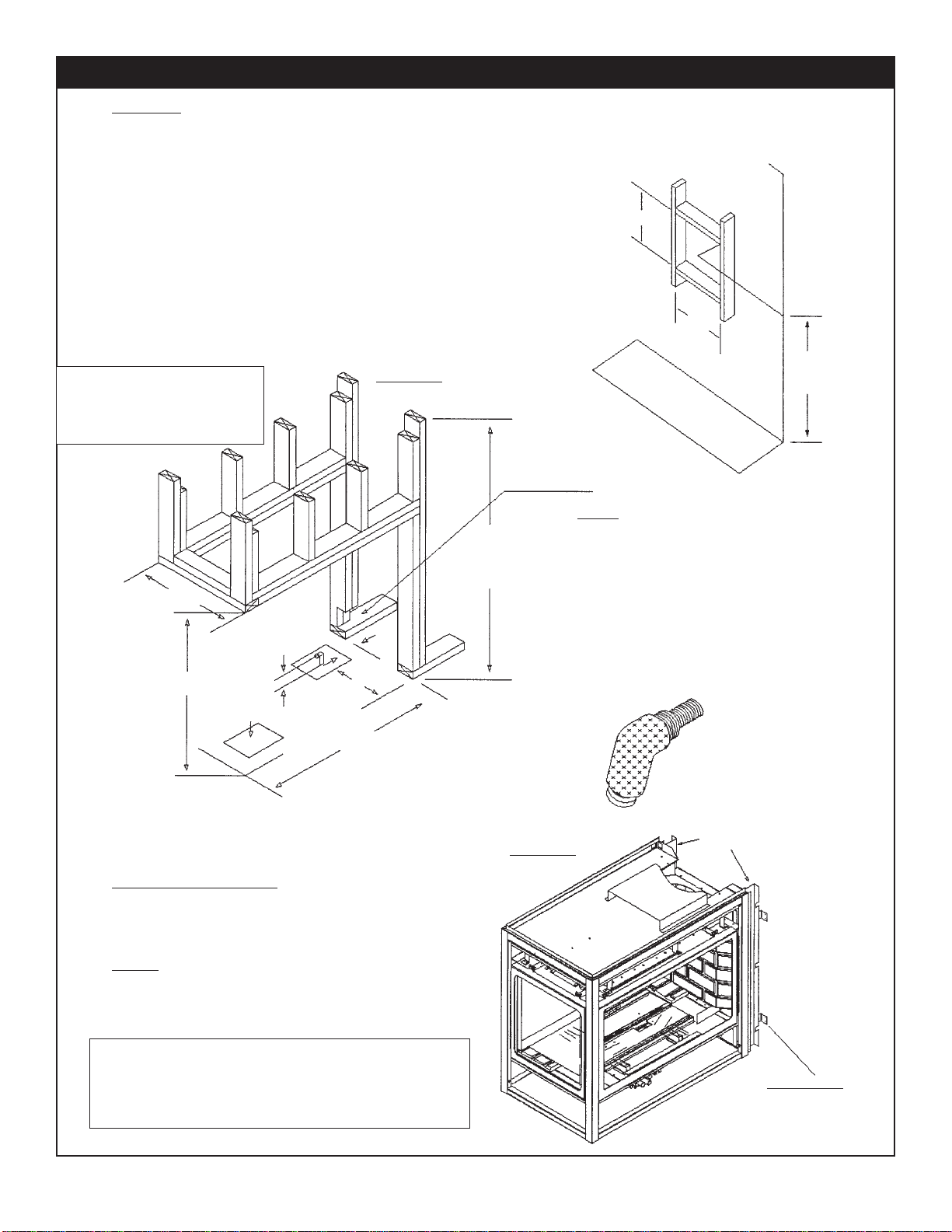

FIREPLACE ASSEMBLY
1. Mount Door Cover Figure #2.First apply a
small bead of High Heat Silicone to door seal.
Mount Door and screw into place, making sure that
Door is properly sealed.
2. Hang Heat Shield on top edge of fireplace,
and secure with self tapping screws.Heat
Shield must be centered allowing a 1/2"
clearance both sides of Fireplace for
finishing material.
3. The heat shield and rear
standoff are equipped with
nailing tabs.Level Fireplace and
nail or screw into place.
NOTE.
For Low Profile Enclosure Refer
to Low Profile Enclosure Section.
R/H FIREPLACE SHOWN
FRAMING DETAIL
THROUGH Combustible WALL
11.0"
11.0"
MIN.
6.5" MIN.
39.0"
MIN.
36.0"
SIDE FLUE
APPLICATION
REAR FLUE
APPLICATION
3.5"TYP.
L/H Framing
Instructions
R/H Framing
Instructions
GAS LINE
R/H UNIT
BOTTOM
ENTRY
2.0" x 3.0"
Notch for
End gas
line entry
37.0" 37.0"
14.5" 6.0"
8.0"
2.5"
7.0"
23.75"
38.125"
4.188"
27.25" 27.25"
38.125"
25.875"
23.75"
42.0"
For Combustible
EnclosureTop.
FIGURE 1
FIGURE 2 REAR STAND OFF
COMPLETE WITH
NAILINGTABS
HEAT
SHIELD
COMPLETE
WITH
NAILING
TABS
DOOR
COVER
HIGH HEAT
SILICONE NAILINGTABS
NOTE: Clearance to back of unit and/or sides of unit
framed into walls require 6”minimum clearance to com-
bustibles. We recommend using two (2 x 4) studs placed
against the wall as per framing diagrams. See
Locating your Appliance for additional information.
Framing Corner L/H & R/H Installation Instructions - Louvered Unit Only
NOTE:The standoffs are non load bearing.
When installing a cabinet, a maximum weight
of 250 lbs can be installed on the 1/2” drywall
lip (located around the perimeter of the appli-
ance).
10

FIGURE 3

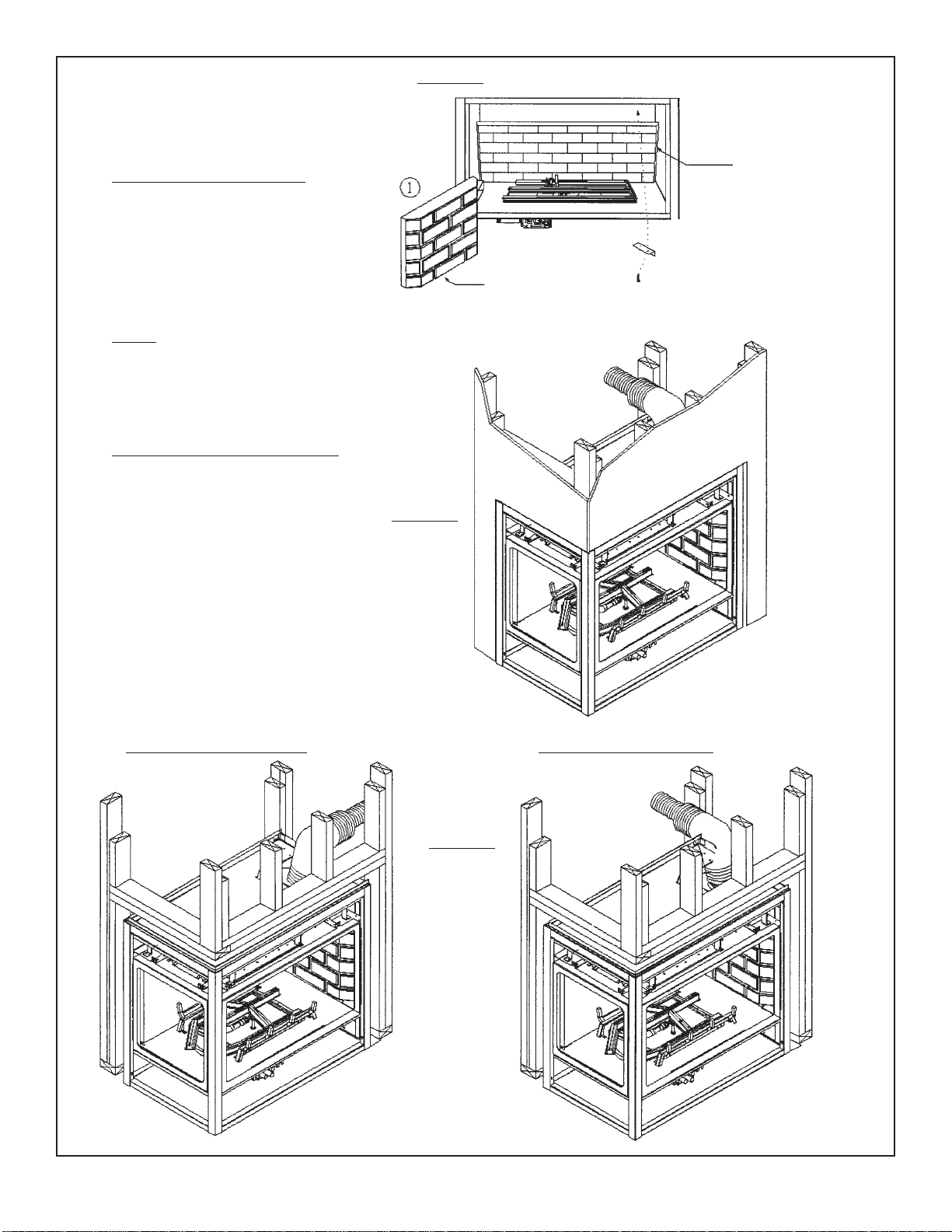

BRICK PANEL INSTALLATION
1. Insert side Brick panel into place,
using Brick retaining clip position and
screw to top of firebox.
2. Install rear Brick panel, brick
retaining clip located at top.
NOTE!
For Log, Crushed Rock and Glowing
Ember installation refer to Log Placement Section.
FACING MATERIAL INSTALLATION
Facing material.Example DRYWALL
may be installed flush with top of
Fireplace.
Side facing to be installed to
standoffs only. FIGURE 4
FIGURE 5
SIDE FLUE INSTALLATION
NOTE!
This UNIT is not
Load Bearing.
REAR FLUE INSTALLATION
NOTE!
This UNIT is not
Load Bearing.
SIDE BRICK
PANEL
REAR BRICK
PANEL
NOTE!
This UNIT is not
Load Bearing.
DRYWALL
BRICK
CLIP
11

FRAMING
Using 2x4s frame to local building codes.
DO NOT install against aVapour Barrier or Exposed
Insulation.
Framing measurements have been adjusted to
accommodate a 1/2" thick finished wall.FIGURE 1
Combustible materials may be installed flush with top
of standoffs and sides of fireplace.
It is not necessary to install a hearth with this
fireplace system.Objects placed in front of the fireplace
should be kept a minimum of 24" away from the front face.
Gas line installation should be performed only after
Fireplace installation.Fireplace bottom supplies you with
two 6"x8" rectangular holes.The use of these holes
depends on valve and Fireplace location on riser or
upper floor.
FRAMING DETAIL
HORIZONTAL RUN
WITH MIN.VERTICAL RUN
THROUGH
COMBUSTIBLE
WALL
NOTE
For Low Profile Enclosure Refer
to Low Profile Enclosure Section.
.
11.0"
11.0"
5.0" MIN.
For Combustible
EnclosureTop
NOTE!
This UNIT is not
Load Bearing
MIN.
36.0"
FIGURE 1
FIGURE 2
SEE-THROUGH FIREPLACE SHOWN
FIREPLACE ASSEMBLY
1. Mount Door Cover Figure #2.First apply a
small bead of High Heat Silicone to door seal.
Mount Door and screw into place, making sure that
Door is properly sealed.
2. Hang Heat Shield on top edge of Fireplace,
and secure with self tapping screws.Heat
Shield must be centered allowing a 1/2"
clearance both sides of Fireplace for
finishing material.
3. The heat shield and rear
standoff are equipped with
nailing tabs.Level Fireplace and
nail or screw into place.
37.0"
2.5"
6.0"
11.062"
41.125"
20.625"
GAS LINE
R/H UNIT
BOTTOM
ENTRY
2.0" X 3.0"
NOTCH FOR
END GAS
ENTRY
GAS LINE
L/H UNIT
REAR STAND OFFS
COMPLETE WITH
NAILINGTABS
DOOR
COVER
HIGHTEMP
SILICONE
NAILINGTABS
HEAT
SHIELD
COMPLETE
WITH
NAILING
TABS
NOTE: Clearance to back of unit
and/or sides of unit framed into walls
require 6” minimum clearance to
combustibles. We recommend
using two (2 x 4) studs placed
against the wall as per framing dia-
grams. See - Locating your
Appliance, for additional information.
Framing See-Thru Installation Instructions - Louvered Unit Only
12

FACING MATERIAL INSTALLATION
Facing material.Example DRYWALL
may be installed Flush with top of
Fireplace.
Side facing to be installed to
standoffs only.
NOTE!
This UNIT is not
Load Bearing
Gyprock
Gyprock
DRYWALL
13

See Through With CVCK -Dimensions-
Note: When CVCK is used, a CVCK Kit must be installed on Both sides of the unit.
See Through With CVCK -Enclosures-
For Propane Horizontal Installations the venting
must be a minimum of one foot vertical off the flue
before the elbow on any horizontal runs of one foot
or greater. This allows for cleaner combustion and
greatly reduces carboning and cleaning of glass.
Does not apply to Back Flue models).
14

-See-Through With CVCK Installation-
Framing
(The following method assumes that framing is in place before the unit is installed.)
Using 2x4’s, frame to local building codes. DO NOT install against a Vapor Barrier or Exposed Insulation.
Framing measurements have been adjusted to accommodate a ½” thick finished wall. Combustible materials may be installed flush with
the top and sides of the installed CVCK Kits.( “Framing and Facing Requirements” Section.)
It is not necessary to install a hearth with this fireplace system. Objects placed in front of the fireplace should be kept a minimum of 24”
away from the front face.
Gas line installation should be performed only after fireplace installation. Fireplace bottom supplies you with two 6” x 8” rectangular
holes. The use of these holes depends on valve and fireplace location on riser or upper floor.
Fireplace Assembly
1. Mount Door Cover. First apply a bead of High Heat Silicone to door seal. Mount Door Cover and screw into place, making
sure that door is properly sealed.
2. Hang Heat Shield on top edge of fireplace; secure with self-tapping screws. Heat Shield must be centered, allowing a
½” clearance both sides of fireplace.
3. Top Door Shield should be installed on both sides of unit when the doors are installed.
4. Place unit inside framing and center. You are now ready to install CVCK Kits onto unit (See “How to Install Clean View
Kit” section).Gas line and electrical connections (blower fan, etc.) should be performed at this time.
5. Once the unit (with CVCK Kits) is installed into Framing, Facing Material may be installed (See “Framing and Facing
Requirements” Section).
For Low Profile Enclosure Refer to
“See Through With CVCK -Enclosures-“
Section.
See “Locating Your Appliance” Section for additional information.
15

Framing and Facing Requirements
See Through with CVCK (Clean View Circulating Kit)
Note: When CVCK is used, a CVCK Kit must be installed on Both sides of the unit.
16

MDV31 – How to Install Clean View Kit (Z36CVCK)
Caution: When using CVCK do not install Louver Assembly.
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
NOTE: When using the Clean View Kit (CVCK) and installing optional electrical components (i.e. Remote
Controls, variable speed control, and or fan modules) locate them in the Clean View access area, unless
other shielding devices like our IPI Component box is used.
1. Install optional Fan Kit (See Fan instructions).
2. Fold the tall 8” standoffs up into position and mount them with the supplied screws.
3. Bend the center tab on the four [4] Nailing Tabs 90° as shown below. These tabs are the standoffs for the side
Framing.
4. Place CVCK inside Fireplace door opening and, using the four [4] supplied #6 screws, fasten the CVCK to the inside
posts of the appliance.
5. Using ten [10] DT screws, install the Top Heat Shield to the upper inside portion of the CVCK. A side cut-view is
provided to illustrate how the shield is installed. It is recommended that the Leading Edge Screws be installed before
the side screws.
6. Position the appliance inside the Framing and secure it using the nailing tabs on the CVCK. Ensure that the Framing
does not exceed the standoffs bent in Step 2. Furthermore, it is recommended that the fireplace be fastened to the
floor with 4 screws as well.
7. The CVCK Kit is supplied with two [2] valve extension knobs. Align the notches and slide the extensions onto the
valve knobs.
8. DO NOT brick or tile beyond the inside area of the CVCK Kit to allow for removal of the door and ventilation.
NOTE: ADDITIONAL ACCESS FOR GASLINE INSTALLATION AND FAN ELECTRICAL INSTALLATION! When CVCK is installed
in framing, remove the four [4] screws from the bottom panel. Once screws are removed, bottom panel can be removed to access
gas valve and fan system.
17

FRAMING
Using 2x4s frame to local building codes.
DO NOT install against aVapour Barrier or Exposed
Insulation.
Framing measurements have been adjusted to
accommodate a 1/2" thick finished wall.FIGURE 1
Combustible materials may be installed flush with top
and sides of fireplace.
It is not necessary to install a hearth with this
fireplace system.Objects placed in front of the fireplace
should be kept a minimum of 24" away from the front face.
Gas line installation should be performed only after
Fireplace installation.Fireplace bottom supplies you with
two 6"x8" rectangular holes.The use of these holes
depends on valve and Fireplace location on riser or upper
floor.
NOTE
Low profile enclosure 42.0" to 52.0"
must maintain a minimum clearance of
2" from top of 7.0" flex pipe and
insulation sleeve to bottom of combustible
enclosure top.Insulation sleeve
must be installed so that it covers 7.0"
flex pipe from fireplace up and to wall
sleeve.
Refer to Low Profile Enclosure Section
for additional information.
FRAMING DETAIL
HORIZONTAL RUN
WITH MIN.VERTICAL RUN
MIN.
36.0"
FIGURE 1
THROUGH
COMBUSTIBLE
WALL
11.0"
11.0"
42.0" MIN.
For Combustible
EnclosureTop
INSULATION
SLEEVE
NAILINGTABS
REAR STAND OFFS
COMPLETE WITH
NAILINGTABS
2.5"
6.0"
11.062"
38.125"
37.0"
20.625"
GAS LINE
R/H UNIT
BOTTOM
ENTRY
2.0" X 3.0"
NOTCH FOR
END GAS
LINE ENTRY
GAS LINE
L/H UNIT
FIGURE 2
FIREPLACE ASSEMBLY
Rear standoffs are equipped with
nailing tabs.Level Fireplace nail or screw
into place.
NOTE!
For Log, Crushed Rock and Glowing Ember
installation refer to Log Placement Section.
NOTE: Clearance to back of unit and/or sides of unit
framed into walls require 6” minimum clearance to com-
bustibles. We recommend using two (2 x 4) studs placed
against the wall as per framing diagrams. See
Locating your Appliance, for additional information.
Framing Peninsula Installation Instructions - Louvered Unit Only
NOTE:The standoffs are non load
bearing.When installing a cabinet, a
maximum weight of 250 lbs can be
installed on the 1/2” drywall lip (located
around the perimeter of the appliance).
18

FACING MATERIAL INSTALLATION
Facing material.Example DRYWALL
may be installed Flush with top of
Fireplace.
Side facing to be installed to
standoffs only.
DRYWALL
19

52.0" REQUIRES INSULATION SLEEVE
2.0"
34.0"
52.0"
42.0"
1/2" Gyprock
36.0"
MINIMUM FROM
BASE TO
CENTER OF
TERMINATION
MIN. LOW PROFILE
ENCLOSURES REQUIRES
INSULATION SLEEVE
NOTE
INSULATION SLEEVE MUST
COVER 7.0" FLEX PIPE FROM
FIREPLACE UP AND TO WALL.
SLEEVE FOR LOW PROFILE
ENCLOSURES MAXIMUM 34.0".
LOW PROFILE ENCLOSURE
42.0" TO 52.0" MUST MAINTAIN
A MINIMUM CLEARANCE OF
2.0" FROMTOP OF 7.0" FLEX
PIPE AND INSULATION SLEEVE.
52.0" AND HIGHER ENCLOSURE
MUST MAINTAIN 4.0" ABOVE 7.0"
FLEX PIPE WITHOUT INSULATION
SLEEVE.
NOTE
WITH USING DURA-VENT
PIPE AND ADAPTER MINIMUM
HEIGHT OF 52.0" MUST BE
MAINTAINED FOR PROPER
CLEARANCES. INSULATION
SLEEVE IS NOT REQUIRED.
THIS WILL LEAVE A 4.0"
MINIMUM CLEARANCE TO
COMBUSTIBLE TOP.
For Propane Horizontal Installations the venting
must be a minimum of one foot vertical off the flue
before the elbow on any horizontal runs of one foot
or greater. This allows for cleaner combustion and
greatly reduces carboning and cleaning of glass.
Does not apply to Back Flue models).
NOTE: Clearance to back of unit and/or sides of unit
framed into walls require 6” minimum clearance to com-
bustibles. We recommend using two (2 x 4) studs placed
against the wall as per framing diagrams. See -
Locating your Appliance, for additional information.
Low Profile Enclosures - Louvered Unit Only
20
