Kino Flo DIV-LX20U User manual

Quick Start Guide
Diva-Lite LED 20U/30U
Part No. 3100119 Rev B 05-01-2021
(True Match Firmware 5.0)
®
(RDM)

2
Diva-Lite LED DMX Fixture
LVR-SL290-P
Diva-Lite 20 Louver/HP, 90° (Included)
LVR-SL390-P
Diva-Lite 30 Louver/HP, 90° (Included)
DIV-LX30U
Diva-Lite 30 LED DMX, Univ
MTP-LBC
Kino 41 Lollipop w/ Baby Receiver Curve (16mm)
(Included)
Included w/ Diva-Lite LED Models
DIV-LX20U
Diva-Lite 20 LED DMX, Univ

3
Diva-Lite 20 LED DMX Kits
KIT-DL20XBU
Diva-Lite 20 LED DMX Kit, Univ w/ Soft Case
Kit Contents: Dimensions:
1 Diva-Lite 20 LED Fixture 31 x 7.5 x 18”
1 Soft Case (79 x 19 x 46cm)
Weight:
19.5 lb
(9kg)
KIT-DL20XU
Diva-Lite 20 LED DMX Kit, Univ w/ Travel Case
Kit Contents: Dimensions:
1 Diva-Lite 20 LED Fixture 28.5 x 8.5 x 19.5”
1 Travel Case (72 x 22 x 49.5cm)
Weight:
26 lb
(12kg)
KIT-DL22XU
Diva-Lite 20 LED DMX Kit, Univ (2-Unit)
w/ Flight Case
Kit Contents: Dimensions:
2 Diva-Lite 20 LED Fixture 22.5 x 16 x 33.5”
1 Flight Case (57 x 41 x 85cm)
Weight:
58 lb
Diva-Lite 20 LED
DMX Kit w/ Soft Case
Diva-Lite 20 LED
DMX Kit
Diva-Lite 20 LED
DMX Kit (2-Unit)
w/ Flight Case

4
Diva-Lite 30 LED DMX Kits
KIT-DL30XBU
Diva-Lite 30 LED DMX Kit, Univ w/ Soft Case
Kit Contents: Dimensions:
1 Diva-Lite 30 LED Fixture 42.5 x 7.5 x 16.5”
1 Soft Case (108 x 19 x 42cm)
Weight:
23 lb
(10kg)
KIT-DL30XU
Diva-Lite 30 LED DMX Kit, Univ w/ Flight Case
Kit Contents: Dimensions:
1 Diva-Lite 30 LED Fixture 46 x 11 x 16.5”
1 Flight Case (117 x 28 x 42cm)
Weight:
43 lb
(19.5kg)
Diva-Lite 30 LED
DMX Kit w/ Soft Case
Diva-Lite 30 LED
DMX Kit w/ Flight Case

5

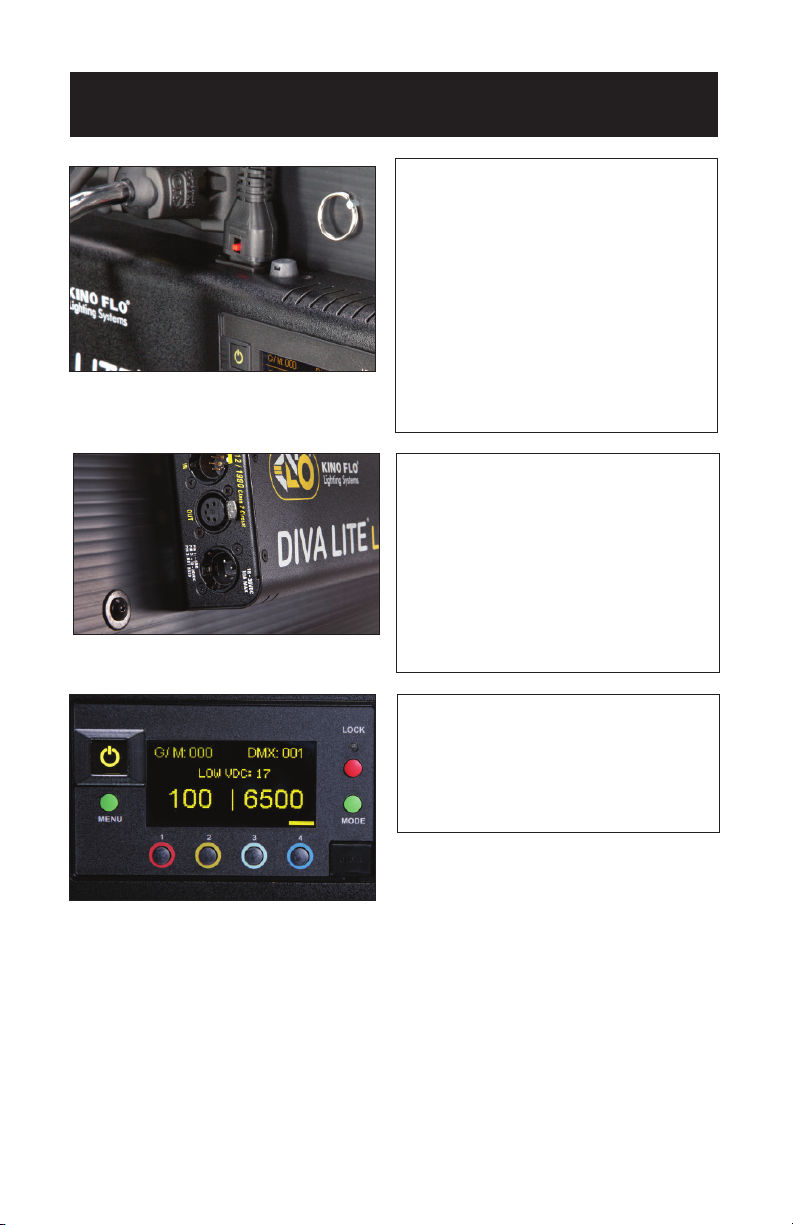

Power
DC Input
The Diva-Lite LED can also be
operated on 24VDC (input range
18-36VDC) through a 3-Pin XLR.
The pin polarity is:
Pin # 1 – Ground
Pin # 2 + 18-36VDC
Pin # 3 not used
AC Input
The Diva-Lite LED includes a built-in
power supply with universal input
from 100-240VAC. It also includes
a 12ft power cord with a locking IEC
connector.
Ambient Operating Temperature
The Diva-Lite LED is designed to
operate at temperatures from
14°F to 104°F (-10°C to 40°C).
Note:
A low voltage warning will display
if input DC voltage is under 18VDC.
Photo example: LOW VDC: 17

6
ABCD E F G H
Control Panel - White Mode
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls
the light source.
B) Menu: Provides access to menu options such as General settings, Reset,
DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
C) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and
6500K. G/M default value is 000. User can also use these preset buttons to
store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and Control knob.
Press for 3 seconds to restore displayed presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
G) Data Port: Mini B USB for irmware updates.
H) Control Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the Control knob to toggle between Fine and Coarse increments or
when selecting options within menus.
DMX Note: Each LED Fixture has an “AUTO TERMINATE” feature. The last
ixture that does not have an XLR cable attached to the DMX “Out” port will
automatically terminate.

7

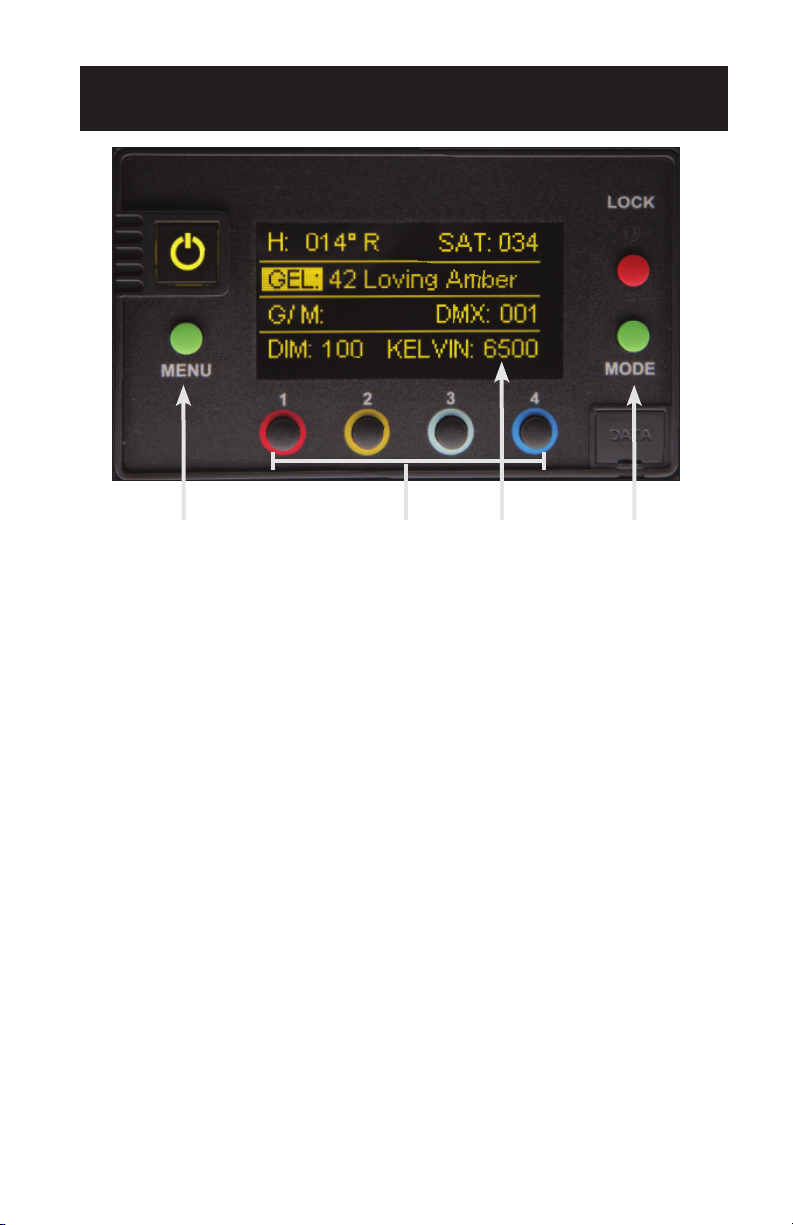

Control Panel - Gels/Hue Mode
A DCB
A) Menu:
Provides access to menu options such as General settings (Gels/Hue Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to store
custom Kelvin between 2500K and 9900K and custom G/M, Gel, Hue and
Saturation settings.
C) Display:
Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and
DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K,
G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation settings.
When on the Gel function, pushing the Control knob in/out will apply the gel or
remove the gel. When in sub-menus, pressing Mode always returns you to
main display. When DMX is applied, use Mode to access DMX channel on
main display. Shortcut Tip: Long press will bring you back one step.
Gels/Hue Mode

A) Menu:
Provides access to menu options such as General settings (RGB Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to
store custom Kelvin between 2500K and 9900K and custom G/M, and
RGB settings.
C) Display:
Provides access to Dim, Kelvin, G/M, RGB and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, RGB settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
A DCB
Control Panel - RGB Mode
RGB Mode
8

9
CIE xy Mode
Control Panel - CIE xy
A) Menu:
Provides access to menu options such as General settings (CIE xy mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold or 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
User can also use these preset buttons to store custom xy settings.
C) Display:
Provides access to Dim, CIE xy coordinates and DMX Channel.
Factory reset will show: Dim = 10%, x = 0.460 , y = 0.411, G/M = 000,
DMX = 001.
D) Mode:
Press to navigate from Dim to xy settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied,
use Mode to access DMX channel on main display. Shortcut: Long press
will bring you back one step.
DA C
B

10

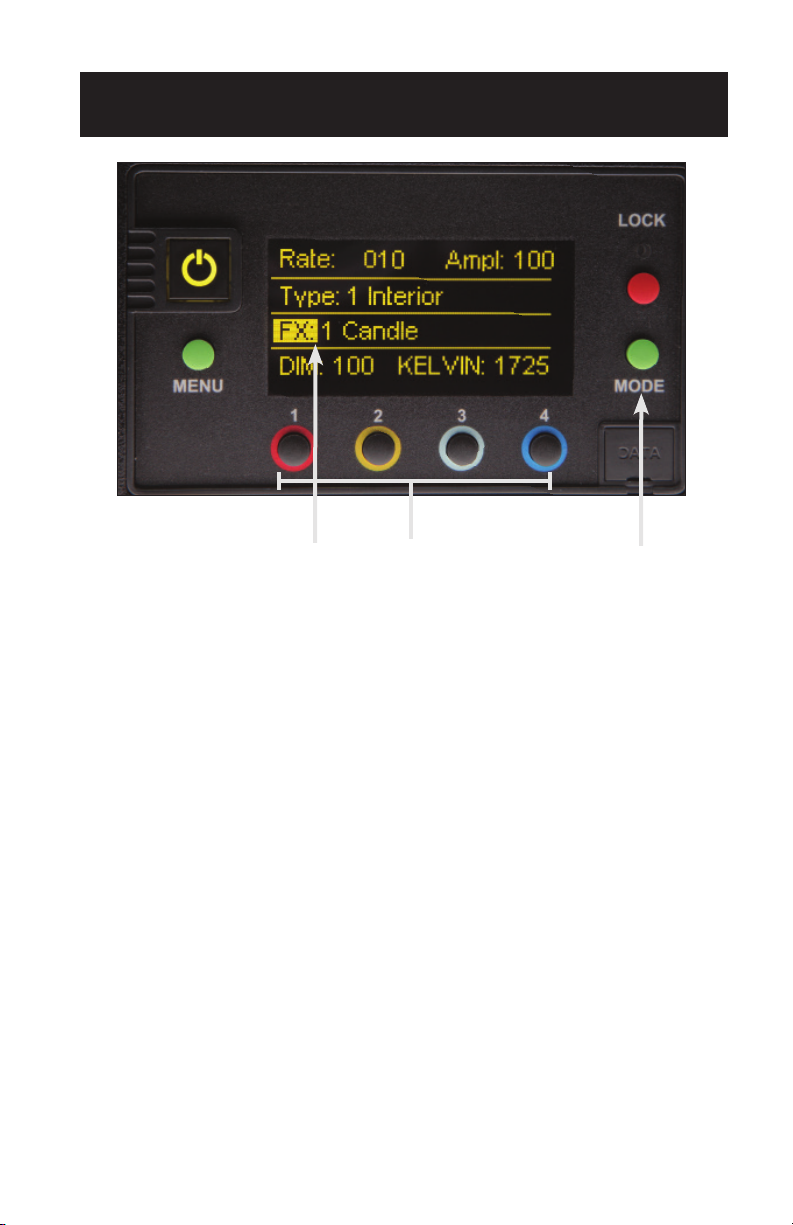

FX mode provides access to effects including Candle, Fire, TV, Police, Lightning,
Paparazzi, Pulse and Scroll. Candle mode used as an example:
A) FX Option:
Choose the desired FX Mode by rotating the control knob. When on the
desired effect, there will be several pre-programed effects as well as control
parameters that can be altered.
B) Preset Buttons:
In FX Mode, Kelvin custom settings and any control functions displayed such
as Rate and Amplitude (Ampl) can be saved as a preset. Chosen values can
be assigned to any preset button by holding down the desired button for
3 seconds. The Kelvin display will lash once the setting is registered.
To restore presets to default factory settings, choose Reset under General
settings and Clear Presets. This method will reset all buttons in all Modes.
Shortcut: If only want to clear presets for Candle Mode, hold Lock button
for 3 seconds while Candle mode is displayed.
C) Mode:
Press to navigate from Dim to Kelvin and FX settings.
Shortcut: Long press will bring you back one step.
FX (Effects) Mode
Control Panel - FX (Effects)
A C
B

The Camera LUT (Look-up Tables) feature harmonizes the Kino Flo light
sources to the camera. Depending on the camera and the Kelvin setting,
some differences are very subtle, while others can be more dramatic.
The corrections are applied as a CIE xy correction at each CCT (Kelvin) setting.
The default setting is targeting the CIE xyz response (human eye).
Press the green menu button to the left of the display screen and scroll down to
Camera LUT, then press the control knob. Menu with camera selection will be
displayed. Turn the control knob and press to select camera setting:
C1 Arri Alexa
C2 Sony Venice
C3 Panavision DXL
C4 Panasonic Varicam
The camera code (C1 for Arri Alexa), for example, will appear on the main menu
between DIM and CCT to designate that a camera setting is active.
Note: When the controller is reset, the camera settings will go to Kino Flo
Default mode.
11
Camera LUT

12
Color Space

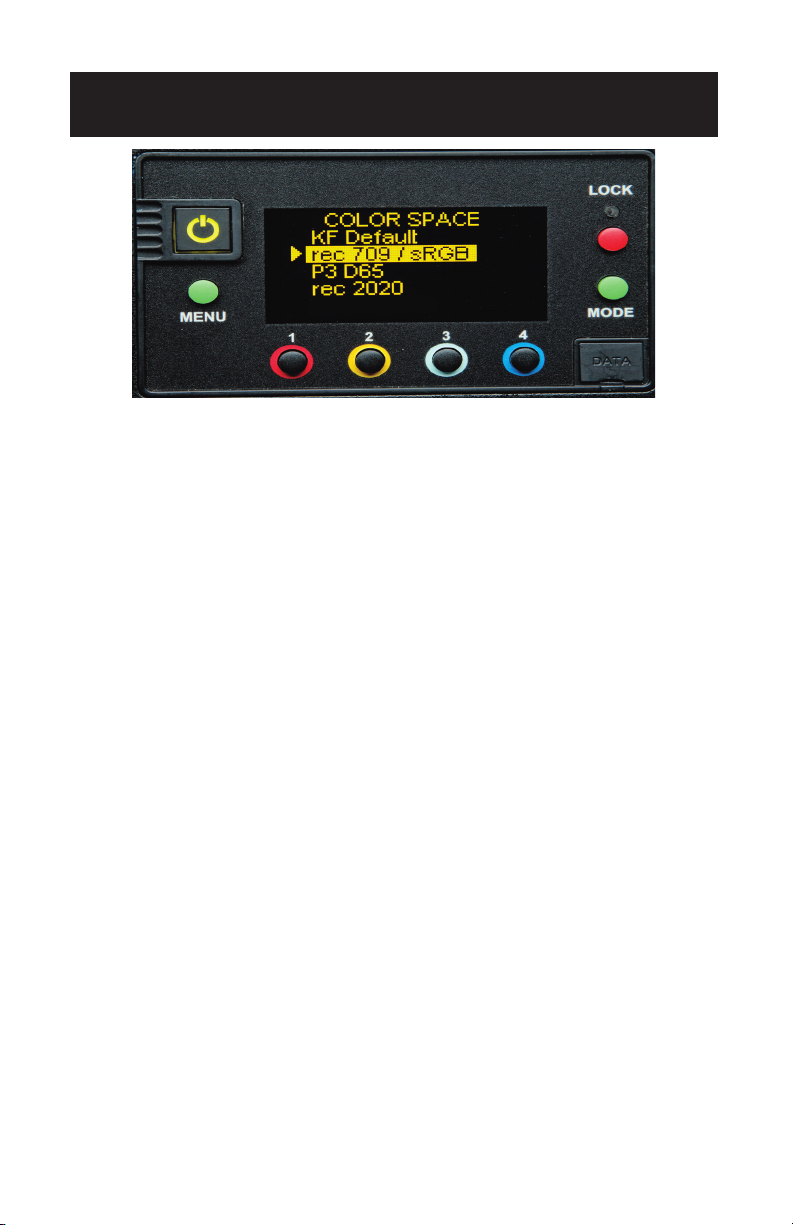

Color Space deines the RGB color space used and only affects color – not Kelvin.
It is used in RGB mode and Hue Angle and Saturation. There are a few instances
in the FX (Effects) mode that are also affected when color is used. The RGB
color space deines the value of Red, Green, and Blue primaries (in CIE xy) and
the white point is ixed at 6500 Kelvin.
Press the green menu button to the left of the display screen and scroll down
to Color Space, then press the control knob. Menu with color selection will be
displayed. Turn the control knob and press to select Color Space options:
rec 709 / sRGB
P3 D65
rec 2020
The color space rec 709 / sRGB is commonly used on computer monitors, SDTV
and HDTV television. There are slight gamma variations between rec 709 / sRGB,
but not enough to separate into 2 color spaces.
The color space P3 D65 is a common color space for digital movie projection.
The color space rec 2020 is used in ultra high deinition television (UHDTV).
The color space is used when the controller is set to the RGB mode and when set to
the Hue Angle/ Saturation mode.
In RGB mode – the color space designation will be displayed at the top of the menu.
When changing the Red, Blue or Green values, the Kelvin will be locked in at 6500 for
all color spaces. When the Kelvin is locked in, CCT will be displayed as CCT*.
When using Green/Magenta the CCT value is unlocked and color space selection
has no impact.
In Hue Angle/Saturation mode – the color space designation will be displayed on
the Gel line and GEL will be displayed as GEL* and CCT will be displayed as CCT*.
The Color space will be displayed only when Hue Angle and Saturation are being
used. When using Green/Magenta or Gel, the CCT will be unlocked and color space
selection has no impact.

13
DIV-L20XU Diva-Lite 20 LED DMX, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC,0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 14.5 lb (6.5kg)
Dimensions: 25 x 13 x 6”
(63.5 x 33 x 15cm)
DIV-L30XU Diva-Lite 30 LED DMX, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC,0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 17 lb (8kg)
Dimensions: 39 x 10.5 x 6”
(99 x 27 x 15cm)
Diva-Lite LED Fixture Speciications
Diva-Lite LED 20
DMX
Diva-Lite LED 30
DMX

14
FCC Part 15 Veriication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
KINO FLO, INC
Diva-Lite 20 LED, Diva-Lite 30 LED
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that
this product shall not be treated as household waste. This
product is made of recyclable materials and should be disposed
of in accordance with governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinolo.com
The light source of this luminaire is not replaceable; when the light source reaches
its end of life the whole luminaire shall be replaced. The luminaire is intended for
professional use only.
For full operation manual, latest Warranty information and Certiications,
see Kino Flo website at www.kinolo.com.
